IHDT56NH2CDMA / GSM TRANSCEIVER WITH BT & WLAN

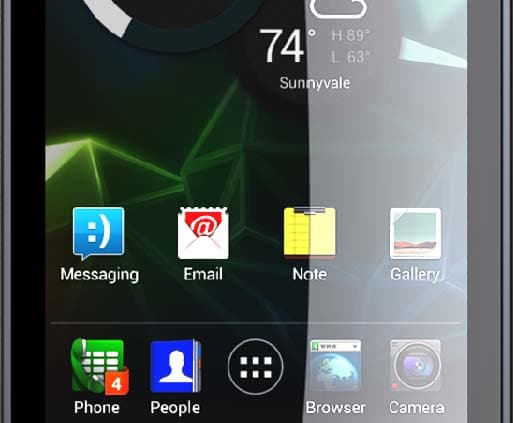

EN This product meets the applicable SAR limits of 1.6 W/kg (FCC & IC) and 2.0 W/kg (ICNIRP). The limits and guidelines include a substantial safety margin designed to assure the safety of all persons, regardless of age and health. The highest SAR values measured for this device are listed in the regulatory information packaged with your product. Note: When using the product while worn on your body, either use an approved accessory such as a holster or maintain a distance of 2.5 cm (1 inch) from the body to ensure compliance with SAR requirements. Note that the product may be transmitting even if you are not making a phone call. At a glance Introducing your new MOTOROLA RAZR™ V, the slim, fast, and intelligent phone. It has tons of advanced features for everything you want to do—web browsing, multimedia, and more. Use this guide to get started, then see “Want more?” to get all the help you need. Note: Certain apps and features may not be available in all countries. 4:00 4:00 Fri, February 10 Camera PeopleMessaginggggggggggggggggggggggggggggggggggggggPhone Micro USB Connector SIM Slot microSD Slot 3.5mm Headset Jack Volume Keys 8MP Camera (on back) Recent Apps Home Back Front Camera Power Key Press = sleep Hold = power Notification Light Start Let’s get you up and running. Note: To avoid SIM card damage, turn off your phone before you insert or remove the SIM card. Caution: Before assembling, charging, or using your phone for the first time, please read the important safety, regulatory and legal information provided with your product. 4:00 4:00 Fri, February 10 Service Provider microSD in.m 2 ov Charge up. 3H C 3 Note: Pull up the cover to insert the SIM and microSD cards. This product uses a non-removable battery. 10000 Note:Pull up the micro SIMmicro SIM + Adapter SIM in.S 1 SIM Set up & go Note: This phone supports apps and services that use a lot of data, so make sure your data plan meets your needs. Contact your service provider for details. Tip: In the unlikely event that your device becomes unresponsive, try a forced reboot—press and hold both the Power key and the down volume key for up to 10 seconds. 4:00 4:00 Fri, February 10 Service Provider Select a language.S 2 Welcome English SSeeeerrrvvvic Complete initial setup steps. C 3 Setup Connection failed Finish.Fi 4 arryyyyy 10 3 Turn on.T 1 Start Setup Congratulations! Your setup is now complete! Done If you have setup any accounts, we will now import your content, such as contacts and email. This may take up to 30 minutes but you can start using your phone right away. We recommend setting a Security Lock for this phone by going into Settings > Location & security. Home SCREEN & apps The home screen is what you see when you turn on the phone or touch Home from a menu. To see all of your apps, just touch Apps. Want more? No problem. To download more apps, touch Apps > SHOP4APPS. Tip: Choose your apps carefully, from trusted sites like, SHOP4APPS as some may impact your phone’s performance. 4:00 4:00 Fri, February 10 Camera PeopleMessaging gggggg Phone Browser WWW. Status Bar Shortcuts Touch to open. Notifications Drag this bar down to see details. Flick left or right to see more panels of widgets & shortcuts. Favorites Tray Touch Apps to see all your apps & widgets. y Navigate Back , Home & Recent Apps . Photos & Videos View all of your photos and your friends’ photos/videos from different media sites, touch Apps > My Gallery. Add comments to others’ photos, and see comments that others have posted. 4:00 My libraryOnline Camera roll FriendsMotoCast Add photos and videos to your device with MotoCast richi Uploa Yester richie Uploaded a ph Yesterday richie Uploaded a photo Yesterday See your online albums (like Picasa, Flikr, or Facebook). Share your photos & videos. Stream media from your computer with MotoCast. See your captured photos & videos. Sort your photos & videos. Open options. Want more? More help, more accessories, more free stuff. We’re here to help. •Updates: Phone updates, PC software, user’s guides, online help, and more at www.motorola.com/support. •Accessories: Find more for your phone at www.motorola.com/products. •Social: The latest news, tips & tricks, videos, and so much more—join us on: YouTube™ www.youtube.com/motorola Facebook™ www.facebook.com/motorola Twitter www.twitter.com/motomobile. 2012.05.01 FCC Regulatory Information For Your Safety Before assembling, charging or using your mobile device for the first time, please read the important product safety and legal information provided with your product. Specific Absorption Rate (FCC & IC) SAR (IEEE) YOUR MOBILE DEVICE MEETS FCC AND IC LIMITS FOR EXPOSURE TO RADIO WAVES. Your mobile device is a radio transmitter and receiver. It is designed not to exceed the limits for exposure to radio waves (radio frequency electromagnetic fields) adopted by the Federal Communications Commission (FCC) and Industry Canada (IC). These limits include a substantial safety margin designed to assure the safety of all persons, regardless of age and health. The radio wave exposure guidelines use a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit for mobile devices is 1.6W/kg. Tests for SAR are conducted using standard operating positions with the device transmitting at its highest certified power level in all tested frequency bands. The highest SAR values under the FCC and IC guidelines for your device model are listed below: During use, the actual SAR values for your device are usually well below the values stated. This is because, for purposes of system efficiency and to minimize interference on the network, the operating power of your mobile device is automatically decreased when full power is not needed for the call. The lower the power output of the device, the lower its SAR value. If you are interested in further reducing your RF exposure then you can easily do so by limiting your usage or simply using a hands-free kit to keep the device away …

Text truncated - open the document above for the full version.

Safe, Smart, Protected 2012.04.18 FCC 2012.04.18 FCC 1Product Safety & Legal Product Safety & Legal Battery Use & Safety Battery Use & Safety The following battery use and safety information applies to all Motorola mobile devices. If your mobile device uses a non-removable main battery (as stated in your product information), details related to handling and replacing your battery should be disregarded—the battery should only be replaced by a Motorola-approved service facility, and any attempt to remove or replace your battery may damage the product. Important: Handle and store batteries properly to avoid injury or damage. Most battery safety issues arise from improper handling of batteries, and particularly from the continued use of damaged batteries. DON’Ts • Don’t disassemble, crush, puncture, shred, or otherwise attempt to change the form of your battery. • Don’t use tools, sharp objects, or excessive force to insert or remove the battery as this can damage the battery. • Don’t let the mobile device or battery come in contact with liquids.* Liquids can get into the mobile device’s circuits, leading to corrosion. • Don’t allow the battery to touch metal objects. If metal objects, such as jewelry, stay in prolonged contact with the battery contact points, the battery could become very hot. • Don’t place your mobile device or battery near a heat source.* High temperatures can cause the battery to swell, leak, or malfunction. • Don’t dry a wet or damp battery with an appliance or heat source, such as a hair dryer or microwave oven. DOs • Do avoid leaving your mobile device in your car in high temperatures.* • Do avoid dropping the mobile device or battery.* Dropping these items, especially on a hard surface, can potentially cause damage.* • Do contact your service provider or Motorola if your mobile device or battery has been damaged in any of the ways listed here. * Note: Always make sure that any battery, connector and compartment covers are closed and secure to avoid direct exposure of the battery to any of these conditions, even if your product information states that your mobile device can resist damage from these conditions. 2012.04.18 FCC 2Product Safety & Legal Important: Motorola recommends you always use Motorola-branded batteries and chargers for quality assurance and safeguards. Motorola’s warranty does not cover damage to the mobile device caused by non-Motorola batteries and/or chargers. To help you identify authentic Motorola batteries from non-original or counterfeit batteries (that may not have adequate safety protection), Motorola provides holograms on its batteries. You should confirm that any battery you purchase has a “Motorola Original” hologram. If you see a message on your display such as Invalid Battery or Unable to Charge, take the following steps: •Remove the battery and inspect it to confirm that it has a “Motorola Original” hologram; •If there is no hologram, the battery is not a Motorola battery; •If there is a hologram, replace the battery and try charging it again; •If the message remains, contact a Motorola authorized service center. Warning: Use of a non-Motorola battery or charger may present a risk of fire, explosion, leakage, or other hazard. Proper and safe battery disposal and recycling: Proper battery disposal is not only important for safety, it benefits the environment. You can recycle your used batteries in many retail or service provider locations. Additional information on proper disposal and recycling can be found at www.motorola.com/recycling Disposal: Promptly dispose of used batteries in accordance with local regulations. Contact your local recycling center or national recycling organizations for more information on how to dispose of batteries. Warning: Never dispose of batteries in a fire because they may explode. Battery Charging Battery Charging Notes for charging your product’s battery: • During charging, keep your battery and charger near room temperature for efficient battery charging. •New batteries are not fully charged. •New batteries or batteries stored for a long time may take more time to charge. •Motorola batteries and charging systems have circuitry that protects the battery from damage from overcharging. Third Party Accessories Use of third party accessories, including but not limited to batteries, chargers, headsets, covers, cases, screen protectors and memory cards, may impact your mobile device’s performance. In some circumstances, third party accessories can be dangerous and may void 032375o 2012.04.18 FCC 3Product Safety & Legal your mobile device’s warranty. For a list of Motorola accessories, visit www.motorola.com/products Driving Precautions Responsible and safe driving is your primary responsibility when behind the wheel of a vehicle. Using a mobile device or accessory for a call or other application while driving may cause distraction, and may be prohibited or restricted in certain areas—always obey the laws and regulations on the use of these products. While driving, NEVER: • Type, read, enter or review texts, emails, or any other written data. •Surf the web. •Input navigation information. •Perform any other functions that divert your attention from driving. While driving, ALWAYS: • Keep your eyes on the road. •Use a handsfree device if available or required by law in your area. •Enter destination information into a navigation device before driving. •Use voice activated features (such as voice dial) and speaking features (such as audible directions), if available. •Obey all local laws and regulations for the use of mobile devices and accessories in the vehicle. •End your call or other task if you cannot concentrate on driving. Remember to follow the “Smart Practices While Driving” at www.motorola.com/callsmart (in English only). Seizures, Blackouts & Eyestrain To reduce eyestrain and avoid headaches, it is always a good idea to hold the screen a comfortable distance from your eyes, use in a well-lit area, and take…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA MOBILITY, INC. FCC ID: IHDT56NH2 Motorola Mobility, Inc.; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 2 - 1 Exhibit 2. Statements of Certification -- Pursuant to 47 CFR 2.907 2.1. Specification Compliance Transceiver type described herein (IHDT56NH2) has been tested in accordance with the requirements contained in the appropriate Commission regulations. To the best of my knowledge, these tests were performed using measurement procedures consistent with industry or Commission standards, and demonstrate that this equipment complies with the appropriate standards. Each unit manufactured, imported, or marketed will conform to the samples tested herein, within the statistical variations that can be expected due to high volume production and test measurement error. NAME: Name Bun Choi SIGNATURE: /s/ Name Bun Choi DATE: Apr 27, 2012 TITLE: Engineering Manager 2.2. Statement of Certification I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in this application and accompanying technical data are true and correct. The technical data supplied with this application was taken under my supervision and is hereby duly certified. I also certify that this transmit equipment (IHDT56NH2) is in compliance with all applicable parts of the FCC Rules. NAME: John Lewczak SIGNATURE: DATE: Date TITLE: Engineering Manager, Product Safety and Compliance APPLICANT: MOTOROLA MOBILITY, INC. FCC ID: IHDT56NH2 Motorola Mobility, Inc.; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 2 - 2 2.3. Attestation Statement (Equipment Class DTS and DSS - Bluetooth/Wi-Fi) This device contains an embedded Bluetooth device, and Wi-Fi device that Motorola Mobility confirms are compliant with the applicable Part 15C regulations. Personal Hotspot operation is only supported in the 2.4 GHz band. 15.247(a)(1) • The hopping sequence must be pseudorandom. • All Channels are used equally on average. • The receiver input bandwidth is approximately equal to the transmit bandwidth. • The receiver hops in sequence with the transmitted signal. 15.247(g) The system is designed to comply with all of the regulations in Section 15.247 when the transmitter is presented with a continuous data (or information). 15.247(h) The system does not coordinate its channel selection/hopping sequence with other frequency hopping systems for the express purpose of avoiding the simultaneous occupancy of individual hopping frequencies by multiple transmitters. NAME: Name Bun Choi SIGNATURE: /s/ Name Bun Choi DATE: Apr 27, 2012 TITLE: Engineering Manager APPLICANT: MOTOROLA MOBILITY, INC. FCC ID: IHDT56NH2 Motorola Mobility, Inc.; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 2 - 3 2.4. Power Reduction Implemented Transceiver type described herein (IHDT56NH2) has power reduction implemented for the wireless modes and operating combinations as illustrated in the table below. This is to ensure SAR compliance when the handset is in personal hotspot mode. Operating Mode Power Reduction (dB) Mobile Hotspot – Part 22H GPRS 3.0 Mobile Hotspot – Part 24E GPRS 3.0 Mobile Hotspot – Part 22H CDMA 3.0 Mobile Hotspot – Part 24E CDMA 3.0 NAME: Name Bun Choi SIGNATURE: /s/ Name Bun Choi DATE: Apr 27, 2012 TITLE: Engineering Manager

APPLICANT: MOTOROLA MOBILITY, INC. FCC ID: IHDT56NH2 Motorola Mobility, Inc.; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 7A - 1 Exhibit 7A. KDB Publication and Inquiry Registry Applicable to this Application. 7.1 Registry of KDB Publications Applied to this Application. APPLICANT: MOTOROLA MOBILITY, INC. FCC ID: IHDT56NH2 Motorola Mobility, Inc.; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 7A - 2 7A.1 Registry of KDB Publications Applied to this Application 7A.1.1 Applicable KDB Publications The following KDB Publications were applied in the collection of test data, and the generation of test reports and other exhibits comprising this application: KDB Publication Title KDB 248227 D01, v 01r02 SAR Measurement Procedures for 802.11 a/b/g Transmitters KDB 388624 D01, v09r01 Permit But Ask Procedure. KDB 388624 D02, v10 Permit But Ask List. KDB 450824 D01, v01r01 SAR Probe Calibration and System Verification Considerations for Measurements at 150 MHz – 3 GHz. KDB 450824 D02, v01 Dipole Requirements for SAR System Validation and Verification. KDB 558074 D01, v01 Guidance for Performing Compliance Measurements on Digital Transmission Systems (DTS) Operating Under §15.247. KDB 594280 D01, v01r01 Restrictions on Software Configuration for devices not approved as Software Defined Radios. KDB 628591 D01, v12r02 TCB Exclusion List. KDB 648474 D01, v01r05 SAR Evaluation Considerations for Handsets with Multiple Transmitters and Antennas. KDB 648474 D02, v01r01 Review and Approval Policies for SAR Evaluation of Handsets with Multiple Transmitters and Antennas. KDB 662911 D01, v01r01 Emissions Testing of Transmitters with Multiple Outputs in the Same Band (e.g., MIMO, Smart Antenna, etc). KDB 784748 D01, v07 Guidelines for Labeling and User Information for Devices Subject to Part 15 and Part 18. KDB 865664, Rev 1.1 SAR Measurement Requirements for 3 – 6 GHz. KDB 941225 D01, v02 SAR Tests for 3G Devices. KDB 941225 D02, v02v01 3GPP R6 HSPA and R7 HSPA+ SAR Guidance. APPLICANT: MOTOROLA MOBILITY, INC. FCC ID: IHDT56NH2 Motorola Mobility, Inc.; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 7A - 3 KDB Publication Title KDB 941225 D03, v01 Recommended SAR Test Reduction Procedures for GSM/GPRS/EDGE. KDB 941225 D04, v01 Evaluating SAR for GSM/(E)GPRS Dual Transfer Mode. KDB 971168 D01, v01 Procedures for Compliance Measurement of the Fundamental Emission Power of Licensed Wideband (> 1 MHz) Digital Transmission Systems. 7A.1.2 Variations and/or Exceptions to the Procedures in the Published KDBs. Motorola Mobility has taken no liberties with respect to the procedures published in the above KDB documents. We claim full compliance with these procedures.

APPLICANT: MOTOROLA MOBILITY, INC. FCC ID: IHDT56NH2 Motorola Mobility, Inc.; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 13a - 1 13 April 2012 Authorization & Evaluation Division Federal Communications Commission Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Subject: Application for Certification of transmitter with FCC ID: IHDT56NH2, PCS (CDMA/GSM) Handsets, with W-Fi and Bluetooth. Gentlemen; Motorola Mobility, Inc.; 8000 W. Sunrise Blvd.; Plantation, FL 33322 herein submits its application for certification of the multi-mode handset with FCC ID: IHDT56NH2. The primary transceiver in this composite device operates in the 850 MHz Public Mobile Service (PMS) and the 1900 MHz Personal Communications Service (PCS). It supports CDMA and GSM signaling, and employs EVDO/EDGE data transmission capabilities. Note: This device also contains functions, and operates within frequency bands, that are not authorized within the United States or its territories. This filing is only applicable to supported US operations. This radio product is also equipped with a Wi-Fi (802.11b/g/n) transceiver. Wi-Fi supports both voice and data for short range wireless communications. The Wi-Fi Band of Operation is in the 2.4 GHz ISM band. The Wi-Fi device complies with the requirements of 15.247, 15.205, and 15.209 (b). This radio product is also equipped with a Bluetooth (BT) transceiver. BT supports both voice and data for short range wireless communications. The Bluetooth Band of Operation is 2.4 - 2.4835 GHz (1 MHz channel bandwidth). The Bluetooth device complies with the requirements of FCC Rule Parts 15.247, 15.205 and 15.209 (b). All transmitters contained in this radio product have been subjected to routine environmental evaluation (as applicable) according to 47 CFR Part 2.1093 (c) for RF exposure and found to be compliant with the limits specified in 47 CFR 2.1093(d)(2). This radio product features an integrated GPS receiver, and is designed to function as a computer peripheral device when functioning as an RF modem, while connected to a computer via a data cable, as described in 47 CFR Part 15.3(r). A Part 15B test report is included for certification. APPLICANT: MOTOROLA MOBILITY, INC. FCC ID: IHDT56NH2 Motorola Mobility, Inc.; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 13a - 2 Enclosed is a complete Certification Application. Contact me at (954) 723-6272 if you require any additional information. Regards, FCC Liaison Motorola Mobility, Inc. 8000 W. Sunrise Blvd.; Suite A Mail Stop 52-5JJ Plantation, FL 33322 E-mail: [email protected]

FCC ID: IHDT56NH2 Motorola Mobility, Inc.; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 13b - 1 CONFIDENTIALITY REQUEST 6 April 2012 Federal Communications Commission Laboratory Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request Regarding Application for Certification of FCC ID: IHDT56NH2. Dear Sir or Madam: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby respectfully request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Block Diagrams. IHDT56NH2_Ex_04 (Block Diagrams).pdf Schematic Diagrams. IHDT56NH2_Ex_05 (Schematic Diagrams).pdf Parts List and Tune Up Procedures. IHDT56NH2_Ex_10 (Active Components).pdf Transmitter Characteristics. IHDT56NH2_Ex_12 (TX Characteristics).pdf Motorola Mobility, Inc. requests that these exhibits be held as Permanently Confidential, and not be made routinely available for public inspection. Motorola considers that the information in these exhibits should be classified as trade secrets, pursuant to 47 CFR Section 0.457(d) and Section 552(b)(4) of the Freedom of Information Act. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Motorola Mobility, Inc. understands that, pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. FCC ID: IHDT56NH2 Motorola Mobility, Inc.; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 13b - 2 SHORT TERM ONFIDENTIALITY REQUEST – 180 DAYS Pursuant to the Commission’s public notice DA 04-1705 (June 15, 2004), Motorola Mobility, Inc. is also requesting Temporary Confidentiality treatment of information accompanying this application as outlined below. This provision will give Motorola Mobility, Inc. temporary confidentiality prior to product launch. Exhibit Type File Name External product photographs. IHDT56NH2_Ex_03 (External_Photos).pdf Test set-up photographs. IHDT56NH2_Ex_07d (SAR Test Set- up_Details).pdf IHDT56NH2_Ex_07 (Part 15//22/24 Test Set- up_Details).pdf User’s Manual. IHDT56NH2_Ex_08 (User Guide).pdf Internal product photographs. IHDT56NH2_Ex_09 (Internal Photos).pdf Please contact me if you require any additional information. Regards, FCC Liaison Motorola Mobility, Inc. 8000 W. Sunrise Blvd.; Suite A Mail Stop 52-5JJ Plantation, FL 33322 E-mail: [email protected]

APPLICANT: MOTOROLA MOBILITY, INC. FCC ID: IHDT56NH2 EXHIBIT 3 1 of 2 Front of Phone Back of Phone APPLICANT: MOTOROLA MOBILITY, INC. FCC ID: IHDT56NH2 EXHIBIT 3 2 of 2 Side of Phone Side of Phone Top of Phone Bottom of Phone

APPLICANT: MOTOROLA MOBILITY, INC. FCC ID: IHDT56NH2 Motorola Mobility, Inc.; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 1 - 1 Exhibit 1: Identification Label -- Pursuant to 47 CFR 2.925 and 2.1033(c)(11) 1.1 Location On the rear (back) side of the radio product chassis, near the lower edge of the device (see also Exhibit 3). 1.2 Type The label will be laser etched into the rear housing of the device. 1.3 Markings (Text) The FCC label shown is representative of the label that will appear on the radio when in production. Figure 1.3.1. Representation of FCC Label information. This label information will be etched onto the equipment as shown below. Other information may also be included on this label, and other labels may also be present. FCC ID: IHDT56NH2 APPLICANT: MOTOROLA MOBILITY, INC. FCC ID: IHDT56NH2 Motorola Mobility, Inc.; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 1 - 2 Figure 1.3.2. Location of FCC Label (position, orientation, and other information shown may vary). Please note that this label and its placement complies with the requirement of FCC Rule 47 CFR 2.925(d) that the label be permanently affixed to the product, and be readily visible to the purchaser at the time of purchase. The product’s Market or Trade Name is indelibly printed on the face of the product, as shown in Exhibit 3. Exhibit 1A: General Information 1A.1 Production Plans Quantity production is planned. 1A.2 Data Submittal Procedure Performance data located in Exhibit 6 are supplied in accordance with the Commission’s rules: 47 CFR Part 2, Subpart J. The intended use of this transceiver includes applications covered in the Code of Federal Regulations Title 47, Part 15, Subparts A, B, and C; Part 22 Subpart H; Part 24 Subparts E. 1A.3 Similar, currently Certified Transceiver FCC ID: IHDP56ME5 Rear Housing FCC Label APPLICANT: MOTOROLA MOBILITY, INC. FCC ID: IHDT56NH2 Motorola Mobility, Inc.; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 1 - 3 1A.4 Additional Considerations In addition to the radio receivers associated with the services authorized within this application, this device integrates a receiver designed to process signals from Global Positioning System satellites. Compliance with FCC requirements was done via the Verification process (47 CFR 2.902). This device may be considered to be a digital device, per 47 CFR 15.3(k), and can function as a computer peripheral device when functioning as an RF modem, as described in 47 CFR 15.3(r). For this reason, a Part 15B test report is included with this application.

APPLICANT: MOTOROLA MOBILITY, INC. FCC ID: IHDT56NH2 EXHIBIT 9 1 of 5 Remove Battery Door BC0 Diversity Antenna GPS Antenna BT/WiFi Antenna Main Antenna APPLICANT: MOTOROLA MOBILITY, INC. FCC ID: IHDT56NH2 EXHIBIT 9 2 of 5 Inside Rear Housing Removed Rear Housing APPLICANT: MOTOROLA MOBILITY, INC. FCC ID: IHDT56NH2 EXHIBIT 9 3 of 5 Rear Housing Only Front Housing Only APPLICANT: MOTOROLA MOBILITY, INC. FCC ID: IHDT56NH2 EXHIBIT 9 4 of 5 Main Board Top Assembly Main Board Top Without Shields APPLICANT: MOTOROLA MOBILITY, INC. FCC ID: IHDT56NH2 EXHIBIT 9 5 of 5 Main Board Bottom Assembly Display Module

MOTOROLA MOBILITY, INC. Portable Cellular Phone SAR Test Report Number: 24967-1F FCC ID: IHDT56NH2 Exhibit 11 Portable Cellular Phone SAR Test Report Tests Requested By: Motorola Mobility, Inc. 600 N. US Highway 45 Libertyville, IL 60048 Test Report #: 24967-1F Date of Report: April 30, 2012 Date of Test: Apr 4, 2012 – Apr 27, 2012 FCC ID #: IHDT56NH2 Generic Name: Test Laboratory: Motorola Mobility, Inc. - ADR Test Services Laboratory 600 N. US Highway 45 Libertyville, IL 60048 Report Author: Katerina Bruggemann Engineer Accreditation: 2404 This laboratory is accredited to ISO/IEC 17025-2005 to perform the following tests: Tests : Procedures: Electromagnetic Specific Absorption Rate IEC 62209-1 RSS-102 IEEE 1528 - 2003 FCC OET Bulletin 65 (including Supplement C) Australian Communications Authority Radio Communications (Electromagnetic Radiation – Human Exposure) Standard 2003 CENELEC EN 50360 ARIB Std. T-56 (2002) On the following products or types of products: Wireless Communications Devices (Examples): Two Way Radios; Portable Phones (including Cellular, Licensed Non-Broadcast and PCS); Low Frequency Readers; and Pagers Statement of Compliance: Motorola declares under its sole responsibility that the portable cellular telephone model to which this declaration relates, is in conformity with the appropriate General Population/Uncontrolled RF exposure standards, recommendations and guidelines (FCC 47 CFR §2.1093) as well as with CENELEC en50360:2001 and ANSI / IEEE C95.1. It also declares that the product was tested in accordance with IEEE 1528 / CENELEC EN62209-1 (2006), as well as other appropriate measurement standards, guidelines and recommended practices. Any deviations from these standards, guidelines and recommended practices are noted below: Motorola’s ISO 17025 accreditation scope does not currently include SAR testing in the 5 GHz band. Therefore, SAR testing performed in this band was performed outside of our ISO 17025 accreditation. The general procedures and guidelines provided within; FCC KDB 248227 D01, FCC KDB 648474 D01, FCC KDB 865664 D01 and IEC 62209-2 were utilized for testing. ©Motorola Mobility, Inc. 2012 This test report shall not be reproduced except in full, without written approval of the laboratory. The results and statements contained herein relate only to the items tested. The names of individuals involved may be mentioned only in connection with the statements or results from this report. Motorola encourages all feedback, both positive and negative, on this test report. MOTOROLA MOBILITY, INC. Portable Cellular Phone SAR Test Report Number: 24967-1F FCC ID: IHDT56NH2 {Rev. 0} Exhibit 11 Page 2 of 28 Table of Contents 1. Introduction ............................................................................................................................................................. 3 2. Description of the Device Under Test .................................................................................................................... 4 2.1 Antenna description ........................................…
