IHDT56NM5MOBILE PHONE

MOTO MT680 MOTOROLA USER MANUAL Device type:MT680 Introduction 1 Introduction HELLOMOTO Your MOTO MT680 is a brand new ultra thin touchscreen cell phone, with cool interface, a huge wear-resistant touch screen, 1GHz processor and high-quality multimedia. You will have a brand new and fascinating user experience. Note:● Certain apps and features may not be available in all countries. ● MT680 looks like a computer. Many of the features, such as software update, global time, email, and etc., require special network features. Using network services involves transmission of data. Before you start to use your phone, apply for a data-flow package from your service provider (The package with billing on time system may charge more.) Some junk information on the internet may lead to the frequent wake of your phone and thus influence the standby time of the battery. Hence, when you are not using data service, deactivate data network through the settings or widgets on the phone to prevent from the unnecessary billings according to flow and the extension of the standby time of your Introduction 2 Introduction 3 phone as well. The actual SAR of this device while operating is typically below the ICNIRP SAR limit 2 W/kg. These guidelines were developed by the independent scientific organization ICNIRP and include safety margins designed to assure the protection of all persons, regardless of age and health. For the SAR data of this product, refer to the Safety, Regulatory and Legal information. Note: To comply with local regulatory requirements concerning exposure of human beings to RF energy, if you wear the mobile device on your body, always place the mobile device in a Motorola-supplied or approved clip, holder, holster, case, or body harness. If you do not use a body-worn accessory supplied or approved by Motorola, keep the mobile device and its antenna at least 2.5 cm (1 inch) from your body when transmitting. Note that even if you don't make a call, your product might receive and transmit RF energy. This user guide introduces the functions, tips and cautions of the device. Read the complete user guide before operating the equipment. Motorola Service Website: http://www.motorola.com.cn/service TEL: 400-810-5050, (021)38784655 Service time: Monday to Sunday: 9am - 8pm. FAX: (010)65668800 If you intend to purchase any Motorola accessory or phone, visit us onhine at www.motostore.com.cn or dial 4006- 123456. Certain mobile phone features are dependent on the capabilities and settings of your service provider’s network. Additionally, certain features may not be activated by your service provider, and/or the provider's network settings may limit the feature’s functionality. Always contact your service provider about feature availability and functionality. Motorola reserves the right to change or modify any information or specifications without notice or obligation. Warning: Any changes or modifications not expressly approved by Motorola could void the user's authority to operate this equipment. 4 Contents Contents Introduction .....................................................................................1 Quick start ......................................................................................5 About this guide ...............................................................................5 Your phone .......................................................................................6 Assemble and charge ......................................................................7 Turn on & off the phone ...................................................................8 Home screen ....................................................................................9 The use of touch screen ................................................................11 Keys ...............................................................................................11 Applications ....................................................................................12 Text entry .......................................................................................12 Tips & tricks....................................................................................13 Settings .........................................................................................15 Calls ..............................................................................................16 Contacts .......................................................................................18 Messaging ....................................................................................19 Multimedia ....................................................................................20 Browser ........................................................................................21 Wireless & Networks ....................................................................22 Troubleshooting ............................................................................23 Specific Absorption Rate (IEEE) ...................................................26 Safety, Regulatory & Legal ...........................................................29 5 Quick start Quick start 快速入门 Warning: Before using the phone for the first time, read the Safety, Regulatory and Legal Information guide included in the box. About this guide Read the guide for the basic functions of the phone. SymbolIndication This means a feature is network, UIM card, or subscription dependent and may not be available in all areas. Contact your service provider for more information. This means a feature requires an optional accessory. 6 7 Quick start Quick start ● The phone provides online update service. You can update your phone at any time. Online update will not influence your personal information and data. You might better backup your contacts and information to SD card before updating. Such service might bring data flow and fees. For specific fees, contact your service provid…

Text truncated - open the document above for the full version.

FCC ID: IHDT56NM5 Motorola Mobility, Inc., 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33022, USA Page 13B - 1 23 February 2012 Authorization of Agent Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 RE: Grantee Code IHD. Authorization: I, John Lewczak, the FCC contact for Grantee Code “IHD,” hereby authorize the following company (agent) to act on behalf of Motorola Mobility, Inc. for the application specified below. This includes: • Form 731, Attestation Statement Exhibit, and Confidentiality Request Signatures. • Technical Contact. • Non-Technical Contact. • Test Firm Contact Information. Notifications of grant issuance should be routed to the applicant of record for Grantee Code “IHD,” as should any audit requests concerning this device. Authorized Agent: Jones Tsai, Sporton International, Inc. No. 52, Hwa Ya 1st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien; Taiwan, R.O.C. Specific Application: FCC ID: IHDT56NM5 Contact Information: Please contact me by telephone at (954) 723-6272, or by e-mail ([email protected]), if there are questions or additional information needed concerning this authorization Regards, FCC Liaison Motorola Mobility, Inc. 8000 W. Sunrise Blvd, Suite A Plantation, FL 33022

Rev. 1/1/03 Sporton International Inc. No.52, HwaYa 1st Rd., Kwei-Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. Tel: 886-3-327-3456 ; Fax: 886-3-328-4978 Date: April 18, 2012 Federal Communications Commission Authorization and Evaluation Division Permanent Confidentiality Request regarding application for certification of FCC ID: IHDT56NM5 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request Permanent Confidential treatment of information accompanying this application as outlined below: Schematics (file: MT680_Schem.pdf) Block Diagram (file: MT680_BlkDia.pdf) Parts List (file: MT680_PartsLst.pdf) Operation Description (file: MT680_OpDes.pdf) Tune up Procedure (file: MT680_TunPro.pdf) The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Sincerely, ________________________ Jones Tsai

1/1 Sporton International Inc. No.52, HwaYa 1st Rd., Kwei-Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. Tel: 886-3-327-3456 ; Fax: 886-3-328-4978 Date: April 18, 2012 Federal Communications Commission Authorization and Evaluation Division RE : Certification Application FCC ID : IHDT56NM5 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 180 days:  External Photos (file: MT680_ExtPho.pdf)  Internal Photos (file: MT680_IntPho.pdf)  Test Setup Photos (file: MT680_Tsup.pdf)  User Manual (file: MT680_UserMan.pdf) The application contains technical information, which Sporton International Inc. deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Sincerely, Jones Tsai

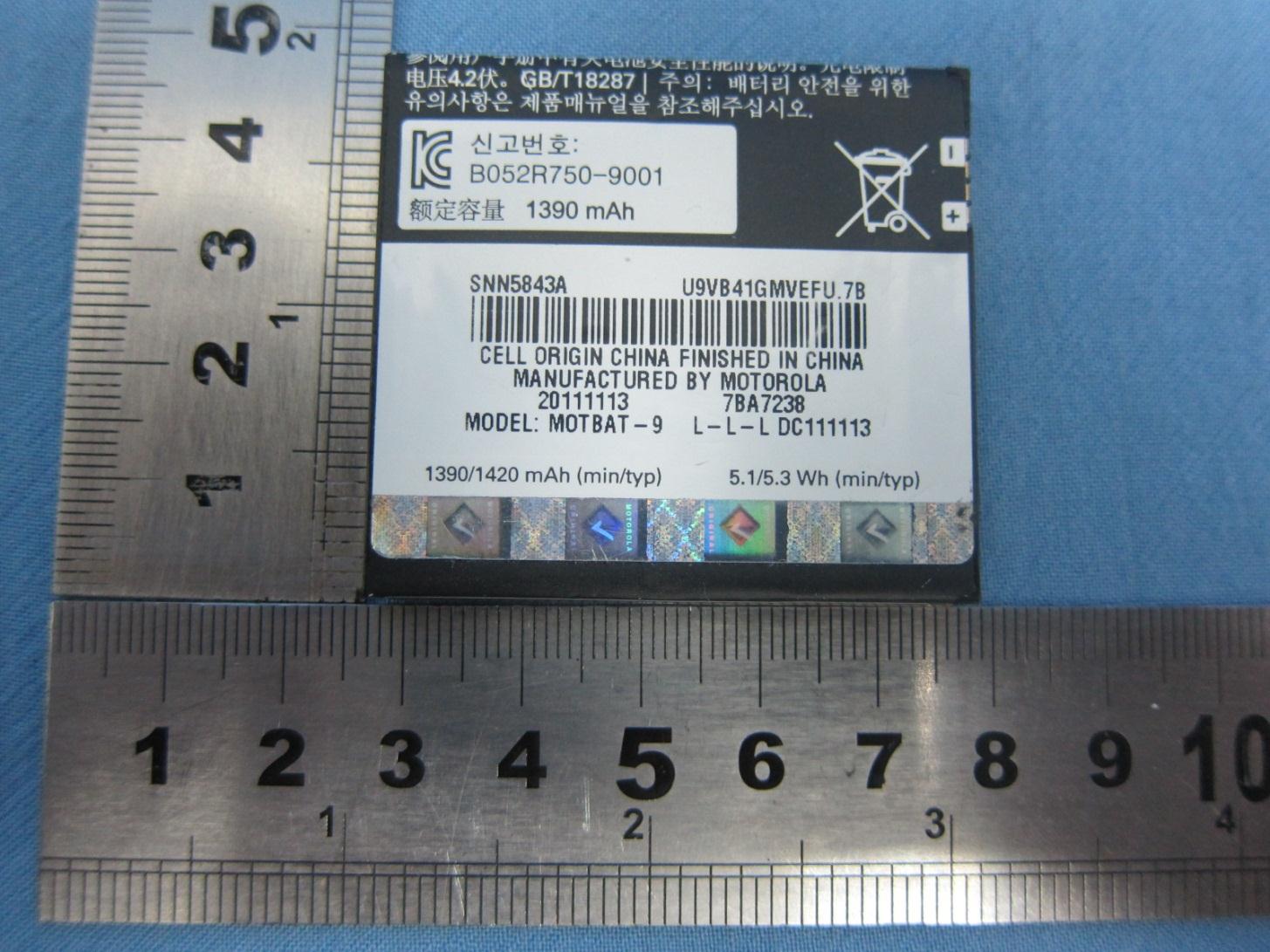

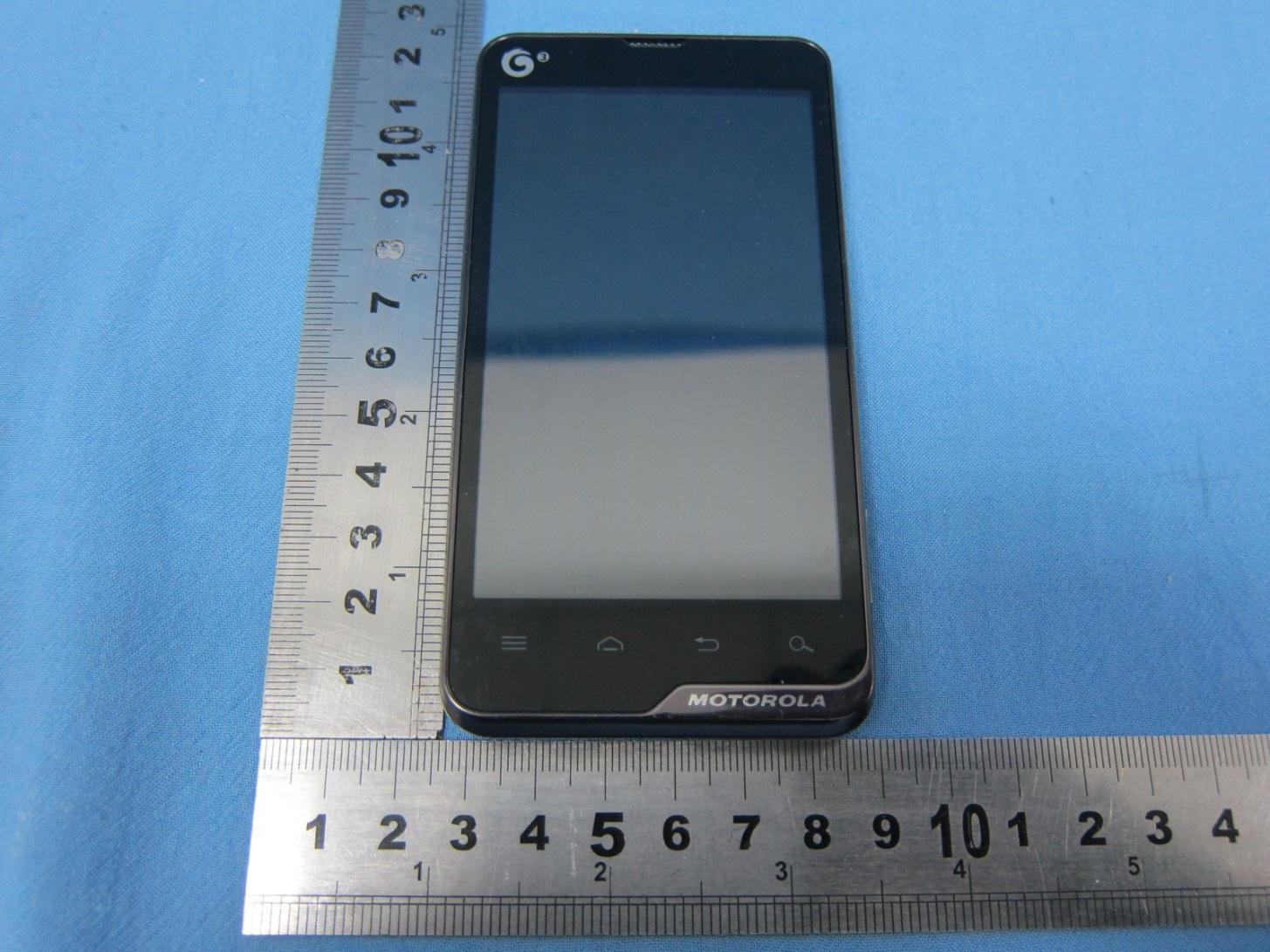

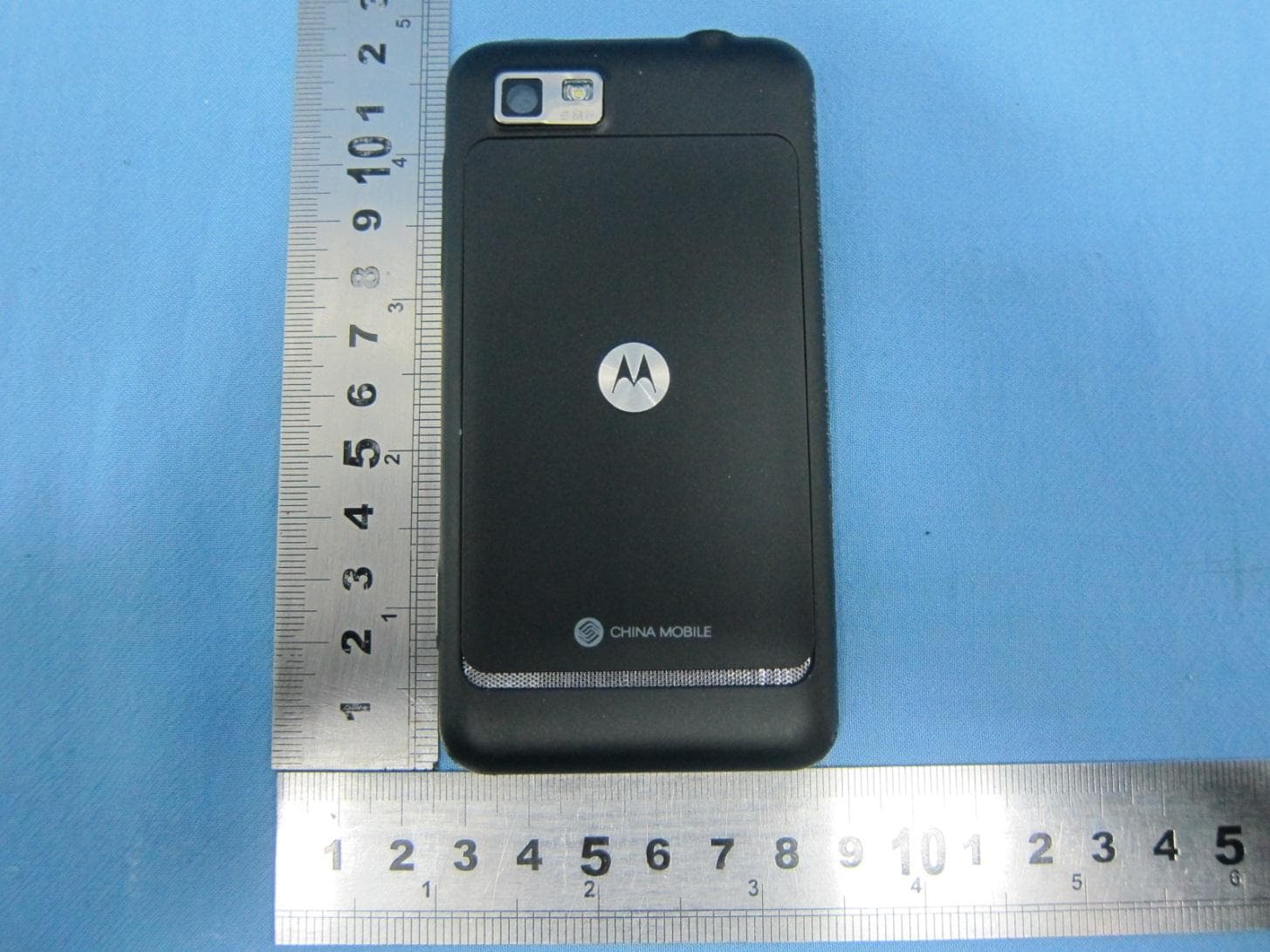

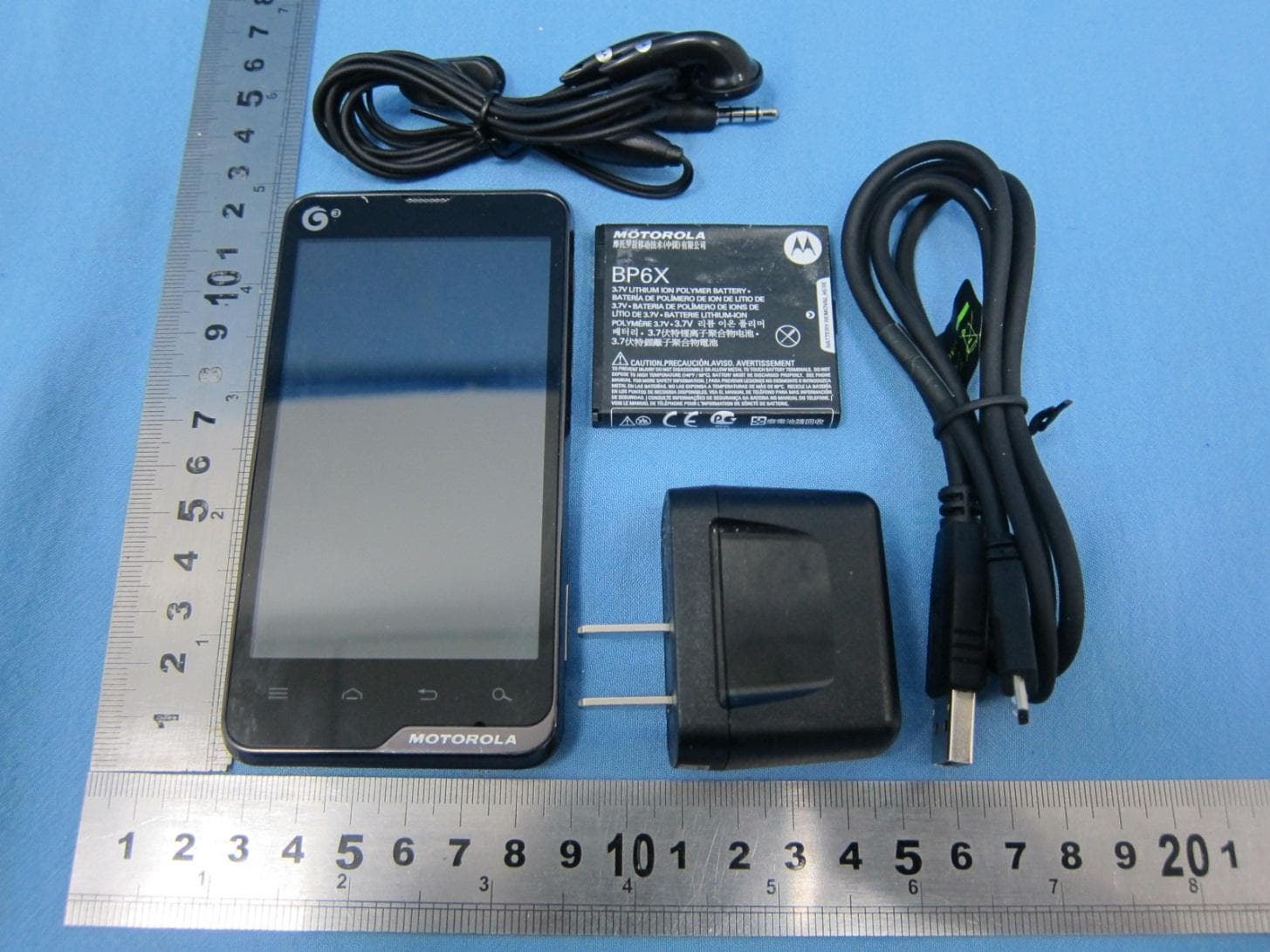

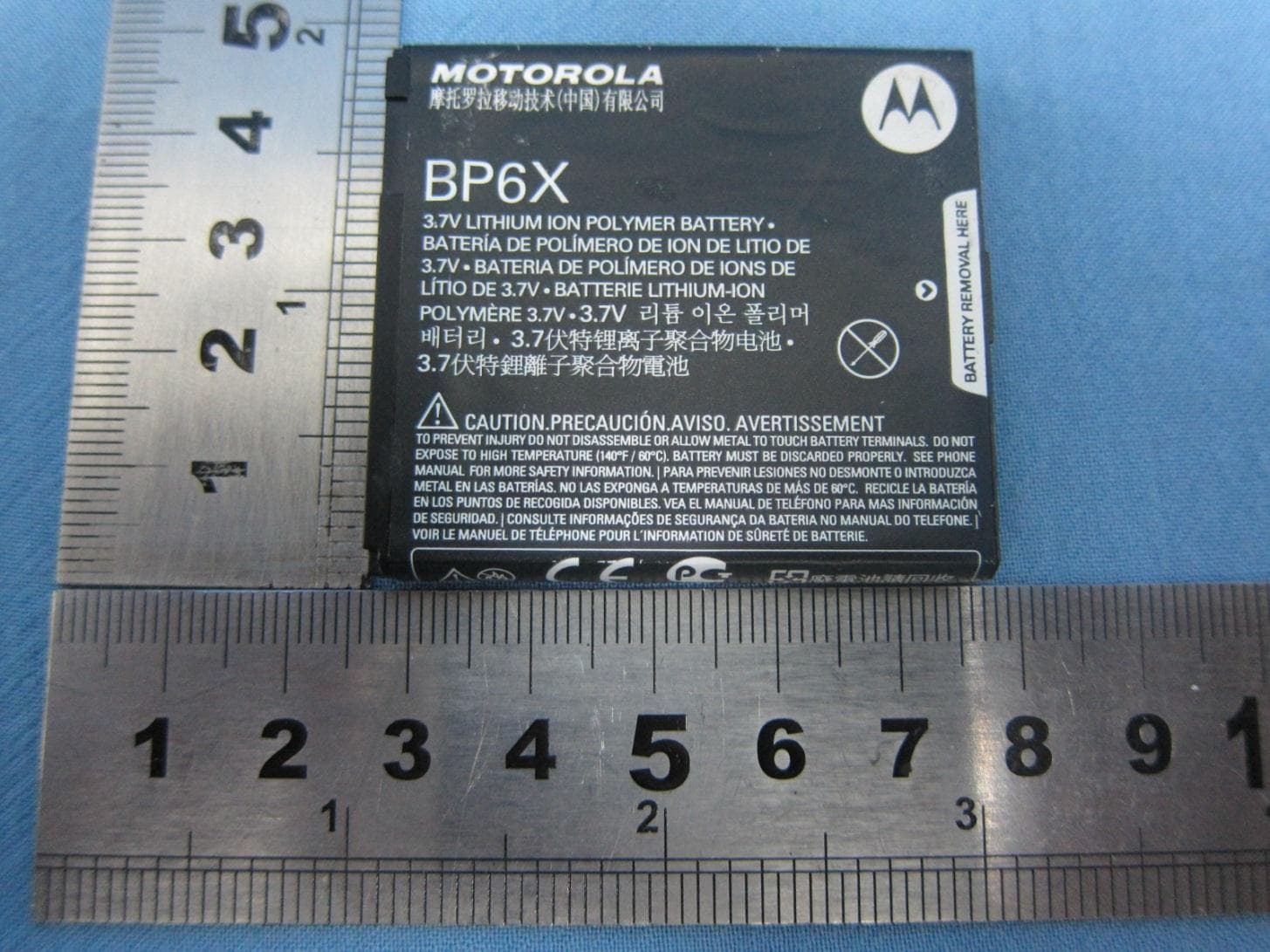

Photographs of EUT Report No.: EP220812 Brand Name: Motorola; Model Name / Marketing Name: MT680 SPORTON INTERNATIONAL INC. Page Number : 1 of 26 TEL : 886-3-327-3456 Report Issued Date : Mar. 30, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDT56NM5 1. External Photograph of EUT Photographs of EUT Report No.: EP220812 Brand Name: Motorola; Model Name / Marketing Name: MT680 SPORTON INTERNATIONAL INC. Page Number : 2 of 26 TEL : 886-3-327-3456 Report Issued Date : Mar. 30, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDT56NM5 Photographs of EUT Report No.: EP220812 Brand Name: Motorola; Model Name / Marketing Name: MT680 SPORTON INTERNATIONAL INC. Page Number : 3 of 26 TEL : 886-3-327-3456 Report Issued Date : Mar. 30, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDT56NM5 Photographs of EUT Report No.: EP220812 Brand Name: Motorola; Model Name / Marketing Name: MT680 SPORTON INTERNATIONAL INC. Page Number : 4 of 26 TEL : 886-3-327-3456 Report Issued Date : Mar. 30, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDT56NM5 Photographs of EUT Report No.: EP220812 Brand Name: Motorola; Model Name / Marketing Name: MT680 SPORTON INTERNATIONAL INC. Page Number : 5 of 26 TEL : 886-3-327-3456 Report Issued Date : Mar. 30, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDT56NM5 Photographs of EUT Report No.: EP220812 Brand Name: Motorola; Model Name / Marketing Name: MT680 SPORTON INTERNATIONAL INC. Page Number : 6 of 26 TEL : 886-3-327-3456 Report Issued Date : Mar. 30, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDT56NM5 720510 Photographs of EUT Report No.: EP220812 Brand Name: Motorola; Model Name / Marketing Name: MT680 SPORTON INTERNATIONAL INC. Page Number : 7 of 26 TEL : 886-3-327-3456 Report Issued Date : Mar. 30, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDT56NM5 List of Accessory: Specification of Accessory AC Adapter Brand Name MOTOROLA Model Name SPN5515B Battery Brand Name MOTOROLA Model Name BP6X Earphone Brand Name MOTOROLA Model Name SJYN0760A USB Cable Brand Name MOTOROLA Model Name SKN6378A Camera Brand Name Liton Model Name 11P1BA539 LCD Panel Brand Name CHIMEI Model Name PJ040IA-02F Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP220812 Brand Name: Motorola; Model Name / Marketing Name: MT680 SPORTON INTERNATIONAL INC. Page Number : 8 of 26 TEL : 886-3-327-3456 Report Issued Date : Mar. 30, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDT56NM5 Photographs of EUT Report No.: EP220812 Brand Name: Motorola; Model Name / Marketing Name: MT680 SPORTON INTERNATIONAL INC. Page Number : 9 of 26 TEL : 886-3-327-3456 Report Issued Date : Mar. 30, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDT56NM5 Photographs of EUT Report No.: EP220812 Brand Name: Motorola; Model Name / Marketing Name: MT680 SPORTON INTERNATIONAL INC. Page Number : 10 of 26 TEL : 886-3-327-3456 Report Issued Date : Mar. 30, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDT56NM5 Photographs of EUT Report No.: EP220812 Brand Name: Motorola; Model Name / Marketing Name: MT680 SPORTON INTERNATIONAL INC. Page Number : 11 of 26 TEL : 886-3-327-3456 Report Issued Date : Mar. 30, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDT56NM5 720510

Label Location Battery Compartment Back of device MT680 Label Location

Photographs of EUT Report No.: EP220812 Brand Name: Motorola; Model Name / Marketing Name: MT680 SPORTON INTERNATIONAL INC. Page Number : 12 of 26 TEL : 886-3-327-3456 Report Issued Date : Mar. 30, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDT56NM5 3. Internal Photograph of EUT WWAN Antenna WLAN & Bluetooth Antenna GPS Antenna Photographs of EUT Report No.: EP220812 Brand Name: Motorola; Model Name / Marketing Name: MT680 SPORTON INTERNATIONAL INC. Page Number : 13 of 26 TEL : 886-3-327-3456 Report Issued Date : Mar. 30, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDT56NM5 Photographs of EUT Report No.: EP220812 Brand Name: Motorola; Model Name / Marketing Name: MT680 SPORTON INTERNATIONAL INC. Page Number : 14 of 26 TEL : 886-3-327-3456 Report Issued Date : Mar. 30, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDT56NM5 Photographs of EUT Report No.: EP220812 Brand Name: Motorola; Model Name / Marketing Name: MT680 SPORTON INTERNATIONAL INC. Page Number : 15 of 26 TEL : 886-3-327-3456 Report Issued Date : Mar. 30, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDT56NM5 Photographs of EUT Report No.: EP220812 Brand Name: Motorola; Model Name / Marketing Name: MT680 SPORTON INTERNATIONAL INC. Page Number : 16 of 26 TEL : 886-3-327-3456 Report Issued Date : Mar. 30, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDT56NM5 Photographs of EUT Report No.: EP220812 Brand Name: Motorola; Model Name / Marketing Name: MT680 SPORTON INTERNATIONAL INC. Page Number : 17 of 26 TEL : 886-3-327-3456 Report Issued Date : Mar. 30, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDT56NM5 Photographs of EUT Report No.: EP220812 Brand Name: Motorola; Model Name / Marketing Name: MT680 SPORTON INTERNATIONAL INC. Page Number : 18 of 26 TEL : 886-3-327-3456 Report Issued Date : Mar. 30, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDT56NM5 Photographs of EUT Report No.: EP220812 Brand Name: Motorola; Model Name / Marketing Name: MT680 SPORTON INTERNATIONAL INC. Page Number : 19 of 26 TEL : 886-3-327-3456 Report Issued Date : Mar. 30, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDT56NM5 Photographs of EUT Report No.: EP220812 Brand Name: Motorola; Model Name / Marketing Name: MT680 SPORTON INTERNATIONAL INC. Page Number : 20 of 26 TEL : 886-3-327-3456 Report Issued Date : Mar. 30, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDT56NM5 Photographs of EUT Report No.: EP220812 Brand Name: Motorola; Model Name / Marketing Name: MT680 SPORTON INTERNATIONAL INC. Page Number : 21 of 26 TEL : 886-3-327-3456 Report Issued Date : Mar. 30, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDT56NM5 Photographs of EUT Report No.: EP220812 Brand Name: Motorola; Model Name / Marketing Name: MT680 SPORTON INTERNATIONAL INC. Page Number : 22 of 26 TEL : 886-3-327-3456 Report Issued Date : Mar. 30, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDT56NM5 Photographs of EUT Report No.: EP220812 Brand Name: Motorola; Model Name / Marketing Name: MT680 SPORTON INTERNATIONAL INC. Page Number : 23 of 26 TEL : 886-3-327-3456 Report Issued Date : Mar. 30, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDT56NM5 Photographs of EUT Report No.: EP220812 Brand Name: Motorola; Model Name / Marketing Name: MT680 SPORTON INTERNATIONAL INC. Page Number : 24 of 26 TEL : 886-3-327-3456 Report Issued Date : Mar. 30, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDT56NM5 WWAN Antenna <Tx/Rx> Photographs of EUT Report No.: EP220812 Brand Name: Motorola; Model Name / Marketing Name: MT680 SPORTON INTERNATIONAL INC. Page Number : 25 of 26 TEL : 886-3-327-3456 Report Issued Date : Mar. 30, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDT56NM5 WLAN & Bluetooth Antenna <Tx/Rx> Photographs of EUT Report No.: EP220812 Brand Name: Motorola; Model Name / Marketing Name: MT680 SPORTON INTERNATIONAL INC. Page Number : 26 of 26 TEL : 886-3-327-3456 Report Issued Date : Mar. 30, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDT56NM5 720510 GPS Antenna <Rx>

Photographs of EUT Report No.: EP220812 Brand Name: Motorola; Model Name / Marketing Name: MT680 SPORTON INTERNATIONAL INC. Page Number : 1 of 1 TEL : 886-3-327-3456 Issued Date : Mar. 30, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDT56NM5 Antenna location Length Width WWAN Antenna <Tx / Rx> 4.8 cm 2.0 cm WLAN & Bluetooth Antenna <Tx / Rx> 0.4 cm 0.2 cm GPS Antenna <Rx> 1.5 cm 2.0 cm 720510 720510 0.2 CM WWAN Antenna <TX / RX> 0.5 CM 0.2 CM 9.1CM 8.2 CM 0.4CM GPS Antenna < RX> WLAN & Bluetooth Antenna <TX / RX> 3.9 CM 1.0 CM 0.4CM 0.4CM

SPORTON INTERNATIONAL INC. Page Number : 1 of 36 TEL : 886-3-327-3456 Report Issued Date : Apr. 09, 2012 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : IHDT56NM5 FCC SAR Test Report Report No. : FA220812 FCC SAR Test Report APPLICANT : Motorola Mobility Inc. EQUIPMENT : TD-SCDMA/GSM Dual-mode digit mobile phone with BT/ Wi-Fi BRAND NAME : Motorola MODEL NAME / MARKETING NAME : MT680 FCC ID : IHDT56NM5 TYPE NAME : M0D28 GPPD NUMBER : 3368 STANDARD : FCC 47 CFR Part 2 (2.1093) IEEE C95.1-1991 IEEE 1528-2003 FCC OET Bulletin 65 Supplement C (Edition 01-01) The product was received on Mar. 08, 2012 and completely tested on Mar. 22, 2012. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Jones Tsai / Manager SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON INTERNATIONAL INC. Page Number : 2 of 36 TEL : 886-3-327-3456 Report Issued Date : Apr. 09, 2012 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : IHDT56NM5 FCC SAR Test Report Report No. : FA220812 Table of Contents 1. Statement of Compliance ............................................................................................................................................. 4 2. Administration Data ...................................................................................................................................................... 5 2.1 Testing Laboratory .................................................................................................................................................. 5 2.2 Applicant ................................................................................................................................................................ 5 2.3 Manufacturer .......................................................................................................................................................... 5 2.4 Application Details .................................................................................................................................................. 5 3. General Information ...................................................................................................................................................... 6 3.1 Description of Equipment Under Test (EUT) .......................................................................................................... 6 3.2 Applied Standards .................................................................................................................................................. 7 3.3 Device Category and SAR Limits ........................................................................................................................... 7 3.4 Test Conditions ....................................................................................................................................................... 7 4. Specific Absorption Rate (SAR) ................................................................................................................................... 8 4.1 Introduction ............................................................................................................................................................ 8 4.2 SAR Definition ........................................................................................................................................................ 8 5. SAR Measurement System ........................................................................................................................................... 9 5.1 E-Field Probe ........................................................................................................................................................10 5.2 Data Acquisition Electronics (DAE) ....................................................................................................................... 11 5.3 Robot .................................................................................................................................................................... 11 5.4 Measurement Server .............................................................................................................................................12 5.5 Phantom ................................................................................................................................................................12 5.6 Device Holder........................................................................................................................................................13 5.7 Data Storage and Evaluation ................................................................................................................................15 5.8 Test Equipment List ...............................................................................................................................................17 6. Tissue Simulating Liquids ...........................................................................................................................................18 7. Uncertainty Assessment .............................................................................................................................................19 8. SAR Measurement Evaluation ....................................................................................................................................21 8.1 Purpose of System Performance check .....................................................................................................…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012/3/8 System Check_Head_1900MHz_120308 DUT: Dipole 1900 MHz Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: HSL_1900_120308 Medium parameters used: f = 1900 MHz; σ = 1.417 mho/m; ε r = 39.853; ρ = 1000 kg/m 3 Ambient Temperature：22.6 °C; Liquid Temperature：21.6 °C DASY5 Configuration: - Probe: ET3DV6 - SN1787; ConvF(5.03, 5.03, 5.03); Calibrated: 2011/5/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn495; Calibrated: 2011/4/28 - Phantom: SAM Left; Type: QD000P40CD; Serial: TP:1542 - Measurement SW: DASY52, Version 52.8 (0); SEMCAD X Version 14.6.4 (4989) Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 11.329 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 91.680 V/m; Power Drift = -0.02 dB Peak SAR (extrapolated) = 17.1290 SAR(1 g) = 9.66 mW/g; SAR(10 g) = 5.1 mW/g Maximum value of SAR (measured) = 10.973 mW/g 0 dB = 10.970mW/g = 20.80 dB mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012/3/9 System Check_Body_1900MHz_120309 DUT: Dipole 1900 MHz Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: MSL_1900_120309 Medium parameters used: f = 1900 MHz; σ = 1.517 mho/m; ε r = 53.129; ρ = 1000 kg/m 3 Ambient Temperature：22.5 °C; Liquid Temperature：21.5 °C DASY5 Configuration: - Probe: ET3DV6 - SN1787; ConvF(4.48, 4.48, 4.48); Calibrated: 2011/5/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn495; Calibrated: 2011/4/28 - Phantom: SAM Right; Type: QD000P40CD; Serial: TP:1644 - Measurement SW: DASY52, Version 52.8 (0); SEMCAD X Version 14.6.4 (4989) Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 11.993 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 89.115 V/m; Power Drift = 0.0083 dB Peak SAR (extrapolated) = 17.0150 SAR(1 g) = 9.92 mW/g; SAR(10 g) = 5.27 mW/g Maximum value of SAR (measured) = 11.262 mW/g 0 dB = 11.260mW/g = 21.03 dB mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012/3/21 System Check_Head_2450MHz_120321 DUT: Dipole 2450 MHz Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: HSL_2450_120321 Medium parameters used: f = 2450 MHz; σ = 1.84 mho/m; ε r = 39.3; ρ = 1000 kg/m 3 Ambient Temperature：22.4 °C; Liquid Temperature：21.4 °C DASY5 Configuration: - Probe: ET3DV6 - SN1787; ConvF(4.41, 4.41, 4.41); Calibrated: 2011/5/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1279; Calibrated: 2011/6/17 - Phantom: SAM-Back; Type: QD 000 P40 C; Serial: TP-1383 - Software: DASY5 Version; SEMCAD X Version 13.4 Build 45 Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 15 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 92.3 V/m; Power Drift = -0.024 dB Peak SAR (extrapolated) = 29.6 W/kg SAR(1 g) = 13.2 mW/g; SAR(10 g) = 6.04 mW/g Maximum value of SAR (measured) = 14.7 mW/g 0 dB = 14.7mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012/3/22 System Check_Body_2450MHz_120322 DUT: Dipole 2450 MHz Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: MSL_2450_120322 Medium parameters used: f = 2450 MHz; σ = 1.97 mho/m; ε r = 52.3; ρ = 1000 kg/m 3 Ambient Temperature：22.4 °C; Liquid Temperature：21.4 °C DASY5 Configuration: - Probe: ET3DV6 - SN1787; ConvF(3.96, 3.96, 3.96); Calibrated: 2011/5/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1279; Calibrated: 2011/6/17 - Phantom: SAM-Back; Type: QD 000 P40 C; Serial: TP-1383 - Software: DASY5 Version; SEMCAD X Version 13.4 Build 45 Pin=250mW/Area Scan (91x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 15.6 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 88.5 V/m; Power Drift = -0.066 dB Peak SAR (extrapolated) = 34.6 W/kg SAR(1 g) = 13.8 mW/g; SAR(10 g) = 6.2 mW/g Maximum value of SAR (measured) = 15.1 mW/g 0 dB = 15.1mW/g

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012/3/8 01 GSM1900_Right Cheek _Ch810 DUT: 220812 Communication System: PCS; Frequency: 1909.8 MHz;Duty Cycle: 1:8.3 Medium: HSL_1900_120308 Medium parameters used: f = 1910 MHz; σ = 1.424 mho/m; ε r = 39.765; ρ = 1000 kg/m 3 Ambient Temperature：22.6 °C; Liquid Temperature：21.6 °C DASY5 Configuration: - Probe: ET3DV6 - SN1787; ConvF(5.03, 5.03, 5.03); Calibrated: 2011/5/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn495; Calibrated: 2011/4/28 - Phantom: SAM Left; Type: QD000P40CD; Serial: TP:1542 - Measurement SW: DASY52, Version 52.8 (0); SEMCAD X Version 14.6.4 (4989) Ch810/Area Scan (61x101x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.459 mW/g Ch810/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 6.433 V/m; Power Drift = -0.156 dB Peak SAR (extrapolated) = 0.5910 SAR(1 g) = 0.404 mW/g; SAR(10 g) = 0.262 mW/g Maximum value of SAR (measured) = 0.429 mW/g 0 dB = 0.430mW/g = -7.33 dB mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012/3/8 02 GSM1900_Right Tilted _Ch810 DUT: 220812 Communication System: PCS; Frequency: 1909.8 MHz;Duty Cycle: 1:8.3 Medium: HSL_1900_120308 Medium parameters used: f = 1910 MHz; σ = 1.424 mho/m; ε r = 39.765; ρ = 1000 kg/m 3 Ambient Temperature：22.6 °C; Liquid Temperature：21.6 °C DASY5 Configuration: - Probe: ET3DV6 - SN1787; ConvF(5.03, 5.03, 5.03); Calibrated: 2011/5/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn495; Calibrated: 2011/4/28 - Phantom: SAM Left; Type: QD000P40CD; Serial: TP:1542 - Measurement SW: DASY52, Version 52.8 (0); SEMCAD X Version 14.6.4 (4989) Ch810/Area Scan (61x101x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.142 mW/g Ch810/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 9.111 V/m; Power Drift = 0.07 dB Peak SAR (extrapolated) = 0.1900 SAR(1 g) = 0.121 mW/g; SAR(10 g) = 0.071 mW/g Maximum value of SAR…

Text truncated - open the document above for the full version.
