IHDT56NS8WCDMA/GSM TRANSCEIVER WITH BT, WLAN & NFC

2012.09.10 FCC 1 Check it out Yo u r M O TO R O L A RAZR™ i does it all. Go ahead, check it out. Tip: You don’t need to carry this guide with you. You can view all of these topics in your phone—from the home screen touch Apps> Guide Me > HELP TOPICS. 2012.09.10 FCC 2 Contents At a glance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Charge up. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 The best of Google™ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Home screen & apps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Control & customize. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Browse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Get more! . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Safety, Regulatory & Legal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 2012.09.10 FCC 3 At a glance At a glance Yo u r M O TO R O L A RAZR™ i, with the latest Intel processor, surfs faster, displays bigger and lasts longer: • Strong: Protected with Corning® Gorilla® Glass, Kevlar®, and a water-repellent coating. •Fast: Network fast, browser fast, Intel® 2GHz processor fast. • Photographic: Instant-on camera and multi-shot mode. TM Headphone Jack Volume Keys Power / Sleep Key HD Front Camera 8MP Photo / 1080p Video Camera (on back) Notification Light micro SIM Card Slot microSD Card Slot Micro USB/ Charger Camera Key 2012.09.10 FCC 4 Tips & tricks •Start: SIM in, charge up, and register. See “Charge up” on page 6 and “Register” on page 8. •More: All the topics in this guide and so much more, right on your phone. Touch Apps> Guide Me > HELP TOPICS. Want even more? See “Get more!” on page 18 This product meets the applicable limit for exposure to radio waves (known as SAR) of 1.6 W/kg (FCC & IC). The limits and guidelines include a substantial safety margin designed to assure the safety of all persons, regardless of age and health. The highest SAR values measured for this device are listed in the regulatory information packaged with your product. This product meets the applicable limit for exposure to radio waves (known as SAR) of 2.0 W/kg (ICNIRP). The limits and guidelines include a substantial safety margin designed to assure the safety of all persons, regardless of age and health. The highest SAR values measured for this device are listed in the regulatory information packaged with your product. Note: When using the product while worn on your body, maintain a distance of 2.5 cm (1 inch) from the body to ensure compliance with SAR requirements. Note that the product may be transmitting even if you are not making a phone call. 2012.09.10 FCC 5 This product meets the applicable SAR limits of 1.6 W/kg (FCC & IC) and 2.0 W/kg (ICNIRP). The limits and guidelines include a substantial safety margin designed to assure the safety of all persons, regardless of age and health. The highest SAR values measured for this device are listed in the regulatory information packaged with your product. Note: When using the product while worn on your body, maintain a distance of 2.5 cm (1 inch) from the body to ensure compliance with SAR requirements. Note that the product may be transmitting even if you are not making a phone call. 2012.09.10 FCC 6 Start Charge up SIM in, memory card in (optional), charge up, then power up. Note: Certain apps and features may not be available in all countries. Caution: Before using your phone, please read the safety, regulatory and legal information provided with your product. 4:00 1 Insert micro SIM card. micro SIM SIMSIM & Adapter 2 Insert microSD memory card (optional). 4 Power up. Power Key Press= Screen On/Off. Hold = On/Off. 3 Charge up. Note: This product uses a non-removable battery. 3 H 2012.09.10 FCC 7 Tips & tricks • Power/Sleep Key: To make the screen sleep or wake up, press the Power key. To turn your phone on or off, press and hold it. • Notification Light: The notification light turns on when your phone starts charging and blinks when you have a new message or notification. Note: This product uses a non-removable battery. The battery should only be replaced by a Motorola-approved service facility. Any attempt to remove or replace your battery, unless performed by a service representative, may damage the product and void your warranty. 2012.09.10 FCC 8 Register After you power up, create or log into a Google™ account to access all of your Google services. Registration is secure and only takes a few minutes. Tip: To get help transferring your contacts, visit www.motorola.com/transfercontacts . Note: This phone supports apps and services that use a lot of data, so make sure your data plan meets your needs. Contact your service provider for details. 4:00 3 Set up. Make it yours now... I’ll set up later Congratulations! Let us help you personalize your device now. Want to call a friend first and share your excitement? Don’t worry, you can setup whenever you’re ready. 1 Welcome Select your language: English Español Start Select your language. 2 Sign in with your Google™ account. Make it Google Got Gmail? Sign in now. Never lose your stuff again. A Google Account keeps everything safe. Sign in 2012.09.10 FCC 9 Tips & tricks • Wi-Fi network: For faster Internet access, touch Apps> Settings >Wi-Fi. Touch to turn Wi-Fi and search for networks. • Reboot: In the unlikely event that your phone becomes unresponsive, try a forced reboot. Press and hold both the Power and Volume Down keys for more than 15 seconds. • Accounts: To add, edit, or delete accounts anytime, touch Apps> Settings >Accounts & sync. For help with your Google™ account, visit www.google.com/accounts . ON ON…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA MOBILITY LLC FCC ID: IHDT56NS8 Motorola Mobility LLC; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 2 - 1 Exhibit 2. Statements of Certification -- Pursuant to 47 CFR 2.907 2.1. Specification Compliance Transceiver type described herein (IHDT56NS8) has been tested in accordance with the requirements contained in the appropriate Commission regulations. To the best of my knowledge, these tests were performed using measurement procedures consistent with industry or Commission standards, and demonstrate that this equipment complies with the appropriate standards. Each unit manufactured, imported, or marketed will conform to the samples tested herein, within the statistical variations that can be expected due to high volume production and test measurement error. NAME: Dave Thompson SIGNATURE: Dave Thompson DATE: August 1, 2012 TITLE: Engineering Manager 2.2. Statement of Certification I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in this application and accompanying technical data are true and correct. The technical data supplied with this application was taken under my supervision and is hereby duly certified. I also certify that this transmit equipment (IHDT56NS8) is in compliance with all applicable parts of the FCC Rules. NAME: John Lewczak SIGNATURE: DATE: August 1, 2012 TITLE: Engineering Manager, Product Safety and Compliance APPLICANT: MOTOROLA MOBILITY LLC FCC ID: IHDT56NS8 Motorola Mobility LLC; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 2 - 2 2.3. Attestation Statement (Equipment Class DTS and DSS - Bluetooth/Wi-Fi) This device contains an embedded Bluetooth device, and Wi-Fi device capabilities that Motorola Mobility confirms are compliant with the applicable Part 15C regulations. Personal Hotspot operation is only supported in the 2.4 GHz band. 15.247(a)(1) • The hopping sequence must be pseudorandom. • All Channels are used equally on average. • The receiver input bandwidth is approximately equal to the transmit bandwidth. • The receiver hops in sequence with the transmitted signal. 15.247(d) In order to ensure compliance with band edge emissions requirements at the upper end of the authorized spectrum, the conducted RF power of this device is reduced when operating on Channel 11, in the 802.11 g/n modes. 15.247(g) The system is designed to comply with all of the regulations in Section 15.247 when the transmitter is presented with a continuous data (or information). 15.247(h) The system does not coordinate its channel selection/hopping sequence with other frequency hopping systems for the express purpose of avoiding the simultaneous occupancy of individual hopping frequencies by multiple transmitters. NAME: Dave Thompson SIGNATURE: Dave Thompson DATE: August 1, 2012 TITLE: Engineering Manager APPLICANT: MOTOROLA MOBILITY LLC FCC ID: IHDT56NS8 Motorola Mobility LLC; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 2 - 3 2.4. Attestation Statement (Equipment Class NII - U-NII Wi-Fi) This device contains an embedded U-NII Wi-Fi device that Motorola Mobility confirms to be compliant with the applicable Part 15E regulations. Note that neither Personal Hotspot nor Wi-Fi Direct/Display operation is supported within equipment class. 15.407(c) The device will automatically discontinue transmission in case of either the absence of information to transmit or operational failure. 15.407(h)(1) This device does not operate in the bands between 5.25 – 5.35 GHz and 5.47 – 5.725 GHz, and as such Transmit Power Control (TPC) is not required. 15.407(h)(2) This device does not operate in the bands between 5.25 – 5.35 GHz and 5.47 – 5.725 GHz, and as such Radar Detection function of Dynamic Frequency Selection (DFS) is not required. NAME: Dave Thompson SIGNATURE: Dave Thompson DATE: August 1, 2012 TITLE: Engineering Manager

APPLICANT: MOTOROLA MOBILITY, LLC. FCC ID: IHDT56NS8 Motorola Mobility, Inc.; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 13a - 1 21 August 2012 Authorization & Evaluation Division Federal Communications Commission Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Subject: Application for Certification of transmitter with FCC ID: IHDT56NS8, PCS Handsets, with Wi-Fi and Bluetooth. Gentlemen; Motorola Mobility, Inc.; 8000 W. Sunrise Blvd.; Plantation, FL 33322 herein submits its application for certification of the multi-mode handset with FCC ID: IHDT56NS8. The primary transceiver in this composite device operates in the 850 MHz and 1900 MHz bands as a WCDMA/GSM portable transceiver and employs HSPA/EDGE&GPRS data transmission capabilities. Note: This device also contains functions, and operates within frequency bands, that are not authorized within the United States or its territories. This filing is only applicable to supported US operations. This radio product is also equipped with a Wi-Fi (802.11a/b/g/n) transceiver. Wi-Fi supports both voice and data for short range wireless communications. The Wi-Fi Bands of Operation is 2.412 - 2.462 GHz, 5.180 – 5.240 GHz, and 5.745 – 5.825 MHz for 802.11a/b/g/n operation. The Wi-Fi device complies 15.247 (c), 15.407, 15.205 and 15.209 (b). This radio product is equipped with a Bluetooth (BT) transceiver. BT supports both voice and data for short range wireless communications. The Bluetooth Band of Operation is 2.402 - 2.480 GHz (1 MHz channel bandwidth). The BT device complies with the requirements of FCC Rule Parts 15.247 (c), 15.205 and 15.209 (b). This product also supports NFC operation as a low-power itinerant transmitter. All transmitters contained in this radio product have been subjected to routine environmental evaluation (as applicable) according to 47 CFR Part 2.1093 (c) for RF exposure and found to be compliant with the limits specified in 47 CFR 2.1093(d)(2). APPLICANT: MOTOROLA MOBILITY, LLC. FCC ID: IHDT56NS8 Motorola Mobility, Inc.; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 13a - 2 This radio product features an integrated GPS receiver, and is designed to function as a computer peripheral device when functioning as an RF modem, while connected to a computer via a data cable, as described in 47 CFR Part 15.3(r). A Part 15B test report is included for certification. Enclosed is a complete Certification Application. Contact me at (954) 723-6272 if you require any additional information. Regards, FCC Liaison Motorola Mobility, Inc. 8000 W. Sunrise Blvd.; Suite A Mail Stop 52-5JJ Plantation, FL 33322 E-mail: [email protected]

FCC ID: IHDT56NS8 Motorola Mobility, Inc.; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 13b - 1 CONFIDENTIALITY REQUEST 20 July 2012 Federal Communications Commission Laboratory Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request Regarding Application for Certification of FCC ID: IHDT56NS8. Dear Sir or Madam: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby respectfully request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Block Diagrams. IHDT56NS8_Ex_04 (Block Diagrams).pdf Schematic Diagrams. IHDT56NS8 _Ex_05 (Schematic Diagrams).pdf Parts List and Tune Up Procedures. IHDT56NS8 _Ex_10 (Active Components).pdf Transmitter Characteristics. IHDT56NS8 _Ex_12 (TX Characteristics).pdf Motorola Mobility, Inc. requests that these exhibits be held as Permanently Confidential, and not be made routinely available for public inspection. Motorola considers that the information in these exhibits should be classified as trade secrets, pursuant to 47 CFR Section 0.457(d) and Section 552(b)(4) of the Freedom of Information Act. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Motorola Mobility, Inc. understands that, pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. FCC ID: IHDT56NS8 Motorola Mobility, Inc.; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 13b - 2 SHORT TERM ONFIDENTIALITY REQUEST – 180 DAYS Pursuant to the Commission’s public notice DA 04-1705 (June 15, 2004), Motorola Mobility, Inc. is also requesting Temporary Confidentiality treatment of information accompanying this application as outlined below. This provision will give Motorola Mobility, Inc. temporary confidentiality prior to product launch. Exhibit Type File Name External product photographs. IHDT56NS8 _Ex_03 (External_Photos).pdf Test set-up photographs. IHDT56NS8 _Ex_07D (RF Exposure Test Set- up_Details).pdf IHDT56NS8_Ex_07 (EMC Test Set-up Photographs).pdf User’s Manual. IHDT56NS8 _Ex_08 (User Guide).pdf Internal product photographs. IHDT56NS8 _Ex_09 (Internal Photos).pdf Please contact me if you require any additional information. Regards, FCC Liaison Motorola Mobility, Inc. 8000 W. Sunrise Blvd.; Suite A Mail Stop 52-5JJ Plantation, FL 33322 E-mail: [email protected]

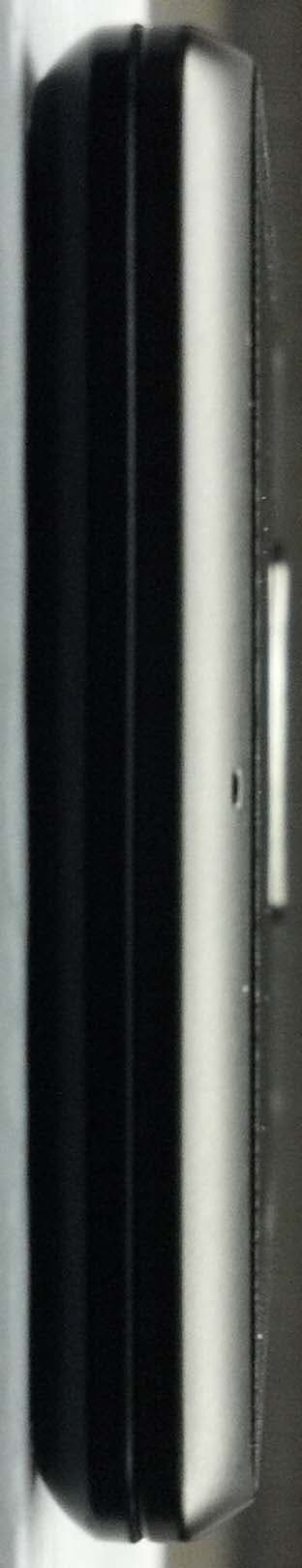

APPLICANT: MOTOROLA MOBILITY LLC FCC ID: IHDT56NS8 Temporary Confidentiality Requested Motorola Mobility LLC; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 3 - 1 Exhibit 3. External Photographs -- Pursuant to 47 CFR 2.1033(c)(12) The radio product colors, housings/bezels may vary, but only consistent with the requirements of FCC Class I Permissive Change rules and guidance (47 CFR 2.1043 and KDB 178919 D01). Figure 3-1. Front of device Figure 3-2. Back of device APPLICANT: MOTOROLA MOBILITY LLC FCC ID: IHDT56NS8 Temporary Confidentiality Requested Motorola Mobility LLC; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 3 - 2 Figure 3-3. Button Side of device Figure 3-4. Opposite Side of device APPLICANT: MOTOROLA MOBILITY LLC FCC ID: IHDT56NS8 Temporary Confidentiality Requested Motorola Mobility LLC; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 3 - 3 Figure 3-5. Top of radio Figure 3-6. Bottom of radio APPLICANT: MOTOROLA MOBILITY LLC FCC ID: IHDT56NS8 Temporary Confidentiality Requested Motorola Mobility LLC; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 3 - 4 Figure 3-7. FCC Label Location

APPLICANT: MOTOROLA MOBILITY, LLC. FCC ID: IHDT56NS8 Motorola Mobility, Inc.; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 1 - 1 Exhibit 1: Identification Label -- Pursuant to 47 CFR 2.925 and 2.1033(c)(11) 1.1 Location On the rear (back) side of the radio product chassis, etched into the housing, near the bottom edge of the device (see Figure 1.3.2, and also Exhibit 3). 1.2 Type The label will be laser etched into the rear housing of the device. 1.3 Markings (Text) The FCC label shown is representative of the label that will appear on the radio when in production. Figure 1.3.1. Representation of FCC Label information. This information will be permanently etched onto the equipment rear cover as shown below, and in Exhibit 3. Other information may also be present. FCC ID: IHDT56NS8 Model No. XT890 APPLICANT: MOTOROLA MOBILITY, LLC. FCC ID: IHDT56NS8 Motorola Mobility, Inc.; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 1 - 2 Figure 1.3.2. Location of FCC Label (position, orientation, and other information shown may vary). Please note that this label and its placement complies with the requirement of FCC Rule 47 CFR 2.925(d) that the label be permanently affixed to the product, and be readily visible to the purchaser at the time of purchase. The product’s Market or Trade Name is also indelibly printed on the back cover of the product, as shown in Exhibit 3. FCC Label Back of Device APPLICANT: MOTOROLA MOBILITY, LLC. FCC ID: IHDT56NS8 Motorola Mobility, Inc.; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 1 - 3 Exhibit 1A: General Information 1A.1 Production Plans Quantity production is planned. 1A.2 Data Submittal Procedure The information in this application is provided in accordance with requirements for certification as outlined in the FCC Rules and Regulations: 47 CFR Part 2; Subpart J; Part 15, Subparts B, C, and and E; Part 22 Subpart H; Part 24 Subparts B and E. 1A.3 Similar, currently Certified Transceiver FCC ID: IHDP56ME1 1A.4 Additional Considerations This device includes NFC (Near Field Communications) capabilities, functioning as both a tag and a reader, supporting simplified pairing with a NFC-tagged Bluetooth device, In addition to the radio receivers associated with the services authorized within this application, this device integrates a receiver designed to process signals from Global Positioning System satellites. Compliance with FCC requirements was done via the Verification process (47 CFR 2.902). This device may be considered to be a digital device, per 47 CFR 15.3(k), and can function as a computer peripheral device when functioning as an RF modem, as described in 47 CFR 15.3(r). For this reason, a Part 15B test report is included with this application.

APPLICANT: MOTOROLA MOBILITY LLC FCC ID: IHDT56NS8 Temporary Confidentiality Requested Motorola Mobility LLC; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 9 - 1 Exhibit 9: Internal Photographs -- Pursuant to 47 CFR 2.1033(c)(12) Photograph 9-1: Front side view of the device’s PC Board, Shields in place. APPLICANT: MOTOROLA MOBILITY LLC FCC ID: IHDT56NS8 Temporary Confidentiality Requested Motorola Mobility LLC; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 9 - 2 Photograph 9-2: Back side view of the device’s PC Board, Shields in place. APPLICANT: MOTOROLA MOBILITY LLC FCC ID: IHDT56NS8 Temporary Confidentiality Requested Motorola Mobility LLC; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 9 - 3 Photograph 9-3: Front side view of the device’s PC Board, Shields Removed. APPLICANT: MOTOROLA MOBILITY LLC FCC ID: IHDT56NS8 Temporary Confidentiality Requested Motorola Mobility LLC; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 9 - 4 Photograph 9-4: Back side view of the device’s PC Board, Shields Removed. APPLICANT: MOTOROLA MOBILITY LLC FCC ID: IHDT56NS8 Temporary Confidentiality Requested Motorola Mobility LLC; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 9 - 5 Photograph 9-5: Interior Housing View. APPLICANT: MOTOROLA MOBILITY LLC FCC ID: IHDT56NS8 Temporary Confidentiality Requested Motorola Mobility LLC; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 9 - 6 Figure 9-6: Antenna Locations and Spacings.

MOTOROLA MOBILITY, INC. Portable Cellular Phone SAR Test Report Number: 25081-1F FCC ID: IHDT56NS8 Exhibit 11 Portable Cellular Phone SAR Test Report Tests Requested By: Motorola Mobility, Inc. 600 N. US Highway 45 Libertyville, IL 60048 Test Report #: 25081-1F Date of Report: Aug-14-2012 Date of Test: Jun-27-2012 to Jul-24-2012 FCC ID #: IHDT56NS8 Generic Name: M0D12 Test Laboratory: Motorola Mobility, Inc. - ADR Test Services Laboratory No.1 Wang Jing East Road, Chaoyang District Beijing, P. R. China, 100102 Report Author: HaiLiang Tang RF Engineer Accreditation: 2404 This laboratory is accredited to ISO/IEC 17025-2005 to perform the following tests: Tests : Procedures: Electromagnetic Specific Absorption Rate IEC 62209-1 RSS-102 IEEE 1528 - 2003 FCC OET Bulletin 65 (including Supplement C) Australian Communications Authority Radio Communications (Electromagnetic Radiation – Human Exposure) Standard 2003 CENELEC EN 50360 ARIB Std. T-56 (2002) On the following products or types of products: Wireless Communications Devices (Examples): Two Way Radios; Portable Phones (including Cellular, Licensed Non-Broadcast and PCS); Low Frequency Readers; and Pagers Statement of Compliance: Motorola declares under its sole responsibility that the portable cellular telephone model to which this declaration relates, is in conformity with the appropriate General Population/Uncontrolled RF exposure standards, recommendations and guidelines (FCC 47 CFR §2.1093) as well as with CENELEC en50360:2001 and ANSI / IEEE C95.1. It also declares that the product was tested in accordance with IEEE 1528 / CENELEC EN62209-1 (2006), as well as other appropriate measurement standards, guidelines and recommended practices. Any deviations from these standards, guidelines and recommended practices are noted below: Motorola’s ISO 17025 accreditation scope does not currently include SAR testing in the 5 GHz band. Therefore, SAR testing performed in this band was performed outside of our ISO 17025 accreditation. The general procedures and guidelines provided within; FCC KDB 248227 D01, FCC KDB 648474 D01, FCC KDB 865664 D01 and IEC 62209-2 were utilized for testing. ©Motorola Mobility, Inc. 2012 This test report shall not be reproduced except in full, without written approval of the laboratory. The results and statements contained herein relate only to the items tested. The names of individuals involved may be mentioned only in connection with the statements or results from this report. Motorola encourages all feedback, both positive and negative, on this test report. MOTOROLA MOBILITY, INC. Portable Cellular Phone SAR Test Report Number: 25081-1F FCC ID: IHDT56NS8 {Rev. B} Exhibit 11 Page 2 of 28 Table of Contents 1. Introduction .............................................................................................................................................................3 2. Description of the Device Under Test ....................................................................................................................4 2.1 Antenna description.............................................................................................................................................4 2.2 Device Signaling..................................................................................................................................................5 2.2.1 Power limit reduction for Mobile Hotspot functionality ..............................................................................6 2.3 Device Conducted Power Measurements ............................................................................................................7 2.3.1 GSM modes ..................................................................................................................................................7 2.3.2 WCDMA modes ...........................................................................................................................................8 2.3.3 Wi-Fi 802.11 modes .....................................................................................................................................9 3. Test Equipment Used ............................................................................................................................................10 3.1 Dosimetric System .............................................................................................................................................10 3.2 Additional Equipment ........................................................................................................................................10 4. Electrical parameters of the tissue simulating liquid .........................................................................................11 5. System Accuracy Verifications.............................................................................................................................13 6. Test Results ............................................................................................................................................................15 6.1 Head Adjacent Test Results ...............................................................................................................................16 6.2 Body Worn Test Results.....................................................................................................................................19 6.3 Mobile Hotspot Test Results ..............................................................................................................................21 6.4 Description and Evaluation of Simultaneous Transmitters...............................................................................25 References ..................................................................................................................................................................28 Appendix 1: SAR distribution comparisons for System …

Text truncated - open the document above for the full version.

MOTOROLA MOBILITY, INC. Portable Cellular Phone SAR Test Report Number: 25081-1F FCC ID: IHDT56NS8 Exhibit 11 Appendix 1 SAR distribution comparisons for System Accuracy Verifications MOTOROLA MOBILITY, INC. Portable Cellular Phone SAR Test Report Number: 25081-1F FCC ID: IHDT56NS8 Exhibit 11 System Accuracy Verification Measurements for Head SAR Measurements Date/Time: 7/2/2012 11:06:52 AM Test Laboratory: Motorola - 835MHz Head DUT: Dipole 835 MHz; Serial: D835V2 - SN:425tr; FCC ID:IHDT56NS8 Procedure Notes: 835 MHz System Performance Check; Dipole Sn# 425TR; PM1 Power =200 mW Sim.Temp@meas =19.3 Sim.Temp@SPC = 19.5 Room Temp @ SPC = 21.2 Communication System: _CW - Dipole; Frequency: 835 MHz; Communication System Channel Number: 3; Duty Cycle: 1:1 Medium: Validation *HEAD Tissue* ; Medium parameters used: f = 835 MHz; σ = 0.93 mho/m; ε r = 41.2; ρ = 1000 kg/m 3 DASY4 Configuration: z Probe: ES3DV3 - SN3180; ConvF(6.07, 6.07, 6.07); Calibrated: 1/11/2012 z Sensor-Surface: 4mm (Mechanical Surface Detection) z Electronics: DAE4 Sn1313; Calibrated: 1/20/2012 z Phantom: R12_ Sugar SAM (extended range), Rev.2 (24-Feb-12); Type: SAM v4.0; Serial: TP-1154; z ; SEMCAD X Version 14.6.4 (4989) DASY5, SAM - System Performance Check Template, Rev.2 (12-Sept-11)/Daily SPC Check/Z-Axis Retraction (1x1x31): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 2.173 mW/g DASY5, SAM - System Performance Check Template, Rev.2 (12-Sept-11)/Daily SPC Check/Dipole Area Scan (5x15x1): Measurement grid: dx=10mm, dy=15mm Maximum value of SAR (measured) = 2.160 mW/g DASY5, SAM - System Performance Check Template, Rev.2 (12-Sept-11)/Daily SPC Check/0-Degree, 5x5x7 Cube (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 49.116 V/m; Power Drift = -0.03 dB Peak SAR (extrapolated) = 2.9270 SAR(1 g) = 2 mW/g; SAR(10 g) = 1.31 mW/g Maximum value of SAR (measured) = 2.163 mW/g Page 1 of 2 8/1/2012file://D:\Profiles\xqh864\Desktop\Dasy Report dir\20120702_head_835M... Page 2 of 2 8/1/2012file://D:\Profiles\xqh864\Desktop\Dasy Report dir\20120702_head_835M... Date/Time: 7/3/2012 9:41:39 AM Test Laboratory: Motorola - 835MHz Head DUT: Dipole 835MHz; Serial: D835V2 - SN:425tr; FCC ID:IHDT56NS8 Procedure Notes: 835 MHz System Performance Check; Dipole Sn# 425TR; PM1 Power =200 mW Sim.Temp@meas =19.1 Sim.Temp@SPC = 19.9 Room Temp @ SPC = 21.4 Communication System: _CW - Dipole; Frequency: 835 MHz; Communication System Channel Number: 3; Duty Cycle: 1:1 Medium: Validation *HEAD Tissue* ; Medium parameters used: f = 835 MHz; σ = 0.93 mho/m; ε r = 41.3; ρ = 1000 kg/m 3 DASY4 Configuration: z Probe: ES3DV3 - SN3180; ConvF(6.07, 6.07, 6.07); Calibrated: 1/11/2012 z Sensor-Surface: 4mm (Mechanical Surface Detection) z Electronics: DAE4 Sn1313; Calibrated: 1/20/2012 z Phantom: R12_ Sugar SAM (extended range), Rev.2 (24-Feb-12); Type: SAM v4.0; Serial: TP-1154; z ; SEMCAD X Version 14.6.4 (4989) DASY5, SAM - System Performance Check Template, Rev.2 (12-Sept-11)/Dail…

Text truncated - open the document above for the full version.
