MOTOROLA i485 EN Congratulations MOTOROLA i485 Get the convenience of push-to-talk calls together with a sleek design in an affordable package. • Private Calls: Stay in touch with your family, friends, and colleagues with the simple touch of a button. • My Phone, My Way: It’s your phone—make it that way. Customize your home screen with personal pictures, and change wallpapers and ringtones. This product meets the applicable SAR limits of 1.6 W/kg (FCC & IC) and 2.0 W/kg (ICNIRP). The limits and guidelines include a substantial safety margin designed to assure the safety of all persons, regardless of age and health. The highest SAR values measured for this device are listed in the regulatory information packaged with your product. More information On your computer—Go to www.motorola.com/support Caution: Before using your phone, please read the safety, regulatory and legal information provided with your product. 1Your phone Your phone the important keys & connectors Note: Your phone might look a little different. Talk Key Speaker Key Power/End Key Soft Key Soft Key Menu Key OK Key Navigation Key Volume Keys PTT Button Micro USB Connector 3.5 mm Headset Jack 2Contents Contents Menu map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Let’s go . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Basics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Push-to-Talk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 SDG calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Web. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Text entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Contacts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Messaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Personalize . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 Camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 Multimedia . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 Bluetooth™ wireless . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 Memory Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33 Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37 Troubleshoot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39 Safety, Regulatory & Legal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 3Contents Menu map main menu Recent Calls Contacts • [New Contact] • [New SDG List] • [New Msg Group] Settings Web •Net Multimedia • Media Center • My Images • My Music • My Videos •Camera •Camcorder •Ring Tones • VoiceRecord P u s h To Ta l k •Call Alert • PT Manager •Quick PTT •PTT Options •PTT Help Games and Apps •Alarm Clock Plus • My Images • My Music • My Videos • Calculator Suite • Download Apps •iHelp • Java System •Memory Card Tools •My Info • Profiles •Alarm Clock Plus •Bluetooth •GPS • Datebook • Call Timers •Memo Messages • [Create Message] •Voice Mail •Inbox •Drafts • Outbox • Sent Items •Fax Mail •Net Alert This is the standard main menu layout. Your phone’s menu may be different. WWW. 4Let’s go Let’s go let’s get you up and running Assemble & charge 3 1 Remove battery cover. 2 Insert SIM with gold contacts facing down. micro SIM SIM SIM & Adapter Insert optional memory card. 5 Replace battery cover. 4 Insert battery. 5Let’s go Turn it on & off To turn on your phone, press and hold Power/End for a few seconds or until the display turns on. If prompted, enter your four-digit unlock code. Note: If you press Power/End for more than four seconds, the phone will turn on in Transmitters Off mode. To turn off your phone, press and hold Power/End. Enable security You will need to enable security the first time you turn on your phone or within 10 days of using your phone. 1Press Ok. 2You are prompted to enable security. Press Yes and follow the on-screen instructions. 3Press Power/End to return to the home screen. 6Basics Basics About this guide This guide shows how to locate a menu feature as follows: Find it: Menu > Settings > Phone Calls This means that, from the home screen: 1Press the Menu key to open the main menu. 2Press the navigation keys to scroll to the Settings menu option, and press to select it. 3Press the navigation keys to scroll to Phone Calls, and press to select it. Home screen Your phone shows the home screen when you are not on a call or using the menu. Note: Your home screen might look a little different. NEXTELNEXTEL 10/12/1210/12/12 SettingsSettings ContactsMsgs 2:21pm2:21pm Left Softkey Label Status Indicators Left Softkey Right Softkey Label Right Softkey 7Basics Soft key labels in the home screen show the current soft key functions. Status indicators appear at the top of your phone’s display. Carousel menu Get quick access to your favorite applications, right on your home screen. Open applications 1Press the Navigation Key left or right until you highlight the desired application. 2Press to launch the application. Note: Availability of the Carousel is dependent on your service provider. Indicators Signal StrengthNo Service Active Phone LineNew Message Speaker OnPacket Data Speaker OffBattery Level Ringer OffBluetoot…

Text truncated - open the document above for the full version.

26Multimedia Podcasts Find it: Menu > Multimedia > My Music > Podcasts Podcast Highlights Use highlights to mark parts of a podcast. To add a highlight, press Menu > Add Highlights. Press On to mark the beginning, and Off to mark the end. When finished, press Back. Tip: When playing a podcast, press Menu > Clear to delete a highlight, or press Menu > Edit Highlights > Clear All Highlights to delete them all. Press the Navigation Key left or right to move between highlights, or press Menu > Highlights Only to skip everything not marked as a highlight. FM radio Note: Your service provider may not support FM radio. Find it: Menu > Multimedia > My Music > FM Radio Note: A wired 3.5mm headset is required for radio use. Find a station Press the navigation key up or down to search for stations, or press Menu > Enter Freq. to use your key pad to enter a station. 27Multimedia Station Presets Your phone can store up to nine station presets. To store a station, tune into it and press and hold a number (1-9) on your keypad. To tune in a station preset, press its number. My Images My Images lets you browse, edit, and view images on your phone or memory card. View images Find it: Menu > Multimedia > My Images Press Menu > Slideshow to view a slide show of all the images in the current folder. Press and to switch between images stored on the phone’s memory and the memory card. My Videos Find it: Menu > Multimedia > My Videos View videos To view a video, select a folder, highlight the file, and press . Tip: Videos play in portrait by default. To change to landscape, press Menu > Full Screen. 28Bluetooth™ wireless Bluetooth™ wireless lose the wires and go wireless Note: Due to French regulatory restrictions regarding possible interference, do not use Bluetooth in France when outdoors. Turn Bluetooth power on or off Find it: Menu > Tools > Bluetooth > Setup > Power Note: To extend battery life, turn Bluetooth off when not in use. Connect devices Note: This feature requires an optional accessory. 1Make sure the Bluetooth device is discoverable. Note: Refer to the Bluetooth device guide for details. 2Press Menu > Tools > Bluetooth > Audio Devices > [Look for Devices] to connect to an audio Bluetooth device. Press Menu > Tools > Bluetooth > Pair to Devices to connect to any other type of Bluetooth device. 3Select your Bluetooth device from the list. 4Press Yes when you’re prompted to bond. 5If prompted, enter the Bluetooth PIN, such as 0000. 6Press Ok. 29Bluetooth™ wireless Note: Using a mobile device or accessory while driving may cause distraction and may be illegal. Always obey the laws and drive safely. Reconnect devices To automatically reconnect to a paired device, simply turn it on. To manually reconnect with a paired device, select the device in the Audio Devices list. Disconnect devices To automatically disconnect from a paired device, simply turn off the device. To manually disconnect from a paired device, select the device in the Audio Devices list. When prompted to disconnect, press Yes. 30Memory Card Memory Card Memory card folder structure Inserting an optional memory card in your phone creates five folders: Audio, Image, Music, Podcast, and Video. In order for your phone to access supported media files, the files must be stored in the appropriate folder. For example, a music file should be stored in My Music. File names Your phone recognizes file names up to 255 characters. If the file name is longer, rename the file and reload it on to the memory card. Memory card access Set memory card access before connecting your phone to your computer. Find it: Menu > Settings > Connections > USB > Memory Card Access Once connected, your phone will appear as a removable drive. 31Memory Card USB drag & drop Transfer files from your computer to your phone’s memory card. Note: Copyright—do you have the right? Always follow the rules. See “Content Copyright” on page 53. 1With a memory card inserted, connect a micro USB cable from your phone to your computer. Note: Make sure to connect the phone to a high power USB port. Typically, these are located directly on your computer. 2On your computer, double click “My Computer”, locate your phone, and click on the icon to open it. 3Drag and drop the files into the appropriate folder. 4When finished, use the “Safely Remove Hardware” feature to disconnect the phone. Remove or format your memory card To format your memory card, press Menu > Settings > Memory Card > Format Card. Warning: All data on your memory card will be deleted. To remove your memory card, press Menu > Settings > Memory Card > Remove Card. 32Tools Tools Datebook Voice Record Note: Recording of calls is subject to varying State and Federal laws regarding privacy and recording of conversations. Always obey the laws and regulations on the use of this feature. Features create datebook events To create a new Datebook event press Menu > Tools > Datebook > [New Event]. see datebook events To see a datebook event press Menu > Tools > Datebook. Press the navigation key left or right to see the day and up or down to see the events. Features create a voice record Press Menu > Multimedia > VoiceRecord > [New VoiceRec]. Press to stop recording. playing voice records Press Menu > Multimedia > VoiceRecord. Highlight a voice record and press to play it. To stop the voice record while it’s playing, press . 33Tools Accessibility See, hear, speak, feel, and use. Accessibility features are there for everyone, helping to make things easier. Note: For general information, accessories, and more, visit www.motorola.com/accessibility . Voice playback Your navigation and selections, read out loud. To turn on voice readouts, press Menu > Settings > Voice Playback > Speak Text. To use voice readouts: • Menus: In menus, highlight an item (it will be read out loud). • Dialer & text entry: As you type, each number or letter is read out loud. Tip: Navigate through your menus to hear how voice readouts work on your phone. Caller ID …

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA MOBILITY LLC FCC ID: IHDT56NT1 Motorola Mobility LLC; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 2 - 1 Exhibit 2. Statements of Certification -- Pursuant to 47 CFR 2.907 2.1. Specification Compliance Transceiver type described herein (IHDT56NT1) has been tested in accordance with the requirements contained in the appropriate Commission regulations. To the best of my knowledge, these tests were performed using measurement procedures consistent with industry or Commission standards, and demonstrate that this equipment complies with the appropriate standards. Each unit manufactured, imported, or marketed will conform to the samples tested herein, within the statistical variations that can be expected due to high volume production and test measurement error. NAME: Thomas Ket Tung Liew SIGNATURE: /s/ Thomas Ket Tung Liew DATE: 30 August 2012 TITLE: Senior Electrical Staff Engineer 2.2. Statement of Certification I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in this application and accompanying technical data are true and correct. The technical data supplied with this application was taken under my supervision and is hereby duly certified. I also certify that this transmit equipment (IHDT56NT1) is in compliance with all applicable parts of the FCC Rules. NAME: John Lewczak SIGNATURE: DATE: 30 August 2012 TITLE: Engineering Manager, Product Safety and Compliance APPLICANT: MOTOROLA MOBILITY LLC FCC ID: IHDT56NT1 Motorola Mobility LLC; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 2 - 2 2.3. Attestation Statement (Equipment Class DSS - Bluetooth This device contains an embedded Bluetooth device that Motorola Mobility confirms are compliant with the applicable Part 15C regulations. 15.247(a)(1) • The hopping sequence must be pseudorandom. • All Channels are used equally on average. • The receiver input bandwidth is approximately equal to the transmit bandwidth. • The receiver hops in sequence with the transmitted signal. 15.247(g) The system is designed to comply with all of the regulations in Section 15.247 when the transmitter is presented with a continuous data (or information). 15.247(h) The system does not coordinate its channel selection/hopping sequence with other frequency hopping systems for the express purpose of avoiding the simultaneous occupancy of individual hopping frequencies by multiple transmitters. NAME: Thomas Ket Tung Liew SIGNATURE: /s/ Thomas Ket Tung Liew DATE: 30 August 2012 TITLE: Senior Electrical Staff Engineer APPLICANT: MOTOROLA MOBILITY LLC FCC ID: IHDT56NT1 Motorola Mobility LLC; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 2 - 3 2.4. Attestation Statement (Equipment Class PCE – iDEN 800/900 MHz - Hearing Aid Compatibility) Motorola Mobility hereby declares that typical production units were evaluated for Hearing Aid Compatibility (HAC) compliance. Features List: Model – Motorola i485 iDEN 800/900 iDEN Packet Data EV-DO Rev. A Bluetooth (Stereo) Text Messaging Location-Based Services Voice Commands Talking Phone Photo Camera Video Camera Video Player Hands Free Speaker Phone Music Player HTML Browser NAME: Thomas Ket Tung Liew SIGNATURE: /s/ Thomas Ket Tung Liew DATE: 30 August 2012 TITLE: Senior Electrical Staff Engineer

APPLICANT: MOTOROLA MOBILITY LLC FCC ID: IHDT56NT1 Motorola Mobility LLC; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 13a - 1 20 August 2012 Authorization & Evaluation Division Federal Communications Commission Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Subject: Application for Certification of transmitter with FCC ID: IHDT56NT1, PCS Handsets, with Bluetooth. Gentlemen; Motorola Mobility LLC; 8000 W. Sunrise Blvd.; Plantation, FL 33322 herein submits its application for certification of the multi-mode handset with FCC ID: IHDT56NT1. This is a variable output power (0.22 to 640 milliwatts) transmitter that is part of a handheld transceiver used in SMR and EA SMR trunking systems operating within the United States 806-821/851-866 MHz and 896-901/935-940 MHz frequency bands. Operation is also extended for use in a Narrowband PCS system operating in the United States in the spectrum between 901-902/940-941 MHz, on channels which the licensee has aggregated together to form twenty-one 25 kHz operating channels. To facilitate global roaming it is kindly requested that the grant for Part 90 800 MHz SMR operation reflects an extended frequency range (806 – 825 MHz) beyond that permitted under that part. Pursuant the guidance provide in KDB 634817 D01 (Freq Range Listing for Grants, v02r01), this application qualifies under the requirements of paragraph (d)(iii): use in other countries. This product will be distributed to operators in ITU Region 1 (Middle East), Region 2 (South America), and Region 3 (Asia) in countries that accept a United States FCC Grant for Equipment Authorization. This product is of the ‘receive first’ type of equipment, which can only transmit on frequencies assigned to it by a compatible Authorized Base Station. Therefore, no unauthorized transmission can occur within the United States or its territories, thus the product will not jeopardize United States public safety or other services licensed to operate in the 821- 825 MHz frequency band, as no compatible base station may be authorized for those frequencies in the United States. This radio product is equipped with a Bluetooth (BT) transceiver. BT supports both voice and data for short range wireless communications. The Bluetooth Band of Operation is 2.402 - 2.480 GHz (1 MHz channel bandwidth). The BT device complies with the requirements of FCC Rule Parts 15.247 (c), 15.205 and 15.209 (b). All transmitters contained in this radio product have been subjected to routine environmental evaluation (as applicable) according to 47 CFR Part 2.1093 (c) for RF exposure and found to be compliant with the limits specified in 47 CFR 2.1093(d)(2). APPLICANT: MOTOROLA MOBILITY LLC FCC ID: IHDT56NT1 Motorola Mobility LLC; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 13a - 2 This radio product features integrated GPS and FM broadcast receivers, and is designed to function as a computer peripheral device when functioning as an RF modem, while connected to a computer via a data cable, as described in 47 CFR Part 15.3(r). A Part 15B test report is included for certification. Enclosed is a complete Certification Application. Contact me at (954) 723-6272 if you require any additional information. Regards, FCC Liaison Motorola Mobility LLC 8000 W. Sunrise Blvd.; Suite A Mail Stop 52-5JJ Plantation, FL 33322 E-mail: [email protected]

FCC ID: IHDT56NT1 Motorola Mobility LLC; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 13b - 1 CONFIDENTIALITY REQUEST 31 August 2012 Federal Communications Commission Laboratory Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request Regarding Application for Certification of FCC ID: IHDT56NT1. Dear Sir or Madam: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby respectfully request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Block Diagrams. IHDT56NT1_Ex_04 (Block Diagrams).pdf Schematic Diagrams. IHDT56NT1 _Ex_05 (Schematic Diagrams).pdf Parts List and Tune Up Procedures. IHDT56NT1 _Ex_10 (Active Components).pdf Transmitter Characteristics. IHDT56NT1 _Ex_12 (TX Characteristics).pdf Motorola Mobility LLC requests that these exhibits be held as Permanently Confidential, and not be made routinely available for public inspection. Motorola considers that the information in these exhibits should be classified as trade secrets, pursuant to 47 CFR Section 0.457(d) and Section 552(b)(4) of the Freedom of Information Act. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Motorola Mobility LLC understands that, pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. FCC ID: IHDT56NT1 Motorola Mobility LLC; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 13b - 2 SHORT TERM ONFIDENTIALITY REQUEST – 180 DAYS Pursuant to the Commission’s public notice DA 04-1705 (June 15, 2004), Motorola Mobility LLC is also requesting Temporary Confidentiality treatment of information accompanying this application as outlined below. This provision will give Motorola Mobility LLC temporary confidentiality prior to product launch. Exhibit Type File Name External product photographs. IHDT56NT1 _Ex_03 (External_Photos).pdf Test set-up photographs. IHDT56NT1 _Ex_07b (Part 15 Test Set- up_Details).pdf IHDT56NT1 _Ex_07c (HAC Test Set- up_Details).pdf IHDT56NT1 _Ex_07d (SAR Test Set- up_Details).pdf User’s Manual. IHDT56NT1 _Ex_08 (User Guide).pdf Internal product photographs. IHDT56NT1 _Ex_09 (Internal Photos).pdf Please contact me if you require any additional information. Regards, FCC Liaison Motorola Mobility LLC 8000 W. Sunrise Blvd.; Suite A Mail Stop 52-5JJ Plantation, FL 33322 E-mail: [email protected]

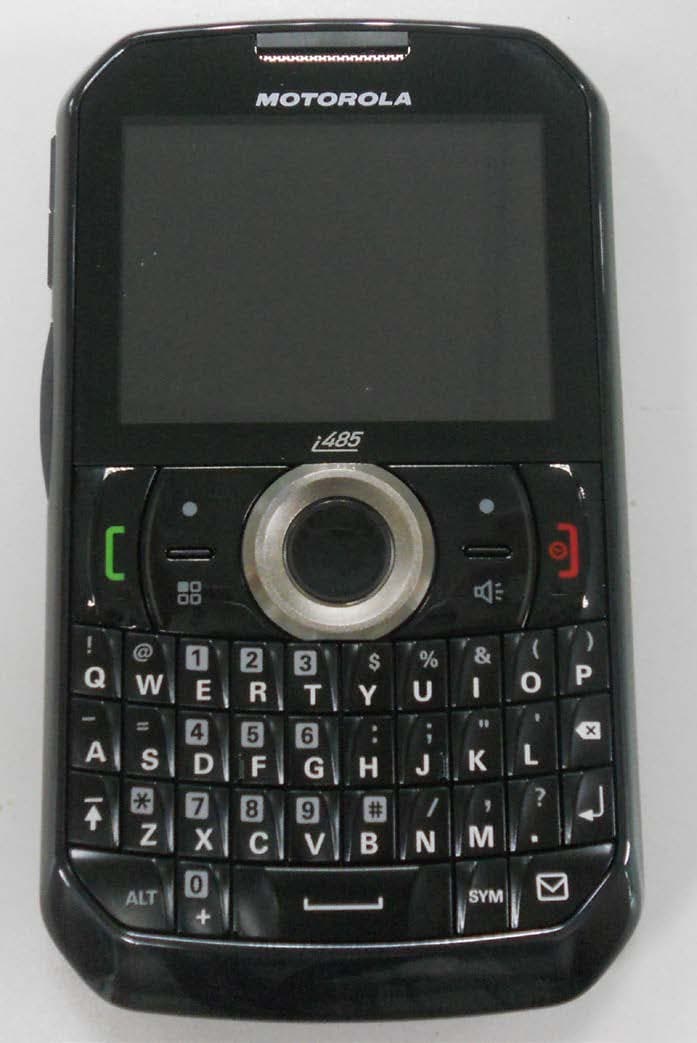

APPLICANT: MOTOROLA MOBILITY LLC FCC ID: IHDT56NT1 Temporary Confidentiality Requested Motorola Mobility LLC; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 3 - 1 Exhibit 3. External Photographs -- Pursuant to 47 CFR 2.1033(c)(12) The radio product colors, housings/bezels may vary, but only consistent with the requirements of FCC Class I Permissive Change rules and guidance (47 CFR 2.1043 and KDB 178919 D01). Figure 3-1. Front of device APPLICANT: MOTOROLA MOBILITY LLC FCC ID: IHDT56NT1 Temporary Confidentiality Requested Motorola Mobility LLC; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 3 - 2 Figure 3-2. Back of device APPLICANT: MOTOROLA MOBILITY LLC FCC ID: IHDT56NT1 Temporary Confidentiality Requested Motorola Mobility LLC; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 3 - 3 Figure 3-3. Button Side of device Figure 3-4. Opposite Side of device APPLICANT: MOTOROLA MOBILITY LLC FCC ID: IHDT56NT1 Temporary Confidentiality Requested Motorola Mobility LLC; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 3 - 4 Figure 3-5. Top of radio Figure 3-6. Bottom of radio APPLICANT: MOTOROLA MOBILITY LLC FCC ID: IHDT56NT1 Temporary Confidentiality Requested Motorola Mobility LLC; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 3 - 5 Figure 3-7. Interior Compartment of radio FCC Label Location. See Exhibit 1 for details.

APPLICANT: MOTOROLA MOBILITY LLC FCC ID: IHDT56NT1 Motorola Mobility LLC; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 1 - 1 Exhibit 1: Identification Label -- Pursuant to 47 CFR 2.925 and 2.1033(c)(11) 1.1 Location On the rear (back) side of the radio product chassis, beneath the battery (see also Exhibit 3). 1.2 Type The label is of a white polyester film laminate with a pressure sensitive adhesive backing. The adhesive is a permanent type acrylic with minimum peel strength of 5 lbs/in. 1.3 Markings (Text) The FCC label shown is representative of the label that will appear on the radio when in production. Figure 1.3.1. Representation of FCC Label information. This label will be placed on the equipment (within the Battery Compartment) as shown below. Other information may also be included on this label, and other labels may also be present. FCC ID IHDT56NT1 Model No. H3051B41033A APPLICANT: MOTOROLA MOBILITY LLC FCC ID: IHDT56NT1 Motorola Mobility LLC; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 1 - 2 Figure 1.3.2. Location of FCC Label (position, orientation, and other information shown may vary). Please note that this label and its placement complies with the requirement of FCC Rule 47 CFR 2.925(d) that the label be permanently affixed to the product, and be readily visible to the purchaser at the time of purchase. Further, at the time of purchase, batteries are shipped in a separate section or compartment of the radio packaging, and are not attached to the radio. In some instances they may be shipped in separate boxes. So, the end user needs to physically install the battery by removing the battery cover, if any, or attach the battery before using the radio. Further, the placement of the label in the battery compartment is done because space is limited on the exterior of the device. The battery compartment also helps to protect the label from getting obliterated or made unreadable through regular handling and use. The product’s Market or Trade Name is indelibly printed on the face of the product, as shown in Exhibit 3. Interior Battery Compartment FCC Label Back of Device APPLICANT: MOTOROLA MOBILITY LLC FCC ID: IHDT56NT1 Motorola Mobility LLC; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 1 - 3 Exhibit 1A: General Information 1A.1 Production Plans Quantity production is planned. 1A.2 Data Submittal Procedure The information in this application is provided in accordance with requirements for certification as outlined in the FCC Rules and Regulations: 47 CFR Part 2; Subpart J; Part 15, Subparts B and C; Part 24 Subparts B and D ; and Part 90 Subparts I and S. 1A.3 Similar, currently Certified Transceiver FCC ID: IHDT56NP1 1A.4 Additional Considerations In addition to the radio receivers associated with the services authorized within this application, this device integrates a receivers designed to process signals from Global Positioning System satellites, and FM Broadcasting. Compliance with FCC requirements was done via the Verification process (47 CFR 2.902). This device may be considered to be a digital device, per 47 CFR 15.3(k), and can function as a computer peripheral device when functioning as an RF modem, as described in 47 CFR 15.3(r).

APPLICANT: MOTOROLA MOBILITY LLC FCC ID: IHDT56NT1 Temporary Confidentiality Requested Motorola Mobility LLC; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 9 - 1 Exhibit 9: Internal Photographs -- Pursuant to 47 CFR 2.1033(c)(12) Photograph 9-1: Front side view of the device’s PC Board, Shields in Place. APPLICANT: MOTOROLA MOBILITY LLC FCC ID: IHDT56NT1 Temporary Confidentiality Requested Motorola Mobility LLC; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 9 - 2 Photograph 9-2: Front side view of the device’s PC Board, Shields Removed. APPLICANT: MOTOROLA MOBILITY LLC FCC ID: IHDT56NT1 Temporary Confidentiality Requested Motorola Mobility LLC; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 9 - 3 Photograph 9-3: Back side view of the device’s PC Board, Shields in place. APPLICANT: MOTOROLA MOBILITY LLC FCC ID: IHDT56NT1 Temporary Confidentiality Requested Motorola Mobility LLC; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 9 - 4 Photograph 9-4: Back side view of the device’s PC Board, Shields Removed. APPLICANT: MOTOROLA MOBILITY LLC FCC ID: IHDT56NT1 Temporary Confidentiality Requested Motorola Mobility LLC; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 9 - 1 Photograph 9-5: Antenna Locations and Spacings.

APPLICANT: MOTOROLA MOBILITY, INC. FCC ID: IHDT56NT1 25153-1 Exhibit 6B - 1 Page 1 of 10 HAC Test Report for Near Field Emissions IHDT56NT1 Tests Requested By: Motorola Mobility, Inc. 600 N. US Highway 45 Libertyville, IL 60048 Date of Tests: Date of Report: Aug 13 – 14, 2012 Aug 31, 2012 Test Laboratory: Motorola Mobility, Inc. - ADR Test Services Laboratory 600 N. US Highway 45 Libertyville, Illinois 60048 Report Author: Katerina Bruggemann Engineer Statement of Compliance: Motorola declares under its sole responsibility that portable cellular telephone FCC ID IHDT56NT1 to which this declaration relates, complies with recommendations and guidelines per FCC 47 CFR §20.19. The measurements were performed to ensure compliance to ANSI C63.19- 2007. It also declares that the product was tested in accordance with the appropriate measurement standards, guidelines and recommended practices. Any deviations from these standards, guidelines and recommended practices are noted below: (none) Results Summary: M Category = M3 ©Motorola Mobility, Inc. 2012 This test report shall not be reproduced except in full, without written approval of the laboratory. The results and statements contained herein relate only to the items tested. The names of individuals involved may be mentioned only in connection with the statements or results from this report. Motorola encourages all feedback, both positive and negative, on this test report. APPLICANT: MOTOROLA MOBILITY, INC. FCC ID: IHDT56NT1 25153-1 Exhibit 6B - 1 Page 2 of 10 Table of Contents 1. INTRODUCTION ................................................................................................................................................... 3 2. DESCRIPTION OF THE DEVICE UNDER TEST ............................................................................................. 3 3. TEST EQUIPMENT USED .................................................................................................................................... 4 4. VALIDATION ......................................................................................................................................................... 5 5. PROBE MODULATION FACTOR ...................................................................................................................... 6 6. TEST RESULT…
