IHDT56NY2MOBILE PHONE

IronPrimeTD User Manual Head: GSM 1900 MHz, WiFi, Bluetooth: 0.463 W/kg Body: GSM 1900 MHz, WiFi, Bluetooth: 1.122 W/kg Head: GSM 900 MHz, WiFi, Bluetooth: 0.652W/kg Body: GSM 900 MHz, WiFi, Bluetooth: 0.589 W/kg

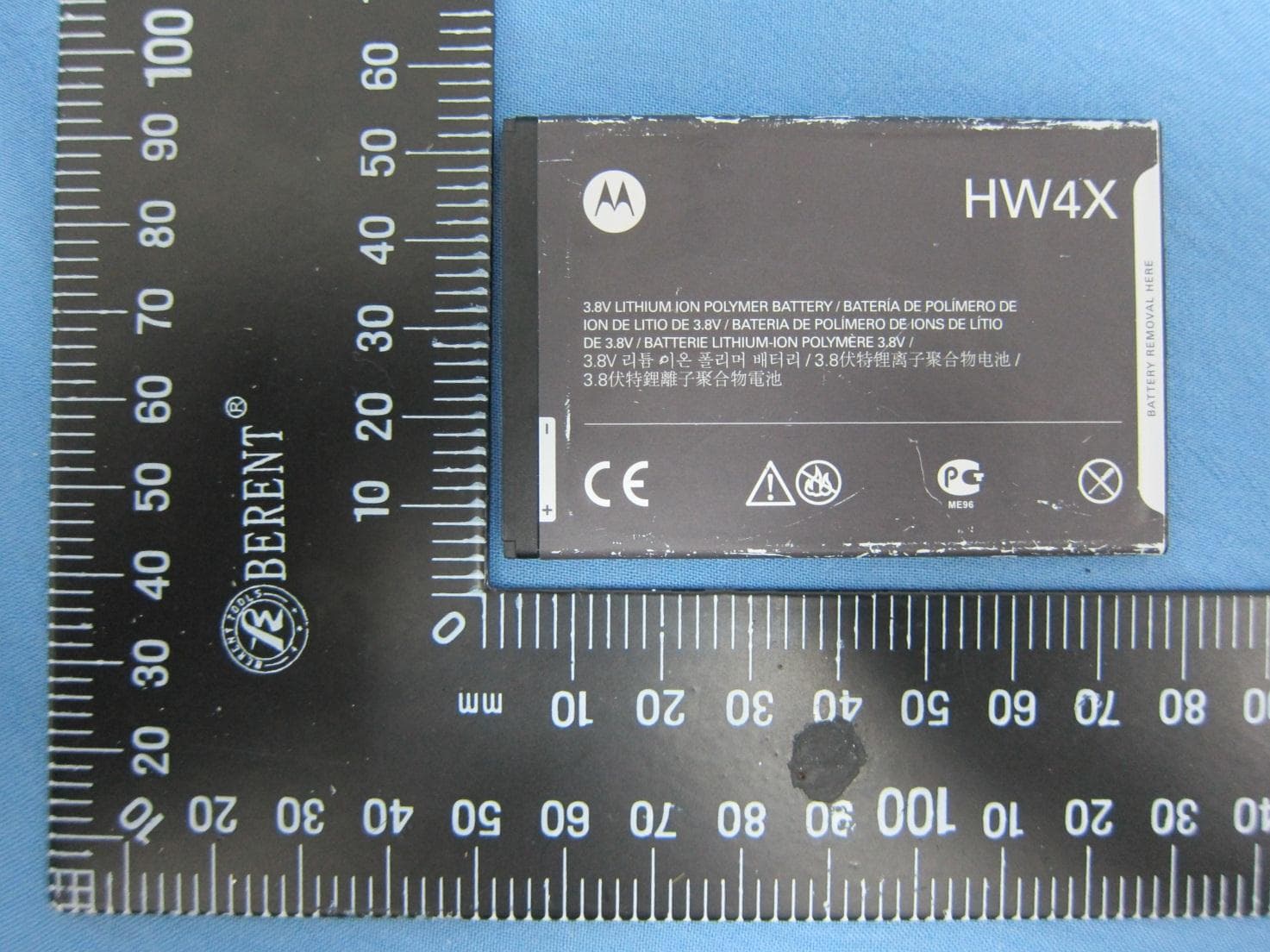

Sporton International Inc. No.52, HwaYa 1st Rd., Kwei-Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. Tel: 886-3-327-3456 ; Fax: 886-3-328-4978 Date: October 18, 2012 Statement We, Sporton International Inc., state that the label of our device, FCC ID: IHDT56NY2, will be put inside the battery compartment. The label is visible to the users as they purchase the products and install the battery. Sincerely yours, ______________________ Jones Tsai

FCC ID: IHDT56NY2 Motorola Mobility, Inc., 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33022, USA Pag e 13B - 1 30 May 2012 Authorization of Agent Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 RE: Grantee Code IHD. Authorization: I, John Lewczak, the FCC contact for Grantee Code “IHD,” hereby authorize the following company (agent) to act on behalf of Motorola Mobility, Inc. for the application specified below. This includes: • Form 731, Attestation Statement Exhibit, and Confidentiality Request Signatures. • Technical Contact. • Non-Technical Contact. • Test Firm Contact Information. Notifications of grant issuance should be routed to the applicant of record for Grantee Code “IHD,” as should any audit requests concerning this device. Authorized Agent: Jones Tsai, Sporton International, Inc. No. 52, Hwa Ya 1st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien; Taiwan, R.O.C. Specific Application: FCC ID: IHDT56NY2 Contact Information: Please contact me by telephone at (954) 723-6272, or by e-mail ( [email protected]), if there are questions or additional information needed concerning this authorization Regards, FCC Liaison Motorola Mobility, Inc. 8000 W. Sunrise Blvd, Suite A Plantation, FL 33022

Rev. 1/1/03 Sporton International Inc. No.52, HwaYa 1st Rd., Kwei-Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. Tel: 886-3-327-3456 ; Fax: 886-3-328-4978 Date: September 17, 2012 Federal Communications Commission Authorization and Evaluation Division Permanent Confidentiality Request regarding application for certification of FCC ID: IHDT56NY2 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request Permanent Confidential treatment of information accompanying this application as outlined below:  Schematics  Block Diagram  Parts List  Operation Description  Tune up Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Sincerely, ________________________ Jones Tsai

1/1 Sporton International Inc. No.52, HwaYa 1st Rd., Kwei-Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. Tel: 886-3-327-3456 ; Fax: 886-3-328-4978 Date: September 17, 2012 Federal Communications Commission Authorization and Evaluation Division RE : Certification Application FCC ID : IHDT56NY2 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 180 days:  External Photos  Internal Photos  Test Setup Photos  User Manual The application contains technical information, which Sporton International Inc. deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Sincerely, Jones Tsai

FCC ID: IHDT56NY2 Motorola Mobility, Inc., 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33022, USA Pag e 13A - 1 30 May 2012 Power of Attorney RE: Power of Attorney. We, the undersigned Motorola Mobility, Inc. hereby authorize Sporton International, Inc to act on our behalf in all matters relating to any and all processes required in obtaining FCC approval for FCC ID: IHDT56NY2, and any communication required with the national authority. Any and all acts carried out by Sporton International, Inc. on our behalf shall have the same effects as acts of our own, subject to this Power of Attorney. This Power of Attorney will be effective between 1 June 2012 and 31 December 2012, a nd will expire thereafter. If you have any questions regarding this authorization, please don’t hesitate to contact us. Sincerely yours, FCC Liaison Motorola Mobility, Inc. 8000 W. Sunrise Blvd, Suite A Plantation, FL 33022 Phone: (954) 723-6272 FAX: (954) 337-2377 Mail: [email protected]

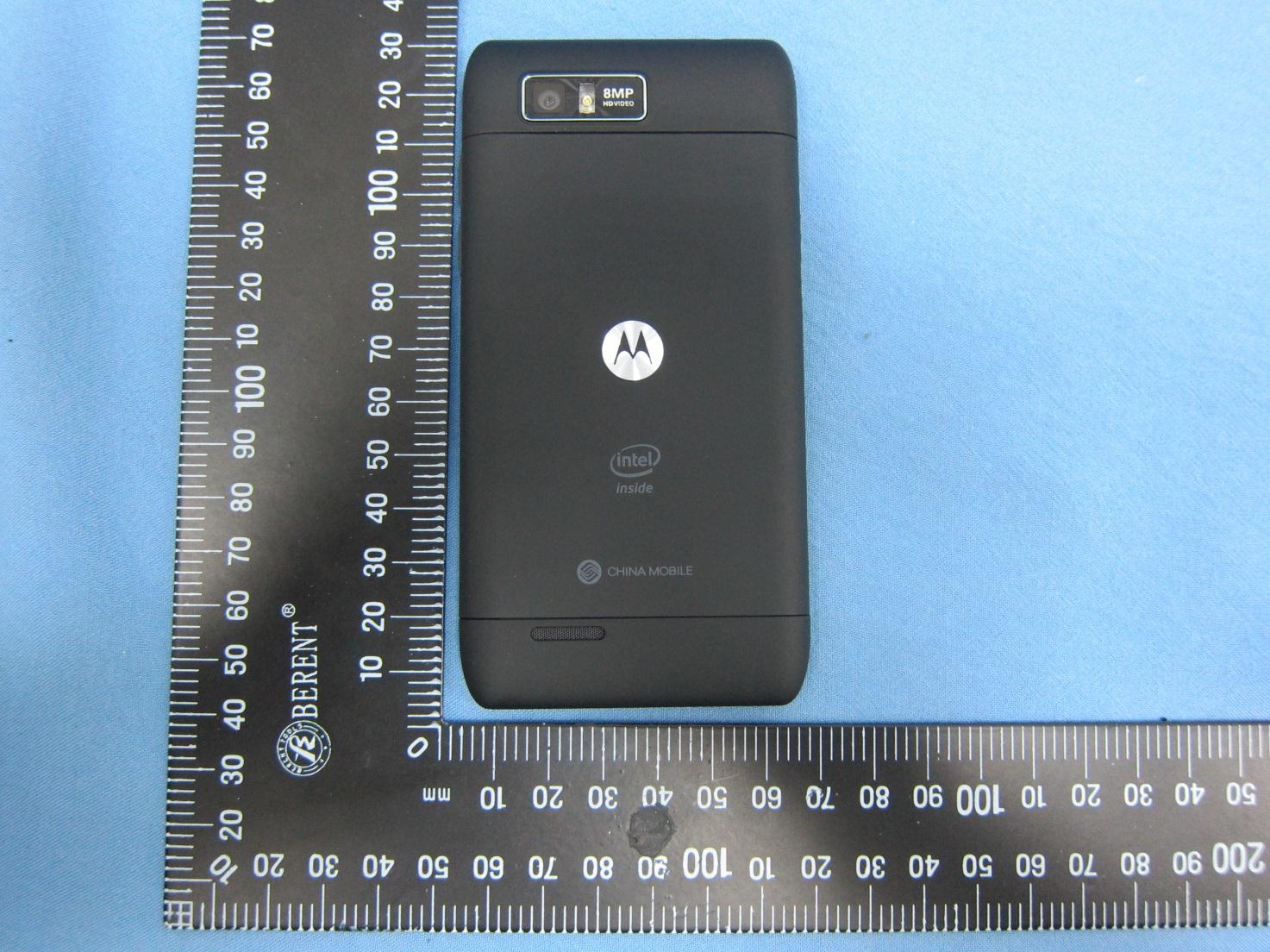

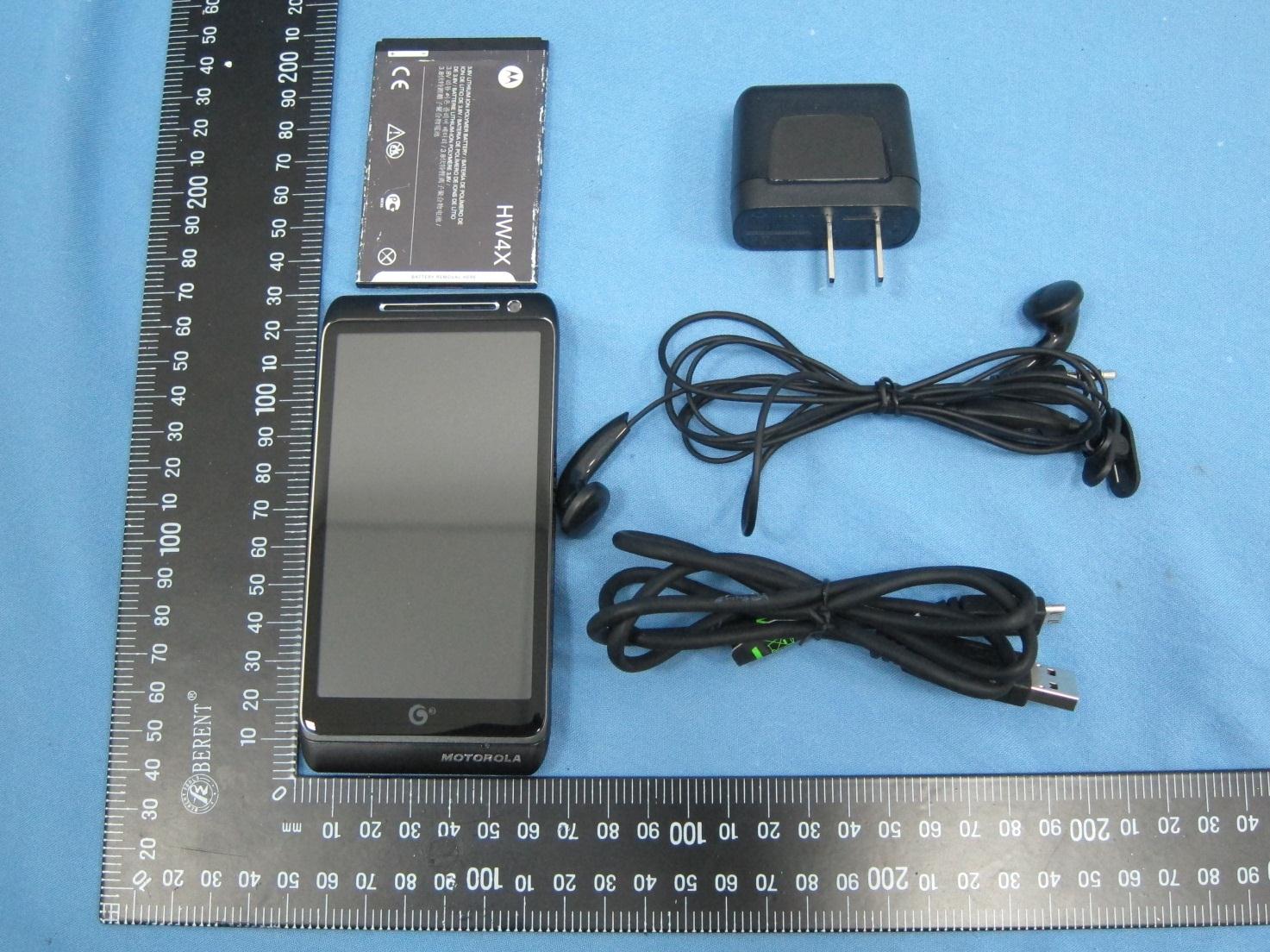

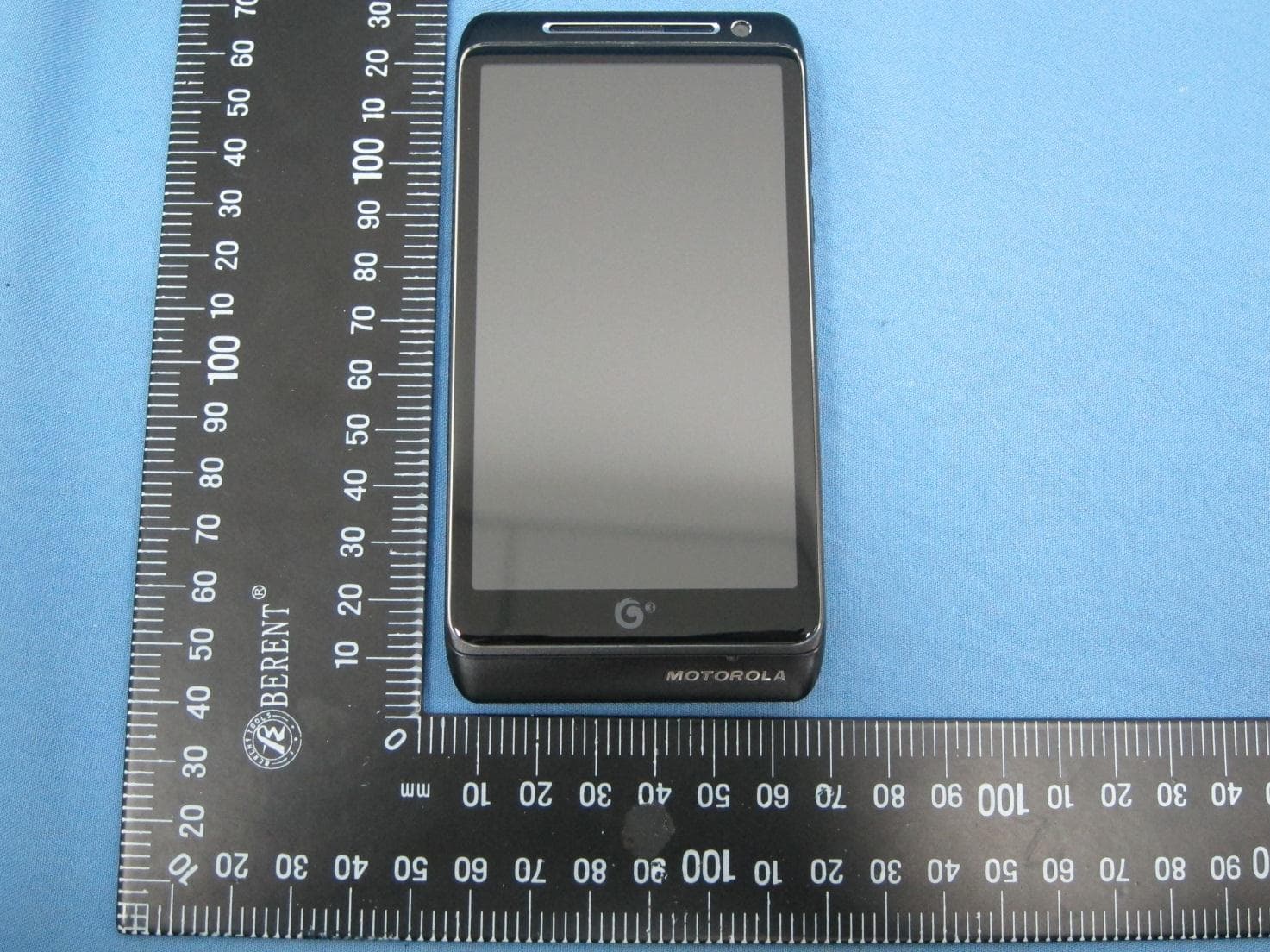

Photographs of EUT Report No.: EP280827 Brand Name: Motorola; Model Name: MT788; Marketing Name: MOTOLUXE XT MT788 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 1 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 15, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : IHDT56NY2 1. External Photograph of EUT Photographs of EUT Report No.: EP280827 Brand Name: Motorola; Model Name: MT788; Marketing Name: MOTOLUXE XT MT788 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 2 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 15, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : IHDT56NY2 Photographs of EUT Report No.: EP280827 Brand Name: Motorola; Model Name: MT788; Marketing Name: MOTOLUXE XT MT788 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 3 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 15, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : IHDT56NY2 Photographs of EUT Report No.: EP280827 Brand Name: Motorola; Model Name: MT788; Marketing Name: MOTOLUXE XT MT788 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 4 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 15, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : IHDT56NY2 Photographs of EUT Report No.: EP280827 Brand Name: Motorola; Model Name: MT788; Marketing Name: MOTOLUXE XT MT788 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 5 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 15, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : IHDT56NY2 Photographs of EUT Report No.: EP280827 Brand Name: Motorola; Model Name: MT788; Marketing Name: MOTOLUXE XT MT788 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 6 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 15, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : IHDT56NY2 Photographs of EUT Report No.: EP280827 Brand Name: Motorola; Model Name: MT788; Marketing Name: MOTOLUXE XT MT788 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 7 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 15, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : IHDT56NY2 List of Accessory: Specification of Accessory AC Adapter Brand Name Motorola Model Name SPN5515C Battery Brand Name Motorola Model Name HW4X Earphone Brand Name Motorola Model Name SJYN0760A USB Cable Brand Name Motorola Model Name SKN6378A LCD Panel Brand Name AUO Model Name H429AVN04.1 Camera 1 Brand Name Liteon Model Name 12P1BA823 Camera 2 Brand Name Abico Model Name BD17F131 Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP280827 Brand Name: Motorola; Model Name: MT788; Marketing Name: MOTOLUXE XT MT788 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 8 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 15, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : IHDT56NY2 Photographs of EUT Report No.: EP280827 Brand Name: Motorola; Model Name: MT788; Marketing Name: MOTOLUXE XT MT788 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 9 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 15, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : IHDT56NY2 AC Adapter Photographs of EUT Report No.: EP280827 Brand Name: Motorola; Model Name: MT788; Marketing Name: MOTOLUXE XT MT788 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 10 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 15, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : IHDT56NY2 Battery

Back of EUT Battery Compartment Label Location

Photographs of EUT Report No.: EP280827 Brand Name: Motorola; Model Name: MT788; Marketing Name: MOTOLUXE XT MT788 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 11 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 15, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : IHDT56NY2 Photographs of EUT Report No.: EP280827 Brand Name: Motorola; Model Name: MT788; Marketing Name: MOTOLUXE XT MT788 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 12 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 15, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : IHDT56NY2 3. Internal Photograph of EUT WWAN Antenna GPS Antenna WLAN & Bluetooth Antenna Photographs of EUT Report No.: EP280827 Brand Name: Motorola; Model Name: MT788; Marketing Name: MOTOLUXE XT MT788 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 13 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 15, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : IHDT56NY2 Photographs of EUT Report No.: EP280827 Brand Name: Motorola; Model Name: MT788; Marketing Name: MOTOLUXE XT MT788 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 14 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 15, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : IHDT56NY2 Photographs of EUT Report No.: EP280827 Brand Name: Motorola; Model Name: MT788; Marketing Name: MOTOLUXE XT MT788 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 15 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 15, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : IHDT56NY2 Photographs of EUT Report No.: EP280827 Brand Name: Motorola; Model Name: MT788; Marketing Name: MOTOLUXE XT MT788 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 16 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 15, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : IHDT56NY2 Photographs of EUT Report No.: EP280827 Brand Name: Motorola; Model Name: MT788; Marketing Name: MOTOLUXE XT MT788 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 17 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 15, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : IHDT56NY2 Photographs of EUT Report No.: EP280827 Brand Name: Motorola; Model Name: MT788; Marketing Name: MOTOLUXE XT MT788 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 18 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 15, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : IHDT56NY2 Photographs of EUT Report No.: EP280827 Brand Name: Motorola; Model Name: MT788; Marketing Name: MOTOLUXE XT MT788 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 19 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 15, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : IHDT56NY2 Photographs of EUT Report No.: EP280827 Brand Name: Motorola; Model Name: MT788; Marketing Name: MOTOLUXE XT MT788 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 20 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 15, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : IHDT56NY2 Photographs of EUT Report No.: EP280827 Brand Name: Motorola; Model Name: MT788; Marketing Name: MOTOLUXE XT MT788 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 21 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 15, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : IHDT56NY2 Photographs of EUT Report No.: EP280827 Brand Name: Motorola; Model Name: MT788; Marketing Name: MOTOLUXE XT MT788 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 22 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 15, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : IHDT56NY2 Photographs of EUT Report No.: EP280827 Brand Name: Motorola; Model Name: MT788; Marketing Name: MOTOLUXE XT MT788 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 23 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 15, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : IHDT56NY2 Photographs of EUT Report No.: EP280827 Brand Name: Motorola; Model Name: MT788; Marketing Name: MOTOLUXE XT MT788 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 24 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 15, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : IHDT56NY2 Photographs of EUT Report No.: EP280827 Brand Name: Motorola; Model Name: MT788; Marketing Name: MOTOLUXE XT MT788 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 25 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 15, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : IHDT56NY2 Photographs of EUT Report No.: EP280827 Brand Name: Motorola; Model Name: MT788; Marketing Name: MOTOLUXE XT MT788 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 26 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 15, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : IHDT56NY2 Photographs of EUT Report No.: EP280827 Brand Name: Motorola; Model Name: MT788; Marketing Name: MOTOLUXE XT MT788 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 27 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 15, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : IHDT56NY2 Photographs of EUT Report No.: EP280827 Brand Name: Motorola; Model Name: MT788; Marketing Name: MOTOLUXE XT MT788 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 28 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 15, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : IHDT56NY2 Photographs of EUT Report No.: EP280827 Brand Name: Motorola; Model Name: MT788; Marketing Name: MOTOLUXE XT MT788 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 29 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 15, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : IHDT56NY2 WWAN Antenna <Tx / Rx> Photographs of EUT Report No.: EP280827 Brand Name: Motorola; Model Name: MT788; Marketing Name: MOTOLUXE XT MT788 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Nu…

Text truncated - open the document above for the full version.

Photographs of EUT Report No.: EP280827 Brand Name: Motorola; Model Name: MT788; Marketing Name: MOTOLUXE XT MT788 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 1 of 1 TEL : 86-0512-5790-0158 Issued Date : Oct. 15, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : IHDT56NY2 EUT Length: 12.6 cm EUT Width: 6.3 cm Antenna Length Width WWAN Antenna <Tx / Rx> 5 cm 1 cm WLAN & Bluetooth Antenna <Tx / Rx> 1.8 cm 0.45 cm GPS Antenna <Rx> 1.8 cm 0.65 cm WLAN & Bluetooth Antenna <Tx / Rx> WWAN Antenna <Tx / Rx> 0.3 cm 0.3 cm 1.0 cm 0.3 cm 9.25 cm GPS Antenna <Rx> 11.3 cm 0.25 cm 5.55 cm

SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 1 of 37 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 12, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : IHDT56NY2 FCC SAR Test Report Report No. : FA280827 FCC SAR Test Report APPLICANT : Motorola Mobility, Inc. EQUIPMENT : TD-SCDMA/GSM Dual-mode digit mobile phone with BT/Wi-Fi BRAND NAME : Motorola MODEL NAME : MT788 TYPE NAME M0D7B MARKETING NAME : MOTOLUXE XT MT788 GPPD NUMBER : 3451 FCC ID : IHDT56NY2 STANDARD : FCC 47 CFR Part 2 (2.1093) ANSI/IEEE C95.1-1992 IEEE 1528-2003 FCC OET Bulletin 65 Supplement C (Edition 01-01) The product was completely tested on Sep. 16, 2012. We, SPORTON INTERNATIONAL (KUNSHAN) INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL (KUNSHAN) INC., the test report shall not be reproduced except in full. Reviewed by: Jones Tsai / Manager SPORTON INTERNATIONAL (KUNSHAN) INC. No. 3-2, PingXiang Road, Kunshan, Jiangsu Province, P.R.C. SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 2 of 37 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 12, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : IHDT56NY2 FCC SAR Test Report Report No. : FA280827 Table of Contents 1. Statement of Compliance ..............................................................................................................................................4 2. Administration Data .......................................................................................................................................................5 2.1 Testing Laboratory ...................................................................................................................................................5 2.2 Applicant .................................................................................................................................................................5 2.3 Manufacturer ...........................................................................................................................................................5 2.4 Application Details ...................................................................................................................................................5 3. General Information .......................................................................................................................................................6 3.1 Description of Equipment Under Test (EUT) ...........................................................................................................6 3.2 Product Photos .......................................................................................................................................................7 3.3 Applied Standard .....................................................................................................................................................7 3.4 Device Category and SAR Limits ............................................................................................................................7 3.5 Test Conditions ........................................................................................................................................................7 4. Specific Absorption Rate (SAR) ....................................................................................................................................8 4.1 Introduction .............................................................................................................................................................8 4.2 SAR Definition .........................................................................................................................................................8 5. SAR Measurement System ............................................................................................................................................9 5.1 E-Field Probe ........................................................................................................................................................10 5.2 Data Acquisition Electronics (DAE) ....................................................................................................................... 11 5.3 Robot .................................................................................................................................................................... 11 5.4 Measurement Server ............................................................................................................................................. 11 5.5 Phantom ................................................................................................................................................................12 5.6 Device Holder .......................................................................................................................................................13 5.7 Data Storage and Evaluation ................................................................................................................................14 5.8 Test Equipment List ...............................................................................................................................................16 6. Tissue Simulating Liquids ...........................................................................................................................................17 7. SAR Measurement Evaluation ....................................................................................................................................18 7.1 Purpose of System Performance check ...................................................................................…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : C1 of C1 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 12, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : IHDT56NY2 FCC SAR Test Report Report No. : FA280827 Appendix C. DASY Calibration Certificate The DASY calibration certificates are shown as follows. SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 FCC Test Report D2450V2, serial no. 736 Extended Dipole Calibrations Referring to KDB 450824, if dipoles are verified in return loss (<-20dB, within 20% of prior calibration), and in impedance (within 5 ohm of prior calibration), the annual calibration is not necessary and the calibration interval can be extended. <Justification of the extended calibration> D2450V2 – serial no. 736 2450 Head 2450 Body Date of Measurement Return-Loss (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginary Impedance (ohm) Delta (ohm) Return-Loss (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginary Impedance (ohm) Delta (ohm) 7.25.2011 -27.042 54.398 1.4805 -30.696 50.812 2.8262 7.25.2012 -27.950 -3.365 52.541 1.857 0.77343 0.707 -31.781 -3.535 50.572 0.24 1.5953 1.2309 The return loss is < -20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 FCC Test Report <Dipole Verification Data> - D2450 V2, serial no. 736 (Date of Measurement : 7.25.2012) 2450 MHz - Head SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 FCC Test Report 2450 MHz – Body

SPORTON INTERNATIONAL INC. Page Number : 1 of 77 TEL : 886-3-327-3456 Report Issued Date : Oct. 18, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDT56NY2 FCC RF Test Report Report No. : FR280827B FCC RF Test Report APPLICANT : Motorola Mobility, Inc. EQUIPMENT : TD-SCDMA/GSM Dual-mode digit mobile phone with BT/ Wi-Fi BRAND NAME : Motorola MODEL NAME : MT788 MARKETING NAME : MOTOLUXE XT MT788 TYPE NAME : M0D7B GPPD NUMBER : 3451 FCC ID : IHDT56NY2 STANDARD : FCC Part 15 Subpart C §15.247 CLASSIFICATION : (DTS) Digital Transmission System The product was received on Aug. 08, 2012 and completely tested on Oct. 17, 2012. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Jones Tsai / Manager SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON INTERNATIONAL INC. Page Number : 2 of 77 TEL : 886-3-327-3456 Report Issued Date : Oct. 18, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDT56NY2 FCC RF Test Report Report No. : FR280827B TABLE OF CONTENTS REVISION HISTORY .......................................................................................................................................... 3 SUMMARY OF TEST RESULT ......................................................................................................................... 4 1 GENERAL DESCRIPTION .......................................................................................................................... 5 1.1 Applicant ............................................................................................................................................ 5 1.2 Manufacturer ...................................................................................................................................... 5 1.3 Feature of Equipment Under Test ..................................................................................................... 5 1.4 Testing Site ........................................................................................................................................ 6 1.5 Applied Standards ............................................................................................................................. 6 1.6 Ancillary Equipment List .................................................................................................................... 7 2 TEST CONFIGURATION OF EQUIPMENT UNDER TEST ........................................................................ 8 2.1 Carrier Frequency Channel ............................................................................................................... 8 2.2 Pre-Scanned RF Power ..................................................................................................................... 9 2.3 Test Mode ........................................................................................................................................ 10 2.4 Connection Diagram of Test System ............................................................................................... 11 2.5 RF Utility .......................................................................................................................................... 11 3 TEST RESULT ........................................................................................................................................... 12 3.1 6dB Bandwidth Measurement ......................................................................................................... 12 3.2 Output Power Measurement ............................................................................................................ 19 3.3 Power Spectral Density Measurement ............................................................................................ 22 3.4 Conducted Band Edges and Spurious Emission Measurement ..................................................... 29 3.5 Radiated Emission Measurement .................................................................................................... 45 3.6 AC Conducted Emission Measurement........................................................................................... 70 3.7 Antenna Requirements .................................................................................................................... 75 4 LIST OF MEASURING EQUIPMENT ........................................................................................................ 76 5 UNCERTAINTY OF EVALUATION ........................................................................................................... 77 SPORTON INTERNATIONAL INC. Page Number : 3 of 77 TEL : 886-3-327-3456 Report Issued Date : Oct. 18, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDT56NY2 FCC RF Test Report Report No. : FR280827B REVISION HISTORY REPORT NO. VERSION DESCRIPTION ISSUED DATE FR280827B Rev. 01 Initial issue of report Oct. 18, 2012 SPORTON INTERNATIONAL INC. Page Number : 4 of 77 TEL : 886-3-327-3456 Report Issued Date : Oct. 18, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDT56NY2 FCC RF Test Report Report No. : FR280827B SUMMARY OF TEST RESULT Report Section FCC Rule IC Rule Description Limit Result Remark 3.1 15.247(a)(2) A8.2(a) 6dB Bandwidth ≥ 0.5MHz Pass - 3.2 15.247(b) A8.4 Power Output Measurement ≤ 30dBm Pass - 3.3 15.247(e) A8.2(b) Power Spectral Density ≤ 8dBm/3kHz Pass - 3.4 15.247(d) A8.5 Conducted Band Edges ≤ 20dBc Pass - Conducted Spurious Emission Pass - 3.5 15.247(d) A8.5 Radiated Band Edges 15.209(a) & 15.247(d) Pass - Radiated Spurious Emissi…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL INC. Page Number : 1 of 2 TEL : 886-3-327-3456 Report Issued Date : Oct. 12, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDT56NY2 FCC RF Test Report Report No. : FR280827B Setup Photographs <Conducted Emission> SPORTON INTERNATIONAL INC. Page Number : 2 of 2 TEL : 886-3-327-3456 Report Issued Date : Oct. 12, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDT56NY2 FCC RF Test Report Report No. : FR280827B <Radiated Emission> <LF> <HF>

SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : D1 of D2 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 12, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : IHDT56NY2 FCC SAR Test Report Report No. : FA280827 Appendix D. Product Photos SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : D2 of D2 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 12, 2012 FAX : …
