IHDT56PA1Portable Multi-Band GSM/ EDGE/ WCDMA/ LTE Phone with WLAN, Bluetooth and RFID

Socialize Browse Photos & videos Calls Contacts Top topics Search topics Control & customize Start Home screen & apps Safety Type qwe r t y 45 6 12 3 Locate 44 West Street Messages Protect At a glance Want More? Work Connect & transfer Music Troubleshoot Books PLAYLISTS #1 www. GMAIL™ GOOGLE+™ Motorola <XFON>pick a topic, get what you need 16 APR 2013 FCC B ac k Next Menu More At a glancea quick look Yo u r p h o n e Do you believe in love at first sight? Look at your <Xfone_temp_name>. Maybe you do.• Beautiful, but made for real life: The tough body and Gorilla glass resist drops, scratches, and splashes. Yet, it’s still big and glossy with an HD screen and crisp sound. • Won’t run out of juice: The efficient, long-lasting battery won’t die on you just when you’re updating your status or finally getting to your to-do list. Gmail Maps Google + Gallery Headphone Jack Volume KeysPressing down volume + power takes a screen capture and immortalizes embarrassing text errors. Power/Sleep Key Front CameraFor selfies. Photo/Video Camera (on back) Notification Light Flashes when you have a message. nano SIM Card Tray & Slot Tiny card, use the pokey tool. Micro USB/Charger Microphone Tips & tricks•Start: SIM in, charge up, and register. See “ Start ”. •Top topics: Just want a quick hit of what your phone can do? See “ Top topics ”. •More: All the topics in this guide and so much more, right on your phone. Touch Apps > Moto Care > HELP TOPICS . Want even more? See “ Get more ” This product meets the applicable limit for exposure to radio waves (known as SAR) of 1.6 W/kg (FCC & IC). The limits and guidelines include a substantial safety margin designed to assure the safety of all persons, regardless of age and health. The highest SAR values measured for this device are listed in the regulatory information packaged with your product. At a glance Your phone Top topics 16 APR 2013 FCC B ac k Next Menu More At a glance Top topicsCheck out what your phone can do.• Personalize your phone: see “ Redecorate your home ”. • Make a quick change: “ Quick settings ”. • Go online: see “ Browse ”. • Explore: see “ The best of Google™ ”. • Find apps: see “ Download apps ”. • Be social: see “ Socialize ”. • Find it yourself: see “ Locate & navigate ”. • Take a photo: see “ Take photos ”. • Connect to Wi-Fi: see “ Wi-Fi Networks ”. • Watch a movie: see “ Movies & TV on Google Play™ ”. • Protect your phone: see “ Screen lock ”. • Watch interactive guided tutorials: see “ MOTO Care ”. • Get all the help you need: see “ Get more ”. Tips & tricks•Intuitive: To get started quickly, touch Apps > Moto Care for interactive tutorials. At a glance Your phone Top topics 16 APR 2013 FCC B ac k Next Menu More Startlet’s get up & running Charge upSIM in, charge up, then power up.Note: Certain apps and features may not be available in all countries. Caution: Before using your phone, please read the safety, regulatory and legal information provided with your product. 1 Use the tool from in the box to slide out the SIM tray. Pop in the nano SIM. 2 Charge up. Note: Your phone uses a non-removable battery. 3 H 3 Power up. C har g e u p . C Power Key Tip s & t r i c k s•Power/Sleep Key: To make the screen sleep or wake up, press the Power key. To turn your phone on or off, press and hold it. • Notification Light: The notification light turns on when your phone starts charging and blinks when you have a new message or notification. • Battery: Squeeze every bit of juice out of your battery, see “ Battery life ”. Note: This product uses a non-removable battery. The battery should only be replaced by a Motorola-approved service facility. Any attempt to remove or replace your battery, unless performed by a service representative, may damage the product and void your warranty. Start Charge up Battery life Register The best of Google™ Old phone to new phone 16 APR 2013 FCC B ac k Next Menu More Start Battery lifeYour phone is like a small computer, giving you tons of information and apps, at 4G LTE speed. Depending on what you use, that can take a lot of power.To see what's using up battery power, touch Apps > Settings > Battery . To set automatic rules to save power, touch Apps > SmartActions . See “ SMARTACTIONS™ ”. Tips & tricksTo save even more battery life between charges, you could reduce:• recording or watching videos, listening to music, or taking pictures. • widgets that stream information to your home screen, like news or weather. • unused online accounts that you registered: Touch Apps > Settings > Accounts & sync . • Wi-Fi and Bluetooth® use: Touch Apps > Settings , then touch the switch next to Wi-Fi or Bluetooth to turn them when you don’t need them. • GPS use: Touch Apps > Settings > Location services , and uncheck GPS satellites . • display brightness: Touch Apps > Settings > Display > Brightness > (dimmer setting). • display timeout delay: Touch Apps > Settings > Display > Sleep > (shorter setting). OFF Start Charge up Battery life Register The best of Google™ Old phone to new phone 16 APR 2013 FCC B ac k Next Menu More Start RegisterAfter you power up, create or log into a Google™ account to access all of your Google services. Registration is secure and only takes a few minutes.Ti p : To get your contacts, visit www.motorola.com/transfercontacts . Note: This phone supports apps and services that use a lot of data, so make sure your data plan meets your needs. Contact your service provider for details. Turn it on.T 1 Do a few easy setup steps.D 3 Got Google? Do you have a Google Account?If you use Gmail, answer Yes. No Yes Select a language.Se 2 Welcome English Start Choose your language to begin Tips & tricks•Wi-Fi network: For faster Internet access, touch > > Wi-Fi . •Reboot: In the unlikely event that your phone becomes unresponsive, try a forced reboot. Press and hold both the Power and Volume Down keys for about 15 seconds. • Accounts: To add, edit, or delete accounts anytime, touch Apps > Settings > Accounts & sync . Fo…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA MOBILITY LLC FCC ID: IHDT56PA1 Motorola Mobility LLC; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 2 - 1 Exhibit 2. Statements of Certification -- Pursuant to 47 CFR 2.907 2.1. Specification Compliance Transceiver type described herein (IHDT56PA1) has been tested in accordance with the requirements contained in the appropriate Commission regulations. To the best of my knowledge, these tests were performed using measurement procedures consistent with industry or Commission standards, and demonstrate that this equipment complies with the appropriate standards. Each unit manufactured, imported, or marketed will conform to the samples tested herein, within the statistical variations that can be expected due to high volume production and test measurement error. NAME: David Suarez SIGNATURE: /s/ David Suarez DATE: 18 April 2013 TITLE: Engineering Manager 2.2. Statement of Certification I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in this application and accompanying technical data are true and correct. The technical data supplied with this application was taken under my supervision and is hereby duly certified. I also certify that this transmit equipment (IHDT56PA1) is in compliance with all applicable parts of the FCC Rules. NAME: John Lewczak SIGNATURE: DATE: 18 April 2013 TITLE: Engineering Manager, Product Safety and Compliance APPLICANT: MOTOROLA MOBILITY LLC FCC ID: IHDT56PA1 Motorola Mobility LLC; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 2 - 2 2.3. Attestation Statement (Equipment Class DTS and DSS - Bluetooth/Wi-Fi) This device contains an embedded Bluetooth device, Wi-Fi device, and MOTOtalk capabilities that Motorola Mobility confirms are compliant with the applicable Part 15C regulations. Personal Hotspot operation is only supported in the 2.4 GHz band. 15.247(a)(1) • The hopping sequence must be pseudorandom. • All Channels are used equally on average. • The receiver input bandwidth is approximately equal to the transmit bandwidth. • The receiver hops in sequence with the transmitted signal. 15.247(d) In order to ensure compliance with band edge emissions requirements at the upper end of the authorized spectrum, the conducted RF power of this device is reduced when operating on band edge channels, in the 802.11 g/n modes. 15.247(g) The system is designed to comply with all of the regulations in Section 15.247 when the transmitter is presented with a continuous data (or information). 15.247(h) The system does not coordinate its channel selection/hopping sequence with other frequency hopping systems for the express purpose of avoiding the simultaneous occupancy of individual hopping frequencies by multiple transmitters. NAME: David Suarez SIGNATURE: /s/ David Suarez DATE: 18 April 2013 TITLE: Engineering Manager APPLICANT: MOTOROLA MOBILITY LLC FCC ID: IHDT56PA1 Motorola Mobility LLC; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 2 - 3 2.4. Attestation Statement (Equipment Class NII - U-NII Wi-Fi) This device contains an embedded U-NII Wi-Fi device that Motorola Mobility confirms to be compliant with the applicable Part 15E regulations. Note that neither Personal Hotspot nor Wi-Fi Direct operation is supported within this equipment class. 15.407(c) The device will automatically discontinue transmission in case of either the absence of information to transmit or operational failure. 15.407(h)(1) This device does not operate in the bands between 5.25 – 5.35 GHz and 5.47 – 5.725 GHz, and as such Transmit Power Control (TPC) is not required. 15.407(h)(2) This device does not operate in the bands between 5.25 – 5.35 GHz and 5.47 – 5.725 GHz, and as such Radar Detection Function of Dynamic Frequency Selection (DFS) is not required. NAME: David Suarez SIGNATURE: /s/ David Suarez DATE: 18 April 2013 TITLE: Engineering Manager APPLICANT: MOTOROLA MOBILITY LLC FCC ID: IHDT56PA1 Motorola Mobility LLC; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 2 - 4 2.5. Attestation Statement (Equipment Class PCE – GSM/WCDMA 850/1900 MHz - Hearing Aid Compatibility) Motorola Mobility hereby declares that typical production units (identical prototypes) were evaluated for Hearing Aid Compatibility (HAC) compliance. The evaluation was performed against the ANSI C63.19-2007 standard. Features List: Model – XT1058 GSM/GPRS/EDGE WCDMA LTE Wi-Fi (a/b/g/n/ac) Bluetooth (Stereo) Location-Based Services Voice Commands Talking Phone Photo Camera Video Camera Video Player Hands Free Speaker Phone Music Player HTML Browser Text Messaging NAME: David Suarez SIGNATURE: /s/ David Suarez DATE: 18 April 2013 TITLE: Engineering Manager APPLICANT: MOTOROLA MOBILITY LLC FCC ID: IHDT56PA1 Motorola Mobility LLC; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 2 - 5 2.6. Statement Concerning Device Variants This device will be available in many variants. Variables that come into play include: • Materials composing exterior housing, including colors and coatings. • Graphics on exterior housing. • Materials composing the device buttons, including colors. • Materials and colors of bezels surrounding buttons, etc. • Wrap-around cosmetic/protective cases of various colors and materials. The number of permutations of these variables precludes testing of each possible combination. Therefore, the configuration of the device used to evaluate EMC and RF Exposure performance within this application was chosen to be representative of all possible permutations (see Exhibit 11). The variables admitted into this scheme were evaluated for impact upon device performance parameters using engineering analysis and, where needed, additional lab testing. All of the variations contemplated have been determined to comply with FCC Permissive Change rules and guidance (per …

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA MOBILITY LLC FCC ID: IHDT56PA1 Motorola Mobility LLC; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 13a - 1 10 April 2013 Authorization & Evaluation Division Federal Communications Commission Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Subject: Application for Certification of transmitter with FCC ID: IHDT56PA1, PCS Handsets, with Wi-Fi, Bluetooth, and NFC. Gentlemen; Motorola Mobility LLC; 8000 W. Sunrise Blvd.; Plantation, FL 33322 herein submits its application for certification of the multi-mode handset with FCC ID: IHDT56PA1. The primary transceiver in this composite device operates in the 850 MHz Public Mobile Service (PMS) and the 1900 MHz Personal Communications Service (PCS). It supports GSM signaling, and employs GPRS Class 12 and EDGE Class 12 capabilities. This transceiver also operates in the WCDMA mode in these bands. Note: This device also contains functions, and operates within frequency bands, that are not authorized within the United States or its territories. This filing is only applicable to supported US operations. This mobile device is also equipped with an LTE transceiver. This LTE transceiver supports high-speed wireless data communications within LTE Bands 2, 4, 5, and 17, with varying channel bandwidths of (based on the 3GPP standard) up to 20 MHz. The LTE device complies with Part 27 (Subpart C) and Part 24 (Subpart E). This radio product is also equipped with a Wi-Fi (802.11a/b/g/n/ac) transceiver. Wi-Fi supports both voice and data operation for short range wireless communications. The Wi-Fi Bands of Operation is 2.412 - 2.462 GHz, 5.180 – 5.240 GHz, and 5.745 – 5.825 GHz for 802.11a/b/g/n/ac operation. The Wi-Fi device complies 15.247 (c), 15.407, 15.205 and 15.209 (b). This radio product is equipped with a Bluetooth (BT) transceiver. BT supports both voice and data for short range wireless communications. The Bluetooth Band of Operation is 2.402 - 2.480 GHz. The BT device complies with the requirements of FCC Rule Parts 15.247 (c), 15.205 and 15.209 (b). This product also supports NFC operation as a low-power itinerant transmitter. APPLICANT: MOTOROLA MOBILITY LLC FCC ID: IHDT56PA1 Motorola Mobility LLC; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 13a - 2 All transmitters contained in this radio product have been subjected to routine environmental evaluation (as applicable) according to 47 CFR Part 2.1093 (c) for RF exposure and found to be compliant with the limits specified in 47 CFR 2.1093(d)(2). This radio product features integrated an GPS receiver, and is designed to function as a computer peripheral device when functioning as an RF modem, while connected to a computer via a data cable, as described in 47 CFR Part 15.3(r). A Part 15B test report is included for certification. Enclosed is a complete Certification Application. Contact me at (954) 723-6272 if you require any additional information. Regards, FCC Liaison Motorola Mobility LLC 8000 W. Sunrise Blvd.; Suite A Mail Stop 52-5JJ Plantation, FL 33322 E-mail: [email protected]

FCC ID: IHDT56PA1 Motorola Mobility LLC; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 13b - 1 CONFIDENTIALITY REQUEST 15 April 2013 Federal Communications Commission Laboratory Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request Regarding Application for Certification of FCC ID: IHDT56PA1. Dear Sir or Madam: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby respectfully request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Block Diagrams. IHDT56PA1_Ex_04 (Block Diagrams).pdf Schematic Diagrams. IHDT56PA1_Ex_05 (Schematic Diagrams).pdf Parts List and Tune Up Procedures. IHDT56PA1_Ex_10 (Active Components).pdf Transmitter Characteristics. IHDT56PA1_Ex_12 (TX Characteristics).pdf IHDT56PA1_Ex_12A (Manufacturer PBA).pdf Motorola Mobility LLC requests that these exhibits be held as Permanently Confidential, and not be made routinely available for public inspection. Motorola considers that the information in these exhibits should be classified as trade secrets, pursuant to 47 CFR Section 0.457(d) and Section 552(b)(4) of the Freedom of Information Act. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Motorola Mobility LLC understands that, pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. FCC ID: IHDT56PA1 Motorola Mobility LLC; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 13b - 2 SHORT TERM ONFIDENTIALITY REQUEST – 180 DAYS Pursuant to the Commission’s public notice DA 04-1705 (June 15, 2004), Motorola Mobility LLC is also requesting Temporary Confidentiality treatment of information accompanying this application as outlined below. This provision will give Motorola Mobility LLC temporary confidentiality prior to product launch. Exhibit Type File Name External product photographs. IHDT56PA1_Ex_03 (External_Photos).pdf Test set-up photographs. IHDT56PA1_Ex_07b (SAR Test Set- up_Details).pdf IHDT56PA1_Ex_07c (Part 15 Test Set- up_Details).pdf IHDT56PA1_Ex_07d (HAC Test Set- up_Details).pdf User’s Manual. IHDT56PA1_Ex_08 (User Guide).pdf Internal product photographs. IHDT56PA1_Ex_09 (Internal Photos).pdf Please contact me if you require any additional information. Regards, FCC Liaison Motorola Mobility LLC 8000 W. Sunrise Blvd.; Suite A Mail Stop 52-5JJ Plantation, FL 33322 E-mail: [email protected]

APPLICANT: MOTOROLA MOBILITY LLC FCC ID: IHDT56PA1 Motorola Mobility LLC; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 7A - 1 Exhibit 7A. Registry of KDB Publications Utilized for this Application. 7.1 Registry of KDB Publications Applied to this Application. APPLICANT: MOTOROLA MOBILITY LLC FCC ID: IHDT56PA1 Motorola Mobility LLC; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 7A - 2 7A.1 Registry of KDB Publications Applied to this Application 7A.1.1 Applicable KDB Publications The following KDB Publications were applied in the collection of test data, and the generation of test reports and other exhibits comprising this application: KDB Publication Title KDB 248227 D01, v 01r02 SAR Measurement Procedures for 802.11 a/b/g Transmitters KDB 285076 D01, v03 Equipment Authorization Guidance for Hearing Aid Compatibility. KDB 388624 D01, v09r01 Permit But Ask Procedure. KDB 388624 D02, v12 Permit But Ask List. KDB 447498 D01, v05 Mobile and Portable Device RF Exposure Procedures and Equipment Authorization Policies. KDB 558074 D01, v02 Guidance for Performing Compliance Measurements on Digital Transmission Systems (DTS) Operating Under §15.247. KDB 594280 D01, v01r02 Restrictions on Software Configuration for devices not approved as Software Defined Radios. KDB 628591 D01, v14 TCB Exclusion List. KDB 644545 D01, v01 Guidance for IEEE 802.11ac and Pre-ac Device Emissions Testing. KDB 644545 D02, v01 Alternative Guidance for IEEE 802.11ac and Pre-ac Device Emissions Testing. KDB 648474 D04, v01 SAR Evaluation Considerations for Handsets with Multiple Transmitters and Antennas. KDB 662911 D01, v01r02 Emissions Testing of Transmitters with Multiple Outputs in the Same Band (e.g., MIMO, Smart Antenna, etc). KDB 662911 D02, v01 MIMO with Cross-Polarized Antenna. KDB 784748 D01, v07 Guidelines for Labeling and User Information for Devices Subject to Part 15 and Part 18. APPLICANT: MOTOROLA MOBILITY LLC FCC ID: IHDT56PA1 Motorola Mobility LLC; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 7A - 3 KDB Publication Title KDB 789033 D01, v01r02 Guidelines for Compliance Testing of Unlicensed National Information Infrastructure (U-NII) Devices - Part 15, Subpart E. KDB 865664 D01, v01 SAR Measurement Requirements for 100 MHz to 6 GHz. KDB 865664 D02, v01 RF Exposure Compliance Reporting and Documentation Considerations. KDB 905462 Compliance Measurement Procedures for Unlicensed- National Information Infrastructure Devices Operating in the 5.25-5.35 GHz and 5.47-5.725 GHz Bands Incorporating Dynamic Frequency Selection. KDB 941225 D01, v02 SAR Tests for 3G Devices. KDB 941225 D02, v02v01 3GPP R6 HSPA and R7 HSPA+ SAR Guidance. KDB 941225 D03, v01 Recommended SAR Test Reduction Procedures for GSM/GPRS/EDGE. KDB 941225 D04, v01 Evaluating SAR for GSM/(E)GPRS Dual Transfer Mode. KDB 941225 D05, v02r01 SAR Test Considerations for LTE Handsets and Data Modems. KDB 941225 D06, v01 SAR Evaluation Procedures for Portable Devices with Wireless Router Capabilities. KDB 971168 D01, v01 Procedures for Compliance Measurement of the Fundamental Emission Power of Licensed Wideband (> 1 MHz) Digital Transmission Systems. 7A.1.2 Variations and/or Exceptions to the Procedures in the Published KDBs. Motorola Mobility has taken no liberties with respect to the procedures published in the above KDB documents. We claim full compliance with these procedures.

Applicant: Motorola Mobility LLC FCC ID: IHDT56PA1 Motorola Mobility LLC Page 1 of 3 http://www.motorola.com 8000 W. Sunrise Blvd.; Suite A Plantation, FL 33322 Date: 30 July 2013 Federal Communications Commission Office of Equipment Technology Equipment Authorizations Sent via E-Mail Re: Additional Questions Regarding Response to Inquiry of FCC (Tracking Number 751822) for IHDT56PA1. Dear Sir or Madam, Motorola Mobility LLC, 8000 W. Sunrise Blvd.; Suite A; Plantation, FL, herein submits its response to your 24 April 2013 request for further information on FCC ID: IHDT56PA1. Q 1. According to the latest FCC response to KDB Inquiry 751822, please clarify what constitutes "external components" in an exhibit in the filing describing representative accessories that are applicable for this filing. There should be an exhibit that explains the "front and rear housings and other associated components" that are being considered in this filing with respect to the discussions in the KDB inquiry 751822. Response: Features on the exterior housing of the wireless device that are subject to this configuration scheme include various housing colors (either by plastic formulation or coatings), button accents, bezels (i.e. frames surrounding buttons, display, etc.), etc. Variations of these that will be permitted are detailed in the updated Operational Description exhibit. However, none of the permissible variations will result in a new usage mode, add operational features, or change the shape or key physical dimensions of the wireless device. All of the permissible variations were devised with a view toward being consistent with FCC Class I Permissive Change guidelines, as documented in the rules (per 47 CFR 2.1043) and KDB guidance (Publication 178919 D01). Applicant: Motorola Mobility LLC FCC ID: IHDT56PA1 Motorola Mobility LLC Page 2 of 3 http://www.motorola.com 8000 W. Sunrise Blvd.; Suite A Plantation, FL 33322 Q 2. Please address in the SAR report Sec 2.6, the following request from the FCC KDB inquiry 751822: "Rationale for using the specific test configuration to support compliance for the rest of the variants should also be included in the SAR report to support compliance." The information required to support the test methodology and results generally do not qualify for confidentiality. The device configurations and exposure conditions used for compliance testing and how the test results are applied to demonstrate compliance for the different combinations of device configurations and variants should be clearly identified and explained in the SAR report for the results to support the test reduction and exclusion requested. Response: Please refer Section 2.6 in the updated SAR test report, Revision E. Q 3. Please address in the SAR report Sec 2.6 the following request from the FCC KDB inquiry 751822: "The device configurations and exposure conditions used for compliance testing and how the test results are applied to demonstrate compliance for the different combinations of device configurations and variant should be clearly identified and explained in the SAR report for the results to support the test reduction and exclusion requested." Response: Please refer Section 2.6 in the updated SAR test report, Revision E. Q 4. Please provide the Attestation Letter to "identify the limitations and restrictions applied to the variants for ensuring compliance and how new variants that have not been identified in the specific filings are handled according to permissive change requirements." according to the FCC request in FCC KDB inquiry 751822. Response: The Statements of Certifications and Attestations exhibit has been amended to address this request. Applicant: Motorola Mobility LLC FCC ID: IHDT56PA1 Motorola Mobility LLC Page 3 of 3 http://www.motorola.com 8000 W. Sunrise Blvd.; Suite A Plantation, FL 33322 Q 5. The Probe conversion factor in SAR plot problem needs to be fixed. Response: Motorola had used the "reporting" feature contained within DASY 5 for this application. This reporting feature creates output plots of the measurements taken from the DASY 5 system, but it does not modify the measured data in any way. Motorola recently noticed that there is a error in the default Reporting Template provided by SPEAG, in which the plots only show the 1810 MHz Head tissue conversion factor in the created reports, instead of the conversion factor used for the actual measurement performed. There is no compliance issue with these measurements, only a reporting defect, which has been corrected in the amended SAR test report (revision E). The FCC is aware of this reporting defect based on the review of another application, and has asked us to identify all affected applications, and work with the TCBs involved to resolve the public record. We may be contacting you under separate cover should any of these activities require your involvement. If you have any questions, please contact me at (954) 723-6272, or via e-mail. Sincerely, John Lewczak (signed) Engineering Manager Product Safety and Compliance Email: [email protected]

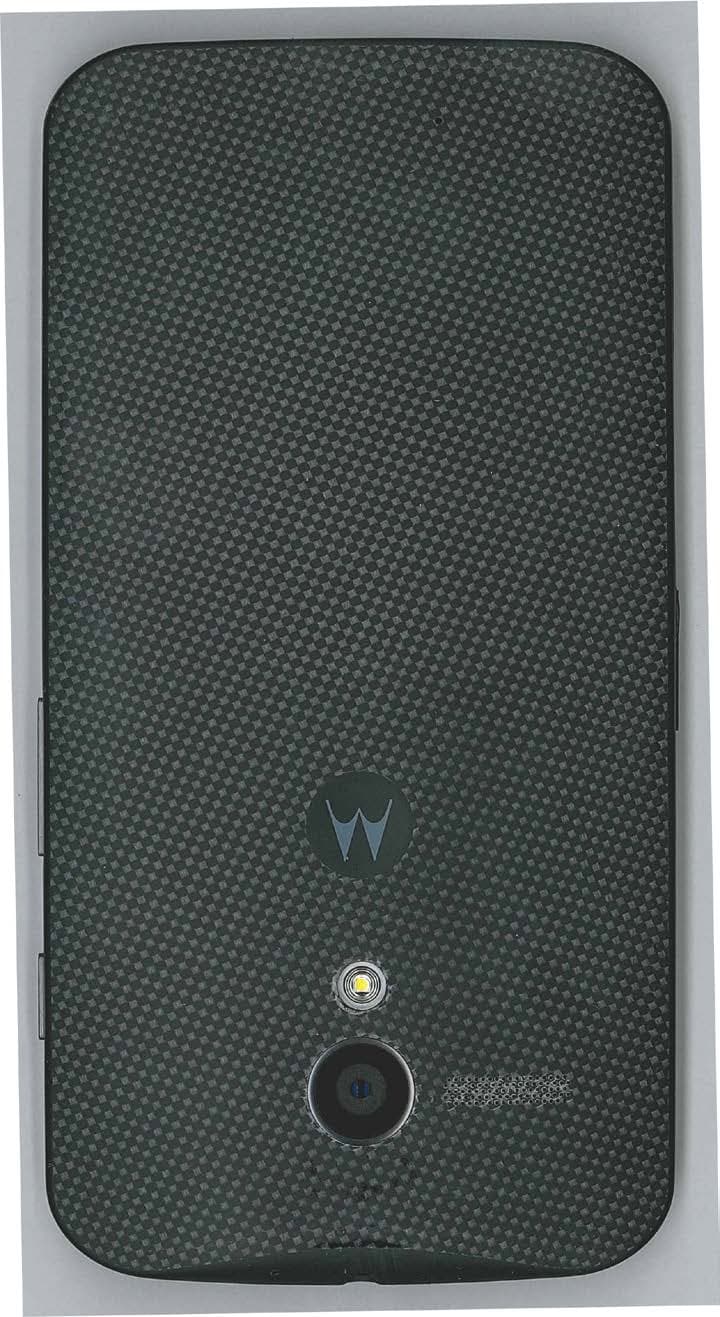

APPLICANT: MOTOROLA MOBILITY LLC FCC ID: IHDT56PA1 Temporary Confidentiality Requested Motorola Mobility LLC; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 3 - 1 Exhibit 3. External Photographs -- Pursuant to 47 CFR 2.1033(c)(12) The radio product colors, housings/bezels may vary, but only consistent with the requirements of FCC Class I Permissive Change rules and guidance (47 CFR 2.1043 and KDB 178919 D01). Figure 3-1. Front of device APPLICANT: MOTOROLA MOBILITY LLC FCC ID: IHDT56PA1 Temporary Confidentiality Requested Motorola Mobility LLC; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 3 - 2 Figure 3-2. Back of device APPLICANT: MOTOROLA MOBILITY LLC FCC ID: IHDT56PA1 Temporary Confidentiality Requested Motorola Mobility LLC; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 3 - 3 Figure 3-3. Button Side of device Figure 3-4. Opposite Side of device APPLICANT: MOTOROLA MOBILITY LLC FCC ID: IHDT56PA1 Temporary Confidentiality Requested Motorola Mobility LLC; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 3 - 4 Figure 3-5. Top of radio Figure 3-6. Bottom of radio

APPLICANT: MOTOROLA MOBILITY LLC FCC ID: IHDT56PA1 Motorola Mobility LLC; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 1 - 1 Exhibit 1: Identification Label -- Pursuant to 47 CFR 2.925 and 2.1033(c)(11) 1.1 Location On the rear (back) side of the radio product chassis, etched into the housing, near the bottom edge of the device (see Figure 1.3.2, and also Exhibit 3). 1.2 Type The label information will be permanently etched into the rear housing of the device. 1.3 Markings (Text) The FCC/IC identification label shown is representative of the label that will appear on the radio when in production. Figure 1.3.1. Representation of FCC Label information. The above label representation is applicable to the following versions/variants of the device that is the subject of this application: Model Number 1 XT1058 1 Depending upon the device version, or market into which it ships, the Model Number shown on the label may be any of the numbers shown above. All such variants will be electrically identical, consistent with the requirements of FCC Class I Permissive Change rules and guidance (47 CFR 2.1043 and KDB 178919 D01). This information will be permanently etched onto the equipment rear cover as shown below, and in Exhibit 3. Other information may also be present. FCC ID IHDT56PA1 IC: 109O-T56PA1 Model: XT1058 APPLICANT: MOTOROLA MOBILITY LLC FCC ID: IHDT56PA1 Motorola Mobility LLC; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 1 - 2 Figure 1.3.2. Location of FCC Label (position, orientation, and other information shown may vary). Please note that this label and its placement complies with the requirement of FCC Rule 47 CFR 2.925(d) that the label be permanently affixed to the product, and be readily visible to the purchaser at the time of purchase. The product’s Market or Trade Name is indelibly printed on the face of the product, as shown in Exhibit 3. FCC Label Back of Device APPLICANT: MOTOROLA MOBILITY LLC FCC ID: IHDT56PA1 Motorola Mobility LLC; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 1 - 3 Exhibit 1A: General Information 1A.1 Production Plans Quantity production is planned. 1A.2 Data Submittal Procedure The information in this application is provided in accordance with requirements for certification as outlined in the FCC Rules and Regulations: 47 CFR Part 2; Subpart J; Part 15, Subparts…

Text truncated - open the document above for the full version.
