IHDT56PB1Portable Multi-Band GSM/ EDGE/ CDMA/ WCDMA/ LTE Phone with WLAN, Bluetooth and RFID

APPLICANT: MOTOROLA MOBILITY LLC FCC ID: IHDT56PB1 Temporary Confidentiality Requested Motorola Mobility LLC; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 8 - 1 Exhibit 8: Draft User’s Manual -- 47 CFR 2.1033(b)(3) The attached User’s Manual is the final production-intended version of the generic Motorola International English User Manual. This guide will be adapted to carrier-specific versions i , but the key information herein will be retained. Translations into other languages will also be done to support the needs of other markets. Minor revisions may be made to these manuals, prior to and subsequent to, placing this product onto the market. Selected portions of the User Guide can be found as indicated below: 8.1 Safety and Regulatory Section: Page 59 8.2 Specific Absorption Rate (SAR) Data: Page 62 8.3 Guidance for use with Hearing Aids (Pursuant to 47 CFR 20.19(f)(1): Page 21, 64 i Motorola Mobility attests that the User’s Guide provided with product shipping into Canada will provide any required Industry Canada notices and/or statements in both English and French, per the requirements of RSS-Gen. SocializeBrowsePhotos & videos CallsContacts Top topicsSearch topics Control & customize Start Home screen & apps Safety Type qwe r t y 45 612 3 Locate 44 West Street Messages Protect At a glance Want More? WorkConnect & transfer Music Troubleshoot Books PLAYLISTS #1 www. Gmail™GOOGLE+™ Motorola <XFON> pick a topic, get what you need 2 MAY 2013 Back Next MenuMore AT A GLANCE a quick look Your phone Do you believe in love at first sight? Look at your <Xfone_temp_name>. Maybe you do. • Beautiful, but made for real life: With a display that goes all the way across and a curved body that feels good in your hand, it’s still tough enough to resist drops, scratches, and splashes. • Won’t run out of juice: The efficient, long-lasting battery won’t die on you just when you’re updating your status or finally getting to your to-do list. GmailMapsGoogle +Gallery Headphone Jack Volume Keys Pressing down volume + power takes a screen capture and immortalizes embarrassing text errors. Power/Sleep Key Front Camera For selfies. Photo/Video Camera (on back) nano SIM Card Tray & Slot Tiny card, use the pokey tool. Micro USB/ Charger Microphone Ti p s & t r i c k s •Start: Nano SIM in, charge up, and register. See “Start”. •Top topics: Just want a quick list of what your phone can do? See “To p t o p i c s”. •More: All your questions about your new phone, right on your phone. Touch Apps> Moto Care. Want even more? See “Get more” This product meets the applicable limit for exposure to radio waves (known as SAR) of 1.6 W/kg (FCC & IC). The limits and guidelines include a substantial safety margin designed to assure the safety of all persons, regardless of age and health. The highest SAR values measured for this device are listed in the regulatory information packaged with your product. At a glance Your phone Top topics 2 MAY 2013 Back Next MenuMore AT A GLANCE Top topics Check out what your phone can do. •Personalize your phone: see “Redecorate your home”. •Make a quick change: “Quick settings”. •Go online: see “Browse”. •Explore: see “The best of Google™”. •Find apps: see “Download apps”. •Be social: see “Socialize”. •Find it yourself: see “Locate & navigate”. •Take a photo: see “Take photos”. •Connect to Wi-Fi: see “Wi-Fi Networks”. •Watch a movie: see “Movies & TV on Google Play”. •Protect your phone: see “Screen lock”. •Watch interactive guided tutorials: see “Moto Care”. •Get all the help you need: see “Get more”. Ti p s & t r i c k s •Intuitive: To get started quickly, touch Apps> Moto Care for interactive tutorials. At a glance Your phone Top topics 2 MAY 2013 Back Next MenuMore START let’s get up & running Charge up Put your nano SIM in using the pokey tool. Then charge up and power up. Note: Certain apps and features may not be available in all countries. Caution: Before using your phone, please read the safety, regulatory and legal information provided with your product. 1 Use the tool from in the box to slide out the SIM tray. Clip the nano SIM into the tray. Then slide the tray into your phone. 2 Charge up. Note: Your phone uses a non-removable battery. 3 H 3 Power up. Charge up.C Power Key Ti p s & t r i c k s • SIM tray & tool: The SIM tray is on the side of your phone. Press the key-like tool that came in your phone’s box into the SIM tray to open it. Put your nano SIM into the tray. Push the tray back into the phone. •Power/Sleep Key: To make the screen sleep or wake up, press the Power key. To turn your phone on or off, press and hold it. • Battery: Squeeze every bit of juice out of your battery, see “Battery life”. Note: This product uses a non-removable battery. The battery should only be replaced by a Motorola-approved service facility. Any attempt to remove or replace your battery, unless performed by a service representative, may damage the product and void your warranty. Start Charge up Battery life Register The best of Google™ Old phone to new phone 2 MAY 2013 Back Next MenuMore START Battery life Your phone is like a small computer, giving you tons of information and apps, at 4G LTE speed. Depending on what you use, that can take a lot of power. To see what's using up battery power, touch Apps> Settings > Battery. To set automatic rules to save power, touch Apps > SMARTACTIONS. See “SMARTACTIONS™”. Ti p s & t r i c k s To save even more battery life between charges, you could reduce: •recording or watching videos, listening to music, or taking pictures. •widgets that stream information to your home screen, like news or weather. •unused online accounts that you registered: Touch Apps> Settings. UnderACCOUNTS, touch the one you want to remove. Touch it again, then touch Menu > Remove account. •Wi-Fi and Bluetooth® use: Touch Apps> Settings, then touch the switch next to Wi-Fi or Bluetooth to turn them when you don’t need them. •GPS use: Touch Apps> Setti…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA MOBILITY LLC FCC ID: IHDT56PB1 Motorola Mobility LLC; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 2 - 1 Exhibit 2. Statements of Certification -- Pursuant to 47 CFR 2.907 2.1. Specification Compliance Transceiver type described herein (IHDT56PB1) has been tested in accordance with the requirements contained in the appropriate Commission regulations. To the best of my knowledge, these tests were performed using measurement procedures consistent with industry or Commission standards, and demonstrate that this equipment complies with the appropriate standards. Each unit manufactured, imported, or marketed will conform to the samples tested herein, within the statistical variations that can be expected due to high volume production and test measurement error. NAME: David Suarez SIGNATURE: /s/ David Suarez DATE: 31 April 2013 TITLE: Engineering Manager 2.2. Statement of Certification I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in this application and accompanying technical data are true and correct. The technical data supplied with this application was taken under my supervision and is hereby duly certified. I also certify that this transmit equipment (IHDT56PB1) is in compliance with all applicable parts of the FCC Rules. NAME: John Lewczak SIGNATURE: DATE: 31 April 2013 TITLE: Engineering Manager, Product Safety and Compliance APPLICANT: MOTOROLA MOBILITY LLC FCC ID: IHDT56PB1 Motorola Mobility LLC; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 2 - 2 2.3. Attestation Statement (Equipment Class DTS and DSS - Bluetooth/Wi-Fi) This device contains an embedded Bluetooth device, Wi-Fi device, and MOTOtalk capabilities that Motorola Mobility confirms are compliant with the applicable Part 15C regulations. Personal Hotspot operation is only supported in the 2.4 GHz band. 15.247(a)(1) • The hopping sequence must be pseudorandom. • All Channels are used equally on average. • The receiver input bandwidth is approximately equal to the transmit bandwidth. • The receiver hops in sequence with the transmitted signal. 15.247(d) In order to ensure compliance with band edge emissions requirements at the upper end of the authorized spectrum, the conducted RF power of this device is reduced when operating on band edge channels, in the 802.11 g/n modes. 15.247(g) The system is designed to comply with all of the regulations in Section 15.247 when the transmitter is presented with a continuous data (or information). 15.247(h) The system does not coordinate its channel selection/hopping sequence with other frequency hopping systems for the express purpose of avoiding the simultaneous occupancy of individual hopping frequencies by multiple transmitters. NAME: David Suarez SIGNATURE: /s/ David Suarez DATE: 31 April 2013 TITLE: Engineering Manager APPLICANT: MOTOROLA MOBILITY LLC FCC ID: IHDT56PB1 Motorola Mobility LLC; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 2 - 3 2.4. Attestation Statement (Equipment Class NII - U-NII Wi-Fi) This device contains an embedded U-NII Wi-Fi device that Motorola Mobility confirms to be compliant with the applicable Part 15E regulations. Note that neither Personal Hotspot nor Wi-Fi Direct operation is supported within this equipment class. 15.407(c) The device will automatically discontinue transmission in case of either the absence of information to transmit or operational failure. 15.407(h)(1) This device does not operate in the bands between 5.25 – 5.35 GHz and 5.47 – 5.725 GHz, and as such Transmit Power Control (TPC) is not required. 15.407(h)(2) This device does not operate in the bands between 5.25 – 5.35 GHz and 5.47 – 5.725 GHz, and as such Radar Detection Function of Dynamic Frequency Selection (DFS) is not required. NAME: David Suarez SIGNATURE: /s/ David Suarez DATE: 31 April 2013 TITLE: Engineering Manager APPLICANT: MOTOROLA MOBILITY LLC FCC ID: IHDT56PB1 Motorola Mobility LLC; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 2 - 4 2.5. Attestation Statement (Equipment Class PCE – CDMA 850/1900 MHz - Hearing Aid Compatibility) Motorola Mobility hereby declares that typical production units (identical prototypes) were evaluated for Hearing Aid Compatibility (HAC) compliance. The evaluation was performed against the ANSI C63.19-2007 standard. Features List: Model – XT1060 GSM/CDMA/CDMA 1X/EV-DO GPRS/EDGE /WCDMA LTE Wi-Fi (a/b/g/n/ac) Bluetooth (Stereo) Location-Based Services Voice Commands Talking Phone Photo Camera Video Camera Video Player Hands Free Speaker Phone Music Player HTML Browser Text Messaging NAME: David Suarez SIGNATURE: /s/ David Suarez DATE: 31 April 2013 TITLE: Engineering Manager

APPLICANT: MOTOROLA MOBILITY LLC FCC ID: IHDT56PB1 Motorola Mobility LLC; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 13a - 1 1 May 2013 Authorization & Evaluation Division Federal Communications Commission Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Subject: Application for Certification of transmitter with FCC ID: IHDT56PB1, PCS Handsets, with Wi-Fi, Bluetooth, and NFC. Gentlemen; Motorola Mobility LLC; 8000 W. Sunrise Blvd.; Plantation, FL 33322 herein submits its application for certification of the multi-mode handset with FCC ID: IHDT56PB1. The primary transceiver in this composite device operates in the 850 MHz Public Mobile Service (PMS) and the 1900 MHz Personal Communications Service (PCS). It supports CDMA signaling, and employs CDMA 1X and EV-DO operating capabilities. Support is also provided in these bands for GSM signaling, and employs GPRS Class 12 and EDGE Class 12 capabilities. This transceiver also operates in the WCDMA mode in these bands. Note: This device also contains functions, and operates within frequency bands, that are not authorized within the United States or its territories. This filing is only applicable to supported US operations. This mobile device is also equipped with an LTE transceiver. This LTE transceiver supports high-speed wireless data communications within LTE Bands 4 and 13, with varying channel bandwidths of (based on the 3GPP standard) up to 20 MHz. The LTE device complies with Part 24 (Subpart E) and Part 27 (Subpart C). This radio product is also equipped with a Wi-Fi (802.11a/b/g/n/ac) transceiver. Wi-Fi supports both voice and data operation for short range wireless communications. The Wi-Fi Bands of Operation is 2.412 - 2.462 GHz, 5.180 – 5.240 GHz, and 5.745 – 5.825 GHz for 802.11a/b/g/n/ac operation. The Wi-Fi device complies with the requirements of 15.247 (c), 15.407, 15.205 and 15.209 (b). This radio product is equipped with a Bluetooth (BT) transceiver. BT supports both voice and data for short range wireless communications. The Bluetooth Band of Operation is 2.402 - 2.480 GHz. The BT device complies with the requirements of FCC Rule Parts 15.247 (c), 15.205 and 15.209 (b). APPLICANT: MOTOROLA MOBILITY LLC FCC ID: IHDT56PB1 Motorola Mobility LLC; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 13a - 2 This product also supports NFC operation as a low-power itinerant transmitter. All transmitters contained in this radio product have been subjected to routine environmental evaluation (as applicable) according to 47 CFR Part 2.1093 (c) for RF exposure and found to be compliant with the limits specified in 47 CFR 2.1093(d)(2). This radio product features integrated an GPS receiver, and is designed to function as a computer peripheral device when functioning as an RF modem, while connected to a computer via a data cable, as described in 47 CFR Part 15.3(r). A Part 15B test report is included for certification. Enclosed is a complete Certification Application. Contact me at (954) 723-6272 if you require any additional information. Regards, FCC Liaison Motorola Mobility LLC 8000 W. Sunrise Blvd.; Suite A Mail Stop 52-5JJ Plantation, FL 33322 E-mail: [email protected]

FCC ID: IHDT56PB1 Motorola Mobility LLC; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 13b - 1 CONFIDENTIALITY REQUEST 1 May 2013 Federal Communications Commission Laboratory Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request Regarding Application for Certification of FCC ID: IHDT56PB1. Dear Sir or Madam: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby respectfully request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Block Diagrams. IHDT56PB1_Ex_04 (Block Diagrams).pdf Schematic Diagrams. IHDT56PB1_Ex_05 (Schematic Diagrams).pdf Parts List and Tune Up Procedures. IHDT56PB1_Ex_10 (Active Components).pdf Transmitter Characteristics. IHDT56PB1_Ex_12 (TX Characteristics).pdf Motorola Mobility LLC requests that these exhibits be held as Permanently Confidential, and not be made routinely available for public inspection. Motorola considers that the information in these exhibits should be classified as trade secrets, pursuant to 47 CFR Section 0.457(d) and Section 552(b)(4) of the Freedom of Information Act. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Motorola Mobility LLC understands that, pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. FCC ID: IHDT56PB1 Motorola Mobility LLC; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 13b - 2 SHORT TERM ONFIDENTIALITY REQUEST – 180 DAYS Pursuant to the Commission’s public notice DA 04-1705 (June 15, 2004), Motorola Mobility LLC is also requesting Temporary Confidentiality treatment of information accompanying this application as outlined below. This provision will give Motorola Mobility LLC temporary confidentiality prior to product launch. Exhibit Type File Name External product photographs. IHDT56PB1_Ex_03 (External_Photos).pdf Test set-up photographs. IHDT56PB1_Ex_07b (SAR Test Set- up_Details).pdf IHDT56PB1_Ex_07c (Part 15 Test Set- up_Details).pdf IHDT56PB1_Ex_07d (HAC Test Set- up_Details).pdf User’s Manual. IHDT56PB1_Ex_08 (User Guide).pdf Internal product photographs. IHDT56PB1_Ex_09 (Internal Photos).pdf Please contact me if you require any additional information. Regards, FCC Liaison Motorola Mobility LLC 8000 W. Sunrise Blvd.; Suite A Mail Stop 52-5JJ Plantation, FL 33322 E-mail: [email protected]

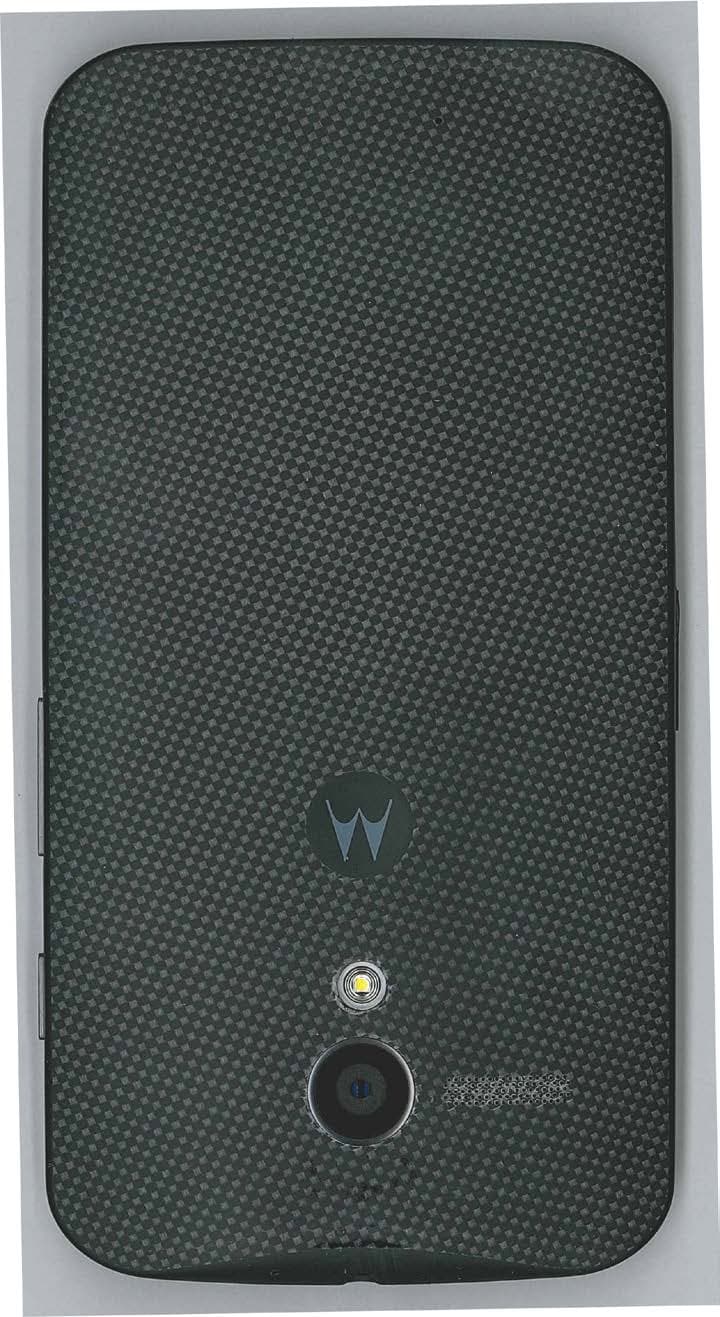

APPLICANT: MOTOROLA MOBILITY LLC FCC ID: IHDT56PB1 Temporary Confidentiality Requested Motorola Mobility LLC; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 3 - 1 Exhibit 3. External Photographs -- Pursuant to 47 CFR 2.1033(c)(12) The radio product colors, housings/bezels may vary, but only consistent with the requirements of FCC Class I Permissive Change rules and guidance (47 CFR 2.1043 and KDB 178919 D01). Figure 3-1. Front of device APPLICANT: MOTOROLA MOBILITY LLC FCC ID: IHDT56PB1 Temporary Confidentiality Requested Motorola Mobility LLC; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 3 - 2 Figure 3-2. Back of device APPLICANT: MOTOROLA MOBILITY LLC FCC ID: IHDT56PB1 Temporary Confidentiality Requested Motorola Mobility LLC; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 3 - 3 Figure 3-3. Button Side of device Figure 3-4. Opposite Side of device APPLICANT: MOTOROLA MOBILITY LLC FCC ID: IHDT56PB1 Temporary Confidentiality Requested Motorola Mobility LLC; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 3 - 4 Figure 3-5. Top of radio Figure 3-6. Bottom of radio

APPLICANT: MOTOROLA MOBILITY LLC FCC ID: IHDT56PB1 Motorola Mobility LLC; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 1 - 1 Exhibit 1: Identification Label -- Pursuant to 47 CFR 2.925 and 2.1033(c)(11) 1.1 Location On the rear (back) side of the radio product chassis, etched into the housing, near the bottom edge of the device (see Figure 1.3.2, and also Exhibit 3). 1.2 Type The label information will be permanently etched into the rear housing of the device. 1.3 Markings (Text) The FCC/IC identification label shown is representative of the label that will appear on the radio when in production. Figure 1.3.1. Representation of FCC Label information. The above label representation is applicable to the following versions/variants of the device that is the subject of this application: Model Number 1 XT1060 1 Depending upon the device version, or market into which it ships, the Model Number shown on the label may be any of the numbers shown above. All such variants will be electrically identical, consistent with the requirements of FCC Class I Permissive Change rules and guidance (47 CFR 2.1043 and KDB 178919 D01). This information will be permanently etched onto the equipment rear cover as shown below, and in Exhibit 3. Other information may also be present. FCC ID IHDT56PB1 Model: Model Number APPLICANT: MOTOROLA MOBILITY LLC FCC ID: IHDT56PB1 Motorola Mobility LLC; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 1 - 2 Figure 1.3.2. Location of FCC Label (position, orientation, and other information shown may vary). Please note that this label and its placement complies with the requirement of FCC Rule 47 CFR 2.925(d) that the label be permanently affixed to the product, and be readily visible to the purchaser at the time of purchase. The product’s Market or Trade Name is indelibly printed on the face of the product, as shown in Exhibit 3. FCC Label Back of Device APPLICANT: MOTOROLA MOBILITY LLC FCC ID: IHDT56PB1 Motorola Mobility LLC; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 1 - 3 Exhibit 1A: General Information 1A.1 Production Plans Quantity production is planned. 1A.2 Data Submittal Procedure The information in this application is provided in accordance with requirements for certification as outlined in the FCC Rules and Regulations: 47 CFR Part 2; Subpart J; Part 15, Subparts B, C, and E; Part 22 Subpart H; Part 24 Subparts B and E; and Part 27, Subparts C and L. 1A.3 Similar, currently Certified Transceiver FCC ID: IHDT56PA1 1A.4 Additional Considerations This device includes NFC (Near Field Communications) capabilities, functioning as both a tag and a reader, supporting simplified pairing with a NFC-tagged Bluetooth device, In addition to the radio receivers associated with the services authorized within this application, this device integrates a receiver designed to process signals from Global Positioning System satellites. Compliance with FCC requirements was done via the Verification process (47 CFR 2.902). This device may be considered to be a digital device, per 47 CFR 15.3(k), and can function as a computer peripheral device when functioning as an RF modem, as described in 47 CFR 15.3(r).

APPLICANT: MOTOROLA MOBILITY LLC FCC ID: IHDT56PB1 Temporary Confidentiality Requested Motorola Mobility LLC; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 9 - 1 Exhibit 9: Internal Photographs -- Pursuant to 47 CFR 2.1033(c)(12) Photograph 9-1: Front side view of the device’s PC Board, Shields in place. APPLICANT: MOTOROLA MOBILITY LLC FCC ID: IHDT56PB1 Temporary Confidentiality Requested Motorola Mobility LLC; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 9 - 2 Photograph 9-2: Back side view of the device’s PC Board. APPLICANT: MOTOROLA MOBILITY LLC FCC ID: IHDT56PB1 Temporary Confidentiality Requested Motorola Mobility LLC; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 9 - 3 Photograph 9-3: Front side view of the device’s PC Board, Shields Removed. APPLICANT: MOTOROLA MOBILITY LLC FCC ID: IHDT56PB1 Temporary Confidentiality Requested Motorola Mobility LLC; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 9 - 4 Photograph 9-4: Antenna Locations. Ant 4: GPS Antenna Ant 1: Main Antenna Ant 2: LTE Antenna NFC Antenna (rests atop the battery, which is not user replaceable) Ant 5: BT / Wi-Fi Antenna Ant 3: Diversity / MIMO Antenna APPLICANT: MOTOROLA MOBILITY LLC FCC ID: IHDT56PB1 Temporary Confidentiality Requested Motorola Mobility LLC; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 9 - 5 Photograph 9-5: Antenna Spacings.

APPLICANT: MOTOROLA MOBILITY LLC FCC ID: IHDT56PB1 Test Report Number: 25365-1NFC 1 of 16 EXHIBIT 6A10 MOBILE DEVICES BUSINESS PRODUCT SAFETY AND COMPLIANCE EMC LABORATORY EMC TEST REPORT Test Report Number – 25365-1NFC The test results contained herein relate only to the model(s) identified. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical characteristics. As the responsible EMC Engineer, I hereby declare that the equipment tested as specified in this report conforms to the requirements indicated. Signature: Name: Albert J. Patapack Title: EMC Engineer Date: May 17, 2013 This report must not be reproduced, except in full, without written approval from this laboratory. 2404 APPLICANT: MOTOROLA MOBILITY LLC FCC ID: IHDT56PB1 Test Report Number: 25365-1NFC 2 of 16 EXHIBIT 6A10 Table of Contents Description Page Test Report Details 3 Applicable Standards 3 Summary of Testing 4 General and Special Conditions 4 Equipment and Cable Configuration 5 Equipment List 5 Measurement Procedures and Data 6 APPLICANT: MOTOROLA MOBILITY LLC FCC ID: IHDT56PB1 Test Report Number: 25365-1NFC 3 of 16 EXHIBIT 6A10 Test Report Details Tests Performed By: ADR Testing Service Location Code: ADR LV Motorola Mobility LLC Product Safety and Compliance Group 600 North US Hwy 45 Libertyville, IL 60048 PH (847) 523-6167 Fax (847) 523-4538 FCC Registration Number: 316588 Industry Canada Number: 109O-1 Tests Requested By: Motorola Mobility LLC 600 North US Hwy 45 Libertyville, IL 60048 Product Type: Cellular Phone Signaling Capability: WCDMA 900/2100/1900/850, CDMA 1900/850, GSM/EDGE 850/900/1800/1900, LTE Band 04/Band 13, HSDPA 21.1 Mbps (Category 14), HSUPA 5.76 Mbps, CDMA EV-DO Release A/1X/LTE, GPRS Class 12, aGPS , NFC, Bluetooth Class 2 Version 4.0 LE+EDR, 802.11b/802.11g/802.11a/802.11n/802.11ac FCC ID: IHDT56PB1 Serial Numbers: LXAA1W0037, LXAA1W0018 Testing Complete Date: April 25, 2013 Applicable Standards All tests and measurements indicated in this document were performed in accordance with the Code of Federal Regulations Title 47: X Part 15 Subpart C – Intentional Radiators Applicable Standards: ANSI 63.4 2003, RSS-210 Issue 8, Part 15 Subpart C (15.225) APPLICANT: MOTOROLA MOBILITY LLC FCC ID: IHDT56PB1 Test Report Number: 25365-1NFC 4 of 16 EXHIBIT 6A10 Summary of Testing Test Test Name # Pass/Fail _________ 1 Field Strength of Spurious Emissions Pass from Intentional Radiators 2 AC Line Conducted Emissions Pass Test Test Name Margin with respect # to the Limit_________ 1 Field Strength of Spurious Emissions see results from Intentional Radiators 2 AC Line Conducted Emissions see results The margin with respect to the limit is the minimum margin for all modes and bands. General and Special Conditions This product utilizes an internal battery that is not removable. When applicable, EMC testing was performed with the internal battery fully charged. Where a battery could not be used due to the need for a controlled variation of input voltage, an external power supply was utilized. All testing was done in an indoor controlled environment. The temperature and the relative humidity were maintained within the ANSI C63.4 2003 Standard requirements during the entire duration of testing. Equipment and Cable Configurations The EUT was tested in a configuration as specified by ANSI C63.4 2003 Standard requirements. APPLICANT: MOTOROLA MOBILITY LLC FCC ID: IHDT56PB1 Test Report Number: 25365-1NFC 5 of 16 EXHIBIT 6A10 Equipment List Manufacturer Equipment Type Model No. Serial Number Calibration Due Date Rohde & Schwarz Receiver ESU40 100286 5/15/2013 Agilent MXA Signal Analyzer N9020A US46470586 1/20/2014 Attenuator Weinschel AS-6 6675 NCR Attenuator Weinschel AS-6 6677 NCR ETS LISN 3810/2NM 00062907 8/7/2013 ETS LISN 3810/2NM 00062912 8/6/2013 ETS Loop Antenna 6507 00049471 1/7/2014 Thermotron Environmental Chamber S-4 31580 11/15/2013 All test equipment was within their calibration date during the time of testing. When equipment went out of calibration during testing it was replaced using a similar piece of calibrated equipment. All these equipments are listed in the equipment list. All equipment is on a one-year calibration cycle. APPLICANT: MOTOROLA MOBILITY LLC FCC ID: IHDT56PB1 Test Report Number: 25365-1NFC 6 of 16 EXHIBIT 6A10 Measurement Procedures and Data FIELD STRENGTH OF EMISSIONS FROM INTENTIONAL RADIATORS Measurement Procedure The equipment under test is placed inside the semi-anechoic chamber on a wooden table on the center of the turntable. Initially, for all radiated emissions from 9 kHz to 30 MHz, the turntable is rotated 45 degrees to obtain a maximum reading on the spectrum analyzer using the peak detector function. All final readings are then taken at the worst case EUT orientation. For all radiated emissions from 30 MHz to 1 GHz, the antenna mast is varied from 1 to 4 meters and the turntable is rotated 360 degrees to obtain a maximum reading on the spectrum analyzer using the peak detector function. Below 1000 MHz, the final radiated emissions are then measured using an EMI receiver employing a CISPR quasi-peak detector. This is repeated for both horizontal and vertical polarizations of the receive antenna. The field strength of each radiated emission is calculated by correcting the EMI receiver level for cable loss, amplifier gain and antenna correction factors. Field Strength (dBuV/m) = EMI Receiver Level (dBuV) + Cable Loss (dB) - Amplifier Gain (dB) + Antenna Correction Factor (1/m) Test Setup The EUT and the host equipment were setup according to the procedures in ANSI C63.4- 2003. A software application was run on the phone which enables the phone to transmit at all the different modulations and data rates supported for NFC operation. EUT was tested in all 3 orthogonal planes. The loop antenna was positioned in all 3 orthogonal axes. Worst case results are reported. APPLICANT: MOTOROL…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA MOBILITY LLC FCC ID: IHDT56PB1 Short-Term Confidentiality Requested Motorola Mobility LLC; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 7c - 1 Exhibit 7B: Test Set-up Photographs pursuant to 47 CFR 2.948. This exhibit presents additional details concerning the test set-ups used to collect the EMC data presented elsewhere in this filing. 7B1. Test Set-up for Transmitter Spurious Emissions Tests. Figure 7B1- 1: TX Radiated Emissions Configuration. APPLICANT: MOTOROLA MOBILITY LLC FCC ID: IHDT56PB1 Short-Term Confidentiality Requested Motorola Mobility LLC; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 7c - 2 Figure 7B1- 2: Antenna - Substitution. APPLICANT: MOTOROLA MOBILITY LLC FCC ID: IHDT56PB1 Short-Term Confidentiality Requested Motorola Mobility LLC; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 7c - 3 7B2. Test Set-up for Spurious Radiations Tests (Part 15B). Figure 7B2- 1: Spurious Radiations (Part 15 Computing Device). APPLICANT: MOTOROLA MOBILITY LLC FCC ID: IHDT56PB1 Short-Term Confidentiality Requested Motorola Mobility LLC; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 7c - 4 7B3. Test Set-up for Power Line Conducted Spurious Vo…
