IHDT56QB1WCDMA/GSM Transceiver with BT & WLAN

APPLICANT: MOTOROLA MOBILITY LLC FCC ID: IHDT56QB1 Temporary Confidentiality Requested Motorola Mobility LLC; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 8 - 1 Exhibit 8: Draft User’s Manual -- 47 CFR 2.1033(b)(3) and RSP100, Section 5. The attached User’s Manual is the final production-intended version of the generic Motorola International English User Manual. This guide will be adapted to carrier-specific versions i , but the key information herein will be retained. Translations into other languages will also be done to support the needs of other markets. Minor revisions may be made to these manuals, prior to and subsequent to, placing this product onto the market. Selected portions of the User Guide can be found as indicated below: 8.1 Safety and Regulatory Section: Page 62 8.2 Specific Absorption Rate (SAR) Data: Page 64 8.3 Guidance for use with Hearing Aids (Pursuant to 47 CFR 20.19(f)(1): Page 25, 67 i Motorola Mobility attests that the User’s Guide provided with product shipping into Canada will provide any required Industry Canada notices and/or statements in both English and French, per the requirements of RSS-Gen. C alls C ontact s C ontrol & customize St ar t Home screen & app s At a glanc e Soc i a liz e B r o w se Ph o t os & vi deos T yp e M essages Locate & navigat e P ro t ec t Or g anize Connect & transfer Book s Hot to p ic s Search to p ics Want more ? Troubleshoot M usic G ames Safet y E mai l St t & Pt t Moto Gpic 7 MAY 2014 Back Next Menu More At a glancea quick look First lookYour new Moto G Cinema has pretty much everything—a big, brilliant display, stereo speakers, camera, Internet, and more. You can even change the back cover for a new look with Motorola Shells.Note: Your phone may look a little different. 11:35 GoogleGo og le Play Store 11:35 WED, JULY 16 T HU 7: 0000 AM AM HeadphoneJack Volume KeysPower Key Micro USB/ Charger Microphone FrontCamera BackHomeRecent Apps Micro SIMCard Slot (under backcover) Microphone microSD Memory Card Slot (under back cover) Optional Second Micro SIM Card Slot (dual SIM phones only, under back cover) Stereo speakers Ti p s & t r i c k s •Start: Ready to start? See “ Start ”. •Top topics: Just want a quick list of what your phone can do? See “ Top topics ”. •Help: All your questions about your new phone answered right on your phone. Touch Apps > Help . Want even more? See “ Get help & more ”. Note: Certain apps and features may not be available in all countries.Note: Motorola Shells are sold separately and availability varies by country. This product meets the applicable national or international RF exposure guidance (SAR guideline) when used normally against your head or, when worn or carried, at a distance of 1.5 cm from the body. The SAR guideline includes a considerable safety margin designed to assure the safety of all persons, regardless of age and health. Caution: Before using your phone, please read the safety, regulatory and legal information provided with your product. At a glance First look Top topics 7 MAY 2014 Back Next Menu More At a glance Top topicsCheck out what your phone can do. • Personalize your home screen: see “ Redecorate your home screen ”. • Make a quick change: see “ Quick settings ”. • Go online: see “ Browse ”. • Explore: see “ Google Play™ ”. • Find apps: see “ Download apps ”. • Be social: see “ Socialize ”. • Find it yourself: see “ Locate & navigate ”. • Take a photo: see “ Take photos ”. • Connect to Wi-Fi: see “ Wi-Fi Networks ”. • Watch a movie: see “ Play Movies & TV ”. • Protect your phone: see “ Screen lock ”. • Walk through interactive tutorials: see “ Help & more ”. • Get all the help you need: see “ Get help & more ”. Ti p s & t r i c k s •Interactive: To get started quickly, touch Apps > Help for interactive tutorials. • Google™ help: In most Google Mobile apps, you can touch Menu > Help . You can also view the Google Help Centers online at www.google.com/support . At a glance First look Top topics 7 MAY 2014 Back Next Menu More Startlet’s get up & running Remove the back coverTurn your phone upside down and take off the back cover.Caution: Don't use tools to remove the cover—doing so may damage the battery and could cause burning or injury. Take off the back cover. Watch a video to see how:www.motorola.com/backcover Put your finger in the charging port at the bottom of your phone.Press your thumb in the center of the back.Pry the cover off. 1. 2. 3. Don’t be afraid to use a little muscle. TTT a 1 Put in the SIM cardsNote: Some phones have a second SIM card slot for an optional second SIM card.Caution: Make sure you use the correct sized SIM card, and don’t use adapters with your SIM card. Note: To remove a SIM card, push it in to release it. Then slide it out. 2 Put in the SIM cards. With the gold contacts facing down, push in a card. The SIM card clicks in. MicroSIM SecondMicroSIM(dual SIMphones only) Micro SIM SIM Nano SIM & Adapter Start Remove the back cover Put in the SIM cards Put in the optional memory card Power on Dual SIM card settings (for dual SIM phones) Battery life Sign in Old phone to new phone Google Play™ 7 MAY 2014 Back Next Menu More Start Put in the optional memory cardPut in the microSD card. Note: To remove the memory card, just pull it out. 3 Put in the optional memory card. With the gold contacts facing down, push in a card. microSD (optional) Power onPress and hold the Power key until the screen turns on. Then charge up the battery when you need to. •Power/Sleep key: To make the screen sleep or wake up, press the Power key. To turn your phone on or off, press and hold the Power key. • Battery: Use your battery as efficiently as you can. See “ Battery life ”. Warning: Don't try to remove or replace the battery yourself—doing so may damage the battery and could cause burning and injury. If your phone becomes unresponsive, try a reboot—press and hold the Power key until the screen goes dark and your phone restarts. 3 H Charge …

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA MOBILITY LLC FCC ID: IHDT56QB1 Motorola Mobility LLC; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 2 - 1 Exhibit 2. Statements of Certification -- Pursuant to 47 CFR 2.907. 2.1. Specification Compliance Transceiver type described herein (IHDT56QB1) has been tested in accordance with the requirements contained in the appropriate regulations. To the best of my knowledge, these tests were performed using measurement procedures consistent with industry or Commission standards, and demonstrate that this equipment complies with the appropriate standards. Each unit manufactured, imported, or marketed will conform to the samples tested herein, within the statistical variations that can be expected due to high volume production and test measurement error. NAME: Mike Harshbarger SIGNATURE: /s/ Mike Harshbarger DATE: 21 June 2014 TITLE: L ead Hardware Engineer 2.2. Statement of Certification I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in this application and accompanying technical data are true and correct. The technical data supplied with this application was taken under my supervision and is hereby duly certified. I also certify that this transmit equipment (IHDT56QB1) is in compliance with all applicable parts of the FCC Rules. NAME: John Lewczak SIGNATURE: DATE: 23 June 2014 TITLE: Engineering Manager, Product Safety and Compliance APPLICANT: MOTOROLA MOBILITY LLC FCC ID: IHDT56QB1 Motorola Mobility LLC; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 2 - 2 2.3. Attestation Statement (Equipment Class DTS and DSS - Bluetooth/Wi-Fi) This device contains an embedded Bluetooth device, Wi-Fi device, and MOTOtalk capabilities that Motorola Mobility confirms are compliant with the applicable Part 15C regulations. Personal Hotspot operation is only supported in the 2.4 GHz band. 15.247(a)(1) • The hopping sequence must be pseudorandom. • All Channels are used equally on average. • The receiver input bandwidth is approximately equal to the transmit bandwidth. • The receiver hops in sequence with the transmitted signal. 15.247(g) The system is designed to comply with all of the regulations in Section 15.247 when the transmitter is presented with a continuous data (or information). 15.247(h) The system does not coordinate its channel selection/hopping sequence with other frequency hopping systems for the express purpose of avoiding the simultaneous occupancy of individual hopping frequencies by multiple transmitters. NAME: Mike Harshbarger SIGNATURE: /s/ Mike Harshbarger DATE: 21 June 2014 TITLE: L ead Hardware Engineer APPLICANT: MOTOROLA MOBILITY LLC FCC ID: IHDT56QB1 Motorola Mobility LLC; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 2 - 3 2.4. Hearing Aid Compatibility Attestation Statement (Equipment Class PCE – GSM/WCDMA (850/1900 MHz )) Motorola Mobility hereby declares that typical production units were evaluated for Hearing Aid Compatibility (HAC) compliance. Features List: GSM GPRS/EDGE WCDMA Wi-Fi (b/g/n) Bluetooth (Stereo) Location-Based Services Voice Commands Talking Phone Photo Camera Video Camera Video Player Hands Free Speaker Phone Music Player HTML Browser Text Messaging NAME: Mike Harshbarger SIGNATURE: /s/ Mike Harshbarger DATE: 21 June 2014 TITLE: L ead Hardware Engineer APPLICANT: MOTOROLA MOBILITY LLC FCC ID: IHDT56QB1 Motorola Mobility LLC; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 2 - 4 2.5. Hearing Aid Compatibility RFE Evaluation MIF Determination Statement (Equipment Class PCE – GSM/WCDMA (850/1900 MHz). This device, carrying FCC ID: IHDT56QB1, is being certified for Hearing Aid Compatibility under the ANSI C63.19-2011 standard, per Part 20.19. For Radio Frequency Interference, neither Speag’s Audio Interference Analyzer (AIA) nor any other indirect or direct measurement was used to determine the M-rating. Rather, the M-rating was determined by measuring the maximum steady state average E-field values in dB (V/m) or average antenna input power (as documented in HAC test report) and adding the applicable MIF value in dB. The MIF values below for the worst-case operation mode for all air interfaces are the pre-determined values provided by Speag: UID Air Interface MIF (dB) 10021 GSM-FDD(TDMA,GMSK) 3.63 10011 UMTS-FDD(WCDMA) -27.23 We confirm that the Speag simulation provided represents all the air interfaces and modes applicable for the HAC rating and certification of this device. NAME: John Lewczak SIGNATURE: /s/ John Lewczak DATE: 23 June 2014 TITLE: Engineering Manager, Product Safety and Compliance

APPLICANT: MOTOROLA MOBILITY LLC FCC ID: IHT56QB1 Motorola Mobility LLC; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 7A - 1 Exhibit 7A. Registry of KDB Publications Utilized for this Application. 7.1 Registry of KDB Publications Applied to this Application. APPLICANT: MOTOROLA MOBILITY LLC FCC ID: IHT56QB1 Motorola Mobility LLC; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 7A - 2 7A.1 Registry of KDB Publications Applied to this Application 7A.1.1 Applicable KDB Publications The following KDB Publications were applied in the collection of test data, and the generation of test reports and other exhibits comprising this application: KDB Publication Title KDB 248227 D01, v 01r02 SAR Measurement Procedures for 802.11 a/b/g Transmitters KDB 285076 D01, v04 Equipment Authorization Guidance for Hearing Aid Compatibility. KDB 388624 D01, v10 Permit But Ask Procedure. KDB 388624 D02, v15r01 Permit But Ask List. KDB 447498 D01, v05r02 Mobile and Portable Device RF Exposure Procedures and Equipment Authorization Policies. KDB 558074 D01, v03r01 Guidance for Performing Compliance Measurements on Digital Transmission Systems (DTS) Operating Under §15.247. KDB 594280 D01, v02 Guidance on Software or Network Configuration of Non- SDR Devices to Ensure Compliance. KDB 594280 D02, v01 Software Security Requirements for U-NII Devices. KDB 628591 D01, v16 TCB Exclusion List. KDB 648474 D04, v01r02 SAR Evaluation Considerations for Handsets with Multiple Transmitters and Antennas. KDB 784748 D01, v07 Guidelines for Labeling and User Information for Devices Subject to Part 15 and Part 18. KDB 865664 D01, v01r03 SAR Measurement Requirements for 100 MHz to 6 GHz. KDB 865664 D02, v01r01 RF Exposure Compliance Reporting and Documentation Considerations. KDB 941225 D01, v02 SAR Tests for 3G Devices. KDB 941225 D02, v02r02 3GPP R6 HSPA and R7 HSPA+ SAR Guidance. APPLICANT: MOTOROLA MOBILITY LLC FCC ID: IHT56QB1 Motorola Mobility LLC; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 7A - 3 KDB Publication Title KDB 941225 D03, v01 Recommended SAR Test Reduction Procedures for GSM/GPRS/EDGE. KDB 941225 D04, v01 Evaluating SAR for GSM/(E)GPRS Dual Transfer Mode. KDB 941225 D06, v01r01 SAR Evaluation Procedures for Portable Devices with Wireless Router Capabilities. KDB 971168 D01, v02r01 Procedures for Compliance Measurement of the Fundamental Emission Power of Licensed Wideband (> 1 MHz) Digital Transmission Systems. 7A.1.2 Variations and/or Exceptions to the Procedures in the Published KDBs. Motorola Mobility has taken no liberties with respect to the procedures published in the above KDB documents. We claim full compliance with these procedures.

APPLICANT: MOTOROLA MOBILITY LLC FCC ID: IHDT56QB1 Motorola Mobility LLC; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 13a - 1 6 June 2014 Authorization & Evaluation Division Federal Communications Commission Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Subject: Application for Certification of transmitter with FCC ID: IHDT56QB1, PCS Handsets, with Wi-Fi and Bluetooth. Gentlemen; Motorola Mobility LLC; 8000 W. Sunrise Blvd.; Plantation, FL 33322 herein submits its application for certification of the multi-mode handset with FCC ID: IHDT56QB1. The primary transceiver in this composite device operates in the 850 MHz Public Mobile Service (PMS) and the 1900 MHz Personal Communications Service (PCS). It supports GSM signaling, and employs GPRS Class 12 and EDGE Class 12 capabilities. This transceiver also operates in the WCDMA mode in these bands. Note: This device also contains functions, and operates within frequency bands, that are not authorized within the United States or its territories. This filing is only applicable to supported US operations. This radio product is also equipped with a Wi-Fi (802.11b/g/n) transceiver. Wi-Fi supports both voice and data for short range wireless communications. The Wi-Fi Band of Operation is 2.412 - 2.462 GHz for 802.11b/g/n operation. The Wi-Fi device complies 15.247, 15.205 and 15.209. This radio product is equipped with a Bluetooth (BT) transceiver. BT supports both voice and data for short range wireless communications. The Bluetooth Band of Operation is 2.402 - 2.480 GHz (1 MHz channel bandwidth). The BT device complies with the requirements of FCC Rule Parts 15.247, 15.205 and 15.209. All transmitters contained in this radio product have been subjected to routine environmental evaluation (as applicable) according to 47 CFR Part 2.1093 (c) for RF exposure and found to be compliant with the limits specified in 47 CFR 2.1093(d)(2). APPLICANT: MOTOROLA MOBILITY LLC FCC ID: IHDT56QB1 Motorola Mobility LLC; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 13a - 2 This radio product features integrated GPS and FM and TV broadcast receivers, and is designed to function as a computer peripheral device when functioning as an RF modem, while connected to a computer via a data cable, as described in 47 CFR Part 15.3(r). A Part 15B test report is included for certification. Enclosed is a complete Certification Application. Contact me at (954) 590-0254 if you require any additional information. Regards, FCC Liaison Motorola Mobility LLC 8000 W. Sunrise Blvd.; Suite A Mail Stop 52-5JJ Plantation, FL 33322 E-mail: [email protected]

FCC ID: IHDT56QB1 Motorola Mobility LLC; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 13b - 1 CONFIDENTIALITY REQUEST 24 June 2014 Federal Communications Commission Laboratory Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request Regarding Application for Certification of FCC ID: IHDT56QB1. Dear Sir or Madam: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby respectfully request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Block Diagrams. IHDT56QB1_Ex_04 (Block Diagrams).pdf Schematic Diagrams. IHDT56QB1 _Ex_05 (Schematic Diagrams).pdf Parts List and Tune Up Procedures. IHDT56QB1 _Ex_10 (Active Components).pdf Transmitter Characteristics. IHDT56QB1 _Ex_12 (Transceiver Characteristics).pdf Motorola Mobility LLC requests that these exhibits be held as Permanently Confidential, and not be made routinely available for public inspection. Motorola considers that the information in these exhibits should be classified as trade secrets, pursuant to 47 CFR Section 0.457(d) and Section 552(b)(4) of the Freedom of Information Act. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Motorola Mobility LLC understands that, pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. FCC ID: IHDT56QB1 Motorola Mobility LLC; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 13b - 2 SHORT TERM ONFIDENTIALITY REQUEST – 180 DAYS Pursuant to the Commission’s public notice DA 04-1705 (June 15, 2004), Motorola Mobility LLC is also requesting Temporary Confidentiality treatment of information accompanying this application as outlined below. This provision will give Motorola Mobility LLC temporary confidentiality prior to product launch. Exhibit Type File Name External product photographs. IHDT56QB1 _Ex_03 (External_Photos).pdf Test set-up photographs. IHDT56QB1_Ex_07B (GSM-UMTS EMC Test Set-up Photographs).pdf IHDT56QB1_Ex_07B (DTS Wi-Fi EMC Test Set-up Photographs).pdf IHDT56QB1_Ex_07B (Bluetooth Test Set-up Photos).pdf IHDT56QB1_Ex_07B (Bluetooth LE Test Set- up Photos).pdf IHDT56QB1_Ex_07B (Part 15B EMC Test Set-up Photographs) Rev A.pdf IHDT56QB1_Ex_07C (SAR Test Set-up Photographs).pdf 1 IHDT56QB1_Ex_07D (HAC Test Set-up Photographs).pdf 1 User’s Manual. IHDT56QB1 _Ex_08 (User Guide).pdf Internal product photographs. IHDT56QB1 _Ex_09 (Internal Photos).pdf 1 This exhibit not applicable to the JBP application, per 47 CFR 2.1031 FCC ID: IHDT56QB1 Motorola Mobility LLC; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 13b - 3 Please contact me if you require any additional information. Regards, FCC Liaison Motorola Mobility LLC 8000 W. Sunrise Blvd.; Suite A Mail Stop 52-5JJ Plantation, FL 33322 E-mail: [email protected]

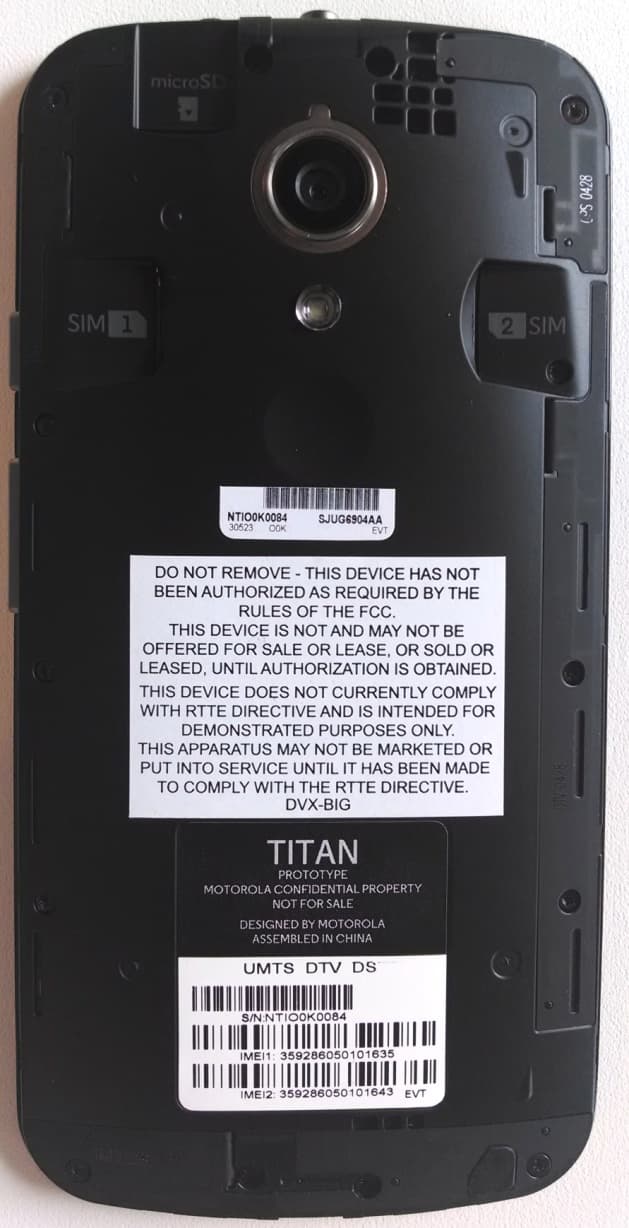

APPLICANT: MOTOROLA MOBILITY LLC FCC ID: T56QB1 Temporary Confidentiality Requested Motorola Mobility LLC; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 3 - 1 Exhibit 3. External Photographs -- Pursuant to 47 CFR 2.1033(c)(12) and RSP100, Section 5.2. The radio product colors, housings/bezels may vary, but only consistent with the requirements of FCC Class I Permissive Change rules and guidance (47 CFR 2.1043 and KDB 178919 D01). Figure 3-1. Front of device APPLICANT: MOTOROLA MOBILITY LLC FCC ID: T56QB1 Temporary Confidentiality Requested Motorola Mobility LLC; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 3 - 2 Figure 3-2. Back of device APPLICANT: MOTOROLA MOBILITY LLC FCC ID: T56QB1 Temporary Confidentiality Requested Motorola Mobility LLC; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 3 - 3 Figure 3-3. Button Side of device Figure 3-4. Opposite Side of device APPLICANT: MOTOROLA MOBILITY LLC FCC ID: T56QB1 Temporary Confidentiality Requested Motorola Mobility LLC; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 3 - 4 Figure 3-5. Top of radio Figure 3-6. Bottom of radio APPLICANT: MOTOROLA MOBILITY LLC FCC ID: T56QB1 Temporary Confidentiality Requested Motorola Mobility LLC; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 3 - 5 Figure 3-7. Interior Compartment of radio FCC Label Location. See Exhibit 1 for details.

APPLICANT: MOTOROLA MOBILITY LLC FCC ID: IHDT56QB1 Motorola Mobility LLC; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 1 - 1 Exhibit 1: Identification Label -- Pursuant to 47 CFR 2.925 and 2.1033(c)(11); and RSP100, Section 5 and RSS Gen, Section 5.2. 1.1 Location On the rear (back) side of the radio product chassis, beneath the rear cover (see also Exhibit 3). 1.2 Type The label is of a white polyester film laminate with a pressure sensitive adhesive backing. The adhesive is a permanent type acrylic with minimum peel strength of 5 lbs/in. 1.3 Markings (Text) The FCC label shown is representative of the label that will appear on the radio when in production. Figure 1.3.1. Representation of FCC Label information. The above label representation is applicable to the following versions/variants of the device that is the subject of this application: Model Number 1 1 Depending upon the device version, or market into which it ships, the Model Number shown on the label may vary. All such variants will be electrically identical, consistent with the requirements of FCC Class I Permissive Change rules and guidance (47 CFR 2.1043 and KDB 178919 D01). This label will be placed on the equipment (within the Battery Compartment) as shown below. Other information may also be included on this label, and other labels may also be present. FCC ID IHDT56QB1 Model No. MODEL APPLICANT: MOTOROLA MOBILITY LLC FCC ID: IHDT56QB1 Motorola Mobility LLC; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 1 - 2 Figure 1.3.2. Location of FCC Label (position, orientation, and other information shown may vary). Please note that this label and its placement complies with the requirement of FCC Rule 47 CFR 2.925(d) that the label be permanently affixed to the product, and be readily visible to the purchaser at the time of purchase. Further, at the time of purchase, batteries are shipped in a separate section or compartment of the radio packaging, and are not attached to the radio. In some instances they may be shipped in separate boxes. So, the end user needs to physically install the battery by removing the battery cover, if any, or attach the battery before using the radio. Further, the placement of the label in the battery compartment is done because space is limited on the exterior of the device. The battery compartment also helps to protect the label from getting obliterated or made unreadable through regular handling and use. The product’s Market or Trade Name is indelibly printed on the face of the product, as shown in Exhibit 3. Interior Battery Compartment FCC Label Back of Device

APPLICANT: MOTOROLA MOBILITY LLC FCC ID: IHDT56QB1 Temporary Confidentiality Requested Motorola Mobility LLC; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 9 - 1 Exhibit 9: Internal Photographs -- Pursuant to 47 CFR 2.1033(c)(12) and RSP100, Section 5. Photograph 9-1: Front side view of the device’s PC Board, Shields in place. APPLICANT: MOTOROLA MOBILITY LLC FCC ID: IHDT56QB1 Temporary Confidentiality Requested Motorola Mobility LLC; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 9 - 2 Photograph 9-2: Back side view of the device’s PC Board, Shields in place. APPLICANT: MOTOROLA MOBILITY LLC FCC ID: IHDT56QB1 Temporary Confidentiality Requested Motorola Mobility LLC; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 9 - 3 Photograph 9-3: Front side view of the device’s PC Board, Shields Removed. APPLICANT: MOTOROLA MOBILITY LLC FCC ID: IHDT56QB1 Temporary Confidentiality Requested Motorola Mobility LLC; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 9 - 4 Photograph 9-4: Back side view of the device’s PC Board, Shields Removed. APPLICANT: MOTOROLA MOBILITY LLC FCC ID: IHDT56QB1 Temporary Confidentiality Requested Motorola Mobility LLC; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 9 - 5 Photograph 9-5: Interior Housing View, with Battery in Place. APPLICANT: MOTOROLA MOBILITY LLC FCC ID: IHDT56QB1 Temporary Confidentiality Requested Motorola Mobility LLC; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 9 - 6 Photograph 9-6: SIM Daughter Board, Front and Rear. APPLICANT: MOTOROLA MOBILITY LLC FCC ID: IHDT56QB1 Temporary Confidentiality Requested Motorola Mobility LLC; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 9 - 7

SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 / FAX : 886-3-328-4978 Issued Date : Jun. 20, 2014 FCC ID : IHDT56QB1 Page 1 of 36 Form version. : 140422 Exhibit 11 Report No. : FA442326 FCC SAR Test Report APPLICANT : Motorola Mobility LLC EQUIPMENT : Mobile Cellular Phone BRAND NAME : Motorola Mobility, LLC MODEL NAME : 4023 FCC ID : IHDT56QB1 STANDARD : FCC 47 CFR Part 2 (2.1093) ANSI/IEEE C95.1-1992 IEEE 1528-2003 We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and had been in compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. Approved by: Jones Tsai / Manager Reviewed by: Eric Huang / Deputy Manager SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 / FAX : 886-3-328-4978 Issued Date : Jun. 20, 2014 FCC ID : IHDT56QB1 Page 2 of 36 Form version. : 140422 Exhibit 11 Report No. : FA442326 Table of Contents 1. Statement of Compliance ............................................................................................................................................. 4 2. Administration Data ...................................................................................................................................................... 4 3. Guidance Standard ....................................................................................................................................................... 5 4. Equipment Under Test (EUT) ....................................................................................................................................... 5 4.1 General Information ............................................................................................................................................... 5 4.2 Maximum Tune-up Limit ......................................................................................................................................... 6 5. RF Exposure Limits....................................................................................................................................................... 7 5.1 Uncontrolled Environment ...................................................................................................................................... 7 5.2 Controlled Environment .......................................................................................................................................... 7 6. Specific Absorption Rate (SAR) ................................................................................................................................... 8 6.1 Introduction ............................................................................................................................................................ 8 6.2 SAR Definition ........................................................................................................................................................ 8 7. System Description and Setup .................................................................................................................................... 9 8. Measurement Procedures ...........................................................................................................................................10 8.1 Spatial Peak SAR Evaluation ................................................................................................................................10 8.2 Power Reference Measurement............................................................................................................................ 11 8.3 Area Scan ............................................................................................................................................................. 11 8.4 Zoom Scan ............................................................................................................................................................12 8.5 Volume Scan Procedures ......................................................................................................................................12 8.6 Power Drift Monitoring ...........................................................................................................................................12 9. Test Equipment List ..........................................................…
