IHDT56QC2GSM/UMTS Handset with WLAN and Bluetooth

APPLICANT: MOTOROLA MOBILITY LLC FCC ID: IHDT56QC2 Temporary Confidentiality Requested Motorola Mobility LLC; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 8 - 1 Exhibit 8: Draft User’s Manual -- 47 CFR 2.1033(b)(3) and RSP100, Section 5. The attached User’s Manual is the final production-intended version of the generic Motorola International English User Manual. This guide will be adapted to carrier-specific versions i , but the key information herein will be retained. Translations into other languages will also be done to support the needs of other markets. Minor revisions may be made to these manuals, prior to and subsequent to, placing this product onto the market. Selected portions of the User Guide can be found as indicated below: 8.1 Safety and Regulatory Section: Page 63 8.2 Specific Absorption Rate (SAR) Data: Page 64-65 8.3 Guidance for use with Hearing Aids (Pursuant to 47 CFR 20.19(f)(1): Page 26, 68 i Motorola Mobility attests that the User’s Guide provided with product shipping into Canada will provide any required Industry Canada notices and/or statements in both English and French, per the requirements of RSS-Gen. C alls C ontact s C ontrol & customize St ar t Home screen & app s At a glanc e Soc i a liz e B r o w se Ph o t os & vi deos T yp e M essages Locate & navigat e P ro t ec t Or g anize Connect & transfer Book s Hot to p ic s Search to p ics Want more ? Troubleshoot M usic G ames Safet y E mai l St t & Pt t Moto EXT1514, XT1523, XT152 7 24 NOV 2014 Back Next Menu More At a glancea quick look First lookYour phone is built to keep up with you. It has a crisp display that’s water-resistant, the latest software, and a battery that lasts all day. You can even customize your phone to match your style with Motorola Bands and Grip Shells.Note: Motorola Bands and Grip Shells are sold separately. Availability varies by country.Note: Your phone may look a little different. Ti p s & t r i c k s •Start: Ready to start? See “ Start ”. •Top topics: Just want a quick list of what your phone can do? See “ Top topics ”. •Help: All your questions about your new phone answered right on your phone. Touch Apps > Help . Want even more? See “ Get help & more ”. Note: Certain apps and features may not be available in all countries. This product meets the applicable national or international RF exposure guidance (SAR guideline) when used normally against your head or, when worn or carried, at a distance of 1.5 cm from the body. The SAR guideline includes a considerable safety margin designed to assure the safety of all persons, regardless of age and health. Caution: Before using your phone, please read the safety, regulatory and legal information provided with your product. At a glance First look Top topics 24 NOV 2014 Back Next Menu More At a glance Top topicsCheck out what your phone can do. • Personalize your home screen: see “ Redecorate your home screen ”. • Make a quick change: see “ Quick settings ”. • Go online: see “ Browse ”. • Explore: see “ Google Play™ ”. • Find apps: see “ Download apps ”. • Be social: see “ Socialize ”. • Play it safe: see “ Protect ”. • Find it yourself: see “ Locate & navigate ”. • Take a photo: see “ Take photos ”. • Connect to Wi-Fi: see “ Wi-Fi Networks ”. • Watch a movie: see “ Play Movies & TV ”. • Protect your phone: see “ Screen lock ”. • Walk through interactive tutorials: see “ Help & more ”. • Get all the help you need: see “ Get help & more ”. Ti p s & t r i c k s •Interactive: To get started quickly, touch Apps > Help for interactive tutorials. • Google™ help: In almost every Google app, you can touch Menu > Help . You can also view the Google Help Centers online at www.google.com/support . At a glance First look Top topics 24 NOV 2014 Back Next Menu More Startlet’s get up & running Remove the bandThe band around the edge of your phone covers the SIM and memory card slots.Caution: Don't use tools to remove the band—doing so may damage your phone. Put in the SIM & memory cards, replace the band, & then power onPut in the SIM cards & optional microSD card. Caution: Make sure you use the correct size SIM cards, and don’t use adapters with your SIM cards.Note: In some countries, you can use a second SIM card. Start Remove the band Put in the SIM & memory cards, replace the band, & then power on Battery life Sign in Old phone to new phone Google Play™ 24 NOV 2014 Back Next Menu More Start Activate your SIM cardsIn some countries, you can use a second SIM. If there’s only one SIM in the phone, it’s ready to use. With two, you can use either or both. Touch Apps > Settings > SIM cards and select settings, like which SIM to use for calls, texts, and more. Also, during setup, choose the SIM to use for data. Ti p s & t r i c k s • SIM tray & tool: The SIM tray is on the top of your phone. Push the key-like tool that came in your phone’s box into the small hole in the SIM tray to open it. Put your nano SIM into the tray. (Make sure the angled corner of the SIM card matches the angled corner of the SIM tray.) Align the tray and gently put it back into the phone. •Power key: To make the screen sleep or wake up, press the Power key. To turn your phone on or off, press and hold it. • Battery: Squeeze every bit of juice out of your battery, see “ Battery life ”. Warning: Don't try to remove or replace the battery yourself—doing so may damage the battery and could cause burning and injury. If your phone becomes unresponsive, try a reboot—press and hold the Power key until the screen goes dark, and your phone restarts. Start Remove the band Put in the SIM & memory cards, replace the band, & then power on Battery life Sign in Old phone to new phone Google Play™ 24 NOV 2014 Back Next Menu More Start Battery lifeYour phone is like a small computer, giving you tons of information and apps, at lightning fast speed. Depending on what you use, that can take a lot of power.To see what’s using up battery power, touch Apps > Settings > Batt…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA MOBILITY LLC FCC ID: IHDT56QC2 Motorola Mobility LLC; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 2 - 1 Exhibit 2. Statements of Certification -- Pursuant to 47 CFR 2.907. 2.1. Specification Compliance Transceiver type described herein (IHDT56QC2) has been tested in accordance with the requirements contained in the appropriate regulations. To the best of my knowledge, these tests were performed using measurement procedures consistent with industry or Commission standards, and demonstrate that this equipment complies with the appropriate standards. Each unit manufactured, imported, or marketed will conform to the samples tested herein, within the statistical variations that can be expected due to high volume production and test measurement error. NAME: David Suarez SIGNATURE: /s/ David Suarez DATE: 13 January 2015 TITLE: Engineering Manager 2.2. Statement of Certification I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in this application and accompanying technical data are true and correct. The technical data supplied with this application was taken under my supervision and is hereby duly certified. I also certify that this transmit equipment (IHDT56QC1) is in compliance with all applicable parts of the FCC Rules. NAME: John Lewczak SIGNATURE: DATE: 13 January 2015 TITLE: Engineering Manager, Product Safety and Compliance APPLICANT: MOTOROLA MOBILITY LLC FCC ID: IHDT56QC2 Motorola Mobility LLC; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 2 - 2 2.3. Attestation Statement (Equipment Class DTS and DSS - Bluetooth/Wi-Fi) This device contains an embedded Bluetooth device, Wi-Fi device, and MOTOtalk capabilities that Motorola Mobility confirms are compliant with the applicable Part 15C regulations. Personal Hotspot operation is only supported in the 2.4 GHz band for this equipment class. 15.247(a)(1) • The hopping sequence must be pseudorandom. • All Channels are used equally on average. • The receiver input bandwidth is approximately equal to the transmit bandwidth. • The receiver hops in sequence with the transmitted signal. 15.247(g) The system is designed to comply with all of the regulations in Section 15.247 when the transmitter is presented with a continuous data (or information). 15.247(h) The system does not coordinate its channel selection/hopping sequence with other frequency hopping systems for the express purpose of avoiding the simultaneous occupancy of individual hopping frequencies by multiple transmitters. NAME: David Suarez SIGNATURE: /s/ David Suarez DATE: 13 January 2015 TITLE: Engineering Manager APPLICANT: MOTOROLA MOBILITY LLC FCC ID: IHDT56QC2 Motorola Mobility LLC; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 2 - 3 2.4. Declaration of Product Equivalence Motorola Mobility LLC hereby declares the mobile device carrying FCC ID IHDT56QC2 is electrically equivalent to the certified device carrying FCC ID IHDT56QC4 in the following areas: • Wi-Fi transceiver. • Bluetooth transceiver. • Bluetooth LE transceiver. This equivalence declaration asserts that the portions of this device identified above are identical to those of the referenced device, in that they share: • Identical circuit design and topology. • Identical electrical components (including the antenna). • Identical physical layout. • Identical factory tuning and configuration. • Identical physical characteristics of the PC Board and Housing. Therefore, the test data already collected for the referenced device can be re-used for this device’s certification. NAME: John Lewczak SIGNATURE: DATE: 13 January 2015 TITLE: Engineering Manager, Product Safety and Compliance

APPLICANT: MOTOROLA MOBILITY LLC FCC ID: IHDT56QC2 Motorola Mobility LLC; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 13a - 1 7 January 2015 Authorization & Evaluation Division Federal Communications Commission Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Subject: Application for Certification of transmitter with FCC ID: IHDT56QC2, PCS Handsets, with UMTS, Wi-Fi, and Bluetooth. Gentlemen; Motorola Mobility LLC; 8000 W. Sunrise Blvd.; Plantation, FL 33322 herein submits its application for certification of the multi-mode handset with FCC ID: IHDT56QC2. The primary transceiver in this composite device operates in the 850 MHz Public Mobile Service (PMS) and the 1900 MHz Personal Communications Service (PCS). It supports GSM signaling, and employs GPRS Class 12 and EDGE Class 12 capabilities. It supports GSM signaling, and employs GPRS Class 12 and EDGE Class 12 capabilities. This transceiver also operates in the WCDMA mode in these bands. Note: This device also contains functions, and operates within frequency bands, that are not authorized within the United States or its territories. This filing is only applicable to supported US operations. This radio product is also equipped with a Wi-Fi (802.11b/g/n) transceiver. Wi-Fi supports both voice and data for short range wireless communications. The Wi-Fi band of operation is the 2400 – 2483.5 MHz ISM band, for 802.11b/g/n operation. The Wi-Fi device complies 15.247, 15.205 and 15.209. This radio product is equipped with a Bluetooth (BT) transceiver. BT supports both voice and data for short range wireless communications. The Bluetooth Band of Operation is 2.402 - 2.480 GHz (1 MHz channel bandwidth). The BT device complies with the requirements of FCC Rule Parts 15.247, 15.205 and 15.209. All transmitters contained in this radio product have been subjected to routine environmental evaluation (as applicable) according to 47 CFR Part 2.1093 (c) for RF exposure and found to be compliant with the limits specified in 47 CFR 2.1093(d)(2). APPLICANT: MOTOROLA MOBILITY LLC FCC ID: IHDT56QC2 Motorola Mobility LLC; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 13a - 2 This radio product features integrated GPS and DTV broadcast receivers, and is designed to function as a computer peripheral device when functioning as an RF modem, while connected to a computer via a data cable, as described in 47 CFR Part 15.3(r). A Part 15B test report is included for certification. Enclosed is a complete Certification Application. Contact me at (954) 590-0254 if you require any additional information. Regards, FCC Liaison Motorola Mobility LLC 8000 W. Sunrise Blvd.; Suite A Mail Stop 52-5JJ Plantation, FL 33322 E-mail: [email protected]

FCC ID: IHDT56QC2 Motorola Mobility LLC; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 13b - 1 CONFIDENTIALITY REQUEST 12 January 2015 Federal Communications Commission Laboratory Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request Regarding Application for Certification of FCC ID: IHDT56QC2. Dear Sir or Madam: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby respectfully request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Block Diagrams. IHDT56QC2_Ex_04 (Block Diagrams).pdf Schematic Diagrams. IHDT56QC2 _Ex_05 (Schematics).pdf Parts List and Tune Up Procedures. IHDT56QC2 _Ex_10 (Parts List and Tune- up).pdf Transmitter Characteristics. IHDT56QC2 _Ex_12 (Transceiver Characteristics).pdf Motorola Mobility LLC requests that these exhibits be held as Permanently Confidential, and not be made routinely available for public inspection. Motorola considers that the information in these exhibits should be classified as trade secrets, pursuant to 47 CFR Section 0.457(d) and Section 552(b)(4) of the Freedom of Information Act. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Motorola Mobility LLC understands that, pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. FCC ID: IHDT56QC2 Motorola Mobility LLC; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 13b - 2 SHORT TERM ONFIDENTIALITY REQUEST – 180 DAYS Pursuant to the Commission’s public notice DA 04-1705 (June 15, 2004), Motorola Mobility LLC is also requesting Temporary Confidentiality treatment of information accompanying this application as outlined below. This provision will give Motorola Mobility LLC temporary confidentiality prior to product launch. Exhibit Type File Name External product photographs. IHDT56QC2 _Ex_03 (External_Photos).pdf Test set-up photographs. IHDT56QC2 _Ex_07B (various EMC Test Set- up Photos) – 5 files. IHDT56QC2 _Ex_07C (SAR Test Set-up Photos) 1 User’s Manual. IHDT56QC2 _Ex_08 (User Guide).pdf Internal product photographs. IHDT56QC2 _Ex_09 (Internal Photos).pdf 1 This exhibit not applicable to the JBP application, per 47 CFR 2.1031 Please contact me if you require any additional information. Regards, FCC Liaison Motorola Mobility LLC 8000 W. Sunrise Blvd.; Suite A Mail Stop 52-5JJ Plantation, FL 33322 E-mail: [email protected]

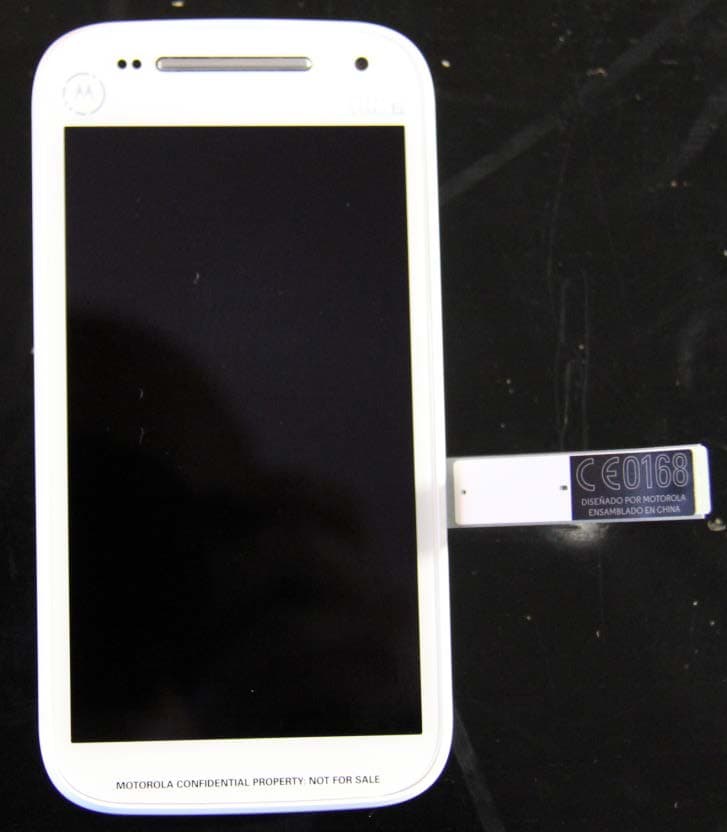

APPLICANT: MOTOROLA MOBILITY LLC FCC ID: IHDT56QC2 Temporary Confidentiality Requested Motorola Mobility LLC; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 3 - 1 Exhibit 3. External Photographs -- Pursuant to 47 CFR 2.1033(c)(12) and RSP100, Section 5.2. The radio product colors, housings/bezels may vary, but only consistent with the requirements of FCC Class I Permissive Change rules and guidance (47 CFR 2.1043 and KDB 178919 D01). Figure 3-1. Front of device APPLICANT: MOTOROLA MOBILITY LLC FCC ID: IHDT56QC2 Temporary Confidentiality Requested Motorola Mobility LLC; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 3 - 2 Figure 3-2. Back of device APPLICANT: MOTOROLA MOBILITY LLC FCC ID: IHDT56QC2 Temporary Confidentiality Requested Motorola Mobility LLC; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 3 - 3 Figure 3-3. Button Side of device Figure 3-4. Opposite Side of device APPLICANT: MOTOROLA MOBILITY LLC FCC ID: IHDT56QC2 Temporary Confidentiality Requested Motorola Mobility LLC; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 3 - 4 Figure 3-5. Top of radio Figure 3-6. Bottom of radio APPLICANT: MOTOROLA MOBILITY LLC FCC ID: IHDT56QC2 Temporary Confidentiality Requested Motorola Mobility LLC; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 3 - 5 Figure 3-6. Regulatory Information Tab (Extended) FCC Label Location. See Exhibit 1 for details.

APPLICANT: MOTOROLA MOBILITY LLC FCC ID: IHDT56QC2 Motorola Mobility LLC; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 1 - 1 Exhibit 1: Identification Label -- Pursuant to 47 CFR 2.925 and 2.1033(c)(11); and RSP100, Section 5 and RSS Gen, Section 5.2. 1.1 Location The regulatory information label (which includes the FCC ID) for this device is located on a plastic tab which can be extended from the body of the device. This tab is permanently attached to the device (see Figure 1.3.2, and also Exhibit 3). 1.2 Type The label is of a white polyester film laminate with a pressure sensitive adhesive backing. The adhesive is a permanent type acrylic with minimum peel strength of 5 lbs/in. Because the label is protected when not extended, the long-term legibility of the markings is assured. 1.3 Markings (Text) The FCC label shown is representative of the label that will appear on the radio when in production. Figure 1.3.1. Representation of FCC Label information. The above label representation is applicable to the following versions/variants of the device that is the subject of this application: Model Number 1 1 Depending upon the device version, or market into which it ships, the Model Number shown on the label may vary. All such variants will be electrically identical, consistent with the requirements of FCC Class I Permissive Change rules and guidance (47 CFR 2.1043 and KDB 178919 D01). FCC ID IHDT56QC2 Model No. MODEL APPLICANT: MOTOROLA MOBILITY LLC FCC ID: IHDT56QC2 Motorola Mobility LLC; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 1 - 2 This label will be placed on a permanently attached, retractable plastic tab as shown below. Other information may also be included on this label, and other labels may also be present. Figure 1.3.2. Location of FCC Label (position, orientation, and other information shown may vary). Please note that this label and its placement complies with the requirement of FCC Rule 47 CFR 2.925(d) that the label be permanently affixed to the product, and be readily visible to the purchaser at the time of purchase. The placement of the label on a retractable tab is done because space is limited on the exterior of the device. Adding the ability to retract the label into a protected receptacle helps to protect the label from getting obliterated or made unreadable through regular handling and use. The product’s Market or Trade Name is indelibly printed on the face of the product, as shown in Exhibit 3. Back of Device FCC Label

APPLICANT: MOTOROLA MOBILITY LLC FCC ID: IHDT56QC2 Temporary Confidentiality Requested Motorola Mobility LLC; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 9 - 1 Exhibit 9: Internal Photographs -- Pursuant to 47 CFR 2.1033(c)(12) and RSP100, Section 5. Photograph 9-1: Front side view of the device’s PC Board, Shields in place. APPLICANT: MOTOROLA MOBILITY LLC FCC ID: IHDT56QC2 Temporary Confidentiality Requested Motorola Mobility LLC; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 9 - 2 Photograph 9-2: Back side view of the device’s PC Board, Shields in place. APPLICANT: MOTOROLA MOBILITY LLC FCC ID: IHDT56QC2 Temporary Confidentiality Requested Motorola Mobility LLC; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 9 - 3 Photograph 9-3: Front side view of the device’s PC Board, Shields Removed. APPLICANT: MOTOROLA MOBILITY LLC FCC ID: IHDT56QC2 Temporary Confidentiality Requested Motorola Mobility LLC; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 9 - 4 Photograph 9-4: Antenna Locations and Spacings.

SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 / FAX : 886-3-328-4978 Issued Date : Dec. 29, 2014 FCC ID : IHDT56QC2 Page 1 of 33 Form version. : 141020 Exhibit11 Report No. : FA4N1482-02 FCC SAR Test Report APPLICANT : Motorola Mobility, LLC EQUIPMENT : Mobile Cellular Phone BRAND NAME : Motorola MODEL NAME : 4245 FCC ID : IHDT56QC2 STANDARD : FCC 47 CFR Part 2 (2.1093) ANSI/IEEE C95.1-1992 IEEE 1528-2003 We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and had been in compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. Approved by: Jones Tsai / Manager Reviewed by: Eric Huang / Deputy Manager SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 / FAX : 886-3-328-4978 Issued Date : Dec. 29, 2014 FCC ID : IHDT56QC2 Page 2 of 33 Form version. : 141020 Exhibit11 Report No. : FA4N1482-02 Table of Contents 1. Statement of Compliance ............................................................................................................................................. 4 2. Administration Data ...................................................................................................................................................... 4 3. Guidance Standard ....................................................................................................................................................... 5 4. Equipment Under Test (EUT) ....................................................................................................................................... 5 4.1 General Information ............................................................................................................................................... 5 4.2 Maximum Tune-up Limit ......................................................................................................................................... 6 5. RF Exposure Limits....................................................................................................................................................... 7 5.1 Uncontrolled Environment ...................................................................................................................................... 7 5.2 Controlled Environment .......................................................................................................................................... 7 6. Specific Absorption Rate (SAR) ................................................................................................................................... 8 6.1 Introduction ............................................................................................................................................................ 8 6.2 SAR Definition ........................................................................................................................................................ 8 7. System Description and Setup .................................................................................................................................... 9 8. Measurement Procedures ...........................................................................................................................................10 8.1 Spatial Peak SAR Evaluation ................................................................................................................................10 8.2 Power Reference Measurement............................................................................................................................ 11 8.3 Area Scan ............................................................................................................................................................. 11 8.4 Zoom Scan ............................................................................................................................................................12 8.5 Volume Scan Procedures ......................................................................................................................................12 8.6 Power Drift Monitoring ...........................................................................................................................................12 9. Test Equipment List .....................................................................................................................................................13 10. System Verification ....................................................................................................................................................14 10.1 Tissue Verification ...............................................................................................................................................14 10.2 System Performance Check Results ...................................................................................................................15 11. RF Exposure Positions ..............................................................................................................................................16 11.1 Ear and handset reference point .........................................................................................................................16 11.2 Definition of the cheek position ............................................................................................................................17 11.3 Definition of the tilt position..................................................................................................................................18 11.4 Body Worn Accessory .................................…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2014/12/6 System Check_Head_835MHz_141206 DUT: D835V2-4d162 Communication System: CW ; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: HSL_850_141206 Medium parameters used: f = 835 MHz; σ = 0.894 S/m; ε r = 41.667; ρ = 1000 kg/m 3 23.7 22.7 DASY5 Configuration: - Probe: EX3DV4 - SN3954; ConvF(10.33, 10.33, 10.33); Calibrated: 2014/11/21; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1279; Calibrated: 2014/1/30 - Phantom: SAM-Left; Type: QD 000 P40 C; Serial: TP-1478 - Measurement SW: DASY52, Version 52.8 (8);SEMCAD X Version 14.6.10 (7331) Configuration/Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 2.88 W/kg Configuration/Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 58.42 V/m; Power Drift = -0.02 dB Peak SAR (extrapolated) = 3.56 W/kg SAR(1 g) = 2.16 W/kg; SAR(10 g) = 1.33 W/kg Maximum value of SAR (measured) = 2.91 W/kg 0 dB = 2.91 W/kg = 4.64 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2014/12/9 System Check_Body_835MHz_141209 DUT: D835V2-4d162 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: MSL_850_141209 Medium parameters used: f = 835 MHz; σ = 0.962 S/m; ε r = 54.559; ρ = 1000 kg/m 3 23.2 22.2 DASY5 Configuration: - Probe: EX3DV4 - SN3931; ConvF(10.13, 10.13, 10.13); Calibrated: 2014/9/25; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2014/10/6 - Phantom: SAM-Left; Type: QD 000 P40 C; Serial: TP-1478 - Measurement SW: DASY52, Version 52.8 (8);SEMCAD X Version 14.6.10 (7331) Configuration/Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 3.16 W/kg Configuration/Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 57.69 V/m; Power Drift = -0.07 dB Peak SAR (extrapolated) = 3.19 W/kg SAR(1 g) = 2.27 W/kg; SAR(10 g) = 1.53 W/kg Maximum value of SAR (measured) = 2.81 W/kg 0 dB = 2.81 W/kg = 4.49 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2014/12/6 System Check_Head_1900MHz_141206 DUT: D1900V2-5d182 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: HSL_1900_141206 Medium parameters used: f = 1900 MHz; σ = 1.438 S/m; ε r = 39.21; ρ = 1000 kg/m 3 23.7 22.7 DASY5 Configuration: - Probe: EX3DV4 - SN3954; ConvF(8.1, 8.1, 8.1); Calibrated: 2014/11/21; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1279; Calibrated: 2014/1/30 - Phantom: SAM-Right; Type: QD 000 P40 C; Serial: TP-1446 - Measurement SW: DASY52, Version 52.8 (8);SEMCAD X Version 14.6.10 (7331) Configuration/Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 14.3 W/kg Configuration/Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 99.60 V/m; Power Drift = -0.07 dB Peak SAR (extrapolated) = 17.4 W/kg SAR(1 g) = 9.55 W/kg; SAR(10 g) = 4.99 W/kg Maximum value of SAR (measured) = 13.5 W/kg 0 dB = 13.5 W/kg = 11.30 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2014/12/8 System Check_Body_1900MHz_141208 DUT: D1900V2-5d182 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: MSL_1900_141208 Medium parameters used: f = 1900 MHz; σ = 1.521 S/m; ε r = 53.218; ρ…
