APPLICANT: MOTOROLA, INC.FCC ID: IHDT56ZM1 INSTRUCTION MANUAL EXHIBIT 8 The following is a draft copy of the instruction manual. Cellular Telephone User Manual DRAFT August 13, 1999 Modulous.book Page 1 Friday, August 13, 1999 8:28 AM Modulous.book Page 2 Friday, August 13, 1999 8:28 AM Welcome Thank you for choosing your Motorola phone from a global leader in communications technology. All Motorola digital cellular phones are designed and manufactured to meet Motorola’s rigorous specifications and world-class quality standards. During development, our laboratory testing team took your cellular phone through rigorous durability tests including temperature, humidity, shock, dust, vibration, and drop tests— and the phone still worked! We are confident that the phone you purchased will meet your own exacting standards. Enjoy your Motorola phone. STO RCL CLR END SND FCN Modulous.book Page i Friday, August 13, 1999 8:28 AM ii Contents Welcome . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .i Safety Information . . . . . . . . . . . . . . . . . . . . . . . . v Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Phone Overview . . . . . . . . . . . . . . . . . . . . . . . . 10 Understanding the Guide . . . . . . . . . . . . . . . . 11 Using the Battery . . . . . . . . . . . . . . . . . . . . . . . . 12 About Your Batteries . . . . . . . . . . . . . . . . . . . . 12 Installing and Removing Batteries . . . . . . . . . . 14 Checking Battery Levels . . . . . . . . . . . . . . . . . 15 Charging Batteries . . . . . . . . . . . . . . . . . . . . . . 16 Using the Phone . . . . . . . . . . . . . . . . . . . . . . . . . 18 Turning the Phone On and Off . . . . . . . . . . . . . 18 Reading the Indicators . . . . . . . . . . . . . . . . . . 19 Standby Mode . . . . . . . . . . . . . . . . . . . . . . . . . 20 Placing a Call 21 Ending a Call . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Receiving a Call 22 Switching Between Digital and Analog Modes . . . . . . . . . . . . . . . . . . . . . . . . . 22 Redialing a Number . . . . . . . . . . . . . . . . . . . . . 23 Controlling Volume . . . . . . . . . . . . . . . . . . . . . . 24 Using Phone Memory . . . . . . . . . . . . . . . . . . . . 25 Using Your Phone’s Built-in Phone Book . . . . . 26 Storing Names and Numbers . . . . . . . . . . . . . 26 Recalling an Entry by Name . . . . . . . . . . . . . . 28 Recalling an Entry by Memory Location . . . . . 28 Clearing a Phone Memory Entry . . . . . . . . . . . 29 Shortcuts for Recalling Phone Book Entries . . 29 Making Notes on the Scratchpad . . . . . . . . . . 30 Using the Menu System . . . . . . . . . . . . . . . . . . . 31 Introducing the Menu Features . . . . . . . . . . . . 31 Navigating the Menu . . . . . . . . . . . . . . . . . . . . 32 Road Maps . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 Modulous.book Page ii Friday, August 13, 1999 8:28 AM iii Managing Recent Calls . . . . . . . . . . . . . . . . . . .33 Road Map for Recent Calls . . . . . . . . . . . . . . .33 About Recent Calls . . . . . . . . . . . . . . . . . . . . . .33 Reviewing Received Calls . . . . . . . . . . . . . . . .35 Reviewing Dialed Calls . . . . . . . . . . . . . . . . . . .36 Clearing Caller Line ID . . . . . . . . . . . . . . . . . . .37 Managing the Phone Book . . . . . . . . . . . . . . . .38 Road Map for Phone Book . . . . . . . . . . . . . . . .38 Recalling an Entry by Name . . . . . . . . . . . . . . .39 Recalling an Entry by Location . . . . . . . . . . . .39 Storing with the Menu . . . . . . . . . . . . . . . . . . . .40 Storing and Placing Numbers with Pause Dialing . . . . . . . . . . . . . . . . . . . . . . . . . .41 Storing and Placing Numbers for Calling Card Information . . . . . . . . . . . . . . . . .43 Editing a Memory Location . . . . . . . . . . . . . . .46 Assigning an Individual Ring Style to a Phone Book Entry . . . . . . . . . . . . . . . . . . .48 Timing Your Calls . . . . . . . . . . . . . . . . . . . . . . . .50 Road Map for Call Timers . . . . . . . . . . . . . . . . .50 Viewing the Individual Call Timer . . . . . . . . . . .51 Viewing the Resettable Call Timer . . . . . . . . . .51 Viewing the Cumulative Timer . . . . . . . . . . . . .52 Resetting the Timer . . . . . . . . . . . . . . . . . . . . .52 Displaying the Individual Timer Automatically . . . . . . . . . . . . . . . . . . . . . . . . . .53 Setting the One-Minute Audible Timer . . . . . . .53 Setting the Repeating Audible Timer . . . . . . . .54 Setting the Single Timer . . . . . . . . . . . . . . . . . .54 Adjusting Tone Controls . . . . . . . . . . . . . . . . . .56 Road Map for Tone Controls . . . . . . . . . . . . . . .56 Selecting Call Alert Type . . . . . . . . . . . . . . . . .57 Selecting Message Alert Type . . . . . . . . . . . . .58 Selecting a Ring Style . . . . . . . . . . . . . . . . . . .59 Turning Keypad Tones On and Off . . . . . . . . . .60 Turning Scratchpad Tones On and Off . . . . . . .60 Modulous.book Page iii Friday, August 13, 1999 8:28 AM iv Using Lock/Security Features . . . . . . . . . . . . . 61 Road Map for Lock Security . . . . . . . . . . . . . . 61 Activating Voice Privacy . . . . . . . . . . . . . . . . . 62 Locking/Unlocking Your Phone . . . . . . . . . . . . 63 Activating Priority Calling . . . . . . . . . . . . . . . . . 64 Managing Security Options . . . . . . . . . . . . . . . 65 Customizing Phone Options . . . . . . . . . . . . . . 72 Road Map for Phone Options . . . . . . . . . . . . . 72 Activating Pager Mode . . . . . . . . . . . . . . . . . . 73 Selecting Call Mode Preference . . . . . . . . . . . 74 Viewing Your Own Number . . . . . . . . . . . . . . . 75 Switching Between Numbers . . . . . . . . . . . . . 76 Selecting a Cellular System . . . . . . . . . . . . . . 78 Reviewing Feature Settings . . . . . . . . . . . . . . . 79 Activating Automatic Hands-Free . . . . . . . . . . 80 Activating Multiple Key Answer . . . . . . . . . . . . 81 Activating Aut…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLAFCC ID: IHDT56ZM1 Exhibit 2A August 17, 1999 Engineer-in-Charge Equipment Authorization Branch Federal Communications Commission We hereby certify that this transmit and receive equipment (FCC ID: IHDT56ZM1) for dual mode, dual band mobile station cellular use is capable of full compliance with TIA/EIA-136 (Revision 0), Dual-Mode, Dual- Band Mobile Station - Base Station Compatibility Standard, October 1998, (Signed – Mike Houghton) Mike Houghton Engineering Section Manager Cellular Subscriber Equipment (Signed – Jay Smith) Jay Smith Engineering Manager Cellular Subscriber Equipment

APPLICANT: MOTOROLAFCC ID: IHDT56ZM1 August 20, 1999 CONFIDENTIALITY REQUEST CONTAINED WITHIN Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Application for Cellular/PCS Transceiver Type Acceptance Gentlemen: Application: Motorola, Inc., Pan American Cellular Subscriber Group, 600 N. U.S. Highway 45, Libertyville, Illinois 60048-1286 herein submits: Application for Equipment Authorization (FCC Form 731- October 1992 with integrated Fee Processing Form, Fee Codes EFT and EBT), Check Number 04-45727 in the amount of $610 and Exhibits, for Type Acceptance of a Cellular Transceiver, FCC ID: IHDT56ZM1. Motorola is also the manufacturer of this equipment. Confidentiality: Pursuant to Section 0.459 of the Commission's rules (CFR 47), Motorola requests confidentiality for portions of the material contained in this application and that the identified material be withheld from public inspection following the grant of this authorization. This material contains Motorola's trade secrets and confidential information that Motorola does not customarily release to the public and which is otherwise not generally available to the public. Confidentiality is requested for the following exhibits: • Exhibit 4 Block Diagrams • Exhibit 5 Schematics • Exhibit 12 Operational Description Description: This equipment has the capability to operate in both the conventional Analog Cellular standard and the Digital TDMA standard in both the cellular and PCS bands, as outlined in EIA/TIA IS136 "Dual-Mode Mobile Station Compatibility Standard", dated December 1995. Technical details for this alternate cellular technology (permitted under the cellular service option provisions in Section 22.930 of the Commission's rules) related to Type Acceptance of this equipment, as noted in paragraphs 31 and 32 of the Report and Order in FCC GEN. Docket No. 87-390, are detailed in Exhibit 12. Contact Information: Please contact me by telephone at (847) 523-6167, by facsimile at (847) 523-2350, or by e-mail ([email protected]), if there are any further questions or additional information needed concerning this filing. Regards, Andrew J. Bachler FCC Liaison Cellular Subscriber Sector 600 N. U.S. Highway 45 Libertyville, IL 60048-5343

APPLICANT: MOTOROLAFCC ID: IHDT56ZM1 August 20, 1999 CONFIDENTIALITY REQUEST CONTAINED WITHIN Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Application for Cellular/PCS Transceiver Type Acceptance Gentlemen: Application: Motorola, Inc., Pan American Cellular Subscriber Group, 600 N. U.S. Highway 45, Libertyville, Illinois 60048-1286 herein submits: Application for Equipment Authorization (FCC Form 731- October 1992 with integrated Fee Processing Form, Fee Codes EFT and EBT), Check Number 04-45727 in the amount of $610 and Exhibits, for Type Acceptance of a Cellular Transceiver, FCC ID: IHDT56ZM1. Motorola is also the manufacturer of this equipment. Confidentiality: Pursuant to Section 0.459 of the Commission's rules (CFR 47), Motorola requests confidentiality for portions of the material contained in this application and that the identified material be withheld from public inspection following the grant of this authorization. This material contains Motorola's trade secrets and confidential information that Motorola does not customarily release to the public and which is otherwise not generally available to the public. Confidentiality is requested for the following exhibits: • Exhibit 4 Block Diagrams • Exhibit 5 Schematics • Exhibit 12 Operational Description Description: This equipment has the capability to operate in both the conventional Analog Cellular standard and the Digital TDMA standard in both the cellular and PCS bands, as outlined in EIA/TIA IS136 "Dual-Mode Mobile Station Compatibility Standard", dated December 1995. Technical details for this alternate cellular technology (permitted under the cellular service option provisions in Section 22.930 of the Commission's rules) related to Type Acceptance of this equipment, as noted in paragraphs 31 and 32 of the Report and Order in FCC GEN. Docket No. 87-390, are detailed in Exhibit 12. Contact Information: Please contact me by telephone at (847) 523-6167, by facsimile at (847) 523-2350, or by e-mail ([email protected]), if there are any further questions or additional information needed concerning this filing. Regards, Andrew J. Bachler FCC Liaison Cellular Subscriber Sector 600 N. U.S. Highway 45 Libertyville, IL 60048-5343

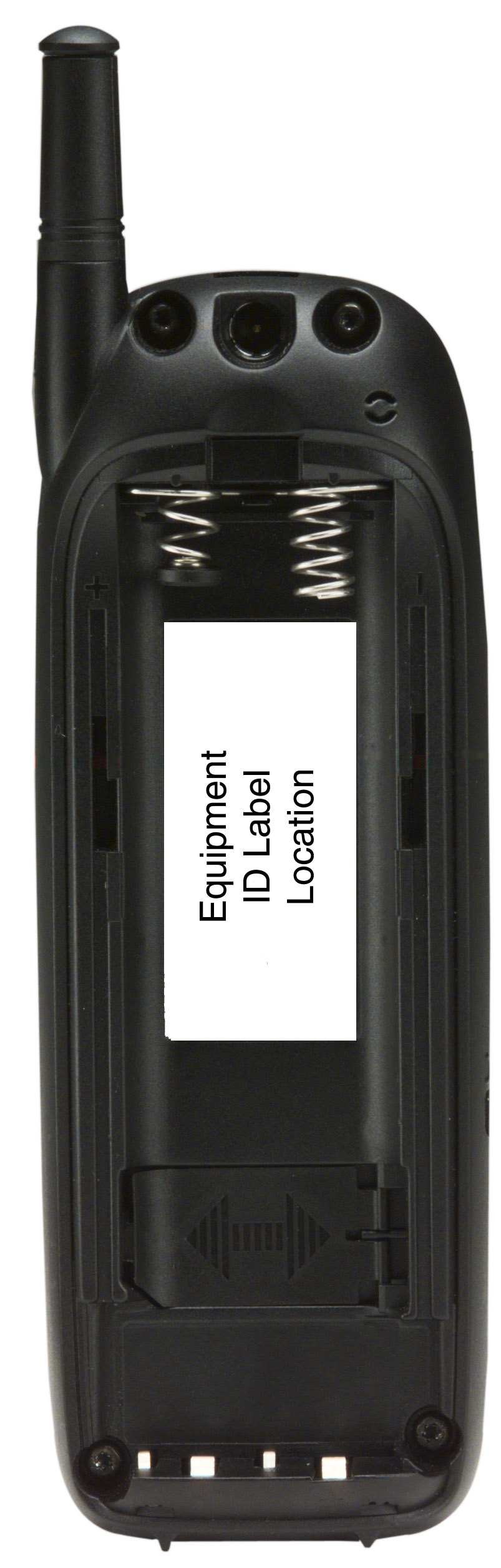

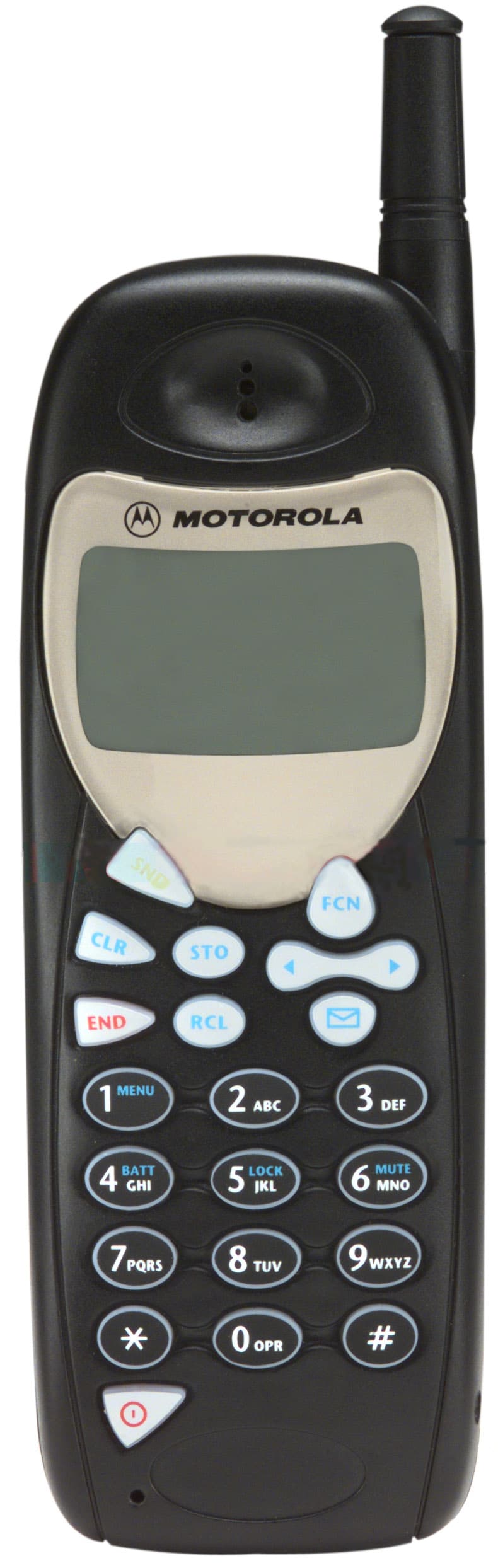

Front View Rear View Exhibit 3 APPLICANT: MOTOROLA, INC. TRANSCEIVER TYPE: IHDT56ZM1

APPLICANT: MOTOROLA, INC.FCC ID : IHDT56ZM1 EXHIBIT 1 FCC IDENTIFICATION (NAMEPLATE) INFORMATION The FCC label shown is representative of the label that will appear on the radio when in production. It will be placed on the radio telephone as shown in Exhibit 3. Other information may also be included on this label. FCC ID: IHDT56ZM1

APPLICANT: MOTOROLA, INC. TRANSCEIVER TYPE: IHDT56ZM1 Front View Rear View Exhibit 9

APPLICANT: MOTOROLA, INC.FCC ID: IHDT56ZM1 TRANSCEIVER ADJUSTMENTS/TUNE-UP PROCEDURE EXHIBIT 10 There are no user accessible adjustments or tuning in this portable cellular transceiver. All necessary adjustments and tuning are performed during manufacture of the product. Any adjustments or tuning after service or repair are done as part of that process as special equipment is required to perform such adjustments.

P P a a g g e e 1 1 August 23, 1999 SAR Test Report for Motorola portable cellular phone (FCC ID IHDT56ZM1). Prepared by: Paul Moller, Principal Staff Engineer Motorola Personal Communications Sector Product Safety Laboratory Libertyville, Illinois Contents 1) Introduction 2) Applicable Regulations 3) Description of Test Sample 4) Description of Motorola SAR Test Facility 5) Test Sample Conditions 6) Method of Measurement 7) Measurement Uncertainty 8) SAR Test Results 9) Body Worn Configuration Evaluation 10) External Antenna Option Evaluation 11) Battery Options 12) Summary Appendix A: Included Data from Measurements Against Phantom Head Appendix B: Included Data from Measurements in Body Worn Configuration Appendix C: Measurement Probe Calibration Certificate Appendix D: Printout from the Dasy measurement system validation test Appendix E: Dasy Users Manual (first page) P P a a g g e e 2 2 1. Introduction The Motorola Personal Communications Sector Product Safety Laboratory has performed measurements of the maximum potential exposure to the user of portable cellular phone FCC ID IHDT56ZM1. The Specific Absorption Rate (SAR) of this product was measured. This report details the test setup and equipment as well as the results of those tests. 2. Applicable Regulations Federal Communications Commission rule §2.1093(d)(2), the ANSI/IEEE C95.1 1992 and the NCRP Report Number 86 specify the maximum exposure limit of 1.6 W/kg as averaged over any 1 gram of tissue for portable devices being used within 20cm of the user in the uncontrolled environment. 3. Description of Test Sample A prototype unit serial number FC80212B was measured. This unit is identical in physical construction, maximum radiated power levels and antenna structure to units that will be in production. It transmits in the frequency range of 824 to 849 MHz using AMPS and TDMA modes, and 1850 to 1910 MHz using TDMA mode only. The unit was tested at its maximum transmitter power. The unit is equipped with a fixed antenna that serves as both a receive and transmit antenna. The antenna has a single operating position as shown in figure 1. Figure 1. Front of Phone Showing Antenna P P a a g g e e 3 3 Figure 2 shows the test unit as it is placed onto the phantom. For the purposes of the actual SAR tests the Motorola phantom head is tilted on its side by 90 degrees so that a vertically oriented measurement probe can easily scan an area where the phone is in close contact with the phantom and the SAR will be the highest. Figure 2. Phone Against Head in Normal Use Position 4. SAR Test Facility The Motorola test facility utilized for the SAR testing of this product is the Personal Communications Sector Product Safety Laboratory, in Libertyville Illinois. The laboratory utilizes a Dosimetric Assessment System (Dasy™) SAR measurement system manufactured by Schmid & Partner Engineering AG P P a a g g e e 4 4 (SPEAG™), of Zurich Switzerland. This system utilizes a computer controlled six axis robot to move a measurement probe to measure the SAR. A photo of the Dasy system with the Motorola phantom is shown in figure 3. Probe serial number 1375 was used for the measurements. It was calibrated at SPEAG™, and has a calibration date June 12, 1998. A copy of the calibration certificate is included as appendix B. Dipole Validation Kit type D900V2, serial number 036 was used to validate the system accuracy at 800MHz. The validation SAR value is 9.56 mW/g normalized to 1 Watt, and the Dasy system used for the test phone measured 10.28 mW/g normalized to 1 Watt. This is within the required accuracy, and thus the measured SAR values are considered correct. See appendix C for printout of the validation test from the Dasy measurement system. Dipole Validation Kit type D1800V2, serial number 226 was used to validate the system accuracy at 1900MHz. The validation SAR value is 39.9 mW/g normalized to 1 Watt, and the Dasy system used for the test phone measured 40.8 mW/g normalized to 1 Watt. This is within the required accuracy, and thus the measured SAR values are considered correct. See appendix D for printout of the validation test from the Dasy measurement system. The measurement methodology is described in IEEE Transactions on Vehicular Technology, vol. 44, no. 3, August 1995, titled Electromagnetic Energy Exposure of Simulated users of Portable Cellular Telephones. The Dasy system is operated per the instructions in the Dasy Users Manual. A copy of the title page of this manual is included as appendix D. The entire manual is available directly from SPEAG. Figure 3. Dasy System used for measurements P P a a g g e e 5 5 5. Test Sample Conditions For the purposes of these tests the subject phone was positioned on the measurement phantom per the instructions in the Motorola users manual for the subject phone. The position used for the tests is the 3-point contact position. In this position the test sample contacts the phantom’s ear and cheek and is positioned with a repeatability of better than ±6%. Since the antenna is not located on the center of the phone, the SAR was measured with the phone on both the left and right side talk positions (See figure 2). Due to the construction of the phone, the base of the antenna is 20 mm away from the phantom for the left side head, which is the closest. The test sample is capable of operation in a test mode that allows control of the transmitter without the need to place actual phone calls. This guarantees that the unit does not change its transmitter power, and that the resultant SAR values will not be affected by external connections. For the purposes of this test the unit is commanded to test mode and manually set to the proper channel, transmitter power level and transmit mode of operation. Since the test sample uses the 1/3 duty cycle of the TDMA system while in digital mode, the crest factor (the ratio between peak and average power) is set to 3 for these tests. When the test sample was tested in ana…

Text truncated - open the document above for the full version.

November 10, 1999 Supplement to SAR Test Report for Motorola portable cellular phone (FCC ID IHDT56ZM1). Prepared by: Paul Moller, Principal Staff Engineer Motorola Personal Communications Sector Product Safety Laboratory Libertyville, Illinois Contents 1) Summary of FCC request for additional information 2) Clarification of TDMA mode right side SAR values 3) Body worn SAR data for the 1900 MHz band 4) Summary Appendix A: Included Data Appendix B: Included Cube Scan Plots 1. Summary of FCC request for additional information There was a request for additional information regarding Motorola’s SAR Test Report for Motorola portable cellular phone (FCC ID IHDT56ZM1) dated August 23, 1999. The requested information may be summarized as follows: a) In section 8 of the SAR report, TDMA right side SAR is 0.53 w/kg in the supplied table and 0.729 w/kg in the data. b) The question is raised as to what the SAR is for the 1900 MHz body worn case. c) There is a question about the top scale shown for the plots of the right side head channel 384 analog and digital modes. The top scale shown on these plots is lower than the actual indicated SAR values. 2. Clarification of TDMA mode right side SAR values. The SAR value of 0.53 in the supplied table is in error. The correct SAR value for this test condition is as shown in the plot as 0.729 w/kg. 3. Body worn SAR data for the 1900 MHz band. The following table shows the SAR values found for the 1900 MHz body worn configuration. The highest SAR found was 0.36 W/kg. A full data set output of the test condition with the highest SAR values from the Dasy measurement system is included as appendix A. TDMA 1900Belt Clip ChannelSAR 10.359 10000.235 19990.113 4. Discussion of top scale for included plots. This is an artifact of the DASY system. The "individual plot and associated descriptions" reflect on the maximum found during the "coarse" scan. The evaluation is done during the "cube" scan and the resulting SAR number may be higher than the peak found in the "coarse" scan (especially if the coarse scan has a large distance between grid points). So it is possible to get an SAR of 1.45 W/kg on the evaluation and only a 0.85 W/kg found as a peak on the coarse scan. The resulting page would have a legend of only 0.85W/kg and show a SAR of 1.45W/kg. Included as appendix B are sample cube scan plots for right side head channel 384 analog and digital modes. These plots show the top scale to be the peak SAR used in the evaluation of the 1g average. Appendix A. Included Data Breeze Mod 2.5 w/ Belt Clip SWF0376A SN:FC80212B Ch 1 Belt Clip Ch 1 / Pwr02/JL SN:FC80212B New Flat Phantom; Full Section; Position: (80°,220°); Frequency: 1850 MHz Probe: ET3DV6 - SN1376; ConvF(5.68,5.68,5.68); Crest factor: 3.0; Muscle 1900 MHz: σ = 1.88 mho/m ε r = 49.0 ρ = 1.00 g/cm 3 Cube 5x5x7: SAR (1g): 0.359 mW/g, SAR (10g): 0.223 mW/g, (Worst-case extrapolation) Coarse: Dx = 10.0, Dy = 10.0, Dz = 10.0 Powerdrift: -0.87 dB SAR X [mW/g] 2.62E-2 5.24E-2 7.86E-2 1.05E-1 1.31E-1 1.57E-1 1.83E-1 2.10E-1 2.36E-1 2.62E-1 11/08/99 Motorola, Inc. Appendix B: Included Cube Scan Plots S/N FC80212B Ch 384 / Pwr 2/ JK TILT RIGHT Phantom; Section; Position: ; Frequency: 837 MHz Probe: ET3DV6 - SN1375; ConvF(6.59,6.59,6.59); Crest factor: 1.0; Brain 800Mhz: σ = 0.90 mho/m ε r = 43.0 ρ = 1.00 g/cm 3 Cube 5x5x7: SAR (1g): 1.45 [mW/g], SAR (10g): 1.03 [mW/g], (Worst-case extrapolation) Cube 5x5x7: Dx = 8.0, Dy = 8.0, Dz = 5.0 Powerdrift: -0.06 dB SAR Tot [mW/g] 2.01E-1 4.01E-1 6.02E-1 8.02E-1 1.00E+0 1.20E+0 1.40E+0 1.60E+0 1.81E+0 2.01E+0 08/18/99 Motorola, Inc. S/N FC80212B Ch 384 / Pwr 2/ JK TILT RIGHT Phantom; Section; Position: ; Frequency: 837 MHz Probe: ET3DV6 - SN1375; ConvF(6.59,6.59,6.59); Crest factor: 3.0; Brain 800Mhz: σ = 0.90 mho/m ε r = 43.0 ρ = 1.00 g/cm 3 Cube 5x5x7: SAR (1g): 0.729 [mW/g], SAR (10g): 0.525 [mW/g], (Worst-case extrapolation) Cube 5x5x7: Dx = 8.0, Dy = 8.0, Dz = 5.0 Powerdrift: 0.07 dB SAR Tot [mW/g] 9.81E-2 1.96E-1 2.94E-1 3.92E-1 4.91E-1 5.89E-1 6.87E-1 7.85E-1 8.83E-1 9.81E-1 08/18/99 Motorola, Inc.

APPLICANT: MOTOROLA, INC.FCC ID: IHDT56ZM1 Exhibit 6 SUBMITTED MEASURED DATA INDEX RF Power Output, Analog, 800 MHz and 1900 MHz Digital Modes - Measured Data.................................6A Audio Response - Graph............................................................................................................................6B Post Limiter Low Pass FIlter Response - Graph.........................................................................................6C Signaling Channel Audio Roll-Off Filter Response – Graph.......................................................................6D Modulation Limiting (Compandor In) - Graph.............................................................................................6E1 Modulation Limiting (Compandor Out) - Graph..........................................................................................6E2 Occupied Bandwidth, Audio - Photograph..................................................................................................6F1 Occupied Bandwidth, Audio and SAT - Graph...........................................................................................6F2 Occupied Bandwidth, Wideband Data - Graph...........................................................................................6F3 Occupied Bandwidth, signaling Tone and SAT - Graph..............................................................................6F4 Occupied Bandwidth, 1900 MHz Digital Mode - Graph...............................................................................6F5 Occupied Bandwidth, 800 MHz Digital Mode - Graph.................................................................................6F6 800MHz Conducted Spurious and Harmonic Emissions, -Graph...............................................................6G1 1900MHz Conducted Spurious and Harmonic Emissions, -Graph.............................................................6G2 800MHzRadiated Spurious and Harmonic Emissions, -Graph....................................................................6H1 1900MHzRadiated Spurious and Harmonic Emissions, -Graph..................................................................6H2 Frequency Change vs Temperature, Analog Mode - Graph.......................................................................6J1 Frequency Change vs Temperature, 800 MHz Digital Mode - Graph.........................................................6J2 Frequency Change vs Temperature, 1900 MHz Digital Mode - Graph.......................................................6J3 Frequency Change vs Supply Voltage, Analog Mode - Graph....................................................................6K1 Frequency Change vs Supply Voltage, 800 MHz Digital Mode – Graph.....................................................6K2 Frequency Change vs Supply Voltage, 1900 MHz Digital Mode – Graph...................................................6K3 Measurement techniques...........................................................................................................................6L APPLICANT: MOTOROLA, INC.FCC ID: IHDT56ZM1 Exhibit 6A RF POWER OUTPUT DATA The input supply to the transmitter was set at 4.8 Volts. The voltage at the final amplifying device voltage was 4.7V. The RF power output was measured with the indicated voltage and current applied into the final RF amplifying device(s). ANALOG MODE: Measured RF Output:0.391 Watts Measured DC Voltage:4.7 Volts Measured DC Current:498 mA Measured RF Input:0.92 mW 800MHz DIGITAL MODE: In Digital Mode the values measured for RF Output, DC Current and RF Input Power are all average values which reflect the 1/3 duty cycle of TDMA operation. Measured RF Output:0.573 Watts Measured DC Voltage:4.7 Volts Measured DC Current:230 mA Measured RF Input:0.59 mW 1900MHz DIGITAL MODE: In Digital Mode the values measured for RF Output, DC Current and RF Input Power are all average values which reflect the 1/3 duty cycle of TDMA operation. Measured RF Output:0.558 Watts Measured DC Voltage:4.7 Volts Measured DC Current:330 mA Measured RF Input:3.08 mW ERP: The input supply to the transmitter was set at 4.8 Volts. Measurements were made relative to a dipole with a known gain of 2.14dB relative to an isotropic source. ANALOG MODE: Measured ERP (Relative to Half-Wavelength Dipole):0.166 Watts 800MHz DIGITAL MODE: Measured ERP (Relative to a Half-Wavelength Dipole):0.245 Watts 1900MHz DIGITAL MODE: Measured EIRP (Relative to an Isotropic Source):0.350 Watts APPLICANT: MOTOROLA, INC.FCC ID: IHDT56ZM1 Exhibit 6B TX AUDIO RESPONSE -35 -30 -25 -20 -15 -10 -5 0 5 10 15 100100010000 FREQUENCY (Hz) MODULATION (dB) Modulation Upper Limit Lower Limit APPLICANT: MOTOROLA, INC.FCC ID: IHDT56ZM1 Exhibit 6C Tx Post-Limiter Lowpass Filter Response -80 -70 -60 -50 -40 -30 -20 -10 0 10 100100010000 Audio Frequency (Hz) Magnitude Response (dB) Post-Limiter Filter Response Specification (IS-55, 3.3.1.2.2.3) Reference: 1kHz = 0 dB Method: Constant Input, Swept Sinewave Date: 4/30/99 APPLICANT: MOTOROLA, INC.FCC ID: IHDT56ZM1 Exhibit 6D Tx Signaling Channel Audio Roll-Off Filter Response -60 -50 -40 -30 -20 -10 0 10 100100010000100000 Audio Frequency (Hz) Filter Output (dB) Signaling Channel Response Specification (IS-55) Method: Random Manchester Data Date: 4/30/99 APPLICANT: MOTOROLA, INC.FCC ID: IHDT56ZM1 Exhibit 6E-1 MODULATION LIMITING COMPANDOR ON 0 2 4 6 8 10 12 14 -40-30-20-1001020 AUDIO LEVEL (dB) DEVIATION (kHz) 300 Hz 1000 Hz 3000 Hz APPLICANT: MOTOROLA, INC.FCC ID: IHDT56ZM1 Exhibit 6E-2 MODULATION LIMITING COMPANDER OFF 0 2 4 6 8 10 12 14 -40-30-20-1001020 AUDIO LEVEL (dB) DEVIATION (kHz) 300 Hz 1000 Hz 3000 Hz APPLICANT: MOTOROLA, INC.FCC ID: IHDT56ZM1 Exhibit 6F-1 BANDWIDTH MEASUREMENT DATA FOR TRANSMITTER TYPES F8W DEVIATION OF THE CARRIER WITH 2500 Hz AUDIO MODULATION HORIZONTAL SCALE = 20 kHz/ DIVISION VERTICAL SCALE = 10 dB/ DIVISION (ATTENUATION) RESOLUTION BANDWIDTH = 300 Hz AUDIO LEVEL = 16 dB GREATER THAN LEVEL REQ…
