IHDT56ZQ1Portable Cellular Transceiver

APPLICANT: MOTOROLA, INC.FCC ID: IHDT5ZQ1 EXHIBIT 8 INSTRUCTION MANUAL A preliminary draft copy of the Users Manual follows: Note The final version of the Users Manual will contain additional statements and instructions concerning RF safety compliance for tested accessories. The statements will also indicate that accessories, which have not specifically been tested for RF exposure, may not comply with the FCC limits and should not be used. Introduction 1 English Introduction Welcome Thank you for choosing your Motorola phone from a global leader in communications technology. All Motorola digital cellular phones are designed and manufactured to meet Motorola’s rigorous specifications and world-class quality standards. During development, our laboratory testing team took your cellular phone through rigorous durability tests including temperature, humidity, shock, dust, vibration, and drop tests—and the phone still worked! We are confident that the phone you purchased will meet your own exacting standards. Enjoy your Motorola phone. PHONE GRAPHIC TO BE SUPPLIEDOR ON INSIDE OF FRONT COVER m3td_us.bk : intro.fm5 Page 1 Thursday, November 18, 1999 9:46 PM Introduction 2 English Understanding this Manual Many of your phone options are accessed by a simple menu system. A full description of the menus and how to move around them is covered in the next section Menu Navigation . When the manual describes the use of each menu item, it will be assumed that you are familiar with the menu system. Key Presses Key presses are represented in this manual using symbols so that you may locate and use the required sequence quickly. A sequence of key presses may be shown as follows:ƒ ‚ 7 CThis means you should press ƒ followed by ‚ , 7 , and then C , in sequence, not simultaneously. Prompts and Messages Your phone responds to key presses by displaying either easy to understand prompts that guide you to the next action, or simple messages confirming that your action is complete. Prompts and messages are represented in this manual in LCD style, for example:Enter 1st Letter or Location __ Other Symbols You will find the following symbols used throughout this manual:A A Note contains additional information which is relevant to the feature/item. ! A Caution contains important additional information which is relevant to the efficient and/or safe usage of your phone. i This symbol indicates a short key sequence for the feature. m3td_us.bk : intro.fm5 Page 2 Thursday, November 18, 1999 9:46 PM Introduction 3 English Menu Navigation A large number of your phone's options are accessed by using menus which use a common approach for selection, change and cancellation.Please read this section carefully before attempting to access a menu option. When you understand the common approach to menu navigation and how the menus are shown on the page, you will be able to access and change options with ease. Menus and Sub-menus A menu is a simple list of options. Some of these options provide access to a further list of options called a sub-menu. When navigating through the menus you may find it is helpful to think in terms of menu levels - the ‘parent’ menu being on one level and its sub-menus being on a lower level. Navigating the Menus Press ƒ , then press A to access the menu. You can also enter the menu system by pressing ƒ ⁄ . You can navigate through the menu system using the volume keys located on the left side of the phone and the Smart Button located on the right side of the phone. Use the upper and lower volume keys to scroll to sub-menus. Use the Smart Button to choose menus and functions.Follow these symbols as a guide for using the keys on the side of your phone: Press q to scroll up. Press Z to scroll down. Press A to select. You can also use your phone’s « and » keys to scroll through the menu system. Leaving the Menus Press º to exit the menu. Menu Options with Security Codes Some options are protected from misuse by requiring you to entry one of the security codes. To use these options, you must enter the requested code before proceeding. m3td_us.bk : intro.fm5 Page 3 Thursday, November 18, 1999 9:46 PM Introduction 4 English Total Customer Satisfaction At Motorola, Total Customer Satisfaction is a top priority. If you have a question, a suggestion or a concern about your Motorola Cellular Phone, Motorola wants to hear from you.Please contact the Motorola Cellular Response Center by fax on: +44 (0) 131 458 6732, or use one of the local phone numbers in the following countries:Austria 0800 297246Belgium 0800 72 370 Czech Republic 00420 2 21 85 21 01 Denmark 4348 8005Egypt 02 3411800Eire 01 402 6887Finland 0800 117 036 France 0 803 303 302 Germany 0180 35050Greece 00800 441 28150 Italy 02 696 333 16 Jordan 06 863750Kuwait 484 2000 Ext 1177 Lebanon 01 744156Luxembourg 0800 21 99 Netherlands 0800 022 27 43 Norway 22 55 10 04 Oman 790925Portugal 01 318 0051 Qatar 418999Saudi Arabia 01 2303294 South Africa 0800 11 48 49 Spain 902 100 077Sweden 08 445 1210 Switzerland 0800 553 109Turkey 0212 425 9090UK 0500 55 55 55United Arab Emirates 04 32 11 66 Hong Kong 852 25063888 People’s Republic of China 86 10 68466060Singapore 65 4855 333 Taiwan 886 2 87731746 United States of America 1 800 331 6456 Canada 1 800 461 4575 For e-mail questions contact:[email protected] Internet questions contact:http://www.mot.com m3td_us.bk : intro.fm5 Page 4 Thursday, November 18, 1999 9:46 PM Contents 5 English Contents Safety Important information for the efficient and safe operation of your phone ....................................................... .........................7 About Your Phone and Battery Introduces your phone, explains how to charge and maintain batteries........................................................... ........................13 Using Your Phone Explains how to place calls, how to redial, how to end a call, and how to use the phone memory ................................. ......19 Using the Menu Features Pro…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLAFCC ID: IHDT56ZQ1 EXHIBIT 2A November 22, 1999 SPECIFICATION COMPLIANCE STATEMENT Engineer-in-Charge Equipment Authorization Branch Federal Communications Commission We hereby certify that this transmit and receive equipment (FCC ID: IHDT56ZQ1) for dual mode, dual band mobile station cellular use is capable of full compliance with TIA/EIA-136 (Revision 0), Dual-Mode, Dual-Band Mobile Station - Base Station Compatibility Standard, October 1998, (Signed – Kevin Freisen) Kevin Freisen Senior Engineering Resource Manager Personal Communications Sector (Signed – William J. Burke) William J. Burke Senior Principal Staff Engineer Personal Communications Sector APPLICANT: MOTOROLAFCC ID: IHDT56ZQ1 EXHIBIT 2B STATEMENT OF CERTIFICATION The technical data supplied with this application, having been taken under my supervision is hereby duly certified. The following is a statement of my qualifications: BSEE 1983 University of Florida 16 years experience in the design and development of wireless communication devices SIGNATURE:(signed) Kevin Freisen NAME:Kevin Freisen DATE:11/22/99 POSITION:Senior Engineering Resource Manager I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in the application and accompanying technical data are true and correct: SIGNATURE:(signed) William J. Burke NAME:William J. Burke DATE:11/22/99 POSITION:Senior Principal Staff Engineer APPLICANT: MOTOROLAFCC ID: IHDT56ZQ1 EXHIBIT 2C RADIO FREQUENCY ENERGY EXPOSURE EVALUATION STATEMENT Motorola, Inc., Personal Communications Sector, hereby certifies that, when used as stated in the operating instructions supplied, this Cellular/PCS Portable Transceiver, FCC ID: IHDT56ZQ1, complies with the FCC’s Radio frequency energy exposure limits for General Population/Uncontrolled environment, per FCC Rule 47CFR2.1093.

APPLICANT: MOTOROLAFCC ID: IHDT56ZQ1 EXHIBIT 13 November 19, 1999 CONFIDENTIALITY REQUEST CONTAINED WITHIN Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Application for Cellular/PCS Transceiver Certification Gentlemen: Application: Motorola, Inc., Personal Communications Sector, 600 N. U.S. Highway 45, Libertyville, Illinois 60048-1286 herein submits: Application for Equipment Authorization (FCC Form 731-October 1992 with integrated Fee Processing Form, Fee Codes EFT and EBC), application fee in the amount of $610, and Exhibits; for Certification of a Cellular Transceiver, FCC ID: IHDT56ZQ1. Motorola is the manufacturer of this equipment. Confidentiality: Pursuant to Section 0.459 of the Commission's rules (CFR 47), Motorola requests confidentiality for portions of the material contained in this application and that the identified material be withheld from public inspection following the grant of this authorization. This material contains Motorola's trade secrets and confidential information that Motorola does not customarily release to the public and which is otherwise not generally available to the public. Confidentiality is requested for the following exhibits: • Exhibit 4 Block Diagrams • Exhibit 5 Schematics • Exhibit 12 Operational Description Description: This equipment has the capability to operate in the conventional Analog Cellular standard in the 800 MHz band and the Digital TDMA standard in both the cellular and PCS bands, as outlined in EIA/TIA IS136 "Dual- Mode Mobile Station Compatibility Standard", dated December 1995. Technical details for this alternate cellular technology (permitted under the cellular service option provisions in Section 22.933 of the Commission's rules) related to Type Acceptance of this equipment, as noted in paragraphs 31 and 32 of the Report and Order in FCC GEN. Docket No. 87-390, are detailed in Exhibit 12. Note This transceiver is available in two housing styles. Exhibits 3 and 11, contain data for both housings. The data in the other exhibits is applicable to both housing styles. Contact Information: Please contact me by telephone at (847) 523-6167, by facsimile at (847) 523-2350, or by e-mail ([email protected]), if there are questions or additional information needed concerning this filing. Regards, Andrew J. Bachler FCC Liaison Cellular Subscriber Sector 600 N. U.S. Highway 45 Libertyville, IL 60048-5343

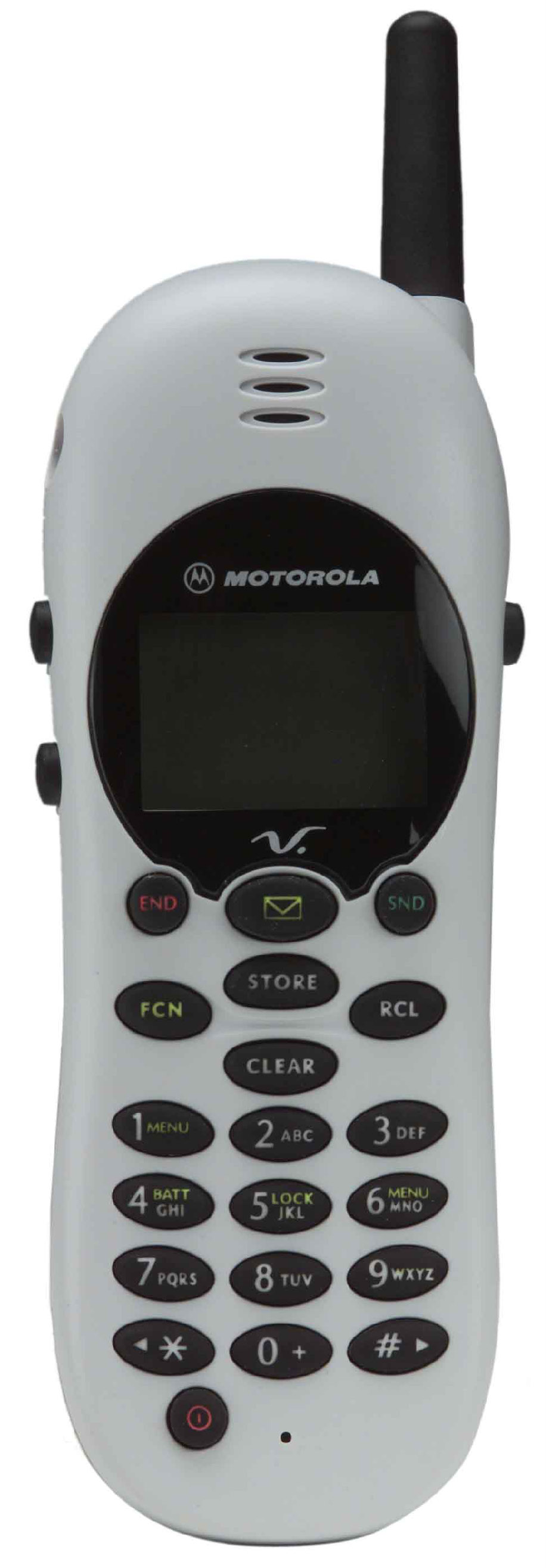

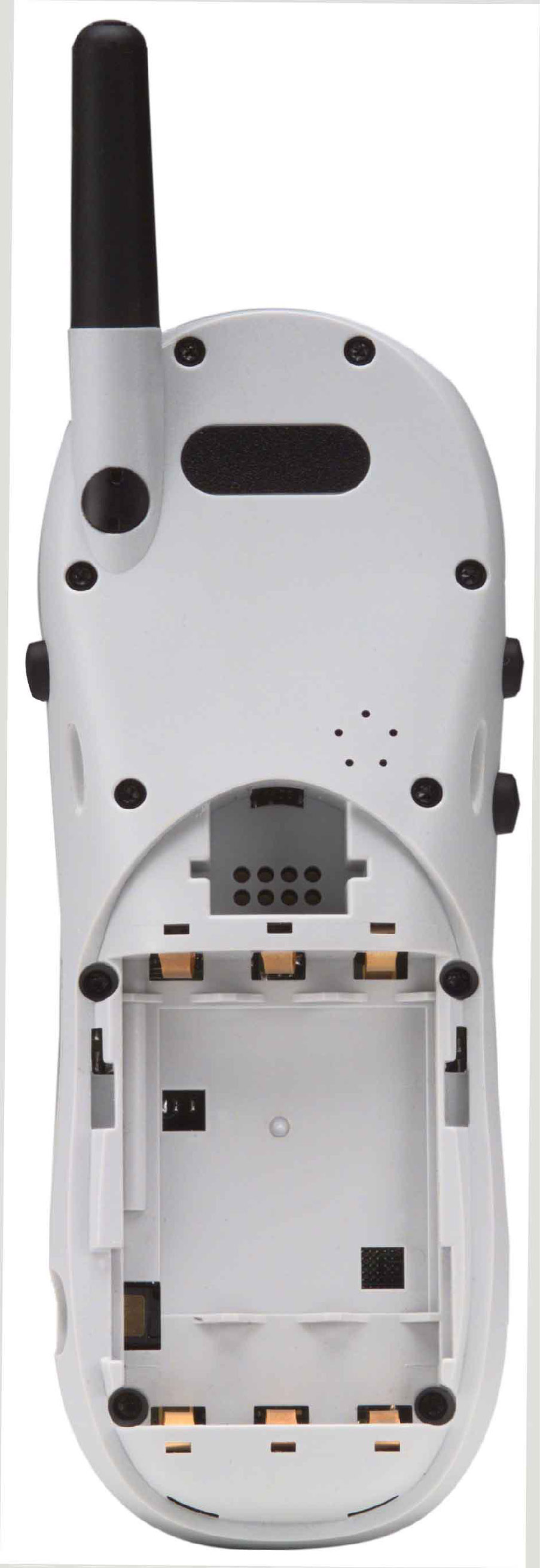

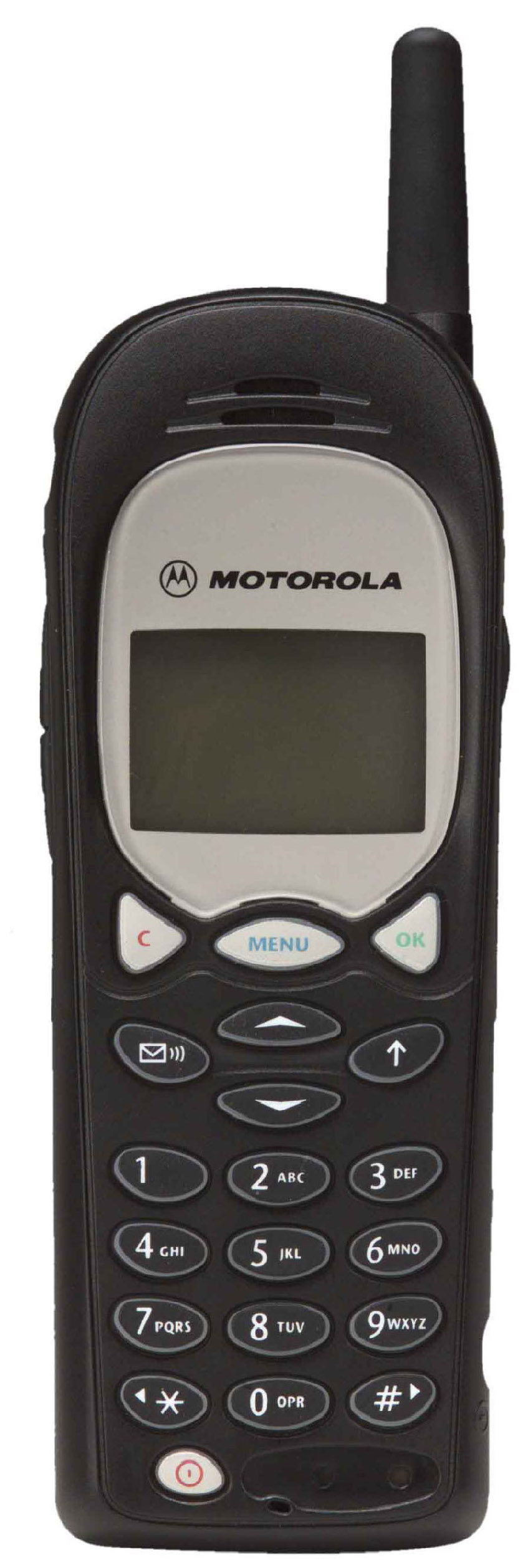

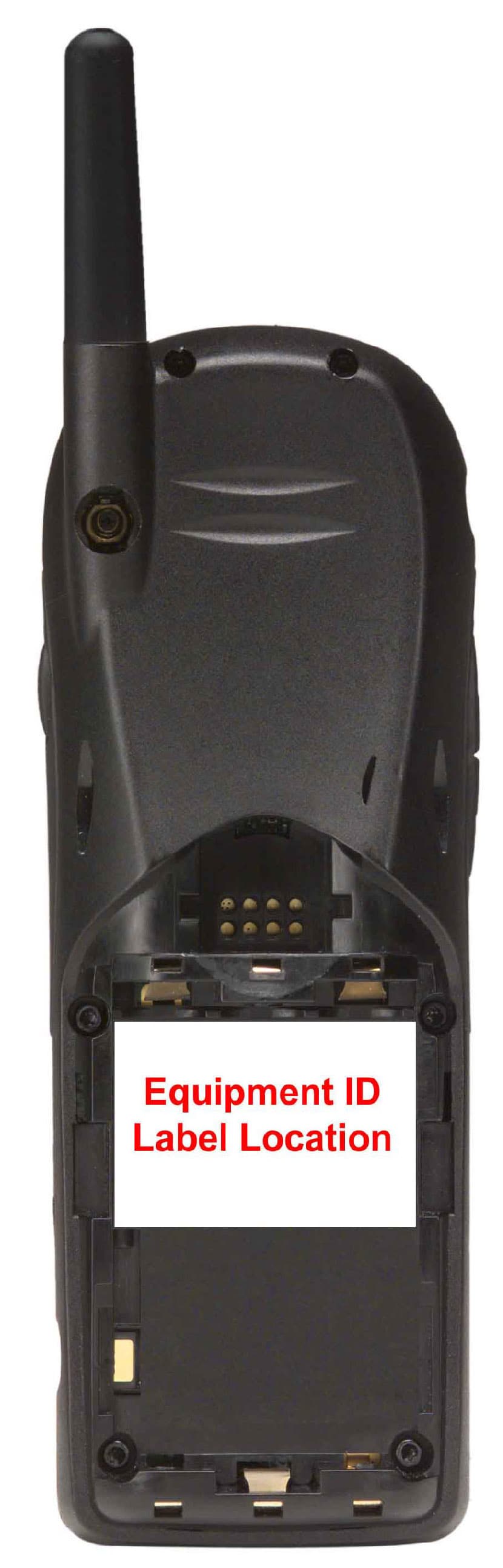

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56ZQ1 EXHIBIT 3A Front View Back View (Battery Removed to Show Equipment ID) "Z" Style Housing APPLICANT: MOTOROLA, INC. FCC ID: IHDT56ZQ1 EXHIBIT 3B Front View Back View (Battery Removed to Show Equipment ID) "R" Style Housing Equipment ID Label Location

APPLICANT: MOTOROLAFCC ID: IHDT56ZQ1 EXHIBIT 1 FCC IDENTIFICATION (NAMEPLATE) INFORMATION The FCC label shown is the label that will appear on the radio when in production. It will be placed on the outside of the radio telephone. (refer to exhibit 3). FCC ID: IHDT56ZQ1

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56ZQ1 EXHIBIT 9 Front View (Shields Removed) Rear View (Shields Removed)

APPLICANT: MOTOROLA, INC.FCC ID: IHDT56ZQ1 EXHIBIT 10 TRANSCEIVER ADJUSTMENTS/TUNE-UP PROCEDURE There are no user accessible adjustments or tuning in this portable cellular transceiver. All necessary adjustments and tuning are performed during manufacture of the product. Any adjustments or tuning after service or repair are done as part of that process as special equipment is required to perform such adjustments.

P P a a g g e e 1 1 December 1, 1999 Supplement to SAR Test Report for Motorola portable cellular phone (FCC ID IHDT56ZQ1). Prepared by: Paul Moller, Principal Staff Engineer Motorola Personal Communications Sector Product Safety Laboratory Libertyville, Illinois Contents 1) Introduction 2) Applicable Regulations 3) Description of Test Sample 4) Description of Motorola SAR Test Facility 5) Test Sample Conditions 6) Method of Measurement 7) Measurement Uncertainty 8) SAR Test Results 9) Body Worn Configuration 10) Battery Options 11) Summary Appendix A: Included data Appendix B: Included beltclip data Appendix C: Measurement Probe S/N 1418 Calibration Certificate Appendix D: Printout from the Dasy measurement system validation test P P a a g g e e 2 2 1. Introduction The Motorola Florida Research Laboratory has performed measurements of the maximum potential exposure to the user of portable cellular phone FCC ID IHDT56ZQ1. The Specific Absorption Rate (SAR) of this product was measured. This report details the test setup and equipment as well as the results of those tests. 2. Applicable Regulations Federal Communications Commission rule §2.1093(d)(2), the ANSI/IEEE C95.1 1992 and the NCRP Report Number 86 specify the maximum exposure limit of 1.6 W/kg as averaged over any 1 gram of tissue for portable devices being used within 20cm of the user in the uncontrolled environment. 3. Description of Test Sample A prototype unit serial number FC82601B was measured. This unit is identical in physical construction, maximum radiated power levels and antenna structure to units that will be in production. It transmits in the frequency range of 824 to 849 MHz using AMPS and TDMA modes, and 1850 to 1910 MHz using TDMA mode. The unit was tested at its maximum transmitter power. The unit is equipped with a fixed antenna that serves as both a receive and transmit antenna. The antenna has a single operating position as shown in figure 1. Figure 1. Front of Phone Figure 2 shows the test unit as it is placed onto the Motorola phantom. For the purposes of the actual SAR tests the Motorola phantom head is tilted on its side by 90 degrees so that a vertically oriented measurement probe can easily scan an area where the phone is in close contact with the phantom and the SAR will be the highest. P P a a g g e e 3 3 Figure 2. Phone against side of Phantom Head. 4. SAR Test Facility The test facility utilized for the SAR testing of this product is the Motorola Florida Research Laboratory, in Plantation Florida. The laboratory utilizes a Dosimetric Assessment System (Dasy™) SAR measurement system manufactured by Schmid & Partner Engineering AG (SPEAG™), of Zurich Switzerland. This system utilizes a computer controlled six axis robot to move a measurement probe to measure the SAR. A photo of the Dasy system with the Motorola phantom is shown in figure 3. Probe serial number 1418 was used for the measurements. It was calibrated at SPEAG™, and has a calibration date August 27, 1999. A copy of the calibration certificate is included as appendix C. Dipole Validation Kit type D900V2, serial number 045 was used to validate the system accuracy at 800MHz. The validation SAR value is 9.40 mW/g normalized to 1 Watt, and the Dasy system used for the test phone measured 9.26 mW/g normalized to 1 Watt. This is within the required accuracy, and thus the measured SAR values are considered correct. Dipole Validation Kit type D1800V2, serial number 246 was used to validate the system accuracy at 1900MHz. The validation SAR value is 37.7 mW/g normalized to 1 Watt, and the Dasy system used for the test phone measured 38.0 mW/g normalized to 1 Watt. This P P a a g g e e 4 4 is within the required accuracy, and thus the measured SAR values are considered correct. See appendix D for printout of the validation test from the Dasy measurement system. The measurement methodology is described in IEEE Transactions on Vehicular Technology, vol. 44, no. 3, August 1995, titled Electromagnetic Energy Exposure of Simulated users of Portable Cellular Telephones. The Dasy system is operated per the instructions in the Dasy Users Manual. The entire manual is available directly from SPEAG. Figure 3. Dasy System P P a a g g e e 5 5 5. Test Sample Conditions For the purposes of these tests the subject phone was positioned on the measurement phantom per the instructions in the Motorola users manual for the subject phone. The position used for the tests is the 3-point contact position. In this position the test sample contacts the phantom’s ear and cheek and is positioned with a repeatability of better than ±6%. Since the antenna is not located on the center of the phone, the SAR was measured with the phone on both the left and right side talk positions (See figure 2). Due to the construction of the phone, the base of the antenna is 26 mm away from the phantom for the left side head, which is the closest. The test sample is capable of operation in a test mode that allows control of the transmitter without the need to place actual phone calls. This guarantees that the unit does not change its transmitter power, and that the resultant SAR values will not be affected by external connections. For the purposes of this test the unit is commanded to test mode and manually set to the proper channel, transmitter power level and transmit mode of operation. The phone is then placed in the SAR measurement system with a fully charged battery. At the end of each test the Dasy system measures the drift of the SAR at a fixed point in the phantom so as to ensure that the test sample has not changed in transmitter power. For the purposes of these tests, the transmitter was operated at the highest transmitter output and with the phone and module on both left and right side talk positions. 6. Method of Measurement The system is instructed to scan as much of the face of the phone as is in close proximity to the phantom. Using the information gained about the general r…

Text truncated - open the document above for the full version.

P P a a g g e e 1 1 December 2, 1999 SAR Test Report for Motorola portable cellular phone (FCC ID IHDT56ZQ1). Prepared by: Paul Moller, Principal Staff Engineer Motorola Personal Communications Sector Product Safety Laboratory Libertyville, Illinois Contents 1) Introduction 2) Description of Test Sample 3) Test Sample Conditions 4) SAR Test Results 5) Body Worn Configuration 6) Battery Options 7) Summary Appendix A: Included data Appendix B: Included beltclip data P P a a g g e e 2 2 1. Introduction This report supplements the report detailing SAR measurements for Motorola portable cellular phone FCC ID IHDT56ZQ1 dated December 1,1999. The report of December 1,1999 details the test results for the "standard" configuration (phone housing style R). This report details the test results for an alternate configuration (phone housing style Z). Both housing styles contain the same transceiver. The test setup and conditions of this report are identical to the referenced report. Thus only the sections relevant to the actual test results are included in this report and show those test results and also give supporting information to demonstrate close similarity of portable cellular phones. 2. Description of Test Sample A prototype unit serial number FC826034 was measured. This unit is identical in physical construction, maximum radiated power levels and antenna structure to units that will be in production. It transmits in the frequency range of 824 to 849 MHz using AMPS and TDMA modes, and 1850 to 1910 MHz using TDMA mode. The unit was tested at its maximum transmitter power. The unit is equipped with a fixed antenna that serves as both a receive and transmit antenna. The antenna has a single operating position as shown in figure 1. Figure 1. Front of Phone Figure 2 shows the test unit as it is placed onto the Motorola phantom. For the purposes of the actual SAR tests the Motorola phantom head is tilted on its side by 90 degrees so that a vertically oriented measurement probe can easily scan an area where the phone is in close contact with the phantom and the SAR will be the highest. P P a a g g e e 3 3 Figure 2. Phone against side of Phantom Head. 3. Test Sample Conditions For the purposes of these tests the subject phone was positioned on the measurement phantom per the instructions in the Motorola users manual for the subject phone. The position used for the tests is the 3-point contact position. In this position the test sample contacts the phantom’s ear and cheek and is positioned with a repeatability of better than ±6%. Since the antenna is not located on the center of the phone, the SAR was measured with the phone on both the left and right side talk positions (See figure 2). Due to the construction of the phone, the base of the antenna is 26 mm away from the phantom for the left side head, which is the closest. 4. SAR Test Results Figure 3 shows the phone overlaid with a typical contour plot. The phone is placed on the phantom’s head with the center of the phone’s speaker at the center of the ear, and the center line of the phone extends downward to the center of the phantom’s mouth. The same orientation and phone position are used for left and right side talk positions. The maximum SAR level for the Motorola portable cellular phone (FCC ID IHDT56ZQ1) in the 800MHz band is 1.46 W/kg and was found on the right side head. A full data set output of the two P P a a g g e e 4 4 test conditions with the highest SAR values from the Dasy measurement system are included as appendix A. The test conditions included are indicated as bold numbers in the following table. All other test conditions measured lower SAR values than those included. Note that digital mode SAR data was measured only for the test conditions that resulted in the highest analog SAR value. This is because the only difference between analog and digital modes that can impact SAR is the average transmitter power. Conducted 800MHz Analog Channel Left side head Right side head Power (Watts) Low 1.46 1.44 0.32 Mid 0.96 0.99 0.35 High 0.94 1.00 0.33 Conducted 800MHz Digital Channel Left side head Right side head Power (Watts) Low 0.55 0.63 0.45 Figure 3. 800MHz Contour Plot Overlaid on Face of Phone. The maximum SAR level for the Motorola portable cellular phone (FCC ID IHDT56ZQ1) in the 1900MHz band is 0.83 W/kg and was found on the left side head. A full data set output of the test condition with the highest SAR values from the Dasy measurement system is included as appendix A. The test condition included is indicated as a bold number in the following table. All other test conditions measured lower SAR values than those included. Figure 4 shows the contour plot of the highest test condition overlaid onto a picture of the phone. P P a a g g e e 5 5 Conducted 1900MHz Channel Left side head Right side head Power (Watts) Low 0.76 0.83 0.47 Mid 0.75 0.75 0.50 High 0.70 0.82 0.44 Figure 4. 1900MHz Contour Plot Overlaid on Face of Phone. 5. Body Worn Configuration The cellular phone (FCC ID IHDT56ZQ1) can be used in a body-worn configuration using the supplied belt clip. We have performed an evaluation to show RF exposure compliance when used with the belt clip. Figure 5 shows the test unit as it is placed onto the phantom. Figure 5. Phone In Supplied Belt Clip Against Phantom P P a a g g e e 6 6 The following table shows the SAR values for the body worn condition for 800MHz analog mode. A full data set output of the test condition with the highest SAR values from the Dasy measurement system is included as appendix B. The test condition included is as indicated as a bold number in the following table. All other test conditions measured lower SAR values than those included. 800MHz Channel Belt Clip Low 0.64 Mid 0.37 High 0.34 The following table shows the SAR values for the body worn condition for 1900MHz TDMA mode. A full data set output of the test condition with the highest SAR values from the Dasy measurement system is included as appen…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLAFCC ID: IHDT56ZQ1 Exhibit 13A February 24, 2000 RESPONSE TO SAR QUESTIONS (Correspondence Reference Number:12274) Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Application for Cellular/PCS Transceiver Certification (EA96077) Kwok Chan & Joe Dichoso: Purpose: This document responds to questions on the submission for the IHDT56ZQ1 (EA96077) application. Description: To facilitate the response to questions, the following includes the original text and the highlighted answer. From:Joe Dichoso [email protected] FCC Application Processing Branch Re:FCC ID IHDT56ZQ1 Applicant:Motorola Inc Correspondence Reference Number:12274 731 Confirmation Number:EA96077 Date of Original E-Mail:02/22/2000 Please address the following RF safety issues. Place any exihibits in the RF exposure info folder and contact Kwok Chan. Motorola, EA 96077 (swapped with EA 95936) - 1. Body-worn SAR was tested using a specific belt-clip. Please revise manual instructions to caution users to only use this tested belt-clip for body-worn operating configurations as other belt-clips or similar accessories that have not been tested may not comply with SAR limit for body-worn use and should be avoided. A copy of the manual page containing this info should be uploaded. Response: The revised manual page is attached. 2. Please confirm the tested belt-clip is supplied with the phone. Response : Yes, the tested belt clip (and only the tested belt clip) is supplied with the phone. 3. FYI - please use muscle equivalent tissue parameters for testing body-worn SAR in future filings, and also include appropriate validation and field probe calibration info. Since SAR is not close to the limit for body-worn configurations and there is sufficient margin to cover dielectric parameter differences, re-test is not requested for this filing. 3. FYI - descriptions in the two SAR reports had left and right side for peak SAR cases mixed up. Note: Part 22 measured outputs are 165 mW ERP for AMPS and 205 mW ERP for TDMA. Part 24 output is 488 mW EIRP for CDMA. SAR was tested for two outer-case variations for this phone. APPLICANT: MOTOROLAFCC ID: IHDT56ZQ1 Exhibit 13A Proposed Grant Comments - Output is ERP for Part 22 and EIRP for Part 24. SAR compliance for body-worn operating configurations is for a specific belt-clip, as tested and described in this filing, to be supplied with this device. Kwok Chan Contact Information: Thank you for this special consideration. Please contact me by telephone at (847) 523-6167, by facsimile at (847) 523-2350, or by e-mail ([email protected]), if there are questions or additional information needed concerning this filing. Regards, Andrew J. Bachler FCC Liaison Cellular Subscriber Sector 600 N. U.S. Highway 45 Libertyville, IL 60048-5343 Safety 9 English Hand-Held Portable PCS Telephone IMPORTANT Read this information before using your PCS Telephone Exposure To Radio Frequency Signals Your wireless handheld portable telephone is a low power radio transmitter and receiver. When it is ON, it receives and also sends out radio frequency (RF) signals.In August 1996, the Federal Communications Commission (FCC) adopted RF exposure guidelines with safety levels for hand-held wireless phones. Those guidelines are consistent with the safety standards previously set by both U.S. and international standard bodies:• ANSI C95.1 (1992) 1 • NCRP Report 86 (1986) 1 • ICNIRP (1996) 1 These standards are based on comprehensive and periodic evaluations of relevant scientific literature. For example, over 120 scientists, engineers and physicians from universities, government health agencies and industry reviewed the available body of research to develop the updated ANSI Standard (C95.1). 1. American National Standard Institute: National Council on radiation Protection and Measurements; International Commission on Non-Ionizing Radiation Protection The design of your phone complies with the FCC guidelines (and these standards).To maintain compliance with FCC RF exposure guidelines, if you wear a handset on your body, use the Motorola-supplied or approved carrying case, holster, or other body-worn accessory. If you do not use a body-worn accessory, ensure the antenna is at least one inch (2.5 centimeters) from your body when transmitting. Use of non-Motorola accessories may violate FCC RF exposure guidelines. Antenna Care Use only the supplied or approved replacement antenna. Unauthorized antennas, modifications or attachments could damage the phone and may violate FCC regulations. Phone Operation Normal Position : Hold the phone as you would any other telephone with the antenna pointed up and over your shoulder.Tips on Efficient Operation : For your phone to operate most efficiently:• Extend your antenna fully (if applicable). • Do not touch the antenna unnecessarily when the phone is in use. Contact with the antenna affects call quality and may cause the phone to operate at a higher power level than otherwise needed. m3td_us.bk : safety.fm5 Page 9 Wednesday, February 23, 2000 6:34 PM
