IHDT5CA1Portable Cellular Transceiver (AMPS/TDMA)

APPLICANT: MOTOROLA, INC FCC ID:IHDT5CA1 INSTRUCTION MANUAL A preliminary draft copy of the Users Manual follows: EXHIBIT 8 1 PRELIMINARY Welcome Welcome to the world of Motorola digital wireless communications! We are pleased that you have chosen the Motorola 125t wireless phone. Antenna Display Headset Jack Insert headset accessory. End Key End phone calls, exit menu system. Left Soft Key Perform functions identified by left display prompt. Earpiece Menu Key Voice Key Record voice notes, phonebook and shortcut names. Right Soft Key Perform functions identified by right display prompt. Send Key Send and answer calls, view recent dialed calls list. Accessory Connector Port Insert charger and phone accessories. Microphone Power Key Volume Keys Adjust earpiece and ringer volume. Scroll Keys Move through menus and lists. 2 PRELIMINARY Personal Communications Sector 600 North U.S. Highway 45 Libertyville, Illinois 60048 1-800-331-6456 (United States) 1-888-390-6456 (TTY/TDD United States) 1-800-461-4575 (Canada) www.motorola.com (United States) www.motorola.ca (Canada) MOTOROLA, the Stylized M Logo and all other trademarks indicated as such herein are trademarks of Motorola, Inc. ® Reg. U.S. Pat. & Tm. Off. TrueSync, Sidekick, Starfish, and the Stylized Starfish Logo are registered trademarks of Starfish Software, Inc., a wholly owned independent subsidiary of Motorola, Inc. All other product or service names are the property of their respective owners. © 2002 Motorola, Inc. All rights reserved. Software Copyright Notice The Motorola products described in this manual may include copyrighted Motorola and third party software stored in semiconductor memories or other media. Laws in the United States and other countries preserve for Motorola and third party software providers certain exclusive rights for copyrighted software, such as the exclusive rights to distribute or reproduce the copyrighted software. Accordingly, any copyrighted software contained in the Motorola products may not be modified, reverse-engineered, distributed, or reproduced in any manner to the extent allowed by law. Furthermore, the purchase of the Motorola products shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any license under the copyrights, patents, or patent applications of Motorola or any third party software provider, except for the normal, non-exclusive, royalty-free license to use that arises by operation of law in the sale of a product. Manual number: 6809450A20-O Cover number:8988485L49-O 3 PRELIMINARY Menu Map Main Menu • Recent Calls • Received Calls • Dialed Calls • Notepad • Call Times • Phonebook • Datebook • Quick Dial • Radio • Messages • Create Message • Voicemail • Inbox • Quick Notes • Outbox • Drafts • Ring Styles • Style • Style Detail • My Tones • Shortcuts • Voice Notes • Browser • Calculator • Games • Settings (see next page) This is the standard phone menu layout. You or your service provider may have changed the menu layout or changed some feature names. Not all features may be available for all users. For example, the Radio feature on the main menu (left) is displayed only when the optional FM Stereo Radio Headset accessory is plugged into the accessory connector port on your phone (see phone illustration, page 1). Shortcuts Change display zoom: Press M, then press and hold M Change ringer alert: Press down volume key to switch to vibrate alert, then silent alert. Press up volume key to reset ring alert. Display my phone number: Press M # Go to dialed calls list: Press N Exit menu system: Press O Open phonebook: Press S down Create phonebook entry: Press S up 4 PRELIMINARY Settings Menu • Phone Status • My Tel. Number • Active Line • Battery Meter • Other Information • Connection • Incoming Call • In-Call Setup • In-Call Timer • Answer Options • Security • Phone Lock • Lock Keypad • Lock Application • Talk Secure • Restrict Calls • New Passwords • Other Settings • Personalize • Main Menu •Keys • Greeting • Quick Dial • Initial Setup • Time and Date • Backlight • Zoom • TTY Setup • Scroll • Animation • Language • Battery Save • Contrast • DTMF • Master Reset • Master Clear • Network • Car Settings • Headset 5 PRELIMINARY Contents Menu Map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 About This Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Safety and General Information . . . . . . . . . . . . . . . . . . . 11 Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 What’s in the Box?. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Installing the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Charging the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Turning Your Phone On . . . . . . . . . . . . . . . . . . . . . . . . . 19 Making a Call. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Ending a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Answering a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Seeing Your Phone Number . . . . . . . . . . . . . . . . . . . . . 21 About Your Phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Using the Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Zooming In and Out. . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 Adjusting Volume. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 Battery Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 Making and Answering Calls . . . . . . . . . . . . . . . . . . . . . 27 Redialing a Number. . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 Using Caller ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 Using Talk Secure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 Returning an Unanswered Call . . . . . . . . . . . . . . . . . . . 28 Calling an Emergency Number . . . …

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA, INCFCC ID: IHDT5CA1 EXHIBIT 2 STATEMENT OF CERTIFICATION The technical data supplied with this application, having been taken under my supervision is hereby duly certified. The following is a statement of my qualifications: MSEE 1987 Polytechnic Scholl of Sao Paulo University – Brazil 15 years experience in Electronic and Telecommunications Industry 5 years Cellular Design experience Signature: (signed) SERGIO TOSHIO YOCHIY Name: SERGIO TOSHIO YOCHIY Date: AUGUST 1st, 2002 Position: Engineering Manager I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in the application and accompanying technical data are true and correct. Signature: (signed) GILSON RAEDER Name: GILSON RAEDER Date: AUGUST 1st, 2002 Position: Engineering Section Manager

APPLICANT: MOTOROLAFCC ID: IHDT5CA1 Exhibit 13 August 23, 2002 CONFIDENTIALITY REQUEST CONTAINED WITHIN Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Application for Cellular/PCS Transceiver Certification Gentlemen: Application: Motorola, Inc., Personal Communications Sector, 600 N. U.S. Highway 45, Libertyville, Illinois 60048-1286 herein submits: Application for Equipment Authorization for Certification of a Cellular Transceiver, FCC ID: IHDT5CA1. Motorola is also the manufacturer of this equipment. Confidentiality: Pursuant to Section 0.459 of the Commission's rules (CFR 47), Motorola requests confidentiality for portions of the material contained in this application and that the identified material be withheld from public inspection following the grant of this authorization. This material contains Motorola's trade secrets and confidential information that Motorola does not customarily release to the public and which is otherwise not generally available to the public. Confidentiality is requested for the following exhibits:
Exhibit 4 Block Diagrams
Exhibit 5 Schematics
Exhibit 12 Operational Description Description: This equipment has the capability to operate in both the conventional Analog Cellular and the Digital TDMA standards in the 800 MHz band. Technical details for this alternate cellular technology (permitted under the cellular service option provisions in Section 22.933 of the Commission's rules) related to Type Acceptance of this equipment, as noted in paragraphs 31 and 32 of the Report and Order in FCC GEN. Docket No. 87- 390, are detailed in Exhibit 12. Note: This equipment is an 800 MHz single band version of FCC ID: IHDT56CA2. This single band version does not contain the rf components for the 1900 MHz PCS band. Contact Information: Please contact me by telephone at (847) 523-6167,or by e-mail ([email protected]), if there are questions or additional information needed concerning this filing. Regards, Andrew J. Bachler FCC Liaison Cellular Subscriber Sector 600 N. U.S. Highway 45 Libertyville, IL 60048-5343

September 5, 2002 Subject: Supplement to SAR Test Report for Motorola portable cellular phone (FCC ID IHDT5CA1) Reference: Correspondence Reference Number: 220903.IHD Confirmation Number:TC1325 Date of Original Email:9/3/2002 Prepared by: Andrew Bachler, Principal Staff Engineer Motorola Personal Communications Sector Libertyville, Illinois Summary of FCC request for additional information There was a request for additional information regarding the application: Motorola portable cellular phone (FCC ID IHDT5CA1). The requested information is addressed below in the same numbering sequence received. 1) Please resubmit the modulation plots and base station freq. Plots showing frequencies and power levels. Response: The test report has been revised to include this information. Please refer to the revised Exhibit 6. 2) Please provide the revised users manual pages indicating the power levels (page 11) and the revised body-worn statement (page 13). Response: Please refer to the partial user manual pages in exhibit 8A.

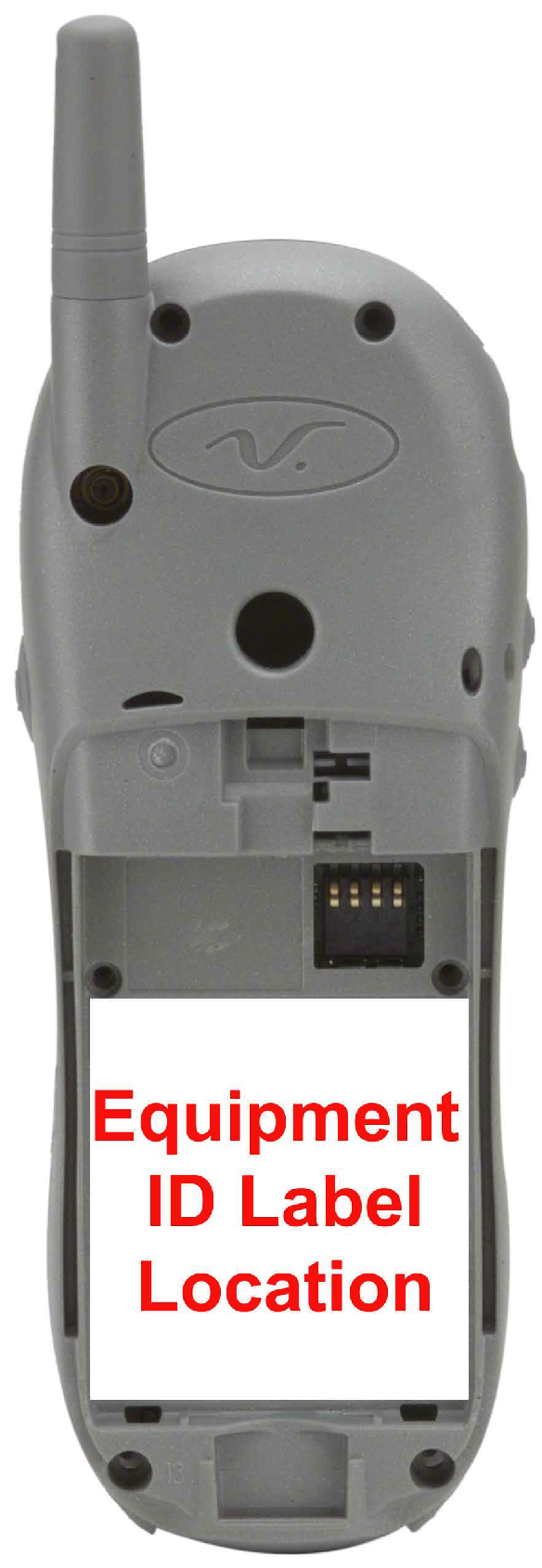

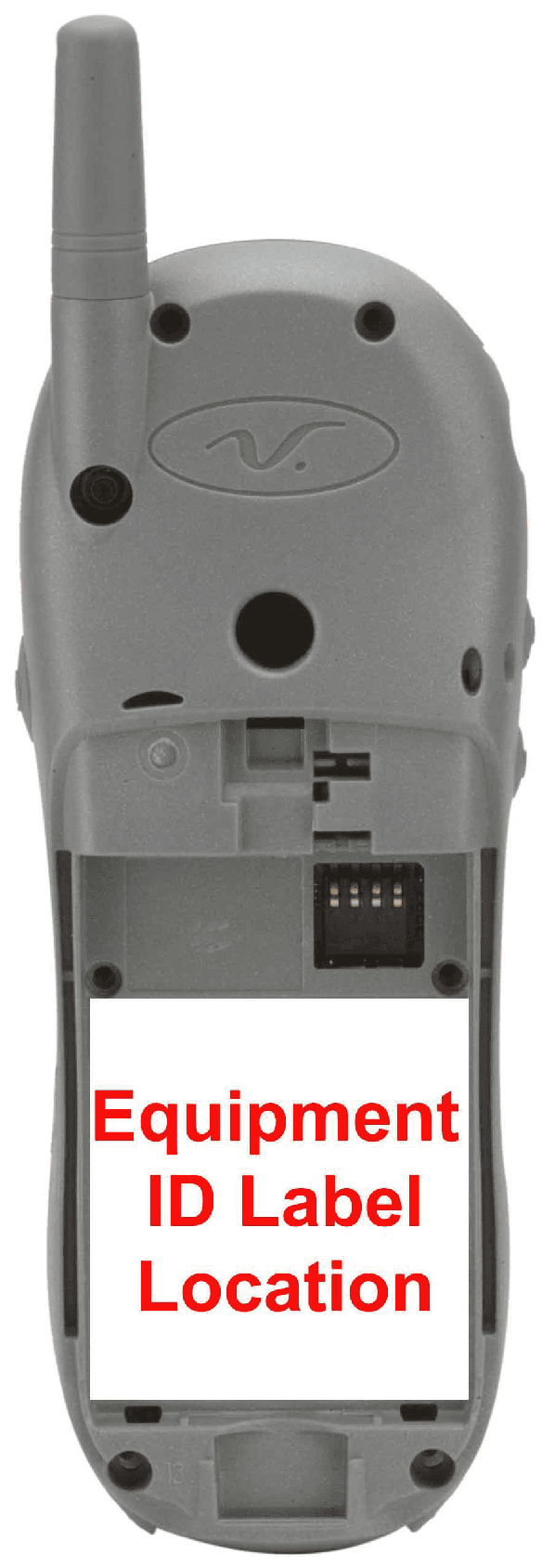

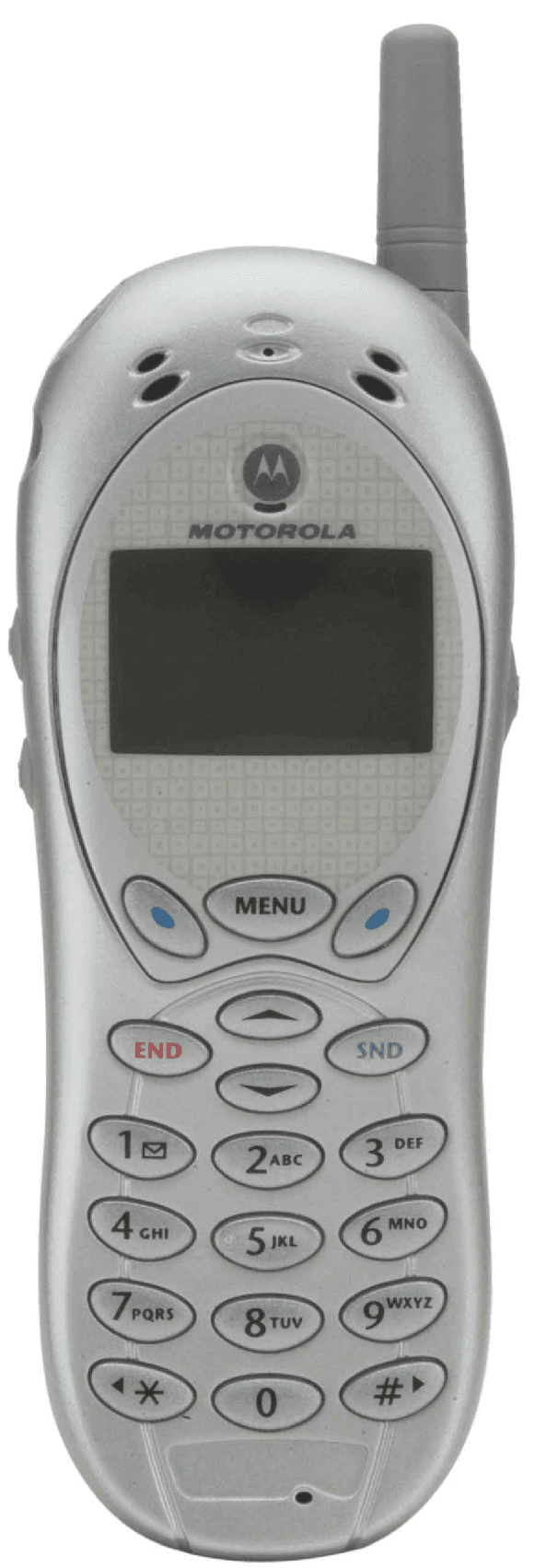

APPLICANT: MOTOROLA, INC. FCC ID: IHDT5CA1 EXHIBIT 3 Front View Rear View, with Battery Removed to Show Equipment ID Label

APPLICANT: MOTOROLA FCC ID: IHDT5CA1 EXHIBIT 1 FCC IDENTIFICATION (NAMEPLATE) INFORMATION The FCC label shown is the label that will appear on the radio when in production. It will be placed on the outside of the radio telephone. FCC ID: IHDT5CA1

APPLICANT: MOTOROLA, INC. FCC ID: IHDT5CA1 EXHIBIT 9 1 of 3 Front View (Shields Removed) Rear View (Shields Removed) APPLICANT: MOTOROLA, INC. FCC ID: IHDT5CA1 EXHIBIT 9 2 of 3 Front View Rear View APPLICANT: MOTOROLA, INC. FCC ID: IHDT5CA1 EXHIBIT 9 3 of 3 Front Housing Internal View Rear Housing Internal View

APPLICANT: MOTOROLA, INC. FCC ID: IHDT5CA1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 1 1 Exhibit 11: SAR Test Report IHDT5CA1 Date of test: Date of Report: 08/07/2002 – 08/14/2002 08/16/2002 Laboratory: Motorola Personal Communications Sector Product Safety & Compliance Laboratory 2001 N. Division Room: AS228 Harvard, Illinois 60033 Test Responsible: Firass Badaruzzaman SAR Engineer Accreditation: This laboratory is accredited to ISO/IEC 17025-1999 to perform the following electromagnetic exposure tests: System Validation & Interlaboratory Comparison Simulated Tissue Specifications and Procedure EME Cellular Phone Testing Procedure On the following types of products: Wireless Communications Devices (Examples): Two Way Radios; Portable Phones (including Cellular, Licensed Non-Broadcast and PCS); Low Frequency Readers; and Pagers A2LA certificate #1651-01 Statement of Compliance: Motorola declares under its sole responsibility that portable cellular telephone FCC ID IHDT5CA1 to which this declaration relates, is in conformity with the appropriate General Population/Uncontrolled RF exposure standards, recommendations and guidelines (FCC 47 CFR §2.1093). It also declares that the product was tested in accordance with the appropriate measurement standards, guidelines and recommended practices. Any deviations from these standards, guidelines and recommended practices are noted below: (none) ©Motorola, Inc. 2002 This test report shall not be reproduced except in full, without written approval of the laboratory. The results and statements contained herein relate only to the items tested. The names of individuals involved may be mentioned only in connection with the statements or results from this report. Motorola encourages all feedback, both positive and negative, on this test report. APPLICANT: MOTOROLA, INC. FCC ID: IHDT5CA1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 2 2 Table of Contents 1) Introduction 3 2) Description of the Device Under Test 3 Antenna description 3 Device description 3 3) Test Equipment 3 3.1 Dosimetric system 3 3.2 Additional equipment used 4 4) Electrical parameters of the tissue simulating liquid 4 5) System Accuracy Verification 5 6) Test Results 6 6.1 Head Adjacent Test Results 6 6.2 Body-Worn Test Results 8 References: Appendix 1: SAR distribution comparison for the system accuracy verification 10 Appendix 2: SAR distribution plots for Phantom Head Adjacent Use 11 Appendix 3: SAR distribution plots for Body Worn Configuration 13 Appendix 4. Probe Calibration Certificate 15 Appendix 5. Dipole Characterization Certificate 16 Appendix 6: Measurement Uncertainty Budget 17 Appendix 7. Photographs of the device under test 20 APPLICANT: MOTOROLA, INC. FCC ID: IHDT5CA1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 3 3 1. Introduction The Motorola Personal Communications Sector Product Safety Laboratory has performed measurements of the maximum potential exposure to the user of portable cellular phone (FCC ID IHDT5CA1). The Specific Absorption Rate (SAR) of this product was measured. The portable cellular phone was tested in accordance with FCC OET Bulletin 65 Supplement C 01-01. 2. Description of the Device Under Test Antenna description Type Stubby Location Right Side Length 25mm Dimensions Width 5mm Configuration Stuby Device description FCC ID Number IHDT5CA1 Serial number(s) 52FCE020 Mode(s) of Operation 800 AMPS TDMA 800 Modulation Mode(s) AMPS TDMA Maximum Output Power Setting 25.50 dBm 27.50 dBm Duty Cycle 1:1 1:3 Transmitting Frequency Rang(s) 824.04-848.97 MHz 824.04-848.97 MHz Production Unit or Identical Prototype (47 CFR §2..908) Identical Prototype Device Category Portable RF Exposure Limits General Population / Uncontrolled 3. Test Equipment Used 3.1 Dosimetric System The Motorola Personal Communications Sector Product Safety & Compliance Laboratory utilizes a Dosimetric Assessment System (Dasy3™ v3.1d) manufactured by Schmid & Partner Engineering AG (SPEAG™), of Zurich Switzerland. The overall RSS uncertainty of the measurement system is ±11.7% (K=1) with an expanded uncertainty of ±23.0% (K=2). The measurement uncertainty budget is given in Appendix 6. The list of calibrated equipment used for the measurements is shown below. Description Serial Number Cal Due Date DASY3 DAE V1 SN365 / SN398 9/26/2002 E-Field Probe ETDV6 SN1508 / SN1513 5/8/2003 Dipole Validation Kit, DV900V2 SN92 1/3/2003 Dipole Validation Kit, DV900V2 SN94 1/3/2003 Dipole Validation Kit, DV900V2 SN95 1/3/2003 S.A.M. Phantom used for 800MHz TP-1005 / TP-1131 APPLICANT: MOTOROLA, INC. FCC ID: IHDT5CA1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 4 4 3.2 Additional Equipment Description Serial Number Cal Due Date Signal Generator HP8648C 3847A04848 01/19/2003 Power Meter E4419B GB39511090 11/28/2002 Power Sensor #1 - 8481A US39211007 12/19/2002 Power Sensor #2 - 8481A US39210929 12/19/2002 Network Analyzer HP8753ES US39171846 05/01/2003 Dielectric Probe Kit HP85070B US99360074 Description Serial Number Cal Due Date Signal Generator HP8648C 3847A04845 10/05/2002 Power Meter E4419B US39210932 02/14/2003 Power Sensor #1 - 8481A US39210934 02/14/2003 Power Sensor #2 - 8481A GB39511084 01/18/2003 Network Analyzer HP8753ES US39171846 05/01/2003 Dielectric Probe Kit HP85070B US99360074 4. Electrical parameters of the tissue simulating liquid Prior to conducting SAR measurements, the relative permittivity, ε r , and the conductivity, σ, of the tissue simulating liquids were measured with the HP85070 Dielectric Probe Kit These values, along with the temperature of the tissue simulate are shown in the table below. The recommended limits for maximum permittivity and minimum conductivity are also shown. These come from the Federal Communication Commission, OET Bulletin 65 Supplement C 01-01. It is seen that the measured parameters are satisfactory for compliance testing. f Dielectric Parameters (MHz) Tissue type Limits / Measured ε r σ (S/m) Temp (°C) Measured, 08/01/2002 4…

Text truncated - open the document above for the full version.

ET3DV6 SN:1508 DASY3 - Parameters of Probe: ET3DV6 SN:1508 Sensitivity in Free SpaceDiode Compression NormX1.62 μV/(V/m) 2 DCP X97mV NormY1.51 μV/(V/m) 2 DCP Y97mV NormZ1.49 μV/(V/m) 2 DCP Z97mV Sensitivity in Tissue Simulating Liquid Head450MHz ε r =40.4 ± 5% σ = 0.87 ± 5% mho/m ConvF X6.82 extrapolatedBoundary effect: ConvF Y6.82 extrapolatedAlpha0.25 ConvF Z6.82 extrapolatedDepth2.86 Head900MHz ε r =41.5 ± 5% σ = 0.97 ± 5% mho/m Head835MHz ε r =41.5 ± 5% σ = 0.90 ± 5% mho/m ConvF X6.35 ± 9.5% (k=2)Boundary effect: ConvF Y6.35 ± 9.5% (k=2)Alpha0.35 ConvF Z6.35 ± 9.5% (k=2)Depth2.68 Head1500MHz ε r =40.4 ± 5% σ = 1.23 ± 5% mho/m ConvF X5.72 interpolatedBoundary effect: ConvF Y5.72 interpolatedAlpha0.47 ConvF Z5.72 interpolatedDepth2.43 Head1800MHz ε r =40.0 ± 5% σ = 1.40 ± 5% mho/m Head1900MHz ε r =40.0 ± 5% σ = 1.40 ± 5% mho/m ConvF X5.41 ± 9.5% (k=2)Boundary effect: ConvF Y5.41 ± 9.5% (k=2)Alpha0.53 ConvF Z5.41 ± 9.5% (k=2)Depth2.31 Sensor Offset Probe Tip to Sensor Center2.7mm Optical Surface Detection1.4 ± 0.2mm Page 2 of 8

APPLICANT: MOTOROLA INC FCC ID: IHDT5CA1 EXHIBIT 6 PERSONAL COMMUNICATIONS SECTOR PRODUCT SAFETY AND COMPLIANCE EMC LABORATORY EMC TEST REPORT Test Report Number – 7267-1 Report Date – August 6, 2002 The test results contained herein relate only to the model(s) identified. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical characteristics. As the responsible EMC Engineer, I hereby declare that the equipment tested as specified in this report conforms to the requirements indicated . SignatureName: _Kirby Munroe__ Title: Compliance Engineer Date : _ 8/6/2002 ____ This report must not be reproduced, except in full, without written approval from this laboratory. THIS REPORT MUST NOT BE USED TO CLAIM PRODUCT ENDORSEMENT BY A2LA OR ANY AGENCY OF THE U.S. GOVERNMENT. A2LA Certificate Number: 1846-01 APPLICANT: MOTOROLA INC FCC ID: IHDT5CA1 Test Report Number: 7267-1EXHIBIT 6 2 Table of Contents Description Page Test Report Details4 Applicable Standards4 Summary of Testing5 General and Special Conditions 5 Equipment and Cable Configurations5 Measuring Equipment and Calibration Information6 Measurement Procedures and Data RF Power Output 7 Radiated Power (ERP)8 Modulation Characteristics Transmit Audio Frequency Response9 Post Limiter Filter Attenuation9 Modulation Limiting vs. Modulation Input Voltage10 Occupied Bandwidth11 AMPS Un-modulated Carrier12 AMPS Supervisory Audio Tone12 AMPS Voice13 AMPS Signaling Tone13 AMPS 10kb/s Wideband Data14 TDMA 800 Reference Plot15 TDMA 800 Mid Band Plot15 TDMA 800 Lower Band Edge16 TDMA 800 Upper Band Edge16 Spurious Emissions at Antenna Terminals17 AMPS Tabular and Graphical Data18 AMPS Cellular Base Station Frequency Range Plot19 TDMA 800 Tabular and Graphical Data20 TDMA 800 Cellular Base Station Frequency Range Plot21 Field Strength of Spurious Emissions22 AMPS Tabular and Graphical Data23 TDMA 800 Tabular and Graphical Data24 Frequency Stability25 AMPS Tabular and Graphical Data26 TDMA 800 Tabular and Graphical Data27 Field Strength of Spurious Emissions From Unintentional Radiators 28 AMPS Tabular and Graphical Data29 TDMA 800 Tabular and Graphical Data30 APPLICANT: MOTOROLA INC FCC ID: IHDT5CA1 Test Report Number: 7267-1EXHIBIT 6 3 Description Page Appendix A - Radiated Emissions Test Setup Photos Figure A.1 – Radiated Emissions Measurement31 Figure A.2 – Substitution Measurement31 APPLICANT: MOTOROLA INC FCC ID: IHDT5CA1 Test Report Number: 7267-1EXHIBIT 6 4 Test Report Details Tests Performed By:Motorola Personal Communications Sector Product Safety and Compliance Group 1500 Gateway Boulevard Boynton Beach, FL 33426 PH (561) 739-2179 Fax (561) 739-2131 FCC Registration Number: 100000 Industry Canada Number: IC3908 Tests Requested By:Motorola Inc. RODOVIA SP-340, KM.128.7 A JAGUARIUNA, SP 13820-000 BRAZIL Product Type:Cellular Phone Signaling Capability:Analog, TDMA 800 Model Number:SJWF0136AA Serial Numbers:52FCE032, 52FCE02D, 52FCE02A Received Date:7/25/2002 Testing Start Date:7/26/2002 Testing Complete Date:8/2/2002 Applicable Standards All tests and measurements indicated in this document were performed in accordance with the Code of Federal Regulations Title 47 Part 2, Sub-part J as well as the following parts: X Part 15 Subpart B – Unintentional Radiators X Part 22 Subpart H - Public Mobile Services Part 24 - Personal Communications Services Part 90 - Private Land Mobile Radio Service Applicable Standards: TIA EIA 137-A, ANSI 63.4 2000, RSS-118, RSS-128 APPLICANT: MOTOROLA INC FCC ID: IHDT5CA1 Test Report Number: 7267-1EXHIBIT 6 5 Summary of Testing Test Test Name # Pass/Fail 1RF Power OutputNA 2ERP (Effective Radiated Power)NA 3Modulation CharacteristicsPass 4Occupied BandwidthPass 5Spurious Emissions at Antenna TerminalPass 6Field Strength of Spurious EmissionsPass 7Frequency StabilityPass 8Field Strength of Spurious EmissionsPass from Unintentional Radiators TestTest Name Margin with respect # to the Limit_________ 1RF Power Output NA 2ERP (Effective Radiated Power) NA 3Modulation Characteristics NA 4Occupied Bandwidth NA 5Spurious Emissions at Antenna Terminal 19.2 dB 6Field Strength of Spurious Emissions 22.6 dB 7Frequency Stability 213 Hz 8Field Strength of Spurious Emissions 2.1 dB from Unintentional Radiators The margin with respect to the limit is the minimum margin for all modes and bands. ( ) indicates the margin at which the product exceeds the limit. General and Special Conditions The EUT was tested using a fully charged battery when applicable. Where a battery could not be used due to the need for a controlled variation of input voltage, an external power supply was utilized. All testing was done in an indoor controlled environment with an average temperature of 22º C and relative humidity of 50%. Equipment and Cable Configurations The EUT was tested in a stand-alone configuration that is representative of typical use. APPLICANT: MOTOROLA INC FCC ID: IHDT5CA1 Test Report Number: 7267-1EXHIBIT 6 6 Measuring Equipment and Calibration Information ManufacturerItemItem Version/Serial CALIBRATION NameNameMode l #NumberDUE DATE Description Rohde & SchwarzEMI Test ReceiverESI26 838386/010 2/26/2003 Hewlett PackardEMC AnalyzerE7405 US3944019 10/11/2002 Hewlett PackardRF Amplifier8347A3307A0200112/20/2002 Hewlett PackardPre-Amplifier8449B3008A0134312/20/2002 ETSDRG Horn Antenna311562229/23/2002 A.H. Systems Inc.DRG Horn AntennaSAS-200/5712658/21/2002 A.H. Systems Inc.DRG Horn AntennaSAS-200/57136511/14/2002 ETSLog-Periodic Antenna3148118812/6/2002 ETSLog-Periodic Antenna314811891/2/2003 ETSBiconical Antenna3110B336912/15/2002 ETSBiconical Antenna3110B337010/16/2002 Compliance DesignBiconical AntennaB1003857/16/2003 Compliance DesignBiconical AntennaB2003127/22/2003 Compliance DesignBiconical AntennaB3003217/22/2003 AttenuatorWeinschel AS-6667510/10/2002 AttenuatorWeinschel AS-6667711/10/2002 Rohde & SchwarzMobile Test SetCMD 80DE2900810/1…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA INC FCC ID: IHDT5CA1 EXHIBIT 6 Revised 9-4-02 PERSONAL COMMUNICATIONS SECTOR PRODUCT SAFETY AND COMPLIANCE EMC LABORATORY EMC TEST REPORT Test Report Number – 7267-1 Report Date – August 6, 2002 The test results contained herein relate only to the model(s) identified. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical characteristics. As the responsible EMC Engineer, I hereby declare that the equipment tested as specified in this report conforms to the requirements indicated . SignatureName: _Kirby Munroe__ Title: Compliance Engineer Date : _ 8/6/2002 ____ This report must not be reproduced, except in full, without written approval from this laboratory. THIS REPORT MUST NOT BE USED TO CLAIM PRODUCT ENDORSEMENT BY A2LA OR ANY AGENCY OF THE U.S. GOVERNMENT. A2LA Certificate Number: 1846-01 APPLICANT: MOTOROLA INC FCC ID: IHDT5CA1 Test Report Number: 7267-1EXHIBIT 6 Revised 9-4-02 2 Table of Contents Description Page Test Report Details4 Applicable Standards4 Summary of Testing5 General and Special Conditions 5 Equipment and Cable Configurations5 Measuring Equipment and Calibration Information6 Measurement Procedures and Data RF Power Output 7 Radiated Power (ERP)8 Modulation Characteristics Transmit Audio Frequency Response9 Post Limiter Filter Attenuation9 Modulation Limiting vs. Modulation Input Voltage10 Occupied Bandwidth11 AMPS Un-modulated Carrier12 AMPS Supervisory Audio Tone12 AMPS Voice13 AMPS Signaling Tone13 AMPS 10kb/s Wideband Data14 TDMA 800 Reference Plot15 TDMA 800 Mid Band Plot15 TDMA 800 Lower Band Edge16 TDMA 800 Upper Band Edge16 Spurious Emissions at Antenna Terminals17 AMPS Tabular and Graphical Data18 AMPS Cellular Base Station Frequency Range Plot19 TDMA 800 Tabular and Graphical Data20 TDMA 800 Cellular Base Station Frequency Range Plot21 Field Strength of Spurious Emissions22 AMPS Tabular and Graphical Data23 TDMA 800 Tabular and Graphical Data24 Frequency Stability25 AMPS Tabular and Graphical Data26 TDMA 800 Tabular and Graphical Data27 Field Strength of Spurious Emissions From Unintentional Radiators 28 AMPS Tabular and Graphical Data29 TDMA 800 Tabular and Graphical Data30 APPLICANT: MOTOROLA INC FCC ID: IHDT5CA1 Test Report Number: 7267-1EXHIBIT 6 Revised 9-4-02 3 Description Page Appendix A - Radiated Emissions Test Setup Photos Figure A.1 – Radiated Emissions Measurement31 Figure A.2 – Substitution Measurement31 APPLICANT: MOTOROLA INC FCC ID: IHDT5CA1 Test Report Number: 7267-1EXHIBIT 6 Revised 9-4-02 4 Test Report Details Tests Performed By:Motorola Personal Communications Sector Product Safety and Compliance Group 1500 Gateway Boulevard Boynton Beach, FL 33426 PH (561) 739-2179 Fax (561) 739-2131 FCC Registration Number: 100000 Industry Canada Number: IC3908 Tests Requested By:Motorola Inc. RODOVIA SP-340, KM.128.7 A JAGUARIUNA, SP 13820-000 BRAZIL Product Type:Cellular Phone Signaling Capability:Analog, TDMA 800 Model Number:SJWF0136AA Serial Numbers:52FCE032, 52FCE02D, 52FCE02A Received Date:7/25/2002 Testing Start Date:7/26/2002 Testing Complete Date:8/2/2002 Applicable Standards All tests and measurements indicated in this document were performed in accordance with the Code of Federal Regulations Title 47 Part 2, Sub-part J as well as the following parts: X Part 15 Subpart B – Unintentional Radiators X Part 22 Subpart H - Public Mobile Services Part 24 - Personal Communications Services Part 90 - Private Land Mobile Radio Service Applicable Standards: TIA EIA 137-A, ANSI 63.4 2000, RSS-118, RSS-128 APPLICANT: MOTOROLA INC FCC ID: IHDT5CA1 Test Report Number: 7267-1EXHIBIT 6 Revised 9-4-02 5 Summary of Testing Test Test Name # Pass/Fail 1RF Power OutputNA 2ERP (Effective Radiated Power)NA 3Modulation CharacteristicsPass 4Occupied BandwidthPass 5Spurious Emissions at Antenna TerminalPass 6Field Strength of Spurious EmissionsPass 7Frequency StabilityPass 8Field Strength of Spurious EmissionsPass from Unintentional Radiators TestTest Name Margin with respect # to the Limit_________ 1RF Power Output NA 2ERP (Effective Radiated Power) NA 3Modulation Characteristics NA 4Occupied Bandwidth NA 5Spurious Emissions at Antenna Terminal 19.2 dB 6Field Strength of Spurious Emissions 22.6 dB 7Frequency Stability 213 Hz 8Field Strength of Spurious Emissions 2.1 dB from Unintentional Radiators The margin with respect to the limit is the minimum margin for all modes and bands. ( ) indicates the margin at which the product exceeds the limit. General and Special Conditions The EUT was tested using a fully charged battery when applicable. Where a battery could not be used due to the need for a controlled variation of input voltage, an external power supply was utilized. All testing was done in an indoor controlled environment with an average temperature of 22º C and relative humidity of 50%. Equipment and Cable Configurations The EUT was tested in a stand-alone configuration that is representative of typical use. APPLICANT: MOTOROLA INC FCC ID: IHDT5CA1 Test Report Number: 7267-1EXHIBIT 6 Revised 9-4-02 6 Measuring Equipment and Calibration Information ManufacturerItemItem Version/Serial CALIBRATION NameNameMode l #NumberDUE DATE Description Rohde & SchwarzEMI Test ReceiverESI26 838386/010 2/26/2003 Hewlett PackardEMC AnalyzerE7405 US3944019 10/11/2002 Hewlett PackardRF Amplifier8347A3307A0200112/20/2002 Hewlett PackardPre-Amplifier8449B3008A0134312/20/2002 ETSDRG Horn Antenna311562229/23/2002 A.H. Systems Inc.DRG Horn AntennaSAS-200/5712658/21/2002 A.H. Systems Inc.DRG Horn AntennaSAS-200/57136511/14/2002 ETSLog-Periodic Antenna3148118812/6/2002 ETSLog-Periodic Antenna314811891/2/2003 ETSBiconical Antenna3110B336912/15/2002 ETSBiconical Antenna3110B337010/16/2002 Compliance DesignBiconical AntennaB1003857/16/2003 Compliance DesignBiconical AntennaB2003127/22/2003 Compliance DesignBiconical AntennaB3003217/22/2003 AttenuatorWeinschel AS-6667510/10/2…

Text truncated - open the document above for the full version.
