IHDT5CK1Single Mode CDMA Cellular Phone

APPLICANT: MOTOROLA, INC.FCC ID: IHDT5CK1 EXHIBIT 8 INSTRUCTION MANUAL A preliminary draft copy of the Users Manual follows: Thanks in deed for purchasing this cellular phone of Motorola which takes pride in its world-best radio communication technology. All of the Motorola cellular communication equipment are designed and manufactured in compliance with the in-house strict standards and international standards, and especially, they are subjected to stringent quality tests in connection with temperature, humidity, impact, dust, vibration, and drop before being released. We assure you that this Motorola phone manufactured through these processes gives you high quality satisfaction. Thank you again for selecting our products, and hopefully you would succeed in your business with your Motorola V720. Any content of this manual and any function of this product are subject to change accordingly. We suggest that you set your phone to vibration mode at a public place in order to observe right manners in using the phone. Each digital wireless phone manufactured and supplied by Motorola has its own ESN (Electronics Serial Number). Removal or change of this ESN, or an attempt to reproduce and enter another ESN shall be deemed an illegal act. Any person who commits such an illegal act shall be sentenced to three yearsor shorter penal servitude or fined 10 million won or less pursuant to the related civil laws (Article 4 of Radio Wave Act, Article 4 of Telecommunications Enterprise Act, and Article 347 of the Criminal Law Act). In addition, such an illegal act may damage the software built in the phone, with the result that the phone cannot be used any longer. Thus, customers are required to be careful not to incur any damage due to such an illegal act. Especially, once such an illegal act is identified, both the free and paid services warranted by Motorola are rejected. Precautions Do not lend your own phone to other person inadvertently. For repairs or other services, contact our designated service center. If your phone has gotten lost or stolen, immediately report to the relevant telecommunications service provider. This product should not be added with any separate equipment that may cause an alteration to its original performance as described on type registration. Read this information carefully before you use the phone, for safe and efficient use. Exposure to Radio Frequency Signal Your digital wireless phone is a power radio transmitter and receiver. When it is ON, it receives and also sends out high radio frequency(RF) energy. International agencies have set standards and recommendations for the protection of public exposure to RF energy. US FCC Code of Regulations : 47 CFR part2 sub-part J* ANSI IEEE C95.1 (1992)* IEEE C95.1 (1999)* NCRP Report 86 (1986)* ICNIRP (1998)* Department of Health and Welfare Canada, Safety Code 6 (1999) Australia Communication Committee, Standard of Wireless Communication for Exposure to Electromagnetic Wave (1999) * Federal Communication Commission ; American National Standards Institute :National Council on Radiation Protection and Measurements ; International Commission on Non-Ionizing Radiation Protection Antenna Use only the antenna authorized by Motorola. Using an unauthorized antenna may damage your phone, which rejects the free services offered by Motorola. Do not use the damaged antenna. You may get slightly burned if you touch the damaged antenna. Effective Operation Hold your phone as when doing to the general telephone, with the antenna placed straight over your shoulder. Speak distinctly to your phone with your mouth placed near the transmitter. Never touch the antenna during a call. If so, it may degrade call quality and cause the phone to transmit excessive power. Phone Case In order to minimize exposure to electromagnetic wave, hold the phone in the case provided or authorized by Motorola. You may be exposed to excessive electromagnetic wave if you use the case not provided or authorized by Motorola. If you dont use the case or when you use the data call, keep the distance of at least 2.5cm between the phone and your body. See www.mymotorola.cofor authorized Motorola accessory. Digital Wireless Phone and Electronic Devices Most electronic equipment is shielded from high RF signals. However, certain equipment may not be shielded against RF signals from your wireless phone and cause malfunctions to it. Aircraft Switch OFF your phone before boarding an aircraft. The wireless phone could interfere with the electronic navigation devices of an aircraft. Pacemaker The Health Industry Manufacturers Association recommends that a minimum separation of fifteen centimeters (15cm) be maintained between a wireless phones antenna and a pacemaker to avoid potential interference with the pacemaker. Persons with pacemakers should always use the phone in the opposite side of the pacemaker to minimize interference. Turn your phone OFF as far as possible. Hearing Aid Some types of wireless phone may interfere with a hearing aid. Other Medical Devices If you use any other personal medical device, consult the manufacturers of your device to determine if they are adequately shielded from external RF energy. Turn your phone OFF in health care facilities when any regulations posted in these areas instruct you to do so. Hospitals or health care facilities may be using equipment that could be sensible to external RF energy. Using a Phone While Driving Abide by the regulations relating to the use of cellular phone while driving. And be sure to keep the following precautions. Give full attention to driving. Do not use your phone while driving, or use the hands-free kit if required. Pull off the road and park before making or answering a call if required. Vehicles Equipped with Air Bags An air bag inflates with great force in a moment. If in-vehicle handsfree car kit is improperly installed and the air bag inflates, serious injury could result.DO NOT place objects, including bot…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA INC. FCC ID: IHDT5CK1 EXHIBIT 2 STATEMENT OF CERTIFICATION The technical data supplied with this application, having been taken under my supervision is hereby duly certified. The following of my qualification: BSEE 1988 University of Hanyang, Seoul 15 years experience in wireless radio/cellular telephone design NAME: JongSoo, Hwang DATE: 4/17/02 POSITION: Engineering directer Appeal Telecom Co., Ltd I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in the application and accompanying technical data are true and correct . NAME: JongSoo, Hwang DATE: 4/17/02 POSITION: Engineering directer Appeal Telecom Co., Ltd

APPLICANT: MOTOROLAFCC ID: IHDT5CK1 Exhibit 13 June 27, 2002 CONFIDENTIALITY REQUEST CONTAINED WITHIN Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Application for Cellular Transceiver Certification Gentlemen: Application: Motorola, Inc., Personal Communications Sector, 600 N. U.S. Highway 45, Libertyville, Illinois 60048-1286 herein submits: Application for Equipment Authorization for Certification of a Cellular Transceiver, FCC ID: IHDT5CK1. Motorola is also the manufacturer of this equipment. Confidentiality: Pursuant to Section 0.459 of the Commission's rules (CFR 47), Motorola requests confidentiality for portions of the material contained in this application and that the identified material be withheld from public inspection following the grant of this authorization. This material contains Motorola's trade secrets and confidential information that Motorola does not customarily release to the public and which is otherwise not generally available to the public. Confidentiality is requested for the following exhibits:
Exhibit 4 Block Diagrams
Exhibit 5 Schematics
Exhibit 12 Operational Description Description: This equipment has the capability to operate in the the Digital CDMA standard in the 800 MHz cellular band, as outlined in EIA/TIA IS-95-A "Mobile Station – Base Station Compatibility Standard for Dual-Mode Wideband Spread Spectrum Cellular System”. Technical details for this alternate cellular technology (permitted under the cellular service option provisions in Section 22.901(d) of the Commission's rules) related to Type Acceptance of this equipment, as noted in paragraphs 31 and 32 of the Report and Order in FCC GEN. Docket No. 87-390, are detailed in Exhibit 12. Contact Information: Please contact me by telephone at (847) 523-6167, or by e-mail ([email protected]), if there are any further questions or additional information needed concerning this filing. Regards, Andrew J. Bachler FCC Liaison Cellular Subscriber Sector 600 N. U.S. Highway 45 Libertyville, IL 60048-5343

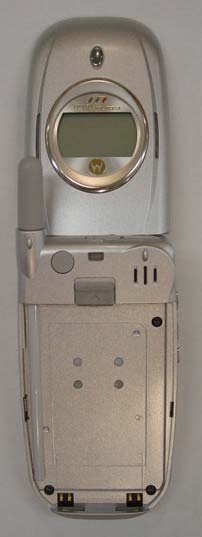

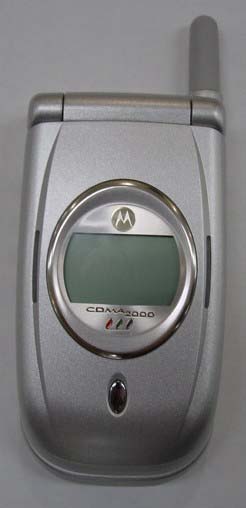

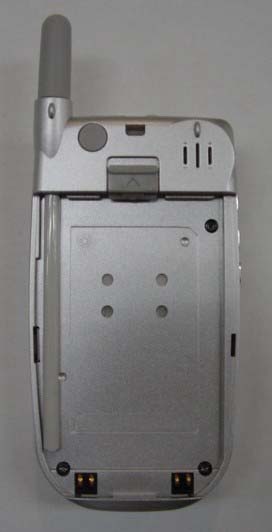

APPLICANT: MOTOROLA INC.FCC ID: IHDT5CK1 EXHIBIT 3 1 Rear View, with Battery Removed to Show Equipment ID Label Front view Equipment ID Label Location APPLICANT: MOTOROLA INC.FCC ID: IHDT5CK1 EXHIBIT 3 2 Rear View, with Battery Removed to Show Equipment ID Label Front view Equipment ID Label Location

APPLICANT: MOTOROLA INC.FCC ID: IHDT5CK1 EXHIBIT 1 FCC IDENTIFICATION (NAMEPLATE) INFORMATION The FCC label shown is representative of the label that will appear on the radio when in production. It will be placed on the outside of the equipment as shown in Exhibit 3. Other information may also be included on this label. FCC ID: IHDT5CK1

APPLICANT: MOTOROLA INC. FCC ID: IHDT5CK1 Exhibit 9 1 Main BoardFront View Main BoardRear View APPLICANT: MOTOROLA INC. FCC ID: IHDT5CK1 Exhibit 9 2 Display BoardRear View Display BoardFront View

APPLICANT: MOTOROLA INC.FCC ID: IHDT5CK1 Exhibit 10 1 TRANSCEIVER ADJUSTMENTS/TUNE-UP PROCEDURE There are no user accessible adjustments or tuning in this portable cellular transceiver. All necessary adjustments and tuning are performed during manufacture of the product. Any adjustments or tuning after service or repair are done as part of that process as special equipment is required to perform such adjustments. APPLICANT: MOTOROLA INC.FCC ID: IHDT5CK1 Exhibit 10 2 REFERENCE SYMBOL DESCRIPTION LCD MODULE / LM019LC1S21 A1 TERMINAL ANTENNA BF1 IND BEAD 120Ohm C1, 3, 14, 15, 18, 20, 23, 27, 28, 35, 41, 46, 63, 70, 73, 75, 76, 77, 78, 90, 93, 97, 99, 100, 101, 145, 153, 154, 156, 169, 205, 210, 212, 214, 218, 229, 249, 277, 278 CAP 1000P 10% C10, 25, 69, 81, 151, 152 , 207 CAP NC C11, 17 CAP 1P +/-0.25 P C16, 61 CAP 0.5P +/-0.25 C19, 26, 50, 51, 56, 82, 83, 92,98, 155, 200, 201, 202, 256, 265, 266, 276, 302 CAP 0.01u 10% C2, 21, 24, 32, 33, 34, 57, 58, 59, 60, 66, 67, 104, 108, 150, 157, 168, 180, 206, 213, 217, 219, 220, 221, 224, 225, 230, 250, 251, 253, 257, 271, 279, 290, 309, 336 CAP 0.1UF +80/-20% C203 CAP 5600P 10% C204 CAP 150P 5% C222, 326, 327 CAP 33P 5% C254 CAP 0.022U 10% C280 TANTAL 33UF(3216) 4V +/-20% C30, 31, 37, 40, 43, 47, 48, 49, 53, 62, 68, 71, 80, 84, 86, 91, 94, 96, 175, 208, 216, 233, 234, 235, 236, 237, 238, 239, 240, 241, 242, 243, 244, 245, 246, 247, 248, 258, 259, 260, 261, 262, 263, 264, 267, 268, 269, 270, 313, 314, 315, 316, 317, 318, 319, 320, 321, 322, 323, 324, 325, 328, 330, 332, 337, 338, 339, 364 CAP 100P 5% C308 CAP 470P 10% C331 CAP 0.1UF +80/-20% C36, 39 CAP 18P 5% C38, 88, 102, 107, 112, 209, 211, 226, 227, 228, 300, 305, 306, 307 CAP 1UF +80/-20% C4, 52, 65 CAP 2P +/-0.25 P C414, 417, 420, 426, 429, 440, 466, 501, 502, 509, 510, 514, 515, 525 CAP 1uF +80/-20% / C1608JF1C 105Z C415, 421, 422, 423, 424, 425, 437, 442, 443, 444, C455, 461, 503, 504, 505, 506, 516, 518, 519, 520 CAP 0.1uF +80/-20% / C1005JF1C104Z C416, 427, 434, 438, 439, 441, 450, 451, 530, 531, C532, 533, 534 CAP 100P 5% / C1005CH1H101J C418, 428, 430, 465, 469, CAP 2.2uF +80/-20% / C1608Y5V1A225Z C42, 103, 105, 106, 109, 110, 111, 304 TANTAL 10UF(2012) 6.3V +/-20% C431 CAP 0.1UF +80/-20% / C1608Y5V104ZT C432 CAP 68P 5% / C1005CH1H680J C433 CAP 10UF +80/-20% / C2012JF1A106Z C435, 436 CAP 100P 5% / C1608COG101JT C445, 446, 447, 470, 471, 472, 473, 474, 475, 476, C477, 478, 479, 480, 481, 482, 483, 484, 485 CAP 56P 5% / C1005CH1H560J APPLICANT: MOTOROLA INC.FCC ID: IHDT5CK1 Exhibit 10 3 C45 CAP 56P 5% C5, 231, 232 CAP 22P 5% C500 CAP 560P 5% / C1608C0G1H561J C507, 508, 511, 512, 513 CAP 1UF 16V +/-20% / C2012X7RIC105K C54, 252 CAP 4700P 10% C55 CAP 0.047U 10% C551 CAP (0603) 0.01uF +/-10% / GRP033R70J103KA01 C552, 553, 554, 555, 556, 557, 558, 559, 560, 561, C562, 563, 564, 565, 566, 567, 568, 569, 570, 571, C572, 573, 574, 575, 576, 577 CAP (0603) 100P +/- 5% / GRP0335C1E101JD01 C6, 12, 190 CAP 5P +/-0.25P C64, 85, 255 CAP 0.047U +80/-20% C7, 8, 13 CAP 4P +/-0.25 P C74 CAP 15P 5% C79 CAP 6P +/-0. 5P C87, 95 CAP 9P +/-0.5 P C89, 310, 329 CAP 10UF +80/-20% C9 CAP 12P 5% CN300 INTERFACE_CONNECTOR CON100 RF CONN CONN FPC CONN(40PIN) / AXK840145J CONN1 FPC CONN(40PIN) CONN2 FPC CONN(40PIN) / AXK740145J CONN403 LCD CONN / 33FHZ-SM1-T-G-ST-TB CRY200 CRYSTAL 32.768KHz CRY201 XTAL, 27MHz RESONATOR D100, 101, 104, 105 DIODE D103 DIODE D201, 304 DIODE D300, 307 DIODE D301 DIODE DPX100 SAW DUPLEXER EAR1 EAR PHONE JACK F100 RX IF SAW FILTER F101 RX-SAW F102, 103 TX SAW FIN301, 302, 303, 304, 305, 306, 307, 308, 309, 310, 311, 312, FNG313, 314, 315 SHIELD STRAP IC100 IC LNA IC101 DOWNCONVERTER IC IC102 IC IC103 IC PLL APPLICANT: MOTOROLA INC.FCC ID: IHDT5CK1 Exhibit 10 4 IC104 UPCONVERTER IC IC105 POWER AMP MODULE IC106 IC IC107, 108 IC IC200 MIDI (MA-2) IC201 MCP(64M+8M) IC202 IC OR GATE IC203 MOBILE STATION MODEM IC205 TI VBAP III(CODEC) IC206 S-RAM(4M) IC209 HALL SENSOR IC IC302 REGULATOR IC IC304 IC RESET IC305 IC IC306 TR(SWITCH) IC400 IC (I/O EXPANDER) / PCA9555 IC403 TEMP SENSOR / SM6610 IC404 REGULATOR IC / TC1016-1.8 IC405 TR / UML6N IC406 IC (LCD CONTROLLER) / MQ-2074 IC412 REGULATOR IC / R1141Q301D IC413 WHITE LED DRIVER / LTC3202 IC420 REGULATOR IC / R1141Q-3.3 L100, 104 IND 180NH 2% L101 IND NC (1608) L102 IND 15NH 2% L103 IND 27NH 5% L105 IND 300NH 2% L106, 112, 113, 145 IND 12NH 5% L107, 116 IND 15NH 5% L108 IND 22NH 5% L109, 122 IND 10NH 5% L110, 126 IND 4.7NH +/-0.3NH L111 IND 47NH 2% L115 IND 33NH 5% L117, 118 IND 560 NH (2012) L119 IND 82NH 5% L120 IND 3.3NH +/-0.3NH L121 IND 5.6NH +/-0.3NH L123, 130 IND NC (1005) L124 IND 27NH 2% APPLICANT: MOTOROLA INC.FCC ID: IHDT5CK1 Exhibit 10 5 L125 IND 270NH 5% L127 IND 6.8NH 5% L140 IND 47NH 5% LED200, 201, 202, 203, 204, 205, 206, 207, 210, 211 LED LED208, LED209 NC LED400, 401, 402, 403, 404, 405, 406, 407 LED (CALL_LED) / LTST-C195TBJRKT MIC200 CONDENSER MICRO PHONE MOT400 MOTOR / DMJBRK12B Q101, 300 TR Q120 POWER MOSFET Q121, 202 TR Q201, 304 TR Q210 TR Q211, 212 TR Q301 TR Q303 TR Q305 FET R100 RES 15 5% R101, 130, 355, 359 RES 0 5% R102 RES 5.1K 5% R103 RES 39 5% R105, 106, 109, 123, 127, 128, 133, 215, 225, 227, 229, 230, 231, 232, 290, 306, 317, 329 RES 10K 5% R107, 126 RES 15K 5% R108, 110, 111, 112, 115, 117, 119, 121, 129, 207, 208, 209, 210, 212, 393, 398, 399 RES 100 5% R113 RES 390K 5% R114, 131, 201 RES 100K 5% R116 RES 8.2K 5% R118 RES 2.7K 5% R120 RES 68 5% R122, 228 RES 750 5% R124, 132, 233, 238, 358 RES 1K 5% R125 RES 12K 5% R134, 180, 202, 205, 217 RES 47K 5% R135 RES 56K 1% R145 RES 20 5% R150 RES 22 5% R159, 239 RES 5.1 5% R200, 328 RES 27K 5% R204, 234 RES 3.3K 5% R211, 224, 303, 312 RES NC APPLICANT: MOTOROLA INC.FCC ID: IHDT5CK1 Exhibit 10 6 R214, 245 RES 22K 5% R216 RES 33K 5% R218 RES 10 5% R219 RES 2.4 5% R220 RES 100K 1% R221, 223, 226 RES 3K 5% R237, 299 RES 2.2K 5% R250, 251 RES 2.2 5% R252, 253 RES 000 5% R256 RES 680 5% R300, 301, 318 RES 4.7K 1% R304, 309 RES 3.3M 5% R305, 307 RES 1M 5% R308 RES 300K 5% R3…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA, INC. FCC ID: IHDT5CK1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 1 1 Exhibit 11: SAR Test Report IHDT5CK1 Date of test: Date of Report: 06/12/2002 – 06/13/2002 06/18/2002 Laboratory: Motorola Personal Communications Sector Product Safety & Compliance Laboratory 2001 N. Division Room: AS228 Harvard, Illinois 60033 Test Responsible: Firass Badaruzzaman SAR Engineer Accreditation: This laboratory is accredited to ISO/IEC 17025-1999 to perform the following electromagnetic exposure tests: System Validation & Interlaboratory Comparison Simulated Tissue Specifications and Procedure EME Cellular Phone Testing Procedure On the following types of products: Wireless Communications Devices (Examples): Two Way Radios; Portable Phones (including Cellular, Licensed Non-Broadcast and PCS); Low Frequency Readers; and Pagers A2LA certificate #1651-01 Statement of Compliance: Motorola declares under its sole responsibility that portable cellular telephone FCC ID IHDT5CK1 to which this declaration relates, is in conformity with the appropriate General Population/Uncontrolled RF exposure standards, recommendations and guidelines (FCC 47 CFR §2.1093). It also declares that the product was tested in accordance with the appropriate measurement standards, guidelines and recommended practices. Any deviations from these standards, guidelines and recommended practices are noted below: (none) ©Motorola, Inc. 2002 This test report shall not be reproduced in full, without written approval of the laboratory. The results and statements contained herein relate only to the items tested. The names of individuals involved may be mentioned only in connection with the statements or results from this report. Motorola encourages all feedback, both positive and negative, on this report APPLICANT: MOTOROLA, INC. FCC ID: IHDT5CK1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 2 2 Table of Contents 1) Introduction 3 2) Description of the Device Under Test 3 Antenna description 3 Device description 3 3) Test Equipment 3 3.1 Dosimetric system 3 3.2 Additional equipment used 4 4) Electrical parameters of the tissue simulating liquid 4 5) System Accuracy Verification 5 6) Test Results 5 6.1 Head Adjacent Test Results 6 6.2 Body-Worn Test Results 7 References: Appendix 1: SAR distribution comparison for the system accuracy verification 8 Appendix 2: SAR distribution plots for Phantom Head Adjacent Use 9 Appendix 3: SAR distribution plots for Body Worn Configuration 12 Appendix 4. Probe Calibration Certificate 14 Appendix 5: Photographs of the device under test 15 APPLICANT: MOTOROLA, INC. FCC ID: IHDT5CK1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 3 3 1. Introduction The Motorola Personal Communications Sector Product Safety Laboratory has performed measurements of the maximum potential exposure to the user of portable cellular phone (FCC ID IHDT5CK1). The Specific Absorption Rate (SAR) of this product was measured. The portable cellular phone was tested in accordance with FCC OET Bulletin 65 Supplement C 01-01. 2. Description of the Device Under Test Antenna description Type Extendable Antenna Location Right Side Dimensions Length 78 mm Width 5 mm Device description FCC ID Number IHDT5CK1 Serial number #1 Mode(s) of Operation CDMA 800 Modulation Mode(s) CDMA Maximum Output Power Setting 25.00 dBm Duty Cycle 1:1 Transmitting Frequency Rang(s) 824.64 – 848.37 MHz Production Unit or Identical Prototype (47 CFR §2..908) Identical Prototype Device Category Portable RF Exposure Limits General Population / Uncontrolled 3. Test Equipment Used 3.1 Dosimetric System The Motorola Personal Communications Sector Product Safety & Compliance Laboratory utilizes a Dosimetric Assessment System (Dasy3™ v3.1d) manufactured by Schmid & Partner Engineering AG (SPEAG™), of Zurich Switzerland. The overall RSS uncertainty of the measurement system is ±12.0% (K=1) with an expanded uncertainty of ±24.0% (K=2). The breakdown of the individual uncertainties is as follows: Probe Uncertainty ±% Isotropy error 7.2 Calibration error 3.3 Spatial resolution 0.5 SAR Evaluation ±% Conductivity measurement 5.0 Environmental errors 1.0 APPLICANT: MOTOROLA, INC. FCC ID: IHDT5CK1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 4 4 Peak SAR Evaluation ±% Probe positioning 1.0 Volumetric averaging 4.2 Device positioning 6.0 The list of calibrated equipment used for the measurements is shown below. Description Serial Number Cal Due Date DASY3 DAE V1 SN 365 09/26/2002 E-Field Probe ETDV6 SN 1508 10/25/2002 Dipole Validation Kit, DV900V2 SN 95 01/03/2003 SAM Phantom used for 800MHz TP-1005 3.2 Additional Equipment Description Serial Number Cal Due Date Signal Generator HP8648C 3847A04848 01/19/2003 Power Meter E4419B GB39511090 11/28/2002 Power Sensor #1 US39211007 12/19/2002 Power Sensor #2 US39210929 12/19/2002 Network Analyzer HP8753ES US39172529 07/05/2002 4. Electrical parameters of the tissue simulating liquid Prior to conducting SAR measurements, the relative permittivity, ε r , and the conductivity, σ, of the tissue simulating liquids were measured with a HP85070 Dielectric Probe Kit These values are shown in the table below. The recommended limits for maximum permittivity and minimum conductivity are also shown. These come from the Federal Communication Commission, OET Bulletin 65 Supplement C 01-01. It is seen that the measured parameters are satisfactory for compliance testing. f Dielectric Parameters (MHz) Tissue type Limits / Measured ε r σ (S/m) Temp (°C) Measured, 06/12/2002 41.10 0.90 22.80 Recommended Limits 41.50 0.90 20-25 Measured, 06/13/2002 40.80 0.91 22.80 Head Recommended Limits 41.50 0.90 20-25 Measured, 06/12/2002 54.00 0.98 22.70 835 Body Recommended Limits 55.20 0.97 20-25 The list of ingredients and the percent composition used for the tissue simulates are indicated in the table below. Ingredien t 800MHz Head 800MHz Body 1900MHz Head 1900MHz Body Sugar 57.0 44.9 47.0 30.80 DGBE -- -- 52.8 68.91 Water 40…

Text truncated - open the document above for the full version.

July 17, 2002 Subject: Supplement to SAR Test Report for Motorola portable cellular phone (FCC ID IHDT5CK1) Reference: Correspondence Reference Number:220716.IHD Confirmation Number:TC1286 Date of Original Email:07/16/2002 Prepared by: Firass Badaruzzaman, SAR Engineer Motorola Personal Communications Sector Product Safety Laboratory Harvard, Illinois Andrew Bachler, Principal Staff Engineer Motorola Personal Communications Sector Libertyville, Illinois Summary of FCC request for additional information There was a request for additional information regarding Motorola’s SAR Test Report for Motorola portable cellular phone (FCC ID IHDT5CK1). The requested information is addressed below in the same numbering sequence received. 1) Justification for the reduced number of configurations/frequencies tested. Alternatively, please provide SAR data from additional test configurations/frequencies. Please also address the number of frequency points and tests with the extended battery. Response: The testing was performed in each configuration / frequency band per the FCC OET Bulletin 65 Supplement C 01-01 standard, which states: “The device should be tested on the left and right side of the head phantom in the “Cheek/Touch” and “Ear/Tilt” positions. When applicable, each configuration should be tested with the antenna in its fully extended and fully retracted positions. These test configurations should be tested at the high, middle and low frequency channels of each operating mode; for example, AMPS, CDMA, and TDMA. If the SAR measured at the middle channel for each test configuration (left, right, Cheek/Touch, Tile/Ear, extended and retracted) is at least 2.0 dB lower than the SAR limit, testing at the high and low channels is optional for such test configuration(s).” (Appendix D: SAR Measurement Procedures – Page 42). In Configuration / frequency band where measured SAR was below this threshold, additional tests were not required. 2) Please provide a measurement uncertainty budget that meets the IEEE draft 1528 or the FCC/OET Bulletin 65 Supp. C (2001). Please state when these values will be available. Response: Motorola is working on developing an uncertainty budget per the format shown in IEEE P1528. We have received many suggested values for various line items in the budget from SPEAG™. In order to verify that these values were determined per the methods indicated in IEEE P1528, we have requested, from SPEAG™, how these values were determined. Subsequently, there has been a lot of input from various members of the IEEE committee suggesting that certain line items be changed. Also, values for the line items under the Test Sample Related section of the budget are device specific and must be determined by the test location. Motorola is currently completing various studies to determine what these values should be for our products. We expect to have a complete uncertainty budget per IEEE P1528 available prior to the ratification of IEEE P1528. Per item #13 of the OET 65 Supplement C EAB Part 22/24 SAR Review Reminder Sheet 01/2002 handed out during the February, 2002 TCB council meeting, the tabulated total measurement uncertainty is nominal until the IEEE Std 1528 is completed. The 12% overall RSS uncertainty of measurement previously stated in the section 3.1 breaks down into the following line items: Probe Uncertainty
% Isotropy error7.2 Calibration error3.3 Spatial resolution0.5 SAR Evaluation
% Conductivity measurement5.0 Environmental errors1.0 Peak SAR Evaluation
% Probe positioning1.0 Volumetric averaging4.2 Device positioning6.0 Total: 12.0% 3) Justification for the conversion factors used. CF numbers used were not consistent between SAR plots and not always in agreement with numbers stated in the calibration certificates. Please clarify. Response: The conversion factors used for head and body measurements agree with the additional conversion factors shown in (Appendix 4: page 39) of the original SAR report. 4) Statement clarifying transmitter tune range and maximum power. The tech specs and operational description seem to differ. Please see op. desc. Transmitter Tech. Charact. Exhibit 12B, General information Exhibit 12A and SAR report Exhibit 11 page 3. Please clarify. Response: The generic power and transmitter tune range in Exhibit 12 is in error and will be updated in future filings. The descriptions in Exhibit 11 are correct. Both conducted and radiated transmitter power levels are also provided in Exhibit 6. 5) Additional descriptive information of the SAR measurement system to meet Supplement C Appendix B part II recommendations. Please includes details of the E-field probe, holder, scan procedures, calculations, Robot, SAM phantom, and computer. Response: The DASY v3.1 system specified in section 3.1 of the original filing SAR Test report was utilized within the intended operations as set by the SPEAG™ setup. The default style of “coarse” and “cube” scans were chosen and use for measurements. The grid spacing of the course scan was 15cm as shown in the SAR plots. Please refer to the DASY manual for additional information on SAR scanning procedures and algorithms used.

APPLICANT: MOTOROLA INC FCC ID: IHDT5CK1 EXHIBIT 6 PERSONAL COMMUNICATIONS SECTOR PRODUCT SAFETY AND COMPLIANCE EMC LABORATORY EMC TEST REPORT Test Report Number – 7003-1 Report Date – June 12, 2002 The test results contained herein relate only to the model(s) identified. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical characteristics. As the responsible EMC Engineer, I hereby declare that the equipment tested as specified in this report conforms to the requirements indicated . SignatureName: _Kirby Munroe__ Title: Compliance Engineer Date : _ 6/12/2002____ This report must not be reproduced, except in full, without written approval from this laboratory. THIS REPORT MUST NOT BE USED TO CLAIM PRODUCT ENDORSEMENT BY A2LA OR ANY AGENCY OF THE U.S. GOVERNMENT. A2LA Certificate Number: 1846-01 APPLICANT: MOTOROLA INC FCC ID: IHDT5CK1 Test Report Number: 7003-1EXHIBIT 6 2 Table of Contents Description Page Test Report Details3 Applicable Standards3 Summary of Testing4 General and Special Conditions4 Equipment and Cable Configurations4 Measuring Equipment and Calibration Information5 Measurement Procedures and Data RF Power Output 6 Radiated Power (ERP)7 Occupied Bandwidth8 CDMA 800 Mid Band Plot8 CDMA 800 Lower Band Edge9 CDMA 800 Upper Band Edge9 Spurious Emissions at Antenna Terminals10 CDMA 800 Cellular Base Station Frequency Range Plot10 Field Strength of Spurious Emissions11 CDMA 800 Tabular and Graphical Data12 Frequency Stability13 CDMA 800 Tabular and Graphical Data14 Field Strength of Spurious Emissions From Unintentional Radiators 15 CDMA 800 Tabular and Graphical Data16 Appendix A - Radiated Emissions Test Setup Photos Figure A.1 – Radiated Emissions Measurement17 Figure A.2 – Substitution Measurement17 APPLICANT: MOTOROLA INC FCC ID: IHDT5CK1 Test Report Number: 7003-1EXHIBIT 6 3 Test Report Details Tests Performed By:Motorola Personal Communications Sector Product Safety and Compliance Group 1500 Gateway Boulevard Boynton Beach, FL 33426 PH (561) 739-2179 Fax (561) 739-2131 FCC Registration Number: 100000 Industry Canada Number: IC3908 Tests Requested By:Motorola Inc. Personal Communications Sector 600 North US Hwy 45 Libertyville, IL 60048 Product Type:Cellular Phone Signaling Capability:CDMA 800 Model Number:S9648A Serial Numbers:F3000001, F3000002, F3000003, 001, 002 Received Date:May 9, 2002 & June 5, 2002 Testing Start Date:May 14, 2002 Testing Complete Date:June 11, 2002 Applicable Standards All tests and measurements indicated in this document were performed in accordance with the Code of Federal Regulations Title 47 Part 2, Sub-part J as well as the following parts: X Part 15 Subpart B – Unintentional Radiators X Part 22 Subpart H - Public Mobile Services Part 24 - Personal Communications Services Part 90 - Private Land Mobile Radio Service Applicable Standards: TIA EIA 98-C, ANSI 63.4 2000, RSS-129 APPLICANT: MOTOROLA INC FCC ID: IHDT5CK1 Test Report Number: 7003-1EXHIBIT 6 4 Summary of Testing Test Test Name # Pass/Fail 1RF Power OutputNA 2ERP (Effective Radiated Power)NA 3Occu…
