IHDT5DA1Portable Cellular Transceiver (AMPS/CDMA)

APPLICANT: MOTOROLA, INC. FCC ID: IHDT5DA1 EXHIBIT 8 INSTRUCTION MANUAL A preliminary draft copy of the Users Manual follows: 1 D R A FT Welcome Welcome to the world of Motorola digital wireless communications! We are pleased that you have chosen the Motorola C210 wireless phone. Headset Jack Insert headset accessory for hands-free use. Send Key Send and answer calls, view recent calls list. STO Key Store numbers & names, select menu item. Menu Key CLR Key Power Key Microphone Power Connector Scroll Key Move through menus and lists., adjust earpiece volume Antenna 2 D R A F T Personal Communications Sector 600 North U.S. Highway 45 Libertyville, Illinois 60048 1-800-331-6456 (United States) 1-888-390-6456 (TTY/TDD United States) 1-800-461-4575 (Canada) www.motorola.com (United States) www.motorola.ca (Canada) MOTOROLA, the Stylized M Logo and all other trademarks indicated as such herein are trademarks of Motorola, Inc. ® Reg. U.S. Pat. & Tm. Off. All other product or service names are the property of their respective owners. © 2003 Motorola, Inc. All rights reserved. Software Copyright Notice The Motorola products described in this manual may include copyrighted Motorola and third-party software stored in semiconductor memories or other media. Laws in the United States and other countries preserve for Motorola and third-party software providers certain exclusive rights for copyrighted software, such as the exclusive rights to distribute or reproduce the copyrighted software. Accordingly, any copyrighted software contained in the Motorola products may not be modified, reverse-engineered, distributed, or reproduced in any manner to the extent allowed by law. Furthermore, the purchase of the Motorola products shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any license under the copyrights, patents, or patent applications of Motorola or any third-party software provider, except for the normal, non-exclusive, royalty-free license to use that arises by operation of law in the sale of a product. Manual number: Cover number: 3 D R A FT Menu Map Main Menu • Message •Text msg •Voice msg • Phonebook • Find name • Find location • Find group • Status • Viewing my number • Call Log • Missed •Received • Dialed • Call timer • Tone Control • Silent Mode • Ring or vibrate • Select Ring style • Key tone • Transmit tones • Service tones • Earpiece volume •Settings •Call • Phone • Security • System •Privacy •Audio AGC •PIMS •Alarm Clock • To-Do Lists 4 D R A F T 5 D R A FT Contents Welcome . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Menu Map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Safety and General Information. . . . . . . . . . . . . . . . . . . . 8 Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 What’s in the Box?. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 About This Guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Installing the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Charging the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Replacing the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Battery Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Turning Your Phone On and Off . . . . . . . . . . . . . . . . . . 19 Adjusting Volume. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Making a Call. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Answering a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Viewing Your Phone Number . . . . . . . . . . . . . . . . . . . . 21 Learning to Use Your Phone . . . . . . . . . . . . . . . . . . . . . 22 Using the Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Using Menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 How to Enter Text on Your Phone . . . . . . . . . . . . . . . . . 25 Locking and Unlocking Your Phone. . . . . . . . . . . . . . . . 26 Changing Your Phone’s Codes . . . . . . . . . . . . . . . . . . . 27 If You Forget a Code . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 Locking and Unlocking the Keypad . . . . . . . . . . . . . . . . 29 Setting Up Your Phone. . . . . . . . . . . . . . . . . . . . . . . . . . 30 Managing Tones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 Setting Answer Options . . . . . . . . . . . . . . . . . . . . . . . . . 31 Adjusting the Backlight . . . . . . . . . . . . . . . . . . . . . . . . . 33 6 P R E L IMI N A R Y Calling Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 Redialing a Number . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 Using Automatic Redial. . . . . . . . . . . . . . . . . . . . . . . . . 34 Using Caller ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 Canceling an Incoming Call . . . . . . . . . . . . . . . . . . . . . 35 Calling an Emergency Number . . . . . . . . . . . . . . . . . . . 35 Viewing Recent Calls . . . . . . . . . . . . . . . . . . . . . . . . . . 36 Returning an Unanswered Call . . . . . . . . . . . . . . . . . . . 39 Using Pause Dialing . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 Calling With Speed Dial . . . . . . . . . . . . . . . . . . . . . . . . 42 Calling With 1-Touch Dial . . . . . . . . . . . . . . . . . . . . . . . 43 Using Voicemail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43 Muting the Phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45 Using Call Waiting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45 Alphanumeric Messages. . . . . . . . . . . . . . . . . . . . . . . . 47 Sending a Text Message. . . . . . . . . . . . . . . . . . . . . . . . 47 Viewing Outgoing Messages . . . . . . . . . . . . . . . . . . . . 48 Receiving a Message . . . . . . . . . . . . . . . . . . . . . . . . . . 50 Viewing…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA, INC. FCC ID: IHDT5DA1 Exhibit 2A SPECIFICATION COMPLIANCE STATEMENT Engineer-in-Charge Equipment Authorization Branch Federal Communications Commission We hereby certify that this transmit and receive equipment (FCC ID: IHDT5DA1) for dual-Mode mobile station cellular use id capable of compliance with the TIA/EIA-95-B Mobile Station-Base Station Compatibility Standards for Dual-Mode Spread Spectrum Systems, December 1998. (Signed ) GILSON DE LIMA RAEDER Engineering Manager Cellular Subscriber Equipment APPLICANT: MOTOROLA, INC. FCC ID: IHDT5DA1 Exhibit 2B STATEMENT OF CERTIFICATION The technical data supplied with this application, having been taken under my supervision is hereby duly certified. SIGNATURE: ( ) NAME: GILSON DE LIMA RAEDER DATE: February 20 TH 2003 POSITION: Engineering Manager APPLICANT: MOTOROLA, INC. FCC ID : IHDT5DA1 Exhibit 2C 911 Call Processing Method Compliance Statement Method Used The Motorola CDMA phone uses the “Automatic A/B Roaming-IR” method for providing Enhanced 911 Emergency Calling support in compliance with the FCC mandate. User Interface While in the process of attempting to complete a 911 call the Motorola CDMA phone provides both audible and visual feedback to the caller per the FCC order. The display of the phone will show the text “Connecting Emergency” and a feedback tone of three short beeps sounded at 5-second intervals will indicate that the phone is attempting to find a carrier system to complete the call. When the call has been successfully established, the sounding of the feedback tone is terminated and the content of the display is changed to the normal in call display. System Description When a 911 call is initiated, the Motorola CDMA phone ignores all programmed restrictions with regard to which systems, both analog and digital are useable for completing the call. If the Motorola CDMA phone has acquired service on a system at the time the 911 call is initiated it will attempt to complete the call using that system. If the phone is not in service on a system it will initially attempt to complete the call using any available system it can find, which may exist on any frequency band or mode, supported by the handset. The phone’s scanning algorithm ensures that both analog sides are scanned at least once approximately every 15 seconds. The phone will continue attempting to complete the 911 call until the call is completed, the user has ended the call, or the battery is exhausted.

APPLICANT: MOTOROLAFCC ID: IHDT5DA1 Exhibit 13 March 5, 2003 CONFIDENTIALITY REQUEST CONTAINED WITHIN Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Application for Cellular/PCS Transceiver Certification Gentlemen: Application: Motorola, Inc., Personal Communications Sector, 600 N. U.S. Highway 45, Libertyville, Illinois 60048-1286 herein submits: Application for Equipment Authorization for Certification of a Cellular Transceiver, FCC ID: IHDT5DA1. Motorola is also the manufacturer of this equipment. Confidentiality: Pursuant to Section 0.459 of the Commission's rules (CFR 47), Motorola requests confidentiality for portions of the material contained in this application and that the identified material be withheld from public inspection following the grant of this authorization. This material contains Motorola's trade secrets and confidential information that Motorola does not customarily release to the public and which is otherwise not generally available to the public. Confidentiality is requested for the following exhibits:
Exhibit 4 Block Diagrams
Exhibit 5 Schematics
Exhibit 12 Operational Description Description: This equipment has the capability to operate in both the conventional Analog Cellular and the Digital CDMA standards in the 800 MHz band. Technical details for this alternate cellular technology (permitted under the cellular service option provisions in Section 22.933 of the Commission's rules) related to Type Acceptance of this equipment, as noted in paragraphs 31 and 32 of the Report and Order in FCC GEN. Docket No. 87- 390, are detailed in Exhibit 12. Contact Information: Please contact me by telephone at (847) 523-6167,or by e-mail ([email protected]), if there are questions or additional information needed concerning this filing. Regards, Andrew J. Bachler FCC Liaison Cellular Subscriber Sector 600 N. U.S. Highway 45 Libertyville, IL 60048-5343

Date: May 14, 2003 Subject: Request for additional information (FCC ID: IHDT5DA1) Reference: Correspondence Reference Number: 8046 Confirmation Number: TC801301 Date of Original Email: 4/28/2003 Prepared by: Andrew Bachler, Principal Staff Engineer Motorola Personal Communications Sector Libertyville, Illinois Summary of FCC request for additional information: Regarding your answer to correspondence 7415 question 1. The FCC could not find block edge data for both channel blocks A and B as well as both CDMA and AMPS modes. Please provide data for both edge of each blocks and for all modulations. Response: Please refer to Exhibit 6A.

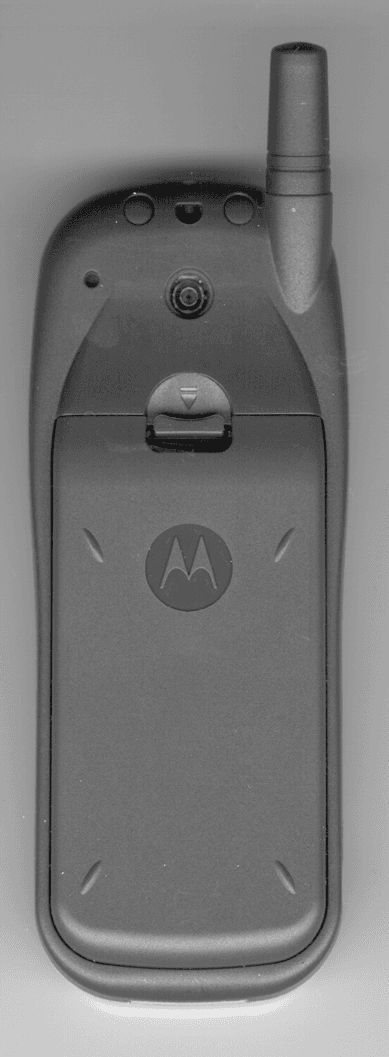

APPLICANT: MOTOROLA, INC. FCC ID: IHDT5DA1 Exhibit 3 Front ViewRear View APPLICANT: MOTOROLA, INC. FCC ID: IHDT5DA1 Exhibit 3A Rear View: Battery removed to illustrate ID label location Equipment ID Label Location

APPLICANT: MOTOROLA INC. FCC ID: IHDT5DA1 EXHIBIT 1 FCC IDENTIFICATION (NAMEPLATE) INFORMATION The FCC label shown is representative of the label that will appear on the radio when in production. It will be placed on the outside of the equipment as shown in Exhibit 3. Other information may also be included on this label. IHDT5DA1

APPLICANT: MOTOROLA, INC. FCC ID: IHDT5DA1 Exhibit 9 Front View Rear View APPLICANT: MOTOROLA, INC. FCC ID: IHDT5DA1 Exhibit 9 Front View (Shields Removed) Rear View (Shields Removed) APPLICANT: MOTOROLA, INC. FCC ID: IHDT5DA1 Exhibit 9 Front Housing Rear Housing (Internal View)(Internal View) APPLICANT: MOTOROLA, INC. FCC ID: IHDT5DA1 Exhibit 9 Front Housing without keypad Keypad (Internal View)

APPLICANT: MOTOROLA INC.FCC ID: IHDT5DA1 EXHIBIT 10 1 TRANSCEIVER ADJUSTMENTS/TUNE-UP PROCEDURE There are no user accessible adjustments or tuning in this portable cellular transceiver. All necessary adjustments and tuning are performed during manufacture of the product. Any adjustments or tuning after service or repair are done as part of that process as special equipment is required to perform such adjustments. APPLICANT: MOTOROLA INC.FCC ID: IHDT5DA1 EXHIBIT 10 2 PARTS LIST Reference SymbolDescriptionP/N and Values J104BATTERY CONNECTOR DL2600J03 J103DC JACK CONNECTORHEC2921 J901ANTENNA CONNECTORMS-147 J301BUZZERSMQT-8540P-25C1 J101CARKITAXR51248P Y202SLEEP CRYSTALSM-26F/32.768kHz U201MSM5010FBGAMSM5010FBGA U601RFT3100RFT3100232BCCP-TR U503IFR3000IFR3000A(BCC) D170VARISTORAVL14S02200 D110,D111,D116,D117,D123,D176,D181,D182,D183,D184 , D185,D190,D191,D192,D193,D194,D195,D340,D341 VARISTORAVLC5S02050 U102INNER CHARGERSC801IMLTR U202FLASH MEMORYGE28F160C3BC70 U203SRAMHY62UF16404D-DF55IDR FIL901DUPLEXERKFF6636A U701PLL ICMB15F73SP U707VCTCXOVC-TCXO-208C3/19.68MHz FIL502RX IF SAWTMXP337 FIL503FM IF SAWMSFC12-85-026K1 FIL601TX RF SAWFAR-F5CE-836M50-D232 FIL501RX RF SAWFAR-F5CE-881M50-D233-U U501LNARF2369 U502DOWN MIXERCMY212 U504RF SWITCHSW-437 U602PARF2192 U702VCOUCVA4-122A U705BUFFER AMPUPC8151TB U703COUPLERLDC21966M138B-029 U605OP AMPTC75S51FU U706NOT GATETC7SH04FU U103,U105REGULATORTK71728SCL U104REGULATORTK71730SCL U101REGULATORMIC5219-2.8BM5 L516,L701BEAD(600OHM)BLM15AG601SN1D APPLICANT: MOTOROLA INC.FCC ID: IHDT5DA1 EXHIBIT 10 3 L202,L203,L204,L604,L606,L616,L707BEAD(1000OHM)BLM18AG102SN1D L708BEAD(1000OHM)BLM15BD102SN1D L513,L514,L607,L608,L609BEAD(2200OHM)BLM18BD222SN1D TH701THERMISTOR TH05-3T103F/10kΩ Q320TRANSISTORIMD10A Q101,Q108,Q109,Q112,Q501TRANSISTORDTC144EE(NPN,SINGLE) Q601TRANSISTORDTC114TE(NPN,SINGLE) Q201TRANSISTORDTA144EE(PNP,SINGLE) U603,U606TRANSISTORUMC5N(NPN/PNP,DUAL) U152TRANSISTORUMH9N U111,U153P-CH FETFDZ204P Q602FET2SK3019 U151VOLTAGE DETECTORXC61CC4202N D121ZENER DIODEEDZ5.1B D120ZENER DIODEEDZ6.8B F102FUSEFCC16-801AD-TP F101FUSEFCC16-202AD-TP U113LDOLP2985IBPX-4.0 D301,D302DIODE1SS355 D178SCHOTTKY DIODE1N5819HW D101,D102,D125,D172SCHOTTKY DIODERB520S-30 U604SCHOTTKY DIODEMA4S713 U204RESET ICTCM809RENB713 D501,D601VARIABLE DIODE1SV306 MAIN PCB C502CAPACITORGRP1555C1HR50CZ01E/0.5pF C511,C554,C726CAPACITORGRP1555C1H1R0CZ01E / 1pF C637CAPACITORGRP1555C1H1R8CZ01E1.8pF C526,C717,C721,C725CAPACITORGRP1555C1H2R0CZ01E/2pF C718CAPACITORGRP1555C1H2R2CZ01E /2.2pF C562,C716CAPACITORGRP1555C1H3R0CZ01E/3pF C630CAPACITORGRP1555C1H4R0CZ01E/4pF C654CAPACITORGRP1555C1H4R7CZ01E/4.7pF C516CAPACITORGRP1555C1H5R0CZ01E/5pF C515CAPACITORGRP1555C1H6R0CZ01E/6pF C635CAPACITORGRP1555C1H7R5DZ01E/7.5pF C522,C523,C611,C632CAPACITORGRP1555C1H8R0DZ01E/8pF C534CAPACITORGRP1555C1H9R0DZ01E/9pF APPLICANT: MOTOROLA INC.FCC ID: IHDT5DA1 EXHIBIT 10 4 C506,C560,C644CAPACITORGRP1555C1H100JZ01E/10pF C551CAPACITORGRP1555C1H150JZ01E/15pF C510CAPACITORGRP1555C1H180JZ01E/18pF C507,C605CAPACITORGRP1555C1H220JZ01E/22pF C645,C646,C650CAPACITORGRP1555C1H270JZ01E/27pF C225,C226CAPACITORGRP1555C1H300JZ01E/30pF C609,C610CAPACITORGRP1555C1H390JZ01E/39pF C614,C615,C520CAPACITORGRP1555C1H560JD01E/56pF C250,C505,C532,C533,C553,C606,C607,C617,C620,C622 , C624,C628,C633,C636,C639,C642,C720,C723,C727 CAPACITORGRP1555C1H101JD01E/100pF C629,C631CAPACITORGRP155R71H221KA01E/220pF C613,C625CAPACITORGRP155R71H471KA01E/470pF C104,C224,C508,C509,C531,C544,C550,C623,C643,C647 , C649,C701,C702,C712,C713,C724 CAPACITORGRP155R71H102KA01E/1000pF C626,C710CAPACITORGRP155R71H332KA01E/3300pF C527,C601CAPACITORGRP155R71E472KA01E/4700pF C103,C114,C201,C202,C204,C229,C231,C239,C241,C245 , C247,C301,C302,C503,C528,C540,C541,C542,C543,C552 , C608,C618,C707,C714,C729,C730,C731,C732,C733,C734 , C735,C7715,C7716 CAPACITORGRP155R71C103KA01E/0.01uF C211,C212CAPACITORGRP155RR71C123KA01E/0.012uF C213,C218,C220,C253,C504,C708CAPACITORGRP155F51E223ZA01E/0.022uF C501CAPACITORGRP155F51C333ZA01E/0.033uF C101,C102,C109,C110,C111,C112,C113,C115,C116,C117 , C118,C119,C170,C184,C205,C206,C207,C208,C209,C210 , C214,C215,C227,C228,C230,C232,C233,C235,C237,C238 , C240,C243,C244,C246,C254,C513,C529,C530,C648,C658 , C703,C704,C711,C728 CAPACITORGRP155F51C104ZA01E/0.1uF C705CAPACITORGRP155F51A224ZD02E/0.22uF C124,C216,C217,C219,C221,C536,C537,C538,C539,C616 , C619,C621,C627,C662 CAPACITORGRP155F50J105ZD02E/1uF C612CAPACITORGRM188R71H472KA01D/4700pF C604CAPACITORGRM188F51E104ZA01D/0.1uF C709CAPACITORGRM188R71A224KA01D/0.22uF APPLICANT: MOTOROLA INC.FCC ID: IHDT5DA1 EXHIBIT 10 5 C203CAPACITORGRM188F51A684ZC01D/0.68uF C706CAPACITORGRM188F51A105ZC01D/1uF C125,C126,C127,C652,C653CAPACITORGRM21BR60J225KC01L/2.2uF(6.3V) C105,C123CAPACITORGRM21BF51A225ZA01L/2.2uF(10V) C121CAPACITORGRM21BF51A475ZA01L/4.7uF C517,C521,C525,C546,C549,C634,C638,C640,C641,C651 , C655,C656,C657,C659,C660,C661,C722,C901 CAPACITOROPEN CT174TANTAL CAPACITORTPM1C105PSSR/1.0uF CT102,CT201,CT203,CT702,CT703TANTAL CAPACITORTPM0J475PSSR/4.7uF CT170TANTAL CAPACITORTPM1A475PSSR/4.7uF CT101,CT202,CT501,CT502,CT601,CT701TANTAL CAPACITORTPM0J106PSSR/10uF L503,L518INDUCTORCI-B1005-10NSJT/1nH L627INDUCTORCI-B1005-12NSJT/1.2nH L501INDUCTORCI-B1005-39NSJT/3.9nH L611INDUCTORCI-B1005-56NSJT/5.6nH L704,L706INDUCTORCI-B1005-82NJJT/8.2nH L502,L610,L902INDUCTORCI-B1005-100JJT/10nH L703,L705INDUCTORCI-B1005-120NJJT/12nH L515,L520INDUCTORCI-B1005-150JJT/15nH L517,L523INDUCTORCI-B1005-180JJT/18nH L612INDUCTORCI-B1005-680JJT/68nH L614INDUCTORCI-B1005-820JJT/82nH L901INDUCTORCI-B1608-27NSJT/2.7nH L522INDUCTORCI-B1608-221JJT/220nH L519INDUCTORCI-B1608-271JJT/270nH L601,L602INDUCTOR0603CS-27NXJBW/27nH L603INDUCTOR0603CS-33NXJBW/33nH L512INDUCTOR0603CS-56NXJBW/56nH L615INDUCTOR0805HQ-20NXJBC/20nH L507INDUCTOR0805CS-271XJBC/270nH L510INDUCTOR0805CS-221XJBC / 220nH L509INDUCTOR0805CS-471XJBC/470nH L511INDUCTOR0805CS-681XJBC/680nH L903INDUCTOROPEN R206,R207,R225,R518,R523,R608,R623,R624,R628,R701 , R718,R731,R733,R741 RESISTOR …

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA, INC. FCC ID: IHDT5DA1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 1 1 Exhibit 11: SAR Test Report IHDT5DA1 Date of test: Date of Report: 01/14/2003-01/16/2003 02/06/2003 Laboratory: Motorola Personal Communications Sector Product Safety & Compliance Laboratory 2001 N. Division Room: AS228 Harvard, Illinois 60033 Test Responsible: Firass Badaruzzaman SAR RF Engineer Accreditation: This laboratory is accredited to ISO/IEC 17025-1999 to perform the following electromagnetic exposure tests: System Validation & Interlaboratory Comparison Simulated Tissue Specifications and Procedure EME Cellular Phone Testing Procedure On the following types of products: Wireless Communications Devices (Examples): Two Way Radios; Portable Phones (including Cellular, Licensed Non-Broadcast and PCS); Low Frequency Readers; and Pagers A2LA certificate #1651-01 Statement of Compliance: Motorola declares under its sole responsibility that portable cellular telephone FCC ID IHDT5DA1 to which this declaration relates, is in conformity with the appropriate General Population/Uncontrolled RF exposure standards, recommendations and guidelines (FCC 47 CFR §2.1093). It also declares that the product was tested in accordance with the appropriate measurement standards, guidelines and recommended practices. Any deviations from these standards, guidelines and recommended practices are noted below: (none) ©Motorola, Inc. 2002 This test report shall not be reproduced except in full, without written approval of the laboratory. The results and statements contained herein relate only to the items tested. The names of individuals involved may be mentioned only in connection with the statements or results from this report. Motorola encourages all feedback, both positive and negative, on this test report. APPLICANT: MOTOROLA, INC. FCC ID: IHDT5DA1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 2 2 Table of Contents 1) Introduction 3 2) Description of the Device Under Test 3 Antenna description 3 Device description 3 3) Test Equipment 3 3.1 Dosimetric system 3 3.2 Additional equipment used 4 4) Electrical parameters of the tissue simulating liquid 4 5) System Accuracy Verification 4 6) Test Results 5 6.1 Head Adjacent Test Results 6 6.2 Body-Worn Test Results 8 References: Appendix 1: SAR distribution comparison for the system accuracy verification 10 Appendix 2: SAR distribution plots for Phantom Head Adjacent Use 11 Appendix 3: SAR distribution plots for Body Worn Configuration 14 Appendix 4. Probe Calibration Certificate 16 Appendix 5. Dipole Characterization Certificate 17 Appendix 6: Measurement Uncertainty Budget 18 Appendix 7. Photographs of the device under test 21 APPLICANT: MOTOROLA, INC. FCC ID: IHDT5DA1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 3 3 1. Introduction The Motorola Personal Communications Sector Product Safety Laboratory has performed measurements of the maximum potential exposure to the user of portable cellular phone (FCC ID IHDT5DA1). The Specific Absorption Rate (SAR) of this product was measured. The portable cellular phone was tested in accordance with FCC OET Bulletin 65 Supplement C 01-01. 2. Description of the Device Under Test Antenna description Type Helix Location Right Length 25 mm Dimensions Width 8 mm Configuration Stubby Device description FCC ID Number IHDT56DA1 Serial number OXF41D6A27 Mode(s) of Operation 800 AMPS 800 CDMA Modulation Mode(s) AMPS CDMA Maximum Output Power Setting 26.80 dBm 25.00 dBm Duty Cycle 1:1 1:1 Transmitting Frequency Rang(s) 824.04-848.97 MHz 824.70-848.31 MHz Production Unit or Identical Prototype (47 CFR §2..908) Identical Prototype Device Category Portable RF Exposure Limits General Population / Uncontrolled 3. Test Equipment Used 3.1 Dosimetric System The Motorola Personal Communications Sector Product Safety & Compliance Laboratory utilizes a Dosimetric Assessment System (Dasy3™ v3.1d) manufactured by Schmid & Partner Engineering AG (SPEAG™), of Zurich Switzerland. The overall RSS uncertainty of the measurement system is ±11.7% (K=1) with an expanded uncertainty of ±23.0% (K=2). The measurement uncertainty budget is given in Appendix 6. Per IEEE 1528, this uncertainty budget is applicable to the SAR range of 0.4 W/kg to 10 W/kg. The list of calibrated equipment used for the measurements is shown below. Description Serial Number Cal Due Date DASY3 DAE V1 SN 440 08/26/2003 E-Field Probe ET3DV6 SN 1514 07/25/2003 Dipole Validation Kit, D900V2 SN 79 10/15/2004 S.A.M. Phantom used for 800MHz TP-1132 APPLICANT: MOTOROLA, INC. FCC ID: IHDT5DA1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 4 4 3.2 Additional Equipment Description Serial Number Cal Due Date Signal Generator HP8648C 3847A04632 10/10/2004 Power Meter E4419B GB39510900 01/18/2003 Power Sensor #1 - 8481A US39211009 02/14/2003 Power Sensor #2 - 8481A US39211008 02/15/2003 Network Analyzer HP8753ES US39171846 05/02/2003 Dielectric Probe Kit HP85070B US99360074 N/A 4. Electrical parameters of the tissue simulating liquid Prior to conducting SAR measurements, the relative permittivity, ε r , and the conductivity, σ, of the tissue simulating liquids were measured with the HP85070 Dielectric Probe Kit These values, along with the temperature of the tissue simulate are shown in the table below. The recommended limits for maximum permittivity and minimum conductivity are also shown. These come from the Federal Communication Commission, OET Bulletin 65 Supplement C 01-01. It is seen that the measured parameters are satisfactory for compliance testing. f Dielectric Parameters (MHz) Tissue type Limits / Measured ε r σ (S/m) Temp (°C) Measured, 01/14/2003 43.00 0.92 20.20 -20.50 Recommended Limits 41.50 0.90 20.00-25.00 Measured, 01/15/2003 42.00 0.92 20.20 -20.50 Recommended Limits 41.50 0.90 20.00-25.00 Measured, 01/16/2003 42.00 0.91 20.20 -20.50 Head Recommended Limits 41.50 0.90 20.00-25.00 Measured, 01/16/2003 56.00 0.97 20.20 -20.50 835 Body Recommended Limits 55.2…

Text truncated - open the document above for the full version.

1 Date: March 10, 2003 Subject: Request for additional information (FCC ID: IHDT5DA1) Reference: Logged-In Date:3/6/2003 Correspondence Reference Number:230310.IHD Confirmation Number:TC3064 Date of Original Email:3/10/2003 Prepared by: Andrew Bachler, Principal Staff Engineer Motorola Personal Communications Sector Libertyville, Illinois Summary of request for additional information: 1) The Operational Description Exhibit 12A/12B contain power levels (AMPS and CDMA modes) that exceed the requested maximum output power. Please amend accordingly. Response: Power levels in the “Operational Description” (Exhibit 12A/12B) are conducted levels physically coupled to a power meter from a specialized rf connector on the phone. The requested power levels are based on radiated measurements referenced to a dipole antenna (Effective Radiated Power). These levels are available on page 8 of exhibit 6. 2) The conducted power levels listed on the SAR report do not agree with the ERP data submitted. Please confirm the same conducted power levels were used during the SAR tests and the EMC radiated (ERP) measurements. Response: Motorola confirms the same conducted power levels for SAR and EMC radiated power tests. (The same phone was used for both tests). The conducted power levels in the SAR report agree with the “RF POWER OUTPUT” (conducted power levels) on page 7 of exhibit 6. The ERP (reported on page 8 of exhibit 6) represents the actual measured radiated power. Both EIRP and ERP are provided, but the ERP levels are highlighted for applicability to Part 22.

APPLICANT: MOTOROLA INC FCC ID: IHDT5DA1 EXHIBIT 6 PERSONAL COMMUNICATIONS SECTOR PRODUCT SAFETY AND COMPLIANCE EMC LABORATORY EMC TEST REPORT Test Report Number – 9564-1 Report Date – March 7, 2003 The test results contained herein relate only to the model(s) identified. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical characteristics. As the responsible EMC Engineer, I hereby declare that the equipment tested as specified in this report conforms to the requirements indicated . Signature Name: _Mark Kien_____ Title: Electrical Engineer Date : _ 03/07/03____ This report must not be reproduced, except in full, without written approval from this laboratory. THIS REPORT MUST NOT BE USED TO CLAIM PRODUCT ENDORSEMENT BY A2LA OR ANY AGENCY OF THE U.S. GOVERNMENT. A2LA Certificate Number: 1846-01 APPLICANT: MOTOROLA INC FCC ID: IHDT5DA1 Test Report Number: 9564-1EXHIBIT 6 2 Table of Contents Description Page Test Report Details3 Applicable Standards4 Summary of Testing5 General and Special Conditions5 Equipment and Cable Configurations5 Measuring Equipment and Calibration Information6 Measurement Procedures and Data RF Power Output 7 Effective Radiated Power (ERP/EIRP)8 Modulation Characteristics Transmit Audio Frequency Response9 Post Limiter Filter Attenuation9 Modulation Limiting vs. Modulation Input Voltage10 Occupied Bandwidth11 AMPS Unmodulated Carrier12 AMPS Supervisory Audio Tone12 AMPS Voice13 AMPS Signaling Tone13 AMPS 10kb/s Wideband Data14 CDMA 800 Reference Plot15 CDMA 800 Mid Band Plot15 CDMA 800 Lower Band Edge16 CDMA 800 Upper Band Edge16 Spurious Emissions at Antenna Terminals17 AMPS Tabular and Graphical Data18 AMPS Cellular Base Station Frequency Range Plot19 CDMA 800 Tabular and Graphical Data20 CDMA 800 Cellular Base Station Frequency Range Plot21 Field Strength of Spurious Emissions22 AMPS Tabular and Graphical Data23 CDMA 800 Tabular and Graphical Data24 Frequency Stability25 AMPS Tabular and Graphical Data26 CDMA 800 Tabular and Graphical Data27 Appendix A - Radiated Emissions Test Setup Photos Figure A.1 – Radiated Emissions Measurement28 Figure A.2 – Substitution Measurement28 APPLICANT: MOTOROLA INC FCC ID: IHDT5DA1 Test Report Number: 9564-1EXHIBIT 6 3 Test Report Details Field Strength Tests Performed By:Underwriters Laboratory Inc. 333 Pfingsten Road Northbrook, IL 60062-2096 PH (847) 272-8800 Fax (847) 272-8129 FCC Registration Number: 91044 Industry Canada Number: IC2180 All Other Tests Performed By:Motorola Personal Communications Sector Product Safety and Compliance Group 600 North US Hwy 45 Libertyville, IL 60048 PH (847) 523-3642 Fax (847) 523-8274 FCC Registration Number: 100000 Industry Canada Number: IC3908 Tests Requested By:Motorola Inc. Personal Communications Sector 600 North US Hwy 45 Libertyville, IL 60048 Product Type:Cellular Phone Signaling Capability:Analog, CDMA 800 Model Number:C210 Serial Numbers:2441927725, 2441927726, 2441927727 2441927728 Received Date:2/18/2003 Testing Start Date:2/18/2003 Testing Complete Date:3/6/2003 APPLICANT: MOTOROLA INC FCC ID: IHDT5DA1 Test Report Number: 9564-1EXHIBIT 6 4 Applicable Standards All tests and measurements indicated in this document were performed in accordance with the Code of Federal Regulations Title 47 Part 2, Sub-part J as well as the following parts: X Part 15 Subpart B – Unintentional Radiators X Part 22 Subpart H - Public Mobile Services X Part 24 - Personal Communications Services Part 90 - Private Land Mobile Radio Service Applicable Standards: TIA EIA 98-C, ANSI 63.4 2000, RSS-118, RSS-129, RSS- 133 APPLICANT: MOTOROLA INC FCC ID: IHDT5DA1 Test Report Number: 9564-1EXHIBIT 6 5 Summary of Testing Test Test Name # Pass/Fail 1RF Power OutputNA 2ERP (Effective Radiated Power)NA 3Modulation CharacteristicsPass 4Occupied BandwidthPass 5Spurious Emissions at Antenna TerminalPass 6Field Strength of Spurious EmissionsPass 7Frequency StabilityPass TestTest Name Margin with respect # to the Limit_________ 1RF Power Output NA 2ERP (Effective Radiated Power) NA 3Modulation Characteristics NA 4Occupied Bandwidth See Plots 5Spurious Emissions at Antenna Terminal 4.1 dB 6Field Strength of Spurious Emissions 33.6 dB 7Frequency Stability 129 Hz The margin with respect to the limit is the minimum margin for all mo…

Text truncated - open the document above for the full version.
