IHDT5DL1Portable Cellular Transceiver (AMPS/TDMA)

APPLICANT: MOTOROLA, INC. FCC ID: IHDT5DL1 EXHIBIT 8 INSTRUCTION MANUAL A preliminary draft copy of the Users Manual follows: D RA F T 1 Welcome Welcome to the world of Motorola digital wireless communications! We are pleased that you have chosen the Motorola C150t wireless phone. 031611o Microphone Power Key & End Key Press & hold to turn phone on & off, end phone calls, exit menus. Antenna Soft Keys Perform functions identified by display prompt. Send Key Send & answer calls, view recent dialed calls list. Earpiece Accessory Connector Port Insert charger & phone accessories. Scroll Key Move through menus & lists, adjust volume. D RA F T 2 Personal Communications Sector 600 North U.S. Highway 45 Libertyville, Illinois 60048 1-800-331-6456 (United States) 1-888-390-6456 (TTY/TDD United States) 1-800-461-4575 (Canada) www.motorola.com (United States) www.motorola.ca (Canada) MOTOROLA and the Stylized M Logo are registered in the US Patent & Trademark Office. . All other product or service names are the property of their respective owners. © Motorola, Inc. 2003. Software Copyright Notice The Motorola products described in this manual may include copyrighted Motorola and third-party software stored in semiconductor memories or other media. Laws in the United States and other countries preserve for Motorola and third-party software providers certain exclusive rights for copyrighted software, such as the exclusive rights to distribute or reproduce the copyrighted software. Accordingly, any copyrighted software contained in the Motorola products may not be modified, reverse-engineered, distributed, or reproduced in any manner to the extent allowed by law. Furthermore, the purchase of the Motorola products shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any license under the copyrights, patents, or patent applications of Motorola or any third-party software provider, except for the normal, non-exclusive, royalty-free license to use that arises by operation of law in the sale of a product. Manual number: Cover number: D RA F T 3 Menu Map Main Menu • Phonebook • Recent Calls • Missed •Received • Dialed •Timers • Messages •Inbox • Outbox •New Text Msg • Use Template • Write E-mail •Voice Mail •Settings (see next column) •Ring Styles • Ring Loud • Ring Soft •Vibrate •Silent •Vibrate-Ring • Datebook • Calculator • Games • Breakout • Snake • Keypad Lock Settings Menu •Call Settings • Emergency Key 9 • Calling Card • One-Touch Dial • Auto Redial • Phone Settings • Contrast Control • Date and Time • Set Alarm Clock • Languages •Welcome • OwnNum Display • Backlight •DTMF • Master Clear •Master Reset • Minute Reminder • Network Scan • Message Settings • Answer Settings • Auto Answer •Any Key Answer • Network Services • Voice Privacy • Call Forwarding • Call Waiting • Send Own Num • Feature Code Set • NAM Selection • Security Settings • Call Restriction • Access Codes D RA F T 4 D RA F T 5 Contents Menu Map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Main Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Settings Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Safety and General Information. . . . . . . . . . . . . . . . . . . . 8 Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 What’s in the Box?. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 About This Guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Installing the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Charging the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Battery Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Turning On Your Phone . . . . . . . . . . . . . . . . . . . . . . . . . 17 Adjusting the Volume. . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Making a Call. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Answering a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Changing the Call Alert . . . . . . . . . . . . . . . . . . . . . . . . . 19 Learning to Use Your Phone . . . . . . . . . . . . . . . . . . . . . 20 Using the Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Using Menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 How to Enter Information in Your Phone . . . . . . . . . . . . 23 Locking and Unlocking Your Phone. . . . . . . . . . . . . . . . 26 Changing a Code, PIN, or Password. . . . . . . . . . . . . . . 28 If You Forget a Code, PIN, or Password . . . . . . . . . . . . 29 Locking and Unlocking the Keypad . . . . . . . . . . . . . . . . 29 Viewing Your Phone Number . . . . . . . . . . . . . . . . . . . . 30 Setting Up Your Phone. . . . . . . . . . . . . . . . . . . . . . . . . . 31 Setting and Displaying the Clock. . . . . . . . . . . . . . . . . . 31 Managing Tones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 Setting Answer Options . . . . . . . . . . . . . . . . . . . . . . . . . 33 D RA F T 6 Calling Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 Redialing a Number . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 Using Automatic Redial. . . . . . . . . . . . . . . . . . . . . . . . . . 35 Using Caller ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 Calling an Emergency Number . . . . . . . . . . . . . . . . . . . . 38 Using the Emergency Key. . . . . . . . . . . . . . . . . . . . . . . . 39 Viewing Recent Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 Making a Calling Card Call . . . . . . . . . . . . . . . . . . . . . . . 43 Calling with Speed Dial . . . . . . . . . . . . . . . . . . . . . . . . . . 47 Using Turbo Dial . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47 Using Voicemail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49 Using Call Waiting. . …

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA FCC ID: IHDT5DL1 EXHIBIT 2A August 6, 2003 SPECIFICATION COMPLIANCE STATEMENT Engineer-in-Charge Equipment Authorization Branch Federal Communications Commission I hereby certify that this transmit and receive equipment (FCC ID: IHDT5DL1) for SINGLE BAND mobile station cellular use is capable of full compliance with the Cellular (800 MHz) portion of the TIA/EIA-136 Dual- Mode, Dual-Band Mobile Station - Base Station Compatibility Standard. (Signed – J. Ramon Chaidez) Jose Ramon Chaidez Engineering Manager Cellular Subscriber Equipment APPLICANT: MOTOROLA, INC FCC ID: IHDT5DL1 STATEMENT OF CERTIFICATION The technical data supplied with this application, having been taken under my supervision is hereby duly certified. SIGNATURE: ( J. Ramon Chaidez ) NAME: Jose Ramon Chaidez DATE: July 6, 2003 POSITION: Engineering Manager Exhibit 2B APPLICANT: MOTOROLA, INC FCC ID: IHDT5DL1 STATEMENT OF CERTIFICATION The technical data supplied with this application, having been taken under my supervision is hereby duly certified. The following is a statement of my qualifications: BSEE 1984 – University of Illinois at Chicago 18 Years Experience in Cellular Subscriber Design. Signature: (signed) J. Ramon Chaidez Name: Jose Ramon Chaidez Date: August 6, 2003 Position: Engineering Manager I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in the application and accompanying technical data are true and correct. Signature: (signed) J. Ramon Chaidez Name: Jose Ramon Chaidez Date: August 6, 2003 Position: Engineering Manager Exhibit 2C APPLICANT: MOTOROLA, INC. FCC ID: IHDT5DL1 EXHIBIT 2D 911 CALL PROCESSING METHOD COMPLIANCE STATEMENT Method Used The Motorola TDMA phone uses the “Automatic A/B Roaming-IR” method for providing Enhanced 911 Emergency Calling support in compliance with the FCC mandate. User Interface While in the process of attempting to complete a 911 call the Motorola TDMA phone provides visual feedback to the caller. The display of the phone will show the text “Emergency” while the phone is attempting to find a carrier system to complete the call. The display will continue to read “Emergency” through the duration of the call. System Description When a 911 call is initiated, the Motorola TDMA phone ignores all programmed restrictions with regard to which systems; both analog and digital are useable for completing the call. If the Motorola TDMA phone has acquired service on a system at the time the 911 call is initiated it will attempt to complete the call using that system. If the phone is not in service on a system it will initially attempt to complete the call using any available system it can find, which may exist on any frequency band or mode, supported by the handset. The phone will continue attempting to complete the ‘911’ call until the call is completed, the user has ended the call, or the battery is exhausted.

APPLICANT: MOTOROLA FCC ID: IHDT5DL1 August 5, 2003 CONFIDENTIALITY REQUEST CONTAINED WITHIN Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Application for Cellular/PCS Transceiver Certification Gentlemen: Application: Motorola, Inc., Personal Communications Sector, 600 N. U.S. Highway 45, Libertyville, Illinois 60048-1286 herein submits: Application for Equipment Authorization for Certification of a Cellular Transceiver, FCC ID: IHDT5DL1. Motorola is also the manufacturer of this equipment. Confidentiality: Pursuant to Section 0.459 of the Commission's rules (CFR 47), Motorola requests confidentiality for portions of the material contained in this application and that the identified material be withheld from public inspection following the grant of this authorization. This material contains Motorola's trade secrets and confidential information that Motorola does not customarily release to the public and which is otherwise not generally available to the public. Confidentiality is requested for the following exhibits: • Exhibit 4 Block Diagrams • Exhibit 5 Schematics • Exhibit 12 Operational Description Description: This equipment has the capability to operate in both the conventional Analog Cellular and the Digital TDMA standards in the 800 MHz band. Technical details for this alternate cellular technology (permitted under the cellular service option provisions in Section 22.933 of the Commission's rules) related to Type Acceptance of this equipment, as noted in paragraphs 31 and 32 of the Report and Order in FCC GEN. Docket No. 87- 390, are detailed in Exhibit 12. Contact Information: Please contact me by telephone at (847) 523-6167,or by e-mail ( [email protected]), if there are questions or additional information needed concerning this filing. Regards, Andrew J. Bachler FCC Liaison Cellular Subscriber Sector 600 N. U.S. Highway 45 Libertyville, IL 60048-5343 Exhibit 13

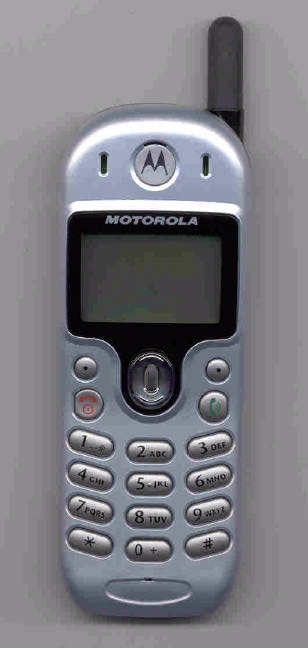

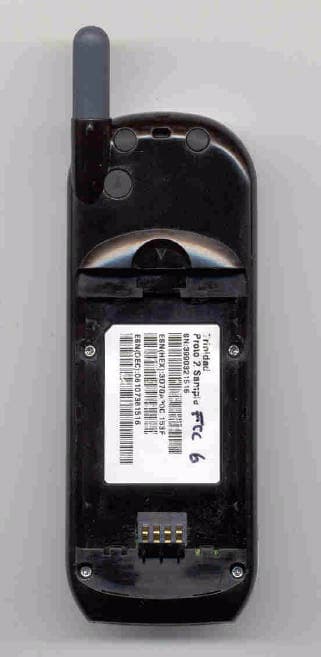

APPLICANT: MOTOROLA, INC. FCC ID: IHDT5DL1 EXHIBIT 3 Equipment ID Label Location Front View Rear View, with Battery Removed To Show Equipment ID Label

APPLICANT: MOTOROLA, INC. FCC ID: IHDT5DL1 EXHIBIT 1 FCC IDENTIFICATION (NAMEPLATE) INFORMATION The FCC label shown is representative of the label that will appear on the radio when in production. It will be placed outside of the equipment as shown in Exhibit 3. Other information may also be included on this label. FCC ID: IHDT5DL1

APPLICANT: MOTOROLA, INC. FCC ID: IHDT5DL1 EXHIBIT 9 Front View (Display Removed) Rear View (Shields Removed) APPLICANT: MOTOROLA, INC. FCC ID: IHDT5DL1 EXHIBIT 9 Inside the Front Housing Inside the Rear Housing

APPLICANT: MOTOROLA, INC. FCC ID: IHDT5DL1 EXHIBIT 10 Transceiver Adjustments/Tune-Up Procedure There are no user accessible adjustments or tuning in this portable cellular transceiver. All necessary adjustments and tuning are performed during manufacture of the product. Any adjustments or tuning after service or repair are done as part of that process as special equipment is required to perform such adjustments. APPLICANT: MOTOROLA, INC. FCC ID: IHDT5DL1 EXHIBIT 10 Reference Part Number Value C100 2189120N02 .1uF C101 2189120N02 .1uF C102 2189120N02 .1uF C103 2189120N02 .1uF C104 2189120N02 .1uF C105 2189120N02 .1uF C106 2189120N02 .1uF C107 2189120N02 .1uF C108 2189120N02 .1uF C109 2189120N02 .1uF C110 2189120N02 .1uF C111 2189120N02 .1uF C112 2189120N02 .1uF C113 2189120N02 .1uF C114 2189133N04 .047uF C116 2189120N02 .1uF C117 2189120N02 .1uF C118 2189120N02 .1uF C119 2189128N01 22uF C120 2189167N01 1uF C121 2189120N02 .1uF C122 2113743N38 33pF C123 2113743N38 33pF C126 2113743L13 680pF C128 2113743N38 33pF C200 2189120N02 .1uF C201 2113743L41 .01uF C202 2189133N02 4.7uF C203 2189133N01 .47uF C204 2189120N02 .1uF C205 2189133N01 .47uF C206 2189133N02 4.7uF C207 2189133N02 4.7uF C208 2189133N02 4.7uF C209 2189133N01 .47uF C210 2189133N01 .47uF C211 2189133N02 4.7uF C212 2189133N02 4.7uF C213 2189133N02 4.7uF C214 2113743N30 15pF C215 2113743N30 15pF C217 2189133N01 .47uF C218 2189133N01 .47uF C219 2189133N01 .47uF C220 2189133N01 .47uF APPLICANT: MOTOROLA, INC. FCC ID: IHDT5DL1 EXHIBIT 10 C221 2189133N01 .47uF C222 2113743A31 1uF C223 2113743A31 1uF C224 2113743A31 1uF C225 2113743A31 1uF C228 2189128N01 22uF C229 2189120N02 .1uF C300 2113743N17 4.3pF C301 2113743N10 2.2pF C302 2113743N32 18pF C303 2113743N38 33pF C304 2113743L41 .01uF C306 2113743L29 3300pF C307 2113743L48 .022uF C308 2113743N32 18pF C309 2113743L21 1500pF C310 2113743L17 1000pF C311 2113743N18 4.7pF C312 2113743N01 0.5pF C314 2113743N38 33pF C315 2113743L17 1000pF C316 2113743L21 1500pF C318 2113743L41 .01uF C319 2113743L41 .01uF C320 2113743L41 .01uF C321 2113743L41 .01uF C322 2113743N38 33pF C325 2113743L41 .01uF C326 2189120N02 .1uF C328 2113743N42 47pF C329 2189120N02 .1uF C330 2113743N38 33pF C331 2113743L41 .01uF C332 2113743N38 33pF C333 2113743L41 .01uF C334 2113741F21 680pF C335 2189106N01 390pF C336 2189220N01 0.01uF C337 2113743L21 1500pF C338 2113743L41 .01uF C339 2113743K16 .22uF C340 2113743N26 10pF C341 2113743N26 10pF C342 2113743N30 15pF C343 2113743N30 15pF C344 2113743L13 680pF APPLICANT: MOTOROLA, INC. FCC ID: IHDT5DL1 EXHIBIT 10 C345 2189120N02 .1uF C346 2113743N14 3.3pF C347 2113743N38 33pF C348 2189120N02 .1uF C349 2189133N02 4.7uF C351 2189133N02 4.7uF C352 2113743L41 .01uF C353 2113743N38 33pF C354 2113743N38 33pF C355 2113743L41 .01uF C356 2113743L21 1500pF C357 2113743N38 33pF C358 2113743L41 .01uF C359 2113743L41 .01uF C363 2113743N38 33pF C366 2189199N01 1000pF C367 2113743L13 680pF C368 2113741F11 270pF C369 2189120N02 .1uF C370 2113743N38 33pF C371 2113743L41 .01uF C372 2113743L41 .01uF C373 2113743L41 .01uF C374 2113743N26 10pF C375 2113743N07 1.5pF C376 2113743N03 1pF C377 2113743L13 680pF C380 2113743L41 .01uF C400 2113743N38 33pF D100 MA2S111 MA2S111 D101 MA2S111 MA2S111 D102 4809788E19 RSA6.1EN D103 4809788E19 RSA6.1EN D104 MA2S111 MA2S111 D200 4809924D25 RB063L-30 D201 MA2S111 MA2S111 D202 4888112M04 QSMR-C179 D203 4888112M04 QSMR-C179 D204 4888112M04 QSMR-C179 D205 4888112M04 QSMR-C179 D206 4888112M04 QSMR-C179 D207 4888112M04 QSMR-C179 D208 4888112M04 QSMR-C179 D209 4888112M04 QSMR-C179 D210 4888112M04 QSMR-C179 D211 4888112M04 QSMR-C179 APPLICANT: MOTOROLA, INC. FCC ID: IHDT5DL1 EXHIBIT 10 D212 4888112M04 QSMR-C179 D213 4888112M04 QSMR-C179 D220 4809788E18 16v D221 4809788E19 RSA6.1EN D222 MA2S111 MA2S111 D223 MA2S111 MA2S111 D300 4809877C34 SMV1255-079 D301 4809877C34 SMV1255-079 D302 4809877C34 SMV1255-079 D303 488920N01 RB731U F200 F0402E0R75 750mA FL300 9185673J02 881MHz FL301 9189218N01 119.64MHz FL302 9103913K16 836MHz FL303 9109170T04 856078 J101 0970312B16 67503-0020 J102 5089725K04 OBG-15S41-C2K04 J103 0987837L04 AJR45--5K2020 J104 5089189N01 JNR-1332D35 J200 0985882K01 JPM2131-MT01TR J201 3989331K01 4 pins J202 5989177N01 DEV-412C J203 G1120064-61 112X64 J300 5187970L38 MHC-188 J301 8589112N01 Contact L300 2409154M11 6.8nH L301 2409154M16 18nH L302 2409377M37 270nH L303 2409414M42 48nH HQ +/- 5% L304 2409377M37 270nH L307 2409377M37 270nH L308 2409414M41 39nH HQ +/- 5% L309 2409257L11 8.2nH +/- 5% L312 2409257L11 8.2nH +/- 5% L313 2409154M07 3.3nH L314 2409154M09 4.7nH L374 2409257L13 12nH +/- 5% L400 2409257L24 100nH Q101 4809605E10 DTC144EET1 Q102 4809939C41 FDG6303N Q106 4809605E10 DTC144EET1 Q106 4809605E10 DTC144EET1 Q107 4889125N01 DTA144EET1 Q200 FZT751 FZT751 Q202 5187970L41 FDC6326L Q203 4889207N01 MMBT3906TT1 APPLICANT: MOTOROLA, INC. FCC ID: IHDT5DL1 EXHIBIT 10 Q204 4889207N01 MMBT3906TT1 Q205 4809605E10 DTC144EET1 Q300 4809605E10 DTC144EET1 Q302 4809939C42 FDG6306P Q304 4889207N01 MMBT3906TT1 Q305 KTC4080E KTC4080E Q306 4809939C42 FDG6306P R101 0662057M50 100 R105 0662057M50 100 R106 0662057N30 200K R107 0662057M98 10K R108 0662057M50 100 R110 0662057M50 100 R113 0662057N19 68K R115 0662057N23 100K R116 0662057N23 100K R117 0662057N26 130K R118 0662057M98 10K R119 0662057M88 3.9K R120 0662057M98 10K R121 0611077A18 4.7 R122 0662057N23 100K R123 0662057M98 10K R124 0662057M98 10K R129 0662057M01 0 R130 0662057M01 0 R131 0662057M01 0 R132 0662057M01 0 R135 0662057N23 100K R136 0662057N26 130K R138 0662057M01 0 R200 0689130N01 0.2 R201 0662057N06 20K R202 0662057M88 3.9K R203 0662057N30 200K R204 0662057N30 200K R205 0611077A18 4.7 R207 0662057M82 2.2K R208 0662057B46 10M R209 0662057M58 220 R210 0662057M58 220 R211 0662057M58 220 R212 0662057M58 220 R213 0662057M58 220 R214 0662057M58 220 R215 0662057M58 220 APPLICANT: MOTOROLA, INC. FCC ID: IHDT5DL1 EXHIBIT 10 R216 0662057M58 220 R217 0662057M58 220 R218 0662057M58 220 R219 0662057M88 3.9K R220 0662057M88 3…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA, INC. FCC ID: IHDT5DL1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 1 1 Exhibit 11: SAR Test Report IHDT5DL1 Date of test: Date of Report: 05/28/2003 – 06/05/2003 06/30/2003 Laboratory: Motorola Personal Communications Sector Product Safety & Compliance Laboratory 600 N. US Highway 45 Room: MW113 Libertyville, Illinois 60048 Test Responsible: Firass Badaruzzaman Senior RF Engineer Accreditation: This laboratory is accredited to ISO/IEC 17025-1999 to perform the following tests: Tests : Procedures: Electromagnetic Specific Absorption Rate ANSI/IEEE C95.1-1992, 1999 (SAR) IEEE C95.3-1991 IEEE P1528 (DRAFT) FCC OET Bulletin 65 (including Supplements A, B, C) Australian Communications Authority Radio Communications (Electromagnetic Radiation – Human Exposure) Standard 1999 CENELEC EN 50361 (2001) Simulated Tissue Preparation APP-0247 RF Power Measurement DOI-0876, 0900, 0902, 0904, 0915 On the following products or types of products: Wireless Communications Devices (Examples): Two Way Radios; Portable Phones (including Cellular, Licensed Non-Broadcast and PCS); Low Frequency Readers; and Pagers A2LA certificate #1651-01 Statement of Compliance: Motorola declares under its sole responsibility that portable cellular telephone FCC ID IHDT5DL1 to which this declaration relates, is in conformity with the appropriate General Population/Uncontrolled RF exposure standards, recommendations and guidelines (FCC 47 CFR §2.1093). It also declares that the product was tested in accordance with the appropriate measurement standards, guidelines and recommended practices. Any deviations from these standards, guidelines and recommended practices are noted below: (none) ©Motorola, Inc. 2003 This test report shall not be reproduced except in full, without written approval of the laboratory. The results and statements contained herein relate only to the items tested. The names of individuals involved may be mentioned only in connection with the statements or results from this report. Motorola encourages all feedback, both positive and negative, on this test report. APPLICANT: MOTOROLA, INC. FCC ID: IHDT5DL1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 2 2 Table of Contents 1) Introduction 3 2) Description of the Device Under Test 3 Antenna description 3 Device description 3 3) Test Equipment 3 3.1 Dosimetric system 3 3.2 Additional equipment used 4 4) Electrical parameters of the tissue simulating liquid 4 5) System Accuracy Verification 4 6) Test Results 5 6.1 Head Adjacent Test Results 6 6.2 Body-Worn Test Results 8 References: Appendix 1: SAR distribution comparison for the system accuracy verification 10 Appendix 2: SAR distribution plots for Phantom Head Adjacent Use 11 Appendix 3: SAR distribution plots for Body Worn Configuration 13 Appendix 4. Probe Calibration Certificate 15 Appendix 5. Dipole Characterization Certificate 16 Appendix 6: Measurement Uncertainty Budget 17 Appendix 7. Photographs of the device under test 20 APPLICANT: MOTOROLA, INC. FCC ID: IHDT5DL1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 3 3 1. Introduction The Motorola Personal Communications Sector Product Safety Laboratory has performed measurements of the maximum potential exposure to the user of portable cellular phone (FCC ID IHDT5DL1). The Specific Absorption Rate (SAR) of this product was measured. The portable cellular phone was tested in accordance with FCC OET Bulletin 65 Supplement C 01-01. 2. Description of the Device Under Test Antenna description Type Stubby Location Right Hand Side Length 25 mm Dimensions Width 8 mm Configuration Helix Device description FCC ID Number IHDT5DL1 Serial number 3990321507 Mode(s) of Operation AMPS 800 TDMA 800 Modulation Mode(s) AMPS TDMA Maximum Output Power Setting 26.30 dBm 27.30 dBm Duty Cycle 1:1 1:3 Transmitting Frequency Rang(s) 824.04 – 848.97 MHz 824.70 – 848.31 MHz Production Unit or Identical Prototype (47 CFR §2..908) Identical Prototype Device Category Portable RF Exposure Limits General Population / Uncontrolled 3. Test Equipment Used 3.1 Dosimetric System The Motorola Personal Communications Sector Product Safety & Compliance Laboratory utilizes a Dosimetric Assessment System (Dasy3™ v3.1d) manufactured by Schmid & Partner Engineering AG (SPEAG™), of Zurich Switzerland. All the SAR measurements are taken within a shielded enclosure. The overall RSS uncertainty of the measurement system is ±11.7% (K=1) with an expanded uncertainty of ±23.0% (K=2). The measurement uncertainty budget is given in Appendix 6. Per IEEE 1528, this uncertainty budget is applicable to the SAR range of 0.4 W/kg to 10 W/kg. The list of calibrated equipment used for the measurements is shown below. Description Serial Number Cal Due Date DASY3 DAE V1 SN 383 09/02/2003 E-Field Probe ET3DV6 SN1523 01/17/2004 Dipole Validation Kit, D900V2 SN425tr 11/13/2004 S.A.M. Phantom used for 800MHz TP-1005 APPLICANT: MOTOROLA, INC. FCC ID: IHDT5DL1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 4 4 3.2 Additional Equipment Description Serial Number Cal Due Date Signal Generator HP8648C 3847A04633 10/11/2004 Power Meter E4419B US39250622 11/05/2003 Power Sensor #1 - 8481A US37296475 11/05/2003 Power Sensor #2 - 8481A 3318A25036 11/05/2003 Network Analyzer HP8753ES US39172529 18-Jun-03 Dielectric Probe Kit HP85070B US99360070 N/A 4. Electrical parameters of the tissue simulating liquid Prior to conducting SAR measurements, the relative permittivity, ε r , and the conductivity, σ, of the tissue simulating liquids were measured with the HP85070 Dielectric Probe Kit These values, along with the temperature of the tissue simulate are shown in the table below. The recommended limits for maximum permittivity and minimum conductivity are also shown. These come from the Federal Communication Commission, OET Bulletin 65 Supplement C 01-01. It is seen that the measured parameters are satisfactory for compliance testing. f Dielectric Parameters (MHz) Tissue type Limits / Measured ε r …

Text truncated - open the document above for the full version.

Date: August 21, 2003 Subject: Request for additional information (FCC ID: IHDT6DL1) Reference: Applicant Received: 8/7/2003 Correspondence Reference Number: 230821.IHD Confirmation Number: TC3193 Date of Original Email: 8/21/2003 Prepared by: Andrew Bachler, Principal Staff Engineer Motorola Personal Communications Sector Libertyville, Illinois 1. The antenna gain in AMPS mode and TDMA appears to be different. Please clarify. Response: In the AMPS mode only, additional power level control is applied whenever the rf signal is directly connected to the antenna. 2. Please provide the following missing documents: a) Exhibit 1 – FCC ID Label and Location b) Exhibit 3 – External Photos c) Exhibit 9 – Internal Photos d) Exhibit 10 – Parts List and Tune Up e) Exhibit 13 – Cover (Confidentiality) Letter Response: The exhibits listed above are resubmitted on 8-21-03. 1

APPLICANT: MOTOROLA INC FCC ID: IHDT5DL1 PERSONAL COMMUNICATIONS SECTOR PRODUCT SAFETY AND COMPLIANCE EMC LABORATORY EMC TEST REPORT Test Report Number – 11230-2 Report Date – August 4, 2003 The test results contained herein relate only to the model(s) identified. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical characteristics. As the responsible EMC Engineer, I hereby declare that the equipment tested as specified in this report conforms to the requirements indicated . Signature Name: _Michael E. Hill Title: Senior Electrical Engineer Date : _ 8/04/2003____ This report must not be reproduced, except in full, without written approval from this laboratory. THIS REPORT MUST NOT BE USED TO CLAIM PRODUCT ENDORSEMENT BY A2LA OR ANY AGENCY OF THE U.S. GOVERNMENT. EXHIBIT 6 A2LA Certificate Number: 1846-01 APPLICANT: MOTOROLA INC FCC ID: IHDT5DL1 Table of Contents Description Page Test Report Details 3 Applicable Standards 3 Summary of Testing 4 General and Special Conditions 4 Equipment and Cable Configurations 4 Measuring Equipment and Calibration Information 4 Measurement Procedures and Data RF Power Output 6 Radiated Power (ERP) 7 Occupied Bandwidth 8 AMPS 800 SAT 9 AMPS 800 Reference Plot 9 AMPS 800 10KBs Wideband 9 AMPS 800 Rx Base ST 10 AMPS 800 Signal Tone 11 AMPS 800 Block A/A* (Lower) Min. Edge 12 AMPS 800 Block A* (Lower) Max Edge 12 AMPS 800 Block A Max Edge/Block B Min. Edge 13 AMPS 800 Block B Max Edge/Block A*(Upper) Min. Edge 13 AMPS 800 Block A* (Upper) Max Edge/B* Min. Edge 14 AMPS 800 Block B* Max Edge 14 TDMA 800 Rx Base ST 15 TDMA 800 Reference Plot 15 TDMA 800 Lower Band Edge 16 TDMA 800 Upper Band Edge 16 TDMA 800 Block A/A* (Lower) Min. Edge 17 TDMA 800 Block A* (Lower) Max Edge 17 TDMA 800 Block A Max Edge/Block B Min. Edge 18 TDMA 800 Block B Max Edge/Block A*(Upper) Min. Edge 18 TDMA 800 Block A* (Upper) Max Edge/B* Min. Edge 19 TDMA 800 Block B* Max Edge 19 Spurious Emissions at Antenna Terminals 20 AMPS 800 Tabular and Graphical Data 21 TDMA 800 Tabular and Graphical Data 22 Field Strength of Spurious Emissions 23 AMPS 800 Tabular and Graphical Data 24 TDMA 800 Tabular and Graphical Data 25 Frequency Stability 26 AMPS 800 Tabular and Graphical Data 27 Test Report Number: 11230-2 EXHIBIT 6 2 APPLICANT: MOTOROLA INC FCC ID: IHDT5DL1 TDMA 800 Tabular and Graphical Data 28 Field Strength of Spurious Emissions From Unintentional Radiators AMPS 800 Tabular and Graphical Data 30 TDMA 800 Tabular and Graphical Data 31 Appendix A - Radiated Emissions Test Setup Photos Figure A.1 – Radiated Emissions Measurement 32 Figure A.2 – Substitution Measurement 32 Test Report Number: 11230-2 EXHIBIT 6 3 APPLICANT: MOTOROLA INC FCC ID: IHDT5DL1 Test Report Details Tests Performed By: Motorola Personal Communications Sector Product Safety and Compliance Group 600 North US Hwy 45 Libertyville, IL 60048 PH (561) 739-2179 Fax (561) 739-2131 Motorola PCS FRN: 0004321311 FCC Registration Number: 316588 Industry Canada Number: IC3908 Tests Requested By: Motorola Inc. Personal Communications Sector 600 North US Hwy 45 Libertyville, IL 60048 Product Type: Cellular Phone Signaling Capability: AMPS 800, TDMA 800 Model Number: SJWF0181AA Serial Numbers: 3990321507, 3990321227, 3990321516 Testing Complete Date: August 4, 2003 Applicable Standards All tests and measurements indicated in this document were performed in accordance with the Code of Federal Regulations Title 47 Part 2, Sub-part J as well as the following parts: X Part 15 Subpart B – Unintentional Radiators X Part 22 Subpart H - Public Mobile Services X Part 24 - Personal Communications Services Part 90 - Private Land Mobile Radio Service Applicable Standards: TIA EIA 137-A, TIA EIA 98-C, ANSI 63.4 2001, RSS-118 (AMPS), RSS-128 (TDMA), RSS-129 (CDMA), RSS-133 (PCS) Test Report Number: 11230-2 EXHIBIT 6 4 APPLICANT: MOTOROLA INC FCC ID: IHDT5DL1 Summary of Testing Test Test Name # Pass/Fail 1 RF Power Output NA 2 ERP (Effective Radiated Power) NA 3 Modulation Characteristics Pass 4 Occupied Bandwidth Pass 5 Spurious Emissions at Antenna Terminal Pass 6 Field Strength of Spurious Emissions Pass 7 Frequency Stability Pass 8 Field Strength of Spurious Emissions Pass from Unintentional Radiators Test Test Name Margin with respect # to the Limit_________ 1 RF Power Output NA 2 ERP (Effective Radiated Power) NA 3 Modulation Characteristics NA 4 Occupied Bandwidth See Plots 5 Spurious Emissions at Antenna Terminal 16.9 dB 6 Field Strength of Spurious Emissions 16.2 dB 7 Frequency Stability 50 Hz 8 Field Strength of Spurious Emissions 7.6 dB from Unintentional Radiators The margin with respect to the limit is the minimum margin for all modes and bands. ( ) indicates the margin at which the product exceeds the limit. General and Special Conditions The EUT was tested using a fully charged battery when applicable. Where a battery could not be used due to the need for a controlled variation of input voltage, an external power supply was utilized. All testing was done in an indoor controlled environment with an average temperature of 22º C and relative humidity of 50%. Test Report Number: 11230-2 EXHIBIT 6 5 APPLICANT: MOTOROLA INC FCC ID: IHDT5DL1 Equipment and Cable Configurations The EUT was tested in a stand-alone configuration that is representative of typical use. Measuring Equipment and Calibration Information ETSDRG Hor…

Text truncated - open the document above for the full version.
