IHDT5DY1Portable Cellular Transceiver (AMPS/CDMA)

APPLICANT: MOTOROLA, INC. FCC ID: IHDT5DY1 EXHIBIT 8 INSTRUCTION MANUAL A preliminary draft copy of the Users Manual follows: - 1 - Weelccoomee Antenna Earpiece Left Soft Key Left Soft Key identified by left display prompt. Right Soft Key Perform functions identified by right identified by right Menu Key Open a menu when is in the display. Power/End Key Press & hold to turn phone on & off. Press & release to end phone calls, exit menu system. Navigation Keys Scroll through lists, set volume. Send/Answer Key Make and answer calls; press in idle to list recently dialed calls. USB Connector Insert data cable. Power Connector Insert charger. Microphone Headset Connector 1 2 5 8 0 4 7 3 6 9 + You can change covers and keypads on your C375 Series phone (see page XX). Your phone may not appear exactly as the phone image above. Note that all key locations, sequences, and functions remain the same with any of the covers. -2 - Motorola, Inc., Consumer Advocacy Office 1307 East Algonquin Road Schaumburg, IL 60196 1-800-331-6456 (United States) 1-888-390-6456 (TTY/TDD United States) 1-800-461-4575 (Canada) www.motorola.com (United States) www.motorola.ca (Canada) MOTOROLA and the Stylized M Logo are registered in the US Patent & Trademark Office. All other product or service names are the property of their respective owners. Acrobat and Acrobat Reader are registered trademarks of Adobe Systems Incorporated. Motorola, Inc. 2003 Software Copyright Notice The Motorola products described in this manual may include copyrighted Motorola and third party software stored in semiconductor memories or other media. Laws in the United States and other countries preserve for Motorola and third party software providers certain exclusive rights for copyrighted software, such as the exclusive rights to distribute or reproduce the copyrighted software. Accordingly, any copyrighted software contained in the Motorola products may not be modified, reverse-engineered, distributed, or reproduced in any manner to the extent allowed by law. Furthermore, the purchase of the Motorola products shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any license under the copyrights, patents, or patent applications of Motorola or any third party software provider, except for the normal, non-exclusive, royalty-free license to use that arises by operation of law in the sale of a product. Manual number: 6809457A28-O Cover number: 8988485L61-O -4 - - 3 - Contents Contents Safety and General Information. . . . . . . . . . . . . . . . . . . . 6 Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 What°Øs in the Box?. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 About This Guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Installing the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Charging the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Battery Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Changing Your SIM Card. . . . . . . . . . . . . . . . . . . . . . . . 16 Changing Your Phone°Øs Cover. . . . . . . . . . . . . . . . . . . . 18 Resetting Your Phone . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Turning Your Phone On . . . . . . . . . . . . . . . . . . . . . . . . . 21 Adjusting the Volume. . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Making a Call. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Answering a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 Viewing Your Phone Number . . . . . . . . . . . . . . . . . . . . 23 Learning to Use Your Phone . . . . . . . . . . . . . . . . . . . . . 24 Using the Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 Using the 4-Way Navigation Keys . . . . . . . . . . . . . . . . . 28 Using Menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 Entering Text . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 Choosing a Text Entry Method . . . . . . . . . . . . . . . . . . . 39 Locking and Unlocking Your Phone. . . . . . . . . . . . . . . . 40 Changing a Code or Password . . . . . . . . . . . . . . . . . . . 42 If You Forget a Code or Password. . . . . . . . . . . . . . . . . 42 Locking and Unlocking the Keypad . . . . . . . . . . . . . . . . 43 Highlight Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44 Editing Sound with MotoMixer. . . . . . . . . . . . . . . . . . . . 44 Sending Messages, Pictures, and Sounds . . . . . . . . . . 48 Using Your Phonebook . . . . . . . . . . . . . . . . . . . . . . . . . . 50 Using the Alarm Clock . . . . . . . . . . . . . . . . . . . . . . . . . . 53 Using MyMenu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55 Setting Up Your Phone. . . . . . . . . . . . . . . . . . . . . . . . . . . 57 Storing Your Name and Phone Number . . . . . . . . . . . . . 57 Setting the Time and Date . . . . . . . . . . . . . . . . . . . . . . . 57 Setting a Ring Style . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57 Setting Answer Options . . . . . . . . . . . . . . . . . . . . . . . . . 58 Setting a Wallpaper Image . . . . . . . . . . . . . . . . . . . . . . . 59 Selecting a Screen Saver . . . . . . . . . . . . . . . . . . . . . . . . 59 Assigning Phone Themes. . . . . . . . . . . . . . . . . . . . . . . . 60 Setting Your Display Color . . . . . . . . . . . . . . . . . . . . . . . 61 Setting Display Contrast . . . . . . . . . . . . . . . . . . . . . . . . . 61 Adjusting the Backlight . . . . . . . . . . . . . . . . . . . . . . . . . . 62 Zooming In and Out . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62 Personalizing Display Text . . . . . . . . . . . . . . . . . . . . . . . 62 Personalizing the Menu. . . . . . . . . . . . . . . . . . . . . . . . . . 63 Personalizing Soft Keys . . . . . . . . . . . . . . . . . . . . . . . . . 63 Conserving Battery Power . .…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA, INC. FCC ID: IHDT5DY1 SPECIFICATION COMPLIANCE STATEMENT Engineer-in-Charge Equipment Authorization Branch Federal Communications Commission We hereby certify that this transmit and receive equipment (FCC ID: IHDT5DY1) for dual-Mode mobile station cellular use is capable of compliance with the TIA/EIA-95-B Mobile Station-Base Station Compatibility Standards for Dual-Mode Spread Spectrum Systems, December 1998. Furthermore, we certify compliance to ANSI/TIA/EIA-553-A-1999, Mobile Station-Land Station Compatibility Specification. (Signed ) GILSON DE LIMA RAEDER Engineering Manager Cellular Subscriber Equipment EXHIBIT 2A Revised 12-18-03 APPLICANT: MOTOROLA, INC. FCC ID: IHDT5DY1 STATEMENT OF CERTIFICATION The technical data supplied with this application, having been taken under my supervision is hereby duly certified. SIGNATURE: ( ) NAME: GILSON DE LIMA RAEDER DATE: November 30, 2003 POSITION: Engineering Manager EXHIBIT 2B APPLICANT: MOTOROLA, INC. FCC ID: IHDT5DY1 911 Call Processing Method Compliance Statement Method Used Pursuant to 47 CFR Sec. 22.921, this Motorola CDMA phone at the time of commercial distribution will use a call completion method for 911 calls that is approved or endorsed by the FCC. At this time Motorola intends that this phone will incorporate either the Automatic A/B- Intelligent Retry method or the Automatic A/B-Intelligent Retry, Version 2 method for providing 911 emergency calling support. Exhibit 2C

Date: December 18, 2003 Subject: Request for additional information regarding FCC ID: IHDT5DY1 (Portable Cellular AMPS/CDMA transceiver) Reference: Application Received: 12/5/2003 Correspondence Reference Number: 231211B.IHD Confirmation Number: TC3314 Date of Original Email: 12/11/2003 Prepared by: Andrew Bachler, Principal Staff Engineer Motorola Personal Communications Sector Libertyville, Illinois Questions and responses follow: 1. The Specification Compliance Statement is insufficient. Section 22.901(e)(1) requires that a statement be submitted that confirms compliance with ANSI TIA/EIA 553-A-1999. In addition, we note that an incorrect FCC ID is listed in the existing statement- this should be corrected to the FCC of the EUT. Response: The attestation statements have been revised. Please refer to the replacement exhibit 2 (Attestation Statements) submitted on 12/18/03. 2. There is a discrepancy between the measured ERP levels listed at the top of p.10 of the EMC report and the values listed in the Summary at the bottom of that page. Please address. Response: The radiated power levels in the test report have been corrected. Please refer to the replacement exhibit 6 (Test Report) submitted on 12/18/03. 3. Please submit the following Exhibits: Block Diagram (#4) and Operational Description (#12). Response: Exhibit 4 and exhibit 12 were submitted on 12/9/03. 1

APPLICANT: MOTOROLA FCC ID: IHDT5DY1 December 4, 2003 CONFIDENTIALITY REQUEST CONTAINED WITHIN Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Application for Cellular/PCS Transceiver Certification Gentlemen: Application: Motorola, Inc., Personal Communications Sector, 600 N. U.S. Highway 45, Libertyville, Illinois 60048-1286 herein submits: Application for Equipment Authorization for Certification of a Cellular Transceiver, FCC ID: IHDT5DY1. Motorola is also the manufacturer of this equipment. Confidentiality: Pursuant to Section 0.459 of the Commission's rules (CFR 47), Motorola requests confidentiality for portions of the material contained in this application and that the identified material be withheld from public inspection following the grant of this authorization. This material contains Motorola's trade secrets and confidential information that Motorola does not customarily release to the public and which is otherwise not generally available to the public. Confidentiality is requested for the following exhibits: • Exhibit 4 Block Diagrams • Exhibit 5 Schematics • Exhibit 12 Operational Description Description: This equipment has the capability to operate in the conventional Analog Cellular and the Digital CDMA standards in the 800 MHz band. Contact Information: Please contact me by telephone at (847) 523-6167,or by e-mail ( [email protected]), if there are questions or additional information needed concerning this filing. Regards, Andrew J. Bachler FCC Liaison Cellular Subscriber Sector 600 N. U.S. Highway 45 Libertyville, IL 60048-5343 Exhibit 13

APPLICANT: MOTOROLA, INC. FCC ID: IHDT5DY1 EXHIBIT 3 APPLICANT: MOTOROLA, INC. FCC ID: IHDT5DY1 Equipment ID Label Location EXHIBIT 3

APPLICANT: MOTOROLA INC. FCC ID: IHDT5DY1 EXHIBIT 1 FCC IDENTIFICATION (NAMEPLATE) INFORMATION The FCC label shown is representative of the label that will appear on the radio when in production. It will be placed on the outside of the equipment as shown in Exhibit 3. Other information may also be included on this label. IHDT5DY1

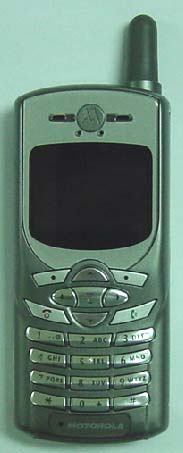

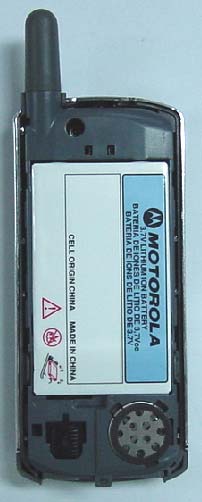

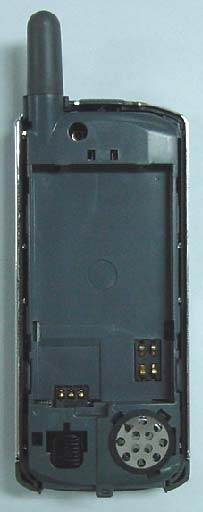

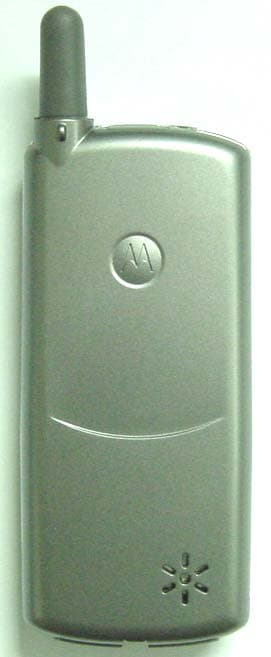

APPLICANT: MOTOROLA, INC. FCC ID: IHDT5DA1 Front View Front PCB View EXHIBIT 9 APPLICANT: MOTOROLA, INC. FCC ID: IHDT5DA1 Rear View Rear View (Shields Removed) EXHIBIT 9 APPLICANT: MOTOROLA, INC. FCC ID: IHDT5DA1 Front Housing Rear Housing (Internal View) (Internal View) EXHIBIT 9

APPLICANT: MOTOROLA INC. FCC ID: IHDT5DY1 TRANSCEIVER ADJUSTMENTS/TUNE-UP PROCEDURE There are no user accessible adjustments or tuning in this portable cellular transceiver. All necessary adjustments and tuning are performed during manufacture of the product. Any adjustments or tuning after service or repair are done as part of that process as special equipment is required. EXHIBIT 10 APPLICANT: MOTOROLA INC. FCC ID: IHDT5DY1 PART LIST No REFERENCE SYMBOL Description 1 MAIN PCB 2 J200 BATTERY CONNECTOR 3 J105 DC JACK CONNECTOR 4 J501 RF CONNECTOR 5 J103 USB CONNECTOR 6 U104 SIM CONNECTOR 7 Y201 SLEEP CRYSTAL 8 U300 MSM6050 9 U8 RFR6120 10 U7 RFT6102 11 U203 POWER MANAGEMENT 12 U402 AUDIO AMP 13 U601 POWER AMP 14 D7,D8,D151,D410,D411 VARISTOR 15 D9 VARISTOR 16 D4, D10,D11,D103,D104,D105,D106,D107,D122, D150 VARISTOR 17 D1,D3 SWITCHING DIODE 18 D6 SHOTTKY DIODE 19 D111,D112 KEYPAD LED 20 U801 VCTCXO 21 T650 THERMISTOR 22 Q2, Q4, Q200, Q201 P-CH FET 23 D240 SWITCHING DIODE 24 D125 TVS DIODE 25 D124 TVS DIODE 26 Q202 PNP TRANSISTOR 27 U602 TRANSISTOR 28 Q1 MOSFET 29 U3 VOLTAGE DETECTOR 30 F1 FUSE 31 U701 VCO 32 U106 WHITE LED DRIVER 33 U9 FLASH MEMORY 34 U205 OVER VOLTAGE PROTECTION 35 U102 ESD FILTER 36 D2 ESD FILTER 37 U1 TVS DIODE 38 D12 ESD FILTER 39 U2 COUPLER 40 U4 PLD CONTROLLER 41 Y301 RESONATOR 42 FIL601 TX-RF SAW 43 FIL701 RX-RF SAW 44 FIL501 DUPLEXER 45 U310 USB CONTROLLER 46 U6 LDO 47 U5 LDO EXHIBIT 10 APPLICANT: MOTOROLA INC. FCC ID: IHDT5DY1 48 J401 EAR JACK 49 J202 MOTOR 50 Q3 MOSFET 51 C501 CAPACITOR 52 C602,C637, C719, C720 CAPACITOR 53 C23 CAPACITOR 54 C632 CAPACITOR 55 C223,C224 CAPACITOR 56 C24,C28,C29,C30,C37,C45,C47,C48,C709,C714 CAPACITOR 57 C4 CAPACITOR 58 C721 CAPACITOR 59 C13,C16,C25,C26,C46,C49,C50,C52,C401,C702,C706, C707,C713,C717 CAPACITOR 60 C43,C44 CAPACITOR 61 C18,C40,C715 CAPACITOR 62 C41 CAPACITOR 63 C27,C201 CAPACITOR 64 C33 CAPACITOR 65 C6,C15,C31,C36,C202,C205,C303,C320,C643,C802,C8 04 CAPACITOR 66 C327,C341 CAPACITOR 67 C344,C346,C402 CAPACITOR 68 C42 CAPACITOR 69 C32 CAPACITOR 70 C2,C3,C5,C9,C10,C12,C22,C34,C35,C38,C39,C51,C53, C54,C58,C59,C60,C61,C62,C121,C203,C204,C206,C20 8,C210,C214,C232,C240,C301,C302,C311,C313,C314, C317,C318,C319,C321,C322,C324,C325,C326,C328,C 329,C330,C331,C332,C340,C342,C343,C369,C413,C42 5,C429,C701,C703,C705, C708,C712,C718 CAPACITOR 71 C304 CAPACITOR 72 C631, C634, C803 CAPACITOR 73 C1,C7,C8,C134,C135,C137,C138,C219,C220,C241,C24 2 CAPACITOR 74 C209 CAPACITOR 75 C218 CAPACITOR 76 C211,C212,C213,C215,C601,C704,C710,C711 CAPACITOR 77 C14,C64,C65,C345,C411,C412,C420,C421,C427 CAPACITOR 78 CT330,CT403 TANTAL CAPACITOR 79 CT1,CT2,CT3,CT8,CT401 TANTAL CAPACITOR 80 CT6 FPCAP 81 CT5 FPCAP 82 L705 INDUCTOR 83 L603 INDUCTOR 84 L502,L601, L703, L704, L707 INDUCTOR 85 L716 INDUCTOR 86 L5 INDUCTOR 87 L706 INDUCTOR 88 L3,L702 INDUCTOR 89 L1, L4, L9, L504 INDUCTOR 90 L6,L7,L301,L302,L303,L701, L708, L801 BEAD(600OHM) EXHIBIT 10 APPLICANT: MOTOROLA INC. FCC ID: IHDT5DY1 91 R10, R12,R13, R22, R27, R32, R103, R220 RESISTOR 92 R2 RESISTOR 93 R26, R710 RESISTOR 94 R238 RESISTOR 95 R7 RESISTOR 96 R20, R304, R704, R803 RESISTOR 97 R501 RESISTOR 98 R124 RESISTOR 99 R203 RESISTOR 100 R3,R34,R302,R401,R701 RESISTOR 101 R9 RESISTOR 102 R18 RESISTOR 103 R23,R316,R317,R402 RESISTOR 104 R6 RESISTOR 105 R19 RESISTOR 106 R24,R414 RESISTOR 107 R150 RESISTOR 108 R705,R706,R709 RESISTOR 109 R8,R413,R415 RESISTOR 110 R1,R14,R21,R29,R30,R33,R219,R224,R312,R314,R330, R331,R332 RESISTOR 111 R25,R708 RESISTOR 112 R104 RESISTOR 113 R650 RESISTOR 114 R5 RESISTOR 115 R112 RESISTOR 116 R420,R421 RESISTOR 117 R11,R101,R102,R222,R403 RESISTOR 118 R651 RESISTOR 119 R311,R315 RESISTOR 120 R205 RESISTOR 121 R4 RESISTOR 122 R313 RESISTOR 123 R240 RESISTOR 124 R405,R406 RESISTOR 125 R28,R211,R233,R301 RESISTOR 126 SH101 SHIELD CASE RX 127 SH102 SHIELD CASE TX 128 SH103 SHIELD CASE MSM 129 A501 ANTENNA 130 SPEAKER 131 LCD+MIC+EAR PIECE MODULE 132 BATTERY ASS'Y EXHIBIT 10

APPLICANT: MOTOROLA, INC. FCC ID: IHDT5DY1 E E x x h h i i b b i i t t 1 1 1 1 Exhibit 11: SAR Test Report IHDT5DY1 Date of test: Date of Report: 29 – 31 Oct, 2003 26 Nov, 2003 Laboratory: Motorola Personal Communications Sector Product Safety & Compliance Laboratory 600 N. US Highway 45 Room: MW113 Libertyville, Illinois 60048 Test Responsible: Steven Hauswirth Principal Staff Engineer Accreditation: This laboratory is accredited to ISO/IEC 17025-1999 to perform the following tests: Tests : Procedures: Electromagnetic Specific Absorption Rate ANSI/IEEE C95.1-1992, 1999 (SAR) IEEE C95.3-1991 IEEE P1528 (DRAFT) FCC OET Bulletin 65 (including Supplements A, B, C) Australian Communications Authority Radio Communications (Electromagnetic Radiation – Human Exposure) Standard 1999 CENELEC EN 50361 (2001) Simulated Tissue Preparation APP-0247 RF Power Measurement DOI-0876, 0900, 0902, 0904, 0915 On the following products or types of products: Wireless Communications Devices (Examples): Two Way Radios; Portable Phones (including Cellular, Licensed Non-Broadcast and PCS); Low Frequency Readers; and Pagers A2LA certificate #1651-01 Statement of Compliance: Motorola declares under its sole responsibility that portable cellular telephone FCC ID IHDT5DY1 to which this declaration relates, is in conformity with the appropriate General Population/Uncontrolled RF exposure standards, recommendations and guidelines (FCC 47 CFR §2.1093). It also declares that the product was tested in accordance with the appropriate measurement standards, guidelines and recommended practices. Any deviations from these standards, guidelines and recommended practices are noted below: (none) ©Motorola, Inc. 2003 This test report shall not be reproduced except in full, without written approval of the laboratory. The results and statements contained herein relate only to the items tested. The names of individuals involved may be mentioned only in connection with the statements or results from this report. Motorola encourages all feedback, both positive and negative, on this test report. APPLICANT: MOTOROLA, INC. FCC ID: IHDT5DY1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 2 2 Table of Contents 1. INTRODUCTION...................................................................................................................................... 3 2. DESCRIPTION OF THE DEVICE UNDER TEST.................................................................................... 3 2.1 Antenna description.................................................................................................................................................3 2.2 Device description..................................................................................................................................................3 3. TEST EQUIPMENT USED........................................................................................................................ 3 3.1 Dosimetric System .................................................................................................................................................3 3.2 Additional Equipment...........................................................................................................................................4 3.2 Additional Equipment...........................................................................................................................................4 4. ELECTRICAL PARAMETERS OF THE TISSUE SIMULATING LIQUID............................................. 4 5. SYSTEM ACCURACY VERIFICATION.................................................................................................. 4 6. TEST RESULTS........................................................................................................................................ 5 6.1 Head Adjacent Test Results..................................................................................................................................6 6.2 Body Worn Test Results .......................................................................................................................................7 APPENDIX 1: SAR DISTRIBUTION COMPARISON FOR SYSTEM ACCURACY VERIFICATION...... 9 APPENDIX 2: SAR DISTRIBUTION PLOTS FOR PHANTOM HEAD ADJACENT USE....................... 10 APPENDIX 3: SAR DISTRIBUTION PLOTS FOR BODY WORN CONFIGURATION........................... 13 APPENDIX 4: PROBE CALIBRATION CERTIFICATE.......................................................................... 15 APPENDIX 5: DIPOLE CHARACTERIZATION CERTIFICATE............................................................ 16 APPENDIX 6: MEASUREMENT UNCERTAINTY BUDGET................................................................... 17 APPENDIX 7: PHOTOGRAPHS OF DEVICE UNDER TEST ................................................................... 20 APPLICANT: MOTOROLA, INC. FCC ID: IHDT5DY1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 3 3 1. Introduction The Motorola Personal Communications Sector Product Safety Laboratory has performed measurements of the maximum potential exposure to the user of portable cellular phone (FCC ID IHDT5DY1). The Specific Absorption Rate (SAR) of this product was measured. The portable cellular phone was tested in accordance with FCC OET Bulletin 65 Supplement C 01-01. 2. Description of the Device Under Test a. Antenna description Type External Location Upper Right Corner of Phone Length 19mm Dimensions Width 9mm Configuration Helix b. Device description FCC ID Number IHDT56DY1 Serial number 33881DFA Mode(s) of Operation 800 AMPS 800 CDMA Modulation Mode(s) AMPS CDMA Maximum Output Power Setting 27.0dBm 25.2dBm Duty Cycle 1:1 1:1 Transmitting Frequency Rang(s) 824.04-848.97 MHz 824.70-848.31 MHz Production Unit or Identical Prototype (47 CFR §2..908) Identical Prototype Device Category Portable RF Exposure Limits General Population / Uncontrolled 3. Test Equipment Used 3.1 Dosimetric Syst…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA INC FCC ID: IHDT5DY1 PERSONAL COMMUNICATIONS SECTOR PRODUCT SAFETY AND COMPLIANCE EMC LABORATORY EMC TEST REPORT Test Report Number – 12503-1 Report Date – November 14, 2003 The test results contained herein relate only to the model(s) identified. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical characteristics. As the responsible EMC Engineer, I hereby declare that the equipment tested as specified in this report conforms to the requirements indicated . Signature Name: _Michael Hill Title: Senior Electrical Engineer Date: 11/14/03 (revised 12-18-03) This report must not be reproduced, except in full, without written approval from this laboratory. THIS REPORT MUST NOT BE USED TO CLAIM PRODUCT ENDORSEMENT BY A2LA OR ANY AGENCY OF THE U.S. GOVERNMENT. A2LA Certificate Number: 1846-01 EXHIBIT 6 APPLICANT: MOTOROLA INC FCC ID: IHDT5DY1 Table of Contents Description Page Test Report Details 4 Applicable Standards 5 Summary of Testing 6 General and Special Conditions 6 Equipment and Cable Configurations 7 Measuring Equipment and Calibration Information 7 Measurement Procedures and Data RF Power Output 8 Radiated Power (ERP) 9 Modulation Characteristics 11 Transmit Audio Frequency Response 11 Post Limiter Filter Attenuation 11 Modulation Limiting vs. Modulation Input Voltage 12 Occupied Bandwidth 13 800 AMPS Unmodulated Carrier 14 800 AMPS Supervisory Audio Tone 14 800 AMPS Voice 15 800 AMPS Signal 15 800 AMPS Wide Band Data 16 800 AMPS Lower Band Edge 16 800 AMPS Upper Band Edge 17 800 CDMA Reference Plot 18 800 CDMA Bandwidth Plot 18 800 CDMA Occupied Bandwidth Measurement 19 800 CDMA Lower Band Edge 19 800 CDMA Upper Band Edge 20 Spurious Emissions at Antenna Terminals 24 AMPS Tabular and Graphical Data 25 CDMA 800 Tabular and Graphical Data 26 Field Strength of Spurious Emissions 28 AMPS Tabular and Graphical Data 29 CDMA 800 Tabular and Graphical Data 30 Frequency Stability 32 AMPS Tabular and Graphical Data 33 CDMA 800 Tabular and Graphical Data 34 Field Strength of Spurious Emissions From Unintentional Radiators AMPS Tabular and Graphical Data 18 CDMA 800 Tabular and Graphical Data Test Report Number: 12503-1 EXHIBIT 6 2 APPLICANT: MOTOROLA INC FCC ID: IHDT5DY1 Appendix A - Radiated Emissions Test Setup Photos Figure A.1 – Radiated Emissions Measurement 36 Figure A.2 – Substitution Measurement 36 Test Report Number: 12503-1 EXHIBIT 6 3 APPLICANT: MOTOROLA INC FCC ID: IHDT5DY1 Test Report Details Tests Performed By: Motorola Personal Communications Sector Product Safety and Compliance Group 600 North US Hwy 45 Libertyville, IL 60048 PH (847) 523-3630 Fax (847) 523-4538 Motorola PCS FRN: 0004321311 FCC Registration Number: 316588 Industry Canada Number: IC3908 Tests Requested By: Motorola Inc. Personal Communications Sector 600 North US Hwy 45 Libertyville, IL 60048 Product Type: Cellular Phone Signaling Capability: AMPS, 800 CDMA Model Number: C357 Serial Numbers: 0x33881E00, 0x33881E01, 0x33881E02, 0x33881E03 Version: SJWF0200BB Testing Complete Date: November 13, 2003 Test Report Number: 12503-1 EXHIBIT 6 4 APPLICANT: MOTOROLA INC FCC ID: IHDT5DY1 Applicable Standards All tests and measurements indicated in this document were performed in accordance with the Code of Federal Regulations Title 47 Part 2, Sub-part J as well as the following parts: X Part 15 Subpart B – Unintentional Radiators X Part 22 Subpart H - Public Mobile Services X Part 24 - Personal Communications Services Part 90 - Private Land Mobile Radio Service Applicable Standards: TIA EIA 137-A, TIA EIA 98-C, ANSI 63.4 2001, RSS-118 (AMPS), RSS-128 (TDMA), RSS-129 (CDMA), RSS-133 (PCS) Test Report Number: 12503-1 EXHIBIT 6 5 APPLICANT: MOTOROLA INC FCC ID: IHDT5DY1 Summary of Testing Test Test Name # Pass/Fail 1 RF Power Output NA 2 ERP (Effective Radiated Power) NA 3 Modulation Characteristics N/A 4 Occupied Bandwidth Pass 5 Spurious Emissions at Antenna Terminal Pass 6 Field Strength of Spurious Emissions Pass 7 Frequency Stability Pass Test Test Name Margin with respect # to the Limit_________ 1 RF Power Output NA 2 ERP (Effective Radiated Power) NA 3 Modulation Characteristics NA 4 Occupied Bandwidth See Plots 5 Spurious Emissions at Antenna Terminal 13.9 dB 6 Field Strength of Spurious Emissions 12.2 dB 7 Frequency Stability 41 Hz The margin with respect to the limit is the minimum margin for all modes and bands. ( ) indicates the margin at which the product exceeds the limit. General and Special Conditions The EUT was tested using a fully charged battery when applicable. Where a battery could not be used due to the need for a controlled variation of input voltage, an external power supply was utilized. All testing was done in an indoor controlled environment with an average temperature of 22º C and relative humidity of 50%. Test Report Number: 12503-1 EXHIBIT 6 6 APPLICANT: MOTOROLA INC FCC ID: IHDT5DY1 Equipment and Cable Configurations The EUT was tested in a stand-alone configuration that is representative of typical use. Measuring Equipment and Calibration Information Manufacturer Name Item Name Description Model # Serial Number Calibration Due Date Agilent EMC Analyzer E7405A US5394401911/13/03 Hewlett Packard QP Adapter 85650A 2811A01069 1/15/04 Hewlett Packard S/A Display 8566B 2542A12974 1/15/04 Hewlett Packard S/A 8566B 2637A03376 1/15/04 Hewlett Packard RF Preselector 85685A 2810A00692 1/15/04 Rohde & Schwarz S/A FSEK20 DE2525315 1/14/04 EMCO Horn Antenna 1-18GHz 3115 2638 7/10/04 EMCO Horn Antenna 18-26.5GHz 3160-09 9904-1165 N/A* Chase Bi-Con Antenna 30-300MHz VBA6106A 1246 6/23/04 Chase Log-Periodic Antenna UPA6108 1120 6/18/04 Weinschel Attenuator Kit – 10, 6 dB AS6 6675 10/12/04 Thermotron Environmental Chamber S-4 31580 12/19/03 Hewlett Packard System DC Power Supply 66311B US38447252 10/13/04 Rohde & Schwarz Mobile Test Station CMD80 DE29008 03/17/04 Giga-tronics Universal Power…

Text truncated - open the document above for the full version.
