IHDT5EH1Portable Cellular Transceiver (AMPS/CDMA)

APPLICANT: MOTOROLA, INC. FCC ID: IHDT5EH1 EXHIBIT 8 INSTRUCTION MANUAL A preliminary draft copy of the Users Manual follows: User Manual C-215 START HERE > 2 3 Welcome Your phone may ot appear exactly as the phone image above. Note that all key locations, sequences, and functions remain the same with any of the covers. Left Soft Key Performs funcions identified by left dis- play prompt. Menu Key Open a menu when is in the display. Power/End Key Press & hold to turn phone on & off. Press & release to end phone calls, exit menu system. Earpiece Antenn a Right Soft Key Performs functions identified by right display prompt. Navigation Keys Scroll through lists, set volume. Send/Answer Key Make and answer calls; press in idle to list recently dialed calls. Microphone . Power Connector Insert charger. 4 Motorola, Inc., Consumer Advocacy Office 1307 East Algonquin Road Schaumburg, IL 60196 1-800-331-6456 (United States) 1-888-390-6456 (TTY/TDD United States) 1-800-461-4575 (Canada) www.motorola.com (United States) www.motorola.ca (Canada) MOTOROLA and the Stylized M Logo are registered in the US Patent & Trademark Office. All other product or service names are the property of their respective owners. Acrobat and Acrobat Reader are registered trademarks of Adobe Systems Incorporated. © Motorola, Inc. 2003 Software Copyright Notice The Motorola products described in this manual may include copyrighted Motorola and third party software stored in semiconductor memories or other media. Laws in the United States and other countries preserve for Motorola and third party software providers certain exclusive rights for copyrighted software, such as the exclusive rights to distribute or reproduce the copyrighted software. Accordingly, any copyrighted software contained in the Motorola products may not be modified, reverse-engineered, distributed, or reproduced in any manner to the extent allowed by law. Furthermore, the purchase of the Motorola products shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any license under the copyrights, patents, or patent applications of Motorola or any third party software provider, except for the normal, non-exclusive, royalty-free license to use that arises by operation of law in the sale of a product. Actual part numbers to be provided. Manual number: 6809457A28-O Cover number: 8988485L61-O 5 Contents Safety and General Information ............................................... 12 Getting Started........................................................................... 18 What’s in the Box? ................................................................ 18 About This Guide................................................................... 18 Optional Features.................................................................. 19 Optional Accessories ............................................................ 19 Installing the Battery.............................................................. 19 Charging the Battery ............................................................. 20 Charging time ........................................................................ 21 Battery Use............................................................................ 22 Changing Your SIM Card ...................................................... 24 Resetting Your Phone ........................................................... 26 Turning Your Phone On ............................................................ 26 Adjusting the Volume ............................................................ 27 Making a Call......................................................................... 28 Answering a Call ................................................................... 29 Dialing Menu ......................................................................... 29 Active Call Menu ................................................................... 29 1. Mute ........................................................................... 29 2. My Phone Number ..................................................... 30 3. Outgoing Calls ........................................................... 30 4. Incoming Calls ........................................................... 30 5. New Message ............................................................ 31 6. Voice Privacy ............................................................. 31 7. Tone Lenght ............................................................... 31 Learning to Use Your Phone .................................................... 32 Using the Display ................................................................. 32 Using the 4-Way Navigation Keys ........................................ 35 Using Menus ........................................................................ 36 6 Selecting a Feature Option ................................................... 37 Entering Text ........................................................................ 37 Choosing a Text Entry Method ............................................. 39 Using the TAP Method ......................................................... 40 Using the iTAP Method ........................................................ 42 Using Symbol Method .......................................................... 45 Symbol Chart ........................................................................ 45 Browse (Canned message or Quick Title) ............................ 46 Quick Title ............................................................................ 47 Recent Calls Outgoing Calls ...................................................................... 48 Incoming Calls ...................................................................... 50 Missed Calls ......................................................................... 51 Erase History ........................................................................ 51 1. Out…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA, INC. FCC ID: IHDT5EH1 SPECIFICATION COMPLIANCE STATEMENT Engineer-in-Charge Equipment Authorization Branch Federal Communications Commission We hereby certify that this transmit and receive equipment (FCC ID: IHDT5EH1), for dual-Mode mobile station cellular use, is capable of compliance with the TIA/EIA-98-D Mobile Station-Base Station Compatibility Standards for Dual-Mode Spread Spectrum Systems, June 2001. Furthermore, we certify compliance to ANSI/TIA/EIA-553-A-1999, Mobile Station-Land Station Compatibility Specification. (Signed ) GILSON DE LIMA RAEDER Engineering Manager Cellular Subscriber Equipment EXHIBIT 2 1 APPLICANT: MOTOROLA, INC. FCC ID: IHDT5EH1 STATEMENT OF CERTIFICATION The technical data supplied with this application, having been taken under my supervision is hereby duly certified. SIGNATURE: ( ) NAME: GILSON DE LIMA RAEDER DATE: POSITION: Engineering Manager EXHIBIT 2 2 APPLICANT: MOTOROLA, INC. FCC ID: IHDT5EH1 911 Call Processing Method Compliance Statement Method Used Pursuant to 47 CFR Sec. 22.921, this Motorola CDMA phone at the time of commercial distribution will use a call completion method for 911 calls that is approved or endorsed by the FCC. At this time Motorola intends that this phone will incorporate either the Automatic A/B Intelligent Retry method or the Automatic A/B-Intelligent Retry, Version 2 method for providing 911 emergency calling support. EXHIBIT 2 3

Date: July 9, 2004 Subject: Request for additional information regarding FCC ID: IHDT5EH1 (Portable Cellular AMPS/CDMA transceiver) Reference: Application Received: 6/18/2004 Correspondence Reference Number: 240702A.IHD Confirmation Number: TC4224 Date of Original Email: 7/2/2004 Prepared by: Andrew Bachler, Principal Staff Engineer Motorola Personal Communications Sector Libertyville, Illinois Questions and responses follow: 1. Section 22.917(b) requires that out of band measurements in the first 1 MHz band immediately outside and adjacent to the frequency block (i.e., bandedges) be made with a RBW greater than or equal to 1% of the emission bandwidth. In the test report, bandedge measurements for CDMA operation were made with RBW = 10kHz, which is less than 1% of the emission bandwidth. Please address. Response: The bandedge measurements are resubmitted using the integration method and an effective 13 kHz bandwidth to satisfy the RBW requirement. Please refer to the attached plots. 2. Please submit SAR plots for the body-worn, front of phone facing the phantom configuration (both AMPS and CDMA). Response: Please refer to the supplemental SAR report submitted on July 9, 2004. 3. Please correct the following typos in the SAR report: (a) p.4- incorrect Recommended Limits for the Tissue Parameters for body values are listed, (b) p.5- the Dipole Validation Target Value does not match the value listed in the Dipole Characterization Certificate. Response: Please refer to the supplemental SAR report submitted on July 9, 2004. 4. Please submit the User's Manual. Response: The user’s manual was submitted on July 6, 2004. 1 Band Edge Measurements CFR47 Part 2.1049, 22.917 Measurement Procedure The RF output port of the equipment under test is directly coupled to the input of the EMC analyzer through a specialized RF connector and a 10dB passive attenuator. The amplitude of the spectrum analyzer is corrected for the attenuator and any other applicable losses. The analyzer is set for Peak Detector and each trace is set for Max Hold. A fully charged battery was used for the supply voltage. The middle channel within the designated frequency block was measured. For digital modulation, the lower and upper band edge plots are displayed. The plotted data shown for the band edge measurements is representative of data taken with a true 13 kHz resolution bandwidth filter. The raw data was taken using a 1 kHz resolution bandwidth and was integrated to produce a response representative of data taken using a true 13 kHz resolution bandwidth filter. Instrument Settings Plot Resolution Bandwidth (kHz) Video Bandwidth (kHz) Sweep Points ( # ) Trace Mode Detector Samples ( ≥ # ) Lower Band Edge – CDMA 800 1 Auto 2002 Clear WrtPeak 30 Upper Band Edge – CDMA 800 1 Auto 2002 Clear WrtPeak 30 Measurement Results 2 Measurement Results – CDMA 800 CDMA 800 – Lower Band Edge – Channel 1013 (824.7 MHz) Lower Band Edge - GSM 850 823.9935, -18.100722 -40.00 -35.00 -30.00 -25.00 -20.00 -15.00 -10.00 -5.00 0.00 5.00 10.00 823823.2823.4823.6823.8824824.2824.4824.6824.8825 Frequency (MHz) A m pli t ude ( d B m ) Lower Band Edge Emissions Max Value Specification CDMA 800 – Upper Band Edge – Channel 777 (848.31 MHz) Upper Band Edge - GSM 850 849.0065, -16.665608 -45.00 -40.00 -35.00 -30.00 -25.00 -20.00 -15.00 -10.00 -5.00 0.00 5.00 10.00 848.0000848.2000848.4000848.6000848.8000849.0000849.2000849.4000849.6000849.8000850.0000 Frequency (MHz) A m pli t ude ( d B m ) Upper Band Edge Emissions Max Value Specification 3

APPLICANT: MOTOROLA FCC ID: IHDT5EH1 June 18, 2004 CONFIDENTIALITY REQUEST CONTAINED WITHIN Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Application for Cellular/PCS Transceiver Certification Gentlemen: Application: Motorola, Inc., Personal Communications Sector, 600 N. U.S. Highway 45, Libertyville, Illinois 60048-1286 herein submits: Application for Equipment Authorization for Certification of a Cellular Transceiver, FCC ID: IHDT5EH1. Confidentiality: Pursuant to Section 0.459 of the Commission's rules (CFR 47), Motorola requests confidentiality for portions of the material contained in this application and that the identified material be withheld from public inspection following the grant of this authorization. This material contains Motorola's trade secrets and confidential information that Motorola does not customarily release to the public and which is otherwise not generally available to the public. Confidentiality is requested for the following exhibits: • Exhibit 4 Block Diagrams • Exhibit 5 Schematics • Exhibit 10 Parts List • Exhibit 12 Operational Description Description: This equipment has the capability to operate in both the conventional Analog Cellular and the Digital CDMA standards in the 800 MHz band. Contact Information: Please contact me by telephone at (847) 523-6167, or by e-mail ( [email protected]), if there are questions or additional information needed concerning this filing. Regards, Andrew J. Bachler FCC Liaison Personal Subscriber Sector 600 N. U.S. Highway 45 Libertyville, IL 60048-5343 Exhibit 13

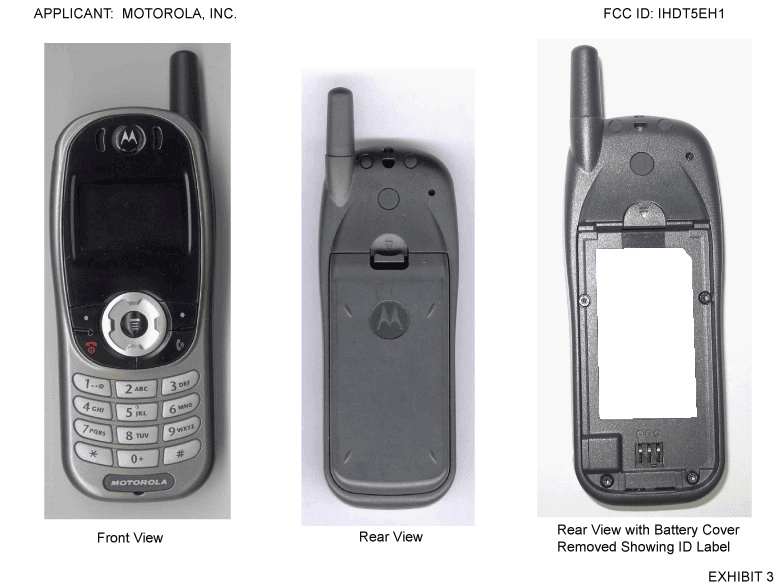

APPLICANT: MOTOROLA INC. FCC ID: IHDT5EH1 FCC IDENTIFICATION (NAMEPLATE) INFORMATION FCC ID: IHDT5EH1 The FCC label shown is representative of the label that will appear on the radio when in production. It will be placed on the outside of the equipment as shown in Exhibit 3. Other information may also be included on this label. EXHIBIT 1

APPLICANT: MOTOROLA, INC. FCC ID: IHDT5EH1 Front View (with Display) Front View Exhibit 9 1 APPLICANT: MOTOROLA, INC. FCC ID: IHDT5EH1 Rear View (without shields) Rear View Exhibit 9 2 APPLICANT: MOTOROLA, INC. FCC ID: IHDT5EH1 Housing Internal Views Exhibit 9 3

APPLICANT: MOTOROLA, INC. FCC ID: IHDT5EH1 E E x x h h i i b b i i t t 1 1 1 1 Exhibit 11: SAR Test Report IHDT5EH1 Date of test: Date of Report: 1 – 3 & 7 June, 2004 11 June, 2004 Laboratory: Motorola Personal Communications Sector Product Safety & Compliance Laboratory 600 N. US Highway 45 Room: MW113 Libertyville, Illinois 60048 Test Responsible: Steven Hauswirth Principal Staff Engineer Accreditation: This laboratory is accredited to ISO/IEC 17025-1999 to perform the following tests: Tests : Procedures: Electromagnetic Specific Absorption Rate ANSI/IEEE C95.1-1992, 1999 (SAR) IEEE C95.3-1991 IEEE P1528 (DRAFT) FCC OET Bulletin 65 (including Supplements A, B, C) Australian Communications Authority Radio Communications (Electromagnetic Radiation – Human Exposure) Standard 1999 CENELEC EN 50361 (2001) Simulated Tissue Preparation APP-0247 RF Power Measurement DOI-0876, 0900, 0902, 0904, 0915 On the following products or types of products: Wireless Communications Devices (Examples): Two Way Radios; Portable Phones (including Cellular, Licensed Non-Broadcast and PCS); Low Frequency Readers; and Pagers A2LA certificate #1651-01 Statement of Compliance: Motorola declares under its sole responsibility that portable cellular telephone FCC ID IHDT5EH1 to which this declaration relates, is in conformity with the appropriate General Population/Uncontrolled RF exposure standards, recommendations and guidelines (FCC 47 CFR §2.1093). It also declares that the product was tested in accordance with the appropriate measurement standards, guidelines and recommended practices. Any deviations from these standards, guidelines and recommended practices are noted below: (none) ©Motorola, Inc. 2004 This test report shall not be reproduced except in full, without written approval of the laboratory. The results and statements contained herein relate only to the items tested. The names of individuals involved may be mentioned only in connection with the statements or results from this report. Motorola encourages all feedback, both positive and negative, on this test report. APPLICANT: MOTOROLA, INC. FCC ID: IHDT5EH1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 2 2 Table of Contents 1. INTRODUCTION...................................................................................................................................... 3 2. DESCRIPTION OF THE DEVICE UNDER TEST.................................................................................... 3 2.1 Antenna description.................................................................................................................................................3 2.2 Device description..................................................................................................................................................3 3. TEST EQUIPMENT USED........................................................................................................................ 3 3.1 Dosimetric System .................................................................................................................................................3 3.2 Additional Equipment...........................................................................................................................................4 4. ELECTRICAL PARAMETERS OF THE TISSUE SIMULATING LIQUID............................................. 4 5. SYSTEM ACCURACY VERIFICATION.................................................................................................. 4 6. TEST RESULTS........................................................................................................................................ 5 6.1 Head Adjacent Test Results..................................................................................................................................6 6.2 Body Worn Test Results .......................................................................................................................................7 APPENDIX 1: SAR DISTRIBUTION COMPARISON FOR SYSTEM ACCURACY VERIFICATION...... 9 APPENDIX 2: SAR DISTRIBUTION PLOTS FOR PHANTOM HEAD ADJACENT USE....................... 10 APPENDIX 3: SAR DISTRIBUTION PLOTS FOR BODY WORN CONFIGURATION........................... 13 APPENDIX 4: PROBE CALIBRATION CERTIFICATE.......................................................................... 15 APPENDIX 5: DIPOLE CHARACTERIZATION CERTIFICATE............................................................ 16 APPENDIX 6: MEASUREMENT UNCERTAINTY BUDGET................................................................... 17 APPENDIX 7: PHOTOGRAPHS OF DEVICE UNDER TEST ................................................................... 20 APPLICANT: MOTOROLA, INC. FCC ID: IHDT5EH1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 3 3 1. Introduction The Motorola Personal Communications Sector Product Safety Laboratory has performed measurements of the maximum potential exposure to the user of portable cellular phone (FCC ID IHDT5EH1). The Specific Absorption Rate (SAR) of this product was measured. The portable cellular phone was tested in accordance with FCC OET Bulletin 65 Supplement C 01-01. 2. Description of the Device Under Test a. Antenna description Type External Stub Location Upper Right Corner Length 20mm Dimensions Width 9mm Configuration Helix b. Device description FCC ID Number IHDT5EH1 Serial number 321E7F4B Mode(s) of Operation AMPS CDMA800 Modulation Mode(s) AMPS CDMA Maximum Output Power Setting 27.50 25.00 Duty Cycle 1:1 1:1 Transmitting Frequency Rang(s) 824.04 – 848.97 MHz 824.70 – 848.31 MHz Production Unit or Identical Prototype (47 CFR §2..908) Identical Prototype Device Category Portable RF Exposure Limits General Population / Uncontrolled 3. Test Equipment Used 3.1 Dosimetric System The Motorola Personal Communications Sector Product Safety & Compliance Laboratory utilizes a Dosimetric Assessment System (Dasy3™ v3.1d) manufactured by Schmid & Partn…

Text truncated - open the document above for the full version.

July 02, 2004 Supplement to SAR Test Report for Motorola portable cellular phone (FCC ID IHDT5EH1) Prepared by: Albert Patapack Motorola Personal Communications Sector Product Safety Laboratory Libertyville, Illinois Summary of FCC request for additional information There was a request for additional information regarding Motorola’s SAR Test Report for Motorola portable cellular phone (FCC ID IHDT5EH1). The requested information is addressed below in the same numbering sequence received. 2. Please submit SAR plots for the body-worn, front of phone facing the phantom configuration (both AMPS and CDMA). Response: The requested plots are below in the Supplement to Appendix 3. 3. Please correct the following typos in the SAR report: (a) p.4- incorrect Recommended Limits for the Tissue Parameters for body values are listed, (b) p.5- the Dipole Validation Target Value does not match the value listed in the Dipole Characterization Certificate. Response: The corrected tables are attached below. Dielectric Parameters f (MHz) Tissue type Limits / Measured ε r σ (S/m) Temp (°C) Measured, 1-Jun-04 41.0 0.91 21.6 Measured, 2-Jun-04 40.6 0.90 21.4 Measured, 3-Jun-04 42.1 0.92 21.5 Head Recommended Limits 41.5 ±5% 0.90 ±5% 18-25 Measured, 7-Jun-04 53.9 0.96 21.4 835 Body Recommended Limits 55.2 ±5% 0.97 ±5% 18-25 Dielectric Parameters f (MHz) Description SAR (W/kg), 1gram ε r σ (S/m) Ambient Temp (°C) Tissue Temp (°C) Measured, 1-Jun-04 11.3 40.2 0.97 21 21.3 Measured, 2-Jun-04 11.1 39.8 0.96 21 20.9 Measured, 3-Jun-04 11.2 41.3 0.98 21 21.8 Measured, 7-Jun-04 11.3 41.1 0.98 21 21.8 900 Recommended Limits 11.4 41.5 ±5% 0.97 ±5% 18-25 18-25 Supplement to Appendix 3 SAR distribution plots for Body Worn Configuration s/n: 321E7F4BCh# 384 / Pwr Step: 02(OTA) Antenna Po sition: Fixed Type of Modulation: Amps 800 Battery Model #: SNN5668A Accessory Model # = SYN8390B_HeadsetAmy Twin Phantom Rev.4 (22Aug02) Phantom; section 1 Section; Position: (0°, 0°); Frequency: 837 MHz Probe: ET3DV6 - SN1503 - FCC Body.2; ConvF(6.20,6.20,6.20); Crest factor: 1.0; 835 MHz Head & Body: σ = 0.96 mho/m ε r = 53.9 ρ = 1.00 g/cm 3 Cube 7x7x7: SAR (1g): 0.421 mW/g, SAR (10g): 0.302 mW/g, (Worst-case extrapolation)Coarse: Dx = 15.0, Dy = 15.0, Dz = 10.0Penetration depth: 16.9 (15.4, 18.5) [mm]Powerdrift: 0.01 dB SAR Tot [mW/g] 2.10E-26.31E-21.05E-11.26E-11.68E-12.10E-12.32E-12.74E-13.16E-13.37E-13.79E-14.21E-1 06/07/04Motorola, Inc. 321E7F4BCh# 384 / Pwr Step: Always up(OTA) Antenna Position: Fixed Type of Modulation: CDMA 800 Battery Model #: SNN5668A Accessory Model # = SYN8390B_HeadsetAmy Twin Phantom Rev.4 (22Aug02) Phantom; section 1 Section; Position: (0°, 0°); Frequency: 837 MHz Probe: ET3DV6 - SN1503 - FCC Body.2; ConvF(6.20,6.20,6.20); Crest factor: 1.0; 835 MHz Head & Body: σ = 0.96 mho/m ε r = 53.9 ρ = 1.00 g/cm 3 Cube 7x7x7: SAR (1g): 0.396 mW/g, SAR (10g): 0.284 mW/g, (Worst-case extrapolation)Coarse: Dx = 15.0, Dy = 15.0, Dz = 10.0Penetration depth: 16.9 (15.5, 18.4) [mm]Powerdrift: -0.09 dB SAR Tot [mW/g] 1.93E-25.81E-29.68E-21.16E-11.55E-11.94E-12.13E-12.52E-12.90E-13.10E-13.48E-13.87E-1 06/07/04Motorola, Inc.

APPLICANT: MOTOROLA INC FCC ID: IHDT5EH1 PERSONAL COMMUNICATIONS SECTOR PRODUCT SAFETY AND COMPLIANCE EMC LABORATORY EMC TEST REPORT Test Report Number – 14290-1 Report Date – June 14, 2004 The test results contained herein relate only to the model(s) identified. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical characteristics. As the responsible EMC Engineer, I hereby declare that the equipment tested as specified in this report conforms to the requirements indicated . Signature Name: _Michael E. Hill Title: Senior Electrical Engineer Date : 2004-06-14____ This report must not be reproduced, except in full, without written approval from this laboratory. THIS REPORT MUST NOT BE USED TO CLAIM PRODUCT ENDORSEMENT BY A2LA OR ANY AGENCY OF THE U.S. GOVERNMENT. A2LA Certificate Number: 1846-01 EXHIBIT 6 APPLICANT: MOTOROLA INC FCC ID: IHDT5EH1 Table of Contents Description Page Test Report Details 4 Applicable Standards 4 Summary of Testing 5 General and Special Conditions 5 Equipment and Cable Configurations 6 Measuring Equipment and Calibration Information 6 Measurement Procedures and Data RF Power Output 7 Radiated Power (ERP) 8 AMPS Audio Response 9 Tx Audio Response-AMPS Mode 9 Frequency Deviation w/Compander On 9 Frequency Deviation w/Compander Off 10 Occupied Bandwidth 11 Measurement Results 11 AMPS-Unmodulated Carrier 12 AMPS Supervisory Audio Tone 12 AMPS Voice 13 AMPS Signaling Tone 13 AMPS – 10kb/s Wideband Data 14 AMPS Lower Band Edge 14 AMPS Upper Band Edge 15 CDMA 800 Reference Level Plot 16 CDMA 800 Occupied Bandwidth Plot 17 CDMA 800 Lower Band Edge 17 CDMA 800 Upper Band Edge 18 Spurious Emissions at Antenna Terminals 19 AMPS 800 Tabular and Graphical Data 20 CDMA 800 Tabular and Graphical Data 21 Field Strength of Spurious Emissions 22 AMPS 800 Tabular and Graphical Data 23 CDMA 800 Tabular and Graphical Data 24 Frequency Stability 25 AMPS 800 Tabular and Graphical Data 26 CDMA 800 Tabular and Graphical Data 27 Test Report Number: 14290-1 EXHIBIT 6 2 APPLICANT: MOTOROLA INC FCC ID: IHDT5EH1 Field Strength of Spurious Emissions from Unintentional Radiators 28 AMPS 800 Tabular and Graphical Data 29 CDMA 800 Tabular and Graphical Data 30 Appendix A - Radiated Emissions Test Setup Photos Figure A.1 – Radiated Emissions Measurement 31 Figure A.2 – Substitution Measurement 31 Test Report Number: 14290-1 EXHIBIT 6 3 APPLICANT: MOTOROLA INC FCC ID: IHDT5EH1 Test Report Details Tests Performed By: Motorola Personal Communications Sector Product Safety and Compliance Group 600 North US Hwy 45 Libertyville, IL 60048 PH (847) 523-6167 Fax (561) 523-4538 Motorola PCS FRN: 0004321311 FCC Registration Number: 316588 Industry Canada Number: IC3908 Tests Requested By: Motorola Inc. Personal Communications Sector 600 North US Hwy 45 Libertyville, IL 60048 Product Type: Cellular Phone Signaling Capability: AMPS 800 and CDMA 800 Model Number: C215 Version: SJWF0233BA Serial Numbers: 321E7F63, 321E7F64, 321E7F67, 321E7F69 Testing Complete Date: June 14, 2004 Applicable Standards All tests and measurements indicated in this document were performed in accordance with the Code of Federal Regulations Title 47 Part 2, Sub-part J as well as the following parts: X Part 15 Subpart B – Unintentional Radiators X Part 22 Subpart H - Public Mobile Services X Part 24 - Personal Communications Services Part 90 - Private Land Mobile Radio Service Applicable Standards: TIA EIA 137-A, TIA EIA 98-C, ANSI 63.4 2001, RSS-118 (AMPS), RSS-128 (CDMA), RSS-129 (CDMA), RSS-133 (PCS) Test Report Number: 14290-1 EXHIBIT 6 4 APPLICANT: MOTOROLA INC FCC ID: IHDT5EH1 Summary of Testing Test Test Name # Pass/Fail 1 RF Power Output NA 2 ERP (Effective Radiated Power) NA 3 Modulation Characteristics Pass 4 Occupied Bandwidth Pass 5 Spurious Emissions at Antenna Terminal Pass 6 Field Strength of Spurious Emissions Pass 7 Frequency Stability Pass 8 Field Strength of Spurious Emissions Pass from Unintentional Radiators Test Test Name Margin with respect # to the Limit_________ 1 RF Power Output NA 2 ERP (Effective Radiated Power) NA 3 Modulation Characteristics NA 4 Occupied Bandwidth See Plots 5 Spurious Emissions at Antenna Terminal 12.5 dB 6 Field Strength of Spurious Emissions 3.5 dB 7 Frequency Stability 59.0 Hz 8 Field Strength of Spurious Emissions 9.2 dB from Unintentional Radiators The margin with respect to the limit is the minimum margin for all modes and bands. ( ) indicates the margin at which the product exceeds the limit. General and Special Conditions The EUT was tested using a fully charged battery when applicable. Where a battery could not be used due to the need for a controlled variation of input voltage, an external power supply was utilized. All testing was done in an indoor controlled environment with an average temperature of 22º C and relative humidity of 50%. Test Report Number: 14290-1 EXHIBIT 6 5 APPLICANT: MOTOROLA INC FCC ID: IHDT5EH1 Equipment and Cable Configurations The EUT was tested in a stand-alone configuration that is representative of typical use. Measuring Equipment and Calibration Information ManufacturerEquipment TypeModel No.Serial NumberCal. Due Date Rohde & SchwarzReceiverESI26838786/0105/17/2005 Hewlett-PackardEMC Analyzer8593EM3536A0011810/2/2004 Hewlett-PackardEMC Analyzer7405US3944019111/13/2004 MiteqPreamplifier 0.1-26.5GHzNSP2650-NF-S9663501/8/2005 ETSDRG Horn Antenna31156222 9/29/2004 A.H. Systems Inc.DRG Horn AntennaSAS-2--/57136512/17/2004 ETSLog-Periodic Antenna314811883/5/2005 ETSBiconical Antenna3110B337011/14/2004 AttenuatorWeinschelAS-6667510/14/2004 AttenuatorWeinschelAS-6667711/4/2004 Rohde & SchwarzMobile Test SetCMD 80DE29008N/A Hewlett-PackardSignal Generator83623B3844A011956/20/2004 ThermotronEnvironmental ChamberS-4315801/5/2005 Hewlett-PackardPre-Amplifier8347A3307A0200111/4/2004 AgilentPower MeterEE4418BGB4020638812/5/2004 AgilentPower SensorE4412BUS3848632111…

Text truncated - open the document above for the full version.
