IHDT5GB1Portable Cellular CDMA Transceiver

APPLICANT: MOTOROLA, INC. FCC ID: IHDT5GB1 INSTRUCTION MANUAL • A preliminary draft copy of the User’s Manual follows this cover page. • The User’s Manual will have the following text added to it: "NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: . Reorient or relocate the receiving antenna. . Increase the separation between the equipment and receiver. . Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. . Consult the dealer or an experienced radio/TV technician for help." A statement according to FCC Part 15.19(a) will be included in the production version of the user's manual. EXHIBIT 8 motorola.com W210 CDMA 1 HELLOMOTOWelcome to the world of Motorola digital wireless communications! We are pleased that you have chosen the Motorola W210 wireless phone. EarpieceListen to your voice calls & messages. Left Soft Key Perform functions identified by left display prompt. Send/Answer Key Make & answer calls. Press in idle screen to see the recent dialed calls. Microphone Power Connector Port Insert the charger. Navigation Key Scroll through lists, set volume. Power/End KeyPress & hold to turn on/off the phone. Press & release to end phone calls, exit menu system.Right Soft KeyPerform functions identified by right display prompt.Menu KeyOpen a menu when you see in the display. 2Motorola, Inc.Consumer Advocacy Office1307 East Algonquin RoadSchaumburg, IL 60196www.hellomoto.comCertain mobile phone features are dependent on the capabilities and settings of your service provider’s network. Additionally, certain features may not be activated by your service provider, and/or the provider's network settings may limit the feature’s functionality. Always contact your service provider about featur e availability and functionality. All features, functionality, and other product specifications, as well as the information contained in this user's guide are based upon the latest available information and are believed to be accurate at the time of printing. Motorola reserves the right to change or modify any information or specifications without notice or obligation. MOTOROLA and the Stylized M Logo are registered in the US Patent & Trademark Office. 2005 All other product or service names are the property of their respective owners. © Motorola, Inc. 2005. Manual Number: 3 check it out! check it out!Note: Your phone may not appear exactly as the phone image above, however, all key locations, sequences, and functions remain the same. Integrated AntennaEmbedded in the top-back of the phone. Battery Room Headset jack Lanyard Attachment 4Use and CareTo care for your Motorola phone, please keep it away from: liquids of any kind dust and dirt Don’t expose your phone to water, rain, extreme humidity, sweat, or other moisture. Don’t expose your phone to dust, dirt, sand, food, or other inappropriate materials. extreme heat or cold cleaning solutions Avoid temperatures below-10°C/14°F or above 45°C/113°F. To clean your phone, use only a dry soft cloth. Don’t use alcohol or other cleaning solutions. microwaves the ground Don’t try to dry your phone in a microwave oven. Don’t drop your phone. 5 feature locator main menu Messages • Create Message•Voicemail•Text Msgs•Quick Notes• Outbox•Drafts Phonebook •[New Entry] Recent Calls • Missed Calls• Received Calls• Dialed Calls•Call Times Games • Football•Crazy•Rabel MyMenu • [New MyMenu] Alarm Clock •[New Entry] Brew • Mobile Shop• Settings•Help Settings •Ring Styles• Phone Status• In-Call Setup• Security• Personalize•Initial Setup•Network• Headset More •Calculator• Stop Watch• Datebook•Alarn Clock• Service Dial 6 contents contentscheck it out! . . . . . . . . . . . 3Use and Care . . . . . . . . . . 4essentials . . . . . . . . . . . . . 8 about this guide . . . . . . . 8RUIM card . . . . . . . . . . . 9battery . . . . . . . . . . . . . . 9battery tips . . . . . . . . . . 10turn it on & off . . . . . . . 11make a call . . . . . . . . . . 11answer a call . . . . . . . . 11correcting entry errors . 12 main attractions. . . . . . . 13 zoom number display . . 13datebook . . . . . . . . . . . 13read messages with iMelody . . . . . . . . . . . . 18fm radio . . . . . . . . . . . . 19 basics . . . . . . . . . . . . . . . 20 display . . . . . . . . . . . . . 20menus . . . . . . . . . . . . . 22text entry . . . . . . . . . . . 24navigation key . . . . . . . 26codes & passwords . . 26lock & unlock phone . . . 27phonebook search . . . . 27storing phone numbers 28adjusting in-call microphone volume . . . 28volume . . . . . . . . . . . . . 28speakerphone . . . . . . . 29using caller ID . . . . . . . 29redialing last dialed, received, or missed number . . . . . . . . . . . . 29speed dmialing. . . . . . . 30 keypad lock/unlock . . . 30etiquette mode. . . . . . 30shortcut . . . . . . . . . . . 31personalizing . . . . . . . 31 customize . . . . . . . . . . . 32 ring style . . . . . . . . . . 32time & date . . . . . . . . 33animation . . . . . . . . . . 33display appearance. . . 33screen saver. . . . . . . . 33home screen . . . . . . . 34main menu . . . . . . . . . 34battery save . . . . . . . . 34answer options . . . . . 34 calls . . . . . . . . . . . . . . . . 35 recent calls. . . . . . . . . 35redial . . . .…

Text truncated - open the document above for the full version.

Applicant: Motorola, Inc. FCC ID: IHDT5GB1 SPECIFICATION COMPLIANCE STATEMENT Transceiver type FCC ID: IHDT5GB1 has been tested in accordance with the requirements contained in the appropriate Commission regulations. To the best of my knowledge, these tests were performed using measurement procedures consistent with industry or Commission standards and demonstrate that this equipment complies with the appropriate standards. Each unit manufactured imported or marketed, will conform to the sample tested within the variations that can be expected due to quantity production and testing on a statistical basis. I further certify that the necessary measurements were made at: Motorola Personal Communications Sector Product Safety and Compliance Group 600 North US Hwy 45 Libertyville, IL 60048 NAME: Shankar Chidambaram TITLE: Engineering Manager CDMA ODM Engineering Date: August 17, 2006 Exhibit 2 1 Applicant: Motorola, Inc. FCC ID: IHDT5GB1 STATEMENT OF CERTIFICATION I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in this application and accompanying technical data are true and correct. The technical data supplied with this application was taken under my supervision and is hereby duly certified. I also certify that this transmit equipment (FCC ID: IHDT5GB1) is in compliance with all applicable parts of the FCC Rules. NAME: John Tuck TITLE: Lead Engineer CDMA ODM Engineering Date: August 17th, 2006 Exhibit 2 2

APPLICANT: MOTOROLA,INC. FCC ID: IHDT5GB1 September 5, 2006 CONFIDENTIALITY REQUEST CONTAINED WITHIN Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Application for Cellular Transceiver Certification Gentlemen: Application: Motorola, Inc., Mobile Devices, 600 N. U.S. Highway 45, Libertyville, Illinois 60048 herein submits: Application for Equipment Authorization for Certification of a Cellular Transceiver, FCC ID: IHDT5GB1. Motorola is also the manufacturer of this equipment. Confidentiality: Pursuant to Section 0.459 of the Commission's rules (CFR 47), Motorola requests confidentiality for portions of the material contained in this application and that the identified material be withheld from public inspection following the grant of this authorization. This material contains Motorola's trade secrets and confidential information that Motorola does not customarily release to the public and which is otherwise not generally available to the public. Confidentiality is requested for the following exhibits: • Exhibit 4 Block Diagrams • Exhibit 5 Schematics • Exhibit 10 Parts List / Tune-up Information • Exhibit 12 Operational Description Description: This equipment is a CDMA portable transceiver, which operates in the 800 MHz cellular band. Contact Information: Please contact me by telephone at (847) 523-6167, or by e-mail ( [email protected]), if there are questions or additional information needed concerning this filing. Regards, Andrew J. Bachler FCC Liaison Mobile Devices 600 N. U.S. Highway 45 Libertyville, IL 60048 Exhibit 13

Applicant: Motorola, Inc. Date: September 22, 2006 Subject: Request for additional information regarding FCC ID: IHDT5GB1 (Portable CDMA transceiver) Reference: Correspondence Reference Number: IHD0538 Confirmation Number: 1609060538 Date of Original Email: September 20, 2006 Questions and responses follow: 1. Please update Exhibit 1 regarding the placement of the equipment FCC ID label according to information from Exhibit 3. Response: Please refer to the exhibit 1 submitted on September 22, 2006. 2. Please fully address the FCC 3G policy recently issued in June 2006 for CDMA2000. In particular please supply RC/SO table applicable to the device and indicate the configuration used for testing. Response: Please refer to the following table: Conducted power (dBm) for CDMA modes Channel RC1 RC3 RC3 (FCH + SCH) 1013 24.52 24.49 384 24.64 24.61 CDMA 800 777 24.46 24.37 Per Motorola designs, the maximum power, when in a mode that allows supplemental channels, will always be less than the RC3/RC1 maximum conducted power limit. 3. Please confirm this model does not have USB connectivity. Response: Confirmed, this device does not have computer peripheral capability. 4. Please clarify band of operation in Exhibit 13. PCS is mentioned. Response: Operation is on the 800 MHz cellular band only. Please refer to the exhibit 13 submitted on September 22, 2006. Prepared by: Andrew Bachler, Principal Staff Engineer Motorola Mobile Device Business Libertyville, Illinois 1

Applicant: Motorola, Inc. Date: September 29, 2006 Subject: Request for additional information regarding FCC ID: IHDT5GB1 (Portable CDMA transceiver) Reference: Correspondence Reference Number: IHD0538-1 Confirmation Number: 1609060538 Date of Original Email: September 22, 2006 1. In accordance with the new FCC policy instituted at the 9/12/06 TCB-FCC Conference Call, please verify that the FCC ID label will be visible at the time of purchase (i.e., the battery will not be installed during packaging). Response: Please refer to the updated exhibit 1 submitted on September 29, 2006. 2. Because the EUT has cdma2000 capabilities, it must be tested in accordance with the FCC procedures for testing devices that employ 3G technologies, released on May 9, 2006. Please submit the required information and data (e.g., available RC/SO combinations and their respective output power levels, specific combinations used for EMC and SAR tests (RC3/SO55 for head, RC3/SO32 for body), indication of Ev-DO capability, etc.). Response: No Ev-DO, SO55 used for head, SO32 used during body worn. For conducted power values, please refer to the following table: Conducted power (dBm) for CDMA modes Channel RC1/SO55RC3/SO55RC3 (FCH + SCH)/SO32 1013 24.52 24.49 384 24.64 24.61 CDMA 800 777 24.46 24.37 Per Motorola designs, the maximum power, when in a mode that allows supplemental channels, will always be less than the RC3/RC1 maximum conducted power limit. 3. Because the phone is designed for the user to connect to a pc, the EUT is also considered a Class B Peripheral, subject to either Certification or DoC. If you have selected DoC, please resubmit the FCC ID label showing the required DoC logo and text. If you choose certification, please submit a Part 15B test report, test set up photos, etc., for the peripheral portion of the EUT. Response: This device does not have computer peripheral capability. 4. The User’s Manual does not appear to contain the required text regarding RF exposure, specifically, the warning statement for body-worn operation. Please confirm that this statement will be prominently placed in the manual prior to shipment of the EUT. Response: The required RF exposure text will be included in the final manual. 1 5. If the EUT is, indeed, a pc peripheral, please confirm that the statement required by Section 15.21 will be included in the User’s manual prior to shipment of the EUT. Response: This device does not have computer peripheral capability. Prepared by: Andrew Bachler, Principal Staff Engineer Motorola Mobile Device Business Libertyville, Illinois 2

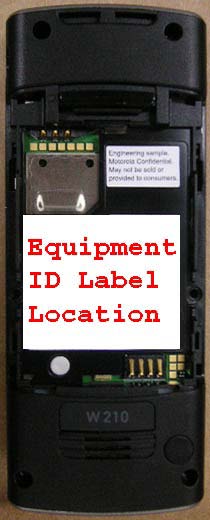

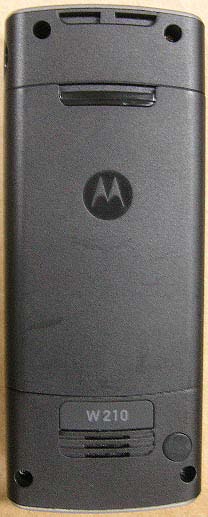

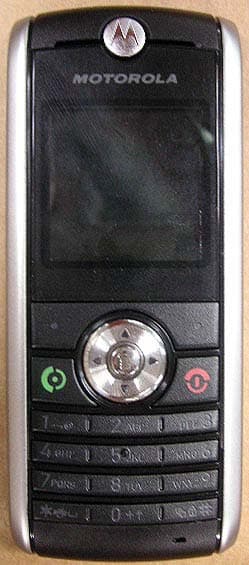

APPLICANT: MOTOROLA, INC. FCC ID: IHDT5GB1 EXHIBIT 3 Rear View with Battery Cover Removed Showing ID Label Front View Rear View

APPLICANT: MOTOROLA INC. FCC ID: IHDT5GB1 FCC IDENTIFICATION (NAMEPLATE) INFORMATION FCC ID: IHDT5GB1 The FCC label shown is representative of the label that will appear on the radio when in production. It will be placed on the equipment as shown in Exhibit 3, and is readily visible at the time of purchase. Other information may also be included on this label. EXHIBIT 1

APPLICANT: MOTOROLA, INC. FCC ID: IHDT5GB1 EXHIBIT 9 Front View Rear View Without Shields Rear View

0 0 Portable Cellular Phone SAR Test Report Test Report #: 18872-1F Date of Report: 07-Aug-2006 through 08-Aug-2006 Date of Test: 23-Aug-2006 FCC ID #: IHDT5GB1 Generic Name: W210 Laboratory: Motorola Mobile Devices Business Product Safety & Compliance Laboratory 11th Floor, Hibrand Living Hall, 215, Yangae-Dong, Seocho-Gu, Seoul, South Korea, 137-130 Report Author: Jon Park Senior Staff Engineer Accreditation: This laboratory is accredited to ISO/IEC 17025-1999 to perform the following tests: Tests : Procedures: Electromagnetic Specific Absorption Rate ANSI / IEEE C95.1-1992, 1999 (SAR) IEEE C95.3-1991 IEEE 1528, IEC 62209-1 FCC OET Bulletin 65 (including Supplements A, B, C) Australian Communications Authority Radio Communications (Electromagnetic Radiation – Human Exposure) Standard 2003 CENELEC EN 50361 (2001) Simulated Tissue Preparation APP-0247 RF Power Measurement DOI-0876, 0900, 0902, 0904, 0915 On the following products or types of products: Wireless Communications Devices (Examples): Two Way Radios; Portable Phones (including Cellular, Licensed Non-Broadcast and PCS); Low Frequency Readers; and Pagers A2LA certificate #1651-02 Statement of Compliance: Motorola declares under its sole responsibility that the portable cellular telephone model to which this declaration relates, is in conformity with the appropriate General Population/Uncontrolled RF exposure standards, recommendations and guidelines (FCC 47 CFR §2.1093) as well as with CENELEC en50360:2001 and ANSI / IEEE C95.1. It also declares that the product was tested in accordance with CENELEC en50361:2001, IEEE 1528, as well as other appropriate measurement standards, guidelines and recommended practices. Any deviations from these standards, guidelines and recommended practices are noted below: (none) ©Motorola, Inc. 2006 This test report shall not be reproduced except in full, without written approval of the laboratory. The results and statements contained herein relate only to the items tested. The names of individuals involved may be mentioned only in connection with the statements or results from this report. Motorola encourages all feedback, both positive and negative, on this test report. MOTOROLA, INC. Portable Cellular Phone SAR Test Report Number: 18872-1F E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 1 1 Table of Contents 1. Introduction 2 2. Description of the Device Under Test 2 2.1 Antenna description 2 2.2 Device description 2 3. Test Equipment Used 3 3.1 Dosimetric System 3 3.2 Additional Equipment 3 4. Electrical parameters of the tissue simulating liquid 4 5. System Accuracy Verification 5 6. Test Results 6 6.1 Head Adjacent Test Results 6 6.2 Body Worn Test Results 8 References 10 Appendix 1: SAR distribution comparison for system accuracy verification 11 Appendix 2: SAR distribution plots for Phantom Head Adjacent Use 12 Appendix 3: SAR distribution plots for Body Worn Configuration 13 Appendix 4: Probe Calibration Certificate 14 Appendix 5: Measurement Uncertainty Budget 15 Appendix 6: Photographs of the device under test 17 Appendix 7: Dipole Characterization Certificate 21 MOTOROLA, INC. Portable Cellular Phone SAR Test Report Number: 18872-1F E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 2 2 1. Introduction The Motorola Mobile Devices Business Product Safety Laboratory has performed measurements of the maximum potential exposure to the user of the portable cellular phone covered by this test report. The Specific Absorption Rate (SAR) of this product was measured. The portable cellular phone was tested in accordance with [1], [4] and [5]. The SAR values measured for the portable cellular phone are below the maximum recommended levels of 1.6 W/kg in a 1g average set in [3] and 2.0W/kg in a 10g average set in [2]. 2. Description of the Device Under Test 2.1 Antenna description Type Internal Antenna Location Bottom of Transceiver Length 34.80 mm Dimensions Width 20.64 mm Configuration PIFA 2.2 Device description Serial number 1B6FC1F0 Mode(s) of Operation 800 CDMA Modulation Mode(s) QPSK Maximum Output Power Setting 24.50 dBm Duty Cycle 1:1 Transmitting Frequency Rang(s) 824.70 – 848.31 MHz Production Unit or Identical Prototype (47 CFR §2..908) Identical Prototype Device Category Portable RF Exposure Limits General Population / Uncontrolled MOTOROLA, INC. Portable Cellular Phone SAR Test Report Number: 18872-1F E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 3 3 3. Test Equipment Used 3.1 Dosimetric System The Motorola Mobile Devices Business Product Safety & Compliance Laboratory utilizes a Dosimetric Assessment System (Dasy4™ v4.7) manufactured by Schmid & Partner Engineering AG (SPEAG™), of Zurich Switzerland. All the SAR measurements are taken within a shielded enclosure. The overall 10g RSS uncertainty of the measurement system is ±10.8% (K=1) with an expanded uncertainty of ±21.6% (K=2). The overall 1g RSS uncertainty of the measurement system is ±11.1% (K=1) with an expanded uncertainty of ±22.2% (K=2). The measurement uncertainty budget is given in Appendix 6. Per IEEE 1528, this uncertainty budget is applicable to the SAR range of 0.4W/kg to 10W/kg. The list of calibrated equipment used for the measurements is shown in the following table. Description Serial Number Cal Due Date DASY4™ DAE 4 656 11-Jul-2007 E-Field Probe ETDV6 1502 17-Jul-2007 Dipole Validation Kit, DV900V2 094 22-May-2007 S.A.M. Phantom used for 800/900MHz TP-1168 3.2 Additional Equipment Description Serial Number Cal Due Date Signal Generator HP8648C 3847A04840 02-Dec-2007 Power Meter E4419B GB39511085 01-Dec-2006 Power Sensor #1 - 8481A MY41095452 06-Mar-2007 Power Sensor #2 - 8481A 2702A82671 05-Dec-2006 Network Analyzer HP8753ES US39172714 07-Mar-2007 Dielectric Probe Kit HP85070CUS99360207 MOTOROLA, INC. Portable Cellular Phone SAR Test Report Number: 18872-1F E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 4 4 4. Electrical parameters of the tissue simulating liquid Prior to conducting SAR measurements…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA INC FCC ID: IHDT5GB1 Test Report Number: 18886-1 EXHIBIT 6 MOBILE DEVICES BUSINESS PRODUCT SAFETY AND COMPLIANCE EMC LABORATORY EMC TEST REPORT Test Report Number – 18886-1 Report Date – August 17, 2006 The test results contained herein relate only to the model(s) identified. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical characteristics. As the responsible EMC Engineer, I hereby declare that the equipment tested as specified in this report conforms to the requirements indicated. Signature: Name: Thanigaiselvan Palaniswami Title: EMC Engineer Date: August 17, 2006 This report must not be reproduced, except in full, without written approval from this laboratory. THIS REPORT MUST NOT BE USED TO CLAIM PRODUCT ENDORSEMENT BY A2LA OR ANY AGENCY OF THE U.S. GOVERNMENT. A2LA Certificate Number: 1651-01 APPLICANT: MOTOROLA INC FCC ID: IHDT5GB1 Test Report Number: 18886-1 EXHIBIT 6 Table of Contents Description Page Test Report Details 3 Applicable Standards 3 Summary of Testing 4 General and Special Conditions 4 Equipment and Cable Configuration 5 Measurement Procedures and Data 6 RF Power Output 6 Measurement results 6 Radiated Power 7 Measurement results 7 Occupied Bandwidth 8 Measurement results 9 Spurious Emissions at Antenna Terminals 11 Measurement results 12 Field Strength of Spurious Emissions 13 Measurement results 14 Frequency Stability 15 Measurement results 16 Field Strength of Spurious Emissions -Unintentional Radiators 17 Measurement results 18 AC Line Conducted Emissions 19 Measurement results 20 Appendix A - Radiated Emissions Test Setup Photos 23 Figure A.1 – Radiated Emissions Measurement 23 Figure A.2 – Substitution Measurement 23 APPLICANT: MOTOROLA INC FCC ID: IHDT5GB1 Test Report Number: 18886-1 EXHIBIT 6 3 Test Report Details Tests Performed By: Motorola Mobile Devices Business Product Safety and Compliance Group 600 North US Hwy 45 Libertyville, IL 60048 PH (847) 523-6167 Fax (847) 523-4538 Motorola MDB FRN: 0004321311 FCC Registration Number: 316588 Industry Canada Number: IC3908-1 Tests Requested By: Motorola Inc. Mobile Devices business 600 North US Hwy 45 Libertyville, IL 60048 Product Type: Cellular Phone Signaling Capability: CDMA 800 FCC ID Number: IHDT5GB1 Serial Numbers: 1B6FC2AD, 1B6FC295, 1B6FC15B Testing Complete Date: August 14, 2006 Applicable Standards All tests and measurements indicated in this document were performed in accordance with the Code of Federal Regulations Title 47 Part 2, Sub-part J as well as the following parts: X Part 15 Subpart B – Unintentional Radiators X Part 22 Subpart H - Public Mobile Services Applicable Standards: TIA EIA 137-A, TIA EIA 98-C, ANSI 63.4 2003, RSS-118 (AMPS), RSS-128 (TDMA), RSS-129 (CDMA), RSS-133 (PCS) APPLICANT: MOTOROLA INC FCC ID: IHDT5GB1 Test Report Number: 18886-1 EXHIBIT 6 4 Summary of Testing Test Test Name # Pass/Fail 1 RF Power Output NA 2 ERP (Effective Radiated Power) Pass 3 Occupied Bandwidth Pass 4 Spurious Emissions at Antenna Terminal Pass 5 Field Strength of Spurious Emissions Pass 6 Frequency Stability Pass 7 Field Strength of Spurious Emissions Pass from Unintentional Radiators 8 AC Line Conducted Emissions Pass Test Test Name Margin with respect # to the Limit_________ 1 RF Power Output NA 2 ERP (Effective Radiated Power) See results 3 Occupied Bandwidth See Plots 4 Spurious Emissions at Antenna Terminal 32.3 dB 5 Field Strength of Spurious Emissions See Results 6 Frequency Stability 23.25 Hz 7 Field Strength of Spurious Emissions See Results from Unintentional Radiators 8 AC Line Conducted Emissions See Plots The margin with respect to the limit is the minimum margin for all modes and bands. General and Special Conditions The EUT was tested using a fully charged battery when applicable. Where a battery could not be used due to the need for a controlled variation of input voltage, an external power supply was utilized. All testing was done in an indoor controlled environment with an average temperature of 22º C and relative humidity of 50%. APPLICANT: MOTOROLA INC FCC ID: IHDT5GB1 Test Report Number: 18886-1 EXHIBIT 6 5 Equipment and Cable Configurations The EUT was tested in a stand-alone configuration that is representative of typical use. Manufacturer Equipment Type Model No. Serial Number Calibration Due Date Rohde Schwarz Receiver ESI26 100001 3/08/07 Rohde Schwarz Receiver ESI40 100226 6/05/07 Hewlett Packard EMC Analyzer E7405 US39440191 1/05/07 Hewlett Packard Signal Generator 83712A 3429A00286 6/6/07 A.H. Systems DRG Horn Antenna SAS 200/571 365 5/12/07 ETS. Horn Antenna 3115 6222 3/03/07 ETS Log-Periodic Antenna 3148 1188 6/05/07 ETS Biconical Antenna 3110B 3370 3/03/07 Attenuator Weinschel 2 AS-6 6675 6/6/07 Attenuator Weinschel 2 AS-6 6677 11/10/06 Attenuator Weinschel 2 AS-6 7075 1/31/07 Attenuator Weinschel 2 AS-6 6675 6/06/07 Thermotron Environmental Chamber S-4 31580 1/31/07 Agilent Power Meter E4416A GB41293246 02/03/07 Agilent Power Sensor E4412B US38486321 02/03/07 ETS LISN 3810/2NM 00062907 5/10/07 ETS LISN 3810/2NM 00062912 5/10/07 All equipment is on a one-year calibration cycle. APPLICANT: MOTOROLA INC FCC ID: IHDT5GB1 Test Report Number: 18886-1 EXHIBIT 6 6 Measurement Procedures and Data RF POWER OUTPUT Measurement Procedure The RF output port of the equipment under test is directly coupled to the input of a Agilent power meter through a 20dB passive attenuator, adaptor (if needed), and specialized RF connector. The peak power output is measured for all channels. CFR47 Part 2.1046 Measurement Results CDMA 800 Frequency (MHz) Power (dBm) 824.70 24.55 836.52 24.51 848.31 24.54 APPLICANT: MOTOROLA INC FCC ID: IHDT5GB1 Test Report Number: 18886-1 EXHIBIT 6 7 RADIATED POWER (EIRP AND ERP) Measurement Procedure The phone was tested in a 16’ anechoic chamber with a 2-axis position system that permits taking complete spherical scans of the EUT’s radiati…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA INC FCC ID: IHDT5GB1 Test Report Number: 18886-1 EXHIBIT 6 23 Appendix A – Radiated Emissions Test Setup Photos A.1 Radiated Emissions Measurement A.2 Substitution Measurement
