IHDT5GU1Portable Cellular AMPS/ CDMA Transceiver

APPLICANT: MOTOROLA, INC. FCC ID: IHDT5GU1 INSTRUCTION MANUAL • A preliminary draft copy of the User’s Manual follows this cover page. • The User’s Manual will have the following text added to it: "NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: . Reorient or relocate the receiving antenna. . Increase the separation between the equipment and receiver. . Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. . Consult the dealer or an experienced radio/TV technician for help." EXHIBIT 8 1 HELLOMOTOIntroducing your new Motorola PEBL U6c CDMA wireless phone. Here’s a quick anatomy lesson. L e f t S o f t K ey M e ss a g e K ey V olum e K ey s N av ig a tion K ey Navigate menus. S p eake r phon e K ey M ini - US B P o r t S e nd K ey Make & answer calls. E a r pi e c e R ight S o f t K ey C l ea r / B a c k K ey C e nt e r K ey Select menu items. P ow e r / E nd K ey Turn on/off, hang up, exit menus, open application launcher in home screen. C a m e r a K ey 2 C a m e r a L e n s C a m e r a K ey Activate camera and take photos.H a nd s f r ee S p eake r (on back of phone) V olum e K ey s See ring style setting when flip is closed. S p eake r phon e K ey Change ring style setting when flip is closed. M ini - US B C onn e c to r Insert battery charger & phone accessories. E x t e r n a l D i s pl ay See incoming call information. 3 H om e S c r ee n M a in M e nu p s pp MENU WAP Verizon Wireles s 1:51pm 05/24-0 6 Gallery SELECT EXIT O K n n V u 12 Press the Navigation Keyup , down , l e f t , o r r ight ( S ) to highlight a menu feature. 34 Press and hold the P ow e r K ey for a few seconds or until the display lights up to turn on your phone. Press the r key to select. Press the left soft key to open the M a in M e nu . 4 Motorola, Inc.Consumer Advocacy Office1307 East Algonquin RoadSchaumburg, IL 60196www.hellomoto.comMotorola Argentina S.AS u i p a c h a 1111 - P i s o 1 8C1008AAW Buenos AiresARGENTINACertain mobile phone feat ures are dependent on the capabilities and settings of your service provider’s network. Additionally, certain features may not be activated by your service provider, and/or the provider’s network settings may limit the feature’s functionality. Always contact your service provider about feature availability and functionality. All features , functionality, and other product specifications, as well as the information contained in this user’s guide are based upon the latest available informatio n and are believed to be accurate at the time of pr inting. Motorola reserves the right to change or modify any information or specifications without notice or obligation.MOTOROLA and the Stylized M Logo are registered in the US Patent & Trademark Office. All other product or service names are the property of their respective owners. © Motorola, Inc., 2006.Software Copyright NoticeThe Motorola products described in this manual may include copyrighted Motorola and third-party software stored in semiconductor memories or other media. Laws in the United States and other countries preserve for Motorola and third-party software providers certain exclusive rights for copyrighted software, such as the exclusive rights to distribute or reproduce the copyrighted software. Accordingly, any copyrighted software contained in the Motorola products may not be modified, reverse-engineered, distributed, or reproduced in any manner to the extent allowed by law. Furthermore, the pur chase of the Motorola products shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any license under the copyrights, patents, or patent applications of Mo torola or any third-party software provider, except for the normal, non-exclusive, royalty-free license to use that arises by operation of law in the sale of a product.Manual Number: 680xxxxxxx-O Contents 5 Contentsmenu map . . . . . . . . . . . . . . . 7Use and Care . . . . . . 9essentials . . . . . . . . 10 about this guide . . . . 10battery . . . . . . . . . . . . 10turn it on & off . . . . . 13make a call . . . . . . . . 13answer a call . . . . . . . 13store a phone number . . 13call a stored phone number . . . . . . . . . . . 14your phone number . 14 main attractions . . . 15 photos . . . . . . . . . . . . 15send message . . . . . . 17cable connections. . . 19 basics . . . . . . . . . . . 20 display . . . . . . . . . . . . 20text entry . . . . . . . . . . 22volume. . . . . . . . . . . . 26navigation key. . . . . . 26speakerphone key . . 26external display . . . . 27return unanswered call in external display . . 27handsfree speaker . . 28codes & passwords . 28lock/unlock side keys 29lock & unlock phone . 29 customize . . . . . . . . 30 ring style . . . . . . . . . . 30time & date . . . . . . . . 31wallpaper. . . . . . . . . . 31 themes . . . . . . . . . . . . 32display appearance . 32answer options . . . . . 32 calls . . . . . . . . . . . . 33 turn off a call alert. . . 33all calls . . . . . . . . . . . . 33redial . . . . . . . . . . . . . 34return a call . . . . . . . . 34caller ID . . . . . . . . . . . 34emergency calls . . . . 35voicemail . . . . . . . . . . 35 other features. . . . . 37 advanced calling . . . . 37phonebook . . . . . . . . 39mes…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA, INC. FCC ID: IHDT5GU1 SPECIFICATION COMPLIANCE STATEMENT Transceiver type: FCC ID: IHDT5GU1 has been tested in accordance with the requirements contained in the appropriate Commission regulations. To the best of my knowledge, these tests were performed using measurement procedures consistent with industry or Commission standards and demonstrate that this equipment complies with the appropriate standards. Each unit manufactured imported or marketed, will conform to the sample tested within the variations that can be expected due to quantity production and testing on a statistical basis. I further certify that the necessary measurements were made at Motorola, located at Motorola, 600 N. U.S. Highway 45, Libertyville, IL 60048. NAME: Jong Soo Hwang TITLE: Engineering Manager Mobile Devices Business Date: September 10, 2006 EXHIBIT 2 APPLICANT: MOTOROLA, INC. FCC ID: IHDT5GU1 STATEMENT OF CERTIFICATION I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in this application and accompanying technical data are true and correct. The technical data supplied with this application was taken under my supervision and is hereby duly certified. I also certify that this transmit equipment (FCC ID: IHDT5GU1) is in compliance with all applicable parts of the FCC Rules. NAME: Gang Ho Choi TITLE: Lead Engineer Mobile Devices Business Date: September 10, 2006 EXHIBIT 2 APPLICANT: MOTOROLA, INC. FCC ID: IHDT5GU1 Exhibit 2 911 Call Processing Method Compliance Statement Method Used Pursuant to 47 CFR Sec. 22.921, this Motorola CDMA phone at the time of commercial distribution will use a call completion method for 911 calls that is approved or endorsed by the FCC. At this time Motorola intends that this phone will incorporate either the Automatic A/B Intelligent Retry method or the Automatic A/B-Intelligent Retry, Version 2 method for providing 911 emergency calling support. NAME: Gang Ho Choi TITLE: Lead Engineer Mobile Devices Business Date: September 10, 2006

APPLICANT: MOTOROLA FCC ID: IHDT5GU1 August 14, 2006 CONFIDENTIALITY REQUEST CONTAINED WITHIN Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Application for Cellular/PCS Transceiver Certification Gentlemen: Application: Motorola, Inc., Mobile Devices, 600 N. U.S. Highway 45, Libertyville, Illinois 60048-1286 herein submits: Application for Equipment Authorization for Certification of a Cellular Transceiver, FCC ID: IHDT5GU1. Motorola is also the manufacturer of this equipment. Confidentiality: Pursuant to Section 0.459 of the Commission's rules (CFR 47), Motorola requests confidentiality for portions of the material contained in this application and that the identified material be withheld from public inspection following the grant of this authorization. This material contains Motorola's trade secrets and confidential information that Motorola does not customarily release to the public and which is otherwise not generally available to the public. Confidentiality is requested for the following exhibits: • Exhibit 4 Block Diagrams • Exhibit 5 Schematics • Exhibit 10 Parts List • Exhibit 12 Operational Description Description: This equipment is a CDMA portable transceiver, which operates in the Analog 800 MHz cellular band and in the Digital CDMA 800 MHz PCS band. The unit may be connected to a computer via a USB connection ( Part 15 Class B Computing Device Peripheral). Contact Information: Please contact me by telephone at (847) 523-6167, or by e-mail ( [email protected]), if there are questions or additional information needed concerning this filing. Regards, Andrew J. Bachler FCC Liaison Mobile Devices 600 N. U.S. Highway 45 Libertyville, IL 60048-5343 Exhibit 13

Applicant: Motorola, Inc. Date: September 22, 2006 Subject: Request for additional information regarding FCC ID: IHDT5GU1 (Portable CDMA transceiver) Reference: Correspondence Reference Number: IHD0481 Confirmation Number: 1608150481/0482 Date of Original Email: September 20, 2006 Questions and responses follow: 1. Sample Label exhibit 1 appears to need revision. Please submit a revised exhibit. Response: Please refer to the exhibit 1 submitted on September 22, 2006. 2. Please confirm that the Phone complies with EIA/TIA 553A for AMPS mode. Response: Please refer to the exhibit 2 submitted on September 22, 2006. 3. Please submit support test equipment list for the FCC Part 15B testing along with test setup photos. Response: Please refer to exhibit 6A3. 4. Confirm that a statement according to FCC Part 15.21 will be included in the final version of the user’s manual. Response: Yes, the Part 15.21 user information statement will be included in the final manual. Prepared by: Andrew Bachler, Principal Staff Engineer Motorola Mobile Device Business Libertyville, Illinois 1

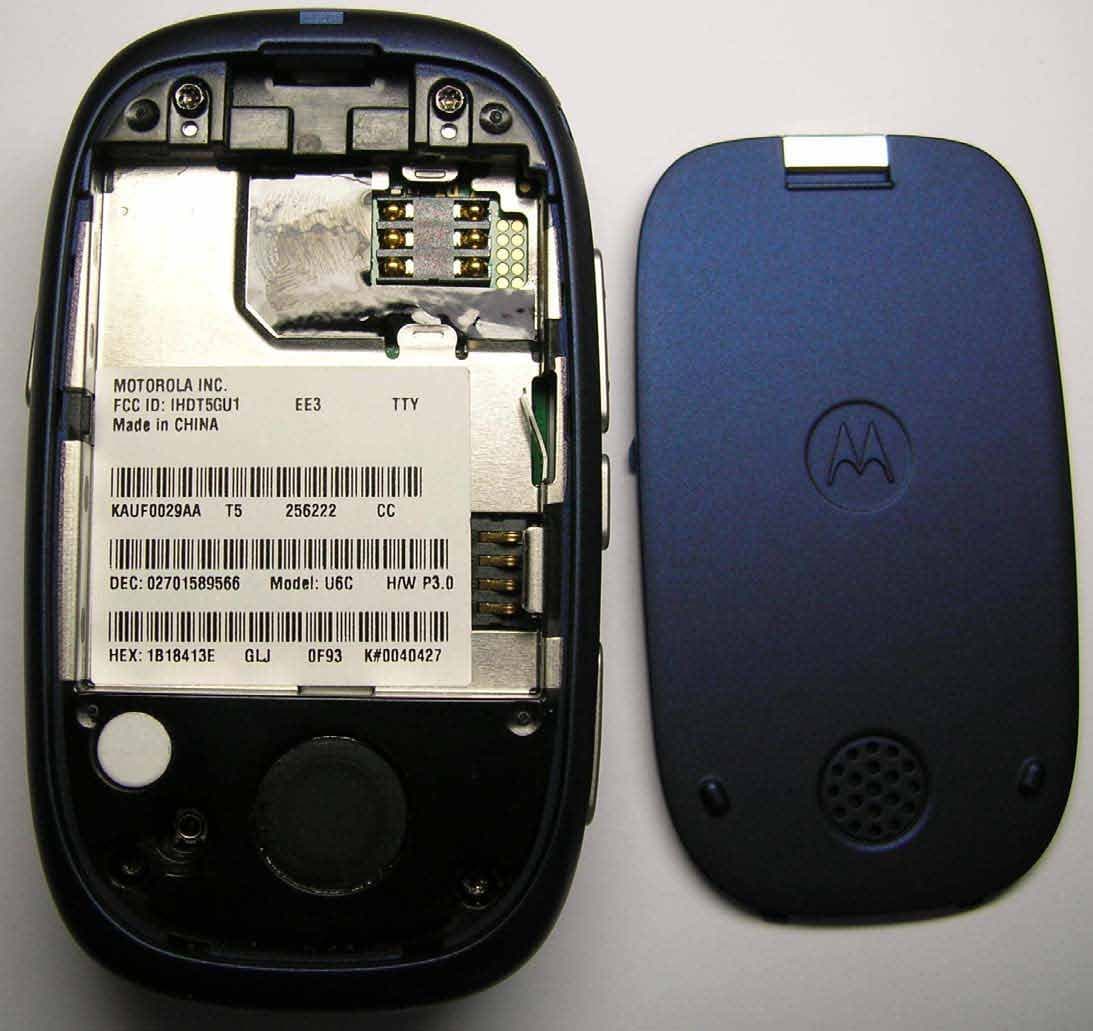

APPLICANT:MOTOROLA,INC. FCC ID:IHDT5GU1 FrontviewflipopenedRearviewflipopenedwithoutbatterycover EXHIBIT 3 EQUIPMENT ID LABEL LOCATION APPLICANT : MOTOROLA, INC. FCC ID : IHDT5GU1 Front View Rear View EXHIBIT 3 APPLICANT:MOTOROLA,INC. FCC ID:IHDT5GU1 Rear View with Battery Cover Removed EXHIBIT 3 EQUIPMENT ID LABEL LOCATION

APPLICANT: MOTOROLA INC. FCC ID: IHDT5GU1 FCC IDENTIFICATION (NAMEPLATE) INFORMATION FCC ID: IHDT5GU1 The FCC label shown is representative of the label that will appear on the radio when in production. It will be placed on the equipment as shown in Exhibit 3, and is readily visible at the time of purchase. Other information may also be included on this label. EXHIBIT 1

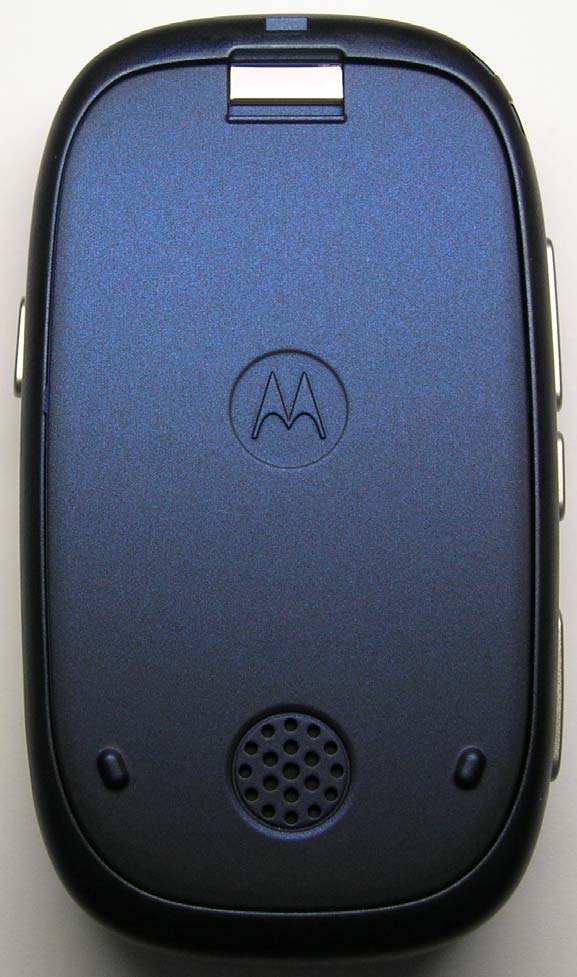

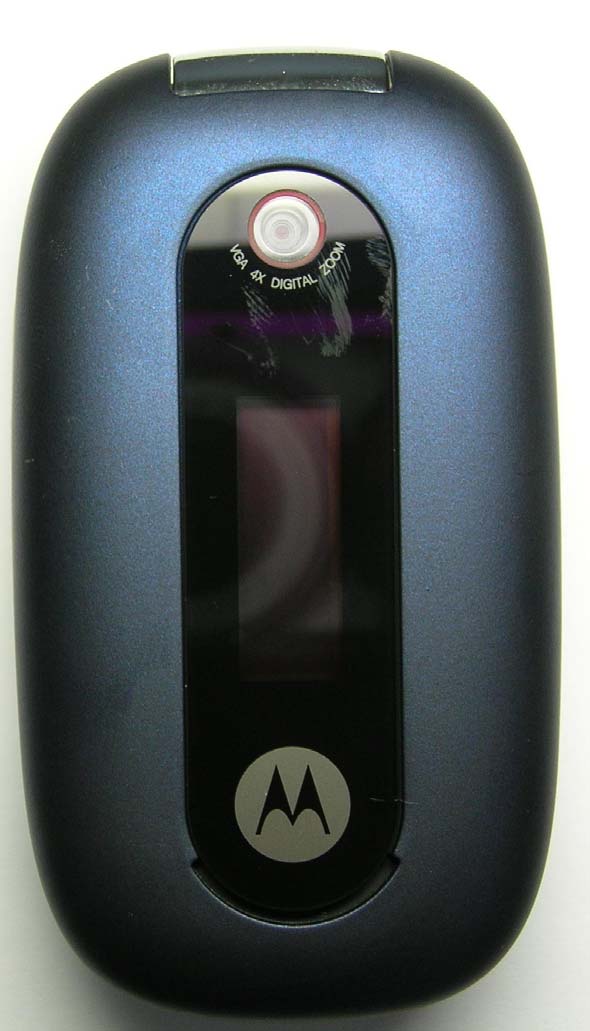

APPLICANT : MOTOROLA, INC. FCC ID : IHDT5GU1 Front View Rear View EXHIBIT 9 Page 1 of 3 APPLICANT : MOTOROLA, INC. FCC ID : IHDT5GU1 Main Board(shield on) Main Board(keypad installed) EXHIBIT 9 Page 2 of 3 APPLICANT : MOTOROLA, INC. FCC ID : IHDT5GU1 Housing internal views EXHIBIT 9 Page 3 of 3

APPLICANT: MOTOROLA INC FCC ID: IHDT5GU1 Test Report Number: 18993-1 Supplement 1 EXHIBIT 6A3 MOBILE DEVICES BUSINESS PRODUCT SAFETY AND COMPLIANCE EMC LABORATORY EMC TEST REPORT Test Report Number – 18993-1 Supplement Report Date – September 7, 2006 The test results contained herein relate only to the model(s) identified. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical characteristics. As the responsible EMC Engineer, I hereby declare that the equipment tested as specified in this report conforms to the requirements indicated. Signature: Name: Thanigaiselvan Palaniswami Title: EMC Engineer Date: September 7, 2006 This report must not be reproduced, except in full, without written approval from this laboratory. THIS REPORT MUST NOT BE USED TO CLAIM PRODUCT ENDORSEMENT BY A2LA OR ANY AGENCY OF THE U.S. GOVERNMENT. A2LA Certificate Number: 1651-01 APPLICANT: MOTOROLA INC FCC ID: IHDT5GU1 Test Report Number: 18993-1 Supplement EXHIBIT 6A3 2 Table of Contents Description Page Test Report Details 3 Applicable Standards 3 Summary of Testing 4 General and Special Conditions 4 Equipment and Cable Configuration 5 Measurement Procedures and Data 6 Appendix A - Radiated Emissions Test Setup Photos 10 Appendix B – AC Line Conducted Emissions Test Setup Photos 11 APPLICANT: MOTOROLA INC FCC ID: IHDT5GU1 Test Report Number: 18993-1 Supplement EXHIBIT 6A3 3 Test Report Details Tests Performed By: Motorola Mobile Devices business (MDb) Product Safety and Compliance Group 600 North US Hwy 45 Libertyville, IL 60048 PH (847) 523-6167 Fax (847) 523-4538 Motorola MDb FRN: 0004321311 FCC Registration Number: 316588 Industry Canada Number: IC3908-1 Tests Requested By: Motorola Inc. Mobile Devices business 600 North US Hwy 45 Libertyville, IL 60048 Product Type: Cellular Phone Signaling Capability: AMPS 800, CDMA 850 FCC ID : IHDT5GU1 Serial Numbers: 1B184376, 1B184339, 1B184342 Testing Complete Date: September 1, 2006 Applicable Standards All tests and measurements indicated in this document were performed in accordance with the Code of Federal Regulations Title 47: X Part 15 Subpart B – Unintentional Radiators Applicable Standards: ANSI 63.4 2003 APPLICANT: MOTOROLA INC FCC ID: IHDT5GU1 Test Report Number: 18993-1 Supplement EXHIBIT 6A3 4 Summary of Testing Test Test Name # Pass/Fail 1 Field Strength of Spurious Emissions Pass from Unintentional Radiators 2 AC Line Conducted Emissions Pass Test Test Name Margin with respect # to the Limit_________ 1 Field Strength of Spurious Emissions see results from Unintentional Radiators 2 AC Line Conducted Emissions see results The margin with respect to the limit is the minimum margin for all modes and bands. General and Special Conditions The EUT was tested using a fully charged battery. All testing was done in an indoor controlled environment with an average temperature of 22º C and relative humidity of 50%. APPLICANT: MOTOROLA INC FCC ID: IHDT5GU1 Test Report Number: 18993-1 Supplement EXHIBIT 6A3 5 Equipment List Manufacturer Equipment Type Model No. Serial Number Calibration Due Date Rohde Schwarz Receiver ESI26 100001 3/08/07 A.H. Systems Inc. DRG Horn Antenna SAS 200/571 365 5/12/07 ETS Log-Periodic Antenna 3148 1188 5/12/07 ETS Biconical Antenna 3110B 3370 3/03/07 Attenuator Weinschel AS-6 6675 1/10/07 Attenuator Weinschel AS-6 6677 11/14/06 Dell Laptop Computer M20 NA NA Iomega Zip Drive Z250S P9HM1992CK NA Olympus Camera D-600L 4020727 NA All equipment is on a one-year calibration cycle. APPLICANT: MOTOROLA INC FCC ID: IHDT5GU1 Test Report Number: 18993-1 Supplement EXHIBIT 6A3 6 Measurement Procedures and Data FIELD STRENGTH OF EMISSIONS FROM UNINTENTIONAL RADIATORS Measurement Procedure The equipment under test is placed inside the semi-anechoic chamber on a wooden table on the turntable center. For each radiated emission, the antenna mast is raised and lowered from 1 to 4 meters and the turntable is rotated 360 degrees to obtain a maximum peak reading on the spectrum analyzer. The final radiated emissions are then measured using an EMI receiver employing a CISPR quasi-peak detector function below 1000 MHz and an average detector function above 1000 MHz. This is repeated for both horizontal and vertical polarizations of the receive antenna. The field strength of each radiated emission is calculated by correcting the EMI receiver level for cable loss, amplifier gain, and antenna correction factors. Field Strength (dBuV/m) = EMI Receiver Level (dBuV) + Cable Loss (dB) - Amplifier Gain (dB) + Antenna Correction Factor (1/m) Test Setup The EUT and the host equipment were setup according to the procedures in ANSI C63.4- 2003. The EUT was connected to a laptop computer using a USB data cable. The USB data cable is 1 m in length. The parallel and the serial ports of the computer were populated. The EUT was communicating with the laptop computer continuously. APPLICANT: MOTOROLA INC FCC ID: IHDT5GU1 Test Report Number: 18993-1 Supplement EXHIBIT 6A3 7 Measurement Results Operating Mode – Rx Mode, Data Transfer Mode. 30 MHz – 1000 MHz Frequency Level Measured Antenna Factor Cable Loss Limit Margin Height Angle Pol. MHz dBuV/m dBuV dB dB dBuV/m dB cm deg 30.32 28.33 7.04 13.5 7.8 40 11.7 100 11 VERT 35.04 29.56 9.46 12.3 7.8 40 10.4 100 22 VERT 38.76 29.81 10.44 11.5 7.9 40 10.2 166 146 VERT 39.44 30.24 10.92 11.4 7.9 40 9.8 138 358 VERT 40.28 28.45 9.26 11.3 7.9 40 11.6 169 114 VERT 43.44 29.33 10.61 10.8 7.9 40 10.7 100 8 VERT 191.4 37.46 12.25 14.7 10.5 43.5 6 191 92 HORI 196.36 39.22 13.45 15.2 10.6 43.5 4.3 188 222 HORI Above 1 GHz Frequency Level Measured Antenna Factor Gain Limit Margin Height Angle Pol. MHz dBμV/m dBμV dB dB dBμV/m dB cm deg 1928.8 39.13 17.78 27.6 6.2 53.9 14.8 400 60 VERT 1966.5 40.24 17.87 28.4 6 53.9 13.7 277 27 HORI 1997.7 40.56 17.73 28.9 6 53.9 13.3 150 3 HORI 2001 40.6 17.67 28.9 6 53.9 13.3 150 343 HORI Notes: Worst Case emissio…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA INC FCC ID: IHDT5GU1 Test Report Number: 18993-1 Supplement EXHIBIT 6A3 10 Appendix A – Radiated Emissions Test Setup Photos Radiated Emissions Measurement Setup (Representative Photo – Not Actual Phone Tested) APPLICANT: MOTOROLA INC FCC ID: IHDT5GU1 Test Report Number: 18993-1 Supplement EXHIBIT 6A3 11 Appendix B - AC Line Conducted Emissions Test Setup Photos AC Line Conducted Emissions Measurement Setup. (Representative Photo- Not Actual Phone Tested)
