IHDT5HB1Cellular CDMA Transceiver

INSTRUCTION MANUAL A preliminary draft of the User’s Manual follows this page. The text on the following three pages will be added to the user manual. APPLICANT: MOTOROLA,INC. FCC ID: IHDT5HB1 EXHIBIT 8 SAR DataSpecific Absorption Rate DataSAR DataThis model wireless phone meets the government’s requirements for exposure to radio waves.Your wireless phone is a radio transmitter and receiver. It is designed and manufactured not to exceed limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission (FCC) of the U.S. Government and by the Canadian regulatory authorities. These limits are part of comprehensive guidelines and establish permitted levels of RF energy for the general population. The guidelines are based on standards that were developed by independent scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a substantial safety margin designed to assure the safety of all persons, regardless of age or health.The exposure standard for wireless mobile phones employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC and by the Canadian regulatory authorities is 1.6 W/kg. 1 Tests for SAR are conducted using standard operating positions accepted by the FCC and by Industry Canada with the phone transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR level of the phone while operating can be well below the maximum value. This is because the phone is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a wireless base station, the lower the power output.Before a phone model is available for sale to the public in the U.S. and Canada, it must be tested and certified to the FCC and Industry Canada that it does not exceed the limit established by each government for safe exposure. The tests are performed in positions and locations (e.g., at the ear and worn on the body) reported to the FCC and available for review by Industry Canada. The highest SAR value for this model phone when tested for use at the ear is 1 . 49 W/kg, and when worn on the body, as described in th is user guide, is 1 . 33 W/kg. 2 W hile there may be differences between the SAR levels of various phones and at various positions, they all meet the governmental requirements for safe exposure. Please note that improvements to this product model could cause differences in the SAR value for later products; in all cases, products are designed to be within the guidelines. SAR Data Additional information on Specific Absorption Rates (SAR) can be found on the Cellular Telecommunications & Internet Association (CTIA) Web site:http://www.phonefacts.netor the Canadian Wireless Telecommunications Association (CWTA) Web site:http://www.cwta.ca1. In the United States and Canada, the SAR limit for mobile phones used by the public is 1.6 watts/kg (W/kg) averaged over one gram of tissue. The standard incorporates a substantial margin of safety to give additional protection for the public and to account for any variations in measurements. 2. The SAR information includes the Motorola testing protocol, assessment procedure, and measurement uncertainty range for this product. HELLOMOTO 1 HELLOMOTO Thanks for purchasing the Motorola Calcutta wireless phone! It’s an affordable phone with a sleek design that’s sure to get attention. My Phone, My Way – It’s your phone—make it that way. Customize your home screen with personal pictures, change wallpapers, and use your favorite song as your ringtone. Convenient Extras – When you are away from your home or desk, make use of handy tools like Datebook, Calculator, Stop Watch, and others. Fun – When you have a little time to spare, play Football, Maze, or Rebels. FM Radio – Put on your headset and listen to your favorite music or news programs. Messages – Send and receive text messages to your friends, family, and colleagues. 2 HELLOMOTO Here’s a quick anatomy lesson. Charge up. Open menus.Open menus. Left Soft Key Make & answer calls. Listen to music. Right Soft Key Turn on & off, hang up, exit menus. Navigate menus. Microphone Smart Key Volume Key HELLOMOTO 3 Motorola 05:05pm MYMENUSETTING 10/15/2008 Game & App EXITSELECT Home ScreenMain Menu Press & hold the power key P until the displa y lights up, y lights up, to turn on your phone. 2 Press the center key M to select it. 4 Press the navigation key S up/down/left/right to scroll to a menu feature. 3 Press the center key M to open the Main Menu. 1 4 HELLOMOTO Motorola, Inc. Consumer Advocacy Office 1307 East Algonquin Road Schaumburg, IL 60196 www.hellomoto.com 1-800-331-6456 (United States) 1-888-390-6456 (TTY/TDD United States for hearing impaired) 1-800-461-4575 (Canada) Certain mobile phone features are dependent on the capabilities and settings of your service provider’s network. Additionally, certain features may not be activated by your service provider, and/or the provider’s network settings may limit the feature’s functionality. Always contact your service provider about feature availability and functionality. All features, functionality, and other product specifications, as well as the information contained in this user’s guide are based upon the latest available information and are believed to be accurate at the time of printing. Motorola reserves the right to change or modify any information or specifications without notice or obligation. MOTOROLA and the Stylized M Logo are registered in the US Patent & Trademark Office. All other product or service names are the property of their respective owners. © Motorola, Inc. 2007. Caution: Changes or modifications made in the radio phone, not expressly approved by Motorola, will void the user’s authority to operate the equipment. Software Copyright Notice The Motorola produc…

Text truncated - open the document above for the full version.

SPECIFICATION COMPLIANCE STATEMENT Transceiver type FCC ID: IHDT5HB1 has been tested in accordance with the requirements contained in the appropriate Commission regulations. To the best of my knowledge, these tests were performed using measurement procedures consistent with industry or Commission standards and demonstrate that this equipment complies with the appropriate standards. Each unit manufactured imported or marketed, will conform to the sample tested within the variations that can be expected due to quantity production and testing on a statistical basis. I further certify that the necessary measurements were made at: Motorola Mobile Devices Business Product Safety and Compliance Group 600 North US Hwy 45 Libertyville, IL 60048 NAME: Shankar Chidambaram TITLE: Engineering Manager CDMA Low Tier Engineering Date: Sep 20, 2007 STATEMENT OF CERTIFICATION I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in this application and accompanying technical data are true and correct. The technical data supplied with this application was taken under my supervision and is hereby duly certified. I also certify that this transmit equipment (FCC ID: IHDT5HB1) is in compliance with all applicable parts of the FCC Rules. NAME: Soren Choi TITLE: Technical Program Manager CDMA Low Tier Engineering Date: Sep 20, 2007

APPLICANT: MOTOROLA, INC. FCC ID: IHDT5HB1 Exhibit 13 September 27, 2007 CONFIDENTIALITY REQUEST CONTAINED WITHIN Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Application for Cellular/PCS Transceiver Certification Gentlemen: Application: Motorola, Inc., Mobile Devices, 600 N. U.S. Highway 45, Libertyville, Illinois 60048-1286 herein submits: Application for Equipment Authorization for Certification of a Cellular Transceiver, FCC ID: IHDT5HB1. Motorola is also the manufacturer of this equipment. Confidentiality: Pursuant to Section 0.459 of the Commission's rules (CFR 47), Motorola requests confidentiality for portions of the material contained in this application and that the identified material be withheld from public inspection following the grant of this authorization. This material contains Motorola's trade secrets and confidential information that Motorola does not customarily release to the public and which is otherwise not generally available to the public. Confidentiality is requested for the following exhibits: • Exhibit 4 Block Diagrams • Exhibit 5 Schematics • Exhibit 10 Parts List • Exhibit 12 Operational Description Description: This equipment is a CDMA portable transceiver which operates in the 800 MHz PCS band. Contact Information: Please contact me by telephone at (847) 523-6167, or by e-mail ([email protected]) , if there are questions or additional information needed concerning this filing. Regards, Andrew J. Bachler FCC Liaison Mobile Devices 600 N. U.S. Highway 45 Libertyville, IL 60048-5343

Date: October 17, 2007 Subject: Request for additional information regarding FCC ID: IHDT5HB1 Reference: Correspondence Reference Number: IHD7868 Confirmation Number: 710040868-9 Date of Original Email: October 15, 2007 Prepared by: Andrew Bachler, Principal Staff Engineer Motorola Mobile Device Business Libertyville, Illinois Questions and responses follow: 1. Cheek Touch SAR Test photo incorrect. Please re-submit. Response: Please refer to the revised SAR report. 2. Please clarify RC/SO mode used for SAR testing. Page 7 indicates the conducted power values were according to RC3/SO55, but please confirm if SAR testing is done in the same mode. Response: Confirmed. The RC3/SO55 mode was used for all SAR testing. 3. Please confirm compliance with the FCC 3-G test procedure for the Part 22/24 EMC testing. What RC/SO combination was used to generate the EMC test results? Response: Confirmed. The RC3/SO55 combination was used to generate all EMC testing results. 1

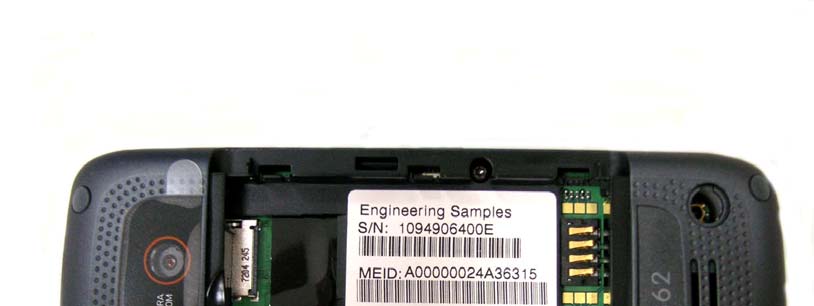

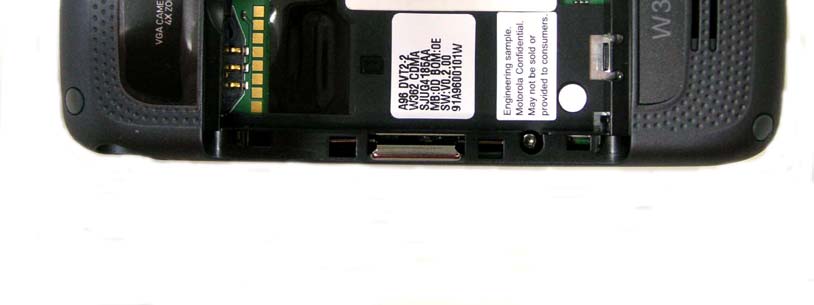

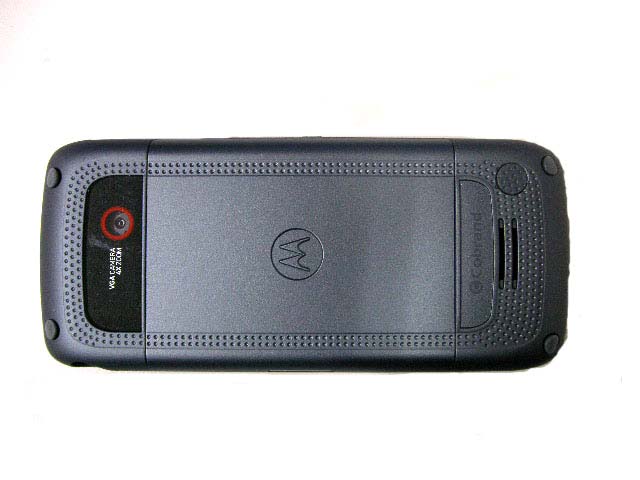

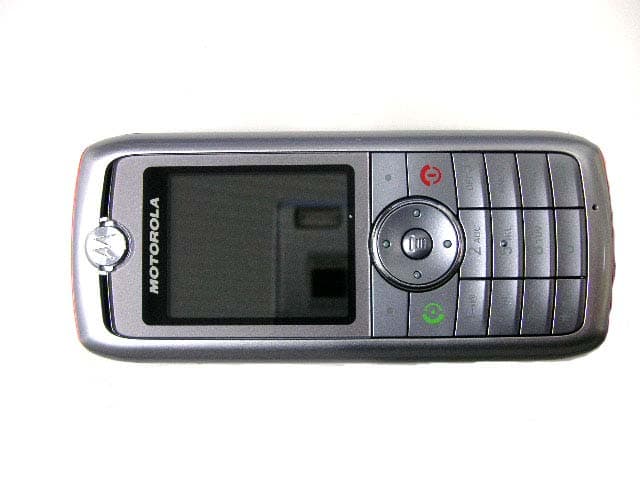

Front of the Phone Back of the Phone APPLICANT: MOTOROLA, INC.FCC ID: IHDT5HB1 1 of 4EXHIBIT 3 Back of the Phone battery cover removed Equipment ID Label Location APPLICANT: MOTOROLA, INC.FCC ID: IHDT5HB1 2 of 4EXHIBIT 3

APPLICANT: MOTOROLA INC. FCC ID: IHDT5HB1 FCC IDENTIFICATION (NAMEPLATE) INFORMATION FCC ID: IHDT5HB1 The FCC label shown is representative of the label that will appear on the radio when in production. It will be placed on the equipment as shown in Exhibit 3, and is readily visible at the time of purchase. Other information may also be included on this label. EXHIBIT 1

Main board front with Shields Main board front without Shields APPLICANT: MOTOROLA, INC.FCC ID: IHDT5HB1 1 of 2EXHIBIT 9 Main board back without Shields Main board back with Shields APPLICANT: MOTOROLA, INC.FCC ID: IHDT5HB1 2 of 2EXHIBIT 9

APPLICANT: MOTOROLA INC FCC ID: IHDT5HB1 Test Report Number: 21114-1 Supplement 1 EXHIBIT 6A3 MOBILE DEVICES BUSINESS PRODUCT SAFETY AND COMPLIANCE EMC LABORATORY EMC TEST REPORT Test Report Number – 21114-1 Supplement Report Date – September 19, 2007 The test results contained herein relate only to the model(s) identified. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical characteristics. As the responsible EMC Engineer, I hereby declare that the equipment tested as specified in this report conforms to the requirements indicated. Signature: Name: Thanigaiselvan Palaniswami Title: EMC Engineer Date: September 19, 2007 This report must not be reproduced, except in full, without written approval from this laboratory. THIS REPORT MUST NOT BE USED TO CLAIM PRODUCT ENDORSEMENT BY A2LA OR ANY AGENCY OF THE U.S. GOVERNMENT. A2LA Certificate Number: 2518-02 APPLICANT: MOTOROLA INC FCC ID: IHDT5HB1 Test Report Number: 21114-1 Supplement EXHIBIT 6A3 2 Table of Contents Description Page Test Report Details 3 Applicable Standards 3 Summary of Testing 4 General and Special Conditions 4 Equipment List 5 Measurement Procedures and Data 6 APPLICANT: MOTOROLA INC FCC ID: IHDT5HB1 Test Report Number: 21114-1 Supplement EXHIBIT 6A3 3 Test Report Details Tests Performed By: Motorola Mobile Devices Business (MDb) Product Safety and Compliance Group 600 North US Hwy 45 Libertyville, IL 60048 PH 847-523-6167 Fax 847-523-4538 Motorola MDb FRN: 0004321311 FCC Registration Number: 316588 Industry Canada Number: IC3908-1 Tests Requested By: Motorola Inc. Mobile Devices Business 600 North US Hwy 45 Libertyville, IL 60048 Product Type: Cellular Phone Signaling Capability: CDMA 800 FCC ID: IHDT5HB1 Serial Numbers: A00000024A369C8, A00000024A3673D, A00000024A3674B Testing Complete Date: September 19, 2007 Applicable Standards All tests and measurements indicated in this document were performed in accordance with the Code of Federal Regulations Title 47: X Part 15 Subpart B – Unintentional Radiators Applicable Standards: ANSI 63.4 2003 APPLICANT: MOTOROLA INC FCC ID: IHDT5HB1 Test Report Number: 21114-1 Supplement EXHIBIT 6A3 4 Summary of Testing Test Test Name # Pass/Fail 1 Field Strength of Spurious Emissions Pass from Unintentional Radiators 2 AC Line Conducted Emissions Pass Test Test Name Margin with respect # to the Limit_________ 1 Field Strength of Spurious Emissions see results from Unintentional Radiators 2 AC Line Conducted Emissions see results The margin with respect to the limit is the minimum margin for all modes and bands. General and Special Conditions The EUT was tested using a fully charged battery. All testing was done in an indoor controlled environment with an average temperature of 22º C and relative humidity of 50%. APPLICANT: MOTOROLA INC FCC ID: IHDT5HB1 Test Report Number: 21114-1 Supplement EXHIBIT 6A3 5 Equipment List Manufacturer Equipment Type Model No. Serial Number Calibration Due Date Rohde Schwarz Receiver ESI26 100001 5/02/08 Rohde Schwarz Receiver ESI40 838786/010 3/19/08 A.H. Systems Inc. DRG Horn Antenna 3115 6222 3/21/08 ETS Log-Periodic Antenna 3148 1188 6/18/08 ETS Biconical Antenna 3110B 3370 3/15/08 Attenuator Weinschel AS-6 6675 1/31/08 Attenuator Weinschel AS-6 6677 6/21/08 ETS LISN 3810/2NM 00062907 5/02/08 ETS LISN 3810/2NM 00062912 5/02/08 Dell Laptop Computer M20 NA NA Iomega Zip Drive Z250S P9HM1992CK NA Olympus Camera D-600L 4020727 NA All equipment is on a one-year calibration cycle. The Dell M20 Laptop Computer, the Iomega Z250S Zip Drive and the Olympus D-600L Camera are labeled as DoC. APPLICANT: MOTOROLA INC FCC ID: IHDT5HB1 Test Report Number: 21114-1 Supplement EXHIBIT 6A3 6 Measurement Procedures and Data FIELD STRENGTH OF EMISSIONS FROM UNINTENTIONAL RADIATORS Measurement Procedure The equipment under test is placed inside the semi-anechoic chamber on a wooden table on the turntable center. For each radiated emission, the antenna mast is raised and lowered from 1 to 4 meters and the turntable is rotated 360 degrees to obtain a maximum peak reading on the spectrum analyzer. The final radiated emissions are then measured using an EMI receiver employing a CISPR quasi-peak detector function below 1000 MHz and an average detector function above 1000 MHz. This is repeated for both horizontal and vertical polarizations of the receive antenna. The field strength of each radiated emission is calculated by correcting the EMI receiver level for cable loss, amplifier gain, and antenna correction factors. Field Strength (dBuV/m) = EMI Receiver Level (dBuV) + Cable Loss (dB) - Amplifier Gain (dB) + Antenna Correction Factor (1/m) Test Setup The EUT and the host equipment were setup according to the procedures in ANSI C63.4- 2003. The EUT was connected to a laptop computer using a USB data cable. The USB data cable is 1 m in length. The parallel and the serial ports of the computer were populated. The EUT was communicating with the laptop computer continuously. APPLICANT: MOTOROLA INC FCC ID: IHDT5HB1 Test Report Number: 21114-1 Supplement EXHIBIT 6A3 7 Measurement Results Operating Mode – Rx Mode, Data Transfer Mode. 30 MHz – 1000 MHz Frequency Level Measured Transd Cables Limit Margin Height Angle Pol. MHz dBuV/m dBuV dB dB dBuV/m dB cm deg 31.04 30.66 10.25 12.6 7.8 40 9.3 100 138 VERT 34.8 31.76 12.54 11.4 7.8 40 8.2 100 123 VERT 76.84 35.75 17.99 9 8.8 40 4.2 100 265 VERT 396 43.52 14.35 16.5 12.7 46 2.5 350 124 HORI 951.96 39.59 -0.51 24 16.1 46 6.4 182 191 HORI Above 1 GHz Frequency Level Measured Transd Gain Limit Margin Height Angle Pol. MHz dBuV/m dBuV dB dB dBuV/m dB cm deg 1751.8 39.55 19.57 26.3 6.3 53.9 14.3 384 106 HORI 1754.7 39.74 19.73 26.3 6.3 53.9 14.2 384 101 HORI 1757.4 39.79 19.77 26.3 6.3 53.9 14.1 385 66 HORI 1762.1 39.82 19.78 26.3 6.3 53.9 14.1 150 52 HORI 1903.7 40.97 19.51 27 5.6 53.9 12.9 250 67 HORI 1962 41.57 19.52 27.5 5.5 53.9 12.3 150 2…

Text truncated - open the document above for the full version.

EMC TEST SETUP PHOTOS Antenna Substitution APPLICANT: MOTOROLA, INC.FCC ID: IHDT5HB1 EXHIBIT 7 Computer Peripheral AC Line Emissions APPLICANT: MOTOROLA, INC.FCC ID: IHDT5HB1 EXHIBIT 7 Tx Radiated APPLICANT: MOTOROLA, INC.FCC ID: IHDT5HB1 EXHIBIT 7
