IHDT5YD1Portable Cellular Transceiver

APPLICANT: MOTOROLA, INC. TRANSCEIVER TYPE: IHDT5YD1 MOTOROLA CONFIDENTIAL PROPRIETARY EXHIBIT 7 A preliminary user manual follows. 1 Welcome Thank you for choosing Motorola—a global leader in communications technology. All Motorola cellular phones are designed and manufactured in the United States to meet Motorola’s exacting specifications and world-class quality standards. During development, our laboratory testing team took the durable dual mode StarTAC ™ phone through its paces. They cooked it, steamed it, shook it, shocked it, dusted it, and dropped it—and the phone still worked! We are confident that the one you purchased will meet your own exacting standards. Thank you for choosing Motorola, and by all means, enjoy your dual mode StarTAC cellular phone! 2 Guide Overview Okay, you’ve got a brand new phone with a bunch of nifty features. Now what? Afraid you’ll press the wrong key? Or forget a feature or two? Don’t sweat it! We’ve designed this guide to take you step-by-step through each feature of your new dual mode StarTAC ™ phone. We’ll show you what key to press and what happens when you press it. Follow along, chapter-by-chapter, and you’ll find it’s as easy as 1-2-3. Here’s an idea of what you’ll learn in each chapter: Introduction There are many exciting features on your new phone, like the new, enlarged display and a clock that sets itself automatically. Find out exactly what’s in store by turning to the “Introduction” on page 6. Getting Started First things first. Turn to page 14, and we’ll explain what came with your phone. Then, we’ll show you how to install and charge your battery so that you can get started with “The Basics” in the next section. The Basics What do all those buttons and lights mean? How do I make my first phone call? In this section, we’ll answer those questions and get you going with your dual mode StarTAC phone. Start learning “The Basics” on page 24. 3 Using Memory Read “Using Memory,” beginning on page 38, and you’ll learn how to make the most of your new phone’s built-in Phone Book. Plus, learn how to save time with dialing shortcuts using the Turbo Dial ™ keys or Super Speed Dial. Using Messaging Did you know that your dual mode StarTAC phone supports optional messaging services, like Caller ID*, which allows you to see who’s calling before you answer? Your new phone can even receive alphanumeric messages just like a pager and tell you when you have Voice Mail*. Simply turn to page 46 to begin “Using Messaging.” The Works When you’re ready to get into the more advanced features your new phone has to offer, just turn to page 54 for “The Works.” Learn about everything from navigating the menu system to elec- tronically locking your phone. So relax! Let us show you what your dual mode StarTAC ™ phone can do! *Contact your Service Provider for availability. 4 Contents Introduction What’s New. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Highlights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Important Safety Information. . . . . . . . . . . . . . . . . . . . . . . . 10 Getting Started Package Content Options . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Installing the Battery. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Charging the Battery. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 The Basics Phone Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 Using the Smart Button. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 Turning Your Phone On . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 Reading the Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 Placing and Ending Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 Receiving Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 Redialing Numbers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33 Basic Tone Controls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 Your Phone & Its Shortcuts. . . . . . . . . . . . . . . . . . . . . . . . . . 36 Using Memory Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38 Making the Most of Memory . . . . . . . . . . . . . . . . . . . . . . . . 39 Storing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 Recalling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42 5 Contents Using Messaging Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46 Receiving Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47 Viewing Your Caller IDs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48 Checking Your Voice Mail . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 Reading Your Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52 The Works Introducing the Menu Features. . . . . . . . . . . . . . . . . . . . . . . 54 The Internal Phone Book . . . . . . . . . . . . . . . . . . . . . . . . . . . 56 Learn how to store and recall numbers Using Call Timers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66 Learn how to monitor the length of your calls Setting Tone Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72 Learn how to adjust your phone’s tone controls Lock/Security Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78 Learn how to restrict access to your phone Phone Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86 Learn how to personalize your phone’s operation Reference Information Accessory Options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98 Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102 Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA, INC. TRANSCEIVER TYPE: IHDT5YD1 EXHIBIT 1 STATEMENT OF CERTIFICATION The technical data supplied with this application, having been taken under my supervision is hereby duly certified. The following is a statement of my qualifications: BSEE 1990 University of Illinois at Chicago, Chicago, IL MSEE 1994 University of Illinois at Chicago, Chicago, IL 8 years experience in cellular radiotelephone design SIGNATURE: (signed) NAME: David Schlueter DATE: 6/23/98 POSITION: Senior Staff Engineer I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in the application and accompanying technical data are true and correct SIGNATURE: (signed) NAME: Jeffrey Misak DATE: 6/23/98 POSITION: Engineering Manager

June 23, 1998 CONFIDENTIALITY REQUEST CONTAINED WITHIN Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re:Application for Equipment Authorization (Type Acceptance) of a Portable Cellular Transceiver, FCC ID: IHDT5YD1 Gentlemen: Motorola, Inc., Cellular Subscriber Sector, 600 N. U.S. Highway 45, Libertyville, Illinois 60048-5343 herein submits "Electronic" Application for Equipment Authorization (to be followed by mailing of Check Number 120-648548 in the amount of $580.00 along with Form 159) for Type Acceptance of a Portable Cellular Transceiver under FCC Rule Part 22(H), FCC ID: IHDT5YD1. Motorola is also the manufacturer of this equipment. Pursuant to §0.459 of the Commission's rules (CFR 47), Motorola requests confidentiality for portions of the material contained in this application and that the identified material be withheld from public inspection following the grant of this authorization. This material, as indicated by request for confidentiality of the items during the electronic submission process, includes: Information regarding Electronic Serial Number (ESN) protection; Exhibit 4, Radio Semiconductor List; Exhibit 5, Circuit Diagrams; and Exhibit 6, Circuit Descriptions. Specifically, these exhibits contain information relating to circuit function and complexity which could be of benefit to competitors. This material contains Motorola's trade secrets and confidential information which Motorola does not customarily release to the public and which is otherwise not generally available to the public. This equipment has the capability to operate in both the conventional Analog Cellular standard and two Industry Interim standards. One, commonly called CDMA, is outlined in TIA/EIA IS-95-A "Mobile Station - Base Station Compatibility Standard for Dual-Mode Wideband Spread Spectrum Cellular System", dated May 1995. The second, referred to as N-AMPS or Narrow AMPS, is outlined in TIA/EIA IS-91-A "Mobile Station - Base Station Compatibility Standard for 800 MHz Analog Cellular, Auxiliary and Residential Services", dated November 1995. Technical details for these alternate cellular technologies (permitted under §22.901(d) of the Commission's rules) related to Type Acceptance of this equipment, as noted in paragraphs 31 and 32 of the Report and Order in FCC GEN. Docket No. 87-390, are detailed in item numbers 5 & 6 of Exhibit 2, and throughout the other exhibits as listed in item number 5 of Exhibit 2. Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 June 23, 1998 Page 2 Information concerning compliance with rule provisions regarding Electronic serial numbers (per §22.919) is provided as an attestation statement. Please contact me by telephone at (847) 523-7373, by facsimile at (847) 523-2350 or by correspondence at the address herein if there are any further questions or additional information needed concerning this filing. Regards, (signed, John A. Kalenowsky) John A. Kalenowsky Patent Engineer/FCC Liaison Cellular Subscriber Sector 600 N. U.S. Highway 45 Libertyville, IL 60048-5343 Enclosures

APPLICANT: MOTOROLA, INC.TRANSCEIVER TYPE: IHDT5YD1 LIST OF EXHIBITS EXHIBITDESCRIPTIONFCC REFERENCE (un-numbered)RADIO FREQUENCY ENERGY EXPOSURE 2.1093 EVALUATION STATEMENT (un-numbered)INFORMATION REGARDING ESN PROTECTION22.919 (un-numbered)STATEMENT REGARDING COMPLIANCE WITH 22.933, OET 53 CELLULAR SYSTEM COMPATIBILITY SPECIFICATION 1CERTIFICATION OF DATA2.911 2GENERAL INFORMATION PRODUCTION PLANS2.983-C APPLICATION REFERENCES2.1061 DATA SUBMITTAL PROCEDURE2.999, 2.947 REPORT OF MEASUREMENTS UNDER CELLULAR SERVICE OPTION DETERMINATION OF ADDITIONAL EMISSION DESIGNATORS 3DESCRIPTION TECHNICAL CHARACTERISTICS2.983-D-1,2,3,4,5 4LIST/APPLICATION OF SEMICONDUCTORS2.983-D-6 AND/OR OTHER ACTIVE DEVICES 5CIRCUIT DIAGRAMS (INDEX)2.983-D-7 6CIRCUIT DESCRIPTION (INDEX)2.983-D-10-11-12 6AMEANS FOR FREQUENCY STABILIZATION 6BMEANS FOR ATTENUATION OF SPURIOUS EMISSIONS 6CMEANS FOR LIMITING MODULATION 6DMEANS FOR ATTENUATION OF HIGHER AUDIO FREQUENCIES 6EMEANS FOR LIMITING POWER OUTPUT 6FDIGITAL MODULATION TECHNIQUES 7INSTRUCTION MANUAL 2.983-D-8 8TRANSMITTER ADJUSTMENTS (INDEX)2.983-D-9 9MEASURED DATA (INDEX)2.983-E 9AR.F. OUTPUT - MEASURED DATA2.985 9B-1,2AUDIO RESPONSE - GRAPH2.987 9CPOST LIMITER LOW-PASS RESPONSE - GRAPH2.987 9D-1,2SIGNALING CHANNEL AUDIO ROLL-OFF2.987 FILTER RESPONSE 9E-1,2,3,4MODULATION LIMITING - GRAPHS2.987 9F-1,2,3,4,5,6,7OCCUPIED BANDWIDTH - PLOTS2.989 9GCONDUCTED SPURIOUS EMISSIONS - GRAPH2.991 9HRADIATED SPURIOUS EMISSIONS - GRAPH2.993 9J-1,2,3FREQUENCY STABILITY vs. TEMPERATURE - GRAPH2.995 9K-1,2,3FREQUENCY STABILITY vs. VOLTAGE - GRAPH2.995 10IDENTIFICATION (NAMEPLATE) INFORMATION2.983-F 11-1,2EXTERNAL PHOTOGRAPHS2.983-G 11-3,4INTERNAL PHOTOGRAPHS2.983-G 12MEASUREMENT TECHNIQUES2.947

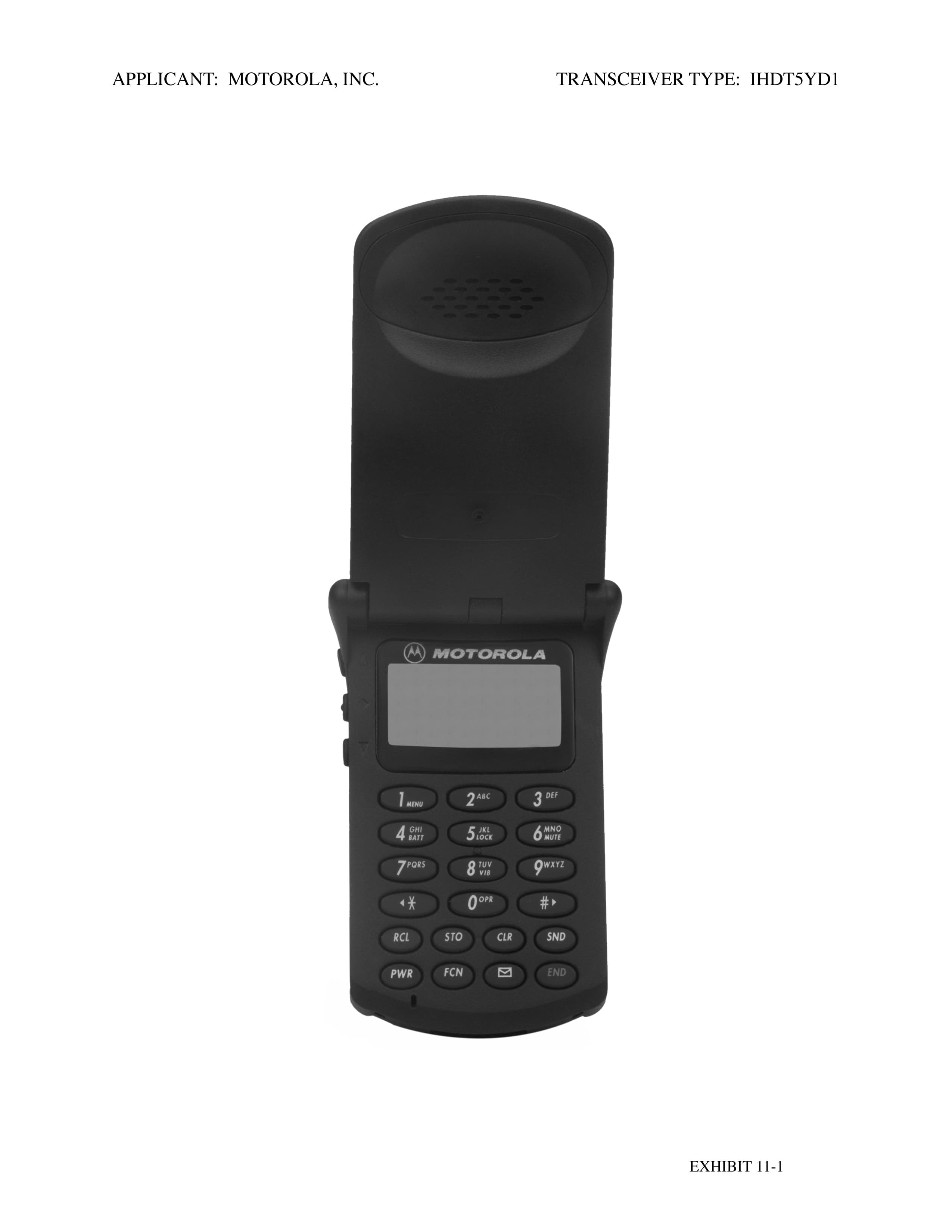

APPLICANT: MOTOROLA, INC.TRANSCEIVER TYPE: IHDT5YD1 EXHIBIT 10 FCC IDENTIFICATION (NAMEPLATE) INFORMATION The Equipment ID label above is representative (in size and in showing the FCC Identifier as it will appear) of the actual label that will appear on the equipment when in production. Its location is shown in Exhibit 11-2. FCC ID: IHDT5YD1 SCALE 2:1

APPLICANT: MOTOROLA, INC. TRANSCEIVER TYPE: IHDT5YD1 EXHIBIT 2 GENERAL INFORMATION 1.Production Plans - Pursuant 2.983(c) Quantity production is planned. 2.Application References - Pursuant 2.1061 Reference is made to the following Motorola "Application References" on file with the Commission. Motorola 3-meter antenna range in Schaumburg, IL. 3.Data Submittal Procedure - Pursuant 2.999, 2.947 Data is supplied in accordance with Part 2, Subpart J of the Commission's rules. Standards used on measurements supplied are TIA/EIA IS-88, TIA/EIA IS-90, TIA/EIA IS-95-A, TIA/EIA IS-98 and OST 53. 4.Similar to "Currently Type Accepted Transmitter Type(s):" FCC ID: IHDT5XA1 5.Report of measurements pertaining to types of emission, frequency range, maximum output power and modulation techniques for CDMA and Narrow Analog Modes of Operation (reference paragraphs 31 and 32 of the Report and Order in FCC GEN. Docket No. 87-390). The "Motorola NAMPS Air Interface Specification", referenced in Motorola's earlier applications for equipment capable of Narrow Analog Mode Operation, has been replaced. Through the efforts of the Telecommunications Industry Association's TR- 45.1 Subcommittee on Analog Cellular, TIA/EIA Interim Standard IS-88 - "Mobile Station - Land Station Compatibility Standard for Dual-Mode Narrow band Analog Cellular Technology" (TIA/EIA IS-88) and TIA/EIA Interim Standard IS-90 - "Recommended Minimum Standard for 800 MHz Dual-Mode Narrow band Analog Cellular Subscriber Units" (TIA/EIA IS-90), both dated January 1993, were developed and, as they apply to cellular subscriber equipment, are incorporated herein by reference. A.Types of emission This equipment continues to be capable of the existing, approved emissions for previously existing equipment designed and approved for operation in the Domestic Public Cellular Radio Telecommunications Service in the Wide Analog Mode. In the Narrow Analog Mode, a new emission designator 17K4F9W is added, determined as explained in section 6 of this exhibit. Reference is also made to TIA/EIA IS-88 and TIA/EIA IS-90. Actual measurements of Occupied Bandwidth for the Narrow Analog Mode are shown in Exhibits 9F-5 and 9F-6. APPLICANT: MOTOROLA, INC. TRANSCEIVER TYPE: IHDT5YD1 EXHIBIT 2 In the Digital CDMA Mode, a new emission designator 1M25F9W is added, determined as explained in section 6 of this exhibit. Reference is also made to TIA/EIA IS-95-A. Actual measurements of Occupied Bandwidth for the Digital CDMA Mode are shown in Exhibit 9F-7. Spurious Emissions (Conducted and Radiated) reported in Exhibits 9G and 9H are the worst (highest level) of Wide, Narrow and Digital Modes. B.Frequency range The frequency range of the equipment is the Domestic Public Cellular Radio Telecommunications Service bands, 824 - 849 MHz and 869 - 894 MHz, regardless of whether in Wide, Narrow or Digital Mode. In Wide Analog Mode, the channel spacing is 30 kHz on signaling channels and voice channels. In Narrow Analog Mode, however, the channel spacing is 10 kHz on voice channels. In Digital CDMA Mode, the channel increment is 30 kHz for all data and voice channels although centers of adjacent CDMA channels are typically spaced a minimum of 1.23 MHz apart as well as minimum of 0.69 MHz away from the band edges. Again, reference is made to TIA/EIA IS-88, TIA/EIA IS-90, TIA/EIA IS-95, and EIA/TIA IS-98. Frequency Stability versus Temperature and Voltage measurements is shown in Exhibits 9J-1,2,&3 and 9K-1,2&3. This equipment uses Automatic Frequency Control (AFC) to lock to within 0.75 part per million (steady state) of the frequency received from the Land Station system for Analog Mode, and to within ± 300 Hz of the received frequency from the Land Station system for Digital Mode. Also refer to Exhibit 6A. C. Maximum output power Analog Mode Radio Frequency Output Power is independent of whether the equipment operates in the Wide or Narrow Mode. Power output capability of the Mobile Station equipment is still reported to the Land Station system (via the Mobile Station Power Class in the Station Class Mark) and the Mobile Station will respond to commands from the Land Station system to change power levels as defined in the specifications. Digital Mode The maximum radio frequency power allowed per the standard ranges from 0.2 Watts to 1.0 Watt. The mobile maximum output power during a power control group is within the specified limits and is controlled by commands from a Land Station system. R. F. Output Power measurement results are shown in Exhibit 9A. APPLICANT: MOTOROLA, INC. TRANSCEIVER TYPE: IHDT5YD1 EXHIBIT 2 D.Modulation techniques Analog Mode Modulation in the Narrow Mode is conventional Frequency Modulation with peak frequency deviation lower than that of Wide Mode. The highest modulating frequency is also reduced in Narrow Mode by replacing the nominal 6 kHz Supervisory Audio Tone (SAT) and 10 kHz Signaling Tone (ST)/Data signals of Wide Analog Mode with a 200 bit/second Digital SAT (DSAT) or Digital ST (DST) signal or 100 Manchester bit/second Data signal to accomplish the supervision, signaling and command/control functions between the Mobile and Land stations. The highest modulating frequency is then the maximum voice path frequency, 3000 Hz. The peak deviation of the voice signal for Narrow Mode is 5 kHz. The peak deviation of the DSAT, DST or Data signal for Narrow Mode is 0.7 kHz. The end result is that less bandwidth is needed to accomplish communications in Narrow Mode than in Wide Mode. Reference is again made to TIA/EIA IS-88 and TIA/EIA IS-90, for further details. Exhibits 9B-2, 9D-2, 9E-3 & 4 and 9F-5 & 6 show the results of modulation related testing (pursuant to Sections 2.987 and 2.989 of the Commission's rules) for the Narrow Mode. Digital CDMA Mode Modulation in the Digital Mode is OQPSK (Offset Quaternary Phase Shift Keying). Reference is made to TIA/EIA IS-95-A, Section 6. Exhibits 6C and 6D further discuss details of the modulating circuitry. Exhibi…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA, INC. TRANSCEIVER TYPE: IHDT5YD1 EXHIBIT 3 DESCRIPTION 1.Transmitter Technical Characteristics--Pursuant 2.983(d) A. R.F. Power Output: In analog mode, the power output is continuous and has a variable range from .005 to 0.5 Watts (controlled by the Cell-site). In digital mode, power output ranges from 0.00001 mW to 0.250 Watts (controlled by the Cell site via Closed Loop Power Control). The power output varies depending on the mobile’s data rate. Transmit duty cycle is 100% in 14400 bps, 50% in 7200 bps, 25% in 3600 bps, and 12.5% in 1800 bps. B. Frequency Range 824.04 to 848.97 MHz for Wide Analog Mode and Digital CDMA Mode Frequency Range 824.01 to 848.99 MHz for Narrow Analog Mode C.Frequency Stability +/-0.000075% (0.75PPM) steady state of the receive carrier frequency (Analog Modes). NAMPS operational stability: ± .00010% (1.0 PPM) AMPS operational stability: ± .00025% (2.5 PPM) +/-0.000036% (0.36PPM) steady state of the receive carrier frequency (Digital Modes). CDMA operational stability: ± .00005% (0.5 PPM) D.Emissions 40K0F8W, 40K0F1D, 17K4F9W, 1M25F9W E.D.C. Voltage into the Final two stage R.F. Amplifier: 3.6 Volts DC D.C. Current into the Final two stage R.F. Amplifier: 635 mA (Analog) D.C. Current into the Final two stage R.F. Amplifier: 570 mA (Digital) (Average Current in Digital CDMA Mode in 100% transmit duty cycle) 2.Transmitter Application A.Power Supply Available The transmitter is normally operated by means of a 3.6 volt battery with battery cutoff voltage to no lower than 2.9V. Performance is also guaranteed up to 5.4V. (Refer to exhibit 9K) B.Antenna Available The transmitter is designed to be used with an integral extendable antenna. In the down position, the antenna is a quarter wave helical. In the up position, the antenna is a quarter wave whip in series with a quarter wave helical. C.Maximum Transmit Channel Capability AMPS Mode - 832 channels NAMPS Mode - 2412 channels CDMA Mode - Per 6.1.1.1 of TIA/EIA IS-95-A

APPLICANT: MOTOROLA, INC. TRANSCEIVER TYPE: IHDT5YD1 EXHIBIT 3 REVISED 8/19/98 DESCRIPTION 1.Transmitter Technical Characteristics--Pursuant 2.983(d) A. R.F. Power Output: In analog mode, the power output is continuous and has a variable range from .005 to 0.5 Watts (controlled by the Cell-site). In digital mode, power output ranges from 0.00001 mW to 0.250 Watts (controlled by the Cell site via Closed Loop Power Control). The power output varies depending on the mobile’s data rate. Transmit duty cycle is 100% in 14400 bps, 50% in 7200 bps, 25% in 3600 bps, and 12.5% in 1800 bps. B. Frequency Range 824.04 to 848.97 MHz for Wide Analog Mode and Digital CDMA Mode Frequency Range 824.01 to 848.99 MHz for Narrow Analog Mode C.Frequency Stability +/-0.000075% (0.75PPM) steady state of the receive carrier frequency (Analog Modes). NAMPS operational stability: ± .00010% (1.0 PPM) AMPS operational stability: ± .00025% (2.5 PPM) +/-0.000036% (0.36PPM) steady state of the receive carrier frequency (Digital Modes). CDMA operational stability: ± .00005% (0.5 PPM) D.Emissions 40K0F8W, 40K0F1D, 17K4F9W, 1M25F9W E.D.C. Voltage into the Final two stage R.F. Amplifier: 3.6 Volts DC D.C. Current into the Final two stage R.F. Amplifier: 635 mA (Analog) 550 mA (Analog Alternate P.A.) D.C. Current into the Final two stage R.F. Amplifier: 570 mA (Digital) 400 mA (Digital Alternate P.A.) (Average Current in Digital CDMA Mode in 100% transmit duty cycle) 2.Transmitter Application A.Power Supply Available The transmitter is normally operated by means of a 3.6 volt battery with battery cutoff voltage to no lower than 2.9V. Performance is also guaranteed up to 5.4V. (Refer to exhibit 9K) B.Antenna Available The transmitter is designed to be used with an integral extendable antenna. In the down position, the antenna is a quarter wave helical. In the up position, the antenna is a quarter wave whip in series with a quarter wave helical. C.Maximum Transmit Channel Capability AMPS Mode - 832 channels NAMPS Mode - 2412 channels CDMA Mode - Per 6.1.1.1 of TIA/EIA IS-95-A

APPLICANT: MOTOROLA, INC. TRANSCEIVER TYPE: IHDT5YD1 EXHIBIT 8 TRANSCEIVER ADJUSTMENTS EXHIBITDESCRIPTION 8AFrequency adjustments 8BTransmit output power 8CMaximum TX audio deviation 8DReceive audio adjustment APPLICANT: MOTOROLA, INC. TRANSCEIVER TYPE: IHDT5YD1 EXHIBIT 8A FREQUENCY ADJUSTMENTS In analog and digital mode, on power up, the radio starts with a reference frequency value that is phased per the following procedure: 1.Connect the radio to test equipment capable of communicating with it over the ‘Motorola Proprietary’ three-wire bus. 2.Enter the proper test commands to transmit on channel 383. 3.Monitor the transmitter output with a frequency counter (accurate to 0.1 PPM). 4.Select a new customer frequency warp value (between 0 to 255). 5. Program the new frequency warp value using the correct test command. 6. Repeat steps 3, 4 and 5 until frequency is within specification. APPLICANT: MOTOROLA, INC. TRANSCEIVER TYPE: IHDT5YD1 EXHIBIT 8B TRANSMIT OUTPUT POWER ADJUSTMENTS ANALOG MODE 1. Connect the radio to test equipment. 2.Enter the proper test commands to transmit on channel 383. 3. Monitor the transmitter output. 4.Using handset test commands, adjust the output levels as shown in the table below. Power StepNominal Output Power (at Antenna Port) 227.0 dBm +/- 1 dB 324.0 dBm +/- 1 dB 420.0 dBm +/- 1 dB 516.0 dBm +/- 1 dB 612.0 dBm +/- 1 dB 7 8.0 dBm +/- 1 dB DIGITAL MODE In digital mode, the transmitter is operated in CDMA mode. As specified in TIA/EIA IS-95-A, the transmission duty cycle varies with the transmission data rate. At data rates of 14400, 7200, 3600, and 1800 bits/second, the average transmission duty cycle is 100, 50, 25, and 12.5 percent respectively. 1.Connect the radio to test equipment. 2.Enter the proper test commands to transmit at 100% duty cycle on channel 384. 3.Monitor the transmitter output. 1. Using handset test commands, adjust the output levels as listed below: Transmitter output maximum nominal power = +24 dBm +/- 0.5 dB @ -104 dBm receive input power Transmitter output Power = - receive input power -73 +/- 3 dB Receive input power = -104 dBm to -25 dBm APPLICANT: MOTOROLA, INC. TRANSCEIVER TYPE: IHDT5YD1 EXHIBIT 8C MAXIMUM TX AUDIO DEVIATION ANALOG MODE 1. Connect the radio to test equipment. 2.Enter the proper test commands to transmit on channel 383. 3.Using handset test commands, enable the compander, unmute the transmit audio and select the handsfree audio path. 4.Inject an unbalanced 1 kHz, 6V RMS audio signal on pin 8 of the external connector. 5. Using handset test commands adjust for a peak deviation of 11.25 ± 0.1 kHz. DIGITAL MODE In the digital mode, audio from the microphone is first digitized, then coded and converted to OQPSK data in the form of I and Q signals which are sent to the modulator. Thus, for digital mode, maximum TX audio deviation is not relevant because a large or small MIC audio signal would only result in different data pattern. APPLICANT: MOTOROLA, INC. TRANSCEIVER TYPE: IHDT5YD1 EXHIBIT 8D RECEIVE AUDIO LEVEL ADJUSTMENT ANALOG MODE 1. Connect the radio to test equipment. 2.Set RF signal generator to -50 dBm. Modulate using a 1 kHz tone for a deviation of 2.9 kHz. 3.Using handset test commands, enable the compander, unmute the receive audio gates, select volume step 4 and select the handsfree audio path. 4.Measure the audio output at pin 9 of the external connector. 2. Using handset test commands adjust for 100 mV RMS ± 14 mV. DIGITAL MODE In the digital mode, receive audio is first available as QPSK data in the form of I and Q signals. These signals are demodulated, decoded, and presented to the vocoder DSP. The vocoder recovers the 8 bit Mu-255 law companded values of the audio samples and inputs them to the codec. The codec converts the audio data to an analog signal using a 16 bit non-linear D/A converter and a 3.4 kHz low-pass filter. Due to the fact that audio samples are coded (and not sampled), no receive audio level adjustment is available in digital mode.

P P a a g g e e 1 1 September 4, 1998 SAR Test Report for Motorola portable cellular phone (FCC ID IHDT5YD1). Prepared by: Paul Moller, Senior Staff Engineer Motorola Personal Comunications Sector Product Safety Lab Libertyville, Illinois Contents 1) Introduction 2) Applicable Regulations 3) Description of Test Sample 4) Description of Motorola SAR Test Facility 5) Test Sample Conditions 6) Method of Measurement 7) SAR Test Results 8) Summary Appendix A: Included data Appendix B: SAR Measurement Operational Guide P P a a g g e e 2 2 1. Introduction The Motorola Personal Communications Sector Product Safety Laboratory has performed measurements of the maximum potential exposure to the user of portable cellular phone FCC ID IHDT5YD1. The Specific Absorption Rate (SAR) of this product was measured. This report details the test setup and equipment as well as the results of those tests. 2. Applicable Regulations Federal Communications Commission rule §2.1093(d)(2), the ANSI/IEEE C95.1 1992 and the NCRP Report Number 86 specify the maximum exposure limit of 1.6 W/kg as averaged over any 1 gram of tissue for portable devices being used within 20cm of the user in the uncontrolled environment. 3. Description of Test Sample A prototype unit serial number VJXN3N0 was measured. This unit is identical in physical construction, maximum radiated power levels and antenna structure to units that will be in production. It transmits in the frequency range of 824 to 849 MHz using AMPS, NAMPS and CDMA modes. The maximum average transmit power for this test unit is 0.5 Watt in analog modes, and 0.25 Watt in digital mode. The unit is equipped with a telescoping antenna that serves as both a receive and transmit antenna. The antenna has a retracted and an extended operating position as shown in figures 1 and 2 respectively. Figure 1.Figure 2. P P a a g g e e 3 3 Figures 3 and 4 show the test unit as it is placed onto the phantom head with the antenna in the extended and retracted positions respectively. For the purposes of the actual SAR tests the phantom head is tilted on its side by 90 degrees so that a vertically oriented measurement probe can easily scan an area where the phone is in close contact with the phantom and the SAR will be the highest. Figure 3. P P a a g g e e 4 4 Figure 4. 4. SAR Test Facility The Motorola test facility utilized for the SAR testing of this product is the Personal Communications Sector Product Safety Laboratory, in Libertyville Illinois. The laboratory utilizes an SAR measurement system developed by Motorola and manufactured by IDX Robotics™ of Corvallis, Oregon. This system utilizes a computer controlled six axis robot to move a measurement probe to measure the SAR. The probe is calibrated at the Florida Corporate Electromagnetics Laboratory in Plantation Florida, using a procedure developed by Dr. Q. Balzano. The measurement methodology is described in IEEE Transactions on Vehicular Technology, vol. 44, no. 3, August 1995, titled Electromagnetic Energy Exposure of Simulated users of Portable Cellular Telephones. Furthermore, a copy of the document “SAR Measurement Operational Guide”, dated December 1997, is attached as appendix B for reference purposes. This Motorola document describes the measurement setup and rationale in detail. P P a a g g e e 5 5 5. Test Sample Conditions For the purposes of these tests the subject phone was positioned on the measurement phantom per the instructions in the Motorola users manual for the subject phone. SAR was measured with the antenna in both the retracted and extended positions. Since the antenna is not located on the center of the phone, the SAR was measured with the phone on both the left and right side talk positions (See figures 3 and 4). Due to the construction of the phone, the base of the antenna is 23 mm a…
