IHDT5ZP1Portable Cellular Transceiver

APPLICANT: MOTOROLA, INC.FCC ID: IHDT5ZP1 Exhibit 8 INSTRUCTION MANUAL The following is a draft copy of the instruction manual. Welcome Thank you for choosing your Motorola phone from a global leader in communications technology. All Motorola digital cellular phones are designed and manufactured to meet Motorola’s rigorous specifications and world-class quality standards. During development, our laboratory testing team took your cellular phone through rigorous durability tests including temperature, humidity, shock, dust, vibration, and drop tests— and the phone still worked! We are confident that the phone you purchased will meet your own exacting standards. Enjoy your Motorola phone. Modulous.book Page i Friday, February 25, 2000 4:19 PM ii Contents Welcome . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .i Safety Information . . . . . . . . . . . . . . . . . . . . . . . . v Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Phone Overview . . . . . . . . . . . . . . . . . . . . . . . . 10 Understanding the Guide . . . . . . . . . . . . . . . . . 11 Using the Battery . . . . . . . . . . . . . . . . . . . . . . . . 12 About Your Batteries . . . . . . . . . . . . . . . . . . . . 12 Installing and Removing a Battery . . . . . . . . . 13 Checking Battery Levels . . . . . . . . . . . . . . . . . 14 Charging Batteries . . . . . . . . . . . . . . . . . . . . . . 15 Using the Phone . . . . . . . . . . . . . . . . . . . . . . . . . 17 Turning the Phone On and Off . . . . . . . . . . . . . 17 Reading the Indicators . . . . . . . . . . . . . . . . . . 18 Standby Mode . . . . . . . . . . . . . . . . . . . . . . . . . 19 Viewing Your Phone Number . . . . . . . . . . . . . . 19 Placing a Call . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Ending a Call . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Receiving a Call . . . . . . . . . . . . . . . . . . . . . . . . 20 Switching Between Digital and Analog Modes . . . . . . . . . . . . . . . . . . . . . . . . . 21 Redialing a Number . . . . . . . . . . . . . . . . . . . . . 21 Controlling Volume . . . . . . . . . . . . . . . . . . . . . . 22 Using Phone Memory . . . . . . . . . . . . . . . . . . . . 23 Storing Names and Numbers . . . . . . . . . . . . . 23 Recalling by Name . . . . . . . . . . . . . . . . . . . . . . 25 Recalling by Memory Location . . . . . . . . . . . . 25 Clearing a Phone Memory Entry. . . . . . . . . . . . 26 Shortcuts for Recalling Phone Book Entries . . 26 Making Notes on the Scratchpad . . . . . . . . . . 27 Using the Menu System . . . . . . . . . . . . . . . . . . . 28 Introducing the Menu Features . . . . . . . . . . . . 28 Navigating the Menu . . . . . . . . . . . . . . . . . . . . 29 Road Maps . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 Modulous.book Page ii Friday, February 25, 2000 4:19 PM iii Managing Recent Calls . . . . . . . . . . . . . . . . . . .30 Road Map for Recent Calls . . . . . . . . . . . . . . .30 About Recent Calls . . . . . . . . . . . . . . . . . . . . . .30 Reviewing Received Calls . . . . . . . . . . . . . . . .32 Reviewing Dialed Calls . . . . . . . . . . . . . . . . . . .32 Clearing Caller Line ID . . . . . . . . . . . . . . . . . . .33 Managing the Phone Book . . . . . . . . . . . . . . . .34 Road Map for Phone Book . . . . . . . . . . . . . . . .34 Storing Names and Numbers . . . . . . . . . . . . . .35 Editing a Memory Location . . . . . . . . . . . . . . . .40 Viewing All Entries in Alphabetical Order . . . . .41 Recalling an Entry by Name . . . . . . . . . . . . . . .42 Recalling an Entry by Location . . . . . . . . . . . .42 Assigning an Individual Ring Style to a Phone Book Entry . . . . . . . . . . . . . . . . . . . . . . .43 Timing Your Calls . . . . . . . . . . . . . . . . . . . . . . . .44 Road Map for Call Timers . . . . . . . . . . . . . . . . .44 Viewing the Individual Call Timer . . . . . . . . . . .45 Viewing the Resettable Call Timer . . . . . . . . . .45 Viewing the Cumulative Timer . . . . . . . . . . . . .46 Resetting the Timer . . . . . . . . . . . . . . . . . . . . .46 Displaying the Individual Call Timer Automatically . . . . . . . . . . . . . . . . . . . . . . . . . .46 Setting the One-Minute Audible Timer . . . . . . .47 Setting the Repeating Audible Timer . . . . . . . .47 Setting the Single Timer . . . . . . . . . . . . . . . . . .48 Adjusting Tone Controls . . . . . . . . . . . . . . . . . .49 Road Map for Tone Controls . . . . . . . . . . . . . . .49 Selecting a Ring Style . . . . . . . . . . . . . . . . . . .50 Turning Keypad Tones On and Off . . . . . . . . . .50 Turning Scratchpad Tones On and Off . . . . . . .51 Using Lock/Security Features . . . . . . . . . . . . . .52 Road Map for Lock Security . . . . . . . . . . . . . . .52 Activating Voice Privacy . . . . . . . . . . . . . . . . . .53 Locking/Unlocking Your Phone . . . . . . . . . . . . .54 Activating Priority Calling . . . . . . . . . . . . . . . . .55 Viewing and Changing the Lock Code . . . . . .56 Restricting Call Placement . . . . . . . . . . . . . . . .57 Resetting All Options . . . . . . . . . . . . . . . . . . . .59 Clearing All Stored Information . . . . . . . . . . . .59 Modulous.book Page iii Friday, February 25, 2000 4:19 PM iv Customizing Phone Options . . . . . . . . . . . . . . 60 Road Map for Phone Options . . . . . . . . . . . . . 60 Activating Pager Mode . . . . . . . . . . . . . . . . . . 61 Selecting Preferred Call Mode . . . . . . . . . . . . . 62 Viewing Your Own Number. . . . . . . . . . . . . . . . 63 Switching Between Numbers . . . . . . . . . . . . . 63 Selecting a Cellular System . . . . . . . . . . . . . . 64 Reviewing Feature Settings . . . . . . . . . . . . . . . 65 Activating Multiple Key Answer . . . . . . . . . . . . 66 Activating Automatic Answer . . . . . . . . . . . . . . 67 Displaying System Identification . . . . . . . . . . . 68 Selecting a Language . . . . . . . . . . . . . . . . . . . 68 Selecting a Network . …

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLAFCC ID: IHDT5ZP1 Exhibit 2A March 10, 2000 Engineer-in-Charge Equipment Authorization Branch Federal Communications Commission We hereby certify that this transmit and receive equipment (FCC ID: IHDT5ZP1) for dual mode, dual band mobile station cellular use is capable of full compliance with TIA/EIA-136 (Revision 0), Dual-Mode, Dual-Band Mobile Station - Base Station Compatibility Standard, October 1998, (Signed – Mike Houghton) Mike Houghton Engineering Section Manager Cellular Subscriber Equipment (Signed – Jay Smith) Jay Smith Engineering Manager Cellular Subscriber Equipment Exhibit 2B APPLICANT: MOTOROLA, INC.FCC ID: IHDT5ZP1 STATEMENT OF CERTIFICATION The technical data supplied with this application, having been taken under my supervision is hereby duly certified. The following is a statement of my qualifications: BSEE 1981 University of Illinois 16 years Cellular Design Experience SIGNATURE:(signed) Mike Houghton NAME:Mike Houghton DATE:3/10/00 POSITION:Engineering Section Manager I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in the application and accompanying technical data are true and correct: SIGNATURE:(signed) Jay Smith NAME:Jay Smith DATE:3/10/00 POSITION:Engineering Manager

APPLICANT: MOTOROLAFCC ID: IHDT5ZP1 EXHIBIT 13 March 11, 2000 CONFIDENTIALITY REQUEST CONTAINED WITHIN Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Application for Cellular/PCS Transceiver Certification Gentlemen: Application: Motorola, Inc., Personal Communications Sector, 600 N. U.S. Highway 45, Libertyville, Illinois 60048-1286 herein submits: Application for Equipment Authorization (FCC Form 731-October 1992 with integrated Fee Processing Form, Fee Codes EFT and EBC), application fee in the amount of $610, and Exhibits; for Certification of a Cellular Transceiver, FCC ID: IHDT5ZP1. Motorola is the manufacturer of this equipment. Confidentiality: Pursuant to Section 0.459 of the Commission's rules (CFR 47), Motorola requests confidentiality for portions of the material contained in this application and that the identified material be withheld from public inspection following the grant of this authorization. This material contains Motorola's trade secrets and confidential information that Motorola does not customarily release to the public and which is otherwise not generally available to the public. Confidentiality is requested for the following exhibits: • Exhibit 4 Block Diagrams • Exhibit 5 Schematics • Exhibit 12 Operational Description Description: This equipment has the capability to operate in the conventional Analog Cellular standard and the Digital TDMA standard in the cellular bands, as outlined in EIA/TIA IS136 "Dual-Mode Mobile Station Compatibility Standard", dated December 1995. Technical details for this alternate cellular technology (permitted under the cellular service option provisions in Section 22.933 of the Commission's rules) related to Type Acceptance of this equipment, as noted in paragraphs 31 and 32 of the Report and Order in FCC GEN. Docket No. 87-390, are detailed in Exhibit 12. Contact Information: Please contact me by telephone at (847) 523-6167, or by e-mail ([email protected]), if there are questions or additional information needed concerning this filing. Regards, Andrew J. Bachler FCC Liaison Cellular Subscriber Sector 600 N. U.S. Highway 45 Libertyville, IL 60048-5343

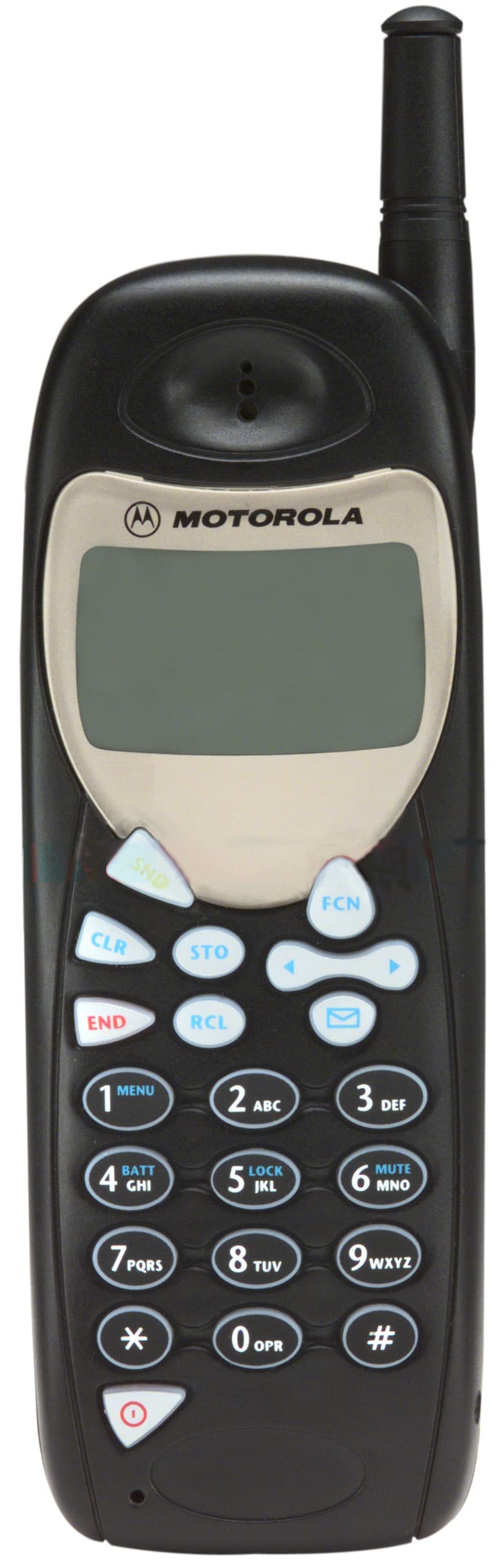

Front View Rear View Exhibit 3 APPLICANT: MOTOROLA, INC. TRANSCEIVER TYPE: IHDT5ZP1

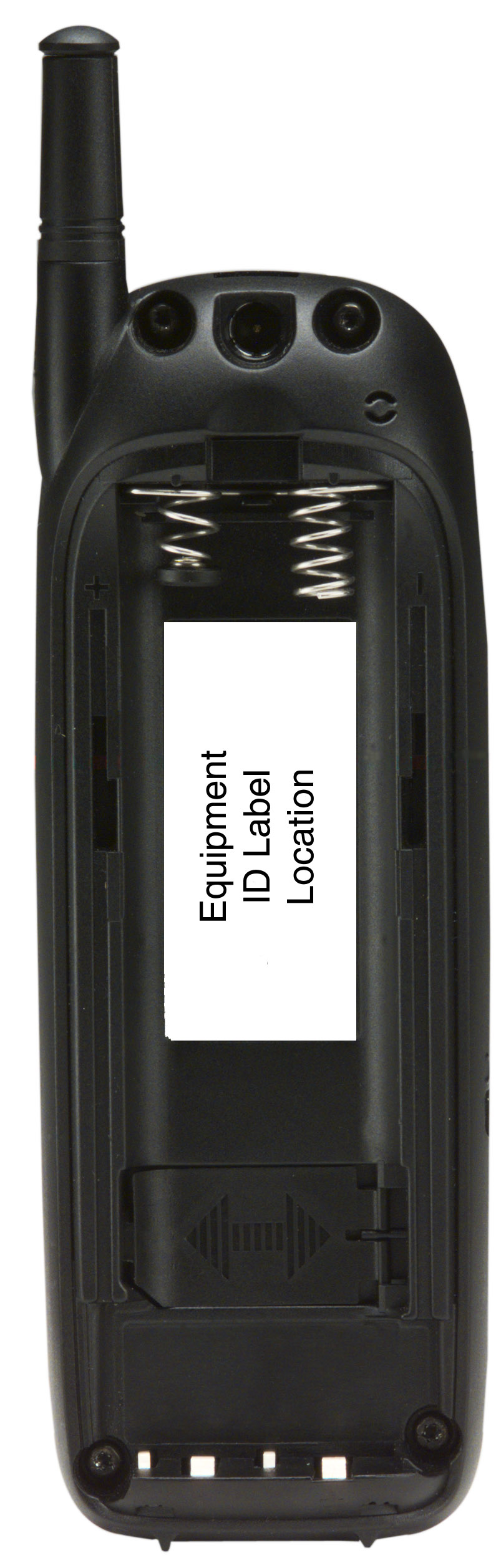

APPLICANT: MOTOROLA, INC. FCC ID: IHDT5ZP1 EXHIBIT 3A Revised 4-25-00 Front View Back View (Battery Removed to Show Equipment ID)

APPLICANT: MOTOROLAFCC ID: IHDT5ZP1 Exhibit 1 FCC IDENTIFICATION (NAMEPLATE) INFORMATION The FCC label shown is the label that will appear on the radio when in production. It will be placed on the outside of the radiotelephone. (refer to exhibit 3-2). FCC ID: IHDT5ZP1

APPLICANT: MOTOROLA, INC. TRANSCEIVER TYPE: IHDT5ZP1 Front View Rear View Exhibit 9

APPLICANT: MOTOROLA, INC.FCC ID: IHDT5ZP1 Exhibit 10 There are no user accessible adjustments or tuning in this portable cellular transceiver. All necessary adjustments and tuning are performed during manufacture of the product. Any adjustments or tuning after service or repair are done as part of that process as special equipment is required to perform such adjustments.

March 8, 2000 SAR Test Report for Motorola portable cellular phone (FCC ID IHDT5ZP1). Prepared by: Paul Moller, Principal Staff Engineer Motorola Personal Communications Sector Product Safety Laboratory Libertyville, Illinois Contents 1) Introduction 2) Applicable Regulations 3) Description of Test Sample 4) Description of Motorola SAR Test Facility 5) Test Sample Conditions 6) Method of Measurement 7) Measurement Uncertainty 8) SAR Test Results 9) Body Worn Configuration Evaluation 10) Battery Options 11) Summary Appendix A: Included Data from Measurements Against Phantom Head Appendix B: Included Data from Measurements in Body Worn Configuration Appendix C: Printout from the Dasy measurement system validation test P P a a g g e e 2 2 1. Introduction The Motorola Personal Communications Sector Product Safety Laboratory has performed measurements of the maximum potential exposure to the user of portable cellular phone FCC ID IHDT5ZP1. The Specific Absorption Rate (SAR) of this product was measured. This report details the test setup and equipment as well as the results of those tests. 2. Applicable Regulations Federal Communications Commission rule §2.1093(d)(2), the ANSI/IEEE C95.1 1992 and the NCRP Report Number 86 specify the maximum exposure limit of 1.6 W/kg as averaged over any 1 gram of tissue for portable devices being used within 20cm of the user in the uncontrolled environment. 3. Description of Test Sample A prototype unit serial number FC846049 was measured. This unit is identical in physical construction, maximum radiated power levels and antenna structure to units that will be in production. It transmits in the frequency range of 824 to 849 MHz using AMPS and TDMA modes. The unit was tested at its maximum transmitter power. The unit is equipped with a fixed antenna that serves as both a receive and transmit antenna. The antenna has a single operating position as shown in figure 1. Figure 1. Front of Phone Showing Antenna P P a a g g e e 3 3 Figure 2 shows the test unit as it is placed onto the phantom. For the purposes of the actual SAR tests the Motorola phantom head is tilted on its side by 90 degrees so that a vertically oriented measurement probe can easily scan an area where the phone is in close contact with the phantom and the SAR will be the highest. Figure 2. Phone Against Head in Normal Use Position P P a a g g e e 4 4 4. SAR Test Facility The Motorola test facility utilized for the SAR testing of this product is the Personal Communications Sector Product Safety Laboratory, in Libertyville Illinois. The laboratory utilizes a Dosimetric Assessment System (Dasy™) SAR measurement system manufactured by Schmid & Partner Engineering AG (SPEAG™), of Zurich Switzerland. This system utilizes a computer controlled six axis robot to move a measurement probe to measure the SAR. A photo of the Dasy system with the Motorola phantom is shown in figure 3. Probe serial number 1502 was used for the measurements. It was calibrated at SPEAG™, and has a calibration date October 28, 1999. Dipole Validation Kit type D900V2, serial number 055 was used to validate the system accuracy. The validation SAR value is 9.08 mW/g normalized to 1 Watt, and the Dasy system used for the test phone measured 9.56 mW/g normalized to 1 Watt. This is within the required accuracy, and thus the measured SAR values are considered correct. See appendix C for printout of the validation test from the Dasy measurement system. The measurement methodology is described in IEEE Transactions on Vehicular Technology, vol. 44, no. 3, August 1995, titled Electromagnetic Energy Exposure of Simulated users of Portable Cellular Telephones. The Dasy system is operated per the instructions in the Dasy Users Manual. A copy of the title page of this manual is included as appendix D. The entire manual is available directly from SPEAG. Figure 3. Dasy System used for measurements P P a a g g e e 5 5 5. Test Sample Conditions For the purposes of these tests the subject phone was positioned on the measurement phantom per the instructions in the Motorola users manual for the subject phone. The position used for the tests is the 3-point contact position. In this position the test sample contacts the phantom’s ear and cheek and is positioned with a repeatability of better than ±6%. Since the antenna is not located on the center of the phone, the SAR was measured with the phone on both the left and right side talk positions (See figure 2). Due to the construction of the phone, the base of the antenna is 20 mm away from the phantom for the left side head, which is the closest. The test sample is capable of operation in a test mode that allows control of the transmitter without the need to place actual phone calls. This guarantees that the unit does not change its transmitter power, and that the resultant SAR values will not be affected by external connections. For the purposes of this test the unit is commanded to test mode and manually set to the proper channel, transmitter power level and transmit mode of operation. Since the test sample uses the 1/3 duty cycle of the TDMA system while in digital mode, the crest factor (the ratio between peak and average power) is set to 3 for these tests. When the test sample was tested in analog mode the crest factor was set to 1. The phone is then placed in the SAR measurement system with a fully charged battery. At the end of each test the Dasy system measures the drift of the SAR at a fixed point in the phantom so as to ensure that the test sample has not changed in transmitter power. For the purposes of these tests, the transmitter was operated at the highest transmitter output and with the phone on both left and right side talk positions. 6. Method of Measurement The system is instructed to scan as much of the face of the phone as is in close proximity to the phantom. Using the information gained about the general region of highest SAR, the system then automatically scans a smaller a…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA, INC.FCC ID: IHDT5ZP1 Exhibit 6 SUBMITTED MEASURED DATA INDEX RF Power Output, Analog and Digital Modes - Measured Data6A Audio Response - Graph6B Post Limiter Low Pass FIlter Response - Graph6C Signaling Channel Audio Roll-Off Filter Response – Graph6D Modulation Limiting (Compandor In) - Graph6E1 Modulation Limiting (Compandor Out) - Graph6E2 Occupied Bandwidth, Audio - Photograph6F1 Occupied Bandwidth, Audio and SAT - Graph6F2 Occupied Bandwidth, Wideband Data - Graph6F3 Occupied Bandwidth, signaling Tone and SAT - Graph6F4 Occupied Bandwidth, Digital Mode - Graph6F5 Conducted Spurious and Harmonic Emissions, - Graph6G Radiated Spurious and Harmonic Emissions, - Graph6H Frequency Change vs Temperature, Analog Mode - Graph6J1 Frequency Change vs Temperature, Digital Mode - Graph6J2 Frequency Change vs Supply Voltage, Analog Mode - Graph6K1 Frequency Change vs Supply Voltage, Digital Mode – Graph6K2 Measurement techniques6L APPLICANT: MOTOROLA, INC.FCC ID: IHDT5ZP1 Exhibit 6A RF POWER OUTPUT DATA The input supply to the transmitter was set at 4.8 Volts. The voltage at the final amplifying device voltage was 4.7V. The RF power output was measured with the indicated voltage and current applied into the final RF amplifying device(s). ANALOG MODE: Measured RF Output: 0.391 Watts Measured DC Voltage: 4.7 Volts Measured DC Current: 498 mA Measured RF Input: 0.92 Mw 800MHz DIGITAL MODE: In Digital Mode the values measured for RF Output, DC Current and RF Input Power are all average values which reflect the 1/3 duty cycle of TDMA operation. Measured RF Output: 0.573 Watts Measured DC Voltage: 4.7 Volts Measured DC Current: 230 mA Measured RF Input: 0.59 mW ERP: The input supply to the transmitter was set at 4.8 Volts. Measurements were made relative to a dipole with a known gain of 2.14dB relative to an isotropic source. ANALOG MODE: Measured ERP (Relative to Half-Wavelength Dipole): 171mW (22.32dBm); 800MHz DIGITAL MODE: Measured ERP (Relative to a Half-Wavelength Dipole): 251mW (23.99dBm). APPLICANT: MOTOROLA, INC.FCC ID: IHDT5ZP1 Exhibit 6B TX AUDIO RESPONSE -35 -30 -25 -20 -15 -10 -5 0 5 10 15 100100010000 FREQUENCY (Hz) MODULATION (dB) Modulation Upper Limit Lower Limit APPLICANT: MOTOROLA, INC.FCC ID: IHDT5ZP1 Exhibit 6C Tx Post-Limiter Lowpass Filter Response -80 -70 -60 -50 -40 -30 -20 -10 0 10 100100010000 Audio Frequency (Hz) Magnitude Response (dB) Post-Limiter Filter Response Specification (IS-55, 3.3.1.2.2.3) Reference: 1kHz = 0 dB Method: Constant Input, Swept Sinewave Date: 4/30/99 APPLICANT: MOTOROLA, INC.FCC ID: IHDT5ZP1 Exhibit 6D Tx Signaling Channel Audio Roll-Off Filter Response -60 -50 -40 -30 -20 -10 0 10 100100010000100000 Audio Frequency (Hz) Filter Output (dB) Signaling Channel Response Specification (IS-55) Method: Random Manchester Data Date: 4/30/99 APPLICANT: MOTOROLA, INC.FCC ID: IHDT5ZP1 Exhibit 6E-1 MODULATION LIMITING COMPANDOR ON 0 2 4 6 8 10 12 14 -40-30-20-1001020 AUDIO LEVEL (dB) DEVIATION (kHz) 300 Hz 1000 Hz 3000 Hz APPLICANT: MOTOROLA, INC.FCC ID: IHDT5ZP1 Exhibit 6E-2 MODULATION LIMITING COMPANDER OFF 0 2 4 6 8 10 12 14 -40-30-20-1001020 AUDIO LEVEL (dB) DEVIATION (kHz) 300 Hz 1000 Hz 3000 Hz APPLICANT: MOTOROLA, INC.FCC ID: IHDT5ZP1 Exhibit 6F-1 BANDWIDTH MEASUREMENT DATA FOR TRANSMITTER TYPES F8W DEVIATION OF THE CARRIER WITH 2500 Hz AUDIO MODULATION HORIZONTAL SCALE = 20 kHz/ DIVISION VERTICAL SCALE = 10 dB/ DIVISION (ATTENUATION) RESOLUTION BANDWIDTH = 300 Hz AUDIO LEVEL = 16 dB GREATER THAN LEVEL REQUIRED TO PRODUCE +/- 6 kHz POWER LEVEL = 0.6 W MEASURED DATA: 1. Instantaneous Deviation Control set for a maximum of +/- 12 kHz. 2. Tune and adjust to obtain unmodulated carrier on the analyzer scope. Save trace of unmodulated carrier. 3. Modulate the Transmitter with the 2.5 kHz tone, 16 dB greater than that required to produce +/- 6 kHz modulation. Photograph the sideband display while it is superimposed upon the unmodulated carrier. SPEC LIMITS: a. On any frequency removed from the assigned carrier frequency by more than 20 kHz, up to and including 45 kHz, the sideband is at least 26 dB below the carrier. b. On a any frequency removed from the assigned carrier frequency by more than 45 kHz, up to the first multiple of the carrier frequency, the sideband is at least 60 dB below the carrier or 43 + log10(mean power output in Watts) dB, whichever is smaller attenuation. APPLICANT: MOTOROLA, INC.FCC ID: IHDT5ZP1 Exhibit 6F-2 BANDWIDTH MEASUREMENT DATA FOR TRANSMITTER TYPES F8W DEVIATION OF THE CARRIER WITH 2500 Hz AUDIO MODULATION AND SUPERVISORY AUDIO TONE HORIZONTAL SCALE = 20 kHz/ DIVISION VERTICAL SCALE = 10 dB/ DIVISION (ATTENUATION) RESOLUTION BANDWIDTH = 300 Hz AUDIO LEVEL = 16 dB GREATER THAN LEVEL REQUIRED TO PRODUCE +/- 6 kHz POWER LEVEL = 0.6 W MEASURED DATA: 1. Instantaneous Deviation Control set for a maximum of +/- 12 kHz. 2. Tune and adjust to obtain unmodulated carrier on the analyzer scope. Save trace of unmodulated carrier. 3. Modulate the Transmitter with the 2.5 kHz tone, 16 dB greater than that required to produce +/- 6 kHz modulation and add SAT with +/- 2 kHz deviation. Photograph the sideband display while it is superimposed upon the unmodulated carrier. SPEC LIMITS: a. On any frequency removed from the assigned carrier frequency by more than 20 kHz, up to and including 45 kHz, the sideband is at least 26 dB below the carrier. b. On a any frequency removed from the assigned carrier frequency by more than 45 kHz, up to the first multiple of the carrier frequency, the sideband is at least 60 dB below the carrier or 43 + log10(mean power output in Watts) dB, whichever is smaller attenuation. APPLICANT: MOTOROLA, INC.FCC ID: IHDT5ZP1 Exhibit 6F-3 BANDWIDTH MEASUREMENT DATA FOR TRANSMITTER TYPES F1D DEVIATION OF THE CARRIER WITH 10 kBIT/ SECOND DATA HORIZONTAL SCALE = 20 kHz/ DIVISION VERTICAL SCALE = 10 dB/ DIVISION (ATTENUATION) RESOLUTION BANDWIDTH = 300 Hz POWER LEVEL = 0.6 W MEASURED DATA: 1. Instantaneous Dev…

Text truncated - open the document above for the full version.
