APPLICANT: MOTOROLA, INC.FCC ID: IHDT5ZS1 EXHIBIT 8 INSTRUCTION MANUAL A preliminary draft copy of the Users Manual follows: 1 Welcome Thank you for choosing Motorola—a global leader in communications technology. All Motorola phones are designed and manufactured to meet Motorola’s exacting specifications and world-class quality standards. During development, our laboratory testing team took the durable Digital V Series phone through its paces. They cooked it, steamed it, shook it, shocked it, dusted it, and dropped it—and the phone still worked! We are confident that the one you purchased will meet your own exacting standards. Thank you for choosing Motorola, and we hope you enjoy your Digital V8160 wireless phone! 2 Guide Overview Okay, you’ve got a brand new phone with a bunch of nifty features. Now what? Afraid you’ll press the wrong key? Or forget a feature or two? Don’t sweat it! We’ve designed this guide to take you step-by-step through each feature of your new Digital V Series phone. We’ll show you what key to press and what happens when you press it. Follow along, chapter-by-chapter, and you’ll find it’s as easy as 1-2-3. Here’s an idea of what you’ll learn in each chapter: Getting Started First things first. Once the box is open, this section will show you where to begin. We will explain what came with your new phone and show you how to use the battery. Turn to page 10 to get started. The Basics What do all those buttons and lights mean? How do I make my first phone call? In this section, we’ll answer those questions and teach you everything necessary to start using your new phone. Begin learning “The Basics” on page 22. Using Memory Read “Using Memory,” beginning on page 36, and we will explain how to make the most of your new phone’s internal Phone Book. You’ll learn how to save time with dialing shortcuts and memory features that make it easy to place quick calls. 3 Guide Overview Using Messaging * This Digital V Series phone supports optional messaging services, like Caller ID, which allows you to see who is calling before you answer. It can even receive alphanumeric messages just like a pager and tell you when you have Voice Mail. Turn to page 52 to begin “Using Messaging.” Using the MiniBrowser and Data Features * With a service subscription, your phone can access up to the minute information with the MiniBrowser! You can use the phone to retrieve on demand weather reports, sports scores, stock reports, and much more. See page 110. With the addition of the Motorola Data Connectivity Kit, you can hook your phone up to a compatible computer and send and receive faxes and data. See page 118. The Works When you are ready to learn the advanced features of your new phone, turn to page 60 for “The Works.” We will explain everything from navigating the menu system to electronically locking your phone. So relax! Let us show you what your Digital V Series phone can do! * Contact your Service Provider for availability. 4 Contents Introduction Guide Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Safety Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Getting Started Package Content Options. . . . . . . . . . . . . . . . . . . . . . 10 Introduction to Batteries . . . . . . . . . . . . . . . . . . . . . . 12 Installing Batteries. . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Charging Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Phone Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Using the Smart Button . . . . . . . . . . . . . . . . . . . . . . . 21 The Basics Turning Your Phone On. . . . . . . . . . . . . . . . . . . . . . . 22 Reading the Indicators. . . . . . . . . . . . . . . . . . . . . . . . 25 Placing and Ending Calls . . . . . . . . . . . . . . . . . . . . . 28 Redialing Numbers . . . . . . . . . . . . . . . . . . . . . . . . . . 29 Receiving Calls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 Basic Tone Controls . . . . . . . . . . . . . . . . . . . . . . . . . . 32 Your Phone & Its Shortcuts . . . . . . . . . . . . . . . . . . . . 34 Using Memory Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 Making the Most of Memory . . . . . . . . . . . . . . . . . . . 37 Storing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38 Entering Names . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39 Recalling. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 Editing Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42 Pause Dialing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48 Using Calling Cards . . . . . . . . . . . . . . . . . . . . . . . . . . 50 5 Contents Using Messaging Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52 Receiving Messages . . . . . . . . . . . . . . . . . . . . . . . . . . .53 Viewing Your Caller IDs. . . . . . . . . . . . . . . . . . . . . . . .54 Checking Your Voice Mail . . . . . . . . . . . . . . . . . . . . . .56 Reading Your Messages . . . . . . . . . . . . . . . . . . . . . . . .58 The Works Introducing the Menu Features. . . . . . . . . . . . . . . . . .60 The Internal Phone Book . . . . . . . . . . . . . . . . . . . . . .62 Store and recall numbers Using Call Timers . . . . . . . . . . . . . . . . . . . . . . . . . . . .70 Monitor the length of your calls Setting Tone Controls. . . . . . . . . . . . . . . . . . . . . . . . . .76 Adjust your phone’s tone controls Lock/Security Features. . . . . . . . . . . . . . . . . . . . . . . . .84 Control access to your phone Phone Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .92 Personalize your phone’s operation Using the MiniBrowser . . . . . . . . . . . . . . . . . . . . . . .110 Access valuable information with your phone Using Data Features. . . . . . . . . . . . . . . . . . . . . . . . . .118 Make your phone a wireless modem Reference …

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA, INC.FCC ID : IHDT5ZS1 EXHIBIT 2A November 10, 1999 SPECIFICATION COMPLIANCE STATEMENT Engineer-in-Charge Equipment Authorization Branch Federal Communications Commission We hereby certify that this transmit and receive equipment (FCC ID: IHDT5ZS1) for dual mode mobile station cellular use is capable of compliance with TIA/EIA-95-B Mobile Station-Base Station Compatibility Standard for Dual-Mode Spread Spectrum Systems, December 1998. (Signed – Rob Netz) Rob Netz Engineering Manager Cellular Subscriber Equipment (Signed – Mike Cruz) Mike Cruz Sr. Resource Manager Cellular Subscriber Equipment APPLICANT: MOTOROLA, INC.FCC ID : IHDT5ZS1 EXHIBIT 2B STATEMENT OF CERTIFICATION The technical data supplied with this application, having been taken under my supervision is hereby duly certified. The following is a statement of my qualifications: BSEE 1989 University of Illinois U/C 10 years Cellular Design Experience SIGNATURE: (signed) Robert M. Netz NAME: Robert M. Netz DATE: 11/9/99 POSITION: Engineering Manager I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in the application and accompanying technical data are true and correct: SIGNATURE: (signed) Mike Cruz NAME: Mike Cruz DATE: 11/9/99 POSITION: Sr. Resource Manager APPLICANT: MOTOROLA, INC.FCC ID : IHDT5ZS1 EXHIBIT 2C RADIO FREQUENCY ENERGY EXPOSURE EVALUATION STATEMENT Motorola, Inc., Personal Communications Sector, hereby certifies that, when used as stated in the operation instructions supplied, this Cellular Portable Transceiver, FCC ID: IHDT5ZS1, complies with the FCC’s Radio frequency energy exposure limits for General Population/Uncontrolled environment, per FCC Rule 47CFR2.1093.

APPLICANT: MOTOROLAFCC ID: IHDT5ZS1 Exhibit 13 November 12, 1999 CONFIDENTIALITY REQUEST CONTAINED WITHIN Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Application for Cellular/PCS Transceiver Certification Gentlemen: Application: Motorola, Inc., Personal Communications Sector, 600 N. U.S. Highway 45, Libertyville, Illinois 60048-1286 herein submits: Application for Equipment Authorization (FCC Form 731-October 1992 with integrated Fee Processing Form, Fee Codes EFT and EBC), application fee in the amount of $610, and Exhibits; for Certification of a Cellular Transceiver, FCC ID: IHDT5ZS1. Motorola is also the manufacturer of this equipment. Confidentiality: Pursuant to Section 0.459 of the Commission's rules (CFR 47), Motorola requests confidentiality for portions of the material contained in this application and that the identified material be withheld from public inspection following the grant of this authorization. This material contains Motorola's trade secrets and confidential information that Motorola does not customarily release to the public and which is otherwise not generally available to the public. Confidentiality is requested for the following exhibits: • Exhibit 4 Block Diagrams • Exhibit 5 Schematics • Exhibit 12 Operational Description Description: This equipment has the capability to operate in both the conventional Analog Cellular standard and the Digital CDMA standard in the 800 MHz cellular band, as outlined in EIA/TIA IS-95-A "Mobile Station – Base Station Compatibility Standard for Dual-Mode Wideband Spread Spectrum Cellular System”. Technical details for this alternate cellular technology (permitted under the cellular service option provisions in Section 22.933 of the Commission's rules) related to Type Acceptance of this equipment, as noted in paragraphs 31 and 32 of the Report and Order in FCC GEN. Docket No. 87-390, are detailed in Exhibit 12. Contact Information: Please contact me by telephone at (847) 523-6167, by facsimile at (847) 523-2350, or by e-mail ([email protected]), if there are questions or additional information needed concerning this filing. Regards, Andrew J. Bachler FCC Liaison Cellular Subscriber Sector 600 N. U.S. Highway 45 Libertyville, IL 60048-5343

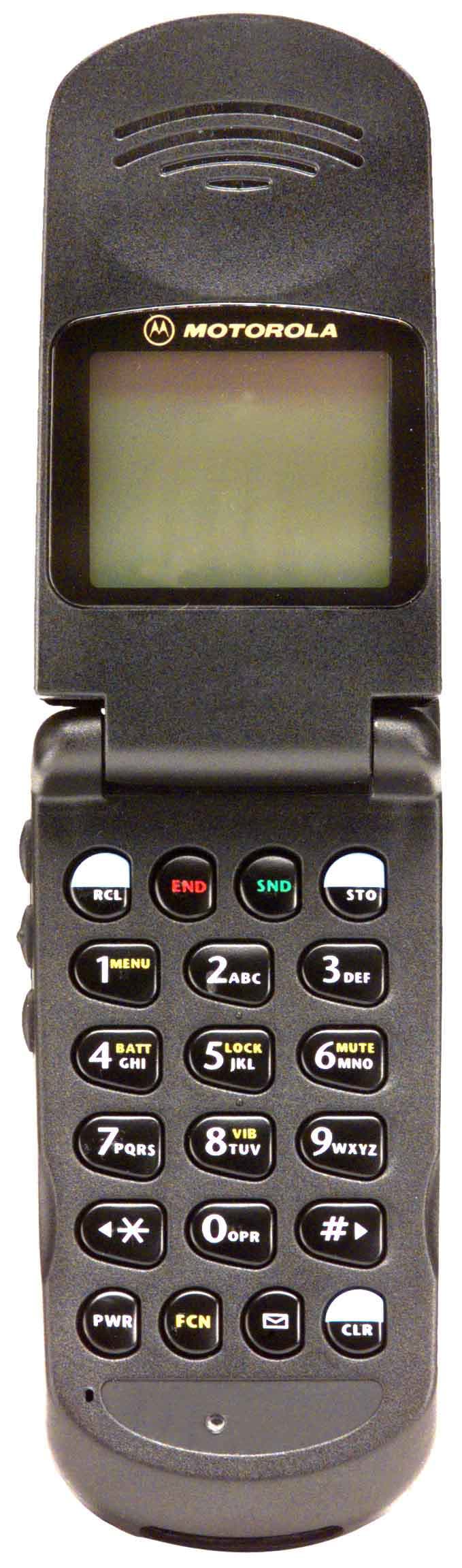

APPLICANT: MOTOROLA, INC. FCC ID: IHDT5ZS1 EXHIBIT 3 Front View with Flip Open Back View Battery Removed to Show Equipment ID

APPLICANT: MOTOROLA, INC.FCC ID : IHDT5ZS1 EXHIBIT 1 FCC IDENTIFICATION (NAMEPLATE) INFORMATION The FCC label shown is representative of the label that will appear on the radio when in production. It will be placed on the radio telephone as shown in Exhibit 3. Other information may also be included on this label. FCC ID: IHDT5ZS1

APPLICANT: MOTOROLA, INC. FCC ID: IHDT5ZS1 EXHIBIT 9 Front View (Shields Removed) Rear View (Shields Removed)

APPLICANT: MOTOROLA, INC.FCC ID : IHDT5ZS1 EXHIBIT 10 Transceiver Adjustments/Tune-Up Procedure There are no user accessible adjustments or tuning in this portable cellular transceiver. All necessary adjustments and tuning are performed during manufacture of the product. Any adjustments or tuning after service or repair are done as part of that process as special equipment is required to perform such adjustments.

P P a a g g e e 1 1 December 1, 1999 SAR Test Report for Motorola portable cellular phone (FCC ID IHDT5ZS1). Prepared by: Paul Moller, Principal Staff Engineer Motorola Personal Communications Sector Product Safety Laboratory Libertyville, Illinois Contents 1) Introduction 2) Applicable Regulations 3) Description of Test Sample 4) Description of Motorola SAR Test Facility 5) Test Sample Conditions 6) Method of Measurement 7) Measurement Uncertainty 8) SAR Test Results 9) SAR in the hand measurements 10) Body Worn Configuration 11) Battery Options 12) Summary Appendix A: Included data Appendix B: Measurement Probe S/N 1391 Calibration Certificate Appendix C: Printout from the Dasy measurement system validation test P P a a g g e e 2 2 1. Introduction The Motorola Personal Communications Sector Product Safety Laboratory has performed measurements of the maximum potential exposure to the user of portable cellular phone FCC ID IHDT5ZS1. The Specific Absorption Rate (SAR) of this product was measured. This report details the test setup and equipment as well as the results of those tests. 2. Applicable Regulations Federal Communications Commission rule §2.1093(d)(2), the ANSI/IEEE C95.1 1992 and the NCRP Report Number 86 specify the maximum exposure limit of 1.6 W/kg as averaged over any 1 gram of tissue for portable devices being used within 20cm of the user in the uncontrolled environment. 3. Description of Test Sample A prototype unit serial number FCD83459 was measured. This unit is identical in physical construction, maximum radiated power levels and antenna structure to units that will be in production. It transmits in the frequency range of 824 to 849 MHz using AMPS and CDMA modes. The unit was tested at its maximum transmitter power. The unit is equipped with a telescoping antenna that serves as both a receive and transmit antenna. The antenna has a retracted and an extended operating position as shown in figures 1 and 2 respectively. Figure 1. Showing Retracted Antenna Figure 2. Showing Extended Antenna P P a a g g e e 3 3 Figure 3 shows the test unit as it is placed onto the Motorola phantom. For the purposes of the actual SAR tests the Motorola phantom head is tilted on its side by 90 degrees so that a vertically oriented measurement probe can easily scan an area where the phone is in close contact with the phantom and the SAR will be the highest. Figure 3. Phone against side of Phantom Head. 4. SAR Test Facility The Motorola test facility utilized for the SAR testing of this product is the Personal Communications Sector Product Safety Laboratory, in Libertyville Illinois. The laboratory utilizes a Dosimetric Assessment System (Dasy™) SAR measurement system manufactured by Schmid & Partner Engineering AG (SPEAG™), of Zurich Switzerland. This system utilizes a computer controlled six axis robot to move a measurement probe to measure the SAR. A photo of the Dasy system with the Motorola phantom is shown in figure 4. Probe serial number 1391 was used for the measurements. It was calibrated at SPEAG™, and has a calibration date October 6, P P a a g g e e 4 4 1999. A copy of the calibration certificate is included as appendix B. Dipole Validation Kit type D835V2, serial number 409 was used to validate the system accuracy at 800MHz. The validation SAR value is 8.48 mW/g normalized to 1 Watt, and the Dasy system used for the test phone measured 8.84 mW/g normalized to 1 Watt. This is within the required accuracy, and thus the measured SAR values are considered correct. See appendix C for printout of the validation test from the Dasy measurement system. The measurement methodology is described in IEEE Transactions on Vehicular Technology, vol. 44, no. 3, August 1995, titled Electromagnetic Energy Exposure of Simulated users of Portable Cellular Telephones. The Dasy system is operated per the instructions in the Dasy Users Manual. The entire manual is available directly from SPEAG. Figure 4. Dasy System P P a a g g e e 5 5 5. Test Sample Conditions For the purposes of these tests the subject phone was positioned on the measurement phantom per the instructions in the Motorola users manual for the subject phone. The position used for the tests is the 3-point contact position. In this position the test sample contacts the phantom’s ear and cheek and is positioned with a repeatability of better than ±6%. Since the antenna is not located on the center of the phone, the SAR was measured with the phone on both the left and right side talk positions (See figure 3). Due to the construction of the phone, the base of the antenna is 14 mm away from the phantom for the left side head, which is the closest. The test sample is capable of operation in a test mode that allows control of the transmitter without the need to place actual phone calls. This guarantees that the unit does not change its transmitter power, and that the resultant SAR values will not be affected by external connections. For the purposes of Analog mode tests the unit is commanded to test mode and manually set to the proper channel, transmitter power level and transmit mode of operation. For the purposes of the CDMA mode tests, the unit is placed in a phone call using an HP8924 and is commanded to the highest possible power by means of the “always up” command. The phone is then placed in the SAR measurement system with a fully charged battery. At the end of each test the Dasy system measures the drift of the SAR at a fixed point in the phantom so as to ensure that the test sample has not changed in transmitter power. For the purposes of these tests, the transmitter was operated at the highest transmitter output and with the phone and module on both left and right side talk positions. 6. Method of Measurement The system is instructed to scan as much of the face of the phone as is in close proximity to the phantom. Using the information gained about the general region of highest SAR, the system then automatically scans a smaller …

Text truncated - open the document above for the full version.

P P a a g g e e 1 1 February 10, 2000 SAR Test Report for Motorola portable cellular phone (FCC ID IHDT5ZS1). Prepared by: Paul Moller, Principal Staff Engineer Motorola Personal Communications Sector Product Safety Laboratory Libertyville, Illinois Contents 1) Introduction 2) Applicable Regulations 3) Description of Test Sample 4) Description of Motorola SAR Test Facility 5) Test Sample Conditions 6) Method of Measurement 7) Measurement Uncertainty 8) SAR Test Results 9) SAR in the hand measurements 10) Body Worn Configuration 11) Battery Options 12) Summary Appendix A: Included data from Against the Phantom Head Appendix B: Included data from Body Worn Configuration Appendix C: Printout from the Dasy™ measurement system validation test P P a a g g e e 2 2 1. Introduction The Motorola Personal Communications Sector Product Safety Laboratory has performed measurements of the maximum potential exposure to the user of portable cellular phone FCC ID IHDT5ZS1. The Specific Absorption Rate (SAR) of this product was measured. This report details the test setup and equipment as well as the results of those tests. 2. Applicable Regulations Federal Communications Commission rule §2.1093(d)(2), the ANSI/IEEE C95.1 1992 and the NCRP Report Number 86 specify the maximum exposure limit of 1.6 W/kg as averaged over any 1 gram of tissue for portable devices being used within 20cm of the user in the uncontrolled environment. 3. Description of Test Sample A prototype unit serial number FCD83459 was measured. This unit is identical in physical construction, maximum radiated power levels and antenna structure to units that will be in production. It transmits in the frequency range of 824 to 849 MHz using AMPS and CDMA modes. The unit was tested at its maximum transmitter power. The unit is equipped with a telescoping antenna that serves as both a receive and transmit antenna. The antenna has a retracted and an extended operating position as shown in figures 1 and 2 respectively. Figure 1. Showing Retracted Antenna Figure 2. Showing Extended Antenna P P a a g g e e 3 3 Figure 3 shows the test unit as it is placed onto the Motorola phantom. For the purposes of the actual SAR tests the Motorola phantom head is tilted on its side by 90 degrees so that a vertically oriented measurement probe can easily scan an area where the phone is in close contact with the phantom and the SAR will be the highest. Figure 3. Phone against side of Phantom Head. 4. SAR Test Facility The Motorola test facility utilized for the SAR testing of this product is the Personal Communications Sector Product Safety Laboratory, in Libertyville Illinois. The laboratory utilizes a Dosimetric Assessment System (Dasy™) SAR measurement system manufactured by Schmid & Partner Engineering AG (SPEAG™), of Zurich Switzerland. This system utilizes a computer controlled six axis robot to move a measurement probe to measure the SAR. A photo of the Dasy™ system with the Motorola phantom is shown in figure 4. Probe serial number 1103 was used for the measurements. It was calibrated at SPEAG™, and has a calibration date April 20, 1999. Dipole P P a a g g e e 4 4 Validation Kit type D835V2, serial number 414 was used to validate the system accuracy at 800MHz. The validation SAR value is 8.56 mW/g normalized to 1 Watt, and the Dasy™ system used for the test phone measured 9.32 mW/g normalized to 1 Watt. This is within the required accuracy, and thus the measured SAR values are considered correct. See appendix C for printout of the validation test from the Dasy™ measurement system. The measurement methodology is described in IEEE Transactions on Vehicular Technology, vol. 44, no. 3, August 1995, titled Electromagnetic Energy Exposure of Simulated users of Portable Cellular Telephones. The Dasy™ system is operated per the instructions in the Dasy™ Users Manual. The entire manual is available directly from SPEAG™. Figure 4. Dasy™ System P P a a g g e e 5 5 5. Test Sample Conditions For the purposes of these tests the subject phone was positioned on the measurement phantom per the instructions in the Motorola users manual for the subject phone. The position used for the tests is the 3-point contact position. In this position the test sample contacts the phantom’s ear and cheek and is positioned with a repeatability of better than ±6%. Since the antenna is not located on the center of the phone, the SAR was measured with the phone on both the left and right side talk positions (See figure 3). Due to the construction of the phone, the base of the antenna is 14 mm away from the phantom for the left side head, which is the closest. The test sample is capable of operation in a test mode that allows control of the transmitter without the need to place actual phone calls. This guarantees that the unit does not change its transmitter power, and that the resultant SAR values will not be affected by external connections. For the purposes of Analog mode tests the unit is commanded to test mode and manually set to the proper channel, transmitter power level and transmit mode of operation. For the purposes of the CDMA mode tests, the unit is placed in a phone call using an HP8924 and is commanded to the highest possible power by means of the “always up” command. The phone is then placed in the SAR measurement system with a fully charged battery. At the end of each test the Dasy™ system measures the drift of the SAR at a fixed point in the phantom so as to ensure that the test sample has not changed in transmitter power. For the purposes of these tests, the transmitter was operated at the highest transmitter output and with the phone and module on both left and right side talk positions. 6. Method of Measurement The system is instructed to scan as much of the face of the phone as is in close proximity to the phantom. Using the information gained about the general region of highest SAR, the system then automatically scans a smaller area centered around the location of peak s…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLAFCC ID: IHDT5ZS1 Exhibit 13A February 21, 2000 RESPONSE TO SAR QUESTIONS (Correspondence Reference Number:12262) Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Application for Cellular/PCS Transceiver Certification (EA96148) Kwok Chan & Joe Dichoso: Purpose: This document responds to questions on the submission for the IHDT5ZS1 (EA96148) application. Description: To facilitate the response to SAR questions, the following includes the original text and the highlighted response. From:Joe Dichoso [email protected] FCC Application Processing Branch Re:FCC ID IHDT5ZS1 Applicant:Motorola Inc Correspondence Reference Number:12262 731 Confirmation Number:EA96148 Date of Original E-Mail:02/18/2000 Motorola, EA 96148 - 1. N/A 2. The requested output for AMPS and CDMA appear to be based on conducted output. Measured ERP should be used for the grant - 407 mW for AMPS and 235 mW for CDMA, ERP for both. 3. SAR report indicated this device has a standard battery and 2 extended battery. The manual indicates a standard and a slim battery. Please verify the battery options and confirm that the battery options will not result in device performance changes or operating configuration issues that could cause SAR to exceed those reported in this filing for head and body-worn configurations. Response: Exhibit 11 is incorrect in stating that there is a total of 3 battery options. There is in fact only two, as the manual indicates, the standard and the slim. The SAR tests were conducted with the "standard" battery. The slim battery does not affect the attachment to the belt clip of the distance of the phone's body or antenna to the head and thus should not affect the SAR values. 4. The manual describes a 3-watt vehicle kit. Please clarify if this vehicle kit is a part of this filing. If so, compliance with MPE limits for 2.1091 needs to be addressed. At 3 watts conducted output, it would not be categorically excluded from routine MPE. Response: The vehicle kit is NOT part of this filing. The manual clarifies that the existing vehicle kit is not compatible. APPLICANT: MOTOROLAFCC ID: IHDT5ZS1 Exhibit 13A 5. FYI: dipole validation result is a little off between reported and numbers on SAR plot. Minor, no need to respond. 6. SAR report has dielectric constant of 45.1 and conductivity of 0.85 S/m for head tissue material, the SAR plots are indicating substantially different tissue dielectric properties. Some dielectric constant values are exceeding reported (and recommended) values by more than 10%. Existing discussions from standards organizations generally recommend deviations to not exceed 5%, especially for dielectric constant. Please clarify the effect of these variations on SAR compliance for this device, especially those tests with results higher than 1.0 W/kg. Response: Exhibit 11 indicates the dielectric parameters that were used in the SAR plot that had the highest result. The SAR plots has different values because the left hand talk position and right hand talk position tests were done on different phantoms. We used the correct parameters for each phantom at the time the tests were done. There were only two plots included in Exhibit 11 that had SAR results higher than 1.0 W/kg. The first of these was the plot that indicated the dielectric constant of 45.1 and the conductivity of 0.85 S/m, this is the plot that had the highest resulting SAR value. The other plot had a dielectric of 49.2 and a conductivity of 0.87 S/m. Both of these tests had dielectric values within 10% of the recommended value given on the FCC subcommittee 34 web page (recommend dielectric = 48.3). 7. The conducted output indicated in the SAR results table for retracted antenna configuration is 130 mW for both AMPS and CDMA modes. This is substantially lower than values reported elsewhere for this filing, please clarify. Response: The numbers in Exhibit 11 are the correct numbers. Below is a table showing the output power numbers as per our internal quality check. The filing reports the worst case conditions for output power and did not specify the difference between the antenna extended and retracted. The power cutback on our phone is the following: Mode:Max. Ant Up Power (dBm)Max. Ant Dn Power (dBm) Analog26.721.1 CDMA24.521.1 8. FYI: Please use muscle equivalent tissue parameters to address hand issues in the future, no need to respond for the current filing, should not be an issue if hand absorption is only 6 mW (see next item). 9. The SAR report indicated less than 6 mW of total power was absorbed by the hand. The photo indicated the hand is covering the antenna or could be in direct contact with the antenna. The 6 mW reported is substantially lower than typically expected for the indicated hand configuration, please confirm and/or clarify if necessary. Please also verify if both antenna extended and retracted configurations were tested. Response: The SAR in the hand measurements were done on low, mid and high channels with the antenna extended and retracted. The highest resulting number was 5.58mW on channel 384 with the antenna extended. Note: Power is reduced when the antenna is retracted. 10. Please include appropriate operating instructions and caution statements in users manual to alert users that body-worn operating configurations were tested for SAR compliance using a specific Motorola holster, which provides one inch separation (as described in the SAR report) between the device, including its antenna whether extended or retracted, and user's body to ensure compliance. Other holsters and body-worn configurations that have not been tested may not comply with SAR limit and should be avoided. Response: The following is a part of the updated users manual safety information: Safety Information IMPORTANT: Read this information before using your wireless handheld phone. APPLICANT: MOTOROLAFCC ID: IHDT5ZS1 Exhibit 13A Exposure to Radio Fre…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA, INC.TRANSCEIVER TYPE: IHDT5ZS1 EXHIBIT 6 SUBMITTED MEASURED DATA INDEX EXHIBITMEASUREMENT 6ARF Power Output 6BAudio Response 6CPost Limiter Low Pass Filter Response - Graph 6DSignaling Channel Audio Roll-Off Filter Response - Graph 6E1Modulation Limiting (Compander In Wide Mode) - Graph 6E2Modulation Limiting (Compander Out Wide Mode) - Graph 6F1Occupied Bandwidth, Audio - Graph 6F2Occupied Bandwidth, Audio and SAT - Graph 6F3Occupied Bandwidth, Wideband Data - Graph 6F4Occupied Bandwidth, Signaling Tone and SAT - Graph 6F5Occupied Bandwidth, Digital Mode - Graph 6G1Conducted Spurious and Harmonic Emissions, Analog Mode - Graph 6G2Conducted Spurious and Harmonic Emissions, Digital Mode - Graph 6H1Radiated Spurious and Harmonic Emissions, Analog Mode - Graph 6H2Radiated Spurious and Harmonic Emissions, Digital Mode - Graph 6J1Frequency Change vs. Temperature, Analog Mode 6J2Frequency Cha…
