IHDT5ZX1Mobile Cellular Transceiver

APPLICANT: MOTOROLA, INC.FCC ID: IHDT5ZX1 EXHIBIT 8 USERS MANUAL INFORMATION 1. The following Antenna Installation Guidelines will be shipped with each product:. ANTENNA INSTALLATION GUIDELINES IMPORTANT: To meet the FCC’s RF Exposure Guidelines, the antenna should be installed so there is at least 30 cm of separation between the occupants of the vehicle and the antenna. 2. A draft copy of the users manual follows: 2950 USER'S GUIDE Mobile Cellular Telephone MOBILE/CARRY PHONE 415A79-O 9/22/99 9:39 AM Page 1 Getting Started .....................................................4 Welcome................................................................4 General Safety Information....................................6 Introduction..........................................................11 Phone Overview ..................................................12 Basic Operation .................................................15 Turn Phone On and Off.......................................15 Place a Call..........................................................17 Automatic Redial..................................................18 End a Call............................................................19 Receive a Call......................................................19 Call in Absence Indicator.....................................19 Hands Free Operation (with optional HF Microphone)...................................................20 Place a Hands Free Call......................................20 Receive a Hands Free Call..................................20 Manual Handset to Hands Free Operation..........20 Automatic Hands Free ........................................21 Enhanced Simplex Hands Free...........................21 Signal Strength Meter..........................................22 Volume Meter ......................................................22 Speaker Volume ..................................................23 Earpiece Volume .................................................23 Ringer Volume.....................................................24 Display Own Phone Number ...............................24 Switch to Second Phone Number........................24 Memory ...............................................................26 Storing Information in Memory ............................26 Selecting a Memory Location ..............................26 Store to a Location Number.................................26 Memory Autoload.................................................27 Storing a Phone Number and a Name................27 Table of Contents 1 415A79-O 9/22/99 9:39 AM Page 2 Cumulative Call Timer .........................................48 Individual Display Timer.......................................48 One-Minute Timer................................................49 Security Features.................................................49 Electronic Lock ....................................................49 Change Unlock Code...........................................50 Display Unlock Code ...........................................50 Automatic Lock ....................................................50 Theft Alarm ..........................................................51 Auxiliary Alert.......................................................52 Change Service Level..........................................53 Master Reset .......................................................54 Master Clear ........................................................56 Reference............................................................57 The Cellular System ............................................57 Service Area ........................................................57 Weak Signal Alert................................................57 Switchhook and Enhanced System Services......58 Roaming...............................................................58 Selectable System Registration...........................58 Troubleshooting...................................................63 Quick Reference Feature Guide..........................64 Message Glossary...............................................66 Index....................................................................72 Table of Contents 3 Memory Protect ...................................................29 Recalling/Scrolling from Memory.........................29 Recalling/Scrolling by Location Number..............29 Last Number Recall.............................................30 Recalling Last 10 Numbers Dialed......................30 Super Speed Dialing............................................31 Turbo Dial ............................................................31 One-Touch Dialing Keys......................................32 One-Touch Emergency Dialing............................33 Scratch Pad Memory...........................................33 Tone Dialing (Two-Part Calling)...........................34 Pause Dialing (Memory Linking)..........................35 Edit a Memory Location.......................................37 Clear Memory Entries..........................................38 Features ..............................................................39 Select/Cancel Menu Features .............................39 Signal Strength Meter (SSM)...............................39 Feature Status Review ........................................40 Battery Indicator...................................................40 Extended Talk Time.............................................41 Microphone Muting ..............................................41 Name Preference.................................................41 Automatic Answer................................................42 Multiple Key Answer............................................42 Incoming Call Screening......................................43 Silent Ringer ........................................................43 Distinctive Ringer............................…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA, INC.FCC ID: IHDT5ZX1 EXHIBIT 8b A draft copy of the latest users manual follows. Note: RF exposure information is provided on page 7. Getting Started .....................................................4 Welcome ................................................................4 Safety Information ..................................................6 Introduction ..........................................................11 Phone Overview...................................................12 Basic Operation .................................................15 Turn Phone On and Off........................................15 Place a Call..........................................................17 Automatic Redial..................................................18 End a Call ............................................................19 Receive a Call......................................................19 Call in Absence Indicator .....................................19 Signal Strength Meter ..........................................20 Volume Meter.......................................................20 Speaker Volume ...................................................21 Earpiece Volume ..................................................21 Ringer Volume......................................................22 Display Own Phone Number ...............................22 Switch to Second Phone Number........................22 Place a Hands Free Call......................................24 Receive a Hands Free Call ..................................24 Manual Handset to Hands Free Operation ..........25 Automatic Hands Free .........................................25 Hands Free to Handset Operation.......................25 Memory ...............................................................26 Storing Information in Memory ............................26 Storing a Phone Number and a Name ................26 Storing Phone Number Only................................28 Storing Area Code and Prefix (Postscripting)......28 Store to a Location Number.................................29 Memory Autoload.................................................29 Memory Blocks ....................................................30 Table of Contents 1 Memory Protect ...................................................31 Recalling/Scrolling from Memory .........................31 Recalling/Scrolling by Name ................................31 Recalling/Scrolling by Location Number ..............32 Last Number Recall .............................................33 Recalling Last 10 Numbers Dialed ......................33 Recalling an Area Code and Prefix (Postscripting) ..34 Turbo Dial.............................................................34 One Touch Dialing Keys.......................................35 Super Speed Dialing............................................35 Scratch Pad Memory ...........................................36 Tone Dialing (Two-Part Calling) ...........................36 Pause Dialing (Memory Linking)..........................38 Calling Card Dialing .............................................40 One Touch Dialing Keys.......................................45 One Touch Emergency Dialing ............................45 Change Memory Entries - Alpha or Numeric ......46 Clear Memory Entries ..........................................47 Features ..............................................................48 Feature Menu ......................................................48 To Select/Cancel Menu Features.........................49 Signal Strength Meter ..........................................49 Feature Status Review.........................................50 Microphone Muting ..............................................50 Auxiliary Alert.......................................................50 Number Preference..............................................52 Automatic Answer ................................................52 Multiple Key Answer.............................................53 Call Receive.........................................................53 Ringer ..................................................................54 Keypad Tones.......................................................54 Scratch Pad Tones ...............................................55 Remind Message .................................................55 Table of Contents 2 PIN Code Activation.............................................56 Timers ..................................................................57 Individual Call Timer ............................................57 Resettable Call Timer ..........................................58 Cumulative Call Timer..........................................58 Individual Timer....................................................59 One-Minute Timer ................................................59 Security Features.................................................59 Electronic Lock.....................................................60 Change Unlock Code...........................................60 Display Unlock Code............................................60 Automatic Lock ....................................................61 Theft Alarm ..........................................................61 Change Service Level..........................................62 Master Reset .......................................................64 Master Clear ........................................................64 Language Selection .............................................64 Extended Talk ......................................................65 Ringer Style .........................................................65 Reference............................................................66 The Cellular System ............................................66 Service Area ........................................................66 Weak Signal Alert ....…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA, INC.FCC ID: IHDT5ZX1 EXHIBIT 8c A draft copy of the installation manual follows. Note: RF exposure information is provided on page 33. Cellular Mobile and Attache Accessory Installation Manual Attache Accessory ...............................................................1 Introduction ........................................................................1 Attache Models ..................................................................2 Attache Assembly ..............................................................3 Assembly Procedure .....................................................3 Secure the Unit .............................................................9 Disassembly ..................................................................9 Carry Phone Accessory.....................................................11 Introduction ......................................................................11 Carry Phone Models ........................................................12 Carry Phone Assembly ....................................................13 Assembly Procedure ...................................................13 Secure the Unit ...........................................................18 Disassembly ................................................................19 Basic Operation..................................................................20 Power the Unit .................................................................20 Turn Off the Unit ..............................................................20 Release the Handset .......................................................21 Antenna Position ..............................................................21 Optional Features...............................................................22 Digital Hands-Free Operation ..........................................22 Battery Option..................................................................23 Mobile Installation ..............................................................27 Planning and Installation..................................................27 Transceiver Location....................................................27 Standard Transceiver Mounting Bracket Installation ...27 Handset Location ........................................................28 Control Unit Mounting Cup Installation .......................30 Adjustable Angle Mounting Bracket Installation (optional) ......................30 Antenna Location ........................................................32 Antenna Installation.....................................................33 Hands-Free Microphone Installation ...........................33 Optional External Speaker Installation ........................34 Control/Power Cable Routing ......................................35 Control/Power Cable Installation .................................36 Performance Checks........................................................39 Checking Performance ................................................39 Checking Auxiliary Alert Feature .................................40 Before Calling for Service .................................................42 General Safety Information ...............................................44 Rules, Regulations, and Precautions ...............................50 , and Motorola are trademarks of Motorola, Inc. Installation Manual TOC Attache Accessory NOTE Not all Motorola models are available for purchase as Attaches. Check with your cellular dealer for information regarding the purchase of the Attache accessory to convert your mobile into an Attache. Introduction This section of your manual describes the assembly and installation of the Motorola Attache. The Motorola Attache is a lightweight, three-watt unit that is powered by your vehicle’s electrical system through the cigarette lighter socket. This phone is completely self-contained, and may be moved easily between your personal car(s), a company truck or car, or a rental car because it requires no complex wiring installation within the vehicle. The unit is installed in the vehicle by simply securing it to a spare seat with a lap belt and plugging it into the vehicle’s cigarette lighter socket. For further information about the features and capabilities of your cellular telephone, see the accompanying user manual. Installation Manual 1 Figure 1 Attache Models Two Attache models are offered. The standard version is powered by your vehicle’s electrical system and does not come equipped with a battery. The power connector assembly contains connectors for an optional battery and an external hands-free microphone, if so desired. The deluxe version comes complete with a battery, an AC charger, and an integrated hands-free microphone contained in the connector assembly. An external full- duplex hands-free microphone can be purchased separately. The hands-free feature allows you to place or answer calls without removing your hands from the steering wheel (except to enter the number to be called). See Installation Manual 2 Bag Handset Battery Battery Adapter Hands-Free Microphone (optional) Antenna Battery Charger Transceiver Power Connector with Cigarette Adapter Digital Hands-Free Operation in the User Manual for more information about hands-free calling. Attache Assembly The items included with your Motorola Attache are shown in Figure 1. The following procedure will guide you through the assembly of your Attache. Assembly Procedure Step 1Remove the transceiver from its Attache compartment. Step 2Carefully connect the 25-pin connector of the power connector assembly to the front of the transceiver and tighten the two thumbscrews as shown in Figure 2. Figure 2 Installation Manual 3 Step 3Locate the antenna and screw it tightly onto the connector as shown in Figure 3. Figure 3 If your Attache is equipped with a battery, proceed to step 5. Step 4Carefully place the transceiver, antenna, and connector ass…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA, INC. FCC ID: IHDT5ZX1 EXHIBIT 2A STATEMENT OF CERTIFICATION The technical data supplied with this application, having been taken under my supervision is hereby duly certified. The following is a statement of my qualifications: Engineering Diploma (MSEE) 1982 Polytechnic Institute of Timisoara, Romania 9 years experience in Computer equipment design 2 years experience in Cellular radiotelephone design SIGNATURE: NAME: Valeriu Boncu DATE: September 30, 1999 POSITION: Electrical Engineer I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in the application and accompanying technical data are true and correct. SIGNATURE: NAME: Nick Grivas DATE: September 30, 1999 POSITION: Engineering Section Manager APPLICANT: MOTOROLA, INC. FCC ID: IHDT5ZX1 EXHIBIT 2B September 30, 1999 Engineer-in Charge Equipment Authorization Branch Federal Communications Commission We hereby certify that this transmit and receive equipment (FCC ID: IHDT5ZY1) for mobile station cellular system use is in full compliance with all parts of Section 2 of TIA/EIA-IS-88 "Mobile Station-Land Station Compatibility Standard for Dual Mode Narrowband Analog Cellular Technology," dated January 1993, which incorporates EIA/TIA-553 "Mobile Station-Land Station Compatibility Specification" and with OET Bulletin No. 53 "Cellular System Mobile Station-Land Station Compatibility Specification." SIGNATURE: NAME: Valeriu Boncu POSITION: Electrical Engineer Telematics Network Access Devices SIGNATURE: NAME: Nick Grivas POSITION: Engineering Section Manager Telematics Network Access Devices

APPLICANT: MOTOROLAFCC ID: IHDT5ZX1 Exhibit 13 October 20, 1999 CONFIDENTIALITY REQUEST CONTAINED WITHIN Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Application for Cellular Transceiver Certification Gentlemen: Application: Motorola, Inc., Personal Communications Sector, 600 N. U.S. Highway 45, Libertyville, Illinois 60048-1286 herein submits: Application for Equipment Authorization (FCC Form 731-October 1992 with integrated Fee Processing Form, Fee Codes EFT and EBC), application fee in the amount of $610, and Exhibits; for Type Acceptance of a Cellular Transceiver, FCC ID: IHDT5ZX1. Motorola is also the manufacturer of this equipment. Confidentiality: Pursuant to Section 0.459 of the Commission's rules (CFR 47), Motorola requests confidentiality for portions of the material contained in this application and that the identified material be withheld from public inspection following the grant of this authorization. This material contains Motorola's trade secrets and confidential information that Motorola does not customarily release to the public and which is otherwise not generally available to the public. Confidentiality is requested for the following exhibits: • Exhibit 4 Block Diagrams • Exhibit 5 Schematics • Exhibit 12 Operational Description Description: This equipment is a mobile device with the capability to operate in the conventional wide and narrow band Analog Cellular standard in the 800 MHz cellular band. Technical details for this cellular technology are detailed in Exhibit 12. Contact Information: Please contact me by telephone at (847) 523-6167, by facsimile at (847) 523-2350, or by e-mail ([email protected]), if there are any further questions or additional information needed concerning this filing. Regards, Andrew J. Bachler FCC Liaison Cellular Subscriber Sector 600 N. U.S. Highway 45 Libertyville, IL 60048-5343

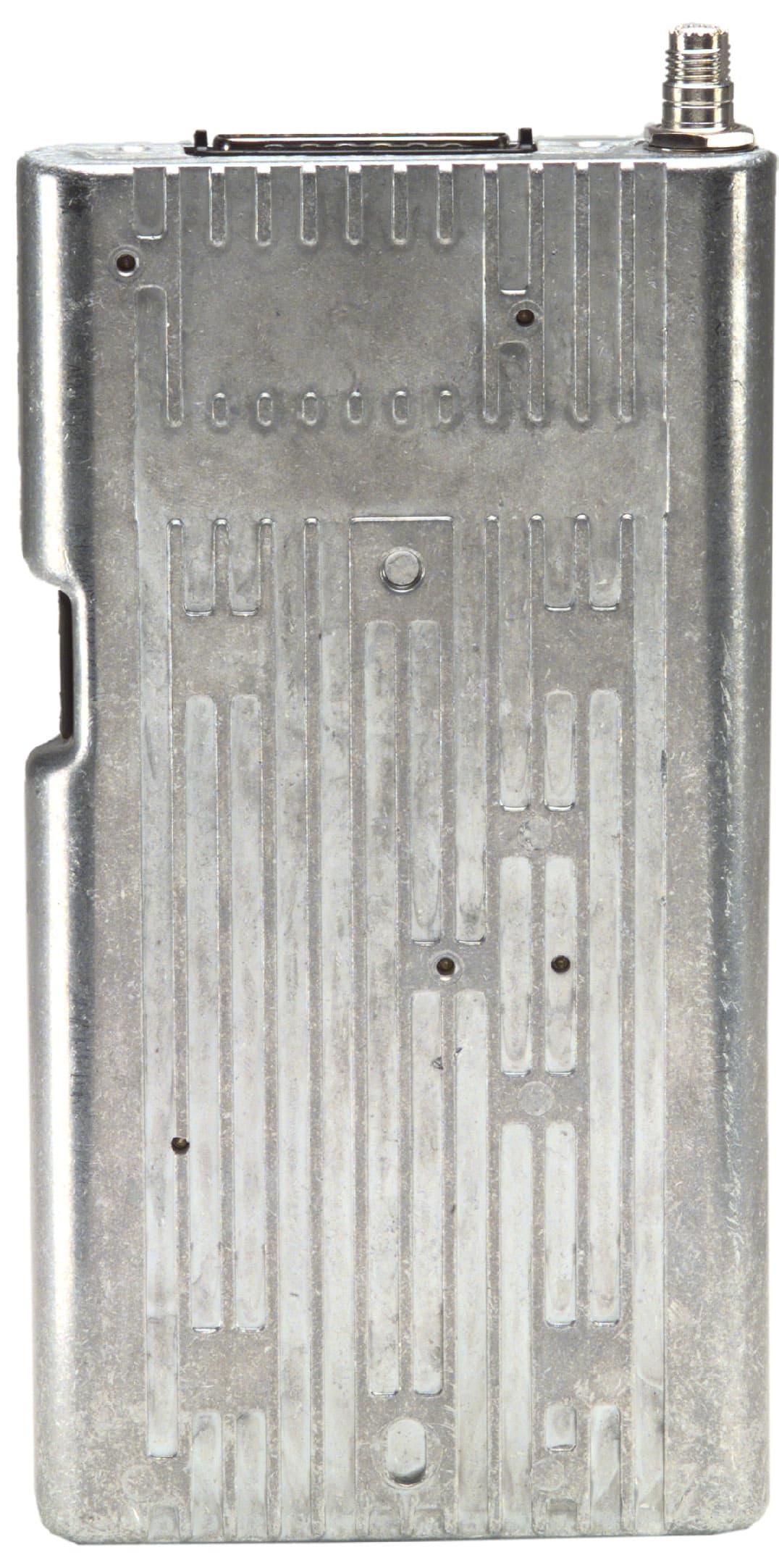

Exhibit 3 APPLICANT: MOTOROLA, INC. TRANSCEIVER TYPE: IHDT5ZX1 TOP Bottom

APPLICANT: MOTOROLA, INC. FCC ID: IHDT5ZX1 EXHIBIT 1 FCC IDENTIFICATION (NAMEPLATE) INFORMATION The FCC label shown is the label that will appear on the radio when in production. It will be placed on the outside of the radiotelephone. (Refer to exhibit 3). MOTOROLA INC. FCC ID: IHDT5ZX1

Exhibit 9 APPLICANT: MOTOROLA, INC. TRANSCEIVER TYPE: IHDT5ZX1 Transceiver Board Side 1 (Shields Removed) Side 2 (Shields Removed)

APPLICANT: MOTOROLA, INC. FCC ID: IHDT5ZX1 EXHIBIT 10 TRANSCEIVER ADJUSTMENTS/TUNE-UP PROCEDURE There are no user accessible adjustments or tuning in this mobile cellular transceiver. All necessary adjustments and tuning are performed during manufacture of the product. Any adjustments or tuning after service or repair are done as part of that process as special equipment is required to perform such adjustments.

1 1 October 22, 1999 SAR Test Report for Motorola the 800 MHz mobile cellular phone (FCC ID IHDT5ZX1). Prepared by: Paul Moller, Principal Staff Engineer Motorola Personal Communications Sector Product Safety Laboratory Libertyville, Illinois The Motorola Personal Communications Sector Product Safety Laboratory has evaluated the 800 MHz mobile cellular phone, FCC ID IHDT5ZX1, for the need to conduct SAR evaluation. Due to the design and installation of this product, it is not possible to conduct SAR evaluation. This is because Motorola neither manufactures or supplies the antenna(s) that will be used in the installation of this product. Therefore, this product will be evaluated as a mobile device per 47 CFR §1.1310 titled “Radiofrequency radiation exposure limits”, generally referred to as MPE limits. In 47 CFR § 2.1091, paragraph (b) defines a mobile device as “a transmitting device designed to be used in other than fixed locations and to generally be used in such a way that a separation distance of at least 20 centimeters is normally maintained between the transmitter’s radiating structure(s) and the body of the user or nearby persons.” The 800 MHz mobile cellular phone is intended to be installed into a vehicle such that the unit is physically secured at one location. In the installation guide supplied with the product, Motorola has made the following statement: “IMPORTANT: To meet the FCC’s RF Exposure Guidelines, the antenna should be installed so there is at least 30 cm of separation between the body of the user and nearby persons and the antenna”. Based on the installation of the transceiver and the antenna, the transmitters radiating structure is more than 30 centimeters from the user. Thus, the 800 MHz mobile cellular phone is a “mobile device” as defined in section § 2.1091 paragraph (b). Table 1 (B) of 47 CFR §1.1310 lists the limits for MPE for the General Population. Since the mobile cellular phone operates in the 800 MHz cellular band, the listed limit of f/1500 applies. The lowest transmit frequency for this product is 824.04 MHz, resulting in a lowest MPE of 0.549 mW/cm 2 . Since Motorola neither manufactures or supplies the antenna(s) that will be used in the installation of this product, it is not possible to measure the MPE of the actual device as it is installed per the installation manual. Therefore a calculation of MPE will be described in the next paragraph. The MPE of a radiating structure can be calculated by knowing the transmit EIRP and the distance at which MPE is being calculated. In this case MPE will be calculated at 30 cm, which is the minimum separation between the body of the user and nearby persons and the antenna. The maximum transmit power for the 800 MHz mobile cellular phone is 3.8 Watts. When installed using a combined cable loss and antenna gain of a maximum of 1.2 dBi, the maximum EIRP will be 5.0 Watts. The model used for calculating power density in OET Bulletin 65, Edition 97-01, is the spherical model. Using this spherical model, 0.549mW/cm2 is achieved at a distance of 27cm from the antenna. Therefore, by requiring the user and nearby persons to remain at least 30cm from the antenna, the MPE is not exceeded. 2 2 A picture of the 800 MHz mobile cellular phone is shown in figure 1 below. Figure 1, Side View.

1 1 December 27, 1999 SAR Test Report for Motorola the 800 MHz mobile cellular phone (FCC ID IHDT5ZX1). Prepared by: Paul Moller, Principal Staff Engineer Motorola Personal Communications Sector Product Safety Laboratory Libertyville, Illinois 1. Introduction The Motorola Florida Research Laboratory has performed measurements of the maximum potential exposure to the user of portable cellular Carry phone FCC ID IHDT5ZX1. The Specific Absorption Rate (SAR) of this product was measured. This report details the test setup and equipment as well as the results of those tests. 2. Applicable Regulations Federal Communications Commission rule §2.1093(d)(2), the ANSI/IEEE C95.1 1992 and the NCRP Report Number 86 specify the maximum exposure limit of 1.6 W/kg as averaged over any 1 gram of tissue for portable devices being used within 20cm of the user in the uncontrolled environment. 3. Description of Test Sample A prototype unit serial number FC71AD19 was measured. This unit is identical in physical construction, maximum radiated power levels and antenna structure to units that will be in production. It transmits in the frequency range of 824 to 849 MHz using AMPS mode. The unit was tested at its maximum transmitter power. The unit is equipped with a fixed antenna that serves as both a receive and transmit antenna. Figures 1 and 2 show the unit with its cover closed and open respectively. Normal operation of this unit is with the cover either closed or open. However, it would typically be carried with the cover closed. The unit was tested with the cover closed. The unit was placed under a flat phantom, with the antenna extending parallel to the bottom of the phantom for maximum coupling. Figure 3 shows a picture of the unit and antenna under the flat phantom. For the purposes of these tests, the distance between the antenna and the flat phantom is kept constant at 7 cm. The maximum SAR level for the Motorola portable cellular phone (FCC ID IHDT5ZX1) in the 800MHz Analog band is 1.24 W/kg in this test condition. A full data set output of the test condition with the highest SAR values from the Dasy measurement system is included as appendix A. The test condition included is indicated as a bold number in the following table. All other test conditions measured lower SAR values than those included. 2 2 800 MHz Analog Channel SAR (W/kg) Conducted Power (W) 991 1.24 3.52 385 0.93 3.45 799 0.69 2.14 In the Cellular Mobile/Carry Phone Users Guide supplied with the product, Motorola has made the following statement: “IMPORTANT: To meet the FCC’s RF Exposure Guidelines, the Carry Phone should be used so there is at least 10 cm of separation between the body of the user and nearby persons and the antenna.” At 10 cm the SAR values will be lower than the SAR values measured at 7cm. Therefore, the SAR values for the cellular carry phone (FCC ID IHDT5ZX1) are below the maximum recommended levels of 1.6 W/kg. 3 3 Figure 1, Cover Closed. Figure 2, Cover Open 4 4 Figure 3, Unit under Flat Phantom S/N FC71AD19 Flat phantom Phantom; Section; Position: ; Frequency: 824 MHz Probe: ET3DV5 - SN1364; ConvF(5.68,5.68,5.68); Crest factor: 1.0; Brain 835MHz: σ = 0.89 mho/m ε r = 43.4 ρ = 1.00 g/cm 3 Cube 5x5x7: SAR (1g): 1.24 mW/g, SAR (10g): 0.927 mW/g, (Worst-case extrapolation) Coarse: Dx = 10.0, Dy = 10.0, Dz = 10.0 Penetration depth: 18.5 (15.4, 23.3) [mm] Powerdrift: -0.27 dB SAR Tot [mW/g] 6.55E-2 1.97E-1 3.28E-1 4.59E-1 5.90E-1 7.21E-1 8.52E-1 9.83E-1 1.11E+0 1.25E+0 11/30/99 Motorola Confidential Proprietary

APPLICANT: MOTOROLAFCC ID: IHDT5ZX1 Exhibit 13A January 21, 2000 RESPONSE TO SAR QUESTIONS (Correspondence Reference Number: 11299) Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Application for Cellular/PCS Transceiver Certification (EA95728) Kwok Chan & Errol Chang: Purpose: This document responds to Correspondence Reference Number 11299, SAR questions on the IHDT5ZX1 (EA95728) application. Description: To facilitate the response to SAR questions, the following includes the original text and the highlighted response. In addition t…
