IHDT6AW1PCS portable transceiver

APPLICANT: MOTOROLA, INC.FCC ID: IHDT6AW1 EXHIBIT 8 INSTRUCTION MANUAL A preliminary draft copy of the Users Manual follows: PRELIMINARY Options Menu Quick Reference Restrict My Phone Number Nav Disc (A5) Book_8J51.book Page 1 Thursday, May 4, 2000 3:32 PM PRELIMINARY Special Keys
Press to turn phone on and off. Press to accept call, setting, option,... Press to reject call, setting, option,... Press to enter the Quick Access features. Press to access the menu options and navigate menus. (NavDisc) Press to select entries and Menu options. Press to call Voicemail. Press to read message. Press to write message. Press for ALT keys and keypad. Press for symbols and additional characters. Making a Call Enter
. Receiving a Call Press . Ending a Call Press , . Making an Emergency Call Enter . The call will be directed to a central emergency operator. Quick Access Features Press  followed by the appropriate key, or press , scroll to the feature and press  to select. Adjust Ringer Volume Press  followed by the volume button to either increase or decrease the ringer volume. Recording a VoiceNote™ Press the Start/Stop Record button ( ) on the keyboard. Press the button again to stop recording. Playing a VoiceNote Select Messages, VoiceNote, Play VoiceNotes, or use the Quick Access item. Redialing the Last Number Called 1Press  to display the last number dialed (Made Calls). 2Press  to call the number. 3Select ‘Call Number’ and press . One-Touch Dialling Press and hold the appropriate digit key  to . Recalling a Number from the Phone Book Press the Smart button ( ) then use the volume button to scroll to the stored number, or press the appropriate digit key to skip to a particular letter. To make the call, either hold down for 1.5 seconds or press . Dialing Phone Book Numbers Enter   Stopping a Call Alert Press the volume button when the phone is ringing or vibrating. This will stop the alert but not answer the call. Voice Dialing Press the Smart button ( ). If there is a Phone Book entry with a Voice Tag the prompt Say Name After Tone appears. Wait for the tone to finish and then say the name associated with the number you want to call. Quick Reference (A5) Book_8J51.book Page 2 Thursday, May 4, 2000 3:32 PM PRELIMINARY Quick Reference Customizing the Quick Access Menu You can change the features in the Quick Access menu to suit your personal preferences. To customize the menu, you can use either the Quick Access Setup menu or do the following: 1Press  to scroll to the menu item you wish to change. 2Press and hold  to access the list of features available. The currently selected feature display. 3Scroll through the list until you find the feature you wish to store in the Quick Access menu; press . 4Completed will be displayed to confirm that the feature has been stored. The following items are in the Quick Access list: • Find by Name • Find by Location • Add Entry to Phone • Add Entry to SIM • Call Voicemail • Battery Meter • Phone Lock Now • Phone Mute On or Off • Ring Volume • VibraCall On or Off • Switch Memory • Read Messages • Outgoing Messages • Message Editor • Last Calls Missed Standard setting for Quick Access ‡ Update TBD • Last Call Charge • Last Call Timer • Show Time and Date • Credit Remaining • Restrict My ID • Find New Network • Switch Line 1/2* • Change Band • Play VoiceNotes • Divert Voice Call • Adjust Contrast •Access Internet • Set Alarm •Edit Music * Availability depends on the type and settings of the SIM card, and/or your subscription of this feature. (A5) Book_8J51.book Page 5 Thursday, May 4, 2000 3:32 PM PRELIMINARY Quick Reference VoiceNotes Recording Button Located on top of the phone, next to the antenna. Press it to start recording a VoiceNote Press the button to stop recording. Quick Access Key A dedicated key for short cuts to 9 of your most frequently used functions. Charger / Accessory Port Expand the use of your phone through the accessories offered... chargers, cigarette lighter adaptor and data accessories. Volume Keys Upper and lower buttons adjust keypad, earpiece and ringer volume. Smart Button Smart button gives one touch access to the phone book and can place, answer, or end calls when headset is attached. Headset Port For connection to portable, handsfree headset. Write Message Quickly compose a SMS message. Read Message Read incoming SMS messages. QWERTY Keyboard Easily enter the letters per messages. Keypad Dial the phone number. Access the menu with all your phone’s features. Replace with Layout Camelot (A5) Book_8J51.book Page 6 Thursday, May 4, 2000 3:32 PM Introduction1 PRELIMINARY Introduction Welcome Congratulations on your purchase of a Personal Interactive Communicator (P.I.C.) phone from Motorola, the world leader in cellular technology. The phones are packed with features that put you in control and give you unrivalled power, while remaining discrete. Control • Customizable Quick Access Menu  - Place nine of your most frequently used features in your own personal menu so they can be accessed with just two key presses. Icons make each feature easy to identify. • VoiceNotes™ feature - Allows you to record a number of personal voice messages or to record part of a phone call - useful when you haven’t got pen and paper available for taking directions or messages. •Voice Control - Use voice commands to call Phone Book entries and select Quick Access options. Power • Superb battery performance  - Each phone is capable of several hours conversation or several days standby, and still be small and light. • Dual Band - versions of the phone include the powerful Dual Band feature meaning they can use both 900 and 1800MHz bands for greater call success and allow wider roaming opportunities. Before you use your phone, please see Your Battery on page 17, for important information on charging a new battery. Discretion • VibraCall™  - In locations where you don’t want your phone to ring, or are too noisy to hear your phone ri…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA, INC.FCC ID: IHDT6AW1 EXHIBIT 2A SPECIFICATION COMPLIANCE STATEMENT The transceiver of type IHDT6AW1 has been tested in accordance with the requirements contained in the appropriate Commission regulations. To the best of my knowledge, these tests were performed using measurement procedures consistent with industry or Commission standards and demonstrate that this equipment complies with the appropriate standards. Each unit manufactured imported or marketed, will conform to the sample tested within the variations that can be expected due to quantity production and testing on a statistical basis. I further certify that the necessary measurements were made at Motorola, located at 1500 Gateway Boulevard, Boynton Beach, Florida with the exception of Radiated Spurious Emissions testing which took place at L. S. Compliance Inc., located at W66 N220 Commerce Court, Cedarburg, Wisconsin. Name:CHRIS LONG Title:DIRECTOR OF OPERATIONS SMART AND CONNNECTED Date:7/1/00 APPLICANT: MOTOROLA, INC.FCC ID: IHDT6AW1 EXHIBIT 2B STATEMENT OF CERTIFICATION I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in this application and accompanying technical data are true and correct. Name:GABRIEL KHOURI Title: ENGINEERING MANAGER PCS Development Date:July 1, 2000 The technical data supplied with this application was taken under my supervision and is hereby duly certified. I also certify that this transmit equipment (FCC ID: IHDT6AW1) is in compliance with all applicable parts of the FCC Rules. The following is a statement of my qualifications: Name:GENE SANTANA Title:Engineer Manager Date:July 1, 2000

APPLICANT: MOTOROLA, INC.FCC ID: IHDT6AW1 EXHIBIT 2A SPECIFICATION COMPLIANCE STATEMENT The transceiver of type IHDT6AW1 has been tested in accordance with the requirements contained in the appropriate Commission regulations. To the best of my knowledge, these tests were performed using measurement procedures consistent with industry or Commission standards and demonstrate that this equipment complies with the appropriate standards. Each unit manufactured imported or marketed, will conform to the sample tested within the variations that can be expected due to quantity production and testing on a statistical basis. I further certify that the necessary measurements were made at Motorola, located at 1500 Gateway Boulevard, Boynton Beach, Florida with the exception of Radiated Spurious Emissions testing which took place at L. S. Compliance Inc., located at W66 N220 Commerce Court, Cedarburg, Wisconsin. Name:CHRIS LONG Title:DIRECTOR OF OPERATIONS SMART AND CONNNECTED Date:7/1/00 APPLICANT: MOTOROLA, INC.FCC ID: IHDT6AW1 EXHIBIT 2B STATEMENT OF CERTIFICATION I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in this application and accompanying technical data are true and correct. Name:GABRIEL KHOURI Title: ENGINEERING MANAGER PCS Development Date:July 1, 2000 The technical data supplied with this application was taken under my supervision and is hereby duly certified. I also certify that this transmit equipment (FCC ID: IHDT6AW1) is in compliance with all applicable parts of the FCC Rules. The following is a statement of my qualifications: Name:GENE SANTANA Title:Engineer Manager Date:July 1, 2000

APPLICANT: MOTOROLAFCC ID: IHDT6AW1 Exhibit 13 July 25, 2000 CONFIDENTIALITY REQUEST CONTAINED WITHIN Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Application for Cellular/PCS Transceiver Certification Gentlemen: Application: Motorola, Inc., Personal Communications Sector, 600 N. U.S. Highway 45, Libertyville, Illinois 60048-1286 herein submits: Application for Equipment Authorization (FCC Form 731-October 1992 with integrated Fee Processing Form, Fee Codes EFT and EBC), application fee in the amount of $610, and Exhibits; for Certification of a PCS Transceiver, FCC ID: IHDT6AW1. Motorola is also the manufacturer of this equipment. Confidentiality: Pursuant to Section 0.459 of the Commission's rules (CFR 47), Motorola requests confidentiality for portions of the material contained in this application and that the identified material be withheld from public inspection following the grant of this authorization. This material contains Motorola's trade secrets and confidential information that Motorola does not customarily release to the public and which is otherwise not generally available to the public. Confidentiality is requested for the following exhibits: • Exhibit 4 Block Diagrams • Exhibit 5 Schematics • Exhibit 12 Operational Description Description: This equipment is a GSM portable transceiver, which operates in the 1900 MHz PCS band. It operates as either a keyboard two-way message device or as a wireless phone using the supplied hands-free headset. Contact Information: Please contact me by telephone at (847) 523-6167, or by e-mail ([email protected]), if there are questions or additional information needed concerning this filing. Regards, Andrew J. Bachler FCC Liaison Cellular Subscriber Sector 600 N. U.S. Highway 45 Libertyville, IL 60048-5343

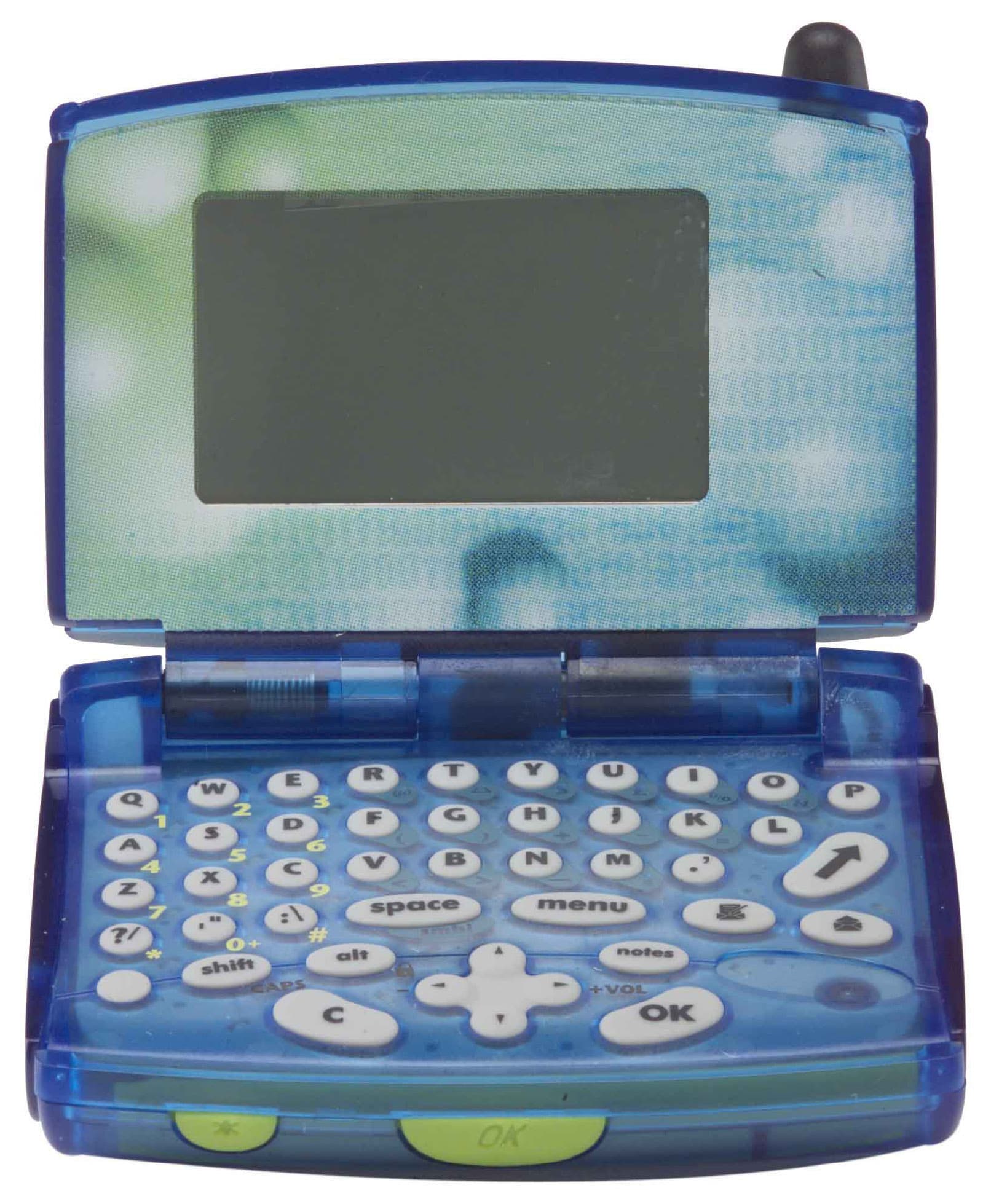

APPLICANT: MOTOROLA, INC. FCC ID: IHDT6AW1 EXHIBIT 3 Front View with Flip Open Rear View with Battery Removed to Show Equipment ID Label

APPLICANT: MOTOROLA, INC.FCC ID : IHDT6AW1 EXHIBIT 1 FCC IDENTIFICATION (NAMEPLATE) INFORMATION The FCC label shown is representative of the label that will appear on the radio when in production. It will be placed on the radio telephone as shown in Exhibit 3. Other information may also be included on this label. FCC ID: IHDT6AW1

APPLICANT: MOTOROLA, INC.FCC ID : IHDT6AW1 EXHIBIT 1 FCC IDENTIFICATION (NAMEPLATE) INFORMATION The FCC label shown is representative of the label that will appear on the radio when in production. It will be placed on the radio telephone as shown in Exhibit 3. Other information may also be included on this label. FCC ID: IHDT6AW1

APPLICANT: MOTOROLA, INC. FCC ID: IHDT6AW1 EXHIBIT 9A Logic Board Front View (Shields Removed) Logic Board Rear View (Shields Removed) APPLICANT: MOTOROLA, INC. FCC ID: IHDT6AW1 EXHIBIT 9B RF Board Side 1 (Shields Removed) RF Board Side 2 (Shields Removed)

APPLICANT: MOTOROLA, INC.FCC ID: IHDT6AW1 EXHIBIT 10 TRANSCEIVER ADJUSTMENTS/TUNE-UP PROCEDURE There are no user accessible adjustments or tuning in this portable cellular transceiver. All necessary adjustments and tuning are performed during manufacture of the product. Any adjustments or tuning after service or repair are done as part of that process as special equipment is required to perform such adjustments.

APPLICANT: MOTOROLA, INC. FCC ID: IHDT6AW1 P P a a g g e e 1 1 E E x x h h i i b b i i t t 1 1 1 1 July 25, 2000 SAR Test Report for Motorola portable cellular phone (FCC ID IHDT6AW1). Prepared by: Paul Moller, Principal Staff Engineer Motorola Personal Communications Sector Product Safety Laboratory Libertyville, Illinois Contents 1) Introduction 2) Applicable Regulations 3) Description of Test Sample 4) Description of Motorola SAR Test Facility 5) Test Sample Conditions 6) Method of Measurement 7) Measurement Uncertainty 8) SAR Test Results 9) Battery options 10) Summary Appendix A: Included Body Worn Data Appendix B: Printout from the Dasy measurement system validation test APPLICANT: MOTOROLA, INC. FCC ID: IHDT6AW1 P P a a g g e e 2 2 E E x x h h i i b b i i t t 1 1 1 1 1. Introduction The Motorola Personal Communications Sector Product Safety Laboratory has performed measurements of the maximum potential exposure to the user of portable cellular phone FCC ID IHDT6AW1. The Specific Absorption Rate (SAR) of this product was measured. This report details the test setup and equipment as well as the results of those tests. 2. Applicable Regulations Federal Communications Commission rule §2.1093(d)(2), the ANSI/IEEE C95.1 1992 and the NCRP Report Number 86 specify the maximum exposure limit of 1.6 W/kg as averaged over any 1 gram of tissue for portable devices being used within 20cm of the user in the uncontrolled environment. 3. Description of Test Sample A prototype unit serial number 062000B was measured. This unit is identical in physical construction, maximum radiated power levels and antenna structure to units that will be in production. It transmits in the frequency range of 1850 to 1910 MHz using GSM mode. The unit was tested at its maximum transmitter power. The unit is equipped with a fixed antenna that serves as both a receive and transmit antenna. The antenna has a single operating position as shown in figure 1. Figure 1. Front of Phone. APPLICANT: MOTOROLA, INC. FCC ID: IHDT6AW1 P P a a g g e e 3 3 E E x x h h i i b b i i t t 1 1 1 1 4. SAR Test Facility The Motorola test facility utilized for the SAR testing of this product is the Personal Communications Sector Product Safety Laboratory, in Libertyville Illinois. The laboratory utilizes a Dosimetric Assessment System (Dasy™) SAR measurement system manufactured by Schmid & Partner Engineering AG (SPEAG™), of Zurich Switzerland. This system utilizes a computer controlled six axis robot to move a measurement probe to measure the SAR. A photo of the Dasy system with the Motorola phantom is shown in figure 2. Probe serial number 1513 was used for the measurements. It was calibrated at SPEAG™, and has a calibration date November 25, 1999. Dipole Validation Kit type D1800V2, serial number 258 was used to validate the system accuracy. The validation SAR value is 40.52 mW/g normalized to 1 Watt, and the Dasy system used for the test phone measured 39.88 mW/g normalized to 1 Watt. This is within the required accuracy, and thus the measured SAR values are considered correct. See appendix B for printout of the validation test from the Dasy measurement system. The measurement methodology is described in IEEE Transactions on Vehicular Technology, vol. 44, no. 3, August 1995, titled Electromagnetic Energy Exposure of Simulated users of Portable Cellular Telephones. The Dasy system is operated per the instructions in the Dasy Users Manual. The entire manual is available directly from SPEAG. Figure 2. DASY™ Measurement System APPLICANT: MOTOROLA, INC. FCC ID: IHDT6AW1 P P a a g g e e 4 4 E E x x h h i i b b i i t t 1 1 1 1 5. Test Sample Conditions For the purposes of these tests the subject phone was positioned on the measurement phantom per the instructions in the Motorola users manual for the subject phone. The test sample is capable of operation in a test mode that allows control of the transmitter without the need to place actual phone calls. This guarantees that the unit does not change its transmitter power, and that the resultant SAR values will not be affected by external connections. For the purposes of this test the unit is commanded to test mode and manually set to the proper channel, transmitter power level and transmit mode of operation. Since the test sample uses the 1/8 duty cycle of the GSM system, the crest factor (the ratio between peak and average power) is set to 8. The phone is then placed in the SAR measurement system with a fully charged battery. At the end of each test the Dasy system measures the drift of the SAR at a fixed point in the phantom so as to ensure that the test sample has not changed in transmitter power. For the purposes of these tests, the transmitter was operated at the highest transmitter output and with the phone on both left and right side talk positions. 6. Method of Measurement The system is instructed to scan as much of the face of the phone as is in close proximity to the phantom. Using the information gained about the general region of highest SAR, the system then automatically scans a smaller area centered around the location of peak spatial SAR. During this scan the system automatically measures the fall off of electric field strength as the measurement probe is moved away from the inner surface of the phantom in the direction of the local normal to the phantom surface. Using appropriate probe calibration techniques, the SAR in 1 gram of phantom tissue is then calculated. The flat phantom was filled with a liquid having relative dielectric constant equal to 48.67 and conductivity equal to 1.64 S/m. This mixture is a good dielectric equivalent of the human muscle. The composition of the liquid mixture is as follows: 66.1% water; 33.4% Glycol; and 0.5 salt 7. Measurement Uncertainty The overall RSS uncertainty of the measurement system is ±12.0% (K=1). The breakdown of the individual uncertainties is as follows: Probe Uncertainty ±% Isotropy error 7.2 Calibration error 3.3 Spatial res…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA, INC.FCC ID: IHDT6AW1 EXHIBIT 8 Revised 8-18-00 INSTRUCTION MANUAL A revised preliminary draft copy of the Users Manual follows. This version contains updated rf safety information which is applicable to all Motorola products. PRELIMINARY series User's Guide Personal Communicator Model V.100 GSM900/1800 MHz 000622-O 1036b10o.fm Page -1 Thursday, August 17, 2000 6:23 PM 1036b10o.fm Page 0 Thursday, August 17, 2000 6:23 PM Introduction 1 1 PRELIMINARY IntroductionCongratulations! You are now the proud owner of a Motorola â V.100 Personal Communicator. Your new communicator combines advanced calling and messaging capabilities in a small compact unit that is stylish, easy to use, and will look great on you when you wear it with the holster.Your new communicator provides cool and exciting ways to keep in contact with your family, special friends, and your pals. Just review this user guide carefully and you will be ready to start using your new communicator.A detachable Quick Reference Card is included with this guide. Personalized ControlYou can setup your Personal Communicator to access important messages, phone numbers, and features quickly. You can even answer calls with just one push of a button, even when your communicator is closed. When you are performing routine tasks, your communicator provides prompts and messages that assist you with the next task or confirms your selection. • You can add nine of your most used features in your Quick Access menu so you can get to them with just a couple presses of a button. • With Voice Notes, you can record notes to yourself or parts of a call. This is quite convenient for taking directions or messages, especially if you don’t have paper and a pen. • Voice Tags lets you add voice activated commands to call your phone book entries. You can also add voice commands to select Quick Access options. • The ] button lets you display your book entries quickly. Just one press and you’re there! 1036b10o.fm Page 1 Thursday, August 17, 2000 6:23 PM Introduction 2 PRELIMINARY • When your communicator is closed or in the holster, press } , located on the outside of your communicator, to quickly and easily answer a call. • With VibraCall™, your communicator alerts you of new messages and calls with a vibration if you don’t want to disturb others, or you are in a noisy environment. • You can personalize the menus by choosing the features you want readily available and store the ones you use less frequently out of sight. See “Extended Menus” on page 60 for more details. 1036b10o.fm Page 2 Thursday, August 17, 2000 6:23 PM PRELIMINARY Contents Safety ........................................................... 5Getting Started ........................................... 12 Installing the SIM Card and Battery .............12 Control Buttons ............................................14 The Display ..................................................16Backlight .......................................................16Turning On Your V.100 Personal Communicator ..........................................17 Entering your SIM Card Personal Identification Number (PIN) ...........................................17 Entering your Unlock Code ..........................17Turning Off Your Personal Communicator 17 Tips on Using this Guide 18 The Main Menu 18Menu Navigation 18Entering the Menus 18Getting Around in the Menus 18Exiting the Menus 19How to Use the Control Buttons 19Prompts and Messages 20Testing your V.100 Personal Communicator 20 SMS Messages 21 Sending an SMS Message 21Storing an SMS Message 22Sending Email Messages using SMS 23 Making a Call 23Ending a Call 24 Receiving a Call 24In-Call Menu 25 Hold Call 25Make a New Call 25Turn Mute On or Off 25Restrict My Number 25End Active Call 26Conference Calls 27Transfer Calls 28Split Call 28Reject Waiting Call 29 Voice Notes 29 Recording a VoiceNote 29 Voice Activation 30 Adding Voice Tags for Phone Book Entries 30Using Voice Activation with Phone Book Entries 32 Access Internet 33 Mobile Internet Home Menu 33Internet Browser Menu 34Using the Soft Keys 34Mobile Internet Messages 35Entering or Editing Text Within a Mobile Internet Session 35 Setting Up for Mobile Internet Access 36Setting a Bookmark 37Internet Service Alerts 37 1036b10o.fm Page 3 Thursday, August 17, 2000 6:23 PM PRELIMINARY Making and Receiving Calls During a Mobile Internet Session 37 Ending a Mobile Internet Session 37 Phone Book 38 Voice Dialing 39Personal Numbers 40Last Ten Calls 42My Phone Numbers 42Fixed Dialing 42One-Touch Dial Setting 43 Alarm Clock 44Call Related Features 45 Restrict My Phone Number 45Call Diverting 46Call Waiting 47Call Barring 47 Messages Menu 49 Call Voicemail 49Received Messages 49Outgoing Messages 51Message Editor 52VoiceNotes 52Cell Broadcast 53Message Settings 54 Phone Setup 55 Select Phone Line 55Adjust Ring Volume 56Set Message Alert Tone 56Edit Music Tone 57 Quick Access Setup 58Phone Lock 58Adjust Contrast 59New Security Code 60Extended Menus 60Show Time and Date 60Set Time and Date 60Set Time Format 61Language Selection 61Select Keypad Tones 61Phone Status 61 Network Selection 63 Change Band 63Available Networks 63Network Search 64Find New Network 65 Call Meters Menu 66Quick Access Menu 69 Adding Location Numbers to Features in Your Quick Access Menu 69 Adding or Editing Voice Tags to Features in Your Quick Access Menu 70 Non-Roman Characters 71Accessories 73Troubleshooting 74Use and Care 77Index 83 1036b10o.fm Page 4 Thursday, August 17, 2000 6:23 PM SAFETY 5 5 PRELIMINARY SAFETYIMPORTANT INFORMATION ON SAFE AND EFFICIENT OPERATIONREAD THIS INFORMATION BEFORE USING YOUR PERSONAL COMMUNICATORThe information provided in this document supersedes the general safety information contained in user guides published prior to July 2000. For information regarding radio use in a hazardous atmosphere please refer to the Factory Mutual (FM) Approval Manual Supplement or Instruction Card, which is included with radi…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA INCFCC ID: IHDT6AW1 EXHIBIT 6 1 SUBMITTED MEASURED DATA INDEX RF Output Power.......................................................6A EIRP...........................................................................6B Final Amplifier Voltages and Currents........................6C Radiated Spurious Emission......................................6D Occupied Bandwidth..................................................6E Conducted Spurious Emissions.................................6F Frequency Stability.....................................................6G APPLICANT: MOTOROLA INCFCC ID: IHDT6AW1 EXHIBIT 6A 2 EXHIBIT 6A RF Output Power Exhibit Summary: Exhibit 6A contains both average and peak output powers for the mobile station. In all cases, the peak output power is within the required mask (this mask is specified in the JTC standards, TIA PN3389 Vol. 1, Chap. 7, and is not an FCC requirement). Contents: Method of Measurement Measurement Limit Average Output Powers EIRP Method of Measurement: 1.Setup the mobile station for maximum output power with pseudo random data modulation. 2.Use HP 8991A Peak Power Analyzer to obtain peak and average output power levels. 3.Repeat measurements for carrier frequencies at 1850.2 MHz, 1880.2 MHz, and 1909.8 MHz. Channels 512, 661, and 810 respectively (bottom, middle, and top of operational frequency range). Measurement Limits: PowerNominal Peak StepOutput PowerTolerance (dBm)(dB) 030+/- 2 Conducted Power Measurements: FrequencyPowerPeakAverage (MHz)StepOutput PowerOutput Power (dBm)(dBm) 1850.2028.9819.5 1880.2028.8918.4 1909.8028.8818.2 APPLICANT: MOTOROLA INCFCC ID: IHDT6AW1 EXHIBIT 6B 3 EXHIBIT 6B EIRP Test Description: Exhibit 6B is the test for the maximum radiated power from the phone. Rule Part 24.232(b) specifies that "Mobile/portable stations are limited to 2 watts e.i.r.p. peak power..." and 24.232(c) specifies that "Peak transmit power must be measured over any interval of continuous transmission using instrumentation calibrated in terms of an rms-equivalent voltage." Method of Measurement: 1. In an anechoic antenna test chamber, a half-wave dipole antenna for the frequency band of interest is placed at the reference center of the chamber. An RF Signal source for the frequency band of interest is connected to the dipole with a cable that has been constructed to not interfere with the radiation pattern of the antenna. A known (measured) power (Pin) is applied to the input of the dipole, and the power received (Pr) at the chamber's probe antenna is recorded. 2. A "reference path loss" is established as Pin + 2.1 - Pr. 3. The EUT is substituted for the dipole at the reference center of the chamber. The EUT is put into CW test mode and a scan is performed to obtain the radiation pattern. 4. From the radiation pattern, the coordinates where the maximum antenna gain occurs is identified. 5. The EUT is then put into pulse mode at its maximum power level (Power Step 0). 6. "Gated mode" power measurements are performed with the receiving antenna placed at the coordinates determined in Step 3 to determine the output power as defined in FCC Rule 24.232 (b) and (c). The "reference path loss" from Step 1 is added to this result. 7. This value is EIRP since the measurement is calibrated using a half- wave dipole antenna of known gain (2.1 dBi) and known input power (Pin). 8. ERP can be calculated from EIRP by subtracting the gain of the dipole, ERP = EIRP - 2.1dBi. EIRP Limits: EIRP (dBm) Burst Average<33 EIRP Measurements: EIRP (dBm)ERP (dBm) Modulation AverageN/A Burst Average 25.7 APPLICANT: MOTOROLA INCFCC ID: IHDT6AW1 EXHIBIT 6C 4 EXHIBIT 6C Voltages and Currents into Final Amplifying Devices Exhibit Summary: Exhibit 6C contains the voltages and currents applied to the TX Driver and TX Final Power Amplifier for the entire mobile station operating power range. PowerPowerPowerV PA I PA V DIVER I DRIVER StepOutputOutput Spec. (dBm)Meas. (dBm)(VDC)(A)(VDC)(A) 0 30 +/-228.703.60.1573.60.923 128 +/-326.733.60.1623.60.712 226 +/-324.643.60.1163.60.513 324 +/-322.733.60.1103.60.445 422 +/-320.643.60.1153.60.295 520 +/-318.263.60.0733.60.211 618 +/-316.523.60.0943.60.169 716 +/-314.713.60.0863.60.136 814 +/-312.983.60.0893.60.102 912 +/-411.003.60.0733.60.076 1010 +/-49.043.60.0673.60.062 118 +/-48.043.60.0553.60.053 126 +/-46.453.60.0523.60.044 134 +/-44.873.60.0443.60.031 142 +/-53.303.60.0423.60.014 150 +/-52.043.60.0333.60.005 APPLICANT: MOTOROLA INCFCC ID: IHDT6AW1 EXHIBIT 6D 5 EXHIBIT 6D RADIATED SPURIOUS EMISSION Notes: 1. Each reported emission reflects the highest absolute level found for the specified channel at the highest radiated power. 2. Specification limit is 82.2 dBμV/m from 30MHz to 5GHz and 91.8 dBμV/m for 5GHz above. The distance between radio and antenna is 3 meters and 1 meter respectively. 3. The spectrum was searched from 1 GHz to 20 GHz (past the 10 th harmonic of the transmitter). 4. Low, mid and high channels were tested and in each case the harmonic level past the 5 th harmonic was below the noise floor of the spectrum analyzer. Figure 6D1 Channel 512 Transmitter Radiated Emission 55 60 65 70 75 80 85 90 95 100 105 110 115 120 125 130 135 140 SPURIOUS LEVEL (dBuV/m…
