IHDT6CS1BMW TCU Bluetooth Module BT06

MOTOROLA INC FCC ID: IHDT6CS1 MOTOROLA BLUETOOTH MODULE BT06 USER MANUAL [Model# BT0606AL09] 1. GENERAL: The Bluetooth Module BT06 facilitates a wireless Bluetooth interface between a wireless handset and other Bluetooth-enabled devices. The Bluetooth Module BT06 is assembled internally to a Motorola Telematics Control Unit, which is a finished product supplied to the automotive market. The Bluetooth Module BT06 should be considered a module. 2. ANTENNA AND MODULE INSTALLATION: The module utilizes an external antenna through a pc board mounted connector that is unique to this application. The external antenna used in this application is a BMW supplied antenna, BMW part number 6 928 461. The unit is designed for installation within the Telematics Control Unit and located in an automobile, usually in the trunk area. The device is mounted within a metal housing. Due to the low power at which the unit transmits (0.0025 W max.), placement from an SAR perspective is not critical. No end-user installation is involved of the Bluetooth module and is only performed by Motorola or approved contractor. Any unauthorized changes or modifications not expressly approved by Motorola could void the user’s authority to operate this equipment. 3. I/O CONNECTION: A board mounted 22-pin female connector is utilized to provide power and vehicle bus communications to the module. This connector will only mate with a corresponding connector in the Telematics Control Unit.. 4. SPECIFICATIONS: • Frequency range: 2402 MHz – 2480 MHz • Operating current: 1.5A nominal • Operating voltage: 13.2V nominal • Operating temp. range: -30°C to +70°C • Storage temp. range: -40°C to +85°C • Output power: 0.0025 W max 5. Other This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

FCC ID: IHDT6CR1, IHDT6CS1, IHDT6CT1 Request for Confidentiality In accordance with 47 C.F.R. Section 0.459, we, Motorola Inc., hereby request confidentiality for the block diagram, schematic and product description presented for certification. In support of the Request for Confidentiality, the following is stated: Enclosed within this application is technical information which we deem to be trade secrets and proprietary. If made public, the information might be used to our disadvantage. To assist in assuring that we receive the full value of our product and protect its competitive posture, we respectfully request this grant of confidentiality. Steve Best Motorola Inc.

FCC ID: IHDT6CS1 Request for Modular Approval In accordance with FCC Part 15, we, Motorola Inc., hereby request a modular level approval as outlined in FCC document DA 00 – 1407, for the device listed above. In support of the Modular Transmitter Approval, the following is stated: 1) The module has its own RF shielding. 2) The module does have buffered modulation / data inputs. 3) The module does regulate its own power supply. 4) The module does employ a unique antenna coupler for an external antenna. 5) The module can be tested as a stand-alone device. 6) The module is labeled with the proper FCC ID. 7) The module does have instruction for proper use. 8) The module does meet the FCC RF regulations. Steve Best Motorola Inc.

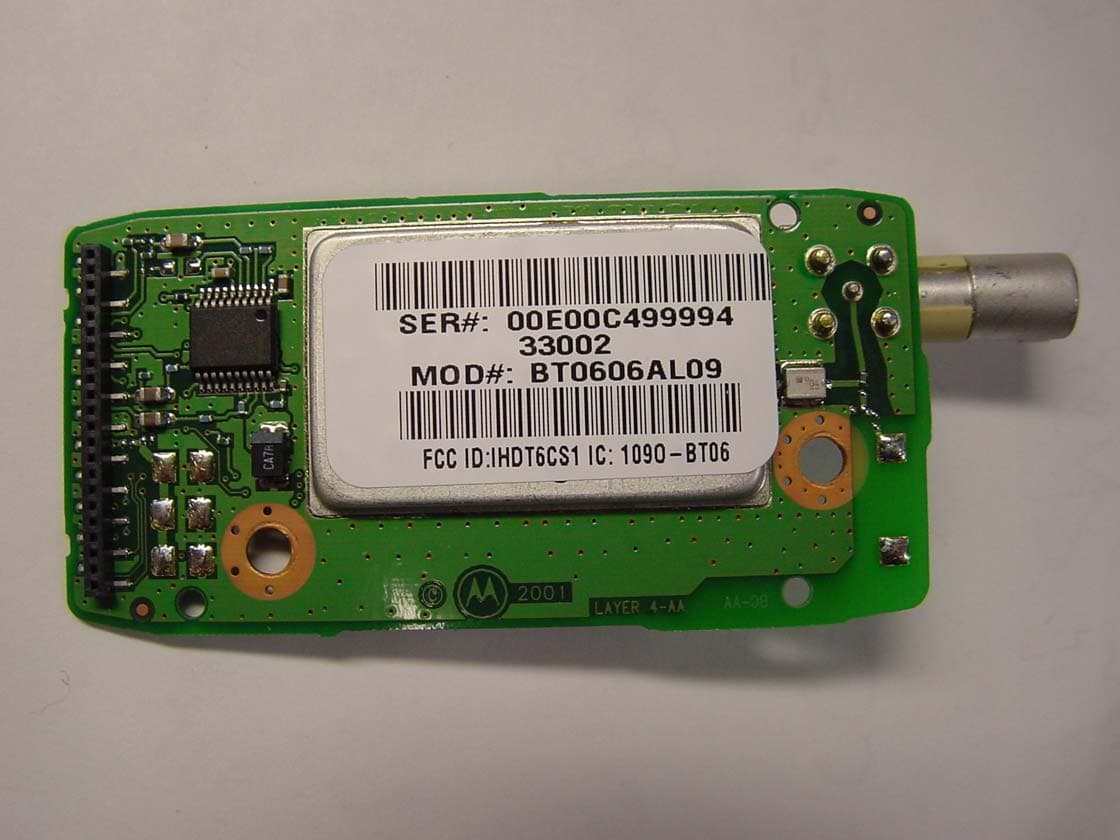

Exhibit C3: Internal Front View FCC ID: IHDT6CS1 Motorola, Inc.

Exhibit C3: Internal Rear View FCC ID: IHDT6CS1 Motorola, Inc.

BMW / Motorola External Bluetooth Antenna FCC ID: IHDT6CS1

Exhibit C3: Internal Front View FCC ID: IHDT6CS1 Motorola, Inc.

Exhibit C3: Internal Front View FCC ID: IHDT6CS1 Motorola, Inc.

Exhibit C3: Internal Rear View FCC ID: IHDT6CS1 Motorola, Inc.

M otorola, Inc E xhibit C3: Internal Front View F CC ID: IHDT6CS1

Mobile Kommunikationstechnik 2,4 GHz-Antenna Technical Data CET-Kuhn E:\Ready_To_Convert\Doc\307726.DOC erstellt:14.02.2003 gedruckt: 06.03.2003 Seite 1 von 2 T T e e c c h h n n i i c c a a l l D D a a t t a a Frequency Range: 2400 – 2483 MHz used frequency range Polarisation: Vertical Max. Gain: + 3,0 dBi within the used frequency range, installed Min. Gain: - 6,0 dBi within the used frequency range, installed Impedance: 50 Ohms within the used frequency range Matching (VSWR): 2:1 max within the used frequency range Load capacity 1 W Radiation Diagramme: outside the car: horizontal circular, depending on installation conditions Center point is the car center point. Circular radius 10m; measured in 1,70m height Temperature Range: -40 - +85 ° C Connection: VEST Coding A from Hirschmann – see FAKRA connector specs. Weight: 50 g max Dimensions: max. 86 x 54 x 12,5 mm Mobile Kommunikationstechnik E:\Ready_To_Convert\Doc\307726.DOC erstellt:14.02.2003 gedruckt: 06.03.2003 Seite 2 von 2

FCC ID: IHDT6CS1 RF Connector Clarification 1) The RF connector is an automotive grade Fakra on this Bluetooth module. The Fakra connector is unique with a “keying” feature that prevents other antenna connectors to be installed on the connector. Steve Best Motorola Inc.
