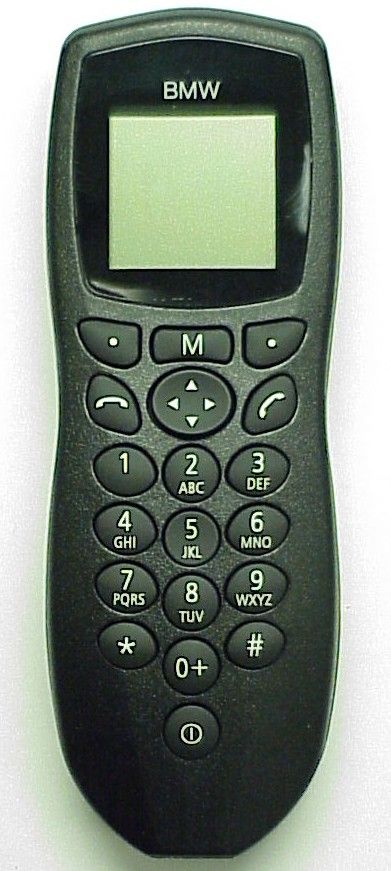

MOTOROLA INC FCC ID: IHDT6CT1 MOTOROLA BLUETOOTH MODULE BT04 USER MANUAL [Model# BT0406AJ08] 1. GENERAL: The Bluetooth Module BT04 facilitates a wireless Bluetooth interface between a wireless handset and another Bluetooth-enabled device located in a Telematics control unit. The Bluetooth Module BT04 is internal to a Motorola Bluetooth handset should be considered a product level module. 2. ANTENNA AND MODULE INSTALLATION: The module utilizes an internal, pc board mounted, chip antenna. The unit is designed for installation within the Bluetooth handset and located in an automobile, usually in the center console area. The device is mounted within a plastic housing of the handset and is located to minimize shadowing of the internal antenna. Due to the low power at which the unit transmits (0.0025 W max.), placement from an SAR perspective is not critical. No end-user installation is involved of the Bluetooth module and is only performed by Motorola or approved contractor. Any unauthorized changes or modifications not expressly approved by Motorola could void the user’s authority to operate this equipment. 3. I/O CONNECTION: A board mounted, 16-pin flex cable is utilized to provide power and vehicle bus communications to the module. This connector will only mate with a corresponding connector in the Bluetooth wireless handset. 4. SPECIFICATIONS: • Frequency range: 2402 MHz – 2480 MHz • Operating current: 1.5A nominal • Operating voltage: 13.2V nominal • Operating temp. range: -30°C to +70°C • Storage temp. range: -40°C to +85°C • Output power: 0.0025 W max 5. Other This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and This device must accept any interference received, including interference that may cause undesired operation.

MOTOROLA INC FCC ID: IHDT6CT1 MOTOROLA BLUETOOTH MODULE BT04 USER MANUAL [Model# BT0406AJ08] 1. GENERAL: The Bluetooth Module BT04 facilitates a wireless Bluetooth interface between a wireless handset and another Bluetooth-enabled device located in a Telematics control unit. The Bluetooth Module BT04 is internal to a Motorola Bluetooth handset should be considered a product level module. 2. ANTENNA AND MODULE INSTALLATION: The module utilizes an internal, pc board mounted, chip antenna. The unit is designed for installation within the Bluetooth handset and located in an automobile, usually in the center console area. The device is mounted within a plastic housing of the handset and is located to minimize shadowing of the internal antenna. Due to the low power at which the unit transmits (35uW radiated measurement.), placement from an SAR perspective is not critical. No end-user installation is involved of the Bluetooth module and is only performed by Motorola or approved contractor. Any unauthorized changes or modifications not expressly approved by Motorola could void the user’s authority to operate this equipment. 3. I/O CONNECTION: A board mounted, 16-pin flex cable is utilized to provide power and vehicle bus communications to the module. This connector will only mate with a corresponding connector in the Bluetooth wireless handset. 4. SPECIFICATIONS: • Frequency range: 2402 MHz – 2480 MHz • Operating current: 1.5A nominal • Operating voltage: 13.2V nominal • Operating temp. range: -30°C to +70°C • Storage temp. range: -40°C to +85°C • Output power: 35uW (Radiated Measurement) 5. Other This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and This device must accept any interference received, including interference that may cause undesired operation.

FCC ID: IHDT6CR1, IHDT6CS1, IHDT6CT1 Request for Confidentiality In accordance with 47 C.F.R. Section 0.459, we, Motorola Inc., hereby request confidentiality for the block diagram, schematic and product description presented for certification. In support of the Request for Confidentiality, the following is stated: Enclosed within this application is technical information which we deem to be trade secrets and proprietary. If made public, the information might be used to our disadvantage. To assist in assuring that we receive the full value of our product and protect its competitive posture, we respectfully request this grant of confidentiality. Steve Best Motorola Inc.

FCC ID: IHDT6CT1 Request for Modular Approval In accordance with FCC Part 15, we, Motorola Inc., hereby request a modular level approval as outlined in FCC document DA 00 – 1407, for the device listed above. In support of the Modular Transmitter Approval, the following is stated: 1) The module has its own RF shielding. 2) The module does have buffered modulation / data inputs. 3) The module does regulate its own power supply. 4) The module does employs a chip antenna on the module. 5) The module can be tested as a stand-alone device. 6) The module is labeled with the proper FCC ID. 7) The module does have instruction for proper use. 8) The module does meet the FCC RF regulations. Steve Best Motorola Inc.

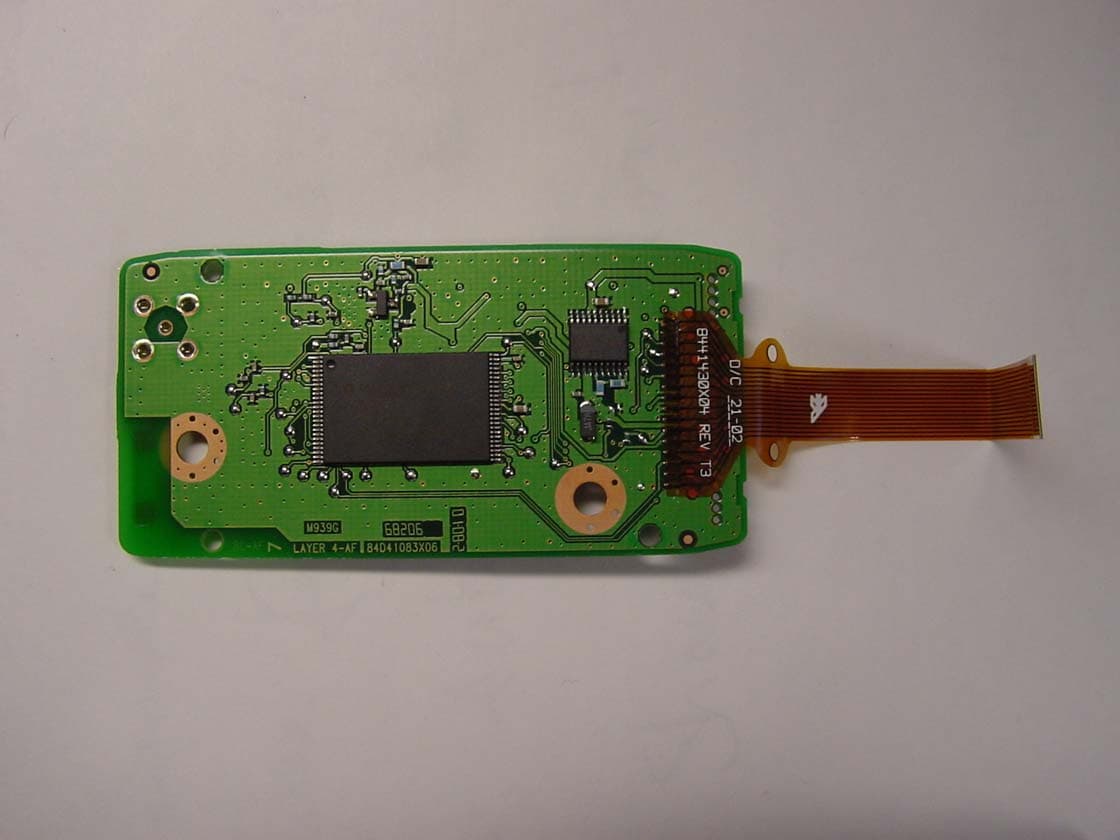

Motorola, Inc. FCC ID: IHDT6CT1 Exhibit C3: Internal Rear View

Motorola, Inc. FCC ID: IHDT6CT1 Exhibit C3: Internal Rear View

Motorola, Inc Exhibit C3: Internal Front View FCC ID: IHDT6CT1
