IHDT6DT1Portable Cellular / PCS GSM Transceiver

APPLICANT: MOTOROLA, INC. FCC ID: IHDT6DT1 EXHIBIT 8 INSTRUCTION MANUAL A preliminary draft copy of the Users Manual follows: D RA F T 1 Welcome Welcome to the world of Motorola digital wireless communications! We are pleased that you have chosen the Motorola V300 GSM wireless phone. Headset Jack Insert headset accessory for handsfree use. Volume Keys Adjust earpiece & ringer volume. Vo i c e Key Create voice records, phonebook & shortcut names. Accessory Connector Port Insert charger & phone accessories. Power & End Key Turn phone on/off, end calls, exit menu system. Right Soft Key Perform functions identified by right display prompt. Menu Key Left Soft Key Perform functions identified by left display prompt. Send Key Make & answer calls, view recently dialed calls list. 5-Way Navigation Key Scroll through menus & lists, set feature values. Smart Key Select menu items, make & end calls. D RA F T 2 Check It Out! FeatureDescription Take Photo Press CAMERA(+) to activate the camera, point lens at subject, press CAPTURE(+) to take a photo. Send Photo Send the photo to a phone number or email address: Press STORE(+) >Send In Message Mirror Aim camera lens for self portraits. Camera Lens Take photos to send to others and use on your phone. External Display View incoming call information. Smart Key Set ring style and call forwarding with flip closed, answer calls with headset accessory. Handsfree Speaker (on back of phone) D RA F T 3 Set Photo as Picture Caller ID Assign a photo to a phonebook entry to enable picture caller ID: M >Multimedia >Pictures >photo M >Apply As Phonebook Entry Send Picture Message Send a picture message with pictures, animations, and sounds: M >Messages >Create Message > New Picture Msg Read Picture Message Read a new picture message that you have received: Press READ(+). Store Message Objects Go to a picture message slide, then: M >Store Phone Theme Apply a phone theme: M >Multimedia >Themes >theme FeatureDescription D RA F T 4 Motorola, Inc. Consumer Advocacy Office 1307 East Algonquin Road Schaumburg, IL 60196 1-800-331-6456 (United States) 1-888-390-6456 (TTY/TDD United States) 1-800-461-4575 (Canada) www.motorola.com (United States) www.motorola.ca (Canada) MOTOROLA and the Stylized M Logo are registered in the US Patent & Trademark Office. Java and all other Java-based marks are trademarks or registered trademarks of Sun Microsystems, Inc. in the U.S. and other countries. All other product or service names are the property of their respective owners. © Motorola, Inc. 2003. Software Copyright Notice The Motorola products described in this manual may include copyrighted Motorola and third-party software stored in semiconductor memories or other media. Laws in the United States and other countries preserve for Motorola and third-party software providers certain exclusive rights for copyrighted software, such as the exclusive rights to distribute or reproduce the copyrighted software. Accordingly, any copyrighted software contained in the Motorola products may not be modified, reverse-engineered, distributed, or reproduced in any manner to the extent allowed by law. Furthermore, the purchase of the Motorola products shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any license under the copyrights, patents, or patent applications of Motorola or any third-party software provider, except for the normal, non-exclusive, royalty-free license to use that arises by operation of law in the sale of a product. Manual number: XXXX-O Cover number:8988485L61-O D RA F T 5 Contents Safety and General Information. . . . . . . . . . . . . . . . . . . . 8 Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 About This Guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Installing the SIM Card . . . . . . . . . . . . . . . . . . . . . . . . . 15 Installing the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Charging the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Battery Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Turning Your Phone On . . . . . . . . . . . . . . . . . . . . . . . . . 19 Adjusting Volume. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Making a Call. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Answering a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Viewing Your Phone Number . . . . . . . . . . . . . . . . . . . . 21 Highlight Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Taking and Sending a Photo . . . . . . . . . . . . . . . . . . . . . 22 Sending a Picture Message . . . . . . . . . . . . . . . . . . . . . 24 Receiving a Picture Message . . . . . . . . . . . . . . . . . . . . 26 Learning to Use Your Phone . . . . . . . . . . . . . . . . . . . . . 27 Using the Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 Using the 5-Way Navigation Key . . . . . . . . . . . . . . . . . . 32 Using Menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33 Entering Text . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 Using the Smart Key . . . . . . . . . . . . . . . . . . . . . . . . . . . 45 Using the External Display . . . . . . . . . . . . . . . . . . . . . . 45 Using the Handsfree Speaker . . . . . . . . . . . . . . . . . . . . 46 Changing a Code, PIN, or Password. . . . . . . . . . . . . . . 47 Locking and Unlocking Your Phone. . . . . . . . . . . . . . . . 48 If You Forget a Code, PIN, or Password . . . . . . . . . . . . 49 Using the Phonebook . . . . . . . . . . . . . . . . . . . . . . . . . . 50 D RA F T 6 Setting Up Your Phone . . . . . . . . . . . . . . . . . . . . . . . . . . . 52 Storing Your Name and Phone Number . . . . . . . . . . . . . 52 Setting the Time and Date . . . . . . . . . . . . . . . . . . . . . . . 52 Setting a Ring Style . . . . . . . . . . . . . . . . . . . . . . . …

Text truncated - open the document above for the full version.

APPLICANT MOTOROLA INC. FCC ID: IHDT6DT1 ATTESTATION STATEMENTS Transceiver type IHDT6DT1 has been tested in accordance with the requirements contained in the appropriate Commission regulations. To the best of my knowledge, these tests were performed using measurement procedures consistent with industry or Commission standards and demonstrate that this equipment complies with the appropriate standards. Each unit manufactured imported or marketed, will conform to the sample tested within the variations that can be expected due to quantity production and testing on a statistical basis. I further certify that the necessary measurements were made at Motorola, located at 3301 Quantum Boulevard, Boynton Beach, Florida and 600 N. US Highway 45, Libertyville, Illinois. NAME: CHRIS LONG TITLE: SR. DIRECTOR OF ENGINEERING, PERSONAL COMMUNICATIONS SECTOR Page 1 of 2 EXHIBIT 2 APPLICANT MOTOROLA INC. FCC ID: IHDT6DT1 I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in this application and accompanying technical data are true and correct. The technical data supplied with this application was taken under my supervision and is hereby duly certified. I also certify that this transmit equipment (FCC ID: IHDT6DT1) is in compliance with all applicable parts of the FCC Rules. NAME:AMIN JALALI TITLE: SR. RFENGINEER, PCS Development Date: 9/19/03 Page 2 of 2 EXHIBIT 2

Date: October 1, 2003 Subject: Request for additional information (FCC ID: IHDT6DT1) Reference: Applicant Received: 9/16/2003 Correspondence Reference Number: 231001A.IHD Confirmation Number: TC3238 Date of Original Email: 10/01/2003 Prepared by: Andrew Bachler, Principal Staff Engineer Motorola Personal Communications Sector Libertyville, Illinois Questions and responses follow: Part 24 application: 1. Page 15 of user's manual mentions Bluetooth operation. Please confirm if this function applies to this phone model. Response: Bluetooth is not included in this phone (FCC ID: IHDT6DT1). The operational description (exhibit 12) does refer to Bluetooth operation, which is applicable to a similar phone in the series. The phone with Bluetooth functionality is a different FCC ID. 2. Please submit SAR setup photos for head and body SAR. Response: Please refer to the supplemental SAR report submitted on October 1, 2003. 3. Page 4 of SAR report has an expired cal date for the network analyzer. Response: Please refer to the supplemental SAR report submitted on October 1, 2003. 1

APPLICANT: MOTOROLA FCC ID: IHDT6DT1 September 16, 2003 CONFIDENTIALITY REQUEST CONTAINED WITHIN Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Application for Cellular/PCS Transceiver Certification Gentlemen: Application: Motorola, Inc., Personal Communications Sector, 600 N. U.S. Highway 45, Libertyville, Illinois 60048-1286 herein submits: Application for Equipment Authorization for Certification of a Cellular Transceiver, FCC ID: IHDT6DT1. Motorola is also the manufacturer of this equipment. Confidentiality: Pursuant to Section 0.459 of the Commission's rules (CFR 47), Motorola requests confidentiality for portions of the material contained in this application and that the identified material be withheld from public inspection following the grant of this authorization. This material contains Motorola's trade secrets and confidential information that Motorola does not customarily release to the public and which is otherwise not generally available to the public. Confidentiality is requested for the following exhibits: • Exhibit 4 Block Diagrams • Exhibit 5 Schematics • Exhibit 12 Operational Description Description: This equipment is a GSM portable transceiver, which operates in both the 850 MHz and 1900 MHz PCS bands. Note: This device contains 900 MHz and 1800 MHz GSM, functions that are not operational in U.S. territories. Contact Information: Please contact me by telephone at (847) 523-6167, or by e-mail ( [email protected]), if there are questions or additional information needed concerning this filing. Regards, Andrew J. Bachler FCC Liaison Cellular Subscriber Sector 600 N. U.S. Highway 45 Libertyville, IL 60048-5343 Exhibit 13

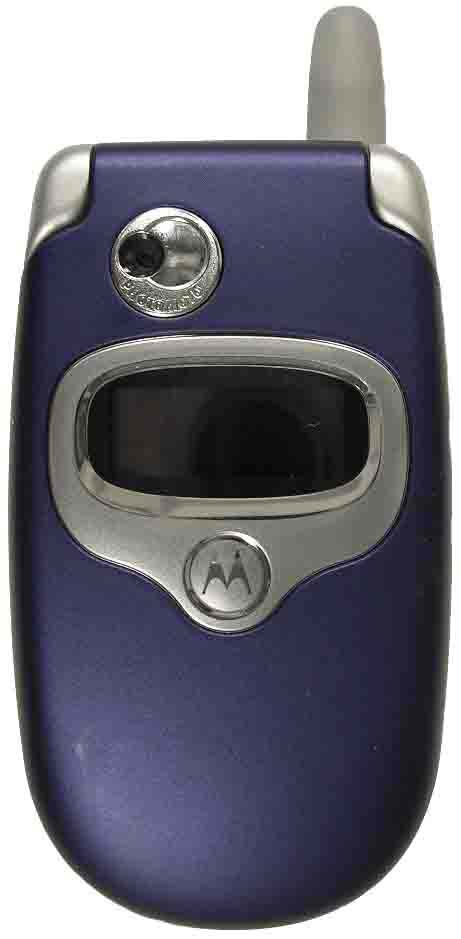

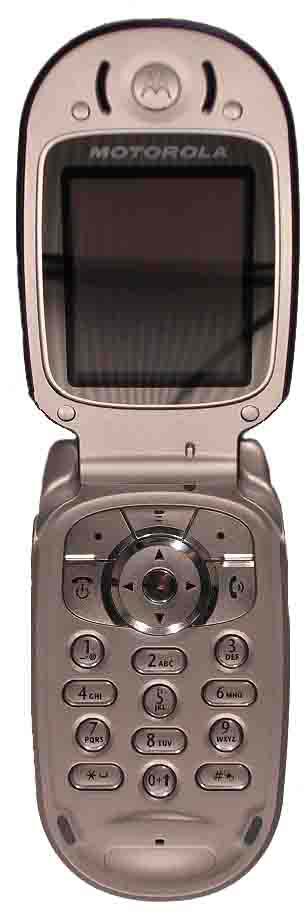

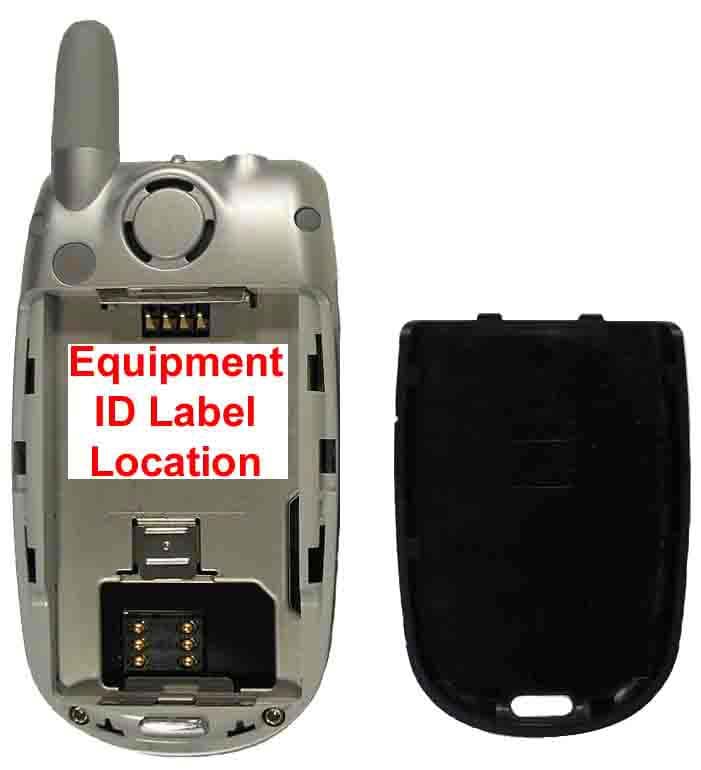

APPLICANT: MOTOROLA, INC. FCC ID: IHDT6DT1 EXHIBIT 3A Front View Flip Opened Rear View Flip Opened APPLICANT: MOTOROLA, INC. FCC ID: IHDT6DT1 EXHIBIT 3B Rear View with Battery Cover Removed Showing ID Label Rear View Front View

APPLICANT: MOTOROLA INC. FCC ID: IHDT6DT1 FCC IDENTIFICATION (NAMEPLATE) INFORMATION FCC ID: IHDT6DT1 The FCC label shown is representative of the label that will appear on the radio when in production. It will be placed on the outside of the equipment as shown in Exhibit 3. Other information may also be included on this label. EXHIBIT 1

APPLICANT: MOTOROLA, INC. FCC ID: IHDT6DT1 EXHIBIT 9 Rear View Schields Removed Rear View 1of 3 APPLICANT: MOTOROLA, INC. FCC ID: IHDT6DT1 EXHIBIT 9 Front View Front View (keypad popple) 2 of 3 APPLICANT: MOTOROLA, INC. FCC ID: IHDT6DT1 EXHIBIT 9 3 of 3 Inside View of Housings

APPLICANT: MOTOROLA, INC. FCC ID: IHDT6DT1 TRANSCEIVER ADJUSTMENTS / TUNE-UP PROCEDURE There are no user accessible adjustments or tuning in this portable cellular transceiver. All necessary adjustments and tuning are performed during manufacture of the product. Any adjustments or tuning after service or repair are done as part of that process, as special equipment is required to perform such adjustments. EXHIBIT 10 1 APPLICANT: MOTOROLA, INC. FCC ID: IHDT6DT1 PARTS LIST Reference Symbol Part Number Description C1 2113743N18 Capacitor 4.7pF C1000 2113743M24 Capacitor 0.1uF C1001 2113928P04 Capacitor 1.0uF C1010 2113743K15 Capacitor 0.1uF C1011 2113743L13 Capacitor 680pF C1020 2113743M24 Capacitor 0.1uF C1021 2113743M24 Capacitor 0.1uF C1030 2113928Z11 Capacitor 22uF C1033 2113743L41 Capacitor .01uF C1050 2113743M24 Capacitor 0.1uF C1051 2113743M24 Capacitor 0.1uF C1055 2187893N01 Capacitor 1.0uF C1056 2113946D02 Capacitor 1.0uF C1060 2311049A89 Capacitor 22uF C1062 2113741F29 Capacitor 1500pF C1066 2187906N01 Capacitor 4.7uF C1071 2113743M24 Capacitor 0.1uF C11 2113740F39 Capacitor 33pF C1350 2113743M24 Capacitor 0.1uF C150 2113743L05 Capacitor 330pF C151 2113740A75 Capacitor 680pF C152 0888600M24 Capacitor 8200pF C153 2113928C04 Capacitor 4.7uF C154 2113928N01 Capacitor 0.1uF C162 2113743N20 Capacitor 5.6pF C163 0888600M24 Capacitor 8200pF C164 2113743L19 Capacitor 1200pF C165 2113743N52 Capacitor 120pF C166 2113743N52 Capacitor 120pF C167 2113743L09 Capacitor 470pF C170 2113928C03 Capacitor 1.0uF C1701 2113743M24 Capacitor 0.1uF C171 2113743N40 Capacitor 39pF C172 2113743L41 Capacitor .01uF C173 2113743N40 Capacitor 39pF C174 2113743N40 Capacitor 39pF C176 2113928C04 Capacitor 4.7uF C177 2113743N42 Capacitor 47pF C180 2113743L41 Capacitor .01uF C50 2113743F18 Capacitor 2.2uF C51 2113743F18 Capacitor 2.2uF C52 2113743L41 Capacitor .01uF C53 2113743N40 Capacitor 39pF C54 2113743N40 Capacitor 39pF C55 2113743N40 Capacitor 39pF C56 2113743N38 Capacitor 33pF EXHIBIT 10 2 APPLICANT: MOTOROLA, INC. FCC ID: IHDT6DT1 C57 2113743N38 Capacitor 33pF C58 2113743N38 Capacitor 33pF C59 2113743N38 Capacitor 33pF C60 2113743N40 Capacitor 39pF C61 2113743L17 Capacitor 1000pF C62 2113743N40 Capacitor 39pF C63 2113743N40 Capacitor 39pF C64 2113743N40 Capacitor 39pF C65 2113743L41 Capacitor .01uF C700 2113743M24 Capacitor 0.1uF C701 2113743M24 Capacitor 0.1uF C703 2113743M24 Capacitor 0.1uF C704 2113743M24 Capacitor 0.1uF C806 2113946S35 Capacitor 1.0uF C807 2113743M24 Capacitor 0.1uF C810 2187906N01 Capacitor 4.7uF C811 2113743M24 Capacitor 0.1uF C812 2113743M24 Capacitor 0.1uF C813 2113743M24 Capacitor 0.1uF C814 2113743M24 Capacitor 0.1uF C815 2113743M24 Capacitor 0.1uF C816 2113743M24 Capacitor 0.1uF C817 2113743M24 Capacitor 0.1uF C819 2113743M24 Capacitor 0.1uF C820 2113928P04 Capacitor 1.0uF C821 2113928P04 Capacitor 1.0uF C822 2113928P04 Capacitor 1.0uF C823 2113928P04 Capacitor 1.0uF C824 2113928P04 Capacitor 1.0uF C826 2113743M24 Capacitor 0.1uF C827 2113743M24 Capacitor 0.1uF C828 2113743M24 Capacitor 0.1uF C829 2113743M24 Capacitor 0.1uF C840 2113743M24 Capacitor 0.1uF C900 2113743M24 Capacitor 0.1uF C901 2113743L25 Capacitor 2200pF C902 2113743L41 Capacitor .01uF C903 2187906N01 Capacitor 4.7uF C904 2113743M24 Capacitor 0.1uF C905 2113743N30 Capacitor 15pF C906 2113743N30 Capacitor 15pF C910 2187906N01 Capacitor 4.7uF C911 2113743L41 Capacitor .01uF C912 2113743M24 Capacitor 0.1uF C920 2113928Z11 Capacitor 22uF C922 2113928Z11 Capacitor 22uF C924 2113928Z11 Capacitor 22uF C926 2187906N01 Capacitor 4.7uF EXHIBIT 10 3 APPLICANT: MOTOROLA, INC. FCC ID: IHDT6DT1 C928 2113928S04 Capacitor 0.1uF C929 2187906N01 Capacitor 4.7uF C931 2187906N01 Capacitor 4.7uF C932 2187906N01 Capacitor 4.7uF C933 2113928C13 Capacitor 10uF C934 2113928C13 Capacitor 10uF C935 2187906N01 Capacitor 4.7uF C937 2187906N01 Capacitor 4.7uF C938 2187906N01 Capacitor 4.7uF C939 2113928C13 Capacitor 10uF C940 2113743M24 Capacitor 0.1uF C950 2113743M24 Capacitor 0.1uF C951 2113743L35 Capacitor 5600pF C952 2113928C13 Capacitor 10uF C953 2113928A01 Capacitor 1.0uF C954 2113928C13 Capacitor 10uF C961 2187906N01 Capacitor 4.7uF CR900 4809948D42 Rohm/Toshiba RB751V-40/1SS367 CR920 4809924D18 Rohm RB520S-30 CR921 4809924D18 Rohm RB520S-30 D1055 4809924D18 Rohm RB520S-30 D1450 4809496B18 Panasonic LNJ026X8B0MT WHT LED D1451 4809496B18 Panasonic LNJ026X8B0MT WHT LED D1452 4809496B18 Panasonic LNJ026X8B0MT WHT LED D1453 4809496B18 Panasonic LNJ026X8B0MT WHT LED D1454 4809496B18 Panasonic LNJ026X8B0MT WHT LED D1455 4809496B18 Panasonic LNJ026X8B0MT WHT LED D1456 4809496B18 Panasonic LNJ026X8B0MT WHT LED D1457 4809496B18 Panasonic LNJ026X8B0MT WHT LED D700 4809924D18 Rohm RB520S-30 FL100 9188668L04 Sawtek 890010 FL1400 4809606E12 STElectronics EMIF11-10002C4 FLTR,EMI J1 0987378K01 Hirose MS147 CONN RF MOD3 J1200 0909195E05 MIC. CONNECTOR J1260 3988194N01 HosidenCorp HPC0890-010010 J1300 2887818K07 CONN,PLG,F,34CONT J1350 3970350D02 CONN HW,SIM,CRD J1400 0987636K06 Motorola 36K06 17 PINS SM J1701 0988252L01 Sanyo 4H-2T SOCKET,COIN CELL BATT L1 2409154M33 Inductor 5.6nH L1000 2409646M13 Inductor 39nH L1030 2409646M13 Inductor 39nH L1050 2409646M13 Inductor 39nH L1200 2409646M13 Inductor 39nH L1241 2409646M13 Inductor 39nH L1260 2409646M13 Inductor 39nH L1261 2409646M13 Inductor 39nH L1300 2409377M17 Inductor 100nH EXHIBIT 10 4 APPLICANT: MOTOROLA, INC. FCC ID: IHDT6DT1 L1400 2409646M13 Inductor 39nH L1401 2409646M13 Inductor 39nH L161 2489970L37 Inductor 270nH L170 2409154M36 Inductor 10.0nH L2 2113743N03 Capacitor 1pF L3 0662057M01 Resistor 0 L4 2409646M13 Inductor 39nH L70 2462587Q65 Inductor 33uH L920 2588866L14 Inductor 47uH L921 2487659M08 Inductor 15uH L950 2409377M17 Inductor 100nH M1700 3988340N01 CONT,BAT,,M,PHBRZ M3 3989013L05 CONT ANT Q1400 4809939C39 Rohm EMD9T2R Q801 4888182N01 Toshiba TPS851 Q924 4809579E24 Toshiba 2SJ347-TE851TSTR FET P-CHAN Q950 4809807C41 FAIRCHILD FDZ299P POWER MOSFET Q951 4809939C39 Rohm EMD9T2R Q952 480957…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA, INC. FCC ID: IHDT6DT1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 1 1 Exhibit 11: SAR Test Report IHDT6DT1 Date of test: Date of Report: 08/25/2003 – 09/04/2003 09/12//2003 Laboratory: Motorola Personal Communications Sector Product Safety & Compliance Laboratory 600 N. US Highway 45 Room: MW113 Libertyville, Illinois 60048 Test Responsible: Firass Badaruzzaman Senior RF Engineer Accreditation: This laboratory is accredited to ISO/IEC 17025-1999 to perform the following tests: Tests : Procedures: Electromagnetic Specific Absorption Rate ANSI/IEEE C95.1-1992, 1999 (SAR) IEEE C95.3-1991 IEEE P1528 (DRAFT) FCC OET Bulletin 65 (including Supplements A, B, C) Australian Communications Authority Radio Communications (Electromagnetic Radiation – Human Exposure) Standard 1999 CENELEC EN 50361 (2001) Simulated Tissue Preparation APP-0247 RF Power Measurement DOI-0876, 0900, 0902, 0904, 0915 On the following products or types of products: Wireless Communications Devices (Examples): Two Way Radios; Portable Phones (including Cellular, Licensed Non-Broadcast and PCS); Low Frequency Readers; and Pagers A2LA certificate #1651-01 Statement of Compliance: Motorola declares under its sole responsibility that portable cellular telephone FCC ID IHDT6DT1 to which this declaration relates, is in conformity with the appropriate General Population/Uncontrolled RF exposure standards, recommendations and guidelines (FCC 47 CFR §2.1093). It also declares that the product was tested in accordance with the appropriate measurement standards, guidelines and recommended practices. Any deviations from these standards, guidelines and recommended practices are noted below: (none) ©Motorola, Inc. 2003 This test report shall not be reproduced except in full, without written approval of the laboratory. The results and statements contained herein relate only to the items tested. The names of individuals involved may be mentioned only in connection with the statements or results from this report. Motorola encourages all feedback, both positive and negative, on this test report. APPLICANT: MOTOROLA, INC. FCC ID: IHDT6DT1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 2 2 Table of Contents 1) Introduction 3 2) Description of the Device Under Test 3 Antenna description 3 Device description 3 3) Test Equipment 3 3.1 Dosimetric system 3 3.2 Additional equipment used 4 4) Electrical parameters of the tissue simulating liquid 4 5) System Accuracy Verification 5 6) Test Results 5 6.1 Head Adjacent Test Results 6 6.2 Body-Worn Test Results 8 References: Appendix 1: SAR distribution comparison for the system accuracy verification 10 Appendix 2: SAR distribution plots for Phantom Head Adjacent Use 11 Appendix 3: SAR distribution plots for Body Worn Configuration 14 Appendix 4. Probe Calibration Certificate 16 Appendix 5. Dipole Characterization Certificate 17 Appendix 6: Measurement Uncertainty Budget 18 Appendix 7. Photographs of the device under test 21 APPLICANT: MOTOROLA, INC. FCC ID: IHDT6DT1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 3 3 1. Introduction The Motorola Personal Communications Sector Product Safety Laboratory has performed measurements of the maximum potential exposure to the user of portable cellular phone (FCC ID IHDT6DT1). The Specific Absorption Rate (SAR) of this product was measured. The portable cellular phone was tested in accordance with FCC OET Bulletin 65 Supplement C 01-01. 2. Description of the Device Under Test Antenna description Type Stubby Location Right Side Length 27 mm Dimensions Width 8 mm Configuration Fixed Device description FCC ID Number IHDT6DT1 Serial number LV30510105 Mode(s) of Operation GSM 850 GSM 900 GSM 1800 GSM 1900 GPRS 850 GPRS 900 GPRS 1800 GPRS 1900 Modulation Mode(s) GSM GSM GSM GSM GSM GSM GSM GSM Maximum Output Power Setting 33.00 dBm 33.00 dBm 30.00 dBm 30.00 dBm 33.00 dBm 33.00 dBm 30.00 dBm 30.00 dBm Duty Cycle 1:8 1:8 1:8 1:8 2:8 2:8 2:8 2:8 Transmitting Frequency Rang(s) 824.2-848.8 MHz 880.2- 914.8 MHz 1710.2- 1784.8 MHz 1850.20 – 1909.80 MHz 824.2- 848.8 MHz 880.2- 914.8 MHz 1710.2- 1784.8 MHz 1850.20 – 1909.80 MHz Production Unit or Identical Prototype (47 CFR §2..908) Identical Prototype Device Category Portable RF Exposure Limits General Population / Uncontrolled 3. Test Equipment Used 3.1 Dosimetric System The Motorola Personal Communications Sector Product Safety & Compliance Laboratory utilizes a Dosimetric Assessment System (Dasy3™ v3.1d) manufactured by Schmid & Partner Engineering AG (SPEAG™), of Zurich Switzerland. All the SAR measurements are taken within a shielded enclosure. The overall RSS uncertainty of the measurement system is ±11.7% (K=1) with an expanded uncertainty of ±23.0% (K=2). The measurement uncertainty budget is given in Appendix 6. Per IEEE 1528, this uncertainty budget is applicable to the SAR range of 0.4 W/kg to 10 W/kg. The list of calibrated equipment used for the measurements is shown below. APPLICANT: MOTOROLA, INC. FCC ID: IHDT6DT1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 4 4 Description Serial Number Cal Due Date DASY3 DAE V1 SN437 18-Mar-04 E-Field Probe ET3DV6 SN1501 16-Apr-04 Dipole Validation Kit, D900V2 SN79 24-Jun-04 S.A.M. Phantom used for 800MHz TP-1132 Dipole Validation Kit, D1800V2 SN246tr 24-Jun-04 S.A.M. Phantom used for 1900MHz TP-1160 3.2 Additional Equipment Description Serial Number Cal Due Date Signal Generator HP8648C 3847A04850 2/2/2005 Power Meter E4419B GB39510961 11/5/2003 Power Sensor #1 - 8481A 2702A59572 11/5/2003 Power Sensor #2 - 8481A US37296470 11/5/2003 Network Analyzer HP8753ES US39172529 6/18/2003 Dielectric Probe Kit HP85070B US33020235 Description Serial Number Cal Due Date Signal Generator HP8648C 3847A04632 10/10/2004 Power Meter E4419B GB39511090 2/6/2004 Power Sensor #1 - 8481A US39211007 2/6/2004 Power Sensor #2 - 8481A US39210931 8/5/2004 Network Analyzer HP8753ES US39172529 6/18/2003 Dielectric Probe Kit HP85070B US33020235 4. Electrical par…

Text truncated - open the document above for the full version.

October 1, 2003 Supplement to SAR Test Report for Motorola portable cellular phone (FCC ID IHDT6DT1) Prepared by: Firass Badaruzzaman Motorola Personal Communications Sector Product Safety Laboratory Libertyville, Illinois Summary of FCC request for additional information There was a request for additional information regarding Motorola’s SAR Test Report for Motorola portable cellular phone (FCC ID IHDT6DT1) . The requested information is addressed below in the same numbering sequence received. 2. Please submit SAR setup photos for head and body SAR. Please look at appendix 1. 3. Page 4 of SAR report has an expired cal date for the network analyzer. Response: Please look at the below updated table for test equipment: Description Serial Number Cal Due Date Signal Generator HP8648C 3847A04850 2/2/2005 Power Meter E4419B GB39510961 11/5/2003 Power Sensor #1 - 8481A 2702A59572 11/5/2003 Power Sensor #2 - 8481A US37296470 11/5/2003 Network Analyzer HP8753ES US39172529 6/18/2004 Dielectric Probe Kit HP85070B US33020235 Description Serial Number Cal Due Date Signal Generator HP8648C 3847A04632 10/10/2004 Power Meter E4419B GB39511090 2/6/2004 Power Sensor #1 - 8481A US39211007 2/6/2004 Power Sensor #2 - 8481A US39210931 8/5/2004 Network Analyzer HP8753ES US39172529 6/18/2004 Dielectric Probe Kit HP85070B US33020235 Note: There were a few typos in “Table 2” of Section 6.1 (Head Adjacent Test Results). Please look at the below table which has been updated. (15° Tilt Position) Left Head Right Head f (MHz) Description Conducted Output Power (dBm) Measured (W/kg) Drift (dB) Extrapolated (W/kg) Simulate Temp (°C) Measured (W/kg) Drift (dB) Extrapolated (W/kg) Simulate Temp (°C) Channel 128 32.98 Channel 190 33.00 0.301 -0.13 0.227 20.40 0.392 -0.29 0.42 20.80 Digital 850MHz Channel 251 33.00 Channel 512 30.04 Channel 661 30.03 0.414 -0.05 0.42 20.10 0.392 -0.29 0.42 20.10 Digital 1900MHz Channel 810 30.03 Appendix 1 Pictures of the device under test

APPLICANT: MOTOROLA INC FCC ID: IHDT6DT1 PERSONAL COMMUNICATIONS SECTOR PRODUCT SAFETY AND COMPLIANCE EMC LABORATORY EMC TEST REPORT Test Report Number – 11912-3 Report Date – September 25, 2003 The test results contained herein relate only to the model(s) identified. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical characteristics. As the responsible EMC Engineer, I hereby declare that the equipment tested as specified in this report conforms to the requirements indicated . Signature Name: _Michael E. Hill Title: Senior Electrical Engineer Date : 2003-09-25____ This report must not be reproduced, except in full, without written approval from this laboratory. THIS REPORT MUST NOT BE USED TO CLAIM PRODUCT ENDORSEMENT BY A2LA OR ANY AGENCY OF THE U.S. GOVERNMENT. A2LA Certificate Number: 1846-01 EXHIBIT 6 APPLICANT: MOTOROLA INC FCC ID: IHDT6DT1 Table of Contents Description Page Test Report Details 4 Applicable Standards 4 Summary of Testing 5 General and Special Conditions 5 Equipment and Cable Configurations 6 Measuring Equipment and Calibration Information 6 Measurement Procedures and Data RF Power Output 7 Radiated Power (ERP) 8 Occupied Bandwidth 9 GSM 850 Reference Plot 9 GSM 850 Occupied Bandwidth Plot 10 GSM 850 A*(Lower) Min. Block Edge 10 GSM 850 A*(Lower) Max Block Edge 11 GSM 850 A Min. Block Edge 11 GSM 850 A Max Block Edge 12 GSM 850 B Min. Block Edge 12 GSM 850 B Max Block Edge 13 GSM 850 A*(Upper) Min. Block Edge 13 GSM 850 A*(Upper) Max Block Edge 14 GSM 850 B* Min. Block Edge 14 GSM 850 B* Max Block Edge 15 GSM 1900 Occupied Band Plot 16 GSM 1900 Reference Plot 16 GSM 1900 A Min. Block Edge 17 GSM 1900 A Max Block Edge 17 GSM 1900 B Min. Block Edge 18 GSM 1900 B Max Block Edge 18 GSM 1900 C, C2, C3 Min. Block Edge 19 GSM 1900 C, C1 Max Block Edge 19 GSM 1900 C, C1 Min.Block Edge 20 GSM 1900 C, C3 Max Block Edge 20 GSM 1900 C, C4 Min. Block Edge 21 GSM 1900 C, C4 Max Block Edge 21 GSM 1900 C, C5 Max Block Edge 22 GSM 1900 D Min. Block Edge 22 GSM 1900 D Max Block Edge 23 GSM 1900 E Min. Block Edge 23 GSM 1900 E Max Block Edge 24 GSM 1900 F Min. Block Edge 24 Test Report Number: 11912-3 EXHIBIT 6 2 APPLICANT: MOTOROLA INC FCC ID: IHDT6DT1 GSM 1900 F Max Block Edge 25 Spurious Emissions at Antenna Terminals 26 GSM 850 Tabular and Graphical Data 27 GSM 1900 Tabular and Graphical Data 28 Field Strength of Spurious Emissions 29 GSM 850 Tabular and Graphical Data 30 GSM 1900 Tabular and Graphical Data 31 Frequency Stability 32 GSM 850 Tabular and Graphical Data 33 GSM 1900 Tabular and Graphical Data 34 Field Strength of Spurious Emissions From Unintentional Radiators GSM 850 Tabular and Graphical Data 36 GSM 1900 Tabular and Graphical Data 37 Appendix A - Radiated Emissions Test Setup Photos Figure A.1 – Radiated Emissions Measurement 38 Figure A.2 – Substitution Measurement 38 Test Report Number: 11912-3 EXHIBIT 6 3 APPLICANT: MOTOROLA INC FCC ID: IHDT6DT1 Test Report Details Tests Performed By: Motorola Personal Communications Sector Product Safety and Compliance Group 600 North US Hwy 45 Libertyville, IL 60048 PH (561) 739-2179 Fax (561) 739-2131 Motorola PCS FRN: 0004321311 FCC Registration Number: 316588 Industry Canada Number: IC3908 Tests Requested By: Motorola Inc. Personal Communications Sector 600 North US Hwy 45 Libertyville, IL 60048 Product Type: Cellular Phone Signaling Capability: GSM 850, GSM 1900 Model Number: SUG3514AA Serial Numbers: LV305N0124, LV305N0092, LV305N0118 Testing Complete Date: September 25, 2003 Applicable Standards All tests and measurements indicated in this document were performed in accordance with the Code of Federal Regulations Title 47 Part 2, Sub-part J as well as the following parts: X Part 15 Subpart B – Unintentional Radiators X Part 22 Subpart H - Public Mobile Services X Part 24 - Personal Communications Services Part 90 - Private Land Mobile Radio Service Applicable Standards: TIA EIA 137-A, TIA EIA 98-C, ANSI 63.4 2001, RSS-118 (AMPS), RSS-128 (TDMA), RSS-129 (CDMA), RSS-133 (PCS) Test Report Number: 11912-3 EXHIBIT 6 4 APPLICANT: MOTOROLA INC FCC ID: IHDT6DT1 Summary of Testing Test Test Name # Pass/Fail 1 RF Power Output NA 2 ERP (Effective Radiated Power) NA 3 Modulation Characteristics Pass 4 Occupied Bandwidth Pass 5 Spurious Emissions at Antenna Terminal Pass 6 Field Strength of Spurious Emissions Pass 7 Frequency Stability Pass 8 Field Strength of Spurious Emissions Pass from Unintentional Radiators Test Test Name Margin with respect # to the Limit_________ 1 RF Power Output NA 2 ERP (Effective Radiated Power) NA 3 Modulation Characteristics NA 4 Occupied Bandwidth See Plots 5 Spurious Emissions at Antenna Terminal 12.9dB 6 Field Strength of Spurious Emissions 9.3dB 7 Frequency Stability 69.25Hz 8 Field Strength of Spurious Emission…

Text truncated - open the document above for the full version.
