IHDT6DZ1Portable PCS GSM Transceiver w/ Embedded Bluetooth

APPLICANT: MOTOROLA, INC. FCC ID: IHDT6DZ1 EXHIBIT 8 INSTRUCTION MANUAL A preliminary draft copy of the Users Manual follows: DR AFT DR AFT 1 Welcome Welcome to the world of Motorola digital wireless communications! We are pleased that you have chosen the Motorola A630 GSM wireless phone. Note: There are some functions that can be done with the A630 flip open or closed. In those cases, we will show you both key press options in parentheses. Power & End Key Turn phone on/off, end calls, exit menu system. Right Soft Key Perform functions identified by right display prompt. Menu Key Left Soft Key Perform functions identified by left display prompt. Send Key Make & answer calls, view recently dialed calls list. 5-Way Navigation Key Scroll through menus & lists, set feature values. Space Key Shift Key Enter Key Game Keys Game Keys Alt Key Enter symbols in text messages. Home Screen Internal Keyboard DR AFT 2 Check It Out! Camera Lens Take photos to send to others & use on your phone. External Display View call & menu information. Camera Button Turn camera on & take photos. Press & hold to record voice memos. External Keys For closed flip operation. Handsfree Speaker (on back of phone) Vo l u m e Key s Adjust earpiece, ringer volume, & ring style. Zoom in & out when taking a photo. Headset Jack Insert headset accessory for handsfree use. OK and Send Key Move forward in menus, make & answer calls, & view recent calls list. Back, End, & Power Key Go back in menus, end calls, & turn the phone On or Off. Menu & Up & Down Keys Access the menu and scroll up and down. Accessory Connector Port Insert charger & phone accessories. Antenna (on back of phone; internal antenna) External Keypad DR AFT 3 FeatureDescription Take Photo with Flip Open 90 Degrees Scroll up to the Camera Icon. Rotate handset to view image properly (see page 21 of this user guide for more details). Point lens at subject and press the camera button to take a photo. Send Photo Send the photo to a phone number or email address: Use the external Volume Down button to scroll to e. Press the external camera button to select. Type message below photo and press OK. Scroll to select Send To number or address and press Add, Done, and then Send. Set Photo as Picture Caller ID Assign a photo to a phonebook entry to enable picture caller ID: m > Multimedia > Pictures > photo m> Apply As > Phonebook Entry Send Picture Message Send a picture message with pictures, animations, sounds: > Messages > Create Message > New Picture Msg Play Video Clip Play a video clip: m > Multimedia > Videos > video clip Press PLAY r. Wireless Connection Set up a Bluetooth™ wireless connection to a headset accessory, car kit, or external device. Make sure the Bluetooth device is powered on and is in discover mode: m > Settings > Connection > Bluetooth Link > Handsfree > [Look For Devices] Play Games Play a game: m > Games & Apps > game DR AFT 4 Motorola, Inc. Consumer Advocacy Office 1307 East Algonquin Road Schaumburg, IL 60196 www.motorola.com (United States) 1-800-331-6456 (United States) 1-888-390-6456 (TTY/TDD United States for hearing impaired) 1-800-461-4575 (Canada) MOTOROLA and the Stylized M Logo are registered in the US Patent & Trademark Office. The Bluetooth trademarks are owned by their proprietor and used by Motorola, Inc. under license. Java and all other Java-based marks are trademarks or registered trademarks of Sun Microsystems, Inc. in the U.S. and other countries. All other product or service names are the property of their respective owners. © Motorola, Inc., 2004. Caution: Changes or modifications made in the radio phone, not expressly approved by Motorola, will void the user’s authority to operate the equipment. The information contained in Motorola’s user’s guides is believed to be correct at the time of printing. Motorola reserves the right to change or modify any information or specifications without notice. The contents of Motorola’s user manuals are provided “as is.” Except as required by applicable by law, no warranties of any kind, either expressed or implied, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose, are made in relation to the accuracy, reliability or contents of this guide. Manual number: 6809576A58-O DR AFT 5 Contents Getting Started. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 About This Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Installing the SIM Card . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Installing the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Charging the Battery. . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Battery Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Turning Your Phone On. . . . . . . . . . . . . . . . . . . . . . . . . . 13 Using the Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Adjusting Volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Making a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Answering a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Viewing Your Phone Number . . . . . . . . . . . . . . . . . . . . . 15 Activate/Deactivate Keylock . . . . . . . . . . . . . . . . . . . . . . 16 Setting the Time and Date . . . . . . . . . . . . . . . . . . . . . . . 16 Highlight Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Taking and Sending a Photo. . . . . . . . . . . . . . . . . . . . . . 18 Using Email. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 Using AOL Instant Messenger . . . . . . . . . . . . . . . . . . . . 25 Sending a Picture Message . . . . . . . . . . . . . . . . . . . . . . 26 Receiving a Picture Message . . . . . . . . . . . . . . . . . . . . . 28 Playing Video Clips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 Using a Bluetooth Wireless …

Text truncated - open the document above for the full version.

APPLICANT MOTOROLA INC. FCC ID: IHDT6DZ1 SPECIFICATION COMPLIANCE STATEMENT Transceiver type IHDT6DZ1 has been tested in accordance with the requirements contained in the appropriate Commission regulations. To the best of my knowledge, these tests were performed using measurement procedures consistent with industry or Commission standards and demonstrate that this equipment complies with the appropriate standards. Each unit manufactured imported or marketed, will conform to the sample tested within the variations that can be expected due to quantity production and testing on a statistical basis. I further certify that the necessary measurements were made at Motorola, located at 600 N. US Highway 45, Libertyville, Illinois. NAME: Jay Smith TITLE: Engineering Manager Personal Communications Sector Date: 7/26/04 Page 1 of 2 EXHIBIT 2 APPLICANT MOTOROLA INC. FCC ID: IHDT6DZ1 STATEMENT OF CERTIFICATION I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in this application and accompanying technical data are true and correct. The technical data supplied with this application was taken under my supervision and is hereby duly certified. I also certify that this transmit equipment (FCC ID: IHDT6DZ1) is in compliance with all applicable parts of the FCC Rules. NAME: Tom Kim TITLE: Lead Electrical Engineer Motorola PCS Date: 7/26/04 Page 2 of 2 EXHIBIT 2

APPLICANT: MOTOROLA FCC ID: IHDT6DZ1 July 26, 2004 CONFIDENTIALITY REQUEST CONTAINED WITHIN Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Application for Cellular/PCS Transceiver Certification Gentlemen: Application: Motorola, Inc., Personal Communications Sector, 600 N. U.S. Highway 45, Libertyville, Illinois 60048-1286 herein submits: Application for Equipment Authorization for Certification of a Cellular Transceiver, FCC ID: IHDT6DZ1. Motorola is also the manufacturer of this equipment. Confidentiality: Pursuant to Section 0.459 of the Commission's rules (CFR 47), Motorola requests confidentiality for portions of the material contained in this application and that the identified material be withheld from public inspection following the grant of this authorization. This material contains Motorola's trade secrets and confidential information that Motorola does not customarily release to the public and which is otherwise not generally available to the public. Confidentiality is requested for the following exhibits: • Exhibit 4 Block Diagrams • Exhibit 5 Schematics • Exhibit 10 Parts List • Exhibit 12 Operational Description Description: This equipment is a GSM portable transceiver, which operates in the 1900 MHz PCS band. The unit also contains a 2.4 GHz Bluetooth transmitter (Part 15.247). Note: This device contains 900 MHz and 1800 MHz GSM, functions that are not operational in U.S. territories. Contact Information: Please contact me by telephone at (847) 523-6167, or by e-mail ( [email protected]), if there are questions or additional information needed concerning this filing. Regards, Andrew J. Bachler FCC Liaison Personal Communications Sector 600 N. U.S. Highway 45 Libertyville, IL 60048-5343 Exhibit 13

Date: .September 21, 2004 Subject: Request for additional information regarding FCC ID: IHDT6DZ1 (Portable PCS GSM transceiver with embedded Bluetooth) Reference: Application Received: 07/27/2004 Correspondence Reference Number: 240827A.IHD Confirmation Number: TC4263 & TC4264 Date of Original Email: 08/27/2004 Prepared by: Andrew Bachler, Principal Staff Engineer Motorola Personal Communications Sector Libertyville, Illinois QUESTIONS AND RESPONSES FOLLOW: Bluetooth Application: 1. Please provide tabulated radiated emission data for the bands between 1 and 12 GHz (it was provided for the other bands, but not these). Please be sure to include radiated emission data from the restricted band at 2483.5 - 2500 MHz (the spurious conducted emission plots show relatively strong spurs in this band). Response: Please refer to the revised Bluetooth test report submitted on 9-21-04. 2. Please submit the block diagram and schematics for the Bluetooth transmitter. Response: In the original filing, the Bluetooth block diagram is located on page 3 of exhibit 4 and the schematic is located on page 6 of exhibit 5 (lower right corner on each exhibit). Please refer to the attached supplemental diagrams. PCS GSM application: 3. Please verify that the following is a typo: page 5 of the SAR report- the Recommended Limit for the Verification test is listed as 39.7, however, the Dipole Characterization Certificate lists the Recommended Limit ("Grand Average") as 40.7. Response: Please refer to the supplement to the SAR report submitted on 9-21-04. AMENDMENT TO APPLICATION: Since the original application, the antenna matching values have been optimized for improved receiver performance (TIS). Testing indicates degradation in radiated spurs as reported in the following chart. No degradation is reported for either SAR or conducted emissions. 1 %& ,3 , , , , 161?%16; *:  1;?%1E1? *: ;;?%E1 *:  ;3%;3E *: D 7'< A%A; /*: D 7'< A3%3A? /*:  + $$$+,  $(*666  $ D > D ' $ !  (#:   +   #(  +#B#    , D '(  D '(  *: E%E *: +#$#  # + + '?? 1?*: D - '( +'4+&7 4 4+ D'4= D4= 9<
49 )<
4*&/* )<
4*&/* 9<
49 D4= D'4= =4+ =4+ D4=  =*4
4  =*4
4= 4' 4+ 4')@ @4')@ '4&= D4' D4' D4<+  #$(  =   $ #( D'4=
5++,   )<
4*&/* 9<
49  #   ???? ???? 111 111 D / D ') D +' D ' D / D ') D +' D ' 1 1 )- '(  )- '(   D4=4= )<
4*&/* 9<
49 ????1111 )! # )! #  # ($ '(      # ( &   & &   & &

4/41A;67 &<4/4A667 '( > +  8(   '((
"
 7 $ 4/4A667  ' &<4/4A667  ' , , Applicant: Motorola, Inc. FCC ID: IHDT6DZ1 APPLICANT: MOTOROLA, INC.TRANSCEIVER TYPE: IHDT6DZ1 Motorola C onfidentia l P roprieta ry EXHIBIT 5 Bluetooth Schematic APPLICANT: MOTOROLA INC FCC ID: IHDT6DZ1 Test Report Number: 14614-1 EXHIBIT 6 Measurement Results Modulation: GSM 1900 Radiated Spurious and Harmonic Emissions Frequency (MHz) FCC Maximum Limit (dBm) Horizontal Measured Emission Equiv. Pwr Into Ideal Dipole (dBm) Vertical Measured Emission Equiv Pwr Into Ideal Dipole (dBm) 2nd harmonic-13-27.2-26.5 3rd harmonic-13-17.4-24.6 4th harmonic-13-18.3-22.3 5th harmonic-13** 6th harmonic-13** 7th harmonic-13** 8th harmonic-13** 9th harmonic-13** 10th harmonic-13** Notes: 1. * Indicates the spurious emission could not be detected due to noise limitations or ambients. 2. Each emission re ported reflects the highest absolute level at the specific harmonic for the low, mid, and hi gh channels at maximum power. 3. The S pectrum was investigated from 30 MHz to the tenth harmonic of the fundamental. Radiated Spurious Emissions -70 -60 -50 -40 -30 -20 -10 0 2 n d h a r mo n ic 3r d h a r m oni c 4 t h har m o n i c 5 th h ar m o n i c 6 t h ha r mo n i c 7 t h h ar m o n i c 8 th ha r mo n i c 9 t h ha r mo n i c 10 t h h a r m on ic Frequency (MHz) Em i s si on L evel d B m Horizontal Measured Emission Equiv. Pwr Into Ideal Dipole (dBm) Vertical Measured Emission Equiv Pwr Into Ideal Dipole (dBm) FCC Maximum Limit (dBm) Revised 9-21-04 September 15, 2004 Supplement to SAR Test Report for Motorola portable cellular phone (FCC ID IHDT6DZ1) Prepared by: Steven Hauswirth Motorola Personal Communications Sector Product Safety Laboratory Libertyville, Illinois Summary of FCC request for additional information There was a request for additional information regarding Motorola’s SAR Test Report for Motorola portable cellular phone (FCC ID IHDT56DZ1) . The requested information is addressed below in the same numbering sequence received. 3. Please verify that the following is a typo: page 5 of the SAR report- the Recommended Limit for the Verification test is listed as 39.7, however, the Dipole Characterization Certificate lists the Recommended Limit ("Grand Average") as 40.7. RESPONSE: Motorola confirms that the Recommended Limit for the Verification test should have been 40.7 W/kg as listed in the Dipole Characterization Certificate. A corrected table is shown below. Dielectric Parameters f (MHz) Description SAR (W/kg), 1gram ε r σ (S/m) Ambient Temp (°C) Tissue Temp (°C) Measured, 7/16/2004 40.2 39.4 1.37 20.0 19.5 Measured, 7/22/2004 39.9 39.4 1.35 20.0 19.3 1800 Recommended Limits 40.7 40.0 ±5% 1.40 ±5% 18-25 18-25

Date: .September 30, 2004 Subject: Request for additional information regarding FCC ID: IHDT6DZ1 (Portable PCS GSM transceiver with embedded Bluetooth) Reference: Application Received: 07/27/2004 Correspondence Reference Number: 240929A.IHD Confirmation Number: TC4263 & TC4264 Date of Original Email: 09/29/2004 Prepared by: Andrew Bachler, Principal Staff Engineer Motorola Personal Communications Sector Libertyville, Illinois QUESTIONS AND RESPONSES FOLLOW: Bluetooth Application: 1. Question #1 of my email dated 8/27/04 requested tabulated radiated emission data for the bands between 1 and 12 GHz, specifically including radiated emission data from the restricted band at 2483.5 - 2500 MHz. The data provided in your submittal dated 9/21/04 only listed the levels of radiated emissions located in the authorized band (2400-2483.5 MHz), but none in the requested restricted band. The plots of the band edge hi channel emissions (pp. 19, 22, and 25 in your recent submittal), as well as the spurious conducted emission plots, show relatively strong spurs in this band. Therefore, as requested, please provide tabular radiated emission data for emissions in the 2483.5-2500 MHz restricted band. Response: Radiated emission for the 2483.5- 2500 MHz restricted band was re-measured. Tabular data follows: 1 MO T O R O L A P H O N E M O DE L: BROA DCOM BCM 2035 Y - A X IS, H I CH RE D: HO RIZONT A L GRN: VE RT ICA L M a rker T est M e t e r D et ect o r G a in /L o s s T ran s d u cer L e v e l L i m it 1 M arg i n 1[ d B ] H eig h t [ c m] Po larit y Numbe r Fr e que nc y R ea ding T y pe Fa c t or Fa c t or dB[uV o lts / mete r ] [M Hz] [ d B (uV ) ] [ dB] [ dB] Ho riz o n t a l 2483.5- 2500M H z 1 2494.8 57.05 pk - 4 0 30.4 47.45 54 -6. 5 5 101 Ve r t V ert i cal 2 483.5- 2500M Hz 2 2497.4 53.43 pk - 4 0 30.4 43.83 54 -1 0. 1 7 101 Ve r t LIMIT 1: C F R 47 PART 15C Bluetooth LIMIT 2: N O NE LIMIT 3: N O NE LIMIT 4: N O NE LIMIT 5: N O NE LIMIT 6: N O NE pk - Peak detec tor qp - Q uas i- Peak detec tor av - Aver a ge detec tor avlg - Ave r age log detec tor avem - EM I Aver age detec tor 2

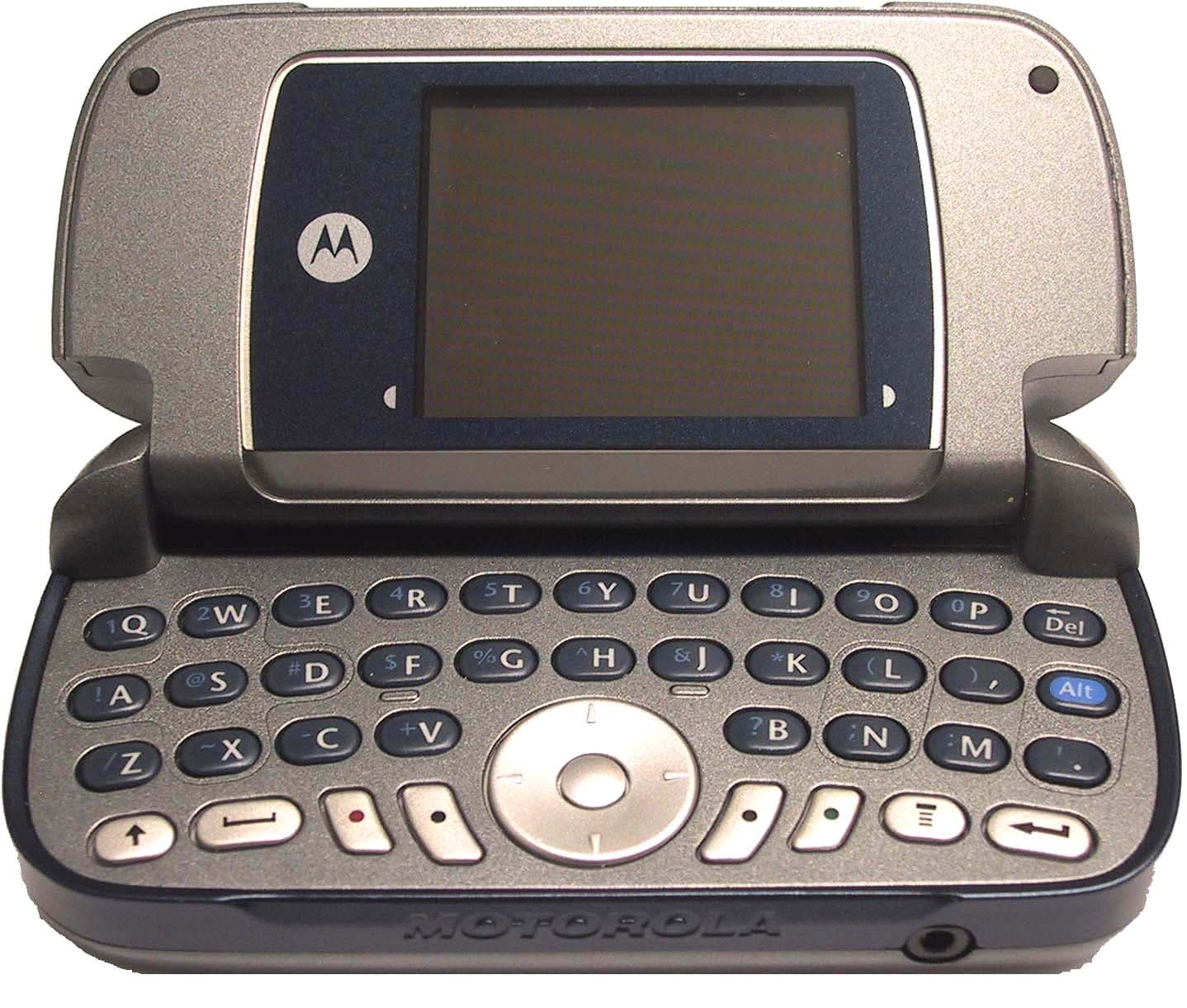

APPLICANT: MOTOROLA, INC FCC ID: IHDT6DZ1 Front view Rear view with battery removed to show equipment ID label Exhibit 3 1 APPLICANT: MOTOROLA, INC FCC ID: IHDT6D Z 1 Opened View Exhibit 3 2

APPLICANT: MOTOROLA INC. FCC ID: IHDT6DZ1 EXHIBIT 1 FCC IDENTIFICATION (NAMEPLATE) INFORMATION The FCC label shown is representative of the label that will appear on the radio when in production. It will be placed on the outside of the equipment as shown in Exhibit 3. Other information may also be included on this label. FCC ID: IHDT6DZ1

APPLICANT: MOTOROLA, INC. FCC ID: IHDT6DZ1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 1 1 Exhibit 11: SAR Test Report IHDT6DZ1 Date of test: Date of Report: 16 – 22 July, 2004 30 July, 2004 Laboratory: Motorola Personal Communications Sector Product Safety & Compliance Laboratory 600 N. US Highway 45 Room: MW113 Libertyville, Illinois 60048 Test Responsible: Albert Patapack Senior Staff Engineer Accreditation: This laboratory is accredited to ISO/IEC 17025-1999 to perform the following tests: Tests: Procedures: Electromagnetic Specific Absorption Rate ANSI/IEEE C95.1-1992, 1999 (SAR) IEEE C95.3-1991 IEEE P1528 (DRAFT) FCC OET Bulletin 65 (including Supplements A, B, C) Australian Communications Authority Radio Communications (Electromagnetic Radiation – Human Exposure) Standard 1999 CENELEC EN 50361 (2001) Simulated Tissue Preparation APP-0247 RF Power Measurement DOI-0876, 0900, 0902, 0904, 0915 On the following products or types of products: Wireless Communications Devices (Examples): Two Way Radios; Portable Phones (including Cellular, Licensed Non-Broadcast and PCS); Low Frequency Readers; and Pagers A2LA certificate #1651-01 Statement of Compliance: Motorola declares under its sole responsibility that portable cellular telephone FCC ID IHDT6DZ1 to which this declaration relates, is in conformity with the appropriate General Population/Uncontrolled RF exposure standards, recommendations and guidelines (FCC 47 CFR §2.1093). It also declares that the product was tested in accordance with the appropriate measurement standards, guidelines and recommended practices. Any deviations from these standards, guidelines and recommended practices are noted below: (none) ©Motorola, Inc. 2004 This test report shall not be reproduced except in full, without written approval of the laboratory. The results and statements contained herein relate only to the items tested. The names of individuals involved may be mentioned only in connection with the statements or results from this report. Motorola encourages all feedback, both positive and negative, on this test report. APPLICANT: MOTOROLA, INC. FCC ID: IHDT6DZ1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 2 2 Table of Contents 1. INTRODUCTION..............................................................................................................................3 2. DESCRIPTION OF THE DEVICE UNDER TEST......................................................................................3 2.1 Antenna description.................................................................................................................................................................3 2.2 Device description.....................................................................................................................................................................3 3. TEST EQUIPMENT USED...................................................................................................................4 3.1 Dosimetric System...................................................................................................................................................................4 3.2 Additional Equipment...............................................................................................................................................................4 4. ELECTRICAL PARAMETERS OF THE TISSUE SIMULATING LIQUID......................................................4 5. SYSTEM ACCURACY VERIFICATION.................................................................................................5 6. TEST RESULTS................................................................................................................................6 6.1 Head Adjacent Test Results....................................................................................................................................................6 6.2 Body Worn Test Results.........................................................................................................................................................8 APPENDIX 1: SAR DISTRIBUTION COMPARISON FOR SYSTEM ACCURACY VERIFICATION.................10 APPENDIX 2: SAR DISTRIBUTION PLOTS FOR PHANTOM HEAD ADJACENT USE.................................11 APPENDIX 3: SAR DISTRIBUTION PLOTS FOR BODY WORN CONFIGURATION...................................13 APPENDIX 4: PROBE CALIBRATION CERTIFICATE............................................................................15 APPENDIX 5: DIPOLE CHARACTERIZATION CERTIFICATE.................................................................16 APPENDIX 6: MEASUREMENT UNCERTAINTY BUDGET.......................................................................17 APPENDIX 7: PHOTOGRAPHS OF DEVICE UNDER TEST..................................................................20 APPLICANT: MOTOROLA, INC. FCC ID: IHDT6DZ1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 3 3 1. Introduction The Motorola Personal Communications Sector Product Safety Laboratory has performed measurements of the maximum potential exposure to the user of portable cellular phone (FCC ID IHDT6DZ1). The Specific Absorption Rate (SAR) of this product was measured. The portable cellular phone was tested in accordance with FCC OET Bulletin 65 Supplement C 01-01. 2. Description of the Device Under Test a. Antenna description Type Internal Location Top on Backside of Phone Length 40 mm Dimensions Width 21 mm Configuration Internal Patch b. Device description FCC ID Number IHDT6DZ1 Serial number 00440000382393-5 Mode(s) of Operation GSM 900 GSM 1800 GSM 1900 GPRS 900 GPRS 1800 GPRS 1900 Modulation Mode(s) GSM GSM GSM GSM GSM GSM Maximum Output Power Setting 33.00 dBm 30.00 dBm 30.50 dBm 33.00 dBm 30.00 dBm 30.50 dBm Duty Cycle 1:8 1:8 1:8 2:8 2:8 2:8 Transmitting Frequency Rang(s) 880.2- 914.8 MHz 1710.2- 1784.8 MHz 1850.20 – 1909.80 MHz 880.2-914.8 MHz 1710.2- 1784.8 MHz 1850.20 – 1909.80 MHz Production Unit …

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA INC FCC ID: IHDT6DZ1 PERSONAL COMMUNICATIONS SECTOR PRODUCT SAFETY AND COMPLIANCE EMC LABORATORY EMC TEST REPORT Test Report Number – 14614-1 Report Date – August 4, 2004 The test results contained herein relate only to the model(s) identified. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical characteristics. As the responsible EMC Engineer, I hereby declare that the equipment tested as specified in this report conforms to the requirements indicated . Signature Name: _Michael E. Hill Title: Senior Electrical Engineer Date: 8/4/2004____ This report must not be reproduced, except in full, without written approval from this laboratory. THIS REPORT MUST NOT BE USED TO CLAIM PRODUCT ENDORSEMENT BY A2LA OR ANY AGENCY OF THE U.S. GOVERNMENT. A2LA Certificate Number: 1846-01 EXHIBIT 6 APPLICANT: MOTOROLA INC FCC ID: IHDT6DZ1 Table of Contents Description Page Test Report Details 3 Applicable Standards 3 Summary of Testing 4 General and Special Conditions 4 Equipment and Cable Configurations 5 Measuring Equipment and Calibration Information 5 Measurement Procedures and Data RF Power Output 6 Radiated Power (ERP) 7 Occupied Bandwidth 8 GSM 1900 Reference Plot 10 GSM 1900 Occupied Bandwidth Plot 10 GSM 1900 Lower Band Edge 11 GSM 1900 Upper Band Edge 11 Spurious Emissions at Antenna Terminals 12 GSM 1900 Tabular and Graphical Data 13 Field Strength of Spurious Emissions 14 GSM 1900 Tabular and Graphical Data 15 Frequency Stability 16 GSM 1900 Tabular and Graphical Data 17 Field Strength of Spurious Emissions from Unintentional Radiators 18 GSM 1900 Tabular and Graphical Data 19 Appendix A - Radiated Emissions Test Setup Photos Figure A.1 – Radiated Emissions Measurement 20 Figure A.2 – Substitution Measurement 20 Test Report Number: 14614-1 EXHIBIT 6 2 APPLICANT: MOTOROLA INC FCC ID: IHDT6DZ1 Test Report Details Tests Performed By: Motorola Personal Communications Sector Product Safety and Compliance Group 600 North US Hwy 45 Libertyville, IL 60048 PH (847) 523-6167 Fax (847) 523-4538 Motorola CELLULAR FRN: 0004321311 FCC Registration Number: 316588 Industry Canada Number: IC3908 Tests Requested By: Motorola Inc. Personal Communications Sector 600 North US Hwy 45 Libertyville, IL 60048 Product Type: Cellular Phone Signaling Capability: GSM 1900, Bluetooth Model Number: A630 Version: SUG3729AA Serial Numbers: 00440000663043-3, 00440000663044-4, 00440000663045-5 Testing Complete Date: August 4, 2004 Applicable Standards All tests and measurements indicated in this document were performed in accordance with the Code of Federal Regulations Title 47 Part 2, Sub-part J as well as the following parts: X Part 15 Subpart B – Unintentional Radiators Part 22 Subpart H - Public Mobile Services X Part 24 - Personal Communications Services Part 90 - Private Land Mobile Radio Service Applicable Standards: TIA EIA 137-A, TIA EIA 98-C, ANSI 63.4 2001, RSS-118 (AMPS), RSS-128 (TDMA), RSS-129 (CDMA), RSS-133 (CELLULAR) Test Report Number: 14614-1 EXHIBIT 6 3 APPLICANT: MOTOROLA INC FCC ID: IHDT6DZ1 Summary of Testing Test Test Name # Pass/Fail 1 RF Power Output NA 2 ERP (Effective Radiated Power) NA 3 Modulation Characteristics Pass 4 Occupied Bandwidth Pass 5 Spurious Emissions at Antenna Terminal Pass 6 Field Strength of Spurious Emissions Pass 7 Frequency Stability Pass 8 Field Strength of Spurious Emissions Pass from Unintentional Radiators Test Test Name Margin with respect # to the Limit_________ 1 RF Power Output NA 2 ERP (Effective Radiated Power) NA 3 Modulation Characteristics NA 4 Occupied Bandwidth See Plots 5 Spurious Emissions at Antenna Terminal 19.0 dB 6 Field Strength of Spurious Emissions 4.3 dB 7 Frequency Stability 166.00 Hz 8 Field Strength of Spurious Emissions Below noise floor from Unintentional Radiators The margin with respect to the limit is the minimum margin for all modes and bands. ( ) indicates the margin at which the product exceeds the limit. General and Special Conditions The EUT was tested using a fully charged battery when applicable. Where a battery could not be used due to the need for a controlled variation of input voltage, an external power supply was utilized. All testing was done in an indoor controlled environment with an average temperature of 22º C and relative humidity of 50%. Test Report Number: 14614-1 EXHIBIT 6 4 APPLICANT: MOTOROLA INC FCC ID: IHDT6DZ1 Equipment and Cable Configurations The EUT was tested in a stand-alone configuration that is representative of typical use. Measuring Equipment and Calibration Information ManufacturerEquipment TypeModel No.Serial NumberCal. Due Date Rohde & SchwarzReceiverESI26838786/0105/17/2005 Hewlett-PackardEMC Analyzer8593EM3536A0011810/2/2004 Hewlett-PackardEMC Analyzer7405US3944019111/13/2004 MiteqPreamplifier 0.1-26.5GHzNSP2650-NF-S9663501/8/2005 ETSDRG Horn Antenna31156222 9/29/2004 A.H. Systems Inc.DRG Horn AntennaSAS-2--/57136512/17/2004 ETSLog-Periodic Antenna314811883/5/2005 ETSBiconical Antenna3110B337011/14/2004 AttenuatorWeinschelAS-6667510/14/2004 AttenuatorWeinschelAS-6667711/4/2004 Rohde & SchwarzMobile Test SetCMD 80DE29008N/A Hewlett-PackardSignal Generator83623B3844A011956/20/2005 ThermotronEnvironmental ChamberS-4315801/5/2005 Hewlett-PackardPre-Amplifier8347A3307A0200111/4/2004 AgilentPower MeterEE4418BGB4020638812/5/2004 AgilentPower SensorE4412BUS3848632111/23/2004 Hewlett-PackardPre-Amplifier8447F2805A034195/19/2005 All equipment is on a one-year calibration cycle. Test Report Number: 14614-1 EXHIBIT 6 5 APPLICANT: MOTOROLA INC FCC ID: IHDT6DZ1 Measurement Procedures and Data RF POWER OUTPUT Measurement Procedure The RF output port of the equipment under test is directly coupled to the input of a HPE4406A Vector Signal Analyzer through a 10dB passive attenuator, adaptor (if needed), and specialized RF connector. The peak power output is measured for all channels. CFR47 Part 2.1046 Mea…

Text truncated - open the document above for the full version.
