IHDT6EB1Portable PCS GSM Transceiver

APPLICANT: MOTOROLA, INC. FCC ID: IHDT6EB1 EXHIBIT 8 INSTRUCTION MANUAL A preliminary draft copy of the Users Manual follows: 1 Welcome Welcome to the world of Motorola digital wireless communications! We are pleased that you have chosen the Motorola V878 wireless phone. Tip: 5-way navigation key (except) also serves as shortcuts to menu features by setting home keys (see page 94). Earpiece Internal/Main Display Power/End Key Left Soft Key 5-Way Navigation Key: Scroll,,, . Pressto perform right soft key function. In-Call Volume/ Voice Activation/ Camera Key Ambient Light Sensor Charger/ Accessory Port Microphone Menu Key Right Soft Key Call/Answer Key 2 Personal Communications Sector 600 North U.S. Highway 45 Libertyville, Illinois 60048 1-800-331-6456 (United States) 1-888-390-6456 (TTY/TDD United States) 1-800-461-4575 (Canada) www.motorola.com (United States) www.motorola.ca (Canada) MOTOROLA and the Stylized M Logo are registered in the US Patent & Trademark Office. Java and all other Java-based marks are trademarks or registered trademarks of Sun Microsystems, Inc. in the U.S. and other countries. All other product or service names are the property of their respective owners. © Motorola, Inc. 2003. Software Copyright Notice The Motorola products described in this manual may include copyrighted Motorola and third-party software stored in semiconductor memories or other media. Laws in the United States and other countries preserve for Motorola and third-party software providers certain exclusive rights for copyrighted software, such as the exclusive rights to distribute or reproduce the copyrighted software. Accordingly, any copyrighted software contained in the Motorola products may not be modified, reverse-engineered, distributed, or reproduced in any manner to the extent allowed by law. Furthermore, the purchase of the Motorola products shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any license under the copyrights, patents, or patent applications of Motorola or any third-party software provider, except for the normal, non-exclusive, royalty-free license to use that arises by operation of law in the sale of a product. Manual number: SJJN5736A 3 Menu Map You can display your phone’s main menu as icons or as a text list. Each has its own organization and is different from the other. By default, your phone displays the main menu as icons. To change the menu display mode: Note: The following is the standard phone menu layout. Menu organization and feature names may vary on your phone. Not all features may be available for all users. Find the Feature >Settings >Menu style 4 Main Menu Display * Optional network, SIM card, or subscription-dependent feature. Msg. center * • Text messages • Multimedia msgs. • Voice mailbox • Cell broadcast • Settings • Sending history • Service command Games • Five ball • Flying • Popo car • Sound effect Alarm clock •On •Off Chatroom * Ouick access •Browser • Media center • Last call time • Wallpaper • Add entry to phonebook •Calculator • Games • Meeting mode • Ringing tone •Edit Media center • New picture • Photo album •Picture • Animation • Melody • Voice notes •Video • Download media • View free space Tools • Calendar •Calculator •Stopwatch • Tone editor • Voice commands • Video player • My picture Java • BombHunt • SpaceFighter Settings • Language • Backlight • Adjust contrast •Clock • Auto power off • Display • External display •Key lock • Input mode • Home keys • Restore factory •Security • Call features •Network • Connection indication • Minute reminder • Menu style • Java settings • Light sensor 5 Main Menu Display * Optional network, SIM card, or subscription-dependent feature. Profile •Normal • Meeting • Outdoors •Car •Customized •Office • Handsfree • Headset •Silence Recent calls • Missed calls • Received calls • Dialed calls •Erase all • Call time • Call cost • GPRS data counter • GPRS connection time • In-call count • Session information Phonebook • Search •Add •Erase •Copy •Option • Speed dial • Caller group • Personal number • Fixed dial number •Voice tags •My Own Card Ringing style • Ringing volume • Ringing tone • Incoming call alert •Vibrating • Message alert tone • Key tone volume • Key tone type • Warning tones • Startup music Camera V. r e c o r d e r Browser * •Home •Bookmark •Profiles • Appearance settings • Download settings • Go to address • Clear the cache • Service Inbox • Certificates Bookmark Voice notes STK * Shortcuts Open menu options: Press(in idle). Go to dialed calls list: Press(in idle). Turn on voice-activated commands: Press and hold the voice activation key (in idle) and then say a command into the microphone. Turn off the ringer: Press and hold(in idle). Exit menu system: Press. 6 Contents Menu Map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Safety and General Information . . . . . . . . . . . . . . . . . . . 12 Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 What’s in the Box? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 About This Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Installing the SIM Card . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Installing the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Charging the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Battery Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Turning On Your Phone. . . . . . . . . . . . . . . . . . . . . . . . . . 23 Adjusting the In-Call Volume . . . . . . . . . . . . . . . . . . . . . . 24 Displaying Your Phone Number . . . . . . . . . . . . . . . . . . . 25 Making a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 Answering a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 Muting/Unmuting a Call. . . . . . . . . . . . . . . . . . . . . . . . . . 26 Learning to Use Y…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA, INC. FCC ID: IHDT6EB1 ATTESTATION STATEMENTS Transceiver type FCC ID: IHDT6EB1 has been tested in accordance with the requirements contained in the appropriate Commission regulations. To the best of my knowledge, these tests were performed using measurement procedures consistent with industry or Commission standards and demonstrate that this equipment complies with the appropriate standards. Each unit manufactured imported or marketed, will conform to the sample tested within the variations that can be expected due to quantity production and testing on a statistical basis. I further certify that the necessary measurements were made at Motorola, located at 600 North U.S. Highway 45, Libertyville, IL. NAME: Chris Wronski TITLE: Lead Compliance Engineer MOTOROLA PERSONAL COMMUNICATIONS SECTOR Date: December 22, 2003 Page 1 of 2 EXHIBIT 2 APPLICANT: MOTOROLA, INC. FCC ID: IHDT6EB1 I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in this application and accompanying technical data are true and correct. The technical data supplied with this application was taken under my supervision and is hereby duly certified. I also certify that this transmit equipment (FCC ID: IHDT6EB1) is in compliance with all applicable parts of the FCC Rules. NAME: Andrew Bachler TITLE: PRINCIPAL STAFF ENGINEER. PERSONAL COMMUNICATIONS SECTOR December 29, 2003 Page 2 of 2 EXHIBIT 2

Date: February 5, 2004 Subject: Request for additional information regarding FCC ID: IHDT6EB1 (Portable GSM transceiver). Reference: Applicant Received: 01/16/2004 Correspondence Reference Number: 240205A.IHD Confirmation Number: TC4017 Date of Original Email: 01/29/2004 Prepared by: Andrew Bachler, Principal Staff Engineer Motorola Personal Communications Sector Libertyville, Illinois Questions and response follow: 1. Dipole validation tests were performed on 12/16/03, 12/17/03 and 12/20/03. The right head touch SAR plot submitted was tested on 12/22/03. Please submit dipole validation test results for that day. 2. The tissue parameters on the 2 SAR plots submitted do not match those listed in the report, or used on the other (original) SAR plots. Please address. Response: Please refer to the February 5, 2004 supplemental SAR report. 1

APPLICANT: MOTOROLA FCC ID: IHDT6EB1 January 15, 2004 CONFIDENTIALITY REQUEST CONTAINED WITHIN Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Application for Cellular/PCS Transceiver Certification Gentlemen: Application: Motorola, Inc., Personal Communications Sector, 600 N. U.S. Highway 45, Libertyville, Illinois 60048-1286 herein submits: Application for Equipment Authorization for Certification of a Cellular Transceiver, FCC ID: IHDT6EB1. Confidentiality: Pursuant to Section 0.459 of the Commission's rules (CFR 47), Motorola requests confidentiality for portions of the material contained in this application and that the identified material be withheld from public inspection following the grant of this authorization. This material contains Motorola's trade secrets and confidential information that Motorola does not customarily release to the public and which is otherwise not generally available to the public. Confidentiality is requested for the following exhibits: • Exhibit 4 Block Diagrams • Exhibit 5 Schematics • Exhibit 12 Operational Description • Exhibit 10 Parts List Description: This equipment is a GSM portable transceiver, which operates in 1900 MHz PCS band. Note: This device contains 900 MHz and 1800 MHz GSM, functions which are not operational in U.S. territories. Contact Information: Please contact me by telephone at (847) 523-6167, or by e-mail ( [email protected]), if there are questions or additional information needed concerning this filing. Regards, Andrew J. Bachler FCC Liaison Cellular Subscriber Sector 600 N. U.S. Highway 45 Libertyville, IL 60048-5343 Exhibit 13

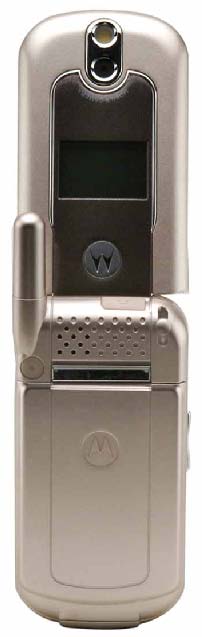

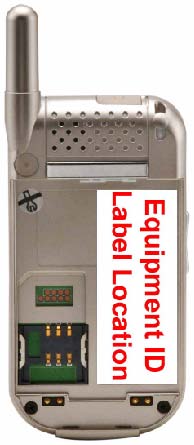

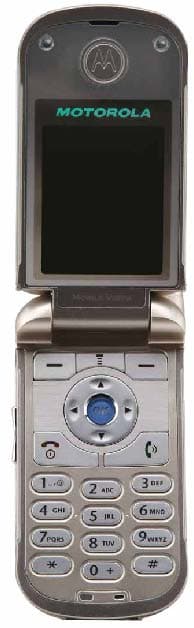

APPLICANT: MOTOROLA, INC. FCC ID: IHDT6EB1 EXHIBIT 3A Front View Flip Opened Rear View Flip Opened APPLICANT: MOTOROLA, INC. FCC ID: IHDT6EB1 EXHIBIT 3B Rear View with Battery Cover Removed Showing ID Label Rear ViewFront View

APPLICANT: MOTOROLA INC. FCC ID: IHDT6EB1 FCC IDENTIFICATION (NAMEPLATE) INFORMATION FCC ID: IHDT6EB1 The FCC label shown is representative of the label that will appear on the radio when in production. It will be placed on the outside of the equipment as shown in Exhibit 3. Other information may also be included on this label. EXHIBIT 1

APPLICANT: MOTOROLA, INC. FCC ID: IHDT6EB1 EXHIBIT 9 Front View Rear View 1 of 3 APPLICANT: MOTOROLA, INC. FCC ID: IHDT6EB1 EXHIBIT 9 Upper Board (Exter nal Display) View Upper Board (Main Inter nal Display) View 2 of 3 APPLICANT: MOTOROLA, INC. FCC ID: IHDT6EB1 EXHIBIT 9 Upper Board Housing Inter nal View Housing Inter nal View 3 of 3

APPLICANT: MOTOROLA, INC. FCC ID: IHDT6EB1 E E x x h h i i b b i i t t 1 1 1 1 Exhibit 11: SAR Test Report IHDT6EB1 Date of test: Date of Report: 16 – 20 December, 2003 16 January, 2004 Laboratory: Motorola Personal Communications Sector Product Safety & Compliance Laboratory 600 N. US Highway 45 Room: MW113 Libertyville, Illinois 60048 Test Responsible: Steven Hauswirth Principal Staff Engineer Accreditation: This laboratory is accredited to ISO/IEC 17025-1999 to perform the following tests: Tests : Procedures: Electromagnetic Specific Absorption Rate ANSI/IEEE C95.1-1992, 1999 (SAR) IEEE C95.3-1991 IEEE P1528 (DRAFT) FCC OET Bulletin 65 (including Supplements A, B, C) Australian Communications Authority Radio Communications (Electromagnetic Radiation – Human Exposure) Standard 1999 CENELEC EN 50361 (2001) Simulated Tissue Preparation APP-0247 RF Power Measurement DOI-0876, 0900, 0902, 0904, 0915 On the following products or types of products: Wireless Communications Devices (Examples): Two Way Radios; Portable Phones (including Cellular, Licensed Non-Broadcast and PCS); Low Frequency Readers; and Pagers A2LA certificate #1651-01 Statement of Compliance: Motorola declares under its sole responsibility that portable cellular telephone FCC ID IHDT6EB1 to which this declaration relates, is in conformity with the appropriate General Population/Uncontrolled RF exposure standards, recommendations and guidelines (FCC 47 CFR §2.1093). It also declares that the product was tested in accordance with the appropriate measurement standards, guidelines and recommended practices. Any deviations from these standards, guidelines and recommended practices are noted below: (none) ©Motorola, Inc. 2004 This test report shall not be reproduced except in full, without written approval of the laboratory. The results and statements contained herein relate only to the items tested. The names of individuals involved may be mentioned only in connection with the statements or results from this report. Motorola encourages all feedback, both positive and negative, on this test report. APPLICANT: MOTOROLA, INC. FCC ID: IHDT6EB1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 2 2 Table of Contents 1. INTRODUCTION...................................................................................................................................... 3 2. DESCRIPTION OF THE DEVICE UNDER TEST.................................................................................... 3 3. TEST EQUIPMENT USED........................................................................................................................ 3 3.1 Dosimetric System .................................................................................................................................................3 3.2 Additional Equipment...........................................................................................................................................4 4. ELECTRICAL PARAMETERS OF THE TISSUE SIMULATING LIQUID............................................. 4 5. SYSTEM ACCURACY VERIFICATION.................................................................................................. 5 6. TEST RESULTS........................................................................................................................................ 5 6.1 Head Adjacent Test Results..................................................................................................................................6 6.2 Body Worn Test Results .......................................................................................................................................7 APPENDIX 1: SAR DISTRIBUTION COMPARISON FOR SYSTEM ACCURACY VERIFICATION...... 9 APPENDIX 2: SAR DISTRIBUTION PLOTS FOR PHANTOM HEAD ADJACENT USE....................... 10 APPENDIX 3: SAR DISTRIBUTION PLOTS FOR BODY WORN CONFIGURATION........................... 12 APPENDIX 4: PROBE CALIBRATION CERTIFICATE.......................................................................... 14 APPENDIX 5: DIPOLE CHARACTERIZATION CERTIFICATE............................................................ 15 APPENDIX 6: MEASUREMENT UNCERTAINTY BUDGET................................................................... 16 APPENDIX 7: PHOTOGRAPHS OF DEVICE UNDER TEST ................................................................... 19 APPLICANT: MOTOROLA, INC. FCC ID: IHDT6EB1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 3 3 1. Introduction The Motorola Personal Communications Sector Product Safety Laboratory has performed measurements of the maximum potential exposure to the user of portable cellular phone (FCC ID IHDT6EB1). The Specific Absorption Rate (SAR) of this product was measured. The portable cellular phone was tested in accordance with FCC OET Bulletin 65 Supplement C 01-01. 2. Description of the Device Under Test a. Antenna description Type External Location Upper Right Corner Length 20mm Dimensions Width 8mm Configuration Helix b. Device Description FCC ID Number IHDT6EB1 Serial number(s) 1071 Mode(s) of Operation GSM 900 GPRS 900 GSM 1800GPRS 1800 GSM 1900 GPRS 1900 Modulation Mode(s) GSM GPRS Class10 GSM GPRS Class10 GSM GPRS Class10 Target Value for Maximum Output Power Setting 32.50dBm 32.50dBm 30.60dBm 30.60dBm 30.60dBm 30.60dBm Duty Cycle 1:8 2:8 1:8 2:8 1:8 2:8 Transmitting Frequency Rang(s) 880.2- 914.8MHz 880.2- 914.8MHz 1710.2- 1784.8MHz 1710.2- 1784.8MHz 1850.20- 1909.80MHz 1850.20- 1909.80MHz Device Category Portable RF Exposure Limits General Population / Uncontrolled 3. Test Equipment Used 3.1 Dosimetric System The Motorola Personal Communications Sector Product Safety & Compliance Laboratory utilizes a Dosimetric Assessment System (Dasy3™ v3.1d) manufactured by Schmid & Partner Engineering AG (SPEAG™), of Zurich Switzerland. All the SAR measurements are taken within a shielded enclosure. The overall RSS uncertainty of the measurement system is ±11.7% (K=1) with an…

Text truncated - open the document above for the full version.

February 5, 2004 Supplement to SAR Test Report for Motorola portable cellular phone (FCC ID IHDT6EB1) Prepared by: Steven Hauswirth Motorola Personal Communications Sector Product Safety Laboratory Libertyville, Illinois Summary of FCC request for additional information There was a request for additional information regarding Motorola’s SAR Test Report for Motorola portable cellular phone (FCC ID IHDT56DW1) . The requested information is addressed below in the same numbering sequence received. 1. Dipole validation tests were performed on 12/16/03, 12/17/03 and 12/20/03. The right head touch SAR plot submitted was tested on 12/22/03. Please submit dipole validation test results for that day. RESPONSE: Please see attached plots for dipole validation results for 12/22/03. 2. The tissue parameters on the 2 SAR plots submitted do not match those listed in the report, or used on the other (original) SAR plots. Please address. RESPONSE: The tissue parameters are measured each day. So the values for December 22 may be different than those for other dates. Also, the tissue parameters used for the dipole validations are the values that correspond to 1800MHz. The tissue parameters used for the head scans correspond to 1880MHz. The difference in frequency will lead to a slight difference in tissue parameters. Appendix 1 Requested SAR Plots Dipole 1800 MHz1800 MHz System Performance Check / Dipole Sn# 80Forward Power = 252mW Reflected Power = -30.2dB Room Temp at time of measurement = 20 Simulant Temp at time of measurement = 19R3 TP-1159 SAM GLYCOL Expanded (Rev. 2)-9Jan03; FlatProbe: ET3DV6 - SN1520 - Validation.2; ConvF(5.10,5. 10,5.10); Crest factor: 1.0; 1800 MHz VALIDATION: σ = 1.38 mho/m ε r = 38.7 ρ = 1.00 g/cm 3 Cubes (2): Peak: 19.2 mW/g ± 0.08 dB, SAR (1g): 10.5 mW/g ± 0.02 dB, SAR (10g): 5.57 mW/g ± 0.02 dB, (Worst-case extrapol ation) Penetration depth: 8.7 (8.3, 9.4) [mm]Powerdrift: -0.02 dB SAR Tot [mW/g] 9.97E-11.99E+02.99E+03.99E+04.99E+05.98E+06.98E+07.98E+08.97E+09.97E+0 12/22/03Motorola, Inc. Dipole 1800 MHz1800 MHz System Performance Check / Dipole Sn# 80Forward Power = 252mW Reflected Power = -30.2dB Room Temp at time of measurement = 20 Simulant Temp at time of measurement = 19R3 TP-1159 SAM GLYCOL Expanded (Rev. 2)-9Jan03 Phan tom; Section; Position: ; Frequency: 1800 MHz Probe: ET3DV6 - SN1520 - Validation.2; ConvF(5.10,5. 10,5.10); Crest factor: 1.0; 1800 MHz VALIDATION: σ = 1.38 mho/m ε r = 38.7 ρ = 1.00 g/cm 3 : , , ()Z-Axis: Dx = 0.0, Dy = 0.0, Dz = 5.0Penetration depth: 8.3 (7.9, 9.1) [mm]12/22/03Motorola, Inc. -2 02468 101214161820 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 SAR tot [mW/g] [mm]

APPLICANT: MOTOROLA INC FCC ID: IHDT6EB1 PERSONAL COMMUNICATIONS SECTOR PRODUCT SAFETY AND COMPLIANCE EMC LABORATORY EMC TEST REPORT Test Report Number – 13069-1 Report Date – January 5, 2004 The test results contained herein relate only to the model(s) identified. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical characteristics. As the responsible EMC Engineer, I hereby declare that the equipment tested as specified in this report conforms to the requirements indicated . Signature Name: _Michael E. Hill Title: Senior Electrical Engineer Date: 2004-01-05 This report must not be reproduced, except in full, without written approval from this laboratory. THIS REPORT MUST NOT BE USED TO CLAIM PRODUCT ENDORSEMENT BY A2LA OR ANY AGENCY OF THE U.S. GOVERNMENT. A2LA Certificate Number: 1846-01 EXHIBIT 6 APPLICANT: MOTOROLA INC FCC ID: IHDT6EB1 Table of Contents Description Page Test Report Details 3 Applicable Standards 3 Summary of Testing 4 General and Special Conditions 4 Equipment and Cable Configurations 5 Measuring Equipment and Calibration Information 5 Measurement Procedures and Data RF Power Output 6 Radiated Power (ERP) 7 Occupied Bandwidth 8 GSM 1900 Reference Plot 9 GSM 1900 Occupied Bandwidth Plot 9 GSM 1900 Lower Band Edge 10 GSM 1900 Upper Band Edge 10 Spurious Emissions at Antenna Terminals 11 GSM 1900 Tabular and Graphical Data 12 Field Strength of Spurious Emissions 13 GSM 1900 Tabular and Graphical Data 14 Frequency Stability 15 GSM 1900 Tabular and Graphical Data 16 Field Strength of Spurious Emissions From Unintentional Radiators GSM 1900 Tabular and Graphical Data 18 Appendix A - Radiated Emissions Test Setup Photos Figure A.1 – Radiated Emissions Measurement 19 Figure A.2 – Substitution Measurement 19 Test Report Number: 13069-1 EXHIBIT 6 2 APPLICANT: MOTOROLA INC FCC ID: IHDT6EB1 Test Report Details Tests Performed By: Motorola Personal Communications Sector Product Safety and Compliance Group 600 North US Hwy 45 Libertyville, IL 60048 PH (561) 739-2179 Fax (561) 739-2131 Motorola PCS FRN: 0004321311 FCC Registration Number: 316588 Industry Canada Number: IC3908 Tests Requested By: Motorola Inc. Personal Communications Sector 600 North US Hwy 45 Libertyville, IL 60048 Product Type: Cellular Phone Signaling Capability: GSM 1900 Model Number: V878 Version Number: SUG3672AA Serial Numbers: 352606000001170, 352606000001204 Testing Complete Date: December 30, 2003 Applicable Standards All tests and measurements indicated in this document were performed in accordance with the Code of Federal Regulations Title 47 Part 2, Sub-part J as well as the following parts: X Part 15 Subpart B – Unintentional Radiators X Part 22 Subpart H - Public Mobile Services X Part 24 - Personal Communications Services Part 90 - Private Land Mobile Radio Service Applicable Standards: TIA EIA 137-A, TIA EIA 98-C, ANSI 63.4 2001, RSS-118 (AMPS), RSS-128 (TDMA), RSS-129 (CDMA), RSS-133 (PCS) Test Report Number: 13069-1 EXHIBIT 6 3 APPLICANT: MOTOROLA INC FCC ID: IHDT6EB1 Summary of Testing Test Test Name # Pass/Fail 1 RF Power Output NA 2 ERP (Effective Radiated Power) NA 3 Modulation Characteristics Pass 4 Occupied Bandwidth Pass 5 Spurious Emissions at Antenna Terminal Pass 6 Field Strength of Spurious Emissions Pass 7 Frequency Stability Pass 8 Field Strength of Spurious Emissions Pass from Unintentional Radiators Test Test Name Margin with respect # to the Limit_________ 1 RF Power Output NA 2 ERP (Effective Radiated Power) NA 3 Modulation Characteristics NA 4 Occupied Bandwidth See Plots 5 Spurious Emissions at Antenna Terminal 24.7 dB 6 Field Strength of Spurious Emissions 19 dB 7 Frequency Stability 45.81 Hz 8 Field Strength of Spurious Emissions 24.0 from Unintentional Radiators The margin with respect to the limit is the minimum margin for all modes and bands. ( ) indicates the margin at which the product exceeds the limit. General and Special Conditions The EUT was tested using a fully charged battery when applicable. Where a battery could not be used due to the need for a controlled variation of input voltage, an external power supply was utilized. All testing was done in an indoor controlled environment with an average temperature of 22º C and relative humidity of 50%. Test Report Number: 13069-1 EXHIBIT 6 4 APPLICANT: MOTOROLA INC FCC ID: IHDT6EB1 Equipment and Cable Configurations The EUT was tested in a stand-alone configuration that is representative of typical use. Measuring Equipment and Calibration Information ETSDRG Horn Antenna311562229/29/2004 A.H. Systems Inc.DRG Horn AntennaSAS-200/5712654/29/2004 ETSLog-Periodic Antenna314811894/29/2004 ETSBiconical Antenna3110B33694/29/2004 ETSBiconical Antenna3110B337010/25/2004 AttenuatorWeinschel AS-6667510/3/2004 AttenuatorWeinschel AS-6667710/3/2004 Rohde & SchwarzMobile Test SetCMD 80DE29008N/A Hewlett PackardSignal Generator83623B 3844A01195 5/20/2004 ThermotronEnvironmental ChamberS-4315801/5/2005 Hewlett PackardPre-Amplifier8347A3307A020015/1/2004 Hewlett PackardPre-Amplifier8447F2805A034195/19/2004 AgilentPower MeterEE4418BGB04020638812/5/2004 AgilentSensorE4412BUS3848632112/5/2004 All equipment is on a one-year calibration cycle. Test Report Number: 13069-1 EXHIBIT 6 5 APPLICANT: MOTOROLA INC FCC ID: IHDT6EB1 Measurement Procedures and Data RF POWER OUTPUT Measurement Procedure The RF output port of the equipment under test is directly coupled to the input of a HPE4406A Vector Signal Analyzer through a 10dB passive attenuator, adaptor (if needed), and specialized RF connector. The peak power output is measured for all channels. CFR Part 2.1046 Measurement Results * Data supplied by SAR Lab GSM 1900 Frequency (MHz) Power (dBm) 1850.20 30.49 1880.00 30.52 1909.80 30.51 Test Report Number: 13069-1 EXHIBIT 6 6 APPLICANT: MOTOROLA INC FCC ID: IHDT6EB1 RADIATED (ERP) Measurement Procedure The phone was tested in a 16’ cubical anechoic c…

Text truncated - open the document above for the full version.
