APPLICANT: MOTOROLA, INC. FCC ID: IHDT6EE1 INSTRUCTION MANUAL An English version preliminary draft copy of the Users Manual follows: EXHIBIT 8 ENGLISH 1 Introduction Introduction Congratulationson being the owner of a brand new Motorola mobile phone. In addition to making calls, MMS, Email, and Internet access, you can use a good many other functions just like those of a Multimedia Palm, such as multifunction Address Book, Date Book, Note Pad, Audio Recorder, Camera, Paint, Media Center, My Document (File Manager), Bluetooth, Modem and Data Synchronizer. Wireless GPRS downloading will extend your phone functions and close up to your life. The product brings innovative concepts to mobile communication with its colorful touch screen and graphic interfaces, which offer streamlined operation, enhanced functionality, and "One- Touch" information acquisition and processing. It is designed with a unique open display window to deliver you more careful consideration and make your info fetching more convenient and rapid. Either in office or at home, you'll feel more delighted with a distinct function that sends your Date Book in short messages. You'll enjoy your creativeness by composing pictures, photos, animations, and musical pieces in your individual style with the Paint and distributing them in short messages. The new Media Center will provide you with audio and video refreshment in your spare time. The unique Camera function makes it possible to share wonderfulness with your friends any- where and anytime, by taking pictures simply and easily. Although the product is excellently designed for wonderfulness, you can only make perfect use of it with your understanding and imagination. Look into the manual and see how you can enter a splendid world of communication. Introduction ENGLISH Introduction 2 Introduction Copyright Description 1. Java and all other Java-based logos are all trademarks or registered trademarks of SUN Corporation in America or other countries. 2. The product adopts "iType" technology and font of Agfa Monotype Corporation. 3. Refer to the Appendix for GNU copyright information. ENGLISH 3 Contents Contents Contents Introduction Congratulations Safety Information Chapter 1 Getting Started Functions of External Keys SIM Card, Battery Charging the Battery Turning on Your Phone Turning off Your Phone Screen Display and Operation Functions of External Display (when flip closed) About terms and pictures used in the manual to describe operations Chapter 2 Entry Methods Handwriting Pinyin Board English Board Numeric Pad Functional Buttons ENGLISH Contents 4 Contents Chapter 3 Phone Function Sending a Phone Call Dialing an Emergency Number Receiving a Phone Call Dialing an International Call Directly Dialing Extension or Voicemail Dialing an Extension Number In-Call Functions Turbo Dial Dialing a Number Stored in SIM Card Multiparty Conversation (Making a Conference Call) Transferring a Call Calls Record Call Cost My Tel. Number Network Setup Chapter 4 Address Book Showing Address Book List Adding New Contacts Copying Contact Data Information ENGLISH 5 Contents Contents Deleting a Contact Searching for a Contact Viewing Owner's Information Sending Vcards Chapter 5 Message Center Inbox Viewing Messages Writing a Short Message Signature Setup Sending a Message Outbox Drafts Trash SIM Card Private Folder MMS Chapter 6 Email Mailbox Setup Writing and Sending Emails ENGLISH Contents 6 Contents Receiving, Viewing, Reading a Mail or Sorting Mails Private Folder Chapter 7 Browser Activating WAP Browser Browsing Information and Using Access Function Downloading Files Chapter 8 Camera View-Finding Shoot Preview or Delete Video or Photo Effects Setup Options Chapter 9 Media Center Playing Audio and Video Files Chapter 10 Picsel Browser View Special Functions Preferred Setting ENGLISH 7 Contents Contents Chapter 11 Date Book Month View Day View Week View Adding a New Event Editing an Event Deleting an Event Date Book Setup Chapter 12 Tasks Viewing Tasks Creating, Editing, and Saving a Task Chapter 13 Note Pad Chapter 14 Paint Chapter 15 Recorder Chapter 16 My Document Editing Files and Folders Creating a New Folder Viewing by ENGLISH Contents 8 Contents Sorting Searching Folder Tree Chapter 17 Share Receiving Data Sending Data Chapter 18 Alarm Clock and Worldwide Clock Alarms Worldwide Clock Chapter 19 Calculator Chapter 20 Bluetooth Turning on Bluetooth Viewing, Adding, and Setting Bluetooth Devices Using Bluetooth for Information Transmission Chapter 21 STK Application Chapter 22 Network Network ENGLISH 9 Contents Contents Profiles Chapter 23 Security Chapter 24 Theme Selecting a theme Configuring a theme Chapter 25 Setup Language Time and Date Volume Setup Entry Setup Touch Screen Calibration Backlight Setup Voice Recognition Setup Infrared Receiving Power Management Master Reset Master Clear ENGLISH Contents 10 Contents Chapter 26 Voice Instruction Loading Voice Recognition Using Voice Recognition Reciting List of Voice Instruction and Functions Chapter 27 Data Synchronization Chapter 28 Modem Chapter 29 VPN (Virtual Private Network) Creating New Policy Logging into the VPN Chapter 30 Troubleshooting Chapter 31 Specific Absorption Rate This model phone meets the international requirements for exposure to radio waves. Chapter 32 Appendix Note:The functions available on this mobile phone may vary in different regions and nations. Please contact your local customer service centers, agencies or retailers if you have any question about the mobile phone functions. Motorola reserves all rights to revise and change this user's manual without obligation to notify any person of such revisions or changes. 11 Safety Information Safety Information IMPORTANT INFORMATION ON SAFE AND EFFICIENT OPERATION. READ THIS INFOR- MATION BEFORE USING YOUR PHONE. The information provided in this document supersedes the general safety information in user guides published prior to December 1, 2002. Exposure To Radio Fre…

Text truncated - open the document above for the full version.

IMPORTANT SAFETY AND LEGAL INFORMATION> 2 Software Copyright Notice The Motorola products described in this manual may include copyrighted Motorola and third party software stored in semiconductor memories or other media. Laws in the United States and other countries preserve for Motorola and third party software providers certain exclusive rights for copyrighted software, such as the exclusive rights to distribute or reproduce the copyrighted software. Accordingly, any copyrighted software contained in the Motorola products may not be modified, reverse-engineered, distributed, or reproduced in any manner to the extent allowed by law. Furthermore, the purchase of the Motorola products shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any license under the copyrights, patents, or patent applications of Motorola or any third party software provider, except for the normal, non-exclusive, royalty-free license to use that arises by operation of law in the sale of a product. Part Number: 6809476A21-O 3 Contents Safety and General Information . . . . . . . . . . . . . . . . . . . . 4 FDA Consumer Information on Wireless Phones. . . . . 10 Product Registration . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 RF Energy Interference . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Export Law Assurances. . . . . . . . . . . . . . . . . . . . . . . . . . 20 Wireless: The New Recyclable . . . . . . . . . . . . . . . . . . . . 21 Wireless Phone Safety Tips . . . . . . . . . . . . . . . . . . . . . . 23 4 Safety and General Information IMPORTANT INFORMATION ON SAFE AND EFFICIENT OPERATION. READ THIS INFORMATION BEFORE USING YOUR PHONE. The information provided in this document supersedes the general safety information in user’s guides published prior to December 1, 2002. Exposure To Radio Frequency (RF) Energy Your phone contains a transmitter and a receiver. When it is ON, it receives and transmits RF energy. When you communicate with your phone, the system handling your call controls the power level at which your phone transmits. Your Motorola phone is designed to comply with local regulatory requirements in your country concerning exposure of human beings to RF energy. Operational Precautions To assure optimal phone performance and make sure human exposure to RF energy is within the guidelines set forth in the relevant standards, always adhere to the following procedures. External Antenna Care Use only the supplied or Motorola-approved replacement antenna. Unauthorized antennas, modifications, or attachments could damage the phone. Do NOT hold the external antenna when the phone is IN USE. Holding the external antenna affects call quality and may cause the phone to operate at a higher power level than needed. In addition, use of unauthorized antennas may result in non-compliance with the local regulatory requirements in your country. 5 Phone Operation When placing or receiving a phone call, hold your phone as you would a wireline telephone. Body-Worn Operation To maintain compliance with RF energy exposure guidelines, if you wear a phone on your body when transmitting, always place the phone in a Motorola-supplied or approved clip, holder, holster, case, or body harness for this phone, if available. Use of accessories not approved by Motorola may exceed RF energy exposure guidelines. If you do not use one of the body-worn accessories approved or supplied by Motorola, and are not using the phone held in the normal use position, ensure the phone and its antenna are at least 1 inch (2.5 centimeters) from your body when transmitting. Data Operation When using any data feature of the phone, with or without an accessory cable, position the phone and its antenna at least 1 inch (2.5 centimeters) from your body. Approved Accessories Use of accessories not approved by Motorola, including but not limited to batteries and antennas, may cause your phone to exceed RF energy exposure guidelines. For a list of approved Motorola accessories, visit our website at www.Motorola.com. RF Energy Interference/Compatibility Note: Nearly every electronic device is susceptible to RF energy interference from external sources if inadequately shielded, designed, or otherwise configured for RF energy compatibility. In some circumstances your phone may cause interference. 6 Facilities Turn off your phone in any facility where posted notices instruct you to do so. These facilities may include hospitals or health care facilities that may be using equipment that is sensitive to external RF energy. Aircraft When instructed to do so, turn off your phone when on board an aircraft. Any use of a phone must be in accordance with applicable regulations per airline crew instructions. Medical Devices Pacemakers Pacemaker manufacturers recommend that a minimum separation of 6 inches (15 centimeters) be maintained between a handheld wireless phone and a pacemaker. Persons with pacemakers should: •ALWAYS keep the phone more than 6 inches (15 centimeters) from your pacemaker when the phone is turned ON. •NOT carry the phone in the breast pocket. •Use the ear opposite the pacemaker to minimize the potential for interference. •Turn OFF the phone immediately if you have any reason to suspect that interference is taking place. Hearing Aids Some digital wireless phones may interfere with some hearing aids. In the event of such interference, you may want to consult your hearing aid manufacturer to discuss alternatives. Other Medical Devices If you use any other personal medical device, consult the manufacturer of your device to determine if it is adequately shielded from RF energy. Your physician may be able to assist you in obtaining this information. 7 Use While Driving Check the laws and regulations on the use of phones in the area where you drive. Always obey them. When using your phone while driving, please: •Give full attention to driving and to the road. •Use handsfree operation, if availabl…

Text truncated - open the document above for the full version.

APPLICANT MOTOROLA INC. FCC ID: IHDT6EE1 SPECIFICATION COMPLIANCE STATEMENT Transceiver type FCC ID: IHDT6EE1 has been tested in accordance with the requirements contained in the appropriate Commission regulations. To the best of my knowledge, these tests were performed using measurement procedures consistent with industry or Commission standards and demonstrate that this equipment complies with the appropriate standards. Each unit manufactured imported or marketed, will conform to the sample tested within the variations that can be expected due to quantity production and testing on a statistical basis. I further certify that the necessary measurements were made at: Motorola Personal Communications Sector Product Safety and Compliance Group 600 North US Hwy 45 Libertyville, IL 60048 NAME: Michael Ye TITLE: Engineering Manager Personal Communications Sector Date: July 13, 2004 Exhibit 2A APPLICANT MOTOROLA INC. FCC ID: IHDT6EE1 STATEMENT OF CERTIFICATION I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in this application and accompanying technical data are true and correct. The technical data supplied with this application was taken under my supervision and is hereby duly certified. I also certify that this transmit equipment (FCC ID: IHDT6EE1) is in compliance with all applicable parts of the FCC Rules. NAME: C.Z.Guo TITLE: RF Engineer Personal Communications Sector Date: July 13, 2004 Exhibit 2B

APPLICANT: MOTOROLA FCC ID: IHDT6EE1 July 15, 2004 CONFIDENTIALITY REQUEST CONTAINED WITHIN Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Application for Cellular/PCS Transceiver Certification Gentlemen: Application: Motorola, Inc., Personal Communications Sector, 600 N. U.S. Highway 45, Libertyville, Illinois 60048-1286 herein submits: Application for Equipment Authorization for Certification of a Cellular Transceiver, FCC ID: IHDT6EE1. Motorola is also the manufacturer of this equipment. Confidentiality: Pursuant to Section 0.459 of the Commission's rules (CFR 47), Motorola requests confidentiality for portions of the material contained in this application and that the identified material be withheld from public inspection following the grant of this authorization. This material contains Motorola's trade secrets and confidential information that Motorola does not customarily release to the public and which is otherwise not generally available to the public. Confidentiality is requested for the following exhibits: • Exhibit 4 Block Diagrams • Exhibit 5 Schematics • Exhibit 10 Parts List • Exhibit 12 Operational Description Description: This equipment is a GSM portable transceiver, which operates in 1900 MHz PCS band. The unit also contains a 2.4 GHz Bluetooth transmitter (Part 15.247). Note: This device contains 900 MHz and 1800 MHz GSM, functions which are not operational in U.S. territories. Contact Information: Please contact me by telephone at (847) 523-6167, or by e-mail ( [email protected]), if there are questions or additional information needed concerning this filing. Regards, Andrew J. Bachler FCC Liaison Personal Communications Sector 600 N. U.S. Highway 45 Libertyville, IL 60048-5343 Exhibit 13

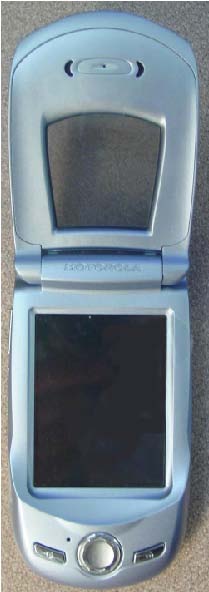

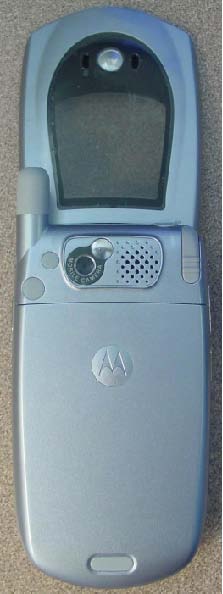

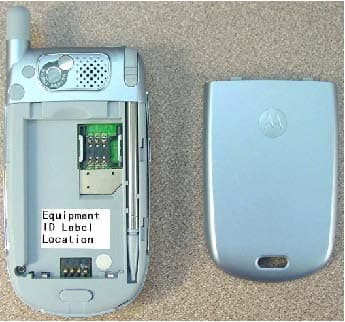

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56EE1 EXHIBIT 3A Flip Opened Rear View Flip Opened APPLICANT: MOTOROLA, INC. FCC ID: IHDT56EE1 EXHIBIT 3B Rear View with Battery Cover Removed Showing ID Label Rear View Front View

APPLICANT: MOTOROLA INC. FCC ID: IHDT6EE1 FCC IDENTIFICATION (NAMEPLATE) INFORMATION FCC ID: IHDT6EE1 The FCC label shown is representative of the label that will appear on the radio when in production. It will be placed on the outside of the equipment as shown in Exhibit 3. Other information may also be included on this label. EXHIBIT 1

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56EE1 EXHIBIT 9 Front View Rear View Rear View without shields

Date: July 28, 2004 Subject: Request for additional information regarding FCC ID: IHDT6EE1 (Portable PCS GSM Transceiver with Embedded Bluetooth) Reference: Application Received: 07/16/2004 Correspondence Reference Number: 240727A.IHD Confirmation Number: TC4252 and TC4253 Date of Original Email: 07/27/2004 Prepared by: Andrew Bachler, Principal Staff Engineer Motorola Personal Communications Sector Libertyville, Illinois Questions and responses follow: Bluetooth application: 1. There is no radiated emission data for emissions in the restricted band at 2483.5 - 2500 MHz, however, the spurious conducted emission plots show a relatively strong strong spur (42 dBc) in this band. Please provide radiated emission data for all emissions in the referenced restricted band. Response: Please refer to the following data. 1 MOTOROLA MODEL: A768 BLUETOOTH PHONE CH0, X-AXIS RED: HORIZONTAL GRN: VERTICAL MarkerTestMeterDetectorGain/Loss Transducer LevelLimit 1Margin 1[dB]Height [cm]Polarity NumberFrequencyReadingTypeFactorFactordB[uVolts] [MHz][dB(uV)][dB][dB] 2 - 4GHz 2390 - 2493.5MHz 82402.0363.77pk3.321.888.87999-910.13100Horz 2 - 4GHz 2390 - 2493.5MHz 12399.53225.61pk3.321.850.7154-3.29100Vert 22400.87831.49pk3.321.856.59999-942.41100Vert 32402.12272.93pk3.321.898.03999-900.97100Vert 42403.88338.08pk3.321.863.18999-935.82100Vert 52406.47325.82pk3.321.850.92999-948.08100Vert 62481.58620.59pk3.32245.89999-953.11100Vert 72484.79820.15pk3.322.145.5554-8.45100Vert LIMIT 1: CFR 47 Part 15 Class B 3m 2 MOTOROLA MODEL: A768 BLUETOOTH PHONE CH0, Y-AXIS RED: HORIZONTAL GRN: VERTICAL Marke rTestMeterDetectorGain/LossTransducerLevelLimit 1Margin 1[dB]Height [cm]Polarity Numbe rFrequencyReadingTypeFactorFactordB[uVolts] [MHz][dB(uV)][dB][dB] 2 - 4GHz 2390 - 2493.5MHz 82401.82365.9 pk3.321.891999-908100Horz 2 - 4GHz 2390 - 2493.5MHz 12399.42826.51pk3.321.851.6154-2.39100Vert 22400.46430.95pk3.321.856.05999-942.95100Vert 32402.12271.82pk3.321.896.92999-902.08100Vert 42403.98736.85pk3.321.861.95999-937.05100Vert 52406.05926.66pk3.321.851.76999-947.24100Vert 62482.20819.38pk3.32244.68999-954.32100Vert 72485.62619.92pk3.322.145.3254-8.68100Vert LIMIT 1: CFR 47 Part 15 Class B 3m LIMIT 2: NONE 3 MOTOROLA MODEL: A768 BLUETOOTH PHONE CH0, Z-AXIS RED: HORIZONTAL GRN: VERTICAL MarkerTestMete rDetectorGain/LossTransducerLevelLimit 1Margin 1[dB]Height [cm]Polarity NumberFrequenc yReadingTypeFactorFactordB[uVolts] [MHz][dB(uV)][dB][dB] 2 - 4GHz 2390 - 2493.5MHz 12398.08919.02pk3.321.844.1254-9.88100Horz 22400.99326.07pk3.321.851.17999-947.83100Horz 32402.0363.81pk3.321.888.91999-910.09100Horz 42403.89730.44pk3.321.855.54999-943.46100Horz 52480.43318.96pk3.32244.26999-954.74100Horz 62486.65519.32pk3.322.144.7254-9.28100Horz LIMIT 1: CFR 47 Part 15 Class B 3m LIMIT 2: NONE 4 MOTOROLA MODEL: A768 BLUETOOTH PHONE CH39, X-AXIS RED: HORIZONTAL GRN: VERTICAL MarkerTestMete rDetectorGain/LossTransducerLevelLimit 1Margin 1[dB]Height [cm] Polarity Numbe rFrequencyReadingTypeFactorFactordB[uVolts] [MHz][dB(uV)][dB][dB] 2 - 4GHz 2390 - 2493.5MHz 12398.91919.36pk3.321.844.4654-9.54100Horz 22403.27519.25pk3.321.844.35999-954.65100Horz 112441.02462.4pk3.321.987.6999-911.4100Horz 122443.09827.22pk3.321.952.42999-946.58100Horz 2 - 4GHz 2390 - 2493.5MHz 32438.5927.46pk3.321.952.66999-946.34100Vert 42439.52330.24pk3.321.955.44999-943.56100Vert 52440.97372.09pk3.321.997.29999-901.71100Vert 62443.04534.23pk3.321.959.43999-939.57100Vert 72444.49624.09pk3.321.949.29999-949.71100Vert 82445.53223.7pk3.321.948.9999-950.1100Vert 92481.27519.4pk3.32244.7999-954.3150Vert 102486.97320.03pk3.322.145.4354-8.57100Vert LIMIT 1: CFR 47 Part 15 Class B 3m LIMIT 2: NONE 5 MOTOROLA MODEL: A768 BLUETOOTH PHONE CH39, Y-AXIS RED: HORIZONTAL GRN: VERTICAL Marke rTestMeterDetectorGain/LossTransducerLevelLimit 1Margin 1[dB]Height [cm] Polarity NumberFrequencyReadingTypeFactorFactordB[uVolts] [MHz][dB(uV)][dB][dB] 2 - 4GHz 2390 - 2493.5MHz 82441.23263.72 pk3.321.988.92999-910.08100 Horz 2 - 4GHz 2390 - 2493.5MHz 12392.90423.57 pk3.321.848.6754-5.33100 Vert 22403.89719.06 pk3.321.844.16999-954.84100 Vert 32438.53525.63 pk3.321.950.83999-948.17100 Vert 42441.02471.28 pk3.321.996.48999-902.52100 Vert 52443.09834.62 pk3.321.959.82999-939.18100 Vert 62481.4719.37 pk3.32244.67999-954.33100 Vert 72487.0719.03 pk3.322.144.4354-9.57100 Vert LIMIT 1: CFR 47 Part 15 Class B 3m LIMIT 2: NONE 6 MOTOROLA MODEL: A768 BLUETOOTH PHONE CH39, Z-AXIS RED: HORIZONTAL GRN: VERTICAL MarkerTestMeterDetectorGain/Loss Transducer LevelLimit 1Margin 1[dB] Height [cm] Polarity NumberFrequencyReadingTypeFactorFactordB[uVolts] [MHz][dB(uV)][dB][dB] 2 - 4GHz 2390 - 2493.5MHz 12398.91919.36pk3.321.844.4654-9.54100 Horz 22402.8618.86pk3.321.843.96999-955.04100 Horz 32438.53521.53 pk3.321.946.73999-952.27100 Horz 42441.02461.49 pk3.321.986.69999-912.31100 Horz 2 - 4GHz 2390 - 2493.5MHz 52443.09827.29 pk3.321.952.49999-946.51100 Vert 62480.84819.58 pk3.32244.88999-954.12100 Vert 72486.03318.88pk3.322.144.2854-9.72100 Vert LIMIT 1: CFR 47 Part 15 Class B 3m LIMIT 2: NONE 7 MOTOROLA MODEL: A768 BLUETOOTH PHONE CH78, X-AXIS RED: HORIZONTAL GRN: VERTICAL MarkerTestMeterDetecto rGain/LossTransducerLevelLimit 1Margin 1[dB]Height [cm]Polarity Numbe rFrequencyReadingTypeFactorFactordB[uVolts] [MHz][dB(uV)][dB][dB] 2 - 4GHz 2390 - 2493.5MHz 12399.12619 pk3.321.844.154-9.9100Horz 2 - 4GHz 2390 - 2493.5MHz 22478.06324.39 pk3.32249.69999-949.31100 Vert 32480.03267.79 pk3.32293.09999-905.91100 Vert 42482.10425.03 pk3.32250.33999-948.67100 Vert 52484.5923.01 pk3.322.148.4154-5.59100 Vert LIMIT 1: CFR 47 Part 15 Class B 3m LIMIT 2: NONE 8 MOTOROLA MODEL: A768 BLUETOOTH PHONE CH78, Y-AXIS RED: HORIZONTAL GRN: VERTICAL Marke rTestMeterDetectorGain/LossTransducerLevelLimit 1Margin 1[dB] Height [cm]Polarity NumberFrequencyReadingTypeFactorFactordB[uVolts] [MHz][dB(uV)][dB][dB] 2 - 4GHz 2390 - 2493.5MHz 12397.67419.43pk3.321.844.5354-9.47100 Horz 22403.68919.1 pk3.321.844.2999-954.8100 Horz 72480.01860.81pk3.32286.11999-91…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA INC FCC ID: IHDT6EE1 PERSONAL COMMUNICATIONS SECTOR PRODUCT SAFETY AND COMPLIANCE EMC LABORATORY EMC TEST REPORT - Addendum Test Report Number – 14316-1BT Report Date – July 14, 2004 The test results contained herein relate only to the model(s) identified. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical characteristics. As the responsible EMC Engineer, I hereby declare that the equipment tested as specified in this report conforms to the requirements indicated . Signature: Name: Michael E. Hill Title: Senior Electrical Engineer Date: July 14, 2004 This report must not be reproduced, except in full, without written approval from this laboratory. THIS REPORT MUST NOT BE USED TO CLAIM PRODUCT ENDORSEMENT BY A2LA OR ANY AGENCY OF THE U.S. GOVERNMENT. A2LA Certificate Number: 1846-01 EXHIBIT 6A APPLICANT: MOTOROLA INC FCC ID: IHDT6EE1 Table of Contents Test Report Details.............................................................................................................4 Applicable Standards..........................................................................................................5 Summary of Testing............................................................................................................6 General and Special Conditions..........................................................................................6 Equipment and Cable Configurations.................................................................................7 Measuring Equipment and Calibration Information...........................................................7 Description of Bluetooth Transmitter.................................................................................8 Measurement Procedures and Data.....................................................................................9 CARRIER FREQUENCY SEPARATION....................................................................9 Measurement Procedure..............................................................................................9 Measurement Results..................................................................................................9 Carrier Frequency Separation...............................................................................10 NUMBER OF HOPPING FREQUENCIES.................................................................11 Measurement Procedure............................................................................................11 Measurement Results................................................................................................11 Number of Hopping Frequencies (Channels 0 – 39)............................................12 Number of Hopping Frequencies (Channels 39 – 78)..........................................12 TIME OF OCCUPANCY (DWELL TIME).................................................................13 Measurement Procedure............................................................................................13 Measurement Results................................................................................................13 Dwell Time...........................................................................................................14 20dB Bandwidth...........................................................................................................15 Measurement Procedure............................................................................................15 Measurement Results................................................................................................15 FIELD STRENGTH OF SPURIOUS EMISSIONS.....................................................17 Measurement Procedure............................................................................................17 Measurement Results................................................................................................17 30-1000MHz Low Channel Dual Polarization X.................................................18 30-1000MHz Low Channel Dual Polarization Y.................................................19 30-1000MHz Low Channel Dual Polarization Z..................................................20 30-1000MHz Mid Channel Dual Polarization X..................................................21 30 -1000MHz Mid Channel Dual Polarization Y.................................................22 30 -1000MHz Mid Channel Dual Polarization Z.................................................23 30 -1000MHz High Channel Dual Polarization X................................................24 30 -1000MHz High Channel Dual Polarization Y................................................25 30 -1000MHz High Channel Dual Polarization Z................................................26 1-12 GHz Low Channel Dual Polarization X.......................................................27 1-12 GHz Low Channel Dual Polarization Y.......................................................28 1-12 GHz Low Channel Dual Polarization Z.......................................................29 1-12 GHz Mid Channel Dual Polarization X........................................................30 1-12 GHz Mid Channel Dual Polarization Y........................................................31 1-12 GHz Mid Channel Dual Polarization Z........................................................32 1-12 GHz High Channel Dual Polarization X......................................................33 1-12 GHz High Channel Dual Polarization Y......................................................34 1-12 GHz High Channel Dual Polarization Z.......................................................35 Test Report Number: 14316-1 EXHIBIT 6A 2 APPLICANT: MOTOROLA INC FCC ID: IHDT6EE1 PEAK OUTPUT POWER............................................................................................36 Measurement …

Text truncated - open the document above for the full version.

Unknown From: Bachler Andrew-WLAB00 [[email protected]] Sent: Thursday, July 29, 2004 11:08 AM To: 'Gregory Czumak' Cc: PCTEST - Accounting; PCTEST - Al Cirwithian; PCTEST - Courtenay; PCTEST - Randy Ortanez Subject: RE: FCC ID: IHDT6EE1 (Portable PCS GSM Transceiver with Embedded Bluetooth) Page 1 of 5Message 7/29/2004 Hi Gregory, Yes, Anna has the PO number, NP1325040 (financial aspects resolved). I can not find the manual language either. We went through this same thing a little while ago. I'll contact our manual publications group again. I expect the issue is due to the English translation of the manual going to China (our first customer). It literally "got lost in the translation". Response: Yes, the final user's manual will comply with the following: §15.21 Information to user. The users manual or instruction manual for an intentional or unintentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Typical language follows: Caution: Changes or modifications made in the radio phone, not expressly approved by Motorola, will void the user's authority to operate the equipment. Andrew Bachler Motorola PCS 847 523-6167 -----Original Message----- From: Gregory Czumak [mailto:[email protected]] Sent: Thursday, July 29, 2004 9:06 AM To: Bachler Andrew-WLAB00 Cc: PCTEST - Accounting; PCTEST - Al Cirwithian; PCTEST - Courtenay; PCTEST - Randy Ortanez Subject: RE: FCC ID: IHDT6EE1 (Portable PCS GSM Transceiver with Embedded Bluetooth) Andy, I've reviewed your response submittal- everything looks good EXCEPT I cannot find the statement required by Section 15.21 in the manual supplement that you submitted. The Bluetooth application (15.247) is required to have this statement in the manual. Once you confirm that it will be included, we will be able to issue the grant (assuming all of the financial aspects have been resolved- I am not involve…
