IHDT6EL1Portable PCS GSM Transceiver

APPLICANT: MOTOROLA, INC. FCC ID: IHDT6EL1 ATTESTATION STATEMENTS Transceiver type FCC ID: IHDT6EL1 has been tested in accordance with the requirements contained in the appropriate Commission regulations. To the best of my knowledge, these tests were performed using measurement procedures consistent with industry or Commission standards and demonstrate that this equipment complies with the appropriate standards. Each unit manufactured imported or marketed, will conform to the sample tested within the variations that can be expected due to quantity production and testing on a statistical basis. I further certify that the necessary measurements were made at Motorola, located at 600 North U.S. Highway 45, Libertyville, IL. NAME: Chris Wronski TITLE: Lead Compliance Engineer MOTOROLA PERSONAL COMMUNICATIONS SECTOR Date: September 28, 2004 Page 1 of 2 EXHIBIT 2 APPLICANT: MOTOROLA, INC. FCC ID: IHDT6EL1 I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in this application and accompanying technical data are true and correct. The technical data supplied with this application was taken under my supervision and is hereby duly certified. I also certify that this transmit equipment (FCC ID: IHDT6EL1) is in compliance with all applicable parts of the FCC Rules. NAME: David Lang TITLE: Senior Product Engineer PERSONAL COMMUNICATIONS SECTOR September 28, 2004 Page 2 of 2 EXHIBIT 2

APPLICANT: MOTOROLA FCC ID: IHDT6EL1 September 29, 2004 CONFIDENTIALITY REQUEST CONTAINED WITHIN Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Application for Cellular/PCS Transceiver Certification Gentlemen: Application: Motorola, Inc., Personal Communications Sector, 600 N. U.S. Highway 45, Libertyville, Illinois 60048-1286 herein submits: Application for Equipment Authorization for Certification of a PCS Transceiver, FCC ID: IHDT6EL1. Motorola is also the manufacturer of this equipment. Confidentiality: Pursuant to Section 0.459 of the Commission's rules (CFR 47), Motorola requests confidentiality for portions of the material contained in this application and that the identified material be withheld from public inspection following the grant of this authorization. This material contains Motorola's trade secrets and confidential information that Motorola does not customarily release to the public and which is otherwise not generally available to the public. Confidentiality is requested for the following exhibits: • Exhibit 4 Block Diagrams • Exhibit 5 Schematics • Exhibit 10 Parts List • Exhibit 12 Operational Description Description: This equipment is a GSM portable transceiver, which operates in the 1900 MHz PCS band. Note: This device contains 900 MHz and 1800 MHz GSM functions which are not operational in U.S. territories. Contact Information: Please contact me by telephone at (847) 523-6167, or by e-mail ( [email protected]), if there are questions or additional information needed concerning this filing. Regards, Andrew J. Bachler FCC Liaison Personal Communications Sector 600 N. U.S. Highway 45 Libertyville, IL 60048-5343 Exhibit 13

Date: October 6, 2004 Subject: Request for additional information regarding FCC ID: IHDT6EL1 (Portable PCS GSM Transceiver) Reference: Application Received: 09/30/2004 Correspondence Reference Number: 241006A.IHD Confirmation Number: TC4332 Date of Original Email: 10/06/2004 Prepared by: Andrew Bachler, Principal Staff Engineer Motorola Personal Communications Sector Libertyville, Illinois Question and response: 1. The body-worn SAR data for GPRS operation (p.8 of the SAR report) lists the extrapolated SAR = 0.29 W/kg. Our calculations result in an extrapolated SAR value of 0.073 W/kg. Please confirm that this is a typo. Response: Motorola confirms that there was a typo in the SAR test report. Please refer to the following corrected table: Body Worn 25mm Separation between Back of Phone and Phantom with GPRS f (MHz) Description Conducted Output Power (dBm) Measured (W/kg) Drift (dB) Extrapolated (W/kg) Channel 512 29.92 Channel 661 30.05 0.0727 -0.01 0.07 Digital 1900MHz Channel 810 30.02 Table 4: SAR measurement results for the portable cellular telephone FCC ID IHDT6EL1 at highest possible output power. Measured against the body. 1

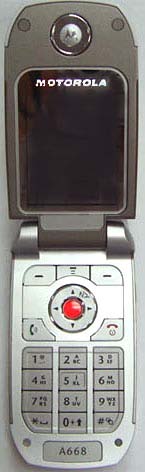

APPLICANT: MOTOROLA, INC. FCC ID: IHDT6EL1 EXHIBIT 3 Rear View with Battery Cover Removed Showing ID Label Rear View Front View Flip Open View

APPLICANT: MOTOROLA INC. FCC ID: IHDT6EL1 FCC IDENTIFICATION (NAMEPLATE) INFORMATION FCC ID: IHDT6EL1 The FCC label shown is representative of the label that will appear on the radio when in production. It will be placed on the outside of the equipment as shown in Exhibit 3. Other information may also be included on this label. EXHIBIT 1

APPLICANT: MOTOROLA, INC. FCC ID: IHDT6EL1 EXHIBIT 9A Front View Rear View Display APPLICANT: MOTOROLA, INC. FCC ID: IHDT6EL1 EXHIBIT 9B Internal Housing Views

APPLICANT: MOTOROLA, INC. FCC ID: IHDT6EL1 E E x x h h i i b b i i t t 1 1 1 1 Exhibit 11: SAR Test Report IHDT6EL1 Date of test: Date of Report: 22 September, 2004 30 September, 2004 Laboratory: Motorola Personal Communications Sector Product Safety & Compliance Laboratory 600 N. US Highway 45 Room: MW113 Libertyville, Illinois 60048 Test Responsible: Steven Hauswirth Principal Staff Engineer Accreditation: This laboratory is accredited to ISO/IEC 17025-1999 to perform the following tests: Tests : Procedures: Electromagnetic Specific Absorption Rate ANSI/IEEE C95.1-1992, 1999 (SAR) IEEE C95.3-1991 IEEE P1528 (DRAFT) FCC OET Bulletin 65 (including Supplements A, B, C) Australian Communications Authority Radio Communications (Electromagnetic Radiation – Human Exposure) Standard 1999 CENELEC EN 50361 (2001) Simulated Tissue Preparation APP-0247 RF Power Measurement DOI-0876, 0900, 0902, 0904, 0915 On the following products or types of products: Wireless Communications Devices (Examples): Two Way Radios; Portable Phones (including Cellular, Licensed Non-Broadcast and PCS); Low Frequency Readers; and Pagers A2LA certificate #1651-01 Statement of Compliance: Motorola declares under its sole responsibility that portable cellular telephone FCC ID IHDT6EL1 to which this declaration relates, is in conformity with the appropriate General Population/Uncontrolled RF exposure standards, recommendations and guidelines (FCC 47 CFR §2.1093). It also declares that the product was tested in accordance with the appropriate measurement standards, guidelines and recommended practices. Any deviations from these standards, guidelines and recommended practices are noted below: (none) ©Motorola, Inc. 2004 This test report shall not be reproduced except in full, without written approval of the laboratory. The results and statements contained herein relate only to the items tested. The names of individuals involved may be mentioned only in connection with the statements or results from this report. Motorola encourages all feedback, both positive and negative, on this test report. APPLICANT: MOTOROLA, INC. FCC ID: IHDT6EL1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 2 2 Table of Contents 1. INTRODUCTION...................................................................................................................................... 3 2. DESCRIPTION OF THE DEVICE UNDER TEST.................................................................................... 3 2.1 Antenna description ..............................................................................................................................................3 2.2 Device description..................................................................................................................................................3 3. TEST EQUIPMENT USED........................................................................................................................ 3 3.1 Dosimetric System .................................................................................................................................................3 3.2 Additional Equipment...........................................................................................................................................4 4. ELECTRICAL PARAMETERS OF THE TISSUE SIMULATING LIQUID............................................. 4 5. SYSTEM ACCURACY VERIFICATION.................................................................................................. 5 6. TEST RESULTS........................................................................................................................................ 5 6.1 Head Adjacent Test Results..................................................................................................................................6 6.2 Body Worn Test Results .......................................................................................................................................7 APPENDIX 1: SAR DISTRIBUTION COMPARISON FOR SYSTEM ACCURACY VERIFICATION...... 9 APPENDIX 2: SAR DISTRIBUTION PLOTS FOR PHANTOM HEAD ADJACENT USE....................... 10 APPENDIX 3: SAR DISTRIBUTION PLOTS FOR BODY WORN CONFIGURATION........................... 11 APPENDIX 4: PROBE CALIBRATION CERTIFICATE.......................................................................... 12 APPENDIX 5: DIPOLE CHARACTERIZATION CERTIFICATE............................................................ 13 APPENDIX 6: MEASUREMENT UNCERTAINTY BUDGET................................................................... 14 APPLICANT: MOTOROLA, INC. FCC ID: IHDT6EL1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 3 3 1 Introduction The Motorola Personal Communications Sector Product Safety Laboratory has performed measurements of the maximum potential exposure to the user of portable cellular phone (FCC ID IHDT6EL1). The Specific Absorption Rate (SAR) of this product was measured. The portable cellular phone was tested in accordance with FCC OET Bulletin 65 Supplement C 01-01. 2 Description of the Device Under Test 2.1 Antenna description Type Internal Location Upper Portion of Rear of Phone Length 34mm Dimensions Width 7mm Configuration Helix 2.2 Device description FCC ID Number IHDT6EL1 Serial number 1506301 Mode(s) of Operation GSM 900 GSM 1800 GSM 1900 GPRS 900 GPRS 1800 GPRS 1900 Modulation Mode(s) GSM GSM GSM GSM GSM GSM Maximum Output Power Setting 32.00 dBm 30.00 dBm 30.00 dBm 32.00 dBm 30.00 dBm 30.00 dBm Duty Cycle 1:8 1:8 1:8 2:8 2:8 2:8 Transmitting Frequency Rang(s) 880.2- 914.8MHz 1710.2- 1784.8MHz 1850.20 – 1909.80MHz 880.2- 914.8MHz 1710.2- 1784.8MHz 1850.20 – 1909.80MHz Production Unit or Identical Prototype (47 CFR §2..908) Identical Prototype Device Category Portable RF Exposure Limits General Population / Uncontrolled 3 Test Equipment Used 3.1 Dosimetric System The Motorola Personal Communications Sector Product Safety & Compliance Laboratory utili…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA INC FCC ID: IHDT6EL1 PERSONAL COMMUNICATIONS SECTOR PRODUCT SAFETY AND COMPLIANCE EMC LABORATORY EMC TEST REPORT Test Report Number – 14564-1 Report Date – September 24, 2004 The test results contained herein relate only to the model(s) identified. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical characteristics. As the responsible EMC Engineer, I hereby declare that the equipment tested as specified in this report conforms to the requirements indicated . Signature Name: _Michael E. Hill Title: Senior Electrical Engineer Date: September 24, 2004 This report must not be reproduced, except in full, without written approval from this laboratory. THIS REPORT MUST NOT BE USED TO CLAIM PRODUCT ENDORSEMENT BY A2LA OR ANY AGENCY OF THE U.S. GOVERNMENT. A2LA Certificate Number: 1846-01 EXHIBIT 6 APPLICANT: MOTOROLA INC FCC ID: IHDT6EL1 Table of Contents Description Page Test Report Details 3 Applicable Standards 3 Summary of Testing 4 General and Special Conditions 4 Equipment and Cable Configurations 5 Measuring Equipment and Calibration Information 5 Measurement Procedures and Data 6 RF Power Output 6 Radiated Power (ERP) 7 Occupied Bandwidth 8 Measurement Summary 9 GSM 1900 Reference Plot 10 GSM 1900 Occupied Bandwidth Plot 10 GSM 1900 Ch512 Lower Band Edge 11 GSM 1900 Ch810 Upper Band Edge 11 Spurious Emissions at Antenna Terminals 12 GSM 1900 Tabular and Graphical Data 13 Field Strength of Spurious Emissions 14 GSM 1900 Tabular and Graphical Data 15 Frequency Stability 16 GSM 1900 Tabular and Graphical Data 17 Field Strength of Spurious Emissions from Unintentional Radiators 18 GSM 1900 Graphical Data 19 Appendix A - Radiated Emissions Test Setup Photos Figure A.1 – Radiated Emissions Measurement 20 Figure A.2 – Substitution Measurement 20 Test Report Number: 14564-1 EXHIBIT 6 2 APPLICANT: MOTOROLA INC FCC ID: IHDT6EL1 Test Report Details Tests Performed By: Motorola Personal Communications Sector Product Safety and Compliance Group 600 North US Hwy 45 Libertyville, IL 60048 PH (847) 523-6167 Fax (847) 523-4538 Motorola PCS FRN: 0004321311 FCC Registration Number: 316588 Industry Canada Number: IC3908 Tests Requested By: Motorola Inc. Personal Communications Sector 600 North US Hwy 45 Libertyville, IL 60048 Product Type: Cellular Phone Signaling Capability: GSM 1900 Model Number: A668 Version: SJUG0295AA Serial Numbers: 3540690000001500, 3540690000001600 3540690000001400 Testing Complete Date: September 17, 2004 Applicable Standards All tests and measurements indicated in this document were performed in accordance with the Code of Federal Regulations Title 47 Part 2, Sub-part J as well as the following parts: X Part 15 Subpart B – Unintentional Radiators Part 22 Subpart H - Public Mobile Services X Part 24 - Personal Communications Services Part 90 - Private Land Mobile Radio Service Applicable Standards: TIA EIA 137-A, TIA EIA 98-C, ANSI 63.4 2001, RSS-118 (AMPS), RSS-128 (TDMA), RSS-129 (CDMA), RSS-133 (PCS) Test Report Number: 14564-1 EXHIBIT 6 3 APPLICANT: MOTOROLA INC FCC ID: IHDT6EL1 Summary of Testing Test Test Name # Pass/Fail 1 RF Power Output NA 2 ERP (Effective Radiated Power) NA 3 Modulation Characteristics Pass 4 Occupied Bandwidth Pass 5 Spurious Emissions at Antenna Terminal Pass 6 Field Strength of Spurious Emissions Pass 7 Frequency Stability Pass 8 Field Strength of Spurious Emissions Pass from Unintentional Radiators Test Test Name Margin with respect # to the Limit_________ 1 RF Power Output NA 2 ERP (Effective Radiated Power) NA 3 Modulation Characteristics NA 4 Occupied Bandwidth See Plots 5 Spurious Emissions at Antenna Terminal 23.8 dB 6 Field Strength of Spurious Emissions 8.9 dB 7 Frequency Stability 60 Hz 8 Field Strength of Spurious Emissions below noise floor from Unintentional Radiators The margin with respect to the limit is the minimum margin for all modes and bands. ( ) indicates the margin at which the product exceeds the limit. General and Special Conditions The EUT was tested using a fully charged battery when applicable. Where a battery could not be used due to the need for a controlled variation of input voltage, an external power supply was utilized. All testing was done in an indoor controlled environment with an average temperature of 22º C and relative humidity of 50%. Test Report Number: 14564-1 EXHIBIT 6 4 APPLICANT: MOTOROLA INC FCC ID: IHDT6EL1 Equipment and Cable Configurations The EUT was tested in a stand-alone configuration that is representative of typical use. Measuring Equipment and Calibration Information ManufacturerEquipment TypeModel No.Serial NumberCal. Due Date Rohde & SchwarzReceiverESI26838786/0105/17/2005 Hewlett-PackardEMC Analyzer8593EM3536A0011810/2/2004 Hewlett-PackardEMC Analyzer7405US3944019111/13/2004 MiteqPreamplifier 0.1-26.5GHzNSP2650-NF-S9663501/8/2005 ETSDRG Horn Antenna31156222 9/29/2004 A.H. Systems Inc.DRG Horn AntennaSAS-2--/57136512/17/2004 ETSLog-Periodic Antenna314811883/5/2005 ETSBiconical Antenna3110B337011/14/2004 AttenuatorWeinschelAS-6667510/14/2004 AttenuatorWeinschelAS-6667711/4/2004 Rohde & SchwarzMobile Test SetCMD 80DE29008N/A Hewlett-PackardSignal Generator83623B3844A011956/20/2005 ThermotronEnvironmental ChamberS-4315801/5/2005 Hewlett-PackardPre-Amplifier8347A3307A0200111/4/2004 AgilentPower MeterEE4418BGB4020638812/5/2004 AgilentPower SensorE4412BUS3848632111/23/2004 Hewlett-PackardPre-Amplifier8447F2805A034195/19/2005 All equipment is on a one-year calibration cycle. Test Report Number: 14564-1 EXHIBIT 6 5 APPLICANT: MOTOROLA INC FCC ID: IHDT6EL1 Measurement Procedures and Data RF POWER OUTPUT Measurement Procedure The RF output port of the equipment under test is directly coupled to the input of a HPE4406A Vector Signal Analyzer through a 10dB passive attenuator, adaptor (if needed), and specialized RF connector. The peak power output is measured for all channels. CFR47 Pa…

Text truncated - open the document above for the full version.
