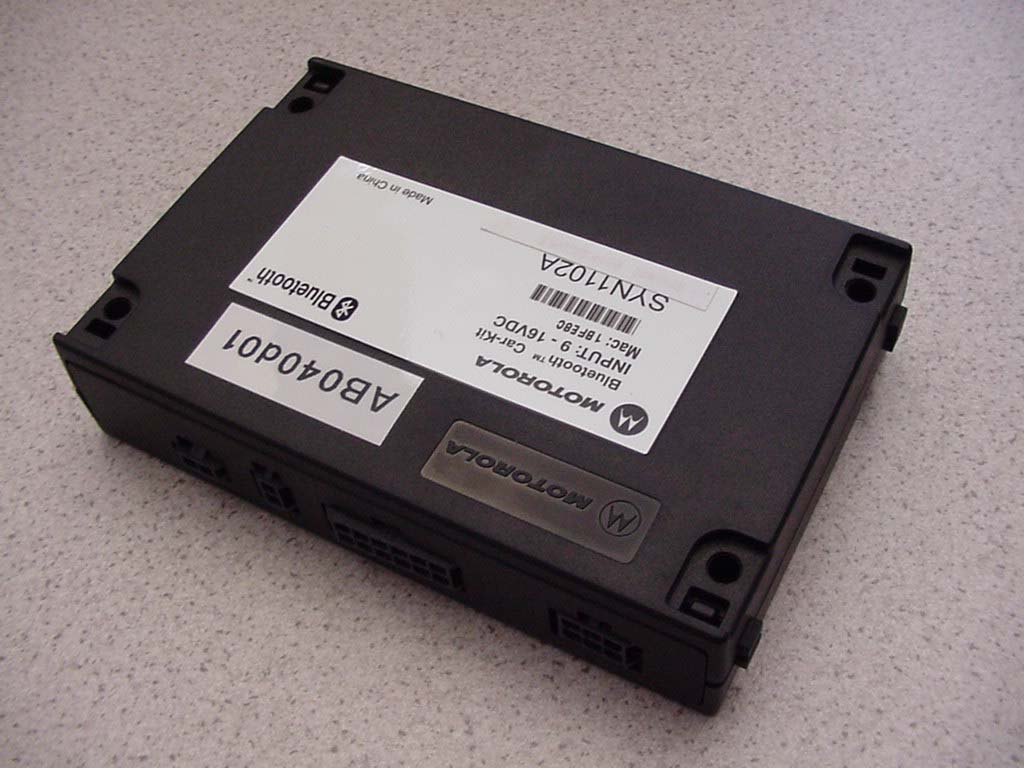

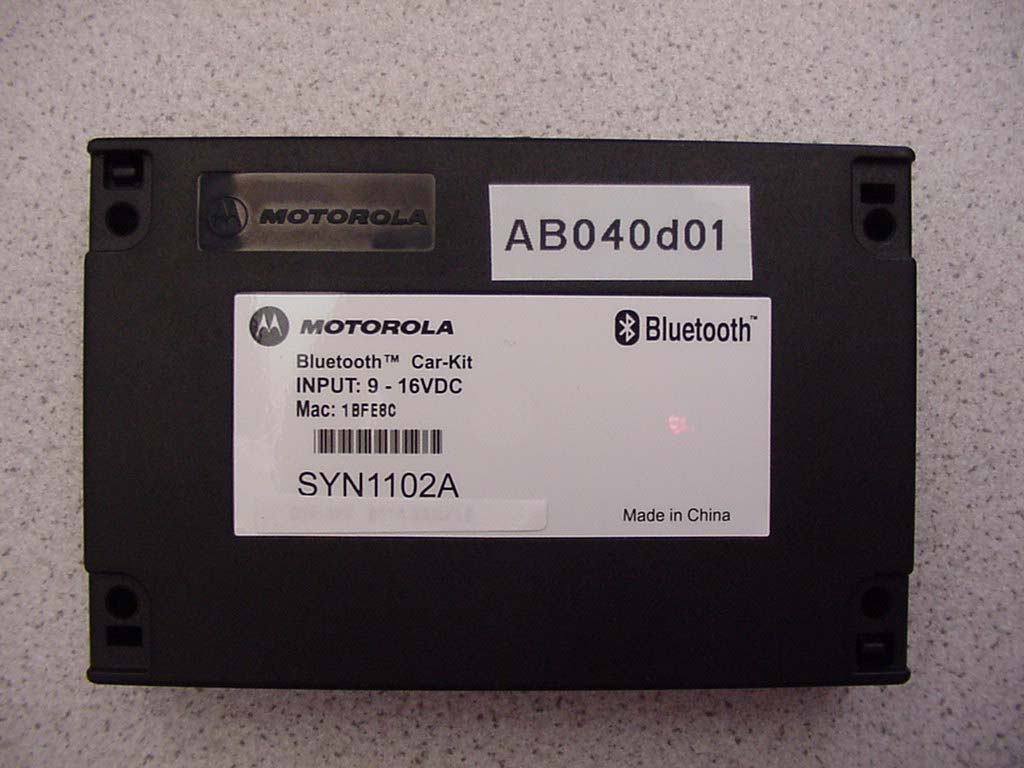

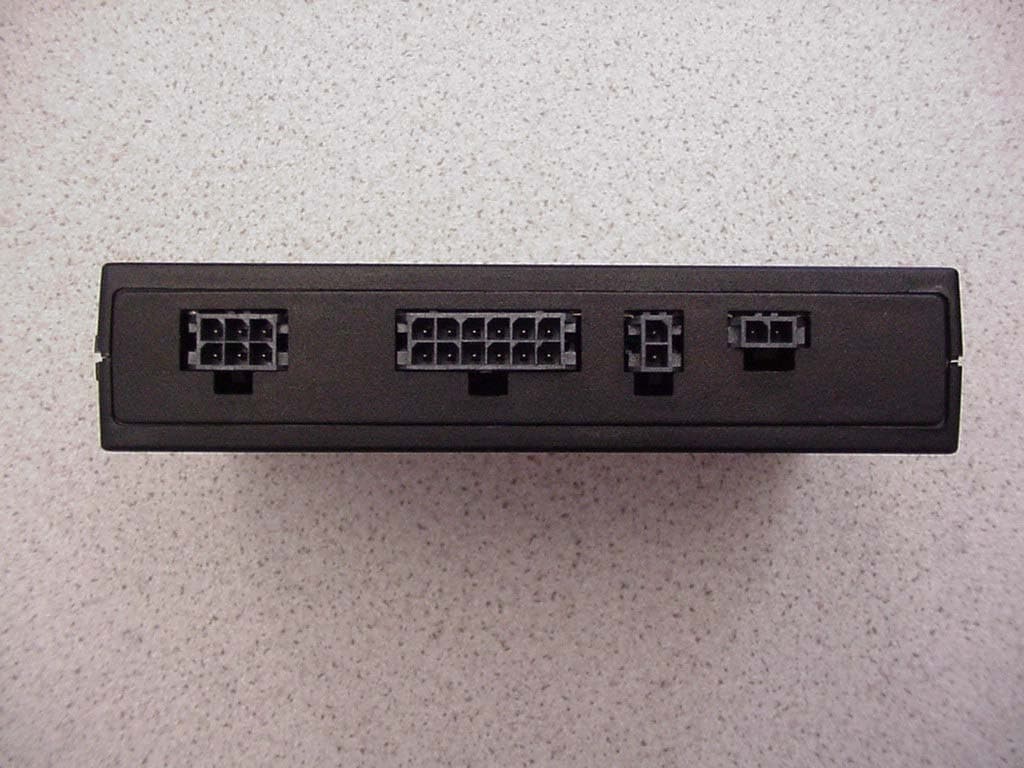

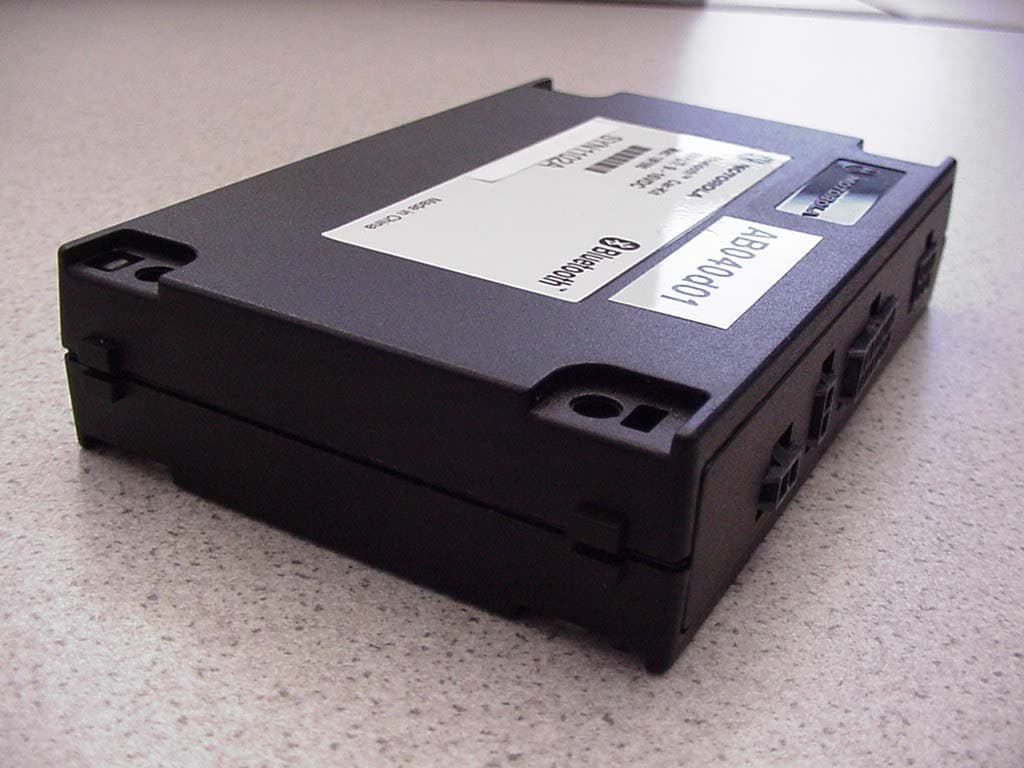

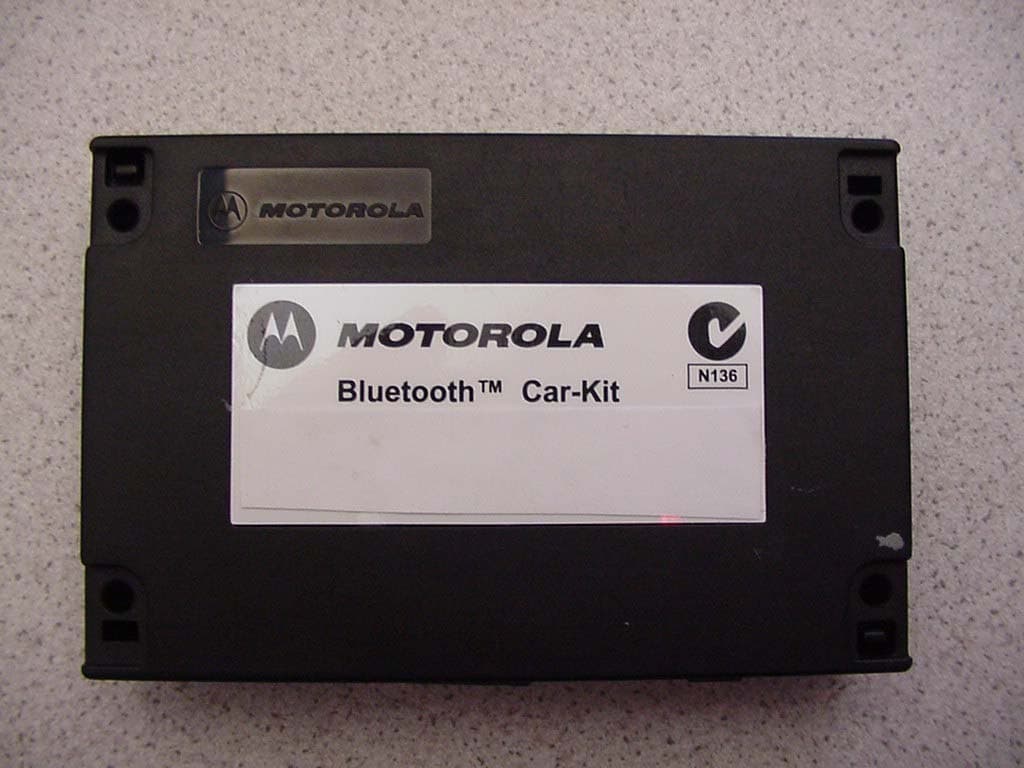

IHDT6EQ1HF850 Bluetooth Carkit

HF850 DR AFT 1 Welcome Welcome to Motorola’s “connected” world of Bluetooth® personal area wireless networking. The Motorola Bluetooth Wireless Handsfree Car Kit makes wireless connection simple and quick. The advanced, sophisticated Motorola Bluetooth Wireless Handsfree Car Kit offers these features: •seamless, wireless hands-free audio through Bluetooth link •digital audio interface with high quality, full-duplex, handsfree speech •uses voice dialing in your phone (if available) •entertainment mute—automatically mutes radio during calls •noise reduction and acoustic echo cancellation •automatic volume control •Ignition sense—continue an active call after car is turned off •compatible with Bluetooth 1.2 and backwards-compatible with Bluetooth 1.1 devices—supports Headset and Handsfree Profiles Note: The use of wireless devices and their accessories may be prohibited or restricted in certain areas. Always obey the laws and regulations on the use of these products. DR AFT 2 MOTOROLA and the Stylized M Logo are registered in the US Patent & Trademark Office. The Bluetooth trademarks are owned by their proprietor and used by Motorola, Inc. under license. All other product or service names are the property of their respective owners. © 2004 Motorola, Inc. The information contained in Motorola's user's guides is believed to be correct at the time of printing. Motorola reserves the right to change or modify any information or specifications without notice. The contents of Motorola’s user's guides are provided “as is.” Except as required by applicable law, no warranties of any kind, either express or implied, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose, are made in relation to the accuracy, reliability, or contents of this guide. Software Copyright Notice The Motorola products described in this manual may include copyrighted Motorola and third-party software stored in semiconductor memories or other media. Laws in the United States and other countries preserve for Motorola and third-party software providers certain exclusive rights for copyrighted software, such as the exclusive rights to distribute or reproduce the copyrighted software. Accordingly, any copyrighted software contained in the Motorola products may not be modified, reverse-engineered, distributed, or reproduced in any manner to the extent allowed by law. Furthermore, the purchase of the Motorola products shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any license under the copyrights, patents, or patent applications of Motorola or any third-party software provider, except for the normal, non-exclusive, royalty- free license to use that arises by operation of law in the sale of a product. Manual number: TBD-O DR AFT 3 Contents Welcome . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Safety and General Information . . . . . . . . . . . . . . . . . . . . 4 Installing the Handsfree Kit. . . . . . . . . . . . . . . . . . . . . . . . 7 Guidelines for Installation and Connection . . . . . . . . . . . . 7 Installation Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Using Your Car Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 The User Interface Module . . . . . . . . . . . . . . . . . . . . . . . 12 Linking Your Car Kit and Phone . . . . . . . . . . . . . . . . . . . 12 Placing a Call with the Car Kit . . . . . . . . . . . . . . . . . . . . 14 Answering a Call with the Car Kit . . . . . . . . . . . . . . . . . . 14 Using Features While on a Call . . . . . . . . . . . . . . . . . . . 15 Using the Car Kit When the Ignition Is Off . . . . . . . . . . . 17 Disconnecting the Car Kit from Your Phone . . . . . . . . . . 18 Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Calling Features Quick Reference . . . . . . . . . . . . . . . . . 20 Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 Export Law Assurances. . . . . . . . . . . . . . . . . . . . . . . . . . 27 DR AFT 4 Safety and General Information IMPORTANT INFORMATION ON SAFE AND EFFICIENT OPERATION. READ THIS INFORMATION BEFORE USING YOUR DEVICE. Users are not permitted to make changes or modify the device in any way. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. See 47 CFR Sec. 15.21. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. See 47 CFR Sec. 15.19(3). Electromagnetic Interference/Compatibility Note: Nearly every electronic device is susceptible to electromagnetic interference (EMI) if inadequately shielded, designed, or otherwise configured for electromagnetic compatibility. Facilities To avoid electromagnetic interference and/or compatibility conflicts, turn off your device in any facility where posted notices instruct you to do so. Hospitals or health care facilities may be using equipment that is sensitive to external RF energy. Aircraft When instructed to do so, turn off your device when on board an aircraft. Any use of a device must be in accordance with applicable regulations per airline crew instructions. DR AFT 5 Medical Devices Hearing Aids Some devices may interfere with some hearing aids. In the event of such interference, you may want to consult with your hearing aid manufacturer to discuss alternatives. Other Medical Devices If you use any other personal medical device, consult the manufacturer of your device to determine if it is adequately shielded from RF energy. Your physician may be able to assist you in obtaining this information. Industry Canada Notice to Users Operation is subject to the followi…

Text truncated - open the document above for the full version.

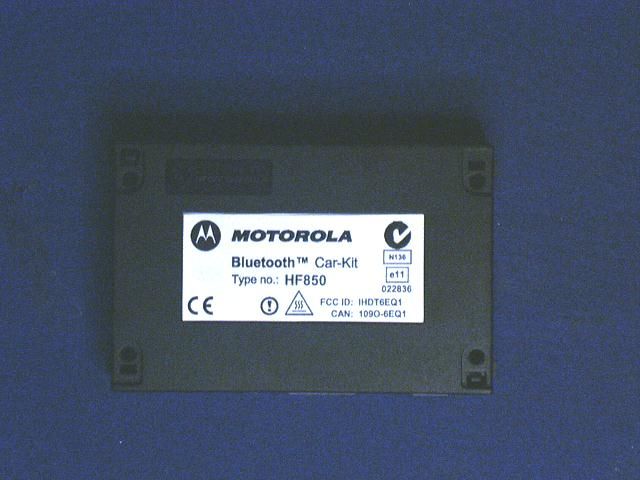

December 10, 2004 To Whom It May Concern: For the Motorola HF850 Bluetooth Carkit The FCC statement: "This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation” Is not placed in the label of the equipment due to the following reasons: - Required text is already included in the user guide - After this equipment is assembled, user is not easily able to see FCC text. (Normally the equipment is assembled to "out-of-sight" i.e hide from user. The device name manual is the only end-user visible "part".) This statement is placed in a prominent location in the instruction manual. Please contact me if there is any information you may need. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Michael Calendine Sr. Staff Electrical Engineer Motorola Inc. 1700 Belle Meade Ct, Lawrenceville, GA 30043 770-338-3363 Fax.: 847-761-3277 E-Mail [email protected] Thank you for your attention to this matter. Signatory

Motorola HF850 Bill Of Materials Inventory Organization: MESG TIANJIN INVENTORY ORG Alternate: PRIMARY Item Number: EPNN8749A - ACCESSORY CAR KIT PRO-INSTALL NEXT GEN BLUETOOTH C992 Item Type: FG ComponentDescriptionQuantity Reference Designator *0188652P01ASSY FINAL NEXT GEN BLUETOOTH CAR KIT1 **0188653P01 ASSY FINAL PCB NEXT GEN BLUETOOTH CAR K1 ***0609261R35RES, 2.7K, 0.5%, 06031 R88 ***0611077N14RES 1.37 OHM 1% 12064 R95,R96,R98,R99 ***0662057A25RES,100 OHMS,5%,06034 R29,R30,R49,R85 ***0662057A491K 5% 63MW1 R11 ***0662057A62RES.,CHIP, 3.6K/5% .06WC1 R102 ***0662057A9156K,5%,0603 RES1 R32 ***0662057A93RES68K5%06031 R14 ***0662057B47RESISTOR 0 OHM5 R1,R17,R25,R86,R87 ***0662057C99CHIP RES 10K OHMS 5%7 R15,R18,R19,R23,R27,R33,R34 ***0662057D31RES,200K,5%3 R13,R67,R90 ***0662057G07RES 75K 1% .1W1 R31 ***0662057H49RES,1K,5%,1/8,12064 R21,R26,R28,R89 ***0662057M10RES 2.2 OHM 5% 04021 R82 ***0662057M50RES, CHIP 100 5% 20X402 R142,R145 ***0662057M74RES CHIP 1000 5% 20X401 R53 ***0662057M82RES 2.2K 5% 04022 R4,R64 ***0662057M90RESISTOR CHIP 4700 5% 20X402 R22,R40 ***0662057M98RES 10K 5% .0322 R24,R37 ***0662057N06RES 20K 5% 04022 R10,R2 ***0662057N07RES CHIP 22K 5% 20X402 R137,R83 ***0662057N17RES 56K 5% .032W3 R16,R7,R8 ***0662057N23RESISTOR, 100K OHM, 5%, 0.03W, 04026 R12,R20,R3,R5,R50,R6 ***0662057N39RES 470K 5% 04021 R84 ***0662057P48RES,1.21K,1%,06031 R101 ***0662057R35RES,2K,1%,1/10W1 R44 ***0909051S01SPEAKER CONN1 J2 ***0909052S01CONN - FEMALE 43045-06091 J1 ***0909052S02RECEPTACLE DUAL ROW SMD 2X1 PIN1 J11 ***0909052S07RECEPTACLE DUAL ROW SMD 6 PIN1 J3 ***2113740F39CAP, 33PF 5% 06031 C124 ***2113740F63CAP, 330PF, 5%, 50V, 06032 C33,C54 ***2113741F01CAP,100PF,50V,5%,06037 C10,C26,C31,C32,C35,C36,C47 ***2113741F17CAP,470PF,5%,CER,X7R1 C72 ***2113741M69CAP,0.10UF,MONO,10%,50V,X7R,SM4 C2,C27,C41,C53 ***2113741Z49CAP,0.1UF,10%,50V,X7R,06032 C14,C16 ***2113743A23CAP,0.22U,10%,16V,X7R,08051 C56 ***2113743A31CAPACITOR 1UF, 16V, X7R +/-15%6 C126,C39,C40,C60,C61,C62 ***2113743E12CAP,CERAMIC, 0.047 UF, 06032 C57,C58 ***2113743E20CAP, 0.1MICF 06036 C4,C74,C77,C81,C89,C9 ***2113743L17CAP CHIP 0.001UF, 10%2 C129,C23 ***2113743L41CAP CHIP 10000 PF 10% X7R8 C12,C160,C30,C5,C51,C52,C7,C85 ***2113743N14CAP CERAMIC 3.3P 16V +/-5% 04021 C13 ***2113743N26CAP, CHIP 10 PF 5% COG8 C15,C17,C19,C21,C22,C50,C59,C64 ***2113743N38CAP 33PF 04025 C1,C11,C125,C48,C65 ***2113928S040.1UF CAP, 10V, 0402, +-10%2 C18,C79 ***2113944C10CAP CERAMIC 1.5PF 0603 50V +/-.25PF T&R1 C8 ***2155169P34CAP CERAMIC .1UF 25V 10% X7R1 C6 ***2155189C03CAP MONO 10% 2.2UF 16V X7R SMD2 C24,C25 ***2186809L01CAPACITOR,CERAMIC,1UF,50V,12101 C55 ***2309369R44CAP 220UF, 20%, 35V, 10.2X81 C20 ***2311049C52CAP, 33UF, 10V, 10%1 C38 ***2311049D06CAP, TANT 22UF 20% 10V2 C28,C37 ***2387878G01ELECTROLYTIC SMD, LOW ESR, NICHICON 47 U2 C3,C34 ***2387878G02ELECTROLYTIC SMD, LOW ESR, NICHICON 220 U1 C71 ***2387878G03ELECTROLYTIC SMD, LOW ESR, NICHICON 100 U1 C70 ***2489267E01COIL, FERRITE BEAD, MURATA, BLM41P750SPT2 L2,L6 ***2489521E01IND 47UH 10% TOROID1 L1 ***2688038S01SHIELD QUADRANT1 H2 ***2887128S01CONNECTOR HEADER 1.25MM THRU HOLE1 A4 ***3589422S01STENCIL TOP NEXT GEN BLUETOOTH CAR KIT1 ***3589423S01STENCIL BOT NEXT GEN BLUETOOTH CAR KIT1 ***4809788E05DIODE 24V, 1.5KWMS1 D8 ***4809788E13DIODE ZENER 5.6V 200MW7 D10,D11,D12,D13,D2,D5,D9 ***4813822A13TSTR,100V,3A,TRANS MJD32C1 Q24 ***4813823A07TRANSISTOR,MOSFET SMALL SIGNAL3 Q1,Q3,Q8 ***4813824A11TRANSISTOR,NPN,MMBT2222ALT15 Q10,Q13,Q14,Q2,Q5 ***4813830A14DIODE,5.1V,5%,225MW,MMBZ5231B1 D7 ***4813833B14DIODE,SCHOTTKY MBRA140T31 D6 ***4813833B19DIODE SCHOTTKY, 30V, SOT231 D4 ***4886356S01BSS138 N-CHANNEL ENHANCE MODE FET3 Q12,Q17,Q7 ***4887756J01CRYSTAL 16.000MHZ TSX-8A16MHZ1 Y1 ***4888891E02DIODE MMBD4148 70V2 D1,D3 ***4888898G01TRANSISTOR BUK107-50DL SOT2231 Q11 ***5109817F62IC SPDT SWITCH/MULTIPLEXER1 U11 ***5113815A01IC SWITCHING REGULATOR1 U6 ***5113816M79IC NCP500SN30T1 3.0V REG2 U2,U4 ***5113837A25IC MC74LCX257DTR21 U12 ***5114004A45IC UNDER VOLTAGE DET NCP305LSQ45T1G1 U3 ***5185963A60IC,CMOS OP-AMP LMC710BIM5X1 U9 ***5188566P01IC BC358239A-NN-E4 CSR1 U1 ***5188811P01IC AUDIO AMP TDA7391PD DIFF IN DIFF OUT 31 U14 ***7389424S01SCHEMATIC NEXT GEN BLUETOOTH CAR KIT1 ***7989425S01ENG LAYOUT DRWG NEXT GEN BLUETOOTH C A1 ***8489426S01PCB NEXT GEN BLUETOOTH CAR KIT1 **1588945G01HOUSING BT CAR KIT COVER2 **1588946G01HOUSING BT CAR KIT FRONT1 **1589469S01COVER J-BOX REAR 2ND GEN BTCK1 **5489882S01LABEL BTCK II J-BOX MAC1 **5489883S01LABEL BTCK II J-BOX APP1 *0188695P01ASSY UIM BLUETOOTH NEXT GEN1 **0188698P01ASSY FINAL PCB UIM BLUETOOTH NEXT GEN1 ***0662057A17RES CHIP 47 OHMS 5%1 R281 ***0662057A491K 5% 63MW1 R229 ***0662057A89CHIP RES 47K OHMS 5%5 R222,R223,R224,R225,R226 ***0662057B47RESISTOR 0 OHM2 R230,R257 ***0662057C51RES CHIP 100 OHMS 5%5 R211,R214,R217,R236,R239 ***0662057D67RES 5.6MEG 5% 08051 R205 ***0662057M98RES 10K 5% .0329 R220,R248,R251,R262,R265,R274,R276,R2 77,R278 ***0662057N47RES,1M 5% 04021 R206 ***0662057P10RES 10K 1% 63MW CHIP1 R201 ***2113743A31CAPACITOR 1UF, 16V, X7R +/-15%2 C287,C293 ***2113743L17CAP CHIP 0.001UF, 10%1 C278 ***2113743L41CAP CHIP 10000 PF 10% X7R1 C292 ***2113743N26CAP, CHIP 10 PF 5% COG1 C294 ***2113928S040.1UF CAP, 10V, 0402, +-10%3 C204,C226,C290 ***2113944A31CAPACITOR, CERAMIC, 33PF, 50V,5%, NPO, 040 210 C249,C273,C275,C276,C280,C282,C283,C2 84,C286,C288 ***2155189C03CAP MONO 10% 2.2UF 16V X7R SMD1 C291 ***2311049D06CAP, TANT 22UF 20% 10V1 C210 ***2888506E07CONN - MALE WIRE TO BOARD HEADER 9 PIN1 J207 ***3589539S01STENCIL UIM BLUETOOTH NEXT GEN1 ***4809788E08DIODE 8.2V, 200MW, SOD32310 D216,D217,D218,D219,D220,D222,D223,D2 24,D225,D226 ***4813823A07TRANSISTOR,MOSFET SMALL SIGNAL5 Q202,Q203,Q204,Q205,Q206 ***4813833C04DIODE,DUAL,BAV701 D210 ***4870370A25LED ARRAY WHITE HIGH4 D201,D205,D214,D215 ***4886356S01BSS138 N-CHANNEL ENHANCE MODE FET2 Q201,Q209 ***4887244S01SWITCHING DIODE 1N41481 D221 ***4887825G02LED DIODE LED BLUE1 D213 ***5113806A66IC MC14094BDTR21 U207…

Text truncated - open the document above for the full version.

EMC Measurement/Technical Report on 4_MOT_1604_TAS_FCCc 7 Layers AG Borsigstr. 11 40880 Ratingen Germany Note: The following test results relate only to the devices specified in this document. This report shall not be reproduced in parts without the written approval of the testing laboratory. Bluetooth® Transceiver Bluetooth Carkit HF850 7 layers AG, Borsigstrasse 11 40880 Ratingen, Germany Phone: +49 (0) 2102 749 0 Fax: +49 (0) 2102 749 350 http://www.7Layers.com Aufsichtsratsvorsitzender Chairman of the Supervisory Board: Michael Abels Vorstand - Board of Directors: Dr. Hans-Jürgen Meckelburg Registergericht - registered in: Düsseldorf, HRB 44096 USt-IdNr VAT Nr: DE 203159652 Report Reference: TTI-P-G 178/99 Test Laboratory (Headquarter): Interlab is a registered trademark of 7 layers AG Table of Contents 0. Summary 0.1 Technical Report Summary 0.2 Measurement Summary 1. Administrative Data 1.1 Testing Laboratory 1.2 Project Data 1.3 Applicant Data 1.4 Manufacturer Data 3. Testobject Data 3.1 General EUT Description 3.2 EUT Main Components 3.3 Ancillary Equipment 3.4 EUT Setups 3.5 Operating Modes 4. Test Results Occupied Bandwidth Peak Power Output Spurious RF Conducted Emissions 5. Testequipment 6. Foto Report 7. Setup Drawings 3 3 4 6 6 6 6 6 8 8 9 9 9 10 11 11 13 15 22 25 28 30 Spurious RF Radiated Emissions 17 2. Product Labeling 2.1 FCC ID Label 2.2 Location of Label on the EUT 7 7 7 Channel Separation 21 4.1 4.2 4.3 4.4 4.5 8. Annex measurement plots13 Pages Page 2 of 42 Testreport Reference: 4_MOT_1604_TAS_FCCc 0 Summary 0.1 Technical Report Summary Type of Authorization Certification for an Intentional Radiator (Frequency Hopping Spread Spectrum) Applicable FCC Rules: Prepared in accordance with the requirements of FCC Rules and Regulations as listed in 47 CFR Ch.1 Parts 0 to 19 (10-1-98 Edition). The following subparts are applicable to the results in this test report. Part 2, Subpart J - Equipment Authorization Procedures, Certification Sections Part 15, Subpart C - Intentional Radiators § 15.201 Equipment authorization requirement § 15.207 Conducted limits § 15.209 Radiated emission limits; general requirements § 15.247 Operation within the bands 902-928 MHz, 2400-2483,5 MHZ and 5725-5850 MHz Summary Test Results: The EUT complied with all performed tests as listed in chapter 0.2 Measurement Summary. The EUT does not support paging and inquiry mode. Consequently no tests were performed in these operating modes. Note: The tests were selected and performed with reference to the FCC Public Notice DA 00- 705, released March 30, 2000 Page 3 of 42 Testreport Reference: 4_MOT_1604_TAS_FCCc 0.2 Measurement Summary § 15.247 (a) (1) (ii)FCC Part 15, Subpart C ANSI C63.41992 The measurement was performed according to Occupied Bandwidth OP-ModeSetupPortFinal Result setup 2op-mode 1Temp. Ant. Conn.passed setup 2op-mode 2Temp. Ant. Conn.passed setup 2op-mode 3Temp. Ant. Conn.passed § 15.247 (b) (1)FCC Part 15, Subpart C FCC §15.3110-1-1998 The measurement was performed according to Peak Power Output OP-ModeSetupPortFinal Result setup 2op-mode 1Temp. Ant. Conn.passed setup 2op-mode 2Temp. Ant. Conn.passed setup 2op-mode 3Temp. Ant. Conn.passed § 15.247 (c)FCC Part 15, Subpart C FCC §15.3110-1-1998The measurement was performed according to Spurious RF Conducted Emissions OP-ModeSetupPortFinal Result setup 2op-mode 1Temp. Ant. Conn.passed setup 2op-mode 2Temp. Ant. Conn.passed setup 2op-mode 3Temp. Ant. Conn.passed § 15.247 (c), §15.35 (b), § 15.209FCC Part 15, Subpart C ANSI C63.41992 The measurement was performed according to Spurious Radiated Emissions OP-ModeSetupPortFinal Result setup 1op-mode 1Enclosurepassed setup 1op-mode 2Enclosurepassed setup 1op-mode 3Enclosurepassed § 15.247 (a) (1)FCC Part 15, Subpart C FCC §15.3110-1-1998The measurement was performed according to Channel Separation OP-ModeSetupPortFinal Result setup 2op-mode 1Temp. Ant. Conn.passed Page 4 of 42 Testreport Reference: 4_MOT_1604_TAS_FCCc Responsible for Accreditation Scope: Responsible for Test Report: Page 5 of 42Testreport Reference: 4_MOT_1604_TAS_FCCc 1. Administrative Data 1.1 Testing Laboratory Company Name: Address: The test facility is also accredited by the following accreditation organisation: Responsible for Accreditation Scope: 7 Layers AG Borsigstr. 11 40880 Ratingen Germany DAR-Registration no. TTI-P-G 178/99 Dipl.-Ing Bernhard Retka Dipl.-Ing Arndt Stöcker Dipl.-Ing Thomas Hoell This facility has been fully described in a report submitted to the FCC and accepted under the registration number 96716. - Deutscher Akkreditierungs Rat 07.09.2004 Robert Machulec 14.12 .2004 07.09.2004 - 22.10.2004 Responsible for testing and report: Receipt of EUT: Date of Test(s): Date of Report: 1.2 Project Data Motorola ESG Michael Calendine 1700 Belle Meade Ct Lawerenceville GA 30043 USA please see Applicant data 1.4 Manufacturer Data Company Name: Address: Contact Person: Company Name: Address: Contact Person: 1.3 Applicant Data Page 6 of 42 Testreport Reference: 4_MOT_1604_TAS_FCCc 2.0 Product Labeling 2.1 FCC ID Label: At the time of the report there was no FCC label available. 2.2 Location of Label on the EUT: see above Page 7 of 42Testreport Reference: 4_MOT_1604_TAS_FCCc 3. Testobject Data Type Designation: Kind of Device: (optional) Voltage Type: Voltage level: Equipment under Test: Bluetooth Carkit HF850 Mobile phone accessory Bluetooth® Transceiver DC 12 V Ports 3.1 General EUT Description General product description: Bluetooth is a short-range radio link intended to be a cable replacement between portable and/or fixed electronic devices. Bluetooth operates in the unlicensed ISM Band at 2.4 GHz. In the US a band of 83.5 MHz width is available. In this band, 79 RF channels spaced 1MHz apart are defined. The channel is represented by a pseudo-random hopping sequence through the 79 channels. The channel is devided into time slots, with a nominal slot length of 625μs, where each slot corresponds to different RF…

Text truncated - open the document above for the full version.

EMC Measurement/Technical Report on 4_MOT_1604_TAS_FCCd 7 Layers AG Borsigstr. 11 40880 Ratingen Germany Note: The following test results relate only to the devices specified in this document. This report shall not be reproduced in parts without the written approval of the testing laboratory. Bluetooth® Transceiver Bluetooth Carkit HF850 7 layers AG, Borsigstrasse 11 40880 Ratingen, Germany Phone: +49 (0) 2102 749 0 Fax: +49 (0) 2102 749 350 http://www.7Layers.com Aufsichtsratsvorsitzende Chairman of the Supervisory Board: Michael Abels Vorstand - Board of Directors: Dr. Hans-Jürgen Meckelburg Registergericht - registered in: Düsseldorf, HRB 44096 USt-IdNr VAT Nr: DE 203159652 Report Reference: TTI-P-G 178/99 Test Laboratory (Headquarter): Interlab is a registered trademark of 7 layers AG Table of Contents 0. Summary 0.1 Technical Report Summary 0.2 Measurement Summary 1. Administrative Data 1.1 Testing Laboratory 1.2 Project Data 1.3 Applicant Data 1.4 Manufacturer Data 3. Testobject Data 3.1 General EUT Description 3.2 EUT Main Components 3.3 Ancillary Equipment 3.4 EUT Setups 3.5 Operating Modes 4. Test Results Conducted Emissions 5. Testequipment 6. Foto Report 7. Setup Drawings 3 3 4 5 5 5 5 5 7 7 8 8 8 9 10 10 15 18 20 Spurious RF Radiated Emissions12 2. Product Labeling 2.1 FCC ID Label 2.2 Location of Label on the EUT 6 6 6 4.1 4.2 Page 2 of 20Testreport Reference: 4_MOT_1604_TAS_FCCd 0 Summary 0.1 Technical Report Summary Type of Authorization: Certification for an Unintentional Radiator (Class B digital device) Applicable FCC Rules: Prepared in accordance with the requirements of FCC Rules and Regulations as listed in 47 CFR Ch.1 Parts 0 to 19 (10-1-98 Edition). The following subparts are applicable to the results in this test report. Part 2, Subpart J - Equipment Authorization Procedures, Certification Sections Part 15, Subpart B - Unintentional Radiators § 15.101 Equipment authorization requirement § 15.107 Conducted limits § 15.109 Radiated emission limits Summary Test Results: The EUT complied with all performed tests as listed in chapter 0.2 Measurement Summary. Page 3 of 20Testreport Reference: 4_MOT_1604_TAS_FCCd 0.2 Measurement Summary §15.107FCC Part 15, Subpart B ANSI C63.41992The measurement was performed according to Conducted Emissions OP-ModeSetupPortFinal Result setup 1op-mode 1DC portpassed §15.31, §15.109FCC Part 15, Subpart B ANSI C63.41992The measurement was performed according to Spurious Radiated Emissions OP-ModeSetupPortFinal Result setup 1op-mode 1Enclosurepassed Responsible for Accreditation Scope: Responsible for Test Report: Page 4 of 20Testreport Reference: 4_MOT_1604_TAS_FCCd 1. Administrative Data 1.1 Testing Laboratory Company Name: Address: The test facility is also accredited by the following accreditation organisation: Responsible for Accreditation Scope: 7 Layers AG Borsigstr. 11 40880 Ratingen Germany DAR-Registration no. TTI-P-G 178/99 Dipl.-Ing Bernhard Retka Dipl.-Ing Arndt Stöcker Dipl.-Ing Thomas Hoell This facility has been fully described in a report submitted to the FCC and accepted under the registration number 96716. - Deutscher Akkreditierungs Rat 07.09.2004 Robert Machulec 14.12.2004 24.09.2004 - 12.10.2004 Responsible for testing and report: Receipt of EUT: Date of Test(s): Date of Report: 1.2 Project Data Motorola ESG Michael Calendine 1700 Belle Meade Ct Lawerenceville GA 30043 USA please see Applicant data 1.4 Manufacturer Data Company Name: Address: Contact Person: Company Name: Address: Contact Person: 1.3 Applicant Data Page 5 of 20Testreport Reference: 4_MOT_1604_TAS_FCCd 2.0 Product Labeling 2.1 FCC ID Label: FCC ID: 020BTHCK100 2.2 Location of Label on the EUT: see above Page 6 of 20Testreport Reference: 4_MOT_1604_TAS_FCCd 3. Testobject Data Type Designation: Kind of Device: (optional) Voltage Type: Voltage level: Equipment under Test: Bluetooth Carkit HF850 Mobile phone accessory Bluetooth® Transceiver DC 12 V Ports 3.1 General EUT Description General product description: Bluetooth is a short-range radio link intended to be a cable replacement between portable and/or fixed electronic devices. Bluetooth operates in the unlicensed ISM Band at 2.4 GHz. In the US a band of 83.5 MHz width is available. In this band, 79 RF channels spaced 1MHz apart are defined. The channel is represented by a pseudo-random hopping sequence through the 79 channels. The channel is devided into time slots, with a nominal slot length of 625μs, where each slot corresponds to different RF hop frequencies. The nominal hop rate is 1600 hops/s. All frequencies are equally used. The average time of occupancy is 0.3797 s within a 30 second period. The symbol rate on the channel is 1 Ms/s. The EUT provides the following ports: Temp. Ant. Conn. Enclosure DC port The main components of EUT are listed and described in Chapter 3.2 Page 7 of 20Testreport Reference: 4_MOT_1604_TAS_FCCd Short Description Equipment under Test Type Designation 3.2 EUT Main components: Type, S/N, Short Descriptions etc. used in this Test Report HW StatusSW StatusSerial No.Date of Receipt 8489426S01 T4 V0.701test sample 107.09.2004HF850Bluetooth CarkitEUT A (AB040a00) EUT A is equipped with an integrated antenna. NOTE: The short description is used to simplify the identification of the EUT in this test report 3.3 Ancillary Equipment Short Description Equipment under Test Type Designation HW StatusSW StatusSerial No.FCC Id For the purposes of this test report, ancillary equipment is defined as equipment which is used in conjunction with the EUT to provide operational and control features to the EUT. It is necessary to configure the system in a typical fashion, as a customer would normally use it. But nevertheless Ancillary Equipment can influence the test results. AE 4GSM Mobile PhoneSiemens S55Prod.-Date: 2002-10-23 06.2670IMEI: 35- 1083-51- 004316-0 PWX-S55 AE 3 (AB043a00) Ext. Control UnitSYN1101AT4, 8489536s01 -test sample 1- AE 2 (AB042a00) Ext. SpeakerSSN4020A--test sample 1…

Text truncated - open the document above for the full version.

Registergerichth registered in:Vorstandh Board of Directors:7 layers AG, Borsigstrasse 11 Ratingen HRB 3264Dr. Wolfgang Dahm40880 Ratingen, Germany AufsichtsratsvorsitzendehDr. Hans-Jürgen MeckelburgPhone: +49 (0) 2102 749 0 Chairman of the Supervisory Board:Fax: +49 (0) 2102 749 350 Dr. Sabine Grobeckerwww.7layers.com Annex Additional declaration part according FCC 15.247 for Bluetooth TM Devices Version: 2002-06-01 Annex - Additional declaration part according FCC 15.247 for Bluetooth devices Page 2 of 5 pages 1 Output power and channel separation of a Bluetooth device in the different operating modes: The different operating modes (data-mode, acquisition-mode) of a Bluetooth device don’t influence the output power and the channel spacing. There is only one transmitter which is driven by identical input parameters concerning these two parameters. Only a different hopping sequence will be used. For this reason the check of these RF parameters in one op-mode is sufficient. 2 Frequency range of a Bluetooth device: Hereby we declare that the maximum frequency of this device is: 2402 – 2480 MHz. This is according the Bluetooth Core Specification (+ critical errata) for devices which will be operated in the USA. This was checked during the Bluetooth Qualification tests (Test Case: TRM/CA/04-E). Other frequency ranges ( e.g. for Spain, France, Japan) which are allowed according the Core Specification are not supported by this device. 3 Co-ordination of the hopping sequence in data mode to avoid simultaneous occupancy by multiple transmitters: Bluetooth units which want to communicate with other units must be organised in a structure called piconet. This piconet consist of max. 8 Bluetooth units. One unit is the master the other seven are the slaves. The master co-ordinates frequency occupation in this piconet for all units. As the master hop sequence is derived from its BD address which is unique for each Bluetooth device, additional masters intending to establish new piconets will always use different hop sequences. 4 Example of a hopping sequence in data mode: Example of a 79 hopping sequence in data mode: 40, 21, 44, 23, 42, 53, 46, 55, 48, 33, 52, 35, 50, 65, 54, 67, 56, 37, 60, 39, 58, 69, 62, 71, 64, 25, 68, 27, 66, 57, 70, 59, 72, 29, 76, 31, 74, 61, 78, 63, 01, 41, 05, 43, 03, 73, 07, 75, 09, 45, 13, 47, 11, 77, 15, 00, 64, 49, 66, 53, 68, 02, 70, 06, 01, 51, 03, 55, 05, 04 Annex - Additional declaration part according FCC 15.247 for Bluetooth devices Page 3 of 5 pages 5 Equally average use of frequencies in data mode and behaviour for short transmissions: The generation of the hopping sequence in connection mode depends essentially on two input values: 1. LAP/UAP of the master of the connection 2. Internal master clock The LAP (lower address part) are the 24 LSB’s of the 48 BD_ADDRESS. The BD_ADDRESS is an unambiguous number of every Bluetooth unit. The UAP (upper address part) are the 24 MSB’s of the 48 BD_ADDRESS. The internal clock of a Bluetooth unit is derived from a free running clock which is never adjusted and is never turned off. For synchronisation with other units only offset are used. It has no relation to the time of the day. Its resolution is at least half the RX/TX slot length of 312.5 μs. The clock has a cycle of about one day (23h30). In most case it is implemented as 28 bit counter. For the deriving of the hopping sequence the entire LAP (24 bits), 4 LSB’s (4 bits) (Input 1) and the 27 MSB’s of the clock (Input 2) are used. With this input values different mathematical procedures (permutations, additions, XOR- operations) are performed to generate the sequence. This will be done at the beginning of every new transmission. Regarding short transmissions the Bluetooth system has the following behaviour: The first connection between the two devices is established, a hopping sequence was generated. For transmitting the wanted data the complete hopping sequence was not used. The connection ended. The second connection will be established. A new hopping sequence is generated. Due to the fact that the Bluetooth clock has a different value, because the period between the two transmission is longer (and it cannot be shorter) than the minimum resolution of the clock (312.5 μs). The hopping sequence will always differ from the first one. 6 Receiver input bandwidth and behaviour for repeated single or multiple packets: The input bandwidth of the receiver is 1 MHz. In every connection one Bluetooth device is the master and the other one is the slave. The master determines the hopping sequence (see chapter 5). The slave follows this sequence. Both devices shift between RX and TX time slot according to the clock of the master. Additionally the type of connection (e.g. single or multislot packet) is set up at the beginnin…

Text truncated - open the document above for the full version.
