IHDT6EW1Portable PCS GSM Transceiver

APPLICANT: MOTOROLA, INC. FCC ID: IHDT6EW1 EXHIBIT 8 INSTRUCTION MANUAL A preliminary draft copy of the Users Manual follows: 1 Welcome Welcome to the world of Motorola digital wireless communications! We are pleased that you have chosen the Motorola C380 GSM wireless phone. 040071o Accessory Connector Left Soft Key Perform function in lower left display. Power & End Key Turn phone on/off, end calls, exit menu system. Menu Key Right Soft Key Perform function in lower right display. Send Key Make & answer calls. 5-Way Navigation Key Scroll through menus & lists. Power Connector Headset Jack 2 Motorola, Inc. Consumer Advocacy Office 1307 East Algonquin Road Schaumburg, IL 60196 1-800-331-6456 (United States) 1-888-390-6456 (TTY/TDD United States) 1-800-461-4575 (Canada) www.motorola.com (United States) www.motorola.ca (Canada) MOTOROLA and the Stylized M Logo are registered in the US Patent & Trademark Office. Java and all other Java-based marks are trademarks or registered trademarks of Sun Microsystems, Inc. in the U.S. and other countries. All other product or service names are the property of their respective owners. © Motorola, Inc., 2003. Software Copyright Notice The Motorola products described in this manual may include copyrighted Motorola and third-party software stored in semiconductor memories or other media. Laws in the United States and other countries preserve for Motorola and third-party software providers certain exclusive rights for copyrighted software, such as the exclusive rights to distribute or reproduce the copyrighted software. Accordingly, any copyrighted software contained in the Motorola products may not be modified, reverse- engineered, distributed, or reproduced in any manner to the extent allowed by law. Furthermore, the purchase of the Motorola products shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any license under the copyrights, patents, or patent applications of Motorola or any third-party software provider, except for the normal, non- exclusive, royalty-free license to use that arises by operation of law in the sale of a product. Manual Number: 68XXXXXX34-O Cover Number: 8988485L61-O 3 Contents Safety and General Information. . . . . . . . . . . . . . . . . . . . 6 Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 About This Guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Installing the SIM Card . . . . . . . . . . . . . . . . . . . . . . . . . 13 Battery Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Installing the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Charging the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Turning Your Phone On . . . . . . . . . . . . . . . . . . . . . . . . . 17 Adjusting Volume. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Making a Call. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Answering a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Viewing Your Phone Number . . . . . . . . . . . . . . . . . . . . 18 Highlight Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Sending a Multimedia Message . . . . . . . . . . . . . . . . . . 19 Receiving a Multimedia Message . . . . . . . . . . . . . . . . . 21 Learning to Use Your Phone . . . . . . . . . . . . . . . . . . . . . 23 Using the Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 Using the 5-Way Navigation Key . . . . . . . . . . . . . . . . . . 28 Using Menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 Entering Text . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 Using the Handsfree Speaker . . . . . . . . . . . . . . . . . . . . 41 Changing a Code, PIN, or Password. . . . . . . . . . . . . . . 42 Locking and Unlocking Your Phone. . . . . . . . . . . . . . . . 42 If You Forget a Code, PIN, or Password . . . . . . . . . . . . 44 Locking and Unlocking the Keypad . . . . . . . . . . . . . . . . 45 Using the Phonebook . . . . . . . . . . . . . . . . . . . . . . . . . . 45 Setting Up Your Phone. . . . . . . . . . . . . . . . . . . . . . . . . . 48 Storing Your Name and Phone Number . . . . . . . . . . . . 48 4 Setting the Time and Date . . . . . . . . . . . . . . . . . . . . . . . 48 Setting a Ring Style . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49 Setting a Wallpaper Image . . . . . . . . . . . . . . . . . . . . . . . 49 Setting a Screen Saver Image . . . . . . . . . . . . . . . . . . . . 50 Setting Display Color . . . . . . . . . . . . . . . . . . . . . . . . . . . 51 Adjusting the Backlight . . . . . . . . . . . . . . . . . . . . . . . . . . 52 Setting Display Timeout . . . . . . . . . . . . . . . . . . . . . . . . . 52 Calling Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53 Changing the Active Line . . . . . . . . . . . . . . . . . . . . . . . . 53 Redialing a Number . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53 Using Automatic Redial. . . . . . . . . . . . . . . . . . . . . . . . . . 53 Using Caller ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54 Canceling an Incoming Call . . . . . . . . . . . . . . . . . . . . . . 55 Calling an Emergency Number . . . . . . . . . . . . . . . . . . . . 55 Dialing International Numbers . . . . . . . . . . . . . . . . . . . . 56 Viewing Recent Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . 56 Returning an Unanswered Call . . . . . . . . . . . . . . . . . . . . 58 Using the Notepad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58 Attaching a Number . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59 Calling With Speed Dial . . . . . . . . . . . . . . . . . . . . . . . . . 59 Calling With 1-Touch Dial . . . . . . . . . . . . . . . . . . . . . . . . 60 Using Voicemail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60 Using…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA FCC ID: IHDT6EW1 May 10, 2004 CONFIDENTIALITY REQUEST CONTAINED WITHIN Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Application for Cellular/PCS Transceiver Certification Gentlemen: Application: Motorola, Inc., Personal Communications Sector, 600 N. U.S. Highway 45, Libertyville, Illinois 60048-1286 herein submits: Application for Equipment Authorization for Certification of a Cellular Transceiver, FCC ID: IHDT6EW1. Motorola is also the manufacturer of this equipment. Confidentiality: Pursuant to Section 0.459 of the Commission's rules (CFR 47), Motorola requests confidentiality for portions of the material contained in this application and that the identified material be withheld from public inspection following the grant of this authorization. This material contains Motorola's trade secrets and confidential information that Motorola does not customarily release to the public and which is otherwise not generally available to the public. Confidentiality is requested for the following exhibits: • Exhibit 4 Block Diagrams • Exhibit 5 Schematics • Exhibit 10 Parts List • Exhibit 12 Operational Description Description: This equipment is a GSM portable transceiver, which operates in 1900 MHz PCS band. Note: This device contains 900 MHz and 1800 MHz GSM, functions which are not operational in U.S. territories. Contact Information: Please contact me by telephone at (847) 523-6167, or by e-mail ( [email protected]), if there are questions or additional information needed concerning this filing. Regards, Andrew J. Bachler FCC Liaison Cellular Subscriber Sector 600 N. U.S. Highway 45 Libertyville, IL 60048-5343 Exhibit 13

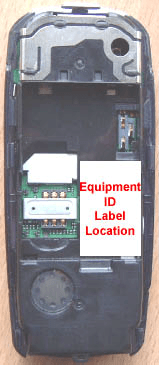

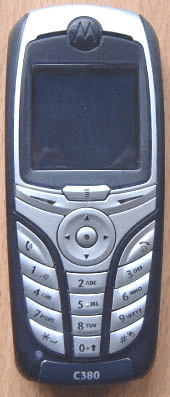

APPLICANT: MOTOROLA, INC. FCC ID: IHDT6EW1 EXHIBIT 3 Rear View with Battery Cover Removed Showing ID Label Rear View Front View

APPLICANT: MOTOROLA INC. FCC ID: IHDT6EW1 FCC IDENTIFICATION (NAMEPLATE) INFORMATION FCC ID: IHDT6EW1 The FCC label shown is representative of the label that will appear on the radio when in production. It will be placed on the outside of the equipment as shown in Exhibit 3. Other information may also be included on this label. EXHIBIT 1

APPLICANT: MOTOROLA, INC. FCC ID: IHDT6EW1 EXHIBIT 9 Front View Rear View 1 of 3 APPLICANT: MOTOROLA, INC. FCC ID: IHDT6EW1 EXHIBIT 9 Front View (Display Removed) Rear View (Shields Removed) 2 of 3 APPLICANT: MOTOROLA, INC. FCC ID: IHDT6EW1 EXHIBIT 9 Front Housing Internal View Rear Housing Internal View 3 of 3

APPLICANT: MOTOROLA, INC. FCC ID: IHDT6EW1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 1 1 Exhibit 11: SAR Test Report IHDT6EW1 Date of test: Date of Report: 04/29/2004 to 05/08/2004 05/13/2004 Laboratory: Motorola Personal Communications Sector Product Safety & Compliance Laboratory 600 N. US Highway 45 Room: MW113 Libertyville, Illinois 60048 Test Responsible: Albert Patapack Senior Staff Engineer Accreditation: This laboratory is accredited to ISO/IEC 17025-1999 to perform the following tests: Tests : Procedures: Electromagnetic Specific Absorption Rate ANSI/IEEE C95.1-1992, 1999 (SAR) IEEE C95.3-1991 IEEE P1528 (DRAFT) FCC OET Bulletin 65 (including Supplements A, B, C) Australian Communications Authority Radio Communications (Electromagnetic Radiation – Human Exposure) Standard 1999 CENELEC EN 50361 (2001) Simulated Tissue Preparation APP-0247 RF Power Measurement DOI-0876, 0900, 0902, 0904, 0915 On the following products or types of products: Wireless Communications Devices (Examples): Two Way Radios; Portable Phones (including Cellular, Licensed Non-Broadcast and PCS); Low Frequency Readers; and Pagers A2LA certificate #1651-01 Statement of Compliance: Motorola declares under its sole responsibility that portable cellular telephone FCC ID IHDT6EW1 to which this declaration relates, is in conformity with the appropriate General Population/Uncontrolled RF exposure standards, recommendations and guidelines (FCC 47 CFR §2.1093). It also declares that the product was tested in accordance with the appropriate measurement standards, guidelines and recommended practices. Any deviations from these standards, guidelines and recommended practices are noted below: (none) ©Motorola, Inc. 2003 This test report shall not be reproduced except in full, without written approval of the laboratory. The results and statements contained herein relate only to the items tested. The names of individuals involved may be mentioned only in connection with the statements or results from this report. Motorola encourages all feedback, both positive and negative, on this test report. APPLICANT: MOTOROLA, INC. FCC ID: IHDT6EW1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 2 2 Table of Contents 1. INTRODUCTION......................................................................................................................................3 2. DESCRIPTION OF THE DEVICE UNDER TEST....................................................................................3 2.1 Antenna description.............................................................................................................................................. 3 2.2 Device description ................................................................................................................................................. 3 3. TEST EQUIPMENT USED........................................................................................................................4 3.1 Dosimetric System................................................................................................................................................. 4 3.2 Additional Equipment .......................................................................................................................................... 4 4. ELECTRICAL PARAMETERS OF THE TISSUE SIMULATING LIQUID.............................................4 5. SYSTEM ACCURACY VERIFICATION..................................................................................................5 6. TEST RESULTS........................................................................................................................................6 6.1 Head Adjacent Test Results ................................................................................................................................. 6 6.2 Body Worn Test Results ....................................................................................................................................... 8 APPENDIX 1: SAR DISTRIBUTION COMPARISON FOR SYSTEM ACCURACY VERIFICATION......9 APPENDIX 2: SAR DISTRIBUTION PLOTS FOR PHANTOM HEAD ADJACENT USE........................10 APPENDIX 3: SAR DISTRIBUTION PLOTS FOR BODY WORN CONFIGURATION...........................12 APPENDIX 4: PROBE CALIBRATION CERTIFICATE...........................................................................14 APPENDIX 5: DIPOLE CHARACTERIZATION CERTIFICATE............................................................15 APPENDIX 6: MEASUREMENT UNCERTAINTY BUDGET...................................................................16 APPENDIX 7: PHOTOGRAPHS OF DEVICE UNDER TEST ....................................................................19 APPLICANT: MOTOROLA, INC. FCC ID: IHDT6EW1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 3 3 1 Introduction The Motorola Personal Communications Sector Product Safety Laboratory has performed measurements of the maximum potential exposure to the user of portable cellular phone (FCC ID IHDT6EW1). The Specific Absorption Rate (SAR) of this product was measured. The portable cellular phone was tested in accordance with FCC OET Bulletin 65 Supplement C 01-01. 2 Description of the Device Under Test 2.1 Antenna description Type Internal Antenna Location Back of Phone Length 20mm Dimensions Width 35mm Configuration FICA Antenna 2.2 Device description FCC ID Number IHDT6EW1 Serial number(s) 6053 & 0687 Mode(s) of Operation GSM 900 GSM 1800 GSM 1900 GPRS 900 GPRS 1800 GPRS 1900 Modulation Mode(s) GSM GSM GSM GSM GSM GSM Maximum Output Power Setting 33.00dBm 30.00dBm 30.00dBm 33.00dBm 30.00dBm 30.00dBm Duty Cycle 1:8 1:8 1:8 2:8 2:8 2:8 Transmitting Frequency Rang(s) 880.2 - 914.8 MHz 1710.2- 1784.8 MHz 1850.2 – 1909.8 Mhz 880.2 - 914.8 MHz 1710.2- 1784.8 MHz 1850.2 – 1909.8 MHz Production Unit or Identical Prototype (47 CFR §2..908) Identical Prototype Device Category Portable RF Exposure Limits General Population / Uncontrolled APPL…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA INC FCC ID: IHDT6EW1 PERSONAL COMMUNICATIONS SECTOR PRODUCT SAFETY AND COMPLIANCE EMC LABORATORY EMC TEST REPORT Test Report Number – 14059-1 Report Date – 18 May 2004 The test results contained herein relate only to the model(s) identified. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical characteristics. As the responsible EMC Engineer, I hereby declare that the equipment tested as specified in this report conforms to the requirements indicated . Signature Name: _Michael E. Hill Title: Senior Electrical Engineer Date : 2004-05-18____ This report must not be reproduced, except in full, without written approval from this laboratory. THIS REPORT MUST NOT BE USED TO CLAIM PRODUCT ENDORSEMENT BY A2LA OR ANY AGENCY OF THE U.S. GOVERNMENT. A2LA Certificate Number: 1846-01 EXHIBIT 6 APPLICANT: MOTOROLA INC FCC ID: IHDT6EW1 Table of Contents Description Page Test Report Details 3 Applicable Standards 3 Summary of Testing 4 General and Special Conditions 4 Equipment and Cable Configurations 5 Measuring Equipment and Calibration Information 5 Measurement Procedures and Data RF Power Output 6 Radiated Power (ERP) 7 Occupied Bandwidth 8 GSM 1900 Reference Plot 9 GSM 1900 Occupied Bandwidth Plot 9 GSM 1900 Ch512 Lower Band Edge 10 GSM 1900 Ch810 Upper Band Edge 10 Spurious Emissions at Antenna Terminals 11 GSM 1900 Tabular and Graphical Data 12 Field Strength of Spurious Emissions 13 GSM 1900 Tabular and Graphical Data 14 Frequency Stability 15 GSM 1900 Tabular and Graphical Data 16 Field Strength of Spurious Emissions from Unintentional Radiators 17 GSM 1900 Tabular and Graphical Data 18 Appendix A - Radiated Emissions Test Setup Photos Figure A.1 – Radiated Emissions Measurement 19 Figure A.2 – Substitution Measurement 19 Test Report Number: 14059-1 EXHIBIT 6 2 APPLICANT: MOTOROLA INC FCC ID: IHDT6EW1 Test Report Details Tests Performed By: Motorola Personal Communications Sector Product Safety and Compliance Group 600 North US Hwy 45 Libertyville, IL 60048 PH (561) 739-2179 Fax (561) 739-2131 Motorola PCS FRN: 0004321311 FCC Registration Number: 316588 Industry Canada Number: IC3908 Tests Requested By: Motorola Inc. Personal Communications Sector 600 North US Hwy 45 Libertyville, IL 60048 Product Type: Cellular Phone Signaling Capability: GSM 1900 Model Number: C380 Version: CFUG1017AA Serial Numbers: 0044000006216020, 0044000006215863 Testing Complete Date: 14 May 2004 Applicable Standards All tests and measurements indicated in this document were performed in accordance with the Code of Federal Regulations Title 47 Part 2, Sub-part J as well as the following parts: X Part 15 Subpart B – Unintentional Radiators Part 22 Subpart H - Public Mobile Services X Part 24 - Personal Communications Services Part 90 - Private Land Mobile Radio Service Applicable Standards: TIA EIA 137-A, TIA EIA 98-C, ANSI 63.4 2001, RSS-118 (AMPS), RSS-128 (TDMA), RSS-129 (CDMA), RSS-133 (PCS) Test Report Number: 14059-1 EXHIBIT 6 3 APPLICANT: MOTOROLA INC FCC ID: IHDT6EW1 Summary of Testing Test Test Name # Pass/Fail 1 RF Power Output NA 2 ERP (Effective Radiated Power) NA 3 Modulation Characteristics Pass 4 Occupied Bandwidth Pass 5 Spurious Emissions at Antenna Terminal Pass 6 Field Strength of Spurious Emissions Pass 7 Frequency Stability Pass 8 Field Strength of Spurious Emissions Pass from Unintentional Radiators Test Test Name Margin with respect # to the Limit_________ 1 RF Power Output NA 2 ERP (Effective Radiated Power) NA 3 Modulation Characteristics NA 4 Occupied Bandwidth See Plots 5 Spurious Emissions at Antenna Terminal 23.3 dB 6 Field Strength of Spurious Emissions 6.3dB 7 Frequency Stability 56.00 Hz 8 Field Strength of Spurious Emissions Below noise floor from Unintentional Radiators The margin with respect to the limit is the minimum margin for all modes and bands. ( ) indicates the margin at which the product exceeds the limit. General and Special Conditions The EUT was tested using a fully charged battery when applicable. Where a battery could not be used due to the need for a controlled variation of input voltage, an external power supply was utilized. All testing was done in an indoor controlled environment with an average temperature of 22º C and relative humidity of 50%. Test Report Number: 14059-1 EXHIBIT 6 4 APPLICANT: MOTOROLA INC FCC ID: IHDT6EW1 Equipment and Cable Configurations The EUT was tested in a stand-alone configuration that is representative of typical use. Measuring Equipment and Calibration Information ETSDRG Horn Antenna31156222 A.H. Systems Inc.DRG Horn AntennaSAS-200/5712654/29/2004 ETSLog-Periodic Antenna314811894/29/2004 ETSBiconical Antenna3110B33694/29/2004 ETSBiconical Antenna3110B337011/14/2004 AttenuatorWeinschel AS-6667510/14/2004 AttenuatorWeinschel AS-6667711/4/2004 Rohde & SchwarzMobile Test SetCMD 80DE29008N/A Hewl et t Packard Signal Generator 83623B 3844A01195 5/20/2004 ThermotronEnvironmental ChamberS-4315801/5/2005 Hewlett PackardPre-Amplifier8347A11/4/2004 Hewlett PackardPre-Amplifier8447F2805A034195/19/2004 AgilentPower MeterEE4418B12/5/2004 AgilentSensorE4412B11/23/2004 All equipment is on a one-year calibration cycle. Test Report Number: 14059-1 EXHIBIT 6 5 APPLICANT: MOTOROLA INC FCC ID: IHDT6EW1 Measurement Procedures and Data RF POWER OUTPUT Measurement Procedure The RF output port of the equipment under test is directly coupled to the input of a HPE4406A Vector Signal Analyzer through a 10dB passive attenuator, adaptor (if needed), and specialized RF connector. The peak power output is measured for all channels. CFR47 Part 2.1046 Measurement Results GSM 1900 Frequency (MHz) Power (dBm) 1850.20 30.05 1880.00 30.10 1909.80 29.98 Test Report Number: 14059-1 EXHIBIT 6 6 APPLICANT: MOTOROLA INC FCC ID: IHDT6EW1 RADIATED (ERP) Measurement Procedure The phone was tested in a 16’ anechoic chamber with a 2-axis position system that permits…

Text truncated - open the document above for the full version.
