IHDT6FA1Bluetooth Headset

™ ® ©2005 OAKLEY, INC. 6809494A40 RazrWire_Quickstart BW Final 8.25 x 5.25 5/11/05 9:31 AM Page 2 DR A F T D R A F T Motorola, Inc.Consumer Advocacy Office1307 East Algonquin RoadSchaumburg, IL 60196www.hellomoto.comMOTOROLA and the Stylized M Logo are registered in the US Patent & Trademark Office. The Bluetooth trademarks are owned by their proprietor and used by Motorola, Inc. under license. All other product or service names are the property of their respective owners.© Motorola, Inc., 2005.Caution: Changes or modifications made in the phone or Bluetooth unit, not expressly approved by Motorola, will void the user’s authority to operate the equipment.Manual Number: 6809494A40-OCertain mobile phone features are dependent on the capabilities and settings of your service provider’s network. Additionally, certain features may not be activated by your service provider, and/or the provider's network settings may limit the feature’s functionality. Always contact your service provider about feature availability and functionality. All features, functionality, and other product specifications, as well as the information contained in this user's guide are based upon the latest available information and are believed to be accurate at the time of printing. Motorola reserves the right to change or modify any information or specifications without notice or obligation. Oakley, Inc.One IconFoothill Ranch, CA 92610www.oakley.com © 2005 Oakley, Inc. Oakley, Ellipse logo, O Matter, Plutonite, Microclear, Razrwire, Unobtainium, and XYZ Optics are trademarks or registered trademarks of Oakley, Inc. in the United States and other countries. All other brand and product names listed are trademarks or registered trademarks of their respective holders and are hereby recognized as such. Sunglasses Made in USA & Bluetooth Unit Made in China.U.S. Patent Nos. owned by Oakley, Inc.: 5.648.832, 5.689.323, 5.969.789, 6.010.218, 6.168.271 B1, 5.054.903, 5.137.342, 5.054.902. Additional U.S. and international patents pending. 2 ® TM OAKLEY ® RAZRWIRE™ is the first eyewear to combine patented Oakley optics with wireless Bluetooth ® technology. It frees you from wires by offering hands-free mobile communications anywhere and everywhere you want to be. Fully integrated electronics let you easily handle incoming and outgoing calls to your Bluetooth enabled cell phone from a range of up to thirty-three feet. Answer a call instantly without digging for your cell phone. Carry on a phone conversation without being tethered by a headset wire. The ultra-lightweight design offers the comfort, protection and clarity of Oakley optics combined with third-generation Motorola Bluetooth technology.RAZRWIRE features Oakley's patented XYZ Optics ® , an innovation that maximizes clarity at all angles of visi on. The semi-rimless design means there's no frame rim to block your downward view, and the durable Plutonite ® lens material blocks all UV. For durability and all-day comfort, the frame is made of O Luminum, an alloy 40% lighter than pure titanium. The adjustable design lets you reposition the speaker to wherever it is comfortable. Custom engineered spring hinges provide a secure, adaptable fit, and soft Unobtainium ® components increase grip with perspiration. You also get the optical precision and impact protection found in Oakley's premium performance eyewear. Package Contents • Sunglasses (Eyewear) • Bluetooth Unit • Wall Charger • User’s Guide (this booklet) • MicroClear™ bag for cleaning and storage • Accessories Card • Oakley Registration Card • Rx Ready Card ContentsCharging the Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3Assembling RAZRWIRE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Mounting the Unit on your Ey ewear . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Removing the Unit from your Eyewear . . . . . . . . . . . . . . . . . . . . . . . . 4 Pairing RAZRWIRE with your Phone . . . . . . . . . . . . . . . . . . . . . . . . . . 4Using RAZRWIRE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Adjusting RAZRWIRE for a Comfortable Fit . . . . . . . . . . . . . . . . . . . . 5Answering & Ending a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5Turning the Unit On & Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Advanced RAZRWIRE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Making Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6Redialing the Last Dialed Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6Adjusting the Volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6Transferring Calls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6Placing a Call on Mute . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6Toggling Phone Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6Mounting the Unit on the Left Side of your Eyewear . . . . . . . . . . . . . 7 RAZRWIRE Indicator Light and Audio Tone States . . . . . . . . . . . . . . 8Safety and General Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9Support. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10Consumer Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 3 Charging the Unit Important: Charge the Bluetooth unit for 2.5 hours before using it the first time. To charge the unit:1 Plug the charger plug into a electrical wall outlet. 2 Open the rubber cover on the top part of the unit and plug the silver side of the charger cable into the charging port. Be sure to align the plug correctly. If the plug does not connect to the unit easily, try flipping it over and re-inserting. The indicator lig…

Text truncated - open the document above for the full version.

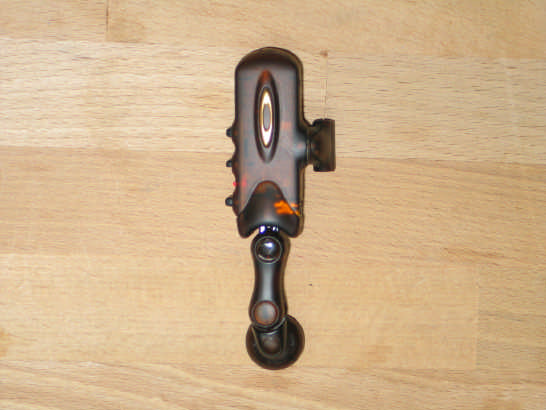

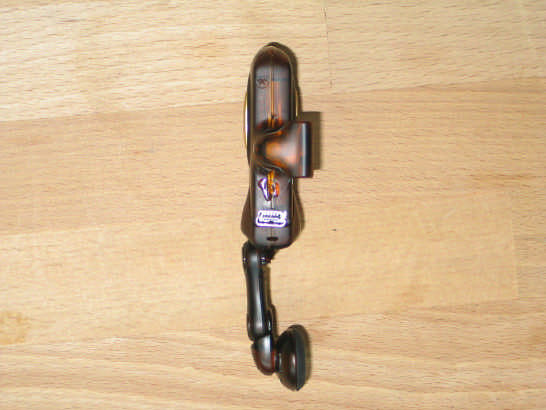

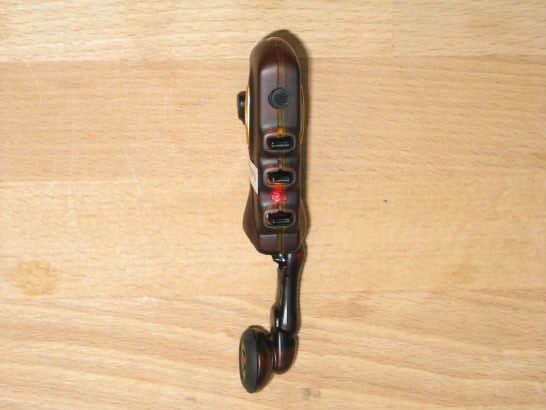

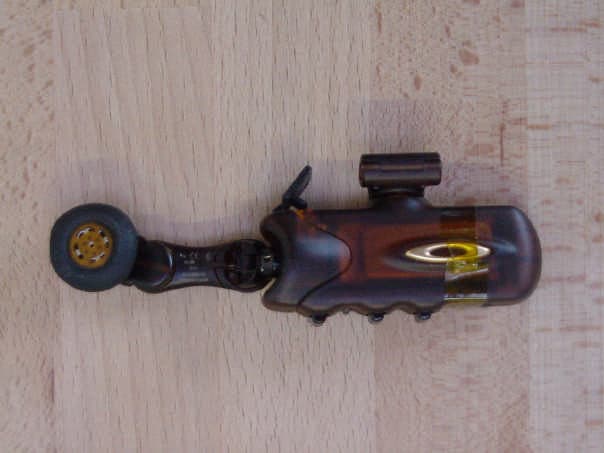

Annex I: Photos Test report reference: 4_MOT_0405_TAS_FCCb Page 3 of 6 Photo 2: EUT (front side) Annex I: Photos Test report reference: 4_MOT_0405_TAS_FCCb Page 4 of 6 Photo 3: EUT (rear side) Annex I: Photos Test report reference: 4_MOT_0405_TAS_FCCb Page 5 of 6 Photo 4: EUT (left side) Annex I: Photos Test report reference: 4_MOT_0405_TAS_FCCb Page 6 of 6 Photo 5: EUT (right side) Annex I: Photos Test report reference: 4_MOT_0405_TAS_FCCa Page 4 of 7 Photo 3: EUT (front side) Annex I: Photos Test report reference: 4_MOT_0405_TAS_FCCa Page 5 of 7 Photo 4: EUT (rear side) Annex I: Photos Test report reference: 4_MOT_0405_TAS_FCCa Page 6 of 7 Photo 5: AC charger (bottom side) Annex I: Photos Test report reference: 4_MOT_0405_TAS_FCCa Page 7 of 7 Photo 6: AC charger (left side) Vol Up Vol Dwn MFB

7 layers AG Aufsichtsratsvorsitzenderh Registergerichth registered in: Borsigstrasse 11 Chairman of the Supervisory Board: Düsseldorf, HRB 44096 40880 Ratingen, Germany Michael Abels USt-IdNr h VAT Nr: Phone: +49 (0) 2102 749 0 Vorstandh Board: DE 203159652 Fax: +49 (0) 2102 749 350 Dr. Hans-Jürgen Meckelburg www.7Layers.com René Schildknecht InterLab  is a registered trademark of 7 layers AG FCC Measurement/Technical Report on Bluetooth ® transceiver Oakley Razrwire Model # H7 Report Reference: 4_MOT_0405_TAS_FCCa Test Laboratory: 7 layers AG Borsigstrasse 11 40880 Ratingen Germany email: [email protected] TTI-P-G 178/99 Note: The following test results relate only to the devices specified in this document. This report shall not be reproduced in parts without the written approval of the testing laboratory. Testreport Reference: 4_MOT_0405_TAS_FCCa Page 2 of 53 Table of Contents 0 Summary 3 0.1 Technical Report Summary 3 0.2 Measurement Summary 4 1 Administrative Data 6 1.1 Testing Laboratory 6 1.2 Project Data 6 1.3 Applicant Data 6 1.4 Manufacturer Data 6 2 Product labeling 7 2.1 FCC ID label 7 2.2 Location of the label on the EUT 7 3 Test object Data 8 3.1 General EUT Description 8 3.2 EUT Main components 9 3.3 Ancillary Equipment 9 3.4 EUT Setups 9 3.5 Operating Modes 9 4 Test Results 10 4.1 Conducted emissions (AC power line) 10 4.2 Occupied bandwidth 12 4.3 Peak power output 14 4.4 Spurious RF conducted emissions 16 4.5 Spurious radiated emissions 18 4.6 Band edge compliance 22 4.7 Dwell time 24 4.8 Channel separation 26 4.9 Number of hopping frequencies 27 5 Test Equipment 28 6 Photo Report 31 7 Setup Drawings 34 8 Annex measurement plots 35 8.1 AC Mains conducted 35 8.2 Occupied bandwidth 36 8.3 Peak power output 39 8.4 Band edge compliance conducted and Spurious RF conducted emission 42 8.5 Dwell time 49 8.6 Channel separation 52 8.7 Number of hopping frequencies 53 Testreport Reference: 4_MOT_0405_TAS_FCCa Page 3 of 53 0 Summary 0.1 Technical Report Summary Type of Authorization Certification for an Intentional Radiator (Frequency Hopping Spread Spectrum). Applicable FCC Rules Prepared in accordance with the requirements of FCC Rules and Regulations as listed in 47 CFR Ch.1 Parts 2 (2001-10-01 Edition) and 15 (2004-07-12 Edition). The following subparts are applicable to the results in this test report. Part 2, Subpart J - Equipment Authorization Procedures, Certification Part 15, Subpart C – Intentional Radiators § 15.201 Equipment authorization requirement § 15.207 Conducted limits § 15.209 Radiated emission limits; general requirements § 15.247 Operation within the bands 902-928 MHz, 2400-2483,5 MHz and 5725-5850 MHz Note: The tests were selected and performed with reference to the FCC Public Notice DA 00- 705, released March 30, 2000 Instead of applying ANSI C63.4-1992 which is referenced in the FCC Public Note, the newer ANSI C63.4-2003 is applied. Summary Test Results: The EUT complied with all performed tests as listed in chapter 0.2 Measurement Summary. Testreport Reference: 4_MOT_0405_TAS_FCCa Page 4 of 53 0.2 Measurement Summary FCC Part 15, Subpart C § 15.207 Conducted emissions (AC power line) The measurement was performed according to ANSI C63.4 2003 OP-Mode Setup Port Final Result op-mode 5 Setup_a02 AC Port (power line) passed FCC Part 15, Subpart C § 15.247 (a) (1) Occupied bandwidth The measurement was performed according to FCC § 15.31 2004 OP-Mode Setup Port Final Result op-mode 1 Setup_b01 Temp.ant.connector passed op-mode 2 Setup_b01 Temp.ant.connector passed op-mode 3 Setup_b01 Temp.ant.connector passed FCC Part 15, Subpart C § 15.247 (b) (1) Peak power output The measurement was performed according to FCC § 15.31 2004 OP-Mode Setup Port Final Result op-mode 1 Setup_b01 Temp.ant.connector passed op-mode 2 Setup_b01 Temp.ant.connector passed op-mode 3 Setup_b01 Temp.ant.connector passed FCC Part 15, Subpart C § 15.247 (d) Spurious RF conducted emissions The measurement was performed according to FCC § 15.31 2004 OP-Mode Setup Port Final Result op-mode 1 Setup_b01 Temp.ant.connector passed op-mode 2 Setup_b01 Temp.ant.connector passed op-mode 3 Setup_b01 Temp.ant.connector passed FCC Part 15, Subpart C § 15.247 (d), § 15.35 (b), § 15.209 Spurious radiated emissions The measurement was performed according to ANSI C63.4 2003 OP-Mode Setup Port Final Result op-mode 1 Setup_a01 Enclosure passed op-mode 2 Setup_a01 Enclosure passed op-mode 3 Setup_a01 Enclosure passed FCC Part 15, Subpart C § 15.247 (d) Band edge compliance The measurement was performed according to FCC § 15.31 (2004) / ANSI C63.4 (2003) 2004 / 2003 OP-Mode Setup Port Final Result op-mode 1 Setup_b01 Temp.ant.connector passed op-mode 3 Setup_a01 Enclosure passed Testreport Reference: 4_MOT_0405_TAS_FCCa Page 6 of 53 1 Administrative Data 1.1 Testing Laboratory Company Name: 7 Layers AG Address Borsigstr. 11 40880 Ratingen Germany This facility has been fully described in a report submitted to the FCC and accepted under the registration number 96716 . The test facility is also accredited by the following accreditation organisation: - Deutscher Akkreditierungs Rat DAR-Registration no. TTI-P-G 178/99 Responsible for Accreditation Scope: Dipl.-Ing. Bernhard Retka Dipl.-Ing. Arndt Stöcker Dipl.-Ing. Thomas Hoell Report Template Version: 2005-04-26 1.2 Project Data Responsible for testing and report: Dipl.-Ing. Robert Machulec Date of Test(s): 2005-04-21 to 2005-05-04 Date of Report: 2005-05-04 1.3 Applicant Data Company Name: Motorola Inc. Energy Systems Group Address: 1700 Belle Meade Ct Lawrenceville, GA 30043 USA Contact Person: Michael Calendine Phone +1(0) 770-338-3363 FAX +1(0) 847-761-3277 1.4 Manufacturer Data Company Name: please see applicant data Address: Contact Person: Testreport Reference: 4_MOT_0405_TAS_FCCa Page 7 of 53 2 Product labeling 2.1 FCC ID label At the time of the report there was no FCC label available. 2.2 Location of the label on the EUT see above Testreport Reference: 4_MO…

Text truncated - open the document above for the full version.

Error! Reference source not found. Page 1 of 1 Annex II: test modes (power supply) Test report reference: 4_MOT_0405_TAS_FCCa Date: 2005-05-04 The device can be charged by a AC charger or a USB interface. After performing a pre- scan it could be seen that the AC power supply can be considered as the worst case so only this mode was tested.

7 layers AG Aufsichtsratsvorsitzenderh Registergerichth registered in: Borsigstrasse 11 Chairman of the Supervisory Board: Düsseldorf, HRB 44096 40880 Ratingen, Germany Michael Abels USt-IdNr h VAT Nr: Phone: +49 (0) 2102 749 0 Vorstandh Board: DE 203159652 Fax: +49 (0) 2102 749 350 Dr. Hans-Jürgen Meckelburg www.7Layers.com René Schildknecht InterLab  is a registered trademark of 7 layers AG FCC Measurement/Technical Report on Bluetooth ® transceiver Oakley Razrwire Model # H7 Report Reference: 4_MOT_0405_TAS_FCCb Test Laboratory: 7 layers AG Borsigstrasse 11 40880 Ratingen Germany email: [email protected] DAT-P-192/99-01 Note: The following test results relate only to the devices specified in this document. This report shall not be reproduced in parts without the written approval of the testing laboratory. Testreport Reference: 4_MOT_0405_TAS_FCCb Page 2 of 19 Table of Contents 0 Summary 3 0.1 Technical Report Summary 3 0.2 Measurement Summary 4 1 Administrative Data 6 1.1 Testing Laboratory 6 1.2 Project Data 6 1.3 Applicant Data 6 1.4 Manufacturer Data 6 2 Product labeling 7 2.1 FCC ID label 7 2.2 Location of the label on the EUT 7 3 Test object Data 8 3.1 General EUT Description 8 3.2 EUT Main components 9 3.3 Ancillary Equipment 9 3.4 EUT Setups 9 3.5 Operating Modes 9 4 Test Results 10 4.1 Spurious radiated emissions 10 5 Test Equipment 14 6 Photo Report 17 7 Setup Drawings 19 Testreport Reference: 4_MOT_0405_TAS_FCCb Page 3 of 19 0 Summary 0.1 Technical Report Summary Type of Authorization Certification for an Intentional Radiator (Frequency Hopping Spread Spectrum). Applicable FCC Rules Prepared in accordance with the requirements of FCC Rules and Regulations as listed in 47 CFR Ch.1 Parts 2 (2001-10-01 Edition) and 15 (2004-07-12 Edition). The following subparts are applicable to the results in this test report. Part 2, Subpart J - Equipment Authorization Procedures, Certification Part 15, Subpart C – Intentional Radiators § 15.201 Equipment authorization requirement § 15.207 Conducted limits § 15.209 Radiated emission limits; general requirements § 15.247 Operation within the bands 902-928 MHz, 2400-2483,5 MHz and 5725-5850 MHz Note: The tests were selected and performed with reference to the FCC Public Notice DA 00- 705, released March 30, 2000 Instead of applying ANSI C63.4-1992 which is referenced in the FCC Public Note, the newer ANSI C63.4-2003 is applied. Summary Test Results: The EUT complied with all performed tests as listed in chapter 0.2 Measurement Summary. Testreport Reference: 4_MOT_0405_TAS_FCCb Page 4 of 19 0.2 Measurement Summary FCC Part 15, Subpart C § 15.207 Conducted emissions (AC power line) The measurement was performed according to ANSI C63.4 2003 OP-Mode Setup Port Final Result op-mode 5 - AC Port (power line) N/P FCC Part 15, Subpart C § 15.247 (a) (1) Occupied bandwidth The measurement was performed according to FCC § 15.31 2004 OP-Mode Setup Port Final Result op-mode 1 - Temp.ant.connector N/P op-mode 2 - Temp.ant.connector N/P op-mode 3 - Temp.ant.connector N/P FCC Part 15, Subpart C § 15.247 (b) (1) Peak power output The measurement was performed according to FCC § 15.31 2004 OP-Mode Setup Port Final Result op-mode 1 - Temp.ant.connector N/P op-mode 2 - Temp.ant.connector N/P op-mode 3 - Temp.ant.connector N/P FCC Part 15, Subpart C § 15.247 (d) Spurious RF conducted emissions The measurement was performed according to FCC § 15.31 2004 OP-Mode Setup Port Final Result op-mode 1 - Temp.ant.connector N/P op-mode 2 - Temp.ant.connector N/P op-mode 3 - Temp.ant.connector N/P FCC Part 15, Subpart C § 15.247 (d), § 15.35 (b), § 15.209 Spurious radiated emissions The measurement was performed according to ANSI C63.4 2003 OP-Mode Setup Port Final Result op-mode 1 Setup_c01 Enclosure passed op-mode 2 Setup_c01 Enclosure passed op-mode 3 Setup_c01 Enclosure passed FCC Part 15, Subpart C § 15.247 (d) Band edge compliance The measurement was performed according to FCC § 15.31 (2004) / ANSI C63.4 (2003) 2004 / 2003 OP-Mode Setup Port Final Result op-mode 1 - Temp.ant.connector N/P op-mode 3 - Enclosure N/P Testreport Reference: 4_MOT_0405_TAS_FCCb Page 6 of 19 1 Administrative Data 1.1 Testing Laboratory Company Name: 7 Layers AG Address Borsigstr. 11 40880 Ratingen Germany This facility has been fully described in a report submitted to the FCC and accepted under the registration number 96716 . The test facility is also accredited by the following accreditation organisation: - Deutscher Akkreditierungs Rat DAR-Registration no. DAT-P-192/99-01 Responsible for Accreditation Scope: Dipl.-Ing. Bernhard Retka Dipl.-Ing. Arndt Stöcker Dipl.-Ing. Thomas Hoell Report Template Version: 2005-04-26 1.2 Project Data Responsible for testing and report: Dipl.-Ing. Robert Machulec Date of Test(s): 2005-06-10 Date of Report: 2004-06-13 1.3 Applicant Data Company Name: Motorola Inc. Energy Systems Group Address: 1700 Belle Meade Ct Lawrenceville, GA 30043 USA Contact Person: Michael Calendine Phone +1(0) 770-338-3363 FAX +1(0) 847-761-3277 1.4 Manufacturer Data Company Name: please see applicant data Address: Contact Person: Testreport Reference: 4_MOT_0405_TAS_FCCb Page 7 of 19 2 Product labeling 2.1 FCC ID label At the time of the report there was no FCC label available. 2.2 Location of the label on the EUT see above Testreport Reference: 4_MOT_0405_TAS_FCCb Page 8 of 19 3 Test object Data 3.1 General EUT Description Equipment under Test Bluetooth ® transceiver Type Designation: Oakley Razrwire Model # H7 Kind of Device: (optional) Bluetooth ® headset Voltage Type: AC / DC Voltage level: 115 V / 3.6 V General product description: Bluetooth is a short-range radio link intended to be a cable replacement between portable and/or fixed electronic devices. Bluetooth operates in the unlicensed ISM Band at 2.4 GHz. In the US a band of 83.5 MHz width is available. In this band, the Bluetooth technology defines 79 RF channels spaced 1 MHz (2402 - 2480 MHz). The actual RF channel is chos…

Text truncated - open the document above for the full version.

Annex I: Photos Test report reference: 4_MOT_0405_TAS_FCCa Page 2 of 7 1 Photo Report Photo 1: Test setup for radiated measurements Annex I: Photos Test report reference: 4_MOT_0405_TAS_FCCa Page 3 of 7 Photo 2: Setup for the test conducted emissions (AC power line)

Annex I: Photos Test report reference: 4_MOT_0405_TAS_FCCb Page 2 of 6 1 Photo Report Photo 1: Test setup for radiated measurements
