APPLICANT: MOTOROLA, INC. FCC ID: IHDT6FF2 EXHIBIT 8 INSTRUCTION MANUAL A preliminary draft copy of the Users Manual follows: motorola.com V361 GSM Cover.Print.Front.UG.landscape-V361.fm Page 1 Wednesday, November 30, 2005 3:57 PM 1 HELLOMOTOIntroducing your new Motorola V361 GSM wireless phone. Here’s a quick anatomy lesson. Smart Key Make & answer calls. Go handsfree. Open menus.Navigate menus.Select menu items. Right Soft KeyVoice dial.Turn on & off, hang up, exit menus.Charge up. Volume Keys Left Soft Key 2 Home Screen Main Menu Press and hold the Power Key u for a few seconds to turn on your phone. 1 Press the Navigation Key up, down, left, or right ( S ) to highlight a menu feature. Press the Center Key in ( s ) to select it. 3 Press the Main Menu soft key to open theMain Menu . 2 Games & Apps Exit Select Service Provider 12:00 Setup Home Camera 3 Motorola, Inc.Consumer Advocacy Office1307 East Algonquin RoadSchaumburg, IL 60196www.hellomoto.com1-800-331-6456 (United States)1-888-390-6456 (TTY/TDD United States for hearing impaired)1-800-461-4575 (Canada)Certain mobile phone features are dependent on the capabilities and settings of your service provider’s network. Additionally, certain features may not be activated by your service provider, and/or the provider's network settings may limit the feature’s functionality. Always contact your service provider about feature availability and functionality. All features, functionality, and other product specifications, as well as the information contained in this user's guide are based upon the latest available information and are believed to be accurate at the time of printing. Motorola reserves the right to change or modify any information or specifications without notice or obligation.MOTOROLA and the Stylized M Logo are registered in the US Patent & Trademark Office. All other product or service names are the property of their respective owners. The Bluetooth trademarks are owned by their proprietor and used by Motorola, Inc. under license. Java and all other Java-based marks are trademarks or registered trademarks of Sun Microsystems, Inc. in the U.S. and other countries. © Motorola, Inc., 2005. Caution: Changes or modifications made in the radio phone, not expressly approved by Motorola, will void the user’s authority to operate the equipment.Manual Number: 6809497A90-O 4 contents contentsmenu map . . . . . . . . . . . . 6Use and Care . . . . . . . . . . 8essentials . . . . . . . . . . . . . 9 about this guide. . . . . . . 9SIM card . . . . . . . . . . . 10battery . . . . . . . . . . . . . 10turn it on & off . . . . . . . 12make a call. . . . . . . . . . 13answer a call . . . . . . . . 13store a phone number . 13call a stored phone number . . . . . . . . . . . . 14your phone number . . . 14 main attractions . . . . . . 15 digital audio player . . . . 15take & send a photo . . 17record & send a video . 19memory card . . . . . . . . 20 cable connections . . . . 23Bluetooth™ wireless . . 23 basics . . . . . . . . . . . . . . . 28 display . . . . . . . . . . . . . 28text entry . . . . . . . . . . . 31volume. . . . . . . . . . . . . 35navigation key . . . . . . . 35smart key. . . . . . . . . . . 35external display . . . . . . 36handsfree speaker . . . . 36codes & passwords . . . 36lock & unlock phone . . 37 customize. . . . . . . . . . . . 38 ring style . . . . . . . . . . . 38time & date . . . . . . . . . 39wallpaper . . . . . . . . . . . 39screen saver . . . . . . . . 40display appearance . . . 40 answer options . . . . . . 41 calls. . . . . . . . . . . . . . . . . 42 turn off a call alert . . . . 42recent calls . . . . . . . . . 42redial . . . . . . . . . . . . . . 43return a call . . . . . . . . . 43caller ID . . . . . . . . . . . . 44emergency calls . . . . . 44voicemail . . . . . . . . . . . 45 other features . . . . . . . . 46 advanced calling . . . . . 46phonebook. . . . . . . . . . 50messages . . . . . . . . . . 54personalizing . . . . . . . . 57call times & costs . . . . 60handsfree . . . . . . . . . . 61data & fax calls . . . . . . 62network . . . . . . . . . . . . 63 5 contents personal organizer . . . 63security. . . . . . . . . . . . 65fun & games. . . . . . . . 65 service and repairs . . . . 68SAR Data. . . . . . . . . . . . 69index . . . . . . . . . . . . . . . 71 6 menu map menu map main menun Phonebook s Recent Calls • Received Calls• Dialed Calls• Notepad•Call Times*•Call Cost*•Data Times*•Data Volumes* e Messages • Create Message•EmailMsgs• Message Inbox•Voicemail• Browser Msgs• Info Services *•Quick Notes• Outbox•Drafts• MMS Templates É Tools • SIM Tool Kit Apps *• Calculator• Datebook• Shortcuts•Alarm Clock• Dialing Services •Fixed Dial* Q Games & Apps á Web Access * •Browser• Web Shortcuts• Stored Pages•History•Go To URL•Browser Setup• Web Sessions * h Multimedia • Pictures•Camera• Sounds• Video Camera• Videos E Bluetooth™ Link • Handsfree• Device History• Setup w Settings • (see next page) * optional features This is the standard main menu layout. Your phone’s menu may be different. 7 menu map settings menul Personalize • Home Screen•Main Menu•Skin• Greeting• Wallpaper • Screen Saver t Ring Styles •Style• style Detail L Connection •Sync• USB Settings H Call Forward * •Voice Calls• Fax Calls• Data Calls• Cancel All• Forward Status U In-Call Setup • In-Call Timer• Call Cost Setup *• My Caller ID• Talk and Fax• Answer Options• Call Waiting Z Initial Setup • Time and Date• 1-Touch Dial• Display Timeout• Backlight• TTY Setup *•Scroll• Language• Brightness•DTMF• Master Reset•Master Clear m Phone Status • My Tel. Numbers• Credit Info/Available *• Active Line *•Battery Meter• Storage Devices• Other Information S Headset • Auto Answer• Voice Dial J Car Settings • Auto Answer• Auto Handsfree• Power-Off Delay• Charger Time j Network •New Network•Network Setup• Available Networks• My Network List *• Network Jingle *• Call Drop Tone u Security • Phone Lock• Lock Application• Fixed Dial *• Restrict Calls *• Call Barring *• SIM P…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA, INC. FCC ID: IHDT6FF2 ATTESTATION STATEMENTS Transceiver type: FCC ID:IHDT6FF2 has been tested in accordance with the requirements contained in the appropriate Commission regulations. To the best of my knowledge, these tests were performed using measurement procedures consistent with industry or Commission standards and demonstrate that this equipment complies with the appropriate standards. Each unit manufactured imported or marketed, will conform to the sample tested within the variations that can be expected due to quantity production and testing on a statistical basis. I further certify that the necessary measurements were made at Motorola, located at Motorola, located at 600 NORTH US HIGHWAY 45, LIBERTYVILLE , ILLINOIS. NAME: Then Yeow Seng TITLE: Senior Engineer Manager PERSONAL COMMUNICATIONS SECTOR EXHIBIT 2A APPLICANT: MOTOROLA, INC. FCC ID: IHDT6FF2 STATEMENT OF CERTIFICATION I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in this application and accompanying technical data are true and correct. The technical data supplied with this application was taken under my supervision and is hereby duly certified. I also certify that this transmit equipment (FCC ID: IHDT6FF2 ) is in compliance with all applicable parts of the FCC Rules. NAME: Chan Chin Sen TITLE: Electrical Lead, Malta Date: 12/12/05 EXHIBIT 2B

APPLICANT: MOTOROLA FCC ID: IHDT6FF2 December 13, 2005 CONFIDENTIALITY REQUEST CONTAINED WITHIN Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Application for Cellular/PCS Transceiver Certification Gentlemen: Application: Motorola, Inc., Personal Communications Sector, 600 N. U.S. Highway 45, Libertyville, Illinois 60048-1286 herein submits: Application for Equipment Authorization for Certification of a Cellular Transceiver, FCC ID: IHDT6FF2. Motorola is also the manufacturer of this equipment. Confidentiality: Pursuant to Section 0.459 of the Commission's rules (CFR 47), Motorola requests confidentiality for portions of the material contained in this application and that the identified material be withheld from public inspection following the grant of this authorization. This material contains Motorola's trade secrets and confidential information that Motorola does not customarily release to the public and which is otherwise not generally available to the public. Confidentiality is requested for the following exhibits: • Exhibit 4 Block Diagrams • Exhibit 5 Schematics • Exhibit 10 Parts List • Exhibit 12 Operational Description Description: This equipment is a GSM portable transceiver, which operates in 1900 MHz PCS band. The unit also contains a 2.4 GHz Bluetooth transmitter (Part 15.247). Note: This device contains 900 MHz and 1800 MHz GSM, functions which are not operational in U.S. territories. Contact Information: Please contact me by telephone at (847) 523-6167, or by e-mail ( [email protected]), if there are questions or additional information needed concerning this filing. Regards, Andrew J. Bachler FCC Liaison Mobile Device Business 600 N. U.S. Highway 45 Libertyville, IL 60048-5343 Exhibit 13

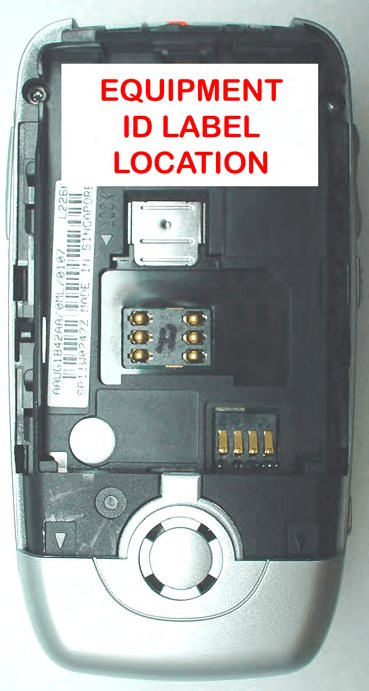

APPLICANT: MOTOROLA, INC. FCC ID: IHDT6FF2 EXHIBIT 3A Front View Flip Opened Rear View Flip Opened APPLICANT: MOTOROLA, INC. FCC ID: IHDT6FF2 EXHIBIT 3B Rear View with Battery Cover Removed Showing ID Label Rear View Front View

APPLICANT: MOTOROLA INC. FCC ID: IHDT6FF2 FCC IDENTIFICATION (NAMEPLATE) INFORMATION FCC ID: IHDT6FF2 The FCC label shown is representative of the label that will appear on the radio when in production. It will be placed on the outside of the equipment as shown in Exhibit 3. Other information may also be included on this label. EXHIBIT 1

APPLICANT:MOTOROLA,INC.FCCID:IHDT6FF2 EXHIBIT9 FrontView RearView RearViewwithoutshields APPLICANT:MOTOROLA,INC.FCCID:IHDT6FF2 EXHIBIT9 Inside Rear Housing Inside Front Housing

APPLICANT: MOTOROLA, INC. FCC ID: IHDT6FF2 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 1 1 Exhibit 11: SAR Test Report IHDT6FF2 Date of test: Date of Report: 12/23/2005 through 12/29/2005 1/3/2006 Laboratory: Motorola Mobile Devices Business Product Safety & Compliance Laboratory 600 N. US Highway 45 Room: MW113 Libertyville, Illinois 60048 Test Responsible: Paul Ma RF Engineer Accreditation: This laboratory is accredited to ISO/IEC 17025-1999 to perform the following tests: Tests : Procedures: Electromagnetic Specific Absorption Rate ANSI/IEEE C95.1-1992, 1999 (SAR) IEEE C95.3-1991 IEEE 1528, IEC 62209-1 FCC OET Bulletin 65 (including Supplements A, B, C) Australian Communications Authority Radio Communications (Electromagnetic Radiation – Human Exposure) Standard 1999 CENELEC EN 50361 (2001) Simulated Tissue Preparation APP-0247 RF Power Measurement DOI-0876, 0900, 0902, 0904, 0915 On the following products or types of products: Wireless Communications Devices (Examples): Two Way Radios; Portable Phones (including Cellular, Licensed Non-Broadcast and PCS); Low Frequency Readers; and Pagers A2LA certificate #1651-01 Statement of Compliance: Motorola declares under its sole responsibility that portable cellular telephone FCC ID IHDT6FF2 to which this declaration relates, is in conformity with the appropriate General Population/Uncontrolled RF exposure standards, recommendations and guidelines (FCC 47 CFR §2.1093). It also declares that the product was tested in accordance with the appropriate measurement standards, guidelines and recommended practices. Any deviations from these standards, guidelines and recommended practices are noted below: (none) ©Motorola, Inc. 2005 This test report shall not be reproduced except in full, without written approval of the laboratory. The results and statements contained herein relate only to the items tested. The names of individuals involved may be mentioned only in connection with the statements or results from this report. Motorola encourages all feedback, both positive and negative, on this test report. APPLICANT: MOTOROLA, INC. FCC ID: IHDT6FF2 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 2 2 Table of Contents 1. INTRODUCTION ...................................................................................................................................................3 2. DESCRIPTION OF THE DEVICE UNDER TEST.............................................................................................3 2.1 Antenna description ..............................................................................................................................................3 2.2 Device description..................................................................................................................................................3 3. TEST EQUIPMENT USED....................................................................................................................................4 3.1 Dosimetric System .................................................................................................................................................4 3.2 Additional Equipment...........................................................................................................................................4 4. ELECTRICAL PARAMETERS OF THE TISSUE SIMULATING LIQUID ..................................................4 5. SYSTEM ACCURACY VERIFICATION............................................................................................................5 6. TEST RESULTS......................................................................................................................................................6 6.1 Head Adjacent Test Results..................................................................................................................................6 6.2 Body Worn Test Results .......................................................................................................................................8 APPENDIX 1: SAR DISTRIBUTION COMPARISON FOR SYSTEM ACCURACY VERIFICATION .....11 APPENDIX 2: SAR DISTRIBUTION PLOTS FOR PHANTOM HEAD ADJACENT USE ..........................12 APPENDIX 3: SAR DISTRIBUTION PLOTS FOR BODY WORN CONFIGURATION ..............................13 APPENDIX 4: PROBE CALIBRATION CERTIFICATE ..................................................................................14 APPENDIX 5: MEASUREMENT UNCERTAINTY BUDGET..........................................................................15 APPENDIX 6: PHOTOGRAPHS OF DEVICE UNDER TEST...........................................................................18 APPLICANT: MOTOROLA, INC. FCC ID: IHDT6FF2 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 3 3 1 Introduction The Motorola Mobile Devices Business Product Safety Laboratory has performed measurements of the maximum potential exposure to the user of portable cellular phone (FCC ID IHDT6FF2). The Specific Absorption Rate (SAR) of this product was measured. The portable cellular phone was tested in accordance with FCC OET Bulletin 65 Supplement C 01-01. 2 Description of the Device Under Test 2.1 Antenna description Type Internal Antenna Location Bottom of the transceiver Length (max) 34 mm Dimensions Width (max) 7 mm Configuration FJA 2.2 Device description FCC ID Number IHDT6FF2 Serial number TA2010MPBK Mode(s) of Operation GSM 900 GSM 1800 GSM 1900 GPRS 900 GPRS 1800 GPRS 1900 EDGE 900 EDGE 1800 EDGE 1900 BlueTooth Modulation Mode(s) GMSK GMSK GMSK GMSK GMSK GMSK 8PSK 8PSK 8PSK GFSK Maximum Output Power Setting 33.00 dBm 30.00 dBm 30.00 dBm 33.00 dBm 30.00 dBm 30.00 dBm 29.00 dBm 28.00 dBm 28.00 dBm 0.00 - 4.00 dBm Duty Cycle 1:8 1:8 1:8 2:8 2:8 2:8 2:8 2:8 2:8 1:1 Transmitting Frequency Rang(s) 880.2- 914.8 MHz 1710.2- 1784.8 MHz 1850.2– 1909.8 MHz 880.2- 914.8 MHz 1710.2- 1784.8 MHz 1850.2– 1909.8 MHz 880.2- 914.8 MHz 1710.2- 1784.8 MHz 1850.2– 1909.8 MHz 2400 - …

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA INC FCC ID: IHDT6FF2 MOBILE DEVICES BUSINESS PRODUCT SAFETY AND COMPLIANCE EMC LABORATORY EMC TEST REPORT Test Report Number – 17646-1 Report Date – December 28, 2005 The test results contained herein relate only to the model(s) identified. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical characteristics. As the responsible EMC Engineer, I hereby declare that the equipment tested as specified in this report conforms to the requirements indicated . Signature Name: _Michael E. Hill Title: Senior Staff Electrical Engineer Date: December 29, 2005 This report must not be reproduced, except in full, without written approval from this laboratory. THIS REPORT MUST NOT BE USED TO CLAIM PRODUCT ENDORSEMENT BY A2LA OR ANY AGENCY OF THE U.S. GOVERNMENT. A2LA Certificate Number: 1846-01 EXHIBIT 6 APPLICANT: MOTOROLA INC FCC ID: IHDT6FF2 Table of Contents Description Page Test Report Details 3 Applicable Standards 3 Summary of Testing 4 General and Special Conditions 4 Equipment and Cable Configurations 5 Measuring Equipment and Calibration Information 5 Measurement Procedures and Data RF Power Output 6 Radiated Power (ERP) 7 Occupied Bandwidth 8 GSM 1900 Reference Plot 9 GSM 1900 Occupied Bandwidth Plot 9 GSM 1900 Ch512 Lower Band Edge 10 GSM 1900 Ch810 Upper Band Edge 10 GSM 1900 Edge Reference Plot 11 GSM 1900 Edge Occupied Bandwidth Plot 11 GSM 1900 Edge Ch512 Lower Band Edge 12 GSM 1900 Edge Ch810 Upper Band Edge 12 Spurious Emissions at Antenna Terminals 13 GSM 1900 Tabular and Graphical Data 14 Field Strength of Spurious Emissions 15 GSM 1900 Tabular and Graphical Data 16 Frequency Stability 17 GSM 1900 Tabular and Graphical Data 18 Field Strength of Spurious Emissions from Unintentional Radiators 19 GSM 1900 Graphical Data 20 Appendix A - Radiated Emissions Test Setup Photos Figure A.1 – Radiated Emissions Measurement 21 Figure A.2 – Substitution Measurement 21 Test Report Number: 17646-1 EXHIBIT 6 2 APPLICANT: MOTOROLA INC FCC ID: IHDT6FF2 Test Report Details Tests Performed By: Motorola Mobile Devices business Product Safety and Compliance Group 600 North US Hwy 45 Libertyville, IL 60048 PH (847) 523-6167 Fax (847) 523-4538 Motorola MDB FRN: 0004321311 FCC Registration Number: 316588 Industry Canada Number: IC3908 Tests Requested By: Motorola Inc. Mobile Devices business 600 North US Hwy 45 Libertyville, IL 60048 Product Type: Cellular Phone Signaling Capability: GSM 1900 , Edge GPRS Model Number: V361 Version: AAUG2010BA Serial Numbers: TA2010MPKS, TA2010MPJT, TA2010MPAH Testing Complete Date: December 29, 2005 Applicable Standards All tests and measurements indicated in this document were performed in accordance with the Code of Federal Regulations Title 47 Part 2, Sub-part J as well as the following parts: X Part 15 Subpart B – Unintentional Radiators Part 22 Subpart H - Public Mobile Services X Part 24 - Personal Communications Services Part 90 - Private Land Mobile Radio Service Applicable Standards: TIA EIA 137-A, TIA EIA 98-C, ANSI 63.4 2001, RSS-118 (AMPS), RSS-128 (TDMA), RSS-129 (CDMA), RSS-133 (PCS) Test Report Number: 17646-1 EXHIBIT 6 3 APPLICANT: MOTOROLA INC FCC ID: IHDT6FF2 Summary of Testing Test Test Name # Pass/Fail 1 RF Power Output NA 2 ERP (Effective Radiated Power) Pass 3 Modulation Characteristics NA 4 Occupied Bandwidth Pass 5 Spurious Emissions at Antenna Terminal Pass 6 Field Strength of Spurious Emissions Pass 7 Frequency Stability Pass 8 Field Strength of Spurious Emissions Pass from Unintentional Radiators Test Test Name Margin with respect # to the Limit_________ 1 RF Power Output NA 2 ERP (Effective Radiated Power) 3.21 dB 3 Modulation Characteristics NA 4 Occupied Bandwidth See Plots 5 Spurious Emissions at Antenna Terminal 17.8 dB 6 Field Strength of Spurious Emissions Below noise floor 7 Frequency Stability 29.0 Hz 8 Field Strength of Spurious Emissions Below noise floor from Unintentional Radiators The margin with respect to the limit is the minimum margin for all modes and bands. ( ) indicates the margin at which the product exceeds the limit. General and Special Conditions The EUT was tested using a fully charged battery when applicable. Where a battery could not be used due to the need for a controlled variation of input voltage, an external power supply was utilized. All testing was done in an indoor controlled environment with an average temperature of 22º C and relative humidity of 50%. Test Report Number: 17646-1 EXHIBIT 6 4 APPLICANT: MOTOROLA INC FCC ID: IHDT6FF2 Equipment and Cable Configurations The EUT was tested in a stand-alone configuration that is representative of typical use. ManufacturerEquipment TypeModel No.Serial Number Cal. Due Date Rohde & SchwarzReceiverESI26838786/0102/7/2006 Hewlett-PackardEMC Analyzer7405US394401911/27/2006 ETSDRG Horn Antenna311562222/9/2006 A.H. Systems Inc.DRG Horn AntennaSAS-2--/5713655/25/2006 ETSLog-Periodic Antenna314811886/14/2006 ETSBiconical Antenna3110B33702/16/2006 AttenuatorWeinschelAS-6667512/27/2005 AttenuatorWeinschelAS-6667711/14/2006 Hewlett-PackardSignal Generator83623B3844A011956/20/2006 ThermotronEnvironmental ChamberS-4315801/17/2006 AgilentPower MeterEE4418BGB402063886/4/2006 AgilentPower SensorE4412BUS384863216/2/2006 Hewlett-PackardPre-Amplifier8447F2805A034193/24/2006 All equipment is on a one-year calibration cycle. Test Report Number: 17646-1 EXHIBIT 6 5 APPLICANT: MOTOROLA INC FCC ID: IHDT6FF2 Measurement Procedures and Data RF POWER OUTPUT Measurement Procedure The RF output port of the equipment under test is directly coupled to the input of a HPE4406A Vector Signal Analyzer through a 10dB passive attenuator, adaptor (if needed), and specialized RF connector. The peak power output is measured for all channels. CFR47 Part 2.1046 Measurement Results GSM 1900 Frequency (MHz) Power (dBm) 1850.20 29.95 1880.00 30.00 1909.80 30.04 GSM 1900 EDGE Frequency (MHz) Pow…
