IHDT6GD1Portable PCS GSM/ EDGE Transceiver with Bluetooth

APPLICANT: MOTOROLA, INC. FCC ID: IHDT6GD1 INSTRUCTION MANUAL x A preliminary draft copy of the User’s Manual follows this cover page. x The User’s Manual will have the following text added to it: "NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: . Reorient or relocate the receiving antenna. . Increase the separation between the equipment and receiver. . Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. . Consult the dealer or an experienced radio/TV technician for help." EXHIBIT 8 motorola.com 3G 1 HELLOMOTOIntroducing your new Motorola 3G wireless phone. Here’s a quick anatomy lesson. Left Soft Key Go online. Video Call Key Volume Keys Internal Camera Lens Smart Key Send Key Make & answer calls. Navigation KeyNavigate menus. Center KeyOpen menus, select menu items. Right Soft KeyClear/Back Key Camera KeyMicrophone Power/End Key Turn on/off, hang up, exit menus. 2 Accessory Connector Port Insert battery charger & phone accessories. Volume Keys Scroll and adjust volume. Smart Key Open the audio player and select options. Camera KeyExternal Camera Lens Camera Light External Display See incoming call information, use as camera viewfinder when flip is closed. Touch-Sensitive Audio Player KeysRewindPlay/PauseFast-forward 3 Press and hold the Power Key O for a few seconds or until the display lights up to turn on your phone. 1 Press the Navigation Key up, down, left, or right ( S ) to highlight a menu feature. 3 Press the Center Key s to select it. 4 Press the Center Key s key to open the Main Menu . 2 Service Provider12/31/07 12:00 Options Main Menu Select Web Access Back 4Motorola, Inc.Consumer Advocacy Office1307 East Algonquin RoadSchaumburg, IL 60196www.hellomoto.comCertain mobile phone features are dependent on the capabilities and settings of your service provider’s network. Additionally, certain features may not be activated by your service provider, and/or the provider's network settings may limit the feature’s functionality. Always contact your service provider about feature availability and functionality. All features, functionality, and other product specifications, as well as the information contained in this user's guide are based upon the latest available information and are believed to be accurate at the time of printing. Motorola reserves the right to change or modify any information or specifications without notice or obligation.MOTOROLA and the Stylized M Logo are registered in the US Patent & Trademark Office. All other product or service names are the property of their respective owners. The Bluetooth trademarks are owned by their proprietor and used by Motorola, Inc. under license. Java and all other Java-based marks are trademarks or registered trademarks of Sun Microsystems, Inc. in the U.S. and other countries. Microsoft, Windows and Windows Me are registered trademarks of Microsoft Corporation; and Windows XP is a trademark of Microsoft Corporation. © Motorola, Inc., 2006. Caution: Changes or modifications made in the radio phone, not expressly approved by Motorola, will void the user’s authority to operate the equipment. Software Copyright Notice The Motorola products described in this manual may include copyrighted Motorola and third-party software stored in semiconductor memories or other media. Laws in the United States and other countries preserve for Motorola and third-party software providers certain exclusive rights for copyrighted software, such as the exclusive rights to distribute or reproduce the copyrighted software. Accordingly, any copyrighted software contained in the Motorola products may not be modified, reverse-engineered, distributed, or reproduced in any manner to the extent allowed by law. Furthermore, the purchase of the Motorola products shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any license under the copyrights, patents, or patent applications of Motorola or any third-party software provider, except for the normal, non-exclusive, royalty-free license to use that arises by operation of law in the sale of a product.Manual Number: 68XXXXX147-O contents 5 contentsmenu map. . . . . . . . . . . . 7Safety Information . . . . . 9Use and Care . . . . . . . . 14EU Conformance . . . . . 15Recycling Information . 16essentials . . . . . . . . . . . 17 about this guide . . . . . 17SIM card . . . . . . . . . . . 17battery . . . . . . . . . . . . 18turn it on & off . . . . . . 20make a call . . . . . . . . . 21answer a call. . . . . . . . 21store a phone number 21call a stored phone number . . . . . . . . . . . . 22your phone number . . 22 main attractions . . . . . . 23 SCREEN3™ headlines 23Bluetooth™ wireless . 24audio player . . . . . . . . 31take & send a photo . . 33record & send a video 36video calls. . . . . . . . . . 37text messages . . . . . . 38memory card . . . . . . . 41cable connections. . . . 43phone updates . . . . . . 45 basics. . . . . . . . . . . . . . . 46 display . . . . . . . . . . . . 46text entry . . . . . . . . . . 49volume . . . . . . . . . . . . 53navigation key. . . . . . . 53smart key . . . . . . . . . . 53 external display. . . . . . 54handsfree speaker . . . 54codes & passwords . . 54lock & unlock ph…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA INC. FCC ID: IHDT6GD1 SPECIFICATION COMPLIANCE STATEMENT Transceiver type (IHDT6GD1) has been tested in accordance with the requirements contained in the appropriate Commission regulations. To the best of my knowledge, these tests were performed using measurement procedures consistent with industry or Commission standards and demonstrate that this equipment complies with the appropriate standards. Each unit manufactured imported or marketed, will conform to the sample tested within the variations that can be expected due to quantity production and testing on a statistical basis. I further certify that the necessary measurements were made at Motorola, 600 N. U.S. Highway 45, Libertyville, IL 60048. NAME: Lazaar Louis TITLE: Engineering Manager Motorola PCS Development Date: October 2, 2006 Page 1 of 3 EXHIBIT 2 APPLICANT: MOTOROLA INC. FCC ID: IHDT6GD1 STATEMENT OF CERTIFICATION I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in this application and accompanying technical data are true and correct. The technical data supplied with this application was taken under my supervision and is hereby duly certified. I also certify that this transmit equipment (IHDT6GD1) is in compliance with all applicable parts of the FCC Rules. NAME: Dan Farley TITLE: Lead Engineer Motorola PCS Development Date: October 2, 2006 Page 2 of 3 EXHIBIT 2 APPLICANT: MOTOROLA INC. FCC ID: IHDT6GD1 ATTESTATION STATEMENT This device contains an embedded Bluetooth device that Motorola confirms compliance with the following Part 15 regulations. 15.247(a)(1) • the hopping sequence must be pseudorandom • all Channels are used equally on average • the receiver input bandwidth is approximately equal to the transmit bandwidth • the receiver hops in sequence with the transmitted signal 15.247(g) the system is designed to comply with all of the regulations in Section 15.247 when the transmitter is presented with a continuous data (or information) 15.247(h) the system does not coordinate its channel selection/hopping sequence with other frequency hopping systems for the express purpose of avoiding the simultaneous occupancy of individual hopping frequencies by multiple transmitters NAME: Dan Farley TITLE: Lead Engineer Motorola PCS Development Date: October 2, 2006 Page 3 of 3 EXHIBIT 2

APPLICANT: MOTOROLA FCC ID: IHDT6GD1 October 4, 2006 CONFIDENTIALITY REQUEST CONTAINED WITHIN Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Application for Cellular/PCS Transceiver Certification Gentlemen: Application: Motorola, Inc., Mobile Devices, 600 N. U.S. Highway 45, Libertyville, Illinois 60048-1286 herein submits: Application for Equipment Authorization for Certification of a Cellular Transceiver, FCC ID: IHDT6GD1. Motorola is also the manufacturer of this equipment. Confidentiality: Pursuant to Section 0.459 of the Commission's rules (CFR 47), Motorola requests confidentiality for portions of the material contained in this application and that the identified material be withheld from public inspection following the grant of this authorization. This material contains Motorola's trade secrets and confidential information that Motorola does not customarily release to the public and which is otherwise not generally available to the public. Confidentiality is requested for the following exhibits: • Exhibit 4 Block Diagrams • Exhibit 5 Schematics • Exhibit 10 Parts List • Exhibit 12 Operational Description Description: This equipment is a GSM portable transceiver with EDGE capability, which operates in the 1900 MHz PCS band. The unit also contains a 2.4 GHz Bluetooth transmitter (Part 15.247) and may be connected to a computer via a USB connection (Part 15, Class B, Computing Device Peripheral). Note: This device contains 900 MHz and 1800 MHz GSM, functions that are not operational in U.S. territories. Contact Information: Please contact me by telephone at (847) 523-6167, or by e-mail ( [email protected]), if there are questions or additional information needed concerning this filing. Regards, Andrew J. Bachler FCC Liaison Mobile Devices 600 N. U.S. Highway 45 Libertyville, IL 60048-5343 Exhibit 13

APPLICANT: MOTOROLA, INC. FCC ID: IHDT6GD1 October 2, 2006 SHORT TERM CONFIDENTIALITY REQUEST 45 DAYS Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Cellular/PCS Transceiver FCC ID IHDT6GD1 Gentlemen: Introduction: Pursuant to Section 0.459 of the Commission's rules (CFR 47) and Section 552(b)(4) of the Freedom of Information Act, Motorola requests confidentiality for portions of the material contained in this application; and that the identified material be withheld from public inspection following the grant of this authorization. This material contains Motorola's trade secrets and confidential information that Motorola does not customarily release to the public and which is otherwise not generally available to the public. Standard Confidentiality Request: Confidentiality is requested for the following exhibits: • Exhibit 4 Block Diagrams • Exhibit 5 Schematics • Exhibit 10 Parts List / Tune up Information • Exhibit 12 Operational Description Short Term Confidentiality Request: Furthermore, due to sensitive business information, Motorola requests the following exhibits be withheld from public viewing for 45 days: • Exhibit 3 External Photographs • Exhibit 7 Photographs of the device under test for the RF Exposure (SAR) Test • Exhibit 7A Photographs of the device under test for the EMC GSM Test • Exhibit 7B Photographs of the device under test for the EMC Computer Peripheral Test • Exhibit 8 User’s Manual • Exhibit 9 Internal Photographs Contact Information: Please contact me by telephone at (847) 523-6167, or by e-mail ( [email protected]), if there are questions or additional information needed concerning this filing. Regards, Andrew J. Bachler FCC Liaison Mobile Devices 600 N. U.S. Highway 45 Libertyville, IL 60048-5343 Exhibit 13A

Date: October 30, 2006 Subject: Request for additional information regarding FCC ID: IHDT6GD1 Reference: Correspondence Reference Number: IHD0621 Confirmation Number: 1610020620/0622 Date of Original Email: October 26, 2006 Prepared by: Andrew Bachler, Principal Staff Engineer Motorola Mobile Device Business Libertyville, Illinois 1. Please submit schematics for the EUT (both Part 24E and Part 15C). The exhibit labeled “schematics” is really the 15B test report. Response: The October 5, 2006 Part 15B test report submission was incorrectly labeled as schematics. Exhibit 5, the schematics, was submitted on October 2, 2006. 2. Please provide the FCC ID, or indicate DoC, for the pc and peripherals used to perform the Part 15B tests. Response: All peripheral equipments are listed in the original equipment list. All equipments are labeled as DoC. 3. For the Part 15B radiated emission tests, please provide peak radiated data for emissions above 1 GHz in order to demonstrate compliance with Section 15.35(b). Response: Please refer to the following data: Computer Peripheral Radiated Emission Testing- Peak Detector Frequency MHz Level dBμV/m Angle deg Height cm Pol. 1122.244 50.26 75 300 VER 1126.253 50.29 329 100 VER 1146.293 45.39 155 100 VER 1174.349 44.87 46 200 VER 1176.353 45.08 3 300 HOR 1945.892 51.23 194 100 HOR 1975.952 51.89 302 100 VER 1977.956 50.8 77 100 HOR 1991.984 50.69 309 100 HOR 1993.988 51.45 18 100 VER 1995.992 51.23 113 100 VER 2000 50.82 71 100 HOR 1 4. Please verify that the statement required by Section 15.19(a)(3) will be included in the user’s manual prior to shipment of the EUT. Response: The required Part 15 statements will be included in the final user’s manual. 5. Page 3/69 of the SAR report, in the Introduction, lists incorrect max SAR values. Please address. Response: The correct SAR values are listed in the replacement Exhibit 11 submitted on October 30, 2006. 2

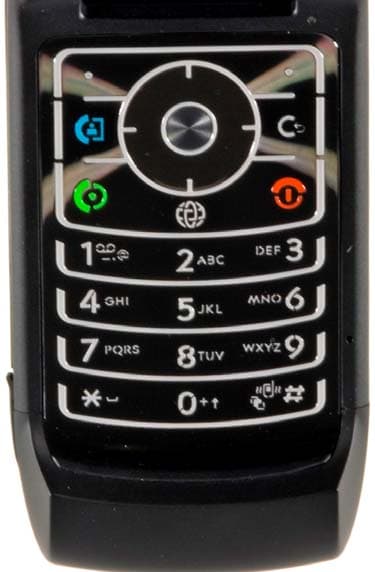

APPLICANT: MOTOROLA, INC. FCC ID: IHDT6GD1 BACK OF PHONE FLIP OPEN FRONT OF PHONE FLIP OPEN EXHIBIT 3 1 of 2 APPLICANT: MOTOROLA, INC. FCC ID: IHDT6GD1 EXHIBIT 3 2 of 2 FRONT OF PHONE BACK OF PHONE BACK OF PHONE WITH BATTERY COVER REMOVED

APPLICANT: MOTOROLA INC. FCC ID: IHDT6GD1 FCC IDENTIFICATION (NAMEPLATE) INFORMATION FCC ID: IHDT6GD1 The FCC label shown is representative of the label that will appear on the radio when in production. It will be placed on the equipment as shown in Exhibit 3, and is readily visible at the time of purchase. Other information may also be included on this label. EXHIBIT 1

APPLICANT: MOTOROLA, INC. FCC ID: IHDT6GD1 Main Board Side A - Without Shields Main Board Side A - W ith Shields EXHIBIT 9 1 of 2 APPLICANT: MOTOROLA, INC. FCC ID: IHDT6GD1 Main Board Side B - With Shields Main Board Side B - Without Shields EXHIBIT 9 2 of 2

0 0 Portable Cellular Phone SAR Test Report Test Report #: 19148-1F Revision A Date of Report: Oct-12-2006 Date of Test: Sep-15-2006 to Oct-12-2006 FCC ID #: IHDT6GD1 Generic Name: MUT6-3411A11 Laboratory: Motorola Mobile Devices Business Product Safety & Compliance Laboratory 600 N. US Highway 45 Libertyville, Illinois 60048 Report Author: Thomas Nipple RF Engineer Accreditation: This laboratory is accredited to ISO/IEC 17025-1999 to perform the following tests: Tests : Procedures: Electromagnetic Specific Absorption Rate ANSI / IEEE C95.1-1992, 1999 (SAR) IEEE C95.3-1991 IEEE 1528, IEC 62209-1 FCC OET Bulletin 65 (including Supplements A, B, C) Australian Communications Authority Radio Communications (Electromagnetic Radiation – Human Exposure) Standard 2003 CENELEC EN 50361 (2001) Simulated Tissue Preparation WI-0247 RF Power Measurement WI-1847 On the following products or types of products: Wireless Communications Devices (Examples): Two Way Radios; Portable Phones (including Cellular, Licensed Non-Broadcast and PCS); Low Frequency Readers; and Pagers A2LA certificate #1651-01 Statement of Compliance: Motorola declares under its sole responsibility that the portable cellular telephone model to which this declaration relates, is in conformity with the appropriate General Population/Uncontrolled RF exposure standards, recommendations and guidelines (FCC 47 CFR §2.1093) as well as with CENELEC en50360:2001 and ANSI / IEEE C95.1. It also declares that the product was tested in accordance with CENELEC en50361:2001, IEEE 1528, as well as other appropriate measurement standards, guidelines and recommended practices. Any deviations from these standards, guidelines and recommended practices are noted below: (none) ©Motorola, Inc. 2006 This test report shall not be reproduced except in full, without written approval of the laboratory. The results and statements contained herein relate only to the items tested. The names of individuals involved may be mentioned only in connection with the statements or results from this report. Motorola encourages all feedback, both positive and negative, on this test report. MOTOROLA, INC. Portable Cellular Phone SAR Test Report Number: 19148-1F E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 1 1 Table of Contents 1. Introduction 2 2. Description of the Device Under Test 2 2.1 Antenna description 2 2.2 Device description 2 3. Test Equipment Used 3 3.1 Dosimetric System 3 3.2 Additional Equipment 3 4. Electrical parameters of the tissue simulating liquid 4 5. System Accuracy Verification 5 6. Test Results 6 6.1 Head Adjacent Test Results 6 6.2 Body Worn Test Results 8 6.3 Push to Talk Mode Test Results 11 References 12 Appendix 1: SAR distribution comparison for system accuracy verification 13 Appendix 2: SAR distribution plots for Phantom Head Adjacent Use 14 Appendix 3: SAR distribution plots for Body Worn Configuration 15 Appendix 4: SAR distribution plots for Push-To-Talk Use 16 Appendix 5: Probe Calibration Certificate 17 Appendix 6: Measurement Uncertainty Budget 18 Appendix 7: Photographs of the device under test 20 Appendix 8: Dipole Characterization Certificate 26 MOTOROLA, INC. Portable Cellular Phone SAR Test Report Number: 19148-1F E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 2 2 1. Introduction The Motorola Mobile Devices Business Product Safety Laboratory has performed measurements of the maximum potential exposure to the user of the portable cellular phone covered by this test report. The Specific Absorption Rate (SAR) of this product was measured. The portable cellular phone was tested in accordance with [1], [4] and [5]. The SAR values measured for the portable cellular phone are below the maximum recommended levels of 1.6 W/kg in a 1 g average set in [3] and 2.0 W/kg in a 10 g average set in [2]. For ANSI / IEEE C95.1 (1g), the final SAR reading for this phone is 0.39 W/kg for head adjacent use, 0.58 W/kg for body worn use, and 0.76 W/kg for face-dispatch use. These measurements were performed using a Dasy4™ v4.7 system manufactured by Schmid & Partner Engineering AG (SPEAG), of Zurich Switzerland. 2. Description of the Device Under Test 2.1 Antenna description Type Internal Location Bottom Length 35.11 mm Dimensions Width 7.5 mm Configuration FJA 2.2 Device description Serial Number LVE04J0004 Mode(s) of Operation UMTS 2100 GSM 900 GSM 1800 GSM 1900 GPRS Class 12 900 GPRS Class 12 1800 GPRS Class 12 1900 EDGE Class 12 900 EDGE Class 12 1800 EDGE Class 12 1900 Bluetooth Modulation Mode(s) QPSK GMSK GMSK GMSK GMSK GMSK GMSK 8PSK 8PSK 8PSK GFSK Maximum Output Power Setting 24.00 dBm 33.20 dBm 30.00 dBm 30.00 dBm 33.20 dBm 30.00 dBm 30.00 dBm 27.00 dBm 26.00 dBm 26.00 dBm 4.0 dBm Duty Cycle 1:1 1:8 1:8 1:8 4:8 4:8 4:8 4:8 4:8 4:8 1:1 Transmitting Frequency Range(s) 1922.4- 1977.6 MHz 880.2- 914.8 MHz 1710.2- 1784.8 MHz 1850.2- 1909.8 MHz 880.2- 914.8 MHz 1710.2- 1784.8 MHz 1850.2- 1909.8 MHz 880.2- 914.8 MHz 1710.2- 1784.8 MHz 1850.2- 1909.8 MHz 2400.0 - 2483.5 MHz Production Unit or Identical Prototype (47 CFR §2..908) Identical Prototype Device Category Portable RF Exposure Limits General Population / Uncontrolled MOTOROLA, INC. Portable Cellular Phone SAR Test Report Number: 19148-1F E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 3 3 3. Test Equipment Used 3.1 Dosimetric System The Motorola Mobile Devices Business Product Safety & Compliance Laboratory utilizes a Dosimetric Assessment System (Dasy4™ v4.6) manufactured by Schmid & Partner Engineering AG (SPEAG™), of Zurich Switzerland. All the SAR measurements are taken within a shielded enclosure. The overall 10g RSS uncertainty of the measurement system is ±10.8% (K=1) with an expanded uncertainty of ±21.6% (K=2). The overall 1 g RSS uncertainty of the measurement system is ±11.1% (K=1) with an expanded uncertainty of ±22.2% (K=2). The measurement uncertainty budget is given in Appendix 6. Per IEEE 1528, this uncertainty budget is applicable to the SAR range of 0.4 W/kg to 10…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA INC FCC ID: IHDT6GD1 EXHIBIT 6 MOBILE DEVICES BUSINESS PRODUCT SAFETY AND COMPLIANCE EMC LABORATORY EMC TEST REPORT Test Report Number – 19149-1 Report Date – October 5, 2006 The test results contained herein relate only to the model(s) identified. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical characteristics. As the responsible EMC Engineer, I hereby declare that the equipment tested as specified in this report conforms to the requirements indicated. Signature: Name: Albert J. Patapack Title: EMC Engineer Date: October 5, 2006 This report must not be reproduced, except in full, without written approval from this laboratory. THIS REPORT MUST NOT BE USED TO CLAIM PRODUCT ENDORSEMENT BY A2LA OR ANY AGENCY OF THE U.S. GOVERNMENT. A2LA Certificate Number: 1651-01 APPLICANT: MOTOROLA INC FCC ID: IHDT6GD1 Test Report Number: 19149-1 EXHIBIT 6 2 Table of Contents Description Page Test Report Details 3 Applicable Standards 3 Summary of Testing 4 General and Special Conditions 4 Equipment and Cable Configuration 5 Measurement Procedures and Data 6 RF Power Output 6 Measurement results 6 Radiated Power 7 Measurement results 7 Occupied Bandwidth 8 Measurement results 9 Spurious Emissions at Antenna Terminals 13 Measurement results 14 Field Strength of Spurious Emissions 16 Measurement results 17 Frequency Stability 19 Measurement results 20 Field Strength of Spurious Emissions -Unintentional Radiators 22 Measurement results 23 AC Line Conducted Emissions 24 Measurement results 25 APPLICANT: MOTOROLA INC FCC ID: IHDT6GD1 Test Report Number: 19149-1 EXHIBIT 6 3 Test Report Details Tests Performed By: Motorola Mobile Devices business (MDb) Product Safety and Compliance Group 600 North US Hwy 45 Libertyville, IL 60048 PH (847) 523-6167 Fax (847) 523-4538 Motorola MDb FRN: 0004321311 FCC Registration Number: 316588 Industry Canada Number: IC3908-1 Tests Requested By: Motorola Inc. Mobile Devices Business 600 North US Hwy 45 Libertyville, IL 60048 Product Type: Cellular Phone Signaling Capability: GSM 1900, EDGE, Bluetooth FCC ID : IHDT6GD1 Serial Numbers: LVE04J0010, LVE04J0018, LVE04J0006 Testing Complete Date: October 5, 2006 Applicable Standards All tests and measurements indicated in this document were performed in accordance with the Code of Federal Regulations Title 47 Part 2, Sub-part J as well as the following parts: X Part 15 Subpart B – Unintentional Radiators X Part 22 Subpart H - Public Mobile Services X Part 24 Subpart E – Personal Communications Services Applicable Standards: TIA EIA 137-A, TIA EIA 98-C, ANSI 63.4 2001, RSS-118 (AMPS), RSS-128 (TDMA), RSS-129 (CDMA), RSS-133 (PCS) APPLICANT: MOTOROLA INC FCC ID: IHDT6GD1 Test Report Number: 19149-1 EXHIBIT 6 4 Summary of Testing Test Test Name # Pass/Fail 1 RF Power Output NA 2 ERP (Effective Radiated Power) Pass 3 EIRP (Effective Isotropic Radiated Power) Pass 4 Occupied Bandwidth Pass 5 Spurious Emissions at Antenna Terminal Pass 6 Field Strength of Spurious Emissions Pass 7 Frequency Stability Pass 8 Field Strength of Spurious Emissions Pass from Unintentional Radiators 9 AC Line Conducted Emissions Pass Test Test Name Margin with respect # to the Limit_________ 1 RF Power Output NA 2 ERP (Effective Radiated Power) See results 3 EIRP (Effective Isotropic Radiated Power) See results 3 Occupied Bandwidth See Plots 4 Spurious Emissions at Antenna Terminal See results 5 Field Strength of Spurious Emissions See results 6 Frequency Stability See results 7 Field Strength of Spurious Emissions Below noise floor from Unintentional Radiators 8 AC Line Conducted Emissions See Plots The margin with respect to the limit is the minimum margin for all modes and bands. General and Special Conditions The EUT was tested using a fully charged battery when applicable. Where a battery could not be used due to the need for a controlled variation of input voltage, an external power supply was utilized. All testing was done in an indoor controlled environment with an average temperature of 22º C and relative humidity of 50%. APPLICANT: MOTOROLA INC FCC ID: IHDT6GD1 Test Report Number: 19149-1 EXHIBIT 6 5 Equipment and Cable Configurations The EUT was tested in a stand-alone configuration that is representative of typical use. Manufacturer Equipment Type Model No. Serial Number Calibration Due Date Rohde Schwarz Receiver ESI26 100001 3/08/07 Rohde Schwarz Receiver ESI40 100226 6/05/07 Hewlett Packard EMC Analyzer E7405 US39440191 1/05/07 Hewlett Packard Signal Generator 83712A 3429A00286 6/6/07 A.H. Systems DRG Horn Antenna SAS 200/571 365 5/12/07 ETS. Horn Antenna 3115 6222 3/03/07 ETS Log-Periodic Antenna 3148 1188 6/05/07 ETS Biconical Antenna 3110B 3370 3/03/07 Attenuator Weinschel 2 AS-6 6675 6/6/07 Attenuator Weinschel 2 AS-6 6677 11/10/06 Attenuator Weinschel 2 AS-6 7075 1/31/07 Attenuator Weinschel 2 AS-6 6675 6/06/07 Thermotron Environmental Chamber S-4 31580 1/31/07 Agilent Power Meter E4416A GB41293246 02/03/07 Agilent Power Sensor E4412B US38486321 02/03/07 ETS LISN 3810/2NM 00062907 5/10/07 ETS LISN 3810/2NM 00062912 5/10/07 All equipment is on a one-year calibration cycle. APPLICANT: MOTOROLA INC FCC ID: IHDT6GD1 Test Report Number: 19149-1 EXHIBIT 6 6 Measurement Procedures and Data RF POWER OUTPUT Measurement Procedure The RF output port of the equipment under test is directly coupled to the input of an Agilent power meter through a 20dB passive attenuator, adaptor (if needed), and specialized RF connector. The peak power output is measured for all channels. CFR47 Part 2.1046 Measurement Results GSM 1900 Frequency (MHz) Power (dBm) 1850.2 30.00 1880.0 30.07 1909.8 29.94 EDGE 1900 Frequency (MHz) Power (dBm) 1850.2 25.92 1880.0 26.00 1909.8 25.93 APPLICANT: MOTOROLA INC FCC ID: IHDT6GD1 Test Report Number: 19149-1 EXHIBIT 6 7 RADIATED POWER (EIRP AND ERP) Measurement Procedure The phone was tested in a 16’ anechoic cham…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA, INC. FCC ID: IHDT6GD1 Figure 1. AC Line Conducted Emissions Measurement Setup Figure 2. Radiated Emissions Measurement Setup Exhibit 7A 1 APPLICANT: MOTOROLA, INC. FCC ID: IHDT6GD1 Figure 3. Radiated Emissions Measurement Setup Figure 4. Radiated Emissions X-Axis Exhibit 7A 2 APPLICANT: MOTOROLA, INC. FCC ID: IHDT6GD1 Figure 5. Radiated Emissions Y-Axis Figure 6. Radiated Emissions Z-Axis Exhibit 7A 3

MOTOROLA, INC. Portable Cellular Phone SAR Test Report Number: 19148-1F E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 1 1 8 8 Appendix 6 Photographs of the device under test >>>>>>>>>>>>> EXTRACTED FROM FCC EXHIBIT 11 <<<<<<<<<<<<<<<< APPLICANT: MOTOROLA, INC. FCC ID: IHDT6GD1 Page 1 of 6 EXHIBIT 7 MOTOROLA, INC. Portable Cellular Phone SAR Test Report Number: 19148-1F E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 1 1 9 9 Figure 1 – Front of Transceiver Figure 2 – Back of Transceiver APPLICANT: MOTOROLA, INC. FCC ID: IHDT6GD1 Page 2 of 6 EXHIBIT 7 MOTOROLA, INC. Portable Cellular Phone SAR Test Report Number: 19148-1F E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 2 2 0 0 Figure 3 – Front of Transceiver, Flip Open APPLICANT: MOTOROLA, INC. FCC ID: IHDT6GD1 Page 3 of 6 EXHIBIT 7 MOTOROLA, INC. Portable Cellular Phone SAR Test Report Number: 19148-1F E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 2 2 1 1 Figure 4 – Transceiver against head, Cheek Touch position Figure 5 – Transceiver against head, Cheek Touch position APPLICANT: MOTOROLA, INC. FCC ID: IHDT6GD1 Page 4 of 6 EXHIBIT 7 MOTOROLA, INC. Portable Cellular Phone SAR Test Report Number: 19148-1F E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 2 2 2 2 Figure 6 – Transceiver against head, 15º Tilt position Figure 7 – Transceiver against head, 15º Tilt position APPLICANT: MOTOROLA, INC. FCC ID: IHDT6GD1 Page 5 of 6 EXHIBIT 7 MOTOROLA, INC. Portable Cellular Phone SAR Test Report Number: 19148-1F E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 2 2 3 3 Figure 8 – Transceiver against body, Back of Phone 15mm from Phantom position APPLICANT: MOTOROLA, INC. FCC ID: IHDT6GD1 Page 6 of 6 EXHIBIT 7
