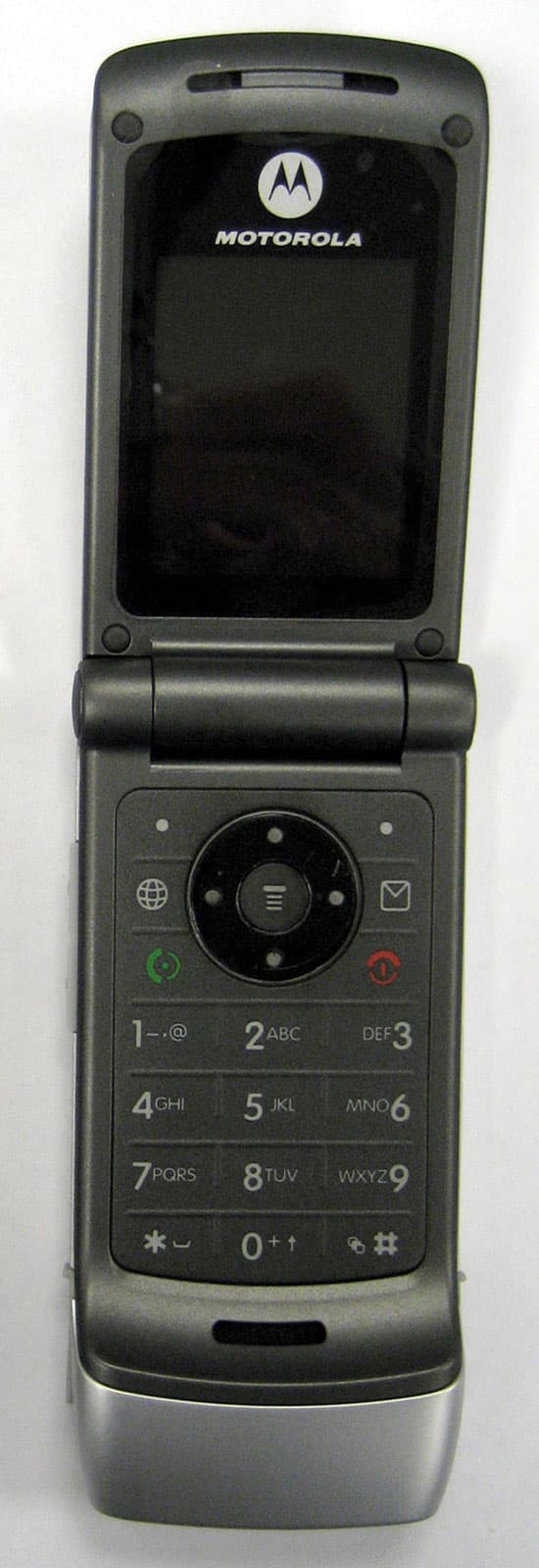

IHDT6GM1Portable PCS GSM Transceiver

APPLICANT: MOTOROLA, INC. FCC ID: IHDT6GM1 INSTRUCTION MANUAL • A preliminary draft copy of the User’s Manual follows this cover page. • The User’s Manual will have the following text added to it: "NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: . Reorient or relocate the receiving antenna. . Increase the separation between the equipment and receiver. . Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. . Consult the dealer or an experienced radio/TV technician for help." EXHIBIT 8 motorola.com W375 GSM English D R A F T 1 HELLOMOTOWelcome to the world of Motorola digital wireless communications! We are pleased that you have chosen the Motorola W375 wireless phone. Earpiece Listen to your voice calls & messages. Left Soft Key Perform functions identified by left display prompt. Send/Answer Key Make & answer calls. Press in idle screen to see recently dialed calls. Menu Key Open a menu when it appears in the display. Right Soft KeyPerform functions identified by right display prompt. Power/End KeyPress & hold to turn the phone on/off. Press & release to end phone calls, exit menu system. Message KeyAccess the Message menu. Navigation KeyScroll up, down, left or right. Web Browser Key Volume Controls Mini-USB Connector Charge the battery or connect to a PC. Headset Jack 2Motorola, Inc.Consumer Advocacy Office1307 East Algonquin RoadSchaumburg, IL 60196www.hellomoto.comMOTOROLA and the Stylized M Logo are registered in the US Patent & Trademark Office. 2006 All other product or service names are the property of their respective owners. © Motorola, Inc. 2006.Caution: Changes or modifications made in the radio phone, not expressly approved by Motorola, will void the user's authority to operate the equipment.Certain mobile phone features are dependent on the capabilities and settings of your service provider’s network. Additionally, certain features may not be activated by your service provider, and/or the provider's network settings may limit the feature’s functionality. Always contact your service provider about feature availability and functionality. All features, functionality, and other product specifications, as well as the information contained in this user's guide are based upon the latest available information and are believed to be accurate at the time of printing. Motorola reserves the right to change or modify any information or specifications without notice or obligation. Manual Number: 680XXXXAXX-O D R A F T 3 check it out!Note: Your phone may not appear exactly as the phone image above. Headset Jack Insert the headset accessory for handsfree use. Battery Battery IndicatorCall Indicator Camera LensMessage Indicator D R A F T 4contentscheck it out! . . . . . . . . . . 3 contents . . . . . . . . . . . . . 4 menu map . . . . . . . . . . . 6 essentials . . . . . . . . . . . . 9 about this guide. . . . . . . 9SIM card . . . . . . . . . . . 10battery . . . . . . . . . . . . . 10turn it on & off . . . . . . . 12make a call. . . . . . . . . . 13answer a call . . . . . . . . 13your phone number . . . 13 main attractions . . . . . 14 multimedia messages . . . . . . . . . . 14chatting . . . . . . . . . . . . 15camera. . . . . . . . . . . . . 16use the FM radio . . . . . 18 usb connection . . . . . . 20 basics . . . . . . . . . . . . . . 22 display . . . . . . . . . . . . . 22menus . . . . . . . . . . . . . 25text entry . . . . . . . . . . . 26volume. . . . . . . . . . . . . 29navigation key . . . . . . . 29handsfree speaker . . . . 29codes & passwords . . . 30check battery meter. . . 30 customize . . . . . . . . . . . 31 ring style . . . . . . . . . . . 31time & date . . . . . . . . . 31wallpaper . . . . . . . . . . . 32screen saver . . . . . . . . 32display appearance . . . 33answer options . . . . . . 34 personal greetings . . . . 34optional handsfree operation . . . . . . . . . . . 34 calls . . . . . . . . . . . . . . . 36 recent calls . . . . . . . . . 36redial . . . . . . . . . . . . . . 37return a call . . . . . . . . . 37notepad . . . . . . . . . . . . 37hold or mute a call . . . . 37call waiting. . . . . . . . . . 38caller ID . . . . . . . . . . . . 38emergency calls . . . . . 38international calls . . . . . 391-touch dial. . . . . . . . . . 39voicemail . . . . . . . . . . . 40 D R A F T 5 inserting special characters into dialing sequences . . . . . . . . . 41 other features . . . . . . . . 42 advanced calling . . . . . 42phonebook . . . . . . . . . 44messages . . . . . . . . . . 47chat. . . . . . . . . . . . . . . 49web browser (wap 2.0). . . . . . . . . . . 49personalizing. . . . . . . . 50call times & costs . . . . 52handsfree operation . . 54network . . . . . . . . . . . 54personal organizer . . . 54security. . . . . . . . . . . . 56fun & games. . . . . . . . 56 troubleshooting . . . . . . 57 check here first . . . . . . 57when the backlight is turned off, it can seem like your phone isn’t working. . . . . . . . . . . . 57no display . . . . . . . . . . 57no backlight on the display . . . . . . . . . . . . 58phone doesn’t vibrate . 58messages: “enter special code,” “SIM locked - contact service provider,” “subsidy password”. . 58keypad does not respond . . . . . . . . . . . 59no signal or no se…

Text truncated - open the document above for the full version.

IMPORTANT SAFETY AND LEGAL INFORMATION> 2 Software Copyright Notice The Motorola products described in this manual may include copyrighted Motorola and third party software stored in semiconductor memories or other media. Laws in the United States and other countries preserve for Motorola and third party software providers certain exclusive rights for copyrighted software, such as the exclusive rights to distribute or reproduce the copyrighted software. Accordingly, any copyrighted software contained in the Motorola products may not be modified, reverse-engineered, distributed, or reproduced in any manner to the extent allowed by law. Furthermore, the purchase of the Motorola products shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any license under the copyrights, patents, or patent applications of Motorola or any third party software provider, except for the normal, non-exclusive, royalty-free license to use that arises by operation of law in the sale of a product. Part Number: 6809476A21-O 3 Contents Safety and General Information . . . . . . . . . . . . . . . . . . . . 4 FDA Consumer Information on Wireless Phones. . . . . 10 Product Registration . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 RF Energy Interference . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Export Law Assurances. . . . . . . . . . . . . . . . . . . . . . . . . . 20 Wireless: The New Recyclable . . . . . . . . . . . . . . . . . . . . 21 Wireless Phone Safety Tips . . . . . . . . . . . . . . . . . . . . . . 23 4 Safety and General Information IMPORTANT INFORMATION ON SAFE AND EFFICIENT OPERATION. READ THIS INFORMATION BEFORE USING YOUR PHONE. The information provided in this document supersedes the general safety information in user’s guides published prior to December 1, 2002. Exposure To Radio Frequency (RF) Energy Your phone contains a transmitter and a receiver. When it is ON, it receives and transmits RF energy. When you communicate with your phone, the system handling your call controls the power level at which your phone transmits. Your Motorola phone is designed to comply with local regulatory requirements in your country concerning exposure of human beings to RF energy. Operational Precautions To assure optimal phone performance and make sure human exposure to RF energy is within the guidelines set forth in the relevant standards, always adhere to the following procedures. External Antenna Care Use only the supplied or Motorola-approved replacement antenna. Unauthorized antennas, modifications, or attachments could damage the phone. Do NOT hold the external antenna when the phone is IN USE. Holding the external antenna affects call quality and may cause the phone to operate at a higher power level than needed. In addition, use of unauthorized antennas may result in non-compliance with the local regulatory requirements in your country. 5 Phone Operation When placing or receiving a phone call, hold your phone as you would a wireline telephone. Body-Worn Operation To maintain compliance with RF energy exposure guidelines, if you wear a phone on your body when transmitting, always place the phone in a Motorola-supplied or approved clip, holder, holster, case, or body harness for this phone, if available. Use of accessories not approved by Motorola may exceed RF energy exposure guidelines. If you do not use one of the body-worn accessories approved or supplied by Motorola, and are not using the phone held in the normal use position, ensure the phone and its antenna are at least 1 inch (2.5 centimeters) from your body when transmitting. Data Operation When using any data feature of the phone, with or without an accessory cable, position the phone and its antenna at least 1 inch (2.5 centimeters) from your body. Approved Accessories Use of accessories not approved by Motorola, including but not limited to batteries and antennas, may cause your phone to exceed RF energy exposure guidelines. For a list of approved Motorola accessories, visit our website at www.Motorola.com. RF Energy Interference/Compatibility Note: Nearly every electronic device is susceptible to RF energy interference from external sources if inadequately shielded, designed, or otherwise configured for RF energy compatibility. In some circumstances your phone may cause interference. 6 Facilities Turn off your phone in any facility where posted notices instruct you to do so. These facilities may include hospitals or health care facilities that may be using equipment that is sensitive to external RF energy. Aircraft When instructed to do so, turn off your phone when on board an aircraft. Any use of a phone must be in accordance with applicable regulations per airline crew instructions. Medical Devices Pacemakers Pacemaker manufacturers recommend that a minimum separation of 6 inches (15 centimeters) be maintained between a handheld wireless phone and a pacemaker. Persons with pacemakers should: •ALWAYS keep the phone more than 6 inches (15 centimeters) from your pacemaker when the phone is turned ON. •NOT carry the phone in the breast pocket. •Use the ear opposite the pacemaker to minimize the potential for interference. •Turn OFF the phone immediately if you have any reason to suspect that interference is taking place. Hearing Aids Some digital wireless phones may interfere with some hearing aids. In the event of such interference, you may want to consult your hearing aid manufacturer to discuss alternatives. Other Medical Devices If you use any other personal medical device, consult the manufacturer of your device to determine if it is adequately shielded from RF energy. Your physician may be able to assist you in obtaining this information. 7 Use While Driving Check the laws and regulations on the use of phones in the area where you drive. Always obey them. When using your phone while driving, please: •Give full attention to driving and to the road. •Use handsfree operation, if availabl…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA, INC. FCC ID: IHDT6GM1 ATTESTATION STATEMENTS Transceiver type (IHDT6GM1) has been tested in accordance with the requirements contained in the appropriate Commission regulations. To the best of my knowledge, these tests were performed using measurement procedures consistent with industry or Commission standards and demonstrate that this equipment complies with the appropriate standards. Each unit manufactured imported or marketed, will conform to the sample tested within the variations that can be expected due to quantity production and testing on a statistical basis. I further certify that the necessary measurements were made at Motorola, 600 N. U.S. Highway 45, Libertyville, IL 60048. NAME: Diane Steel TITLE: Lead Electrical Engineer Motorola Mobile Devices Business DATE: August 24, 2006 Page 1 of 2 EXHIBIT 2 APPLICANT: MOTOROLA, INC. FCC ID: IHDT6GM1 I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in this application and accompanying technical data are true and correct. The technical data supplied with this application was taken under my supervision and is hereby duly certified. I also certify that this transmit equipment ( IHDT6GM1) is in compliance with all applicable parts of the FCC Rules. NAME: Diane Steel TITLE: Lead Electrical Engineer Motorola Mobile Devices Business DATE: August 24, 2006 Page 2 of 2 EXHIBIT 2

APPLICANT: MOTOROLA, INC. FCC ID: IHDT6GM1 August 24, 2006 CONFIDENTIALITY REQUEST CONTAINED WITHIN Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Application for Cellular/PCS Transceiver Certification Gentlemen: Application: Motorola, Inc., Mobile Devices, 600 N. U.S. Highway 45, Libertyville, Illinois 60048 herein submits: Application for Equipment Authorization for Certification of a Cellular Transceiver, FCC ID: IHDT6GM1. Motorola is also the manufacturer of this equipment. Confidentiality: Pursuant to Section 0.459 of the Commission's rules (CFR 47), Motorola requests confidentiality for portions of the material contained in this application and that the identified material be withheld from public inspection following the grant of this authorization. This material contains Motorola's trade secrets and confidential information that Motorola does not customarily release to the public and which is otherwise not generally available to the public. Confidentiality is requested for the following exhibits: • Exhibit 4 Block Diagrams • Exhibit 5 Schematics • Exhibit 10 Parts List • Exhibit 12 Operational Description Description: This equipment is a GSM portable transceiver, which operates in the 1900 MHz PCS band. The unit may be connected to a computer via a USB connection ( Part 15 , Class B, Computing Device Peripheral). Note: This device contains 900 MHz and 1800 MHz GSM, functions that are not operational in U.S. territories. Contact Information: Please contact me by telephone at (847) 523-6167, or by e-mail ( [email protected]), if there are questions or additional information needed concerning this filing. Regards, Andrew J. Bachler FCC Liaison Mobile Devices 600 N. U.S. Highway 45 Libertyville, IL 60048-5343 Exhibit 13

Date: October 12, 2006 Subject: Request for additional information regarding FCC ID: IHDT6GM1 Reference: Correspondence Reference Number: IHD0507 Confirmation Number: 1608280507/508 Date of Original Email: October 9, 2006 Prepared by: Andrew Bachler, Principal Staff Engineer Motorola Mobile Device Business Libertyville, Illinois Questions and responses follow: 1. Please submit internal photos of the EUT. Response: Please refer to exhibit 9, submitted 9/6/2006. 2. Please submit Part 15B test set up photos (both radiated and AC Line Conducted) as well as Part 24 EMC test set up photos (the test set up photo submitted does not show the EUT). Response: Please refer to the following photos: Figure 1. Part 15 Radiated Test Set-Up 1 Figure 2. Part 15 AC Line Test Set-Up Part 24 Radiated Test Set-Up 3. Please submit a list of the support equipment used in the Part 15B testing (i.e., pc and peripherals), including the FCC ID or indication of DoC for each. Response: The support equipment is listed in the original test report. Each item (computer, Zip Drive, & camera) are labeled as DoC. 2 4. Please specify the detector function used to perform Part 15B radiated emission measurements (both below and above 1 GHz). Response: Below 1 GHz - Quasi Peak Detector for Final Measurements. Above 1 GHz- Average Detector for Final Measurements 5. Please specify the detector function used to perform Part 24E spurious radiated and conducted measurements. Response: Peak Detector. 6. Several items in the SAR Report are listed as past their cal due date. Please address. Response: Please refer to the revised SAR report, submitted 10/12/2006. 7. Page 3/37 of the SAR Report lists incorrect max SAR levels in the Introduction. Please correct. Response: Please refer to the revised SAR report, submitted 10/12/2006. 8. Page 9/37 of the SAR Report states that a 2.5 cm separation distance was used for body SAR tests, but the following pages indicate a 1.5 cm separation. Please clarify. Response: Please refer to the revised SAR report, submitted 10/12/2006. 9. The measured conductivity value for body tissue listed in the SAR Report is not within 5% of the target value, as required. Please remeasure body SAR using compliant body tissue and submit new results, info, system verification, etc.. Response: Please refer to the revised SAR report, submitted 10/12/2006. 10. The required body-worn SAR warning statement does not appear to be in the user’s manual. Please address. Response: Please refer to Exhibit 8A submitted 10/12/2006. 11. Please verify that the statement required by Section 15.19(a)(3) will be included in the user’s manual prior to shipment of the EUT. Response: Exhibit 8A, the “Important Safety and Legal Information” guide contains the statement required by Section 15.19(a)(3). 12. Please submit a label location exhibit. Please be sure to include a statement verifying that the label will be visible at the time of purchase. Response: Please refer to exhibit 1, submitted 10/12/2006. 3

APPLICANT: MOTOROLA, INC. FCC ID: IHDT6GM1 EXHIBIT 3 1 of 2 BACK OF PHONE FLIP OPEN FRONT OF PHONE FLIP OPEN APPLICANT: MOTOROLA, INC. FCC ID: IHDT XXXX 1 EXHIBIT 3 2 of 2 FRONT OF PHONE BACK OF PHONE BACK OF PHONE WITH BATTERY COVER REMOVED

APPLICANT: MOTOROLA INC. FCC ID: IHDT6GM1 FCC IDENTIFICATION (NAMEPLATE) INFORMATION FCC ID: IHDT6GM1 The FCC label shown is representative of the label that will appear on the radio when in production. It will be placed on the equipment as shown in Exhibit 3, and is readily visible at the time of purchase. Other information may also be included on this label. EXHIBIT 1

APPLICANT: MOTOROLA, INC. FCC ID: IHDT6GM1 Main Board Bottom Without Shields Main Board Bottom With Shields EXHIBIT 9 1 of 4 APPLICANT: MOTOROLA, INC. FCC ID: IHDT6GM1 Main Board Top Without Popples Main Board Top With Popples EXHIBIT 9 2 of 4 APPLICANT: MOTOROLA, INC. FCC ID: IHDT6GM1 Flip Board Flip LCD EXHIBIT 9 3 of 4 APPLICANT: MOTOROLA, INC. FCC ID: IHDT6GM1 Inside Back Housing Inside Front Housing EXHIBIT 9 4 of 4

APPLICANT: MOTOROLA INC FCC ID: IHDT6GM1 Test Report Number: 18618-1 EXHIBIT 6 MOBILE DEVICES BUSINESS PRODUCT SAFETY AND COMPLIANCE EMC LABORATORY EMC TEST REPORT Test Report Number – 18618-1 Report Date – August 7, 2006 The test results contained herein relate only to the model(s) identified. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical characteristics. As the responsible EMC Engineer, I hereby declare that the equipment tested as specified in this report conforms to the requirements indicated. Signature: Name: Thanigaiselvan Palaniswami Title: EMC Engineer Date: August 7, 2006 This report must not be reproduced, except in full, without written approval from this laboratory. THIS REPORT MUST NOT BE USED TO CLAIM PRODUCT ENDORSEMENT BY A2LA OR ANY AGENCY OF THE U.S. GOVERNMENT. A2LA Certificate Number: 1651-01 APPLICANT: MOTOROLA INC FCC ID: IHDT6GM1 Test Report Number: 18618-1 EXHIBIT 6 2 Table of Contents Description Page Test Report Details 3 Applicable Standards 3 Summary of Testing 4 General and Special Conditions 4 Equipment and Cable Configuration 5 Measurement Procedures and Data 6 RF Power Output 6 Measurement results 6 Radiated Power 7 Measurement results 7 Occupied Bandwidth 8 Measurement results 9 Spurious Emissions at Antenna Terminals 11 Measurement results 12 Field Strength of Spurious Emissions 13 Measurement results 14 Frequency Stability 15 Measurement results 16 Field Strength of Spurious Emissions -Unintentional Radiators 17 Measurement results 18 AC Line Conducted Emissions 20 Measurement results 21 Appendix A - Radiated Emissions Test Setup Photos 24 Figure A.2 – Substitution Measurement 24 APPLICANT: MOTOROLA INC FCC ID: IHDT6GM1 Test Report Number: 18618-1 EXHIBIT 6 3 Test Report Details Tests Performed By: Motorola Mobile Devices business (MDb) Product Safety and Compliance Group 600 North US Hwy 45 Libertyville, IL 60048 PH (847) 523-6167 Fax (847) 523-4538 Motorola MDb FRN: 0004321311 FCC Registration Number: 316588 Industry Canada Number: IC3908-1 Tests Requested By: Motorola Inc. Mobile Devices Business 600 North US Hwy 45 Libertyville, IL 60048 Product Type: Cellular Phone Signaling Capability: GSM 1900 FCC ID : IHDT6GM1 Serial Numbers: 004401021603200, 00440102603507, 004401021603226 Testing Complete Date: July 18, 2006 Applicable Standards All tests and measurements indicated in this document were performed in accordance with the Code of Federal Regulations Title 47 Part 2, Sub-part J as well as the following parts: X Part 15 Subpart B – Unintentional Radiators X Part 24 Subpart E- Personal Communications Services Applicable Standards: ANSI 63.4 2003, RSS-132, RSS-133 (PCS) APPLICANT: MOTOROLA INC FCC ID: IHDT6GM1 Test Report Number: 18618-1 EXHIBIT 6 4 Summary of Testing Test Test Name # Pass/Fail 1 RF Power Output NA 2 EIRP (Effective Isotropic Radiated Power) Pass 3 Occupied Bandwidth Pass 4 Spurious Emissions at Antenna Terminal Pass 5 Field Strength of Spurious Emissions Pass 6 Frequency Stability Pass 7 Field Strength of Spurious Emissions Pass from Unintentional Radiators 8 AC Line Conducted Emissions Pass Test Test Name Margin with respect # to the Limit_________ 1 RF Power Output NA 2 EIRP (Effective Isotropic Radiated Power) See results 3 Occupied Bandwidth See Plots 4 Spurious Emissions at Antenna Terminal 24 dB 5 Field Strength of Spurious Emissions See Table 6 Frequency Stability 50 Hz 7 Field Strength of Spurious Emissions Below noise floor from Unintentional Radiators 8 AC Line Conducted Emissions See Plots The margin with respect to the limit is the minimum margin for all modes and bands. General and Special Conditions The EUT was tested using a fully charged battery when applicable. Where a battery could not be used due to the need for a controlled variation of input voltage, an external power supply was utilized. All testing was done in an indoor controlled environment with an average temperature of 22º C and relative humidity of 50%. APPLICANT: MOTOROLA INC FCC ID: IHDT6GM1 Test Report Number: 18618-1 EXHIBIT 6 5 Equipment and Cable Configurations The EUT was tested in a stand-alone configuration that is representative of typical use. Manufacturer Equipment Type Model No. Serial Number Calibration Due Date Rohde Schwarz Receiver ESI26 100001 3/08/07 Rohde Schwarz Receiver ESI40 100226 6/05/07 Hewlett Packard EMC Analyzer E7405 US39440191 1/05/07 Hewlett Packard Signal Generator 83712A 3429A00286 6/6/07 A.H. Systems DRG Horn Antenna SAS 200/571 365 5/12/07 ETS. Horn Antenna 3115 6222 3/03/07 ETS Log-Periodic Antenna 3148 1189 8/22/06 ETS Biconical Antenna 3110B 3369 8/15/06 Attenuator Weinschel 2 AS-6 6675 6/6/07 Attenuator Weinschel 2 AS-6 6677 11/10/06 Attenuator Weinschel 2 AS-6 7075 1/31/07 Attenuator Weinschel 2 AS-6 6675 6/06/07 Thermotron Environmental Chamber S-4 31580 1/31/07 Agilent Power Meter E4416A GB41293246 02/03/07 Agilent Power Sensor E4412B US38486321 02/03/07 ETS LISN 3810/2NM 00062907 5/10/07 ETS LISN 3810/2NM 00062912 5/10/07 Dell Laptop Computer M20 NA NA Iomega Zip Drive Z250S P9HM1992CK NA Olympus Camera D-600L 4020727 NA All equipment is on a one-year calibration cycle. APPLICANT: MOTOROLA INC FCC ID: IHDT6GM1 Test Report Number: 18618-1 EXHIBIT 6 6 Measurement Procedures and Data RF POWER OUTPUT Measurement Procedure The RF output port of the equipment under test is directly coupled to the input of a Agilent power meter through a 20dB passive attenuator, adaptor (if needed), and specialized RF connector. The peak power output is measured for all channels. CFR47 Part 2.1046 Measurement Results GSM 1900 Frequency (MHz) Power (dBm) 1850.20 29.94 1880.00 29.87 1909.80 29.86 APPLICANT: MOTOROLA INC FCC ID: IHDT6GM1 Test Report Number: 18618-1 EXHIBIT 6 7 RADIATED POWER (EIRP AND ERP) Measurement Procedure The phone was tested in a 16’ anechoic chamber with a 2-axis position system that permits taking complete…

Text truncated - open the document above for the full version.

Date: October 12, 2006 Subject: Request for additional information regarding FCC ID: IHDT6GM1 Reference: Correspondence Reference Number: IHD0507 Confirmation Number: 1608280507/508 Date of Original Email: October 9, 2006 Prepared by: Andrew Bachler, Principal Staff Engineer Motorola Mobile Device Business Libertyville, Illinois Questions and responses follow: 1. Please submit internal photos of the EUT. Response: Please refer to exhibit 9, submitted 9/6/2006. 2. Please submit Part 15B test set up photos (both radiated and AC Line Conducted) as well as Part 24 EMC test set up photos (the test set up photo submitted does not show the EUT). Response: Please refer to the following photos: Figure 1. Part 15 Radiated Test Set-Up 1 Figure 2. Part 15 AC Line Test Set-Up Part 24 Radiated Test Set-Up 3. Please submit a list of the support equipment used in the Part 15B testing (i.e., pc and peripherals), including the FCC ID or indication of DoC for each. Response: The support equipment is listed in the original test report. Each item (computer, Zip Drive, & camera) are labeled as DoC. 2

APPLICANT: MOTOROLA INC FCC ID: IHDT6GM1 Test Report Number: 18618-1 EXHIBIT 7 Appendix A – Radiated Emissions Test Setup Photos A.1 Substitution Measurement
