IHDT6GM2Portable PCS GSM Transceiver with Bluetooth

INSTRUCTION MANUAL A preliminary draft of the User’s Manual follows this page. The text on the following three pages will be added to the user manual. APPLICANT: MOTOROLA,INC. FCC ID: IHDT6GM2 EXHIBIT 8 SAR DataSpecific Absorption Rate DataSAR DataThis model wireless phone meets the government’s requirements for exposure to radio waves.Your wireless phone is a radio transmitter and receiver. It is designed and manufactured not to exceed limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission (FCC) of the U.S. Government and by the Canadian regulatory authorities. These limits are part of comprehensive guidelines and establish permitted levels of RF energy for the general population. The guidelines are based on standards that were developed by independent scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a substantial safety margin designed to assure the safety of all persons, regardless of age or health.The exposure standard for wireless mobile phones employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC and by the Canadian regulatory authorities is 1.6 W/kg. 1 Tests for SAR are conducted using standard operating positions accepted by the FCC and by Industry Canada with the phone transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR level of the phone while operating can be well below the maximum value. This is because the phone is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a wireless base station, the lower the power output.Before a phone model is available for sale to the public in the U.S. and Canada, it must be tested and certified to the FCC and Industry Canada that it does not exceed the limit established by each government for safe exposure. The tests are performed in positions and locations (e.g., at the ear and worn on the body) reported to the FCC and available for review by Industry Canada. The highest SAR value for this model phone when tested for use at the ear is 0 . 29 W/kg, and when worn on the body, as described in th is user guide, is 0. 28 W/kg. 2 W hile there may be differences between the SAR levels of various phones and at various positions, they all meet the governmental requirements for safe exposure. Please note that improvements to this product model could cause differences in the SAR value for later products; in all cases, products are designed to be within the guidelines. SAR Data Additional information on Specific Absorption Rates (SAR) can be found on the Cellular Telecommunications & Internet Association (CTIA) Web site:http://www.phonefacts.netor the Canadian Wireless Telecommunications Association (CWTA) Web site:http://www.cwta.ca1. In the United States and Canada, the SAR limit for mobile phones used by the public is 1.6 watts/kg (W/kg) averaged over one gram of tissue. The standard incorporates a substantial margin of safety to give additional protection for the public and to account for any variations in measurements. 2. The SAR information includes the Motorola testing protocol, assessment procedure, and measurement uncertainty range for this product. User’s Guide 1 HELLOMOTO Thanks for purchasing the Motorola W377 wireless phone! It’s an affordable phone with a sleek design that’s sure to get attention. My Phone, My Way – It’s your phone—make it that way. Customize your home screen with personal pictures, change wallpapers, and use your favorite song as your ringtone. Multimedia and Text Messaging – Send pictures, sounds, or just text to keep in touch with your family, friends, and colleagues. Office Tools– When you are away from your home or desk, make use of handy tools like Calendar, Calculator, Stopwatch, and others. Fun – When you have a little time to spare, play a game. Browse the Web – Use Web Access to do a little surfing on the go. 2 Here’s a quick anatomy lesson. Navigate menus. Right So ft Key Turn on & off, hang up, exit menus. Left Soft Key Message Key Open menus. Web Browser Key Volume Keys Charge up & connect to your PC. Make & answer calls. Listen to music. Message Indicator Battery Indica tor Call Indica tor Camera 3 t e s n 4 3 2 1 z f ì & n Phonebook s Recent Calls e Messages É Office Tools Q Game & Apps á Web Access Home ScreenMain Menu Press & hold the power key P until the display lights up, to turn on your phone. Press the center key s to open the Main Menu. Press the navigation key S up/down/left/right to scroll to a menu feature. Press the center key s to select it. Service Provider 10/15/07 5:05 pm BROWSER Ph. Book Main Menu SELECT EXIT 4 Motorola, Inc. Consumer Advocacy Office 1307 East Algonquin Road Schaumburg, IL 60196 www.hellomoto.com 1-800-331-6456 (United States) 1-888-390-6456 (TTY/TDD United States for hearing impaired) 1-800-461-4575 (Canada) Certain mobile phone features are dependent on the capabilities and settings of your service provider’s network. Additionally, certain features may not be activated by your service provider, and/or the provider’s network settings may limit the feature’s functionality. Always contact your service provider about feature availability and functionality. All features, functionality, and other product specifications, as well as the information contained in this user’s guide are based upon the latest available information and are believed to be accurate at the time of printing. Motorola reserves the right to change or modify any information or specifications without notice or obligation. MOTOROLA and the Stylized M Logo are registered in the US Patent & Trademark Office. All other product or service names are the property of their respective owners. The Bluetooth trademarks are owned by their proprietor and used by Motorola, Inc…

Text truncated - open the document above for the full version.

APPLICANT MOTOROLA, INC. FCC ID: IHDT6GM2 SPECIFICATION COMPLIANCE STATEMENT Transceiver type (IHDT6GM2) has been tested in accordance with the requirements contained in the appropriate Commission regulations. To the best of my knowledge, these tests were performed using measurement procedures consistent with industry or Commission standards and demonstrate that this equipment complies with the appropriate standards. Each unit manufactured imported or marketed, will conform to the sample tested within the variations that can be expected due to quantity production and testing on a statistical basis. I further certify that the necessary measurements were made at Motorola, 600 N. U.S. Highway 45, Libertyville, IL 60048. NAME: Diane Steel TITLE: Lead Electrical Engineer Motorola Mobile Devices Business DATE: July 11, 2007 1 of 3Exhibit 2 APPLICANT MOTOROLA INC. FCC ID: IHDT6GM2 STATEMENT OF CERTIFICATION I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in this application and accompanying technical data are true and correct. The technical data supplied with this application was taken under my supervision and is hereby duly certified. I also certify that this transmit equipment (IHDT6GM2) is in compliance with all applicable parts of the FCC Rules. NAME: Diane Steel TITLE: Lead Electrical Engineer Motorola Mobile Devices Business DATE: July 11, 2007 2 of 3Exhibit 2 APPLICANT: MOTOROLA INC. FCC ID: IHDT6GM2 ATTESTATION STATEMENT This device contains an embedded Bluetooth device that Motorola confirms compliance with the following Part 15 regulations. 15.247(a)(1) • the hopping sequence must be pseudorandom • all Channels are used equally on average • the receiver input bandwidth is approximately equal to the transmit bandwidth • the receiver hops in sequence with the transmitted signal 15.247(g) the system is designed to comply with all of the regulations in Section 15.247 when the transmitter is presented with a continuous data (or information) 15.247(h) the system does not coordinate its channel selection/hopping sequence with other frequency hopping systems for the express purpose of avoiding the simultaneous occupancy of individual hopping frequencies by multiple transmitters NAME: Diane Steel TITLE: Lead Electrical Engineer Motorola Mobile Devices Business DATE: July 11, 2007 3 of 3Exhibit 2

APPLICANT: MOTOROLA, INC. FCC ID: IHDT6GM2 Exhibit 13 July 11, 2007 CONFIDENTIALITY REQUEST CONTAINED WITHIN Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Application for Cellular/PCS Transceiver Certification Gentlemen: Application: Motorola, Inc., Mobile Devices, 600 N. U.S. Highway 45, Libertyville, Illinois 60048 herein submits: Application for Equipment Authorization for Certification of a Cellular Transceiver, FCC ID: IHDT6GM2. Motorola is also the manufacturer of this equipment. Confidentiality: Pursuant to Section 0.459 of the Commission's rules (CFR 47), Motorola requests confidentiality for portions of the material contained in this application and that the identified material be withheld from public inspection following the grant of this authorization. This material contains Motorola's trade secrets and confidential information that Motorola does not customarily release to the public and which is otherwise not generally available to the public. Confidentiality is requested for the following exhibits: • Exhibit 4 Block Diagrams • Exhibit 5 Schematics • Exhibit 10 Parts List • Exhibit 12 Operational Description Description: This equipment is a GSM portable transceiver, which operates in the 1900 MHz PCS band. The unit also contains a 2.4 GHz Bluetooth transmitter (Part 15.247). The unit may be connected to a computer via a USB connection (Part 15, Class B; Computing Device Peripheral). Note: This device also contains functions that are not operational in U.S. territories. This filing is only applicable for US operations. Contact Information: Please contact me by telephone at (847) 523-6167, or by e-mail ([email protected]) , if there are questions or additional information needed concerning this filing. Regards, Andrew J. Bachler FCC Liaison Mobile Devices 600 N. U.S. Highway 45 Libertyville, IL 60048-5343

Date: September 21, 2007 Subject: Request for additional information regarding FCC ID: IHDT6GM2 Reference: Correspondence Reference Number: IHD7618 Confirmation Number: 707110618-20 Date of Original Email: September 19, 2007 Prepared by: Andrew Bachler, Principal Staff Engineer Motorola Mobile Device Business Libertyville, Illinois Questions and responses follow: 1. Please verify that the FCC ID label will be visible at the time of purchase Response: The FCC ID will be visible at the location shown in Exhibit 3 at the time of purchase. 2. Please submit an Operational Description for the Bluetooth transmitter. Response: Please refer to “2048-PB04-R.pdf”. 3. Please address Section 15.203 for the Bluetooth transmitter. Response: The Bluetooth antenna is permanently mounted inside the EUT, and is not accessible to the user. (Please refer to exhibit 6A1, page 5, for additional details.) 4. Please specify the exact location of the Bluetooth schematics within the schematics exhibit. Response: Refer to page 4 of Exhibit 5. U401 is the main Bluetooth/FM IC on the page. The bottom of the page, contains U404 the Bluetooth rf filter and the antenna and matching components. 5. Please provide the cal due dates for the equipment used by UL to perform radiated emission measurements on the Bluetooth transmitter. Response: The UL lab confirms that their report is written In accordance with ISO 17025, and all test equipment was within the calibration cycle at the time of test. 6. The Operational Description describes 850 MHz operation. Please verify that this has been disabled in the EUT. Response: 850MHz has been disabled in the EUT. 7. The Operational Description describes multislot GPRS operation, but this is not tested in the SAR report. Please address. Response: W377 Euro (IHDT6GM2) phone has multislot GPRS Class 8 mode. As you can see from the below table, GPRS Class 8 mode uses ONE uplink slot even thought it is multislot 1 operation, which means that it uses the same slot as normal voice call mode. Therefore, we did not included the GPRS Class 8 mode configuration on the SAR test since it uses the same time slot as voice call. Multislot classes are product dependant, and determine the maximum achievable data rates in both the uplink and downlink directions. Written as (for example) 3+1 or 2+2, the first number indicates the amount of downlink timeslots (what the mobile phone is able to receive from the network). The second number indicates the amount of uplink timeslots (how many timeslots the mobile phone is able to transmit). The active slots determine the total number of slots the GPRS device can use simultaneously for both uplink and downlink communications. Multislot Class Downlink Slots Uplink Slots Active Slots 1 1 1 2 2 2 1 3 3 2 2 3 4 3 1 4 5 2 2 4 6 3 2 4 7 3 3 4 8 4 1 5 9 3 2 5 10 4 2 5 11 4 3 5 12 4 4 5 8. On p.6/38 of the SAR report, the system verification target should be the Grand Average value from the dipole characterization certificate, and not the theoretical IEEE 1528 value. Please correct. Response: Please refer to updated Exhibit 11, SAR test report attached. 9. We note the following typo: p.3/38 of the SAR report, the GSM1900 frequency range is incorrect. Response: Please refer to updated Exhibit 11, SAR test report attached. 2

1. Close front 2. Close back APPLICANT: MOTOROLA, INC.FCC ID: IHDT6GM2 1 of 3EXHIBIT 3 3. Open front and back APPLICANT: MOTOROLA, INC.FCC ID: IHDT6GM2 2 of 3EXHIBIT 3 4. Open side APPLICANT: MOTOROLA, INC.FCC ID: IHDT6GM2 3 of 3EXHIBIT 3

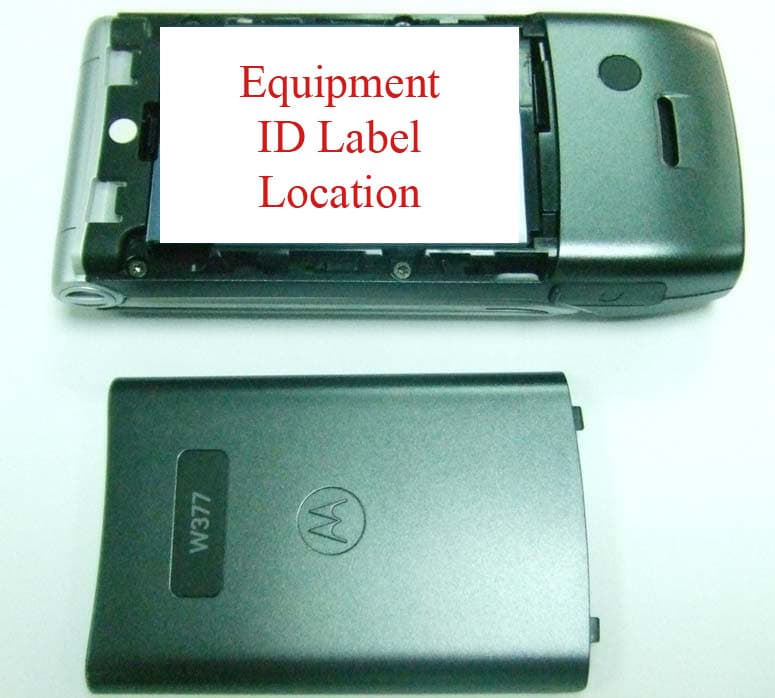

APPLICANT: MOTOROLA INC. FCC ID: IHDT6GM2 FCC IDENTIFICATION (NAMEPLATE) INFORMATION FCC ID: IHDT6GM2 The FCC label shown is representative of the label that will appear on the radio when in production. It will be placed on the outside of the equipment as shown in Exhibit 3. Other information may also be included on this label. EXHIBIT 1

Internal APPLICANT: MOTOROLA, INC.FCC ID: IHDT6GM2 1 of 3EXHIBIT 9 Main Board with shielding Sub Board with shielding APPLICANT: MOTOROLA, INC.FCC ID: IHDT6GM2 2 of 3EXHIBIT 9 Main Board without shielding Sub Board without shielding APPLICANT: MOTOROLA, INC.FCC ID: IHDT6GM2 3 of 3EXHIBIT 9

0 0 Portable Cellular Phone SAR Test Report Test Report #: 20985-1F Date of Report: 31-Aug-2007 Date of Test: 21-Aug-2007 FCC ID #: IHDT6GM2 Generic Name: CQ3-4411A21 Laboratory: Motorola Mobile Devices Business Product Safety & Compliance Laboratory 11th Floor, Hibrand Living Hall, 215, Yanjae-Dong, Seocho-Gu, Seoul, South Korea, 137-130 Report Author: Brian Lee RF Engineer Accreditation: TESTING CERT #2518-03 This laboratory is accredited to ISO/IEC 17025-2005 to perform the following tests: Tests : Procedures: Electromagnetic Specific Absorption Rate IEC 62209-1 RSS-102 IEEE 1528 - 2003 FCC OET Bulletin 65 (including Supplement C) Australian Communications Authority Radio Communications (Electromagnetic Radiation – Human Exposure) Standard 2003 CENELEC EN 50360 (2001) CENELEC EN 50361 (2001) ARIB Std. T-56 (2002) On the following products or types of products: On the following products or types of products: Wireless Communications Devices (Examples): Two Way Radios; Portable Phones (including Cellular, Licensed Non-Broadcast and PCS); Low Frequency Readers; and Pagers Statement of Compliance: Motorola declares under its sole responsibility that the portable cellular telephone model to which this declaration relates, is in conformity with the appropriate General Population/Uncontrolled RF exposure standards, recommendations and guidelines (FCC 47 CFR §2.1093) as well as with CENELEC en50360:2001 and ANSI / IEEE C95.1. It also declares that the product was tested in accordance with IEEE 1528 / CENELEC EN62209-1 (2006), as well as other appropriate measurement standards, guidelines and recommended practices. Any deviations from these standards, guidelines and recommended practices are noted below: (none) ©Motorola, Inc. 2007 This test report shall not be reproduced except in full, without written approval of the laboratory. The results and statements contained herein relate only to the items tested. The names of individuals involved may be mentioned only in connection with the statements or results from this report. Motorola encourages all feedback, both positive and negative, on this test report. MOTOROLA, INC. Portable Cellular Phone SAR Test Report Number: 20985-1F E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 1 1 Table of Contents 1. Introduction 2 2. Description of the Device Under Test 2 2.1 Antenna description 2 2.2 Device description 2 3. Test Equipment Used 3 3.1 Dosimetric System 3 3.2 Additional Equipment 3 4. Electrical parameters of the tissue simulating liquid 4 5. System Accuracy Verification 5 6. Test Results 6 6.1 Head Adjacent Test Results 6 6.2 Body Worn Test Results 8 References 10 Appendix 1: SAR distribution comparison for system accuracy verification 11 Appendix 2: SAR distribution plots for Phantom Head Adjacent Use 12 Appendix 3: SAR distribution plots for Body Worn Configuration 13 Appendix 4: Probe Calibration Certificate 14 Appendix 5: Measurement Uncertainty Budget 15 Appendix 6: Photographs of the device under test 17 Appendix 7: Dipole Characterization Certificate 21 MOTOROLA, INC. Portable Cellular Phone SAR Test Report Number: 20985-1F E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 2 2 1. Introduction The Motorola Mobile Devices Business Product Safety Laboratory has performed measurements of the maximum potential exposure to the user of the portable cellular phone covered by this test report. The Specific Absorption Rate (SAR) of this product was measured. The portable cellular phone was tested in accordance with [1], [4] and [5]. The SAR values measured for the portable cellular phone are below the maximum recommended levels of 1.6 W/kg in a 1g average set in [3] and 2.0W/kg in a 10g average set in [2]. For ANSI / IEEE C95.1 (1g), the final SAR reading for this phone is 0.29 W/kg for head adjacent use and 0.28 W/kg for body worn use. These measurements were performed using a Dasy4™ v4.7 system manufactured by Schmid & Partner Engineering AG (SPEAG), of Zurich Switzerland. 2. Description of the Device Under Test 2.1 Antenna description Type Internal Antenna Location Bottom of Transceiver Length 37.95mm Dimensions Width 8.60mm Configuration FJA 2.2 Device description Serial number 356893010011003 Mode(s) of Operation GSM 900 GSM 1800 GSM 1900 Bluetooth Modulation Mode(s) GMSK GMSK GMSK GFSK Maximum Output Power Setting 33.00dBm 30.00dBm 30.00dBm 4.0 dBm Duty Cycle 1:8 1:8 1:8 1:1 Transmitting Frequency Rang(s) 880.2- 914.8MHz 1710.2- 1784.8MHz 1850.2- 1 909.8MHz 2400. 0 - 2483.5 MHz Production Unit or Identical Prototype (47 CFR §2..908) Identical Prototype Device Category Portable RF Exposure Limits General Population / Uncontrolled MOTOROLA, INC. Portable Cellular Phone SAR Test Report Number: 20985-1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 3 3 3. Test Equipment Used 3.1 Dosimetric System The Motorola Mobile Devices Business Product Safety & Compliance Laboratory utilizes a Dosimetric Assessment System (Dasy4™ v4.7) manufactured by Schmid & Partner Engineering AG (SPEAG™), of Zurich Switzerland. All the SAR measurements are taken within a shielded enclosure. The overall 10g RSS uncertainty of the measurement system is ±10.8% (K=1) with an expanded uncertainty of ±21.6% (K=2). The overall 1g RSS uncertainty of the measurement system is ±11.1% (K=1) with an expanded uncertainty of ±22.2% (K=2). The measurement uncertainty budget is given in Appendix 6. Per IEEE 1528, this uncertainty budget is applicable to the SAR range of 0.4W/kg to 10W/kg. The list of calibrated equipment used for the measurements is shown in the following table. Description Serial Number Cal Due Date DASY4™ DAE V1 SN386 13-Apr-2008 E-Field Probe ETDV6 SN1390 24-Apr-2008 Dipole Validation Kit, DV900V2 97 01-May-2008 S.A.M. Phantom used for 900MHz TP-1129 Dipole Validation Kit, DV1800V2 277tr 01-May-2008 S.A.M. Phantom used for 1800/1900MHz TP-1134 3.2 Additional Equipment Description Serial Number Cal Due Date Signal Generator HP8648C 3847A04840 02-Dec-2007 Power…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA INC FCC ID: IHDT6GM2 Test Report Number: 20986-1 EXHIBIT 6 1 of 23 MOBILE DEVICES BUSINESS PRODUCT SAFETY AND COMPLIANCE EMC LABORATORY EMC TEST REPORT Test Report Number – 20986-1 Report Date – September 11, 2007 The test results contained herein relate only to the model(s) identified. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical characteristics. As the responsible EMC Engineer, I hereby declare that the equipment tested as specified in this report conforms to the requirements indicated. Signature: Name: Thanigaiselvan Palaniswami Title: EMC Engineer Date: September 11, 2007 This report must not be reproduced, except in full, without written approval from this laboratory. THIS REPORT MUST NOT BE USED TO CLAIM PRODUCT ENDORSEMENT BY A2LA OR ANY AGENCY OF THE U.S. GOVERNMENT. A2LA Certificate Number: 2518-02 APPLICANT: MOTOROLA INC FCC ID: IHDT6GM2 Test Report Number: 20986-1 EXHIBIT 6 2 of 23 Table of Contents Description Page Test Report Details 3 Applicable Standards 3 Summary of Testing 4 General and Special Conditions 4 Equipment and Cable Configuration 5 Measurement Procedures and Data 6 RF Power Output 6 Measurement results 6 Radiated Power 7 Measurement results 7 Occupied Bandwidth 8 Measurement results 9 Spurious Emissions at Antenna Terminals 11 Measurement results 12 Field Strength of Spurious Emissions 13 Measurement results 14 Frequency Stability 15 Measurement results 16 Field Strength of Spurious Emissions -Unintentional Radiators 17 Measurement results 18 AC Line Conducted Emissions 19 Measurement results 20 APPLICANT: MOTOROLA INC FCC ID: IHDT6GM2 Test Report Number: 20986-1 EXHIBIT 6 3 of 23 Test Report Details Tests Performed By: Motorola Mobile Devices Business (MDb) Product Safety and Compliance Group 600 North US Hwy 45 Libertyville, IL 60048 PH (847) 523-6167 Fax (847) 523-4538 Motorola MDb FRN: 0004321311 FCC Registration Number: 316588 Industry Canada Number: IC3908-1 Tests Requested By: Motorola Inc. Mobile Devices Business 600 North US Hwy 45 Libertyville, IL 60048 Product Type: Cellular Phone Signaling Capability: GSM 1900, Bluetooth FCC ID: IHDT6GM2 Serial Numbers: 356893010010856, 356893010010864, 356893010011243, 356893010010880 Testing Complete Date: September 06, 2007 Applicable Standards All tests and measurements indicated in this document were performed in accordance with the Code of Federal Regulations Title 47 Part 2, Sub-part J as well as the following parts: X Part 15 Subpart B – Unintentional Radiators X Part 24 Subpart E – Personal Communications Services Applicable Standards: ANSI/TIA-603-C-2004, ANSI 63.4 2003, APPLICANT: MOTOROLA INC FCC ID: IHDT6GM2 Test Report Number: 20986-1 EXHIBIT 6 4 of 23 Summary of Testing Test Test Name # Pass/Fail 1 RF Power Output NA 2 EIRP (Effective Isotropic Radiated Power) Pass 3 Occupied Bandwidth Pass 4 Spurious Emissions at Antenna Terminal Pass 5 Field Strength of Spurious Emissions Pass 6 Frequency Stability Pass 7 Field Strength of Spurious Emissions Pass from Unintentional Radiators 8 AC Line Conducted Emissions Pass Test Test Name Margin with respect # to the Limit_________ 1 RF Power Output NA 2 EIRP (Effective Isotropic Radiated Power) See results 3 Occupied Bandwidth See Plots 4 Spurious Emissions at Antenna Terminal See results 5 Field Strength of Spurious Emissions See results 6 Frequency Stability See results 7 Field Strength of Spurious Emissions Below noise floor from Unintentional Radiators 8 AC Line Conducted Emissions See Plots The margin with respect to the limit is the minimum margin for all modes and bands. General and Special Conditions The EUT was tested using a fully charged battery when applicable. Where a battery could not be used due to the need for a controlled variation of input voltage, an external power supply was utilized. All testing was done in an indoor controlled environment with an average temperature of 22º C and relative humidity of 50%. APPLICANT: MOTOROLA INC FCC ID: IHDT6GM2 Test Report Number: 20986-1 EXHIBIT 6 5 of 23 Equipment and Cable Configurations The EUT was tested in a stand-alone configuration that is representative of typical use. Manufacturer Equipment Type Model No. Serial Number Calibration Due Date Rohde Schwarz Receiver ESI26 838786/010 3/19/2008 Rohde Schwarz Receiver ESI26 100001 5/02/2008 Hewlett Packard EMC Analyzer E7405 US39440191 1/24/2008 Hewlett Packard Signal Generator 83623B 3844A00935 3/18/2008 ETS Horn Antenna 3115 6222 3/21/2008 A.H. Systems DRG Horn Antenna SAS 200/571 365 5/24/2008 ETS Log-Periodic Antenna 3148 1189 9/12/2007 ETS Biconical Antenna 3110B 3369 9/12/2007 Attenuator Weinschel AS-6 6675 1/31/2008 Attenuator Weinschel AS-6 6677 6/21/2008 Thermotron Environmental Chamber S-4 31580 1/29/2008 Agilent Power Meter E4416A GB41293263 12/27/2008 Agilent Power Sensor E4412B MY44420342 12/28/2007 ETS LISN 3810/2NM 62907 5/02/2008 ETS LISN 3810/2NM 62912 5/02/2008 Note that the Agilent power meter on a two-year calibration cycle. All other equipment is on a one-year calibration cycle. APPLICANT: MOTOROLA INC FCC ID: IHDT6GM2 Test Report Number: 20986-1 EXHIBIT 6 6 of 23 Measurement Procedures and Data RF POWER OUTPUT Measurement Procedure The RF output port of the equipment under test is directly coupled to the input of an Agilent power meter through a 20dB passive attenuator, adaptor (if needed), and specialized RF connector. The peak power output is measured for all channels. CFR47 Part 2.1046 Measurement Results GSM 1900 Frequency (MHz) Power (dBm) 1850.2 29.92 1880.0 30.08 1909.8 30.17 APPLICANT: MOTOROLA INC FCC ID: IHDT6GM2 Test Report Number: 20986-1 EXHIBIT 6 7 of 23 RADIATED POWER (EIRP) Measurement Procedure The phone was tested in a 16’ anechoic chamber with a 2-axis position system that permits taking complete spherical scans of the EUT’s radiation patterns. For all tests, the phone was supported in …
