IHDT6GN1Portable PCS GSM/ EDGE Transceiver with Bluetooth

APPLICANT: MOTOROLA, INC. FCC ID: IHDT6GN1 EXHIBIT 8 INSTRUCTION MANUAL A preliminary draft copy of the Users Manual follows: motorola.com V3xx 3G Cover.Print.Front.UG.landscape-V3xx.fm Page 1 Friday, July 28, 2006 3:26 PM 1 HELLOMOTOIntroducing your new Motorola V3xx 3G wireless phone. Here’s a quick anatomy lesson. N a v iga t i on Key Navigate m enus. Center Sele c t Key Open m enus, select m enu ite m s. Cle a r/B ac k Key C a mer a Key M ic ro p hone Power/End Key Turn on/off, hang up, exit m enus. R ig ht Soft Key Left Soft Key Volume Keys Intern a l C a mer a Lens Sm a rt Key Send Key Make & answer calls. Make video calls. Go online. 2 A cc essory Conne c tor Port Insert battery charger & phone accessories. Volume Keys Open ring style m enu or adjust ca m era zoo m when flip is closed. A c t i ve V i deo C a ll Ind ica tor B a ttery Ch a r gi n g Ind ica tor Sm a rt Key Choose a ring style when flip is closed. Hold the s m art key to lock or unlock all side keys. C a mer a Key Take ca m era photo when flip is closed. Extern a l C a mer a Lens Bluetooth™ Conne c t i on Ind ica tor Extern a l D i s p l a y See inco m ing call infor m ation, use as ca m era viewfinder when flip is closed. 3 Home S c reen M ai n Menu Press the Navigation Key u p , down, left, or r ig ht ( S ) to highlight a m enu feature. 3 Press the Center Key s to select it. 4 Messages Camera Select Back WebAccess Press and hold the Power Key O for a few seconds or until the display lights up to turn on your phone. 1 Press the Center Key s to open the M ai n Menu . 2 Service Provider 12:00 4 Motorola, Inc.Consumer Advocacy Office1307 East Algonquin RoadSchaumburg, IL 60196www.hellomoto.comCertain mobile phone features are dependent on the capabilities and settings of your service provider’s network. Additionally, certain features may not be activated by your service provider, and/or the provider's network settings may limit the feature’s functionality. Always contact your service provider about feature availability and functionality. All features, functionality, and other product specifications, as well as the information contained in this user's guide are based upon the latest available information and are believed to be accurate at the time of printing. Motorola reserves the right to change or modify any information or specifications without notice or obligation.MOTOROLA and the Stylized M Logo are registered in the US Patent & Trademark Office. All other product or service names are the property of their respective owners. The Bluetooth trademarks are owned by their proprietor and used by Motorola, Inc. under license. Java and all other Java-based marks are trademarks or registered trademarks of Sun Microsystems, Inc. in the U.S. and other countries. Microsoft, Windows and Windows Me are registered trademarks of Microsoft Corporation; and Windows XP is a trademark of Microsoft Corporation. © Motorola, Inc., 2006. Caution: Changes or modifications made in the radio phone, not expressly approved by Motorola, will void the user’s authority to operate the equipment. Software Copyright Notice The Motorola products described in this manual may include copyrighted Motorola and third-party software stored in semiconductor memories or other media. Laws in the United States and other countries preserve for Motorola and third-party software providers certain exclusive rights for copyrighted software, such as the exclusive rights to distribute or reproduce the copyrighted software. Accordingly, any copyrighted software contained in the Motorola products may not be modified, reverse-engineered, distributed, or reproduced in any manner to the extent allowed by law. Furthermore, the purchase of the Motorola products shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any license under the copyrights, patents, or patent applications of Motorola or any third-party software provider, except for the normal, non-exclusive, royalty-free license to use that arises by operation of law in the sale of a product.Manual Number: 68XXXXX148-O contents 5 contentsmenu map. . . . . . . . . . . . 7Safety Information . . . . . 9Use and Care . . . . . . . . 1 4 EU Conformance . . . . . 15Recycling Information . 16essentials . . . . . . . . . . . 17 about this guide . . . . . 17SIM card . . . . . . . . . . . 17battery . . . . . . . . . . . . 18turn it on & off . . . . . . 20make a call . . . . . . . . . 21answer a call. . . . . . . . 21store a phone number 21call a stored phone number . . . . . . . . . . . . 21your phone number . . 22 main attractions . . . . . . 23 Bluetooth™ wireless . 23audio player . . . . . . . . 29photos . . . . . . . . . . . . 31videos . . . . . . . . . . . . . 33video calls. . . . . . . . . . 35text messages . . . . . . 36memory card . . . . . . . 38cable connections. . . . 40phone updates . . . . . . 42 basics. . . . . . . . . . . . . . . 4 3 display . . . . . . . . . . . . 43text entry . . . . . . . . . . 46volume . . . . . . . . . . . . 50navigation key. . . . . . . 51smart key . . . . . . . . . . 51external display. . . . . . 51 handsfree speaker . . . 52codes & passwords . . 52lock & unlock phone . . 52 customize . . . . . . . . . . . 5 4 ring style. . . . . . . . . . . 54time & date. . . . . . . . . 55wallpaper . . . . . . . . . . 56screen saver . . . . . . . . 56themes . . . . . . . . . . . . 57display appearance . . . 57answer options . . . . . . 58 calls . . . . . . . . . . . . . . . . 59 turn off a call alert . . . . 59recent calls . . . . . . . . . 59redial . . . . . . . . . . . . . . 60return a call . . . . . . . . . 61caller ID . . . . . . . . . . . 61 6 contents emergency calls . . . . . 62voicemail . . . . . . . . . . . 62 other features . . . . . . . . 6 4 advanced calling . . . . . 64phonebook. . . . . . . . . . 69messages . . . . . . . . . . 74instant messaging . . . . 77personalizing . . . . . . . . 79call times & costs . . . . 80handsfree . . . . . . . . . . 81data cal…

Text truncated - open the document above for the full version.

APPLICANT MOTOROLA INC. FCC ID:IHDT6GN1 EXHIBIT2 ATTESTATION STATEMENTS The transceiver type IHDT6GN1 has been tested in accordance with the requirements contained in the appropriate Commission regulations. To the best of my knowledge, these tests were performed using measurement procedures consistent with industry or Commission standards and demonstrate that this equipment complies with the appropriate standards. Each unit manufactured imported or marketed, will conform to the sample tested within the variations that can be expected due to quantity production and testing on a statistical basis. I further certify that the necessary measurements were made at Motorola, located at 600 North U.S. Highway 45, Libertyville, Illinois. NAME: Larry Wuensch TITLE : Engineering Manager PCS Development APPLICANT MOTOROLA INC. FCC ID:IHDT6GN1 EXHIBIT 2 The technical data supplied with this application, was taken under my supervision is hereby duly certified . I also certify that this transmit equipment (FCC ID : IHDT6GN1) compliance with all applicable parts of the FCC Rules . The following is a statement of my qualifications : NAME : Dave Suarez TITLE : Engineering Section Manager PCS Development I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in this application and accompanying technical data are true and correct . NAME : Dave Suarez TITLE : Engineering Section Manager PCS Development APPLICANT MOTOROLA INC. FCC ID: IHDT6GN1 ATTESTATION STATEMENT This device contains an embedded Bluetooth device that Motorola confirms compliance with the following Part 15 regulations. 15.247(a)(1) • the hopping sequence must be pseudorandom • all Channels are used equally on average • the receiver input bandwidth is approximately equal to the transmit bandwidth • the receiver hops in sequence with the transmitted signal 15.247(g) the system is designed to comply with all of the regulations in Section 15.247 when the transmitter is presented with a continuous data (or information) 15.247(h) the system does not coordinate its channel selection/hopping sequence with other frequency hopping systems for the express purpose of avoiding the simultaneous occupancy of individual hopping frequencies by multiple transmitters NAME: Dave Suarez TITLE: ENGINEERING MANAGER Mobile Device Business Motorola, Inc. EXHIBIT 2A

Date: October 30, 2006 Subject: Request for additional information regarding FCC ID: IHDT6GN1 Reference: Correspondence Reference Number: IHD0640 Confirmation Number: 1610060639/0641 Date of Original Email: October 25, 2006 Prepared by: Andrew Bachler, Principal Staff Engineer Motorola Mobile Device Business Libertyville, Illinois Questions and responses follow: 1. Please provide the FCC ID, or indicate DoC, for the pc and peripherals used to perform the Part 15B tests. Response: All peripheral equipments are listed in the original equipment list. All equipments are labeled as DoC. 2. The Part 15B AC line conducted emissions test plots show a point marked on the graph that is very close to the limit. Please provide tabular data for the AC line conducted emissions. Response: Please refer to the following AC Line Conducted Emissions Tabular Data. Line Average Detector Frequency Level Transd Limit Margin MHz dBμV dB dBμV dB 0.24 50.1 10 52.1 2 0.47 44.7 10 46.5 1.8 0.59 40.6 10 46 5.4 0.71 37.2 10 46 8.8 1.07 36.4 10 46 9.6 1.86 36.9 10 46 9.1 Line Quasi Peak Detector Frequency Level Transd Limit Margin MHz dBμV dB dBμV dB 0.24 61.3 10 62.1 0.8 0.47 48.4 10 56.5 8.1 0.59 45.4 10 56 10.6 1.55 42.6 10 56 13.4 1.86 41.7 10 56 14.3 2.27 40.3 10 56 15.7 1 Neutral Average Detector Frequency Level Transd Limit Margin MHz dBμV dB dBμV dB 0.24 51.3 10 52.1 0.8 0.47 42.1 10 46.5 4.4 0.59 40.7 10 46 5.3 1.05 35.9 10 46 10.1 1.07 36.7 10 46 9.3 1.55 37 10 46 9 Neutral Quasi Peak Detector Frequency Level Transd Limit Margin MHz dBμV dB dBμV dB 0.23 55.9 10 62.4 6.6 0.47 48.3 10 56.5 8.2 0.59 45.4 10 56 10.6 1.55 42.7 10 56 13.3 1.86 42 10 56 14 3.62 41.6 10 56 14.4 3. For the Part 15B radiated emission tests, please provide peak radiated data for emissions above 1 GHz in order to demonstrate compliance with Section 15.35(b). Response: Please refer to the following Computer Peripheral Radiated Emission Testing data Peak Detector Frequency Level Angle Height Pol. MHz dBμV/m deg cm 1951.904 51.76 231 300 VER 1953.908 50.75 350 300 HOR 1987.976 50.66 262 400 HOR 1997.996 52.58 244 300 HOR 4. Please submit test set up photos for Parts 15B, 15C and 24E tests. Response: Please refer to exhibit 7A submitted October 30, 2006. 5. Please verify that the statements required by Sections 15.19(a)(3) and 15.105 will be included in the user’s manual prior to shipment of the EUT. Response: The required statements for Sections 15.19(a)(3) and 15.105 will be included in the final version of the user’s manual. 6. The Part 15C transmitter (Bluetooth) schematics do not appear to have been submitted. Please do so. If they were submitted, please indicate precisely where they are located. Response: Please refer to exhibit 5 Bluetooth schematic, submitted October 30, 2006. 2

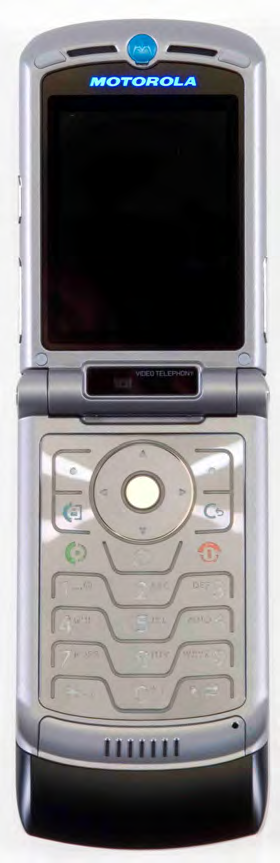

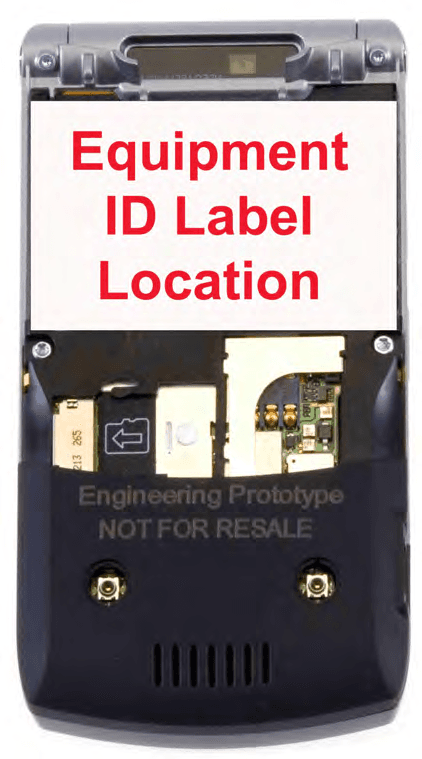

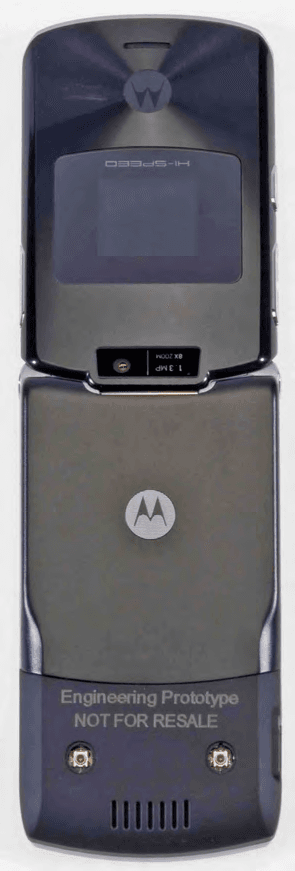

Front View Flip Opened Rear View Flip Opened APPLICANT: MOTOROLA INC. FCC ID: IHDT6GN1 EXHIBIT 3 1 OF 2 Rear View with Battery Cover Removed Showing ID Label Rear View Front View APPLICANT: MOTOROLA INC. FCC ID: IHDT6GN1 EXHIBIT 3 2 OF 2

APPLICANT: MOTOROLA INC. FCC ID: IHDT6GN1 FCC IDENTIFICATION (NAMEPLATE) INFORMATION FCC ID: IHDT6GN1 The FCC label shown is representative of the label that will appear on the radio when in production. It will be placed on the equipment as shown in Exhibit 3, and is readily visible at the time of purchase. Other information may also be included on this label. EXHIBIT 1

APPLICANT: MOTOROLA, INC. FCC ID: IHDT6GN1 EXHIBIT 9 Front View (Shields Removed) Rear View (Shields Removed) Front View Rear View APPLICANT : MOTOROLA, INC. FCC ID : IHDT6GN1 Housing internal views EXHIBIT 9

September 27, 2006 Motorola Inc. Attn: Mr. Doug Hammers 600 N. US HWY 45 Libertyville, IL 60048 US UL Reference: File MC15003, Project 06CA48466 Subject: EMC Test and Measurement Report for Cell Phone FCC ID - IHDT6GN1, 19100-2 Dear Mr. Hammers: We have provided with this letter your EMC Test Report for the above referenced model. The pproduct was determined to comply with the requirements noted in the report. Please review the attached report and direct any questions or comments to me. We appreciate your interest in UL’s EMC Services, and encourage you to contact us in the future should you need EMC test services. This closes Project 06CA48466. Best regards, Reviewed by: Lou Madjarov (Ext 43957) Jack Steiner EMC Sr. Project Engineer Section Manager International EMC Services International EMC Services UL International EMC Services 333 Pfingsten Road Northbrook, Illinois 60062-2096 (800) 873-8536 Fax No. (847) 272-8864 http://www.ul.com/hitech/emc/ FCC ID - IHDT6GN1 File MC15003 Project 06CA48466 Page 1 of 10 UL International EMC Services www.ul.com/hitech/emc (800) USE UL EMC EMC – TEST REPORT Issue Date: September 27, 2006 √ EMISSIONS IMMUNITY Test Report File No. : MC15003 Project No. : 06CA48466 Model / Type 19100-2 Kind of Product : Bluetooth Cell Phone Applicant : Motorola Inc. License Holder : Motorola Inc. Address : 600 N. US HWY 45 : Libertyville, IL 60048 : US Manufacturer : Same as Applicant : : : Test Result : COMPLIANT This report without appendices consists of 10 pages. Appendix A contains test photos, Appendix B contains original test data and Appendix C contains operating instructions provided by the manufacturer. The data contained in this report reflects only the items tested in the configurations and mode of operations described. An attempt has been made to arrange the EUT, with the equipment provided, into a test configuration which maximizes the observed emissions of the EUT while simulating, as close as practical, a typical end-use installation. Underwriters Laboratories Inc. authorizes the above company to reproduce this report provided it is reproduced in its entirety. Underwriters Laboratories Inc. 333 Pfingsten Rd. Northbrook, IL 60062 Fax: (847) 272-8864 FCC ID - IHDT6GN1 File MC15003 Project 06CA48466 Page 2 of 10 UL International EMC Services www.ul.com/hitech/emc (800) USE UL EMC REPORT DIRECTORY SECTION TITLE GENERAL 1.0 General Product Description 1.1 Model Differences 1.2 Environmental Conditions in Test Lab 1.3 Calibration Details of Equipment Used for Measurement 1.4 EUT (Equipment Under Test) Configuration 1.5 EUT Operating Mode 1.6 Device Modifications EMISSIONS 2.0 Emissions Test Regulations Radiated Electric Field Emissions IMMUNITY 3.0 Immunity Test Regulations CONCLUSION 4.0 General Remarks 4.1 Summary APPENDICIES A Test Setups (Photos, Diagrams and Drawings) B Test Data C Operating instructions provided by the manufacturer FCC ID - IHDT6GN1 File MC15003 Project 06CA48466 Page 3 of 10 UL International EMC Services www.ul.com/hitech/emc (800) USE UL EMC 1.0 GENERAL PRODUCT DESCRIPTION The equipment under test (EUT) is a BlueTooth cell phone FCC ID - IHDT6GN1, 19100-2. 1.0.1 Equipment Mobility: Hand-held 1.0.2 Test Voltage and Frequency: Voltage (V) Frequency (Hz) Cell phone battery DC 1.1 MODEL DIFFERENCES Any other model(s) represented by the models tested in this investigation will be documented by the manufacturer. 1.2 ENVIRONMENTAL CONDITIONS IN TEST LAB Temperature: 20-25 °C Relative Humidity: 30-60% RH Atmospheric Pressure: 860-1060 mbar FCC ID - IHDT6GN1 File MC15003 Project 06CA48466 Page 4 of 10 UL International EMC Services www.ul.com/hitech/emc (800) USE UL EMC 1.3 CALIBRATION OF EQUIPMENT USED FOR MEASUREMENT All test equipment and test accessories are calibrated on a regular basis. The maximum time between calibrations is one year or what is recommended by the manufacturer, whichever is less. All test equipment calibrations are traceable to the National Institute of Standards and Technology (NIST), therefore, all test data recorded in this report is traceable to NIST. Equipment Calibration Data Manufacturer Name Item Name Description Model # Serial Number Calibration Date Calibration Due Date Hewlett Packard QP Adapter 85650A 2811A01069 1/06/06 1/06/07 Hewlett Packard S/A Display 8566B 2542A12974 1/06/06 1/06/07 Hewlett Packard S/A 8566B 2637A03376 1/06/06 1/06/07 Rohde & Schwartz S/A FSEK20 DE2525315 3/15/06 3/15/07 Electro-Metrics Bi-Con Antenna 30-300MHz EM912A 114 3/01/06 3/01/07 Chase Log-Periodic Antenna UPA6109 1060 3/17/06 3/17/07 EMCO Horn Antenna 1-18GHz 3115 6546 10/18/05 10/18/06 EMCO Horn Antenna 2-4GHz 3161-02 9906-1052 N/A N/A EMCO Horn Antenna 4-8GHz 3161-03 9905-1041 N/A N/A EMCO Horn Antenna 8-12GHz 3160-07 9902-1114 N/A N/A EMCO Horn Antenna 12-18GHz 3160-08 9904-1100 N/A N/A EMCO Horn Antenna 18-26.5GHz 3160-09 990345-003 N/A N/A UL 40 GHz BOMS Signal Path ULBOMS - 02/2005 02/2007 FCC ID - IHDT6GN1 File MC15003 Project 06CA48466 Page 5 of 10 UL International EMC Services www.ul.com/hitech/emc (800) USE UL EMC 1.4 EUT CONFIGURATION(s) See Appendix A for individual set-up configuration(s). In addition to the EUT, the following peripheral devices and/or cables were connected during the measurement: Phone was tested in battery mode only. No external cables (USB, Headphone or Charger) were attached per manufacturer’s request. Device Manufacturer Submission # Serial # FCC ID EUT Motorola Corp 19100-2 - IHDT6GN1 1.5 EUT OPERATING MODE(s) The equipment under test was operated during the measurements under the following conditions: ß Per manufacturer’s request tests were performed in the Bluetooth mode only. See Appendix C for manufacturer's provided instructions for configuring the phone to operate in this mode. ß Tests were performed at low, mid and high channels. ß Tests were performed with EUT orientated along X, Y and Z orthogonal axis. 1.6 DEVICE MODIFICATIONS The following modifications were necessary for compliance: …

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA, INC. FCC ID: IHDT6GN1 Figure 1. AC Line Conducted Emissions Measurement Setup Figure 2. Part 15 Radiated Emissions Measurement Setup Exhibit 7A 1 APPLICANT: MOTOROLA, INC. FCC ID: IHDT6GN1 Figure 3.Part 22/24 Radiated Emissions Measurement Setup Figure 4. Radiated Emissions X-Axis Exhibit 7A 2 APPLICANT: MOTOROLA, INC. FCC ID: IHDT6GN1 Figure 5. Radiated Emissions Y-Axis Figure 6. Radiated Emissions Z-Axis Exhibit 7A 3
