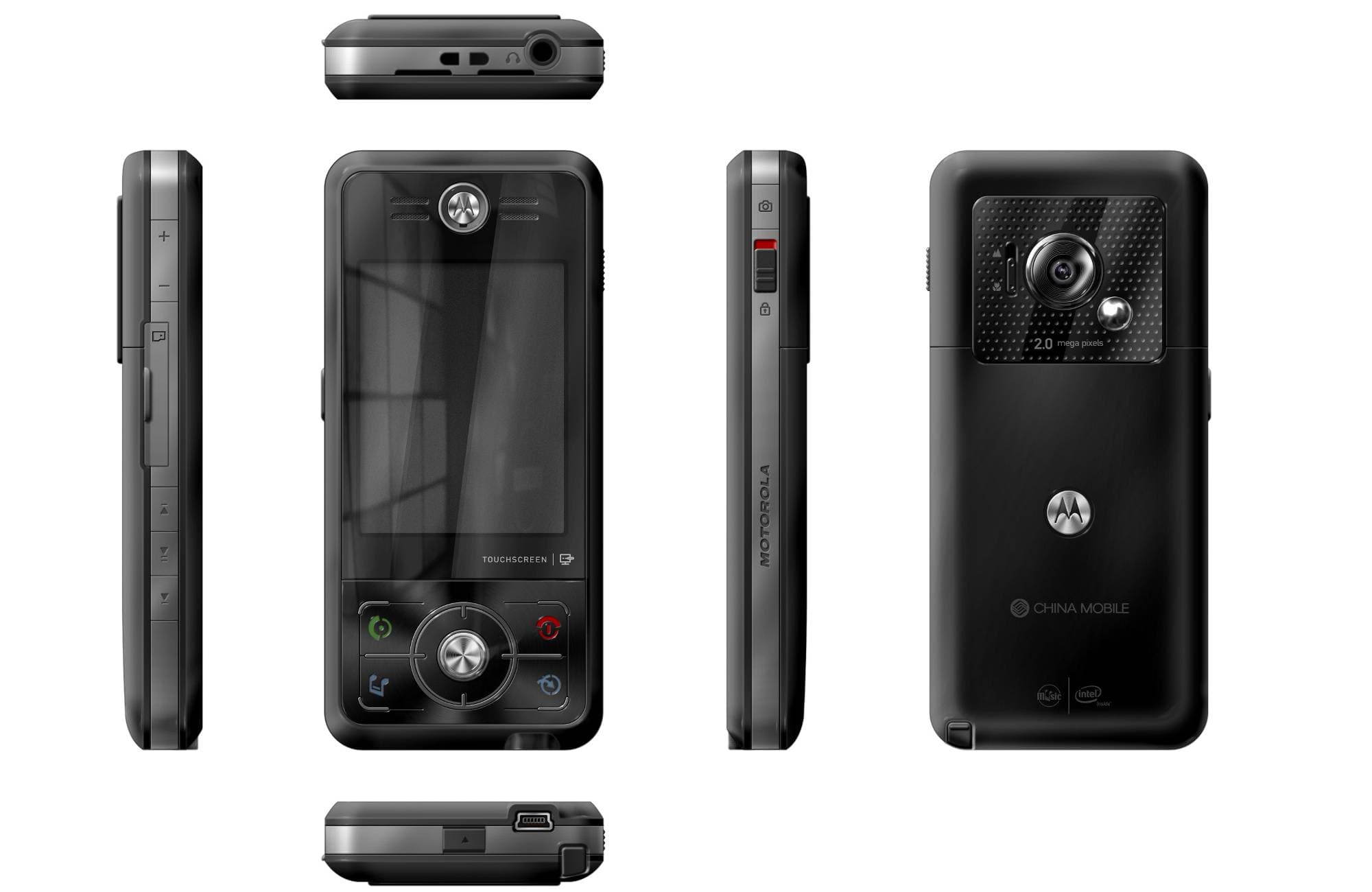

IHDT6HM1Portable PCS GSM/ EDGE Transceiver with Bluetooth

APPLICANT: MOTOROLA, INC. FCC ID: IHDT6HM1 USER’S MANUAL • A preliminary draft copy of the User’s Manual follows this cover page. • The text on the following three pages will be added for FCC requirements. EXHIBIT 8 FCC NoticeFCC Notice To UsersFCC NoticeMotorola has not approved any changes or modifications to this device by the user. Any changes or modifications could void the user’s authority to operate the equipment. See 47 CFR Sec. 15.21.This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. See 47 CFR Sec. 15.19(3).If your mobile device or accessory has a USB connector, or is otherwise considered a computer peripheral device whereby it can be connected to a computer for purposes of transferring data, then it is considered a Class B device and the following statement applies:This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and the receiver. • Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. SAR DataSpecific Absorption Rate DataSAR DataThis model wireless phone meets the government’s requirements for exposure to radio waves.Your wireless phone is a radio transmitter and receiver. It is designed and manufactured not to exceed limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission (FCC) of the U.S. Government and by the Canadian regulatory authorities. These limits are part of comprehensive guidelines and establish permitted levels of RF energy for the general population. The guidelines are based on standards that were developed by independent scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a substantial safety margin designed to assure the safety of all persons, regardless of age or health.The exposure standard for wireless mobile phones employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC and by the Canadian regulatory authorities is 1.6 W/kg. 1 Tests for SAR are conducted using standard operating positions accepted by the FCC and by Industry Canada with the phone transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR level of the phone while operating can be well below the maximum value. This is because the phone is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a wireless base station, the lower the power output.Before a phone model is available for sale to the public in the U.S. and Canada, it must be tested and certified to the FCC and Industry Canada that it does not exceed the limit established by each government for safe exposure. The tests are performed in positions and locations (e.g., at the ear and worn on the body) reported to the FCC and available for review by Industry Canada. The highest SAR value for this model phone when tested for use at the ear is 0 . 39 W/kg, and when worn on the body, as described in this user guide, is 0. 31 W/kg. (Body-worn measurements differ among phone models, depending upon available accessories and regulatory requirements). 2 While there may be differences between the SAR levels of various phones and at various positions, they all meet the governmental requirements for safe exposure. Please note that improvements to this product model could cause differences in the SAR value for later products; in all cases, products are designed to be within the guidelines. SAR Data Additional information on Specific Absorption Rates (SAR) can be found on the Cellular Telecommunications & Internet Association (CTIA) Web site:http://www.phonefacts.netor the Canadian Wireless Telecommunications Association (CWTA) Web site:http://www.cwta.ca1. In the United States and Canada, the SAR limit for mobile phones used by the public is 1.6 watts/kg (W/kg) averaged over one gram of tissue. The standard incorporates a substantial margin of safety to give additional protection for the public and to account for any variations in measurements. 2. The SAR information includes the Motorola testing protocol, assessment procedure, and measurement uncertainty range for this product. motorola.com MOTO ROKR™ E6 GSM English Cover.Print.Front.E6.UG.fm Page 1 Thursday, August 24, 2006 9:18 AM Cover.Print.Front.E6.UG.fm Page 2 Thursday, August 24, 2006 9:18 AM 1 HELLOMOTOIntroducing your new MOTO ROKR™ E6 GSM wireless phone. Here’s a quick anatomy lesson. Center KeySelect m enu ite m s. M ic ro p hone Make sure your fingers don’t cover the m icrophone during calls. N a v iga t i on Key Navigate m enus. He a dset J ac k C a mer a Key Browser Key Med ia Pl a yer Key Launch m edia player, or m ove it to foreground (when running in background) . M i n i -USB Port Power/End Key Tu…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA INC. FCC ID: IHDT6HM1 SPECIFICATION COMPLIANCE STATEMENT Transceiver type (IHDT6HM1) has been tested in accordance with the requirements contained in the appropriate Commission regulations. To the best of my knowledge, these tests were performed using measurement procedures consistent with industry or Commission standards and demonstrate that this equipment complies with the appropriate standards. Each unit manufactured imported or marketed, will conform to the sample tested within the variations that can be expected due to quantity production and testing on a statistical basis. I further certify that the necessary measurements were made at Motorola, 600 N. U.S. Highway 45, Libertyville, IL 60048. NAME: Yan Yan TITLE: R&D Engineer Motorola Mobile Devices Business Date: February 22, 2007 Page 1 of 3 EXHIBIT 2 APPLICANT: MOTOROLA INC. FCC ID: IHDT6HM1 STATEMENT OF CERTIFICATION I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in this application and accompanying technical data are true and correct. The technical data supplied with this application was taken under my supervision and is hereby duly certified. I also certify that this transmit equipment ( IHDT6HM1) is in compliance with all applicable parts of the FCC Rules. NAME: Geng Erin TITLE: Engineering Manager Motorola Mobile Devices Business Date: February 22, 2007 Page 2 of 3 EXHIBIT 2 APPLICANT: MOTOROLA INC. FCC ID: IHDT6HM1 ATTESTATION STATEMENT This device contains an embedded Bluetooth device that Motorola confirms compliance with the following Part 15 regulations. 15.247(a)(1) • the hopping sequence must be pseudorandom • all Channels are used equally on average • the receiver input bandwidth is approximately equal to the transmit bandwidth • the receiver hops in sequence with the transmitted signal 15.247(g) the system is designed to comply with all of the regulations in Section 15.247 when the transmitter is presented with a continuous data (or information) 15.247(h) the system does not coordinate its channel selection/hopping sequence with other frequency hopping systems for the express purpose of avoiding the simultaneous occupancy of individual hopping frequencies by multiple transmitters NAME: Yan Yan TITLE: R&D Engineer Mobile Device Business Motorola, Inc. Date: February 22, 2007 Page 3 of 3 EXHIBIT 2

APPLICANT: MOTOROLA FCC ID: IHDT6HM1 February 7, 2007 SHORT TERM CONFIDENTIALITY REQUEST 45 DAYS Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Cellular/PCS Transceiver FCC ID IHDT6HM1 Gentlemen: Introduction: Pursuant to Section 0.459 of the Commission's rules (CFR 47) and Section 552(b)(4) of the Freedom of Information Act, Motorola requests confidentiality for portions of the material contained in this application; and that the identified material be withheld from public inspection following the grant of this authorization. This material contains Motorola's trade secrets and confidential information that Motorola does not customarily release to the public and which is otherwise not generally available to the public. Standard Confidentiality Request: Confidentiality is requested for the following exhibits: • Exhibit 4 Block Diagrams • Exhibit 5 Schematics • Exhibit 10 Parts List / Tune up Information • Exhibit 12 Operational Description Short Term Confidentiality Request: Furthermore, due to sensitive business information, Motorola requests the following exhibits be withheld from public viewing for 45 days: • Exhibit 3 External Photographs • Exhibit 7 and 7A Test Setup Photos • Exhibit 8 User’s Manual • Exhibit 9 Internal Photographs Contact Information: Please contact me by telephone at (847) 523-6167, or by e-mail ( [email protected]), if there are questions or additional information needed concerning this filing. Regards, Andrew J. Bachler FCC Liaison Mobile Devices 600 N. U.S. Highway 45 Libertyville, IL 60048-5343 Exhibit 13A

Date: March 28, 2007 Subject: Request for additional information regarding FCC ID: IHDT6HM1 Reference: Correspondence Reference Number: IHD7086 Confirmation Number: 702070086-88 Date of Original Email: March 09, 2007 Prepared by: Andrew Bachler, Principal Staff Engineer Motorola Mobile Device Business Libertyville, Illinois Questions and responses follow: 1. Please confirm that the statements required by Sections 15.19 and 15.105 will be included in the user’s manual prior to shipment of the EUT. Response: Confirmed. The final user’s manual will include the required Part 15 statements. 2. It does not appear that the schematics for the Bluetooth transmitter are included in the schematics exhibit. If they are, please indicate precisely where they are located. If they are not, please submit them. Response: Please refer to exhibit 5A. 3. The operational description does not really address the Bluetooth transmitter. Reference is made to it, but only with respect to how it interacts with the rest of the EUT. Please submit an operational (technical) description of the Bluetooth transmitter itself. Response: The transmitter is contained in a single chip Bluetooth compliant solution. The integrated radio transceiver operates in the 2.4 GHz band. Fractional-N frequency PLL generation technology is used to synthesize transmit and receive LO frequencies. The digital baseband inputs are applied to a proprietary modulator, driving a dual mixing scheme, which is applied to a programmable power amplifier circuit. 1

APPLICANT: MOTOROLA, INC. FCC ID: IHDT6HM1 Page 1 of 2 EXHIBIT 3 APPLICANT: MOTOROLA, INC. FCC ID: IHDT6HM1 EQUIPMENT ID LABEL LOCATION BACK OF PHONE WITH BATTERY COVER REMOVED Page 2 of 2 EXHIBIT 3

APPLICANT: MOTOROLA INC. FCC ID: IHDT6HM1 FCC IDENTIFICATION (NAMEPLATE) INFORMATION FCC ID: IHDT6HM1 The FCC label shown is representative of the label that will appear on the radio when in production. It will be placed on the outside of the equipment as shown in Exhibit 3, and is readily visible at the time of purchase. Other information may also be included on this label. EXHIBIT 1

APPLICANT: MOTOROLA, INC. FCC ID: IHDT6HM1 Main Board Without Shields EXHIBIT 9 1 of 4 APPLICANT: MOTOROLA, INC. FCC ID: IHDT6HM1 Main Board With Shields EXHIBIT 9 2 of 4 APPLICANT: MOTOROLA, INC. FCC ID: IHDT6HM1 HOUSING EXHIBIT 9 3 of 4 APPLICANT: MOTOROLA, INC. FCC ID: IHDT6HM1 Housing EXHIBIT 9 4 of 4

0 0 Portable Cellular Phone SAR Test Report Test Report #: 20247-1F Date of Report: 28-Mar-2007 Date of Test: 19-Mar-2007 ~ 21-Mar-2007 FCC ID #: IHDT6HM1 Generic Name: MT4-411A21 Laboratory: Motorola Mobile Devices Business Product Safety & Compliance Laboratory 11th Floor, Hibrand Living Hall, 215, Yanjae-Dong, Seocho-Gu, Seoul, South Korea, 137-130 Report Author: Brian Lee RF Engineer Accreditation: This laboratory is accredited to ISO/IEC 17025-1999 to perform the following tests: Tests : Procedures: Electromagnetic Specific Absorption Rate IEC 62209-1 RSS-102 IEEE 1528 - 2003 FCC OET Bulletin 65 (including Supplement C) Australian Communications Authority Radio Communications (Electromagnetic Radiation – Human Exposure) Standard 2003 CENELEC EN 50360 (2001) CENELEC EN 50361 (2001) ARIB Std. T-56 (2002) On the following products or types of products: On the following products or types of products: Wireless Communications Devices (Examples): Two Way Radios; Portable Phones (including Cellular, Licensed Non-Broadcast and PCS); Low Frequency Readers; and Pagers A2LA certificate #2518-03 Statement of Compliance: Motorola declares under its sole responsibility that the portable cellular telephone model to which this declaration relates, is in conformity with the appropriate General Population/Uncontrolled RF exposure standards, recommendations and guidelines (FCC 47 CFR §2.1093) as well as with CENELEC en50360:2001 and ANSI / IEEE C95.1. It also declares that the product was tested in accordance with CENELEC en50361:2001, IEEE 1528, as well as other appropriate measurement standards, guidelines and recommended practices. Any deviations from these standards, guidelines and recommended practices are noted below: (none) ©Motorola, Inc. 2006 This test report shall not be reproduced except in full, without written approval of the laboratory. The results and statements contained herein relate only to the items tested. The names of individuals involved may be mentioned only in connection with the statements or results from this report. Motorola encourages all feedback, both positive and negative, on this test report. MOTOROLA, INC. Portable Cellular Phone SAR Test Report Number: 20247-1F E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 1 1 Table of Contents 1. Introduction 2 2. Description of the Device Under Test 2 2.1 Antenna description 2 2.2 Device description 2 3. Test Equipment Used 3 3.1 Dosimetric System 3 3.2 Additional Equipment 3 4. Electrical parameters of the tissue simulating liquid 4 5. System Accuracy Verification 5 6. Test Results 6 6.1 Head Adjacent Test Results 6 6.2 Body Worn Test Results 9 References 12 Appendix 1: SAR distribution comparison for system accuracy verification 13 Appendix 2: SAR distribution plots for Phantom Head Adjacent Use 14 Appendix 3: SAR distribution plots for Body Worn Configuration 15 Appendix 4: Probe Calibration Certificate 16 Appendix 5: Measurement Uncertainty Budget 17 Appendix 6: Photographs of the device under test 19 Appendix 7: Dipole Characterization Certificate 23 MOTOROLA, INC. Portable Cellular Phone SAR Test Report Number: 20247-1F E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 2 2 1. Introduction The Motorola Mobile Devices Business Product Safety Laboratory has performed measurements of the maximum potential exposure to the user of the portable cellular phone covered by this test report. The Specific Absorption Rate (SAR) of this product was measured. The portable cellular phone was tested in accordance with [1], [4] and [5]. The SAR values measured for the portable cellular phone are below the maximum recommended levels of 1.6 W/kg in a 1g average set in [3] and 2.0W/kg in a 10g average set in [2]. 2. Description of the Device Under Test 2.1 Antenna description Type Internal Antenna Location Back of the phone at the top Length 48mm Dimensions Width 18mm Configuration FICA 2.2 Device description Serial number TA259001K8 Mode(s) of Operation GSM 900 GSM 1800 GSM 1900 GPRS 900 GPRS 1800 GPRS 1900 EDGE 900 EDGE 1800 EDGE 1900 Blue Tooth Modulation Mode(s) GMSK GMSK GMSK GMSK GMSK GMSK 8PSK 8PSK 8PSK GFSK Maximum Output Power Setting 33.50 dBm 30.50 dBm 30.50 dBm 33.50 dBm 30.50 dBm 30.50 dBm 29.00 dBm 28.00 dBm 28.00 dBm 4.00 dBm Duty Cycle 1:8 1:8 1:8 2:8 2:8 2:8 2:8 2:8 2:8 1:1 Transmitting Frequency Rang(s) 880.2- 914.8 MHz 1710.2- 1784.8 MHz 1850.2– 1909.8 MHz 880.2- 914.8 MHz 1710.2- 1784.8 MHz 1850.2 – 1909.8 MHz 880.2- 914.8 MHz 1710.2- 1784.8 MHz 1850.2- 1909.8 MHz 2400 - 2483.5 MHz Production Unit or Identical Prototype (47 CFR §2..908) Identical Prototype Device Category Portable RF Exposure Limits General Population / Uncontrolled MOTOROLA, INC. Portable Cellular Phone SAR Test Report Number: 20247-1F E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 3 3 3. Test Equipment Used 3.1 Dosimetric System The Motorola Mobile Devices Business Product Safety & Compliance Laboratory utilizes a Dosimetric Assessment System (Dasy4™ v4.7) manufactured by Schmid & Partner Engineering AG (SPEAG™), of Zurich Switzerland. All the SAR measurements are taken within a shielded enclosure. The overall 10g RSS uncertainty of the measurement system is ±10.8% (K=1) with an expanded uncertainty of ±21.6% (K=2). The overall 1g RSS uncertainty of the measurement system is ±11.1% (K=1) with an expanded uncertainty of ±22.2% (K=2). The measurement uncertainty budget is given in Appendix 6. Per IEEE 1528, this uncertainty budget is applicable to the SAR range of 0.4W/kg to 10W/kg. The list of calibrated equipment used for the measurements is shown in the following table. Description Serial Number Cal Due Date DASY4™ DAE V1 SN 367 19-May-2007 E-Field Probe ETDV6 SN 1525 30-May-2007 Dipole Validation Kit, DV1800V2 276tr S.A.M. Phantom used for 1800/1900MHz TP-1138 3.2 Additional Equipment Description Serial Number Cal Due Date Signal Generator HP8648C 3847A04840 02-Dec-2007 Power Meter E4419B GB39511085 05-Dec-2007 Power Sensor #1 - 8481A MY41095450…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA INC FCC ID: IHDT6HM1 Test Report Number: 19842-2 EXHIBIT 6 1 of 32 MOBILE DEVICES BUSINESS PRODUCT SAFETY AND COMPLIANCE EMC LABORATORY EMC TEST REPORT Test Report Number – 19842-2 Report Date – February 2, 2007 The test results contained herein relate only to the model(s) identified. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical characteristics. As the responsible EMC Engineer, I hereby declare that the equipment tested as specified in this report conforms to the requirements indicated. Signature: Name: Albert J. Patapack Title: EMC Engineer Date: February 2, 2007 This report must not be reproduced, except in full, without written approval from this laboratory. THIS REPORT MUST NOT BE USED TO CLAIM PRODUCT ENDORSEMENT BY A2LA OR ANY AGENCY OF THE U.S. GOVERNMENT. A2LA Certificate Number: 2518-02 APPLICANT: MOTOROLA INC FCC ID: IHDT6HM1 Test Report Number: 19842-2 EXHIBIT 6 2 of 32 Table of Contents Description Page Test Report Details 3 Applicable Standards 3 Summary of Testing 4 General and Special Conditions 4 Equipment and Cable Configuration 5 Measurement Procedures and Data 6 RF Power Output 6 Measurement results 6 Radiated Power 7 Measurement results 8 Occupied Bandwidth 9 Measurement results 10 Spurious Emissions at Antenna Terminals 14 Measurement results 15 Field Strength of Spurious Emissions 17 Measurement results 18 Frequency Stability 20 Measurement results 21 Field Strength of Spurious Emissions -Unintentional Radiators 23 Measurement results 24 AC Line Conducted Emissions 25 Measurement results 26 APPLICANT: MOTOROLA INC FCC ID: IHDT6HM1 Test Report Number: 19842-2 EXHIBIT 6 3 of 32 Test Report Details Tests Performed By: Motorola Mobile Devices business (MDb) Product Safety and Compliance Group 600 North US Hwy 45 Libertyville, IL 60048 PH (847) 523-6167 Fax (847) 523-4538 Motorola MDb FRN: 0004321311 FCC Registration Number: 316588 Industry Canada Number: IC3908-1 Tests Requested By: Motorola Inc. Mobile Devices Business 600 North US Hwy 45 Libertyville, IL 60048 Product Type: Cellular Phone Signaling Capability: GSM 1900, EDGE, Bluetooth FCC ID : IHDT6HM1 Serial Numbers: TA2590007I, TA2590008U, TA259000AX, TA2590009P, TA502000YK, TA502000YS Testing Complete Date: January 29, 2007 Applicable Standards All tests and measurements indicated in this document were performed in accordance with the Code of Federal Regulations Title 47 Part 2, Sub-part J as well as the following parts: X Part 15 Subpart B – Unintentional Radiators X Part 22 Subpart H - Public Mobile Services X Part 24 Subpart E – Personal Communications Services Applicable Standards: TIA EIA 137-A, TIA EIA 98-C, ANSI 63.4 2001, RSS-118 (AMPS), RSS-128 (TDMA), RSS-129 (CDMA), RSS-133 (PCS) APPLICANT: MOTOROLA INC FCC ID: IHDT6HM1 Test Report Number: 19842-2 EXHIBIT 6 4 of 32 Summary of Testing Test Test Name # Pass/Fail 1 RF Power Output NA 2 ERP (Effective Radiated Power) Pass 3 EIRP (Effective Isotropic Radiated Power) Pass 4 Occupied Bandwidth Pass 5 Spurious Emissions at Antenna Terminal Pass 6 Field Strength of Spurious Emissions Pass 7 Frequency Stability Pass 8 Field Strength of Spurious Emissions Pass from Unintentional Radiators 9 AC Line Conducted Emissions Pass Test Test Name Margin with respect # to the Limit_________ 1 RF Power Output NA 2 ERP (Effective Radiated Power) See results 3 EIRP (Effective Isotropic Radiated Power) See results 3 Occupied Bandwidth See Plots 4 Spurious Emissions at Antenna Terminal See results 5 Field Strength of Spurious Emissions See results 6 Frequency Stability See results 7 Field Strength of Spurious Emissions Below noise floor from Unintentional Radiators 8 AC Line Conducted Emissions See Plots The margin with respect to the limit is the minimum margin for all modes and bands. General and Special Conditions The EUT was tested using a fully charged battery when applicable. Where a battery could not be used due to the need for a controlled variation of input voltage, an external power supply was utilized. All testing was done in an indoor controlled environment with an average temperature of 22º C and relative humidity of 50%. APPLICANT: MOTOROLA INC FCC ID: IHDT6HM1 Test Report Number: 19842-2 EXHIBIT 6 5 of 32 Equipment and Cable Configurations The EUT was tested in a stand-alone configuration that is representative of typical use. Manufacturer Equipment Type Model No. Serial Number Calibration Due Date Rohde Schwarz Receiver ESI26 100001 3/08/07 Rohde Schwarz Receiver ESI40 100226 6/05/07 Hewlett Packard EMC Analyzer E7405 US39440191 1/05/07 Hewlett Packard EMC Analyzer E7405 US40240219 6/01/07 Hewlett Packard Signal Generator 83712A 3429A00286 6/06/07 A.H. Systems DRG Horn Antenna SAS 200/571 365 5/12/07 ETS. Horn Antenna 3115 6222 3/03/07 ETS Log-Periodic Antenna 3148 1188 6/05/07 ETS Biconical Antenna 3110B 3370 3/03/07 Weinschel Attenuator AS-6 7075 6/29/07 Weinschel Attenuator AS-6 6675 1/06/07 Weinschel Attenuator AS-6 7074 6/29/07 Thermotron Environmental Chamber S-4 31580 1/31/07 Agilent Power Meter E4416A GB41293246 2/03/07 Agilent Power Sensor E4412B US38486321 2/03/07 ETS LISN 3810/2NM 00062907 5/10/07 ETS LISN 3810/2NM 00062912 5/10/07 All equipment is on a one-year calibration cycle. Note that some testing was performed using EMC Analyzer model E7405, serial number US39440191, and attenuator model AS-6, serial number 6675, prior to their calibration due dates. When calibration came due on these pieces of equipment, they were replaced and testing was completed using EMC Analyzer model E7405, serial number US40240219, and attenuator model AS-6, serial number 7075. APPLICANT: MOTOROLA INC FCC ID: IHDT6HM1 Test Report Number: 19842-2 EXHIBIT 6 6 of 32 Measurement Procedures and Data RF POWER OUTPUT Measurement Procedure The RF output port of the equipment under test is directly coupled to the input of an Agilent power meter through…

Text truncated - open the document above for the full version.

Motorola EMC TEST SETUP PHOTOS (Extracted from FCC Exhibit 6) Motorola EMC Report #19842-2, AC Line - Part 15 Page 1 of 12 EXHIBIT 7 Motorola EMC Report #19842-2, Part 15, PC Peripheral Page 2 of 12 EXHIBIT 7 Motorola EMC Report #19842-2, Antenna - Substitution Page 3 of 12 EXHIBIT 7 Motorola EMC Report #19842-2, Tx Radiated Page 4 of 12 EXHIBIT 7 MOTOROLA, INC. Portable Cellular Phone SAR Test Report Number: 19841-1F E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 1 1 9 9 Appendix 6 (Extracted from FCC Exhibit 11) Photographs of the device under test Page 5 of 12 EXHIBIT 7 MOTOROLA, INC. Portable Cellular Phone SAR Test Report Number: 19841-1F E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 2 2 0 0 Figure1: Front of Phone Figure2: Back of Phone Page 6 of 12 EXHIBIT 7 MOTOROLA, INC. Portable Cellular Phone SAR Test Report Number: 19841-1F E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 2 2 1 1 Figure3: Phone Against the Head Phantom (Cheek Touch) Figure4: Phone Against the Head Phantom (15° Tilt) Page 7 of 12 EXHIBIT 7 MOTOROLA, INC. Portable Cellular Phone SAR Test Report Number: 19841-1F E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 2 2 2 2 Figure5: Phone Against the Flat Phantom Page 8 of 12 EXHIBIT 7 MOTOROLA, INC. Portable Cellular Phone SAR Test Report Number: 20247-1F E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 1 1 9 9 Appendix 6 Photographs of the device under test >> PHOTOS WERE MOVED TO FCC EXHIBIT 7 <<< Page 9 of 12 EXHIBIT 7 MOTOROLA, INC. Portable Cellular Phone SAR Test Report Number: 20247-1F E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 2 2 0 0 Figure1: Front of Phone Figure2: Back of Phone Page 10 of 12 EXHIBIT 7 MOTOROLA, INC. Portable Cellular Phone SAR Test Report Number: 20247-1F E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 2 2 1 1 Figure3: Phone Against the Head Phantom (Cheek Touch) Figure4: Phone Against the Head Phantom (15° Tilt) Page 11 of 12 EXHIBIT 7 MOTOROLA, INC. Portable Cellular Phone SAR Test Report Number: 20247-1F E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 2 2 2 2 Figure5: Phone Against the Flat Phantom Page 12 of 12 EXHIBIT 7
