IHDT6JG1Portable PCS GSM Transceiver with Bluetooth

APPLICANT: MOTOROLA, INC. FCC ID: IHDT6JG1 EXHIBIT 8A INSTRUCTION MANUAL This User Manual Supplement includes Safety and Legal Information, FCC Notice, and Specific Absorption Rate (SAR) Dat a. IMPORTANT SAFETY AND LEGAL INFORMATION> 2 Software Copyright Notice The Motorola products described in this manual may include copyrighted Motorola and third party software stored in semiconductor memories or other media. Laws in the United States and other countries preserve for Motorola and third party software providers certain exclusive rights for copyrighted software, such as the exclusive rights to distribute or reproduce the copyrighted software. Accordingly, any copyrighted software contained in the Motorola products may not be modified, reverse-engineered, distributed, or reproduced in any manner to the extent allowed by law. Furthermore, the purchase of the Motorola products shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any license under the copyrights, patents, or patent applications of Motorola or any third party software provider, except for the normal, non-exclusive, royalty-free license to use that arises by operation of law in the sale of a product. Part Number: 6809476A21-O 3 Contents Safety and General Information . . . . . . . . . . . . . . . . . . . . 4 FDA Consumer Information on Wireless Phones. . . . . 10 Product Registration . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 RF Energy Interference . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Export Law Assurances. . . . . . . . . . . . . . . . . . . . . . . . . . 20 Wireless: The New Recyclable . . . . . . . . . . . . . . . . . . . . 21 Wireless Phone Safety Tips . . . . . . . . . . . . . . . . . . . . . . 23 4 Safety and General Information IMPORTANT INFORMATION ON SAFE AND EFFICIENT OPERATION. READ THIS INFORMATION BEFORE USING YOUR PHONE. The information provided in this document supersedes the general safety inf ormation in user’s guides published prior to December 1, 2002. Exposure To Radio Frequency (RF) Energy Your phone contains a transmitter and a receiver. When it is ON, it receives and transmits RF energy. When you communicate with your phone, the system handling your call controls the power level at which your phone transmits. Your Motorola phone is designed to comply with local regulatory r eq uirements in your country concerning exposure of human beings to RF energy. Operational Precautions To assure optimal phone performance and make sure human exposure to RF energy is within the guidelines set forth in the relevant standards, always adhere to the following procedures. External Antenna Care Use only the supplied or Motorola-approved replacement antenna. Unauthorized antennas, modifications, or attachments could damage the phone. Do NOT hold the external antenna when the phone is IN USE. Holding t he external antenna affects call quality and may cause the phone to operate at a higher power level than needed. In addition, use of unauthorized antennas may result in non-compliance with the local regulatory requirements in your country. 5 Phone Operation When placing or receiving a phone call, hold your phone as you would a wireline telephone. Body-Worn Operation To maintain compliance with RF energy exposure guidelines, if you wear a phone on your body when transmitting, always place the phone in a Motorola-supplied or approved clip, holder, holster, case, or body harness for this phone, if available. Use of accessories not approved by Motorola may exceed RF energy exposure guidelines. If you do not use one of the body-worn accessories approved or supplied by Motorola, and are not using the phone held in the normal use position, ensure the phone and its antenna are at least 1 inch (2.5 centimeters) from your body when tr an smitting. Data Operation When using any data feature of the phone, with or without an accessory cable, position the phone and its antenna at least 1 inch (2.5 centimeters) fr om your body. Approved Accessories Use of accessories not approved by Motorola, including but not limited to batteries and antennas, may cause your phone to exceed RF energy exposure guidelines. For a list of approved Motorola accessories, visit our website at www.Motorola.com. RF Energy Interference/Compatibility Note: Nearly every electronic device is susceptible to RF energy interference from external sources if inadequately shielded, designed, or otherwise configured for RF energy compatibility. In some circumstances your phone may cause interference. 6 Facilities Turn off your phone in any facility where posted notices instruct you to do so. These facilities may include hospitals or health care facilities that may be using equipment that is sensitive to external RF energy. Aircraft When instructed to do so, turn off your phone when on board an aircraft. Any use of a phone must be in accordance with applicable regulations per airline crew instructions. Medical Devices Pacemakers Pacemaker manufacturers recommend that a minimum separation of 6 inches (15 centimeters) be maintained between a handheld wireless phon e and a pacemaker. Persons with pacemakers should: •ALWAYS keep the phone more than 6 inches (15 centimeters) from your pacemaker when the phone is turned ON. •NOT carry the phone in the breast pocket. •Use the ear opposite the pacemaker to minimize the potential for interference. •Turn OFF the phone immediately if you have any reason to suspect that interference is taking place. Hearing Aids Some digital wireless phones may interfere with some hearing aids. In the event of such interference, you may want to consult your hearing aid manufacturer to discuss alternatives. Other Medical Devices If you use any other personal medical device, consult the manufacturer of your device to determine if it is adequately shielded from RF energy. Your physician may be able to assist you in obtaining this information. 7 Use While Driving Check the laws and regulatio…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA INC. FCC ID: IHDT6JG1 Page 1 of 3 EXHIBIT 2 SPECIFICATION COMPLIANCE STATEMENT Transceiver ty pe (IHDT6JG1) has been tested in accordance with the requiremen ts contained in the appropriate Commission regulations. To the best of my knowledge, these tests were performed using measurement procedures consistent with industry or Commission standards and demonstrate that this equipment complies with the appropriate standards. Each unit manufactured imported or marketed, will conform to the sample tested within the variations that can be expected due to quantity production and testing on a statistical basis. I further certify that the necessary measurements were made at Motorola, 600 N. U.S. Highway 45, Libertyville, IL 60048. NAME: Gang Ho Choi TITLE: Engineering Manager Motorola Mobile Devices Business Date: Mar, 5, 2008 2008-03-06 21:13:44 W21591 w21591-02 APPLICANT: MOTOROLA INC. FCC ID: IHDT6JG1 Page 2 of 3 EXHIBIT 2 STATEMENT OF CERTIFICATION I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in this application and accompanying technical data are true and correct. The technical data supplied with this application was taken under my supervision and is hereby duly certified. I also certify that this transmit equipment (IHDT6JG1) is in compliance with all applicable parts of the FCC Rules. NAME: Gang Ho Choi TITLE: Engineering Manager Motorola Mobile Devices Business Date: Mar, 5, 2008 2008-03-06 21:13:44 W21591 w21591-02 APPLICANT: MOTOROLA INC. FCC ID: IHDT6JG1 Page 3 of 3 EXHIBIT 2 ATTESTATION STATEMENT This device contains an embedded Bluetooth device that Motorola confirms compliance with the following Part 15 regulations. 15.247(a)(1) • the hopping sequence must be pseudorandom • all Channels are used equally on average • the receiver input bandwidth is approximately equal to the transmit bandwidth • the receiver hops in sequence with the transmitted signal 15.247(g) the system is designed to comply with all of the regulations in Section 15.247 when the transmitter is presented with a continuous data (or information) 15.247(h) the system does not coordinate its channel selection/hopping sequence with other frequency hopping systems for the express purpose of avoiding the simultaneous occupancy of individual hopping frequencies by multiple transmitters NAME: Gang Ho Choi TITLE: Engineering Manager Motorola Mobile Devices Business Date: Mar, 5, 2008 2008-03-06 21:13:44 W21591 w21591-02

APPLICANT: MOTOROLA FCC ID: IHDT6JG1 March 05, 2008 CONFIDENTIALITY REQUEST CONTAINED WITHIN Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Application for Cellular/PCS Transceiver Certification Gentlemen: Application: Motorola, Inc., Mobile Devices, 600 N. U.S. Highway 45, Libertyville, Illinois 60048-1286 herein submits: Application for Equipment Authorization for Certification of a Cellular Transceiver, FCC ID: IHDT6JG1. Motorola is also the manufacturer of this equipment. Confidentiality: Pursuant to Section 0.459 of the Commission's rules (CFR 47), Motorola requests confidentiality for portions of the material contained in this application and that the identified material be withheld from public inspection following the grant of this authorization. This material contains Motorola's trade secrets and confidential information that Motorola does not customarily release to the public and which is otherwise not generally available to the public. Confidentiality is requested for the following exhibits: • Exhibit 4 Block Diagrams • Exhibit 5 Schematics • Exhibit 10 Parts List • Exhibit 12 Operational Description Description: This equipment is a GSM portable transceiver, which operates in the 1900 MHz PCS band and WCDMA 2100. The unit also contains a 2.4 GHz Bluetooth transmitter (Part 15.247) and may be connected to a computer via a USB connection (Part 15 Class B Computing Device Peripheral). Note: This device also contains functions that are not operational in U.S. territories. This filing is only applicable for US operations. Contact Information: Please contact me by telephone at (847) 523-6167, or by e-mail ( [email protected]) , if there are questions or additional information needed concerning this filing. Regards, Andrew J. Bachler FCC Liaison Mobile Devices 600 N. U.S. Highway 45 Libertyville, IL 60048-5343 Exhibit 13

Date: March 25, 2008 Subject: Request for additional information regarding FCC ID: IHDT56JH1 Reference: Correspondence Reference Number: IHD80158 Confirmation Number: 803050158-60 Date of Original Email: March 19, 2008 Prepared by: Andrew Bachler, Principal Staff Engineer Motorola Mobile Device Business Libertyville, Illinois 60048 Questions and responses follow: 1. The application does not comply with the FCC’s new Handset SAR requirements, released during the recent TCBC Workshop. It is not clear whether, in this application, simultaneous SAR measurements (BT and GSM/GPRS) are required, if stand-alone BT SAR measurements are required, or if the BT is exempt from SAR measurements altogether. Please submit an internal photo of the EUT, identifying the BT and GSM antennas and showing their locations and the distance(s) between them. Please compare the BT conducted output power to Pref (from the new requirements), and, in conjunction with the antenna separation distance, determine the level of SAR testing required for the BT transmitter. Please submit this information. Response: This device does allow simultaneous transmission between BT and CDMA. Because of the close proximity of the intentional and other unintentional radiating structures, stand-alone BT SAR measurements were performed in the configuration that resulted in the highest SAR during the stand-alone evaluation of the dominant transmitter. The SAR results from the BT and the CDMA measurements were summed together and shown to be less than the 1.6 W/kg (1g) SAR limit. Please refer to the revised SAR report attached. Per the March 20, 2008 discussion with the examining engineer, Motorola chooses to use the summation method for evaluation of simultaneous transmitters. Photographs, measured distances, and power output levels to determine the "antenna pair SAR to antenna separation ration" are therefore not required. 2. If so required by the results to question #1 above (i.e., if simultaneous SAR is not required, based on antenna separation distance and output power), please 1 2 remove all references to the BT from the SAR report and resubmit it. Please note that only the FCC may review a SAR report in which there is simultaneous transmission of 2 or more transmitters. If stand-alone BT SAR testing is required, please include that data and the supporting information by which it has been obtained. Response: Please see updated SAR test report for additional BT SAR data. 3. Please submit an Operational Description (technical description) for the Bluetooth transmitter. Response: Please refer to page 7-8 of Exhibit 12 attached. 4. Please resubmit the RF Block Diagram, including all of the clocks/oscillators, as required. Response: Please refer to the revised Block Diagram attached showing clocks/oscillators. 5. The user’s manual contains none of the required FCC information. Please resubmit it, including all of the required information (e.g., 15.19, body-worn RF exposure compliance, etc.) Response: The required FCC information such as Safety and SAR data are included in the user manual supplement file as JG-EX08A. Please refer to the copy attached. 6. Does the GPRS have a full-power multi-slot transmission mode available? The SAR test report does not reflect it. If it does, please be sure that this capability is reflected in the SAR test report, and tested, if so warranted. Response: This device does not have GPRS mode, therefore SAR test does not reflect it. 7. Please note that the following test reports contain equipment listed as past their cal due date at the time of testing: Part 24 EMC, Bluetooth, Part 15B. Please address. Response: All equipment was in calibration during the time of testing. Any equipment that was going of cal during testing was replaced by similar equipment that has a valid cal date.

From: LI LILLIAN-WNCK38 Sent: Wednesday, March 26, 2008 10:42 AM To: PCTEST TCB; Subject: RE: Follow-Up Questions Regarding FCC ID: IHDT6JG1 Hi again Greg, Please find our response to your Follow-Up RT below and attached for more details. If you have any further questions, please feel free to let us know. Thanks! From: PCTEST TCB [mailto:[email protected]] Sent: Tuesday, March 25, 2008 2:19 PM To: Bachler Andrew-WLAB00 Dear Andy, Thank you for your response to the referenced application. Please see below follow- up question pertaining to your submittal. Follow-Up RT: 1. We note, however, that the user’s manual still does not contain the information required by Sections 15.21 and 15.105. In addition, the max body SAR level listed in the manual is incorrect. Please make these additions/corrections and resubmit the manual. Response: Please refer to the revised User Manual Supplement attached which contains FCC Notice required by Section 15.21, 15.19(3) and 15.105(b). We also updated bady SAR value as required. 2. The Operational Description submitted for the Bluetooth transmitter is lacking in detail. Please submit a more comprehensive Operational Description (technical description) of the Frequency Hopping transmitter. Response: Please refer to the revised Operational Description attached to reflect the detail technical description of the BT transmitter. The items indicated above must be submitted before processing can continue on the above referenced application. Sincerely, Gregory Czumak Senior Certification Engineer Quality Manager PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road Columbia, MD 21045 410-290-6652 410-290-6654 (Fax) [email protected] This communication and its attachments contain information from PCTEST Engineering Laboratory, Inc., and is intended for the exclusive use of the recipient (s) named above. It may contain information that is confidential and/or legally privileged. Any unauthorized use that may compromise that confidentiality via distribution or disclosure is prohibited. Please notify the sender immediately if you receive this communication in error, and delete it from your computer system. Usage of PCTEST email addresses for non-business related activities is strictly prohibited. No warranty is made that the e-mail or attachment(s) are free from computer virus or other defect. Thank you.

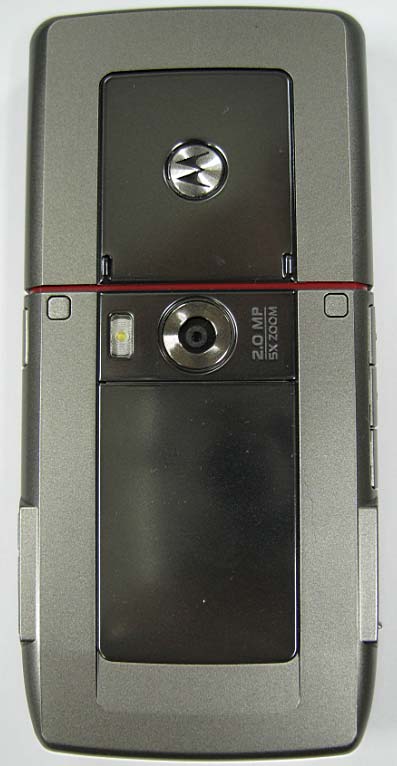

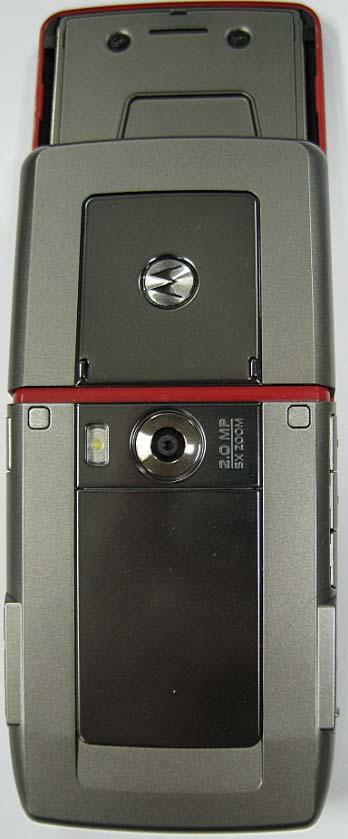

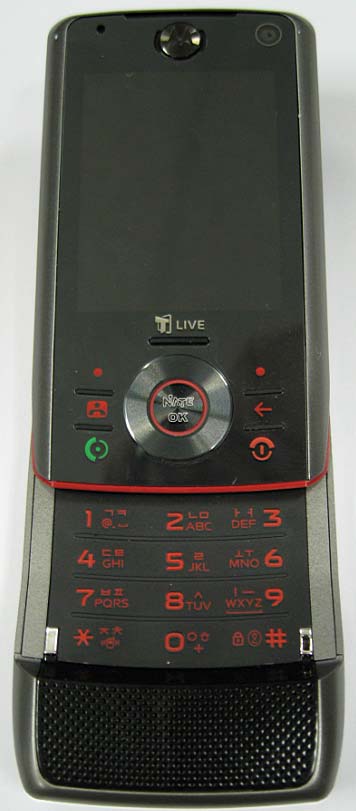

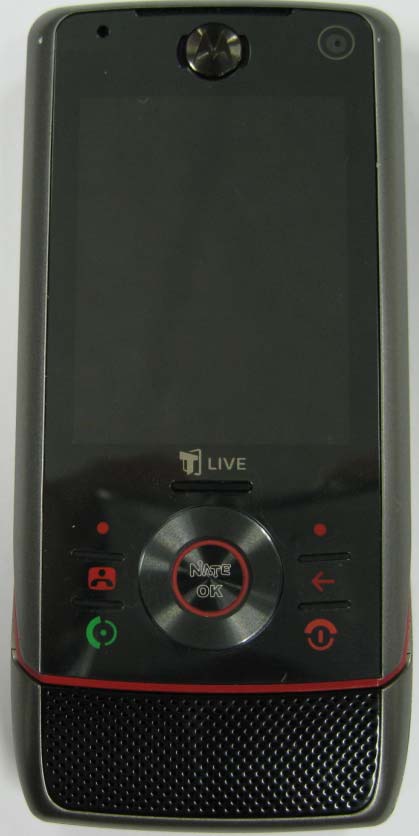

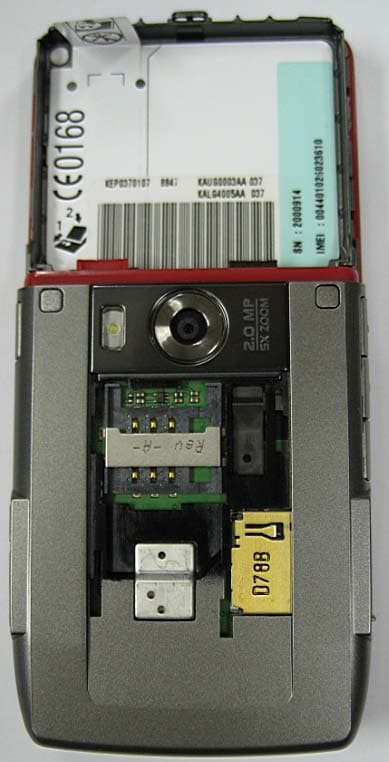

APPLICANT: MOTOROLA, INC. FCC ID: IHDT6JG1 EXHIBIT 3 1 of 2 FRONT OF PHONE SLIDE OPEN BACK OF PHONE SLIDE OPEN 2008-03-06 21:15:12 W21591 w21591-02 APPLICANT: MOTOROLA, INC. FCC ID: IHDT6JG1 EXHIBIT 3 2 of 2 REPLACE WITH YOUR PHOTO REPLACE WITH YOUR PHOTO FRONT OF PHONE BACK OF PHONE REPLACE WITH YOUR PHOTO BACK OF PHONE WITH BATTERY COVER REMOVED FRONT OF PHONE 2008-03-06 21:15:12 W21591 w21591-02

APPLICANT: MOTOROLA INC. FCC ID: IHDT6JG1 FCC IDENTIFICATION (NAMEPLATE) INFORMATION FCC ID: IHDT6JG1 The FCC label shown is representative of the label that will appear on the radio when in production. It will be placed on the equipment as shown in Exhibit 3, and is readily visible at the time of purchase. Other information may also be included on this label. EXHIBIT 1

APPLICANT: MOTOROLA, INC. FCC ID: IHDT6JG1 EXHIBIT 9 1 of 6 Main Board Bottom Without Shields Main Board Top With Shields REPLACE WITH YOUR PHOTO REPLACE WITH YOUR PHOTO 2008-03-06 21:16:54 W21591 w21591-02 APPLICANT: MOTOROLA, INC. FCC ID: IHDT6JG1 EXHIBIT 9 2 of 6 REPLACE WITH YOUR PHOTO Main Board Top Without Shields Main Board Top With Shields REPLACE WITH YOUR PHOTO REPLACE WITH YOUR PHOTO 2008-03-06 21:16:54 W21591 w21591-02 APPLICANT: MOTOROLA, INC. FCC ID: IHDT6JG1 EXHIBIT 9 3 of 6 Navigation Board LCD REPLACE WITH YOUR PHOTO REPLACE WITH YOUR PHOTO 2008-03-06 21:16:54 W21591 w21591-02 APPLICANT: MOTOROLA, INC. FCC ID: IHDT6JG1 EXHIBIT 9 4 of 6 Expansion Board Front Extension Board Back Keypad 2008-03-06 21:16:54 W21591 w21591-02 APPLICANT: MOTOROLA, INC. FCC ID: IHDT6JG1 EXHIBIT 9 5 of 6 Slide Housing 2008-03-06 21:16:54 W21591 w21591-02 APPLICANT: MOTOROLA, INC. FCC ID: IHDT6JG1 EXHIBIT 9 6 of 6 Inside Back Housing Battery Cover Speaker Module 2008-03-06 21:16:54 W21591 w21591-02

APPLICANT: MOTOROLA INC FCC ID: IHDT6JG1 Test Report Number: 21532-1 Supplement 1 of 10 EXHIBIT 6A3 MOBILE DEVICES BUSINESS PRODUCT SAFETY AND COMPLIANCE EMC LABORATORY EMC TEST REPORT Test Report Number – 21532-1 Supplement Report Date – February 6, 2008 The test results contained herein relate only to the model(s) identified. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical characteristics. As the responsible EMC Engineer, I hereby declare that the equipment tested as specified in this report conforms to the requirements indicated. Signature: Name: Thanigaiselvan Palaniswami Title: EMC Engineer Date: February 6, 2008 This report must not be reproduced, except in full, without written approval from this laboratory. THIS REPORT MUST NOT BE USED TO CLAIM PRODUCT ENDORSEMENT BY A2LA OR ANY AGENCY OF THE U.S. GOVERNMENT. A2LA Certificate Number: 2518-02 APPLICANT: MOTOROLA INC FCC ID: IHDT6JG1 Test Report Number: 21532-1 Supplement 2 of 10 EXHIBIT 6A3 Table of Contents Description Page Test Report Details 3 Applicable Standards 3 Summary of Testing 4 General and Special Conditions 4 Equipment and Cable Configuration 5 Measurement Procedures and Data 6 APPLICANT: MOTOROLA INC FCC ID: IHDT6JG1 Test Report Number: 21532-1 Supplement 3 of 10 EXHIBIT 6A3 Test Report Details Tests Performed By: Motorola Mobile Devices business (MDb) Product Safety and Compliance Group 600 North US Hwy 45 Libertyville, IL 60048 PH (847) 523-6167 Fax (847) 523-4538 Motorola MDb FRN: 0004321311 FCC Registration Number: 316588 Industry Canada Number: IC3908-1 Tests Requested By: Motorola Inc. Mobile Devices business 600 North US Hwy 45 Libertyville, IL 60048 Product Type: Cellular Phone Signaling Capability: GSM 1900, Bluetooth FCC ID: IHDT6JG1 Serial Numbers: KEP03302003, KEP0330125, KEP0330098, KEP0330135, KEP0330018 Testing Complete Date: February 5, 2008 Applicable Standards All tests and measurements indicated in this document were performed in accordance with the Code of Federal Regulations Title 47 : X Part 15 Subpart B – Unintentional Radiators Applicable Standards: ANSI 63.4 2003 APPLICANT: MOTOROLA INC FCC ID: IHDT6JG1 Test Report Number: 21532-1 Supplement 4 of 10 EXHIBIT 6A3 Summary of Testing Test Test Name # Pass/Fail _________ 1 Field Strength of Spurious Emissions Pass from Unintentional Radiators 2 AC Line Conducted Emissions Pass Test Test Name Margin with respect # to the Limit_________ 1 Field Strength of Spurious Emissions see results from Unintentional Radiators 2 AC Line Conducted Emissions see results The margin with respect to the limit is the minimum margin for all modes and bands. General and Special Conditions The EUT was tested using a fully charged battery. All testing was done in an indoor controlled environment with an average temperature of 22º C and relative humidity of 50%. APPLICANT: MOTOROLA INC FCC ID: IHDT6JG1 Test Report Number: 21532-1 Supplement 5 of 10 EXHIBIT 6A3 Equipment List Manufacturer Equipment Type Model No. Serial Number Calibration Due Date Rohde Schwarz Receiver ESI26 838786/010 3/19/2008 Rohde Schwarz Receiver ESI40 100001 5/02/2008 ETS Horn Antenna 3115 6222 3/21/2008 ETS Log-Periodic Antenna 3148 1188 6/18/2008 ETS Biconical Antenna 3110B 3370 3/15/2008 Attenuator Weinschel AS-6 6675 1/31/2008 Attenuator Weinschel AS-6 6677 6/21/2008 ETS LISN 3810/2NM 62907 5/02/2008 ETS LISN 3810/2NM 62912 5/02/2008 Dell Laptop Computer M20 NA NA Iomega Zip Drive Z100S2 RAMJ28C2BJ NA Olympus Camera D-600L 4020727 NA All equipment is on a one-year calibration cycle. The Dell M20 Laptop Computer and the Olympus D-600L Camera are labeled as DoC. ` The Iomega Zip Drive has the FCC ID – DDXZ100S2. APPLICANT: MOTOROLA INC FCC ID: IHDT6JG1 Test Report Number: 21532-1 Supplement 6 of 10 EXHIBIT 6A3 Measurement Procedures and Data FIELD STRENGTH OF EMISSIONS FROM UNINTENTIONAL RADIATORS Measurement Procedure The equipment under test is placed inside the semi-anechoic chamber on a wooden table on the turntable center. For each radiated emission, the antenna mast is raised and lowered from 1 to 4 meters and the turntable is rotated 360 degrees to obtain a maximum peak reading on the spectrum analyzer. The final radiated emissions are then measured using an EMI receiver employing a CISPR quasi-peak detector function below 1000 MHz and an average detector function above 1000 MHz. This is repeated for both horizontal and vertical polarizations of the receive antenna. The field strength of each radiated emission is calculated by correcting the EMI receiver level for cable loss, amplifier gain, and antenna correction factors. Field Strength (dBuV/m) = EMI Receiver Level (dBuV) + Cable Loss (dB) - Amplifier Gain (dB) + Antenna Correction Factor (1/m) Test Setup The EUT and the host equipment were setup according to the procedures in ANSI C63.4- 2003. The EUT was connected to a laptop computer using a USB data cable. The USB data cable is 1 m in length. The parallel and the serial ports of the computer were populated. The EUT was communicating with the laptop computer continuously. APPLICANT: MOTOROLA INC FCC ID: IHDT6JG1 Test Report Number: 21532-1 Supplement 7 of 10 EXHIBIT 6A3 Measurement Results Operating Mode – Rx Mode, Data Transfer Mode. Notes: Worst Case emissions reported. 30 MHz – 1000 MHz Frequency Level Measured Transd Cables Limit Margin Height Angle Pol. MHz dBuV/m dBuV dB dB dBuV/m dB cm deg 320.64 44.72 17.58 15.2 11.9 46 1.3 100 263 HORI 916.96 39.32 -0.85 24.2 15.9 46 6.7 400 315 HORI 923.72 39.51 -0.85 24.4 16 46 6.5 400 153 HORI 929.72 39.43 -0.85 24.3 16 46 6.6 100 177 HORI 940.72 39.51 -0.61 24.1 16 46 6.5 100 331 HORI 958.32 39.45 -0.61 24 16.1 46 6.5 147 38 HORI Above 1 GHz Frequency Level Measured Transd Gain Limit Margin Height Angle Pol. MHz dBuV/m dBuV dB dB dBuV/m dB cm deg 1121.8 37.14 20.48 24.8 8.2 53.9 16.8 250 85 VERT 1124 37.09 20.41 24.8 8.2 53.9 16.8 332…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA, INC. FCC ID: IHDT6JG1 EMC TEST SETUP PHOTOS AC Line Conducted Emissions 1 OF 3 EXHIBIT 7 APPLICANT: MOTOROLA, INC. FCC ID: IHDT6JG1 Radiated Emissions 2 OF 3 EXHIBIT 7 APPLICANT: MOTOROLA, INC. FCC ID: IHDT6JG1 3 OF 3 EXHIBIT 7 Antenna - Substitution
