IHDT6QF1EQ720

DECK ULTRA USER MANUAL CONGRATULATIONS. YOU’RE ENTERING A NEW WORLD OF SOUND. PREPARE TO: Experience music like you’ve never heard or felt before. Play the mix you want or swap out DJ duties with up to four friends. Choose indoor or outdoor EQ for sound sculpted to your location. Make and take crystal clear calls on your Deck Ultra Bluetooth speaker. OVERVIEW THE GOODS 4 POWER 6 CONNECT 8 SINGLE USER MODE 10 HEIST MODE ™ 12 ADVANCED 14 TROUBLE 15 SAFETY, REGULATORY & LEGAL 15 CAUTION Before using this product, please read the safety, regulatory and legal information in the legal booklet. THE GOODS POWER BUTTON Press & hold to turn on or off. VOLUME DOWNMICROPHONE ENUSER GUIDE4 NFC READER LOCATION Touch device here to pair. VOLUME UPMULTI-FUNCTION BUTTON & STATUS LIGHT Press to play & pause music, answer & end calls, Outdoor Mode, Heist ™ Lock. 5THE GOODS 3.5mm Line in Power Selector Switch POWER Your speaker needs power, so load it all the way before you use it. It is fully charged when the status light turns green. NOTES For optimum block-rocking power, always use the charger included in this package. Turn off the speaker when you’re not using it. CAUTION This battery is designed to last the life of your device. So you don’t need to take it out or mess with it. If you try to remove or replace your battery it will void your warranty and could cause injury and damage your device. If you suspect battery trouble, see “Trouble” section. ENUSER GUIDE6 3.5mm line out 3.5mm Line in Status light Charge Power Selector Switch 7POWER CONNECT Now let’s get Deck Ultra and your device talking to each other. There are two ways to pair it: the Bluetooth ® EASYPAIR ™ Method and the NFC ™ way. EASYPAIR ™ works for everybody. NFC ™ people — you know who you are. EASYPAIR ™ METHOD NOTE Device paired while in HEIST MODE ™ will only pair for music play, if you wish to also use your device for phone calls, please pair in Single User Mode. STEP 4 When the device and Deck Ultra are connected, you’ll get a pairing complete tone. STEP 1 Turn on Bluetooth ® on your device. STEP 2 Turn on Deck Ultra and it will automatically go into pairing mode. STEP 3 Go to the Bluetooth ® menu on your device and select Deck. Enter 0000 if prompted. ENUSER GUIDE8 NFC ™ STEP 1 If you have an NFC enabled device, turn on Bluetooth ® and NFC. STEP 2 Turn on Deck Ultra. STEP 3 Tap your NFC enabled phone to the top of Deck Ultra; and like magic, the device tells you when pairing is complete. NOTE The NFC ™ reader location and function can var y bet ween devices. See your device user’s guide for more details. If you are having difficulty pairing use the EASYPAIR ™ mode. CONNECT 9 SINGLE USER MODE To activate Single User Mode, slide the selector switch to . Single User Mode lets you stream music from your phone directly to Deck Ultra for unrivaled sound quality. If you want to make or receive a phone call, Deck Ultra seamlessly converts to a fully functioning speakerphone. MUSIC — HOW TO DO STUFF Stream music from your device to Deck Ultra by starting and controlling music playback from the device. Deck Ultra works with all of your favorite music apps. Music will automatically pause when you make or receive a call and will resume when the call ends. TO Play/Pause music Skip to next track Skip to previous track Turn the volume up or down Switch bet ween Indoor and Outdoor EQ mode Hear remaining battery life PRESS The button once. The button t wo times. The button three times. Volume + / – on Deck Ultra or your device one or more times. The button and hold until you hear “indoor” or “outdoor”. Both volume buttons while music playback is paused. ENUSER GUIDE10 STATUS LIGHT The status light next to the power button shows Bluetooth ® and battery status. Here’s a guide to reading it. TO Answer a call Reject a call Make a voice dial call Mute or unmute a call End a call IF THE LIGHT IS Flashing blue Flashing green Steady blue for three seconds, then off Red Ye l l o w Green PRESS The button. Either volume button and hold until you hear a tone. The button and hold to activate your phone’s voice commands. The volume buttons at the same time and hold until you hear “mute on” or “mute off.” The button. YOUR SPEAKER IS Powered on & searching for a device. Incoming calls Connected to a device Charging, and at low power. Charging, and at medium power. Plugged in and fully charged. CALL 11SINGLE USER MODE HEIST MODE ™ Enjoy music with your friends. Heist Mode ™ let’s you connect up to five mobile devices to Deck Ultra and have everyone take turns playing their favorite mixes. To activate Heist Mode ™ , slide the selector switch to . NOTE Heist Mode ™ is all about music. Phone calling features are not available in this mode. CONNECTING DEVICES Connect each device to Deck Ultra as normal. You don’t have to turn Deck Ultra off to connect a new device. The Multi-function button illuminates in different colors as each device is paired to Deck Ultra. To reconnect using previously connected devices, just turn them on. You’ll see the logo flash when connection is reestablished. NOTE If a 6th person joins the par ty the person who has the least par ticipation will be dropped. ENUSER GUIDE12 PLAY MUSIC Once you and your friends are connected, just push play — the first one starts the party. You control the party as long as your DJ skills don’t run out. Others can join in by simply hitting play on their device. You’ll know who’s in charge by the changing color of the LED lights on Deck Ultra. Avoid getting heisted by pressing the button. To unlock it, hit the button again. NOTE The button will not control music while in Heist Mode ™ NOTE Each mobile device gets a unique color when it connects to the speaker. The LED- illuminated multi-function button indicates which device is currently playing. 13HEIST MODE ™ ADVANCED LINE IN & DAISY CHAIN/LINE OUT LINE IN To connect Deck Ultra to play music from a non-Bluetooth ® enabled device using the 3.5mm to 3.5mm audio cabl…

Text truncated - open the document above for the full version.

safe, smart, protected en 2014.08.14 2014.08.14 1enSafety, Regulatory & Legal Safety, Regulatory & Legal Battery Use & Safety Warning: Your product contains a battery that should only be removed by a Motorola approved service center or recycler. •Don’t try to remove or replace the battery yourself. Attempting to remove or replace the battery may damage the battery and may cause burning and injury. •Don’t try to take apart or fix your product. Attempting to take apart or fix your product may damage the battery and may cause burning and injury. •Don’t crush, bend, or expose your product to heat or liquid. This may damage the battery and may cause burning and injury. Third Party Accessories Using third party accessories, including but not limited to batteries, chargers, headsets, covers, cases, screen protectors, and memory cards, may impact your product’s performance. Using a non-Motorola battery or charger may present a risk of fire, explosion, leakage, or other hazard. Motorola’s warranty doesn’t cover damage to the product caused by non-Motorola batteries and/or chargers. For a list of Motorola accessories, visit www.motorola.com/us/consumers/Accessories/accessories,en_US,sc.html (in English only). Driving Precautions Responsible and safe driving is your primary responsibility when driving a vehicle. Always obey local laws and regulations. While driving, ALWAYS: •Keep your eyes on the road. •Use a handsfree device if available or required by law in your area. •Enter destination information into a navigation device before driving. •Use voice activated features (such as voice dial) and speaking features (such as audible directions), if available. •Concentrate on driving, and stop using the mobile device if you can’t concentrate. Pull over safely before using your mobile device to send messages, surf the web, or use other applications. 2014.08.14 2Safety, Regulatory & Legalen Caution Regarding High Volume Usage Warning: Exposure to loud noise from any source for extended periods of time may affect your hearing. The louder the sound, the less time is required before your hearing could be affected. To protect your hearing: •Limit the amount of time you use headsets or headphones at high volume. •Avoid turning up the volume to block out noisy surroundings. •Turn the volume down if you can’t hear people speaking near you. If you experience hearing discomfort, including the sensation of pressure or fullness in your ears, ringing in your ears, or muffled speech, you should stop listening to the device through your headset or headphones and have your hearing checked. Children Children Keep your product and its accessories away from small children. These products are not toys and may be hazardous to small children. For example, a choking hazard may exist for small, detachable parts. Use & Care Use & Care To care for your Motorola product, please observe the following: liquids Don’t expose your product to water, rain, extreme humidity, sweat, or other liquids. drying Don’t try to dry your product using a microwave oven, conventional oven, or dryer. extreme heat or cold Avoid temperatures below -10°C (14°F) or above 60°C (140°F). For battery powered accessories, do not recharge your accessory in temperatures below 0°C (32°F) or above 45°C (113°F). dust and dirt Don’t expose your product to dust, dirt, sand, food, or similar materials. cleaning To clean your product, use only a dry soft cloth. Don’t use alcohol or other cleaning solutions. 2014.08.14 3enSafety, Regulatory & Legal shock and vibration Don’t drop your product or expose it to strong vibration. protection To help protect your product, always make sure that all connector and compartment covers are closed and secure, and avoid carrying it with hard objects such as keys or coins. European Union Directives Conformance Statement EU Conformance The following CE compliance information is applicable to Motorola products that carry one of the following CE marks: Hereby, Motorola declares that this product is in compliance with: •The essential requirements and other relevant provisions of Directive 1999/5/EC •All other relevant EU Directives For products that support Wi-Fi 802.11a (as defined in your product information): This device is restricted to indoor use when operating in the 5.15 to 5.25 GHz (802.11a) Wi-Fi frequency band. The following gives an example of a typical Type name: You can view your product’s Declaration of Conformity (DoC) to Directive 1999/5/EC (to R&TTE Directive) at www.motorola.com/rtte (in English only). To find your DoC, enter the Type name from your product’s label in the “Search” bar on the website. 0168 0168 Type Name 2014.08.14 4Safety, Regulatory & Legalen FCC Notice to Users FCC Notice The following statement applies to all products that bear the FCC logo and/or FCC ID on the product label. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. See 47 CFR Sec. 15.105(b). These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •Reorient or relocate the receiving antenna. •Increase the separation between the equipment and the receiver. •Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC Rules…

Text truncated - open the document above for the full version.

2014-08-13 To whom it may concern, Letter of Agency I, an officer of Motorola Mobility, LLC. do hereby authorize Intertek Testing Services (Mr. Shawn Xing / Billy Li) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and/or Part 95 of the FCC Rules until further notice. I further certify that no party (as defined in §1.2002(b) of CFR 47, 2007) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C., 862. Regards, Mathew Li Certification Engineer

[Your letterhead] Re: Request for confidentiality Applicant: Motorola Mobility, LLC. FCC ID: IHDT6QF1 To whom it may concern, Permanent Confidentiality Request is hereby submitted by Motorola Mobility, LLC. to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential:  Schematics  Detailed Block diagrams  Detailed Operational/Functional Description Short-term Confidentiality Request is hereby submitted by Motorola Mobility, LLC. to withhold from public review for a period of 180 days from the date of the Grant of Equipment Authorization and prior to marketing, certai n portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept confidential for a period of 180 days from the date of Authorization:  Test setup photos  External photos  Internal photos  User manual Rationale for request for confidentiality: Motorola Mobility, LLC. has invested considerable time and materials in research and development to produce the referenced product. [Permanent confidentiality:Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us.][Short term confidentiality:Disclosure of the short-term confidential portions of this application during the period of importation and/or distribution would reveal key aspects of proprietary technology to competitors and diminish the value of our investment in research and development.] If you have questions or need further information, please contact the undersigned. Sincerely, Certification Engineer Weifang GoerTek Electronics Co.,Ltd

FCC ID: IHDT6QF1 Motorola Mobility LLC., 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA Pag e 13B - 1 4 June 2014 Authorization of Agent Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 RE: Grantee Code IHD. Authorization: I, John Lewczak, the FCC contact for Grantee Code “IHD,” hereby authorize the following company (agent) to act on behalf of Motorola Mobility LLC. for the application specified below. This includes: • Form 731, Attestation Statement Exhibit, and Confidentiality Request Signatures. • Technical Contact. • Non-Technical Contact. • Test Firm Contact Information. Notifications of grant issuance should be routed to the applicant of record for Grantee Code “IHD,” as should any audit requests concerning this device. Authorized Agent: Mathew Li Weifang GoerTek Electronics Co.,Ltd Gaoxin 2 Road,Free Trade Zone,Weifang,Shandong,261205,P.R.China. Specific Application: FCC ID: IHDT6QF1 Contact Information: Please contact me by telephone at (954) 723-6272, or by e-mail ( [email protected]), if there are questions or additional information needed concerning this authorization Regards, FCC Liaison Motorola Mobility LLC. 8000 W. Sunrise Blvd, Suite A Plantation, FL 33322

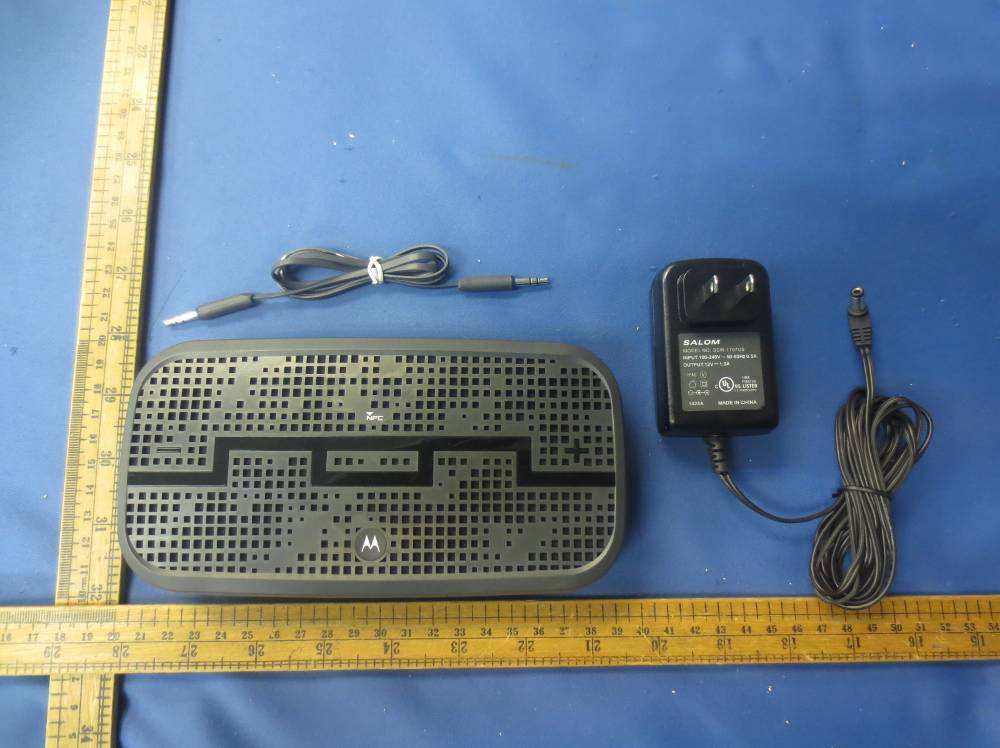

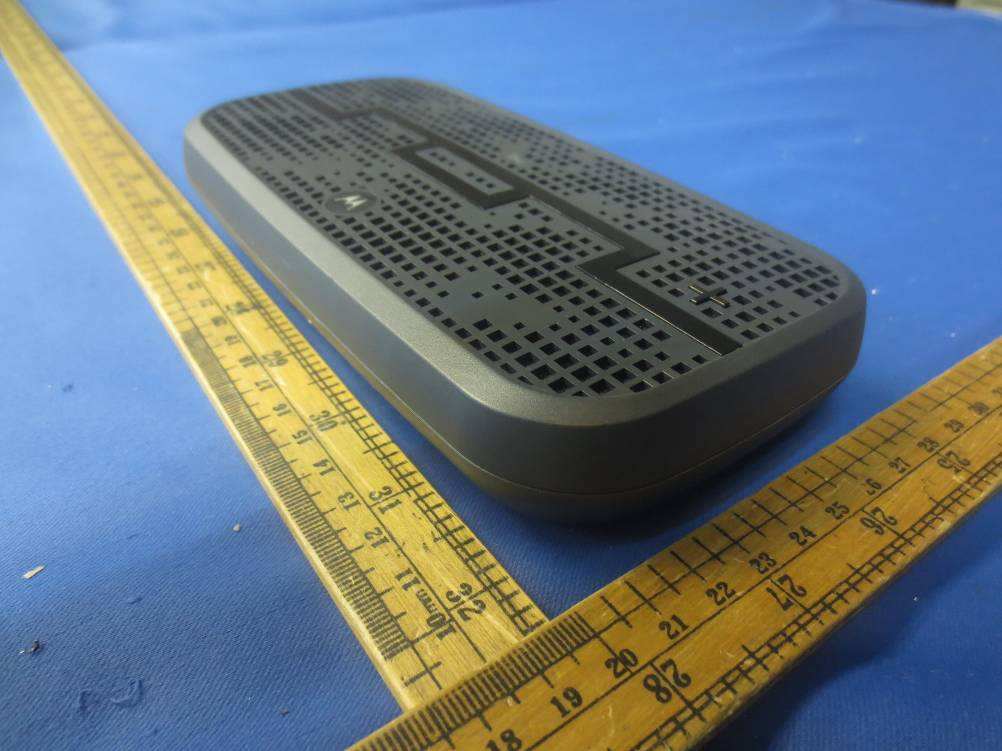

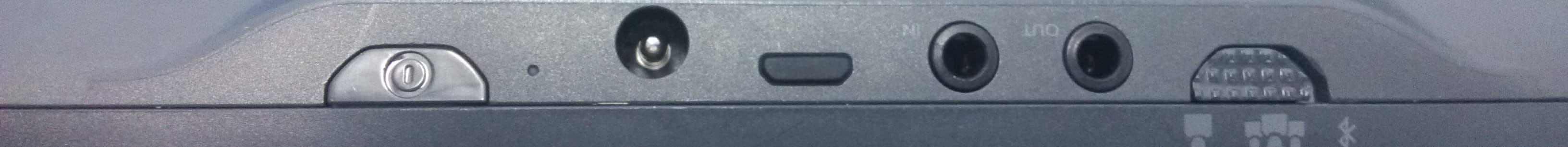

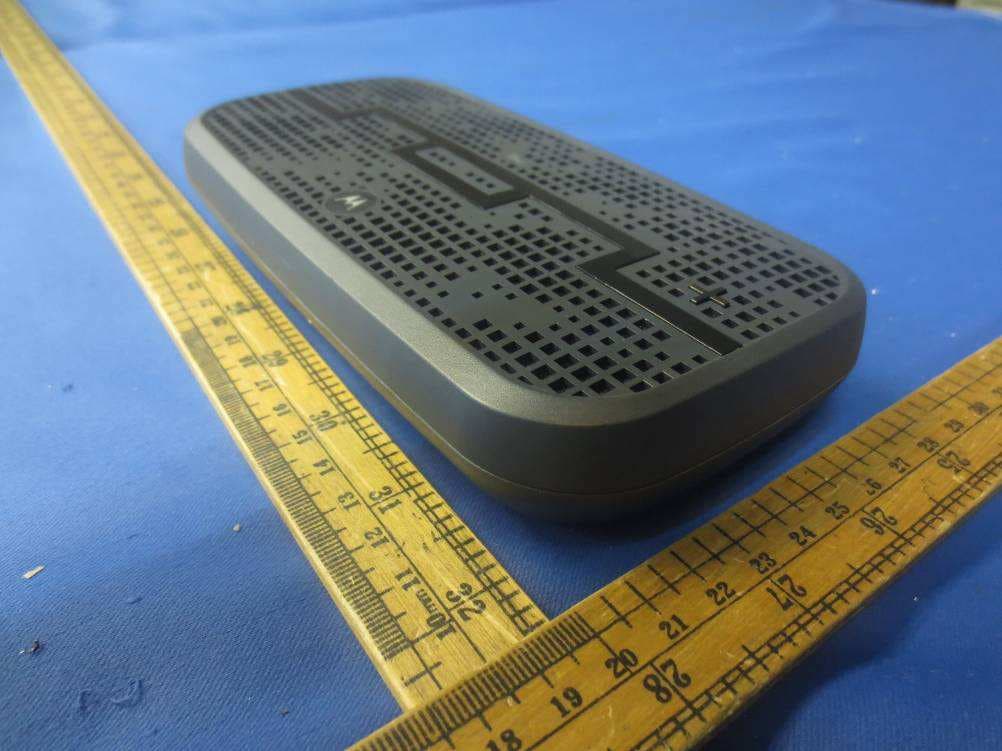

External Photo

(Unit: mm)

Internal Photo

1 INTERTEK TESTING SERVICES RF Exposure The Equipment under Test (EUT) is a EQ720 model: EQ720. It is powered by DC 7.4V. For more detail information please refer to the user manual. Antenna Type: Integral antenna. Max Antenna Gain: 0dBi. The nominal conducted output power specified: 7dBm ±3dB. Test radiated output power(e.i.r.p) specified: 4dBm ~ 10dBm The maximum tested e.i.r.p is 9.37dBm and the minimum tested e.i.r.p is 8.97dBm Mod u lation Type: GFSK, π/4 –DQPSK and 8-DPSK. According to the KDB 447498: The maximun conducted output power specified is 10dBm = 10mW The source- based time-averaging conducted output power = 10* Duty Cycle mW <8.3mW The SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (2.480) mW = 9.5 mW Since the source-based time-averaging conducted output power is well below the SAR low threshold level, so the EUT is considered to comply with SAR requirement without testing. Transmitter Duty Cycle Calculation Based on the Bluetooth Specification (BT version: 3.0 + EDR), the duty factor is dependent of packet type (DH1, DH3 and DH5).For one period for a pseudo-random hopping through all 79 RF channels, for DH5: One hop set consists of 5 TX slot and 1 RX slot. Duty factor = 5 / 6 = 0.833 FCC ID: IHDT6QF1

Bandedge Plot Date: 1.AUG.2014 13:53:01 Date: 1.AUG.2014 13:54:39

20dB BW Plot Date: 1.AUG.2014 13:51:20 Date: 1.AUG.2014 13:49:07

• The test results reported in this test report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to copy or distribute this report. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results referenced from this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. • For Terms And Conditions of the services, it can be provided upon request. • The evaluation data of the report will be kept for 3 years from the date of issuance. TRF No.: FCC 15C_TX_b Report No.: 140723017SZN-001 Intertek Testing Services Shenzhen Ltd. Kejiyuan Branch 6F, D Block, Huahan Building, Langshan Road, Nanshan District, Shenzhen, P. R. China Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6751 Website: www.china.intertek-etlsemko.com Motorola Mobility LLC Application For Certification FCC ID: IHDT6QF1 EQ720 Model: EQ720 2.4GHz Transceiver Report No.: 140723017SZN-001 We hereby certify that the sample of the above item is considered to comply with the requirements of FCC Part 15, Subpart C for Intentional Radiator, mention 47 CFR [10-1-13] Prepared and Checked by: Approved by: Sign on file Leo Lai Project Engineer Andy Yan Senior Project Engineer Date: August 28, 2014 INTERTEK TESTING SERVICES TRF No.: FCC 15C_TX_b Report No.: 140723017SZN-001 FCC ID: IHDT6QF1 i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: General Description EXHIBIT 2: System Test Configuration EXHIBIT 3: Emission Results EXHIBIT 4: Equipment Photographs EXHIBIT 5: Product Labelling EXHIBIT 6: Technical Specifications EXHIBIT 7: Instruction Manual EXHIBIT 8: Miscellaneous Information EXHIBIT 9: Test Equipment List INTERTEK TESTING SERVICES TRF No.: FCC 15C_TX_b Report No.: 140723017SZN-001 FCC ID: IHDT6QF1 ii MEASUREMENT/TECHNICAL REPORT Motorola Mobility LLC Model: EQ720 FCC ID: IHDT6QF1 This report concerns (check one:) Original Grant X Class II Change Equipment Type: DXX - Part 15 Low Power Communication Device Transmitter Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator − the new 47 CFR [10-1-13 Edition] provision. Report prepared by: Leo Lai Intertek Testing Services Shenzhen Ltd. Kejiyuan Branch 6F, Block D, Huahan Building, Langshan Road, Nanshan District, Shenzhen, P. R. China Phone: (86 755) 8614 0661 Fax: (86 755) 8601 6751 INTERTEK TESTING SERVICES TRF No.: FCC 15C_TX_b Report No.: 140723017SZN-001 FCC ID: IHDT6QF1 iii Table of Contents 1.0 General Description ................................................................................................. 2 1.1 Product Description ................................................................................................. 2 1.2 Related Submittal(s) Grants .................................................................................... 2 1.3 Test Methodology .................................................................................................... 2 1.4 Test Facility ............................................................................................................ 2 2.0 System Test Configuration ...................................................................................... 4 2.1 Justification ............................................................................................................. 4 2.2 EUT Exercising Software ......................................................................................... 4 2.3 Special Accessories ................................................................................................ 4 2.4 Equipment Modification ........................................................................................... 4 2.5 Measurement Uncertainty ....................................................................................... 5 2.6 Support Equipment List and Description .................................................................. 5 3.0 Emission Results ..................................................................................................... 7 3.1 Radiated Test Results ............................................................................................. 8 3.1.1 Field Strength Calculation ..................................................................................... 8 3.1.2 Radiated Emission Configuration Photograph ....................................................... 9 3.1.3 Radiated Emissions .............................................................................................. 9 3.1.4 Transmitter Spurious Emissions ......................................................................... 12 3.2 Conducted Emission at Mains Termina .................................................................. 16 3.2.1 Conducted Emissions Configuration Photograph ................................................ 16 3.2.2 Conducted Emissions ........................................................................................ 16 4.0 Equipment Photographs ....................................…

Text truncated - open the document above for the full version.

Test Setup Photo –Radiated Emission

Test Setup Photo – Conducted Emission
