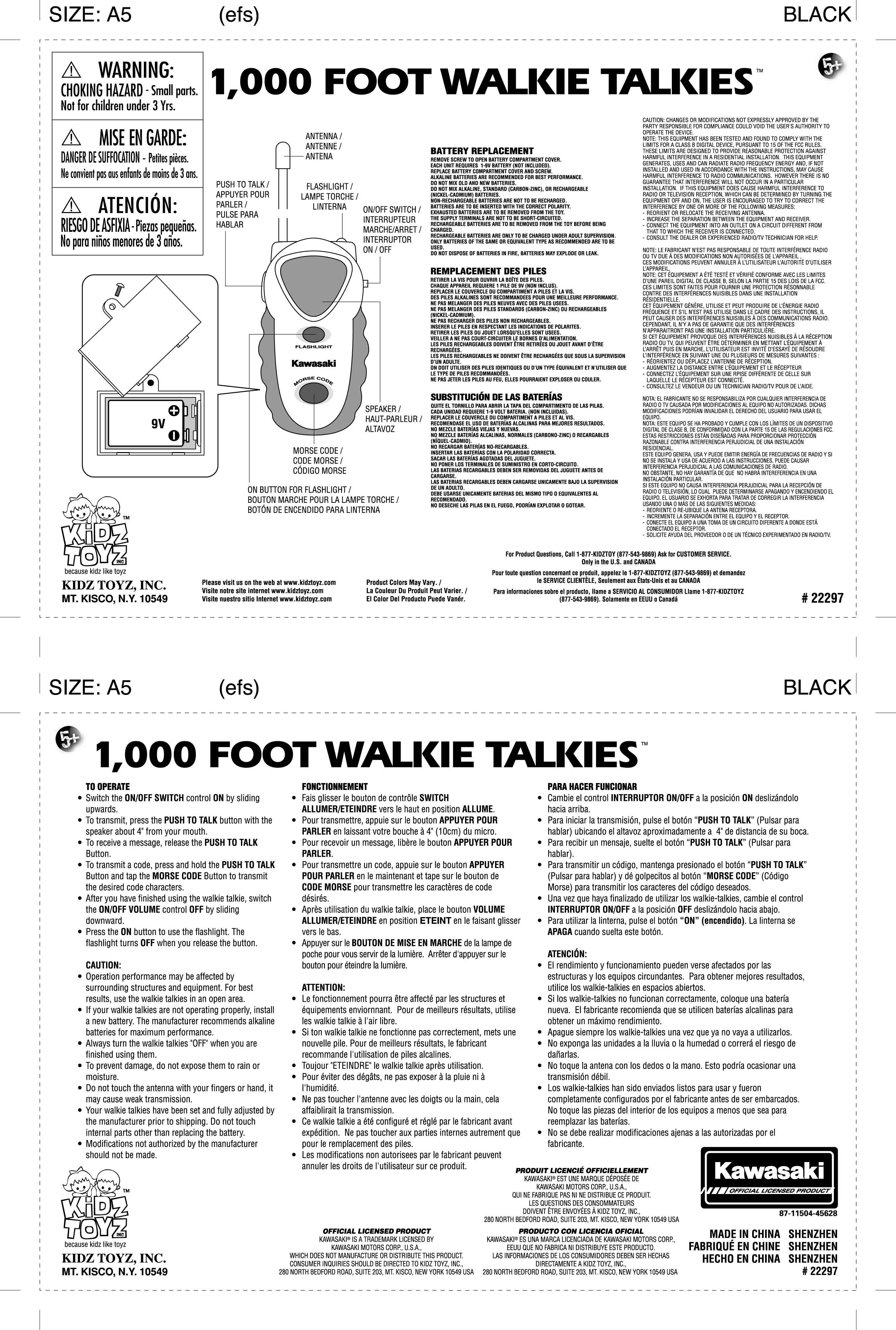

II622297AWalkie Talkie

FCC ID: II622297A PHOTOGRAPH OF THE PRODUCT FRONT VIEW OF THE PRODUCT REAR VIEW OF THE PRODUCT FCC ID: II622297A PHOTOGRAPH OF THE PRODUCT LEFT VIEW OF THE PRODUCT RIGHT VIEW OF THE PRODUCT FCC ID: II622297A PHOTOGRAPH OF THE PRODUCT TOP VIEW OF THE PRODUCT BTTOM VIEW OF THE PRODUCT

FCC ID: II622297A PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT TOP VIEW FCC ID: II622297A PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT BOTTOM VIEW FCC ID: II622297A PHOTOGRAPH OF THE PRODUCT

SUPERSONICS ELECT. CO. BLOCK C, 4 TH FLOOR, GEE CHANG INDUSTRIAL BUILDING, 108 LOK SHAN ROAD, KOWLOON, HONG KONG. TEL : 27657263 FAX : 27643419 November 10, 2015 FCC ID: II622297A Circuit Description The 49.86MHz crystal oscillator drives the base of Q1 the final/buffer amplifier. The modulation provided by Mic. The output of Q1 has the matching network consisting of L1, L3, IFT1, C1, C3, C4, C6, R1, R3 and R4 that limit the harmonic content and effect the proper coupling of the antenna to the output stage. Antenna, Ground and Power Source The antenna consists of a 19cm steel spring steel with elastic plastic cover. There is no external ground connection. The ground is only that of the printed circuit board. Electric current is supplied by a 9 Volt (“6F22” size battery x 1) primary battery. Remarks: The EUT is one-button push-to-talk/morse transmitter. It is (Voice) transmitter, Modulation by (Microphone); and type is (Amplitude) modulation

STC Test Report Date : 2015-12-18 Page 1 of 15 No. : HM170061 The Hong Kong Standards and Testing Centre Limited 10 Dai Wang Street, Taipo Industrial Estate, Tai Po, N.T., Hong Kong Tel: +852 2666 1888 Fax: +852 2664 4353 Email: [email protected] Website: www.stc-group.org This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Limited. For Conditions of Issuance of this test report, please refer to “Conditions of Issuance of Test Reports” section or Website. Applicant: SUPERSONICS ELECTRONICS COMPANY Phase II, Block C 4th Floor, Gee Chang Industrial Bldg.., 108 Lok Shan Rd., Tokwawan, Kln., Hong Kong Manufacturer: Supersonics Electronics Toys (Shenzhen) Co., Ltd. Block 1 & 2, Xin Tian Village, Xin Feng Ind. Area, Guan Lan, Bao an, Shenzhen, China Description of Sample(s): Submitted samples(s) said to be Product: WALKIE TALKIES Brand Name: KAWASAKI Model Number: 22297A FCC ID: II622297A Date Sample(s) Received: 2015-11-11 Date Tested: 2015-11-17 to 2015-12-15 Investigation Requested: Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2014 and ANSI C63.10: 2013 for FCC Certification. Conclusion(s): The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remark(s): For additional model(s) details, see page 3. _______________________________ CHEUNG Chi, Kenneth Authorized Signatory ElectroMagnetic Compatibility Department For and on behalf of The Hong Kong Standards and Testing Centre Ltd. STC Test Report Date : 2015-12-18 Page 2 of 15 No. : HM170061 The Hong Kong Standards and Testing Centre Limited 10 Dai Wang Street, Taipo Industrial Estate, Tai Po, N.T., Hong Kong Tel: +852 2666 1888 Fax: +852 2664 4353 Email: [email protected] Website: www.stc-group.org This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Limited. For Conditions of Issuance of this test report, please refer to “Conditions of Issuance of Test Reports” section or Website. CONTENT: Cover Page 1 of 15 Content Page 2 of 15 1.0 General Details 1.1 Equipment Under Test [EUT] Page 3 of 15 Description of EUT operation 1.2 Date of Order Page 3 of 15 1.3 Submitted Sample(s) Page 3 of 15 1.4 Test Duration Page 3 of 15 1.5 Country of Origin Page 3 of 15 2.0 Technical Details 2.1 Investigations Requested Page 4 of 15 2.2 Test Standards and Results Summary Page 4 of 15 3.0 Test Results 3.1 Emission Page 5-8 of 15 3.2 Bandwidth Measurement Page 9-11 of 15 Appendix A List of Measurement Equipment Page 12 of 15 Appendix B Photographs Page 13-15 of 15 STC Test Report Date : 2015-12-18 Page 3 of 15 No. : HM170061 The Hong Kong Standards and Testing Centre Limited 10 Dai Wang Street, Taipo Industrial Estate, Tai Po, N.T., Hong Kong Tel: +852 2666 1888 Fax: +852 2664 4353 Email: [email protected] Website: www.stc-group.org This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Limited. For Conditions of Issuance of this test report, please refer to “Conditions of Issuance of Test Reports” section or Website. 1.0 General Details 1.1 Equipment Under Test [EUT] Description of Sample(s) Product: WALKIE TALKIES Manufacturer: Supersonics Electronics Toys (Shenzhen) Co., Ltd. Block 1 & 2, Xin Tian Village, Xin Feng Ind. Area, Guan Lan, Bao an, Shenzhen, China Brand Name(s): KAWASAKI Additional Brand Name(s): AT & T Model Number: 22297A Additional Model Number(s): 15197 Input Voltage: 9Vd.c(“6F22” size battery x 1) 1.1.1 Description of EUT Operation The Equipment Under Test (EUT) is a SUPERSONICS ELECTRONICS COMPANY., WALKIE TALKIES. The EUT is an audio transceiver. The transceiver was operating with 1 button; the EUT continues to transmit while the button is pressed; and continues to receive while the button is released. The RF signal is modulated by an IC, and the type of modulation is Amplitude Modulation. 1.2 Date of Order 2015-11-11 1.3 Submitted Sample(s): 4 Samples 1.4 Test Duration 2015-11-17 to 2015-12-15 1.5 Country of Origin China STC Test Report Date : 2015-12-18 Page 4 of 15 No. : HM170061 The Hong Kong Standards and Testing Centre Limited 10 Dai Wang Street, Taipo Industrial Estate, Tai Po, N.T., Hong Kong Tel: +852 2666 1888 Fax: +852 2664 4353 Email: [email protected] Website: www.stc-group.org This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Limited. For Conditions of Issuance of this test report, please refer to “Conditions of Issuance of Test Reports” section or Website. 2.0 Technical Details 2.1 Investigations Requested Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2014 and ANSI C63.10:2013 for FCC Certification. 2.2 Test Standards and Results Summary Tables EMISSION Results Summary Test Condition Test Requirement Test Method Class / Test Result Severity Pass Failed Field Strength of Fundamental Emissions & Spurious Emissions FCC 47CFR 15.235 ANSI C63.10:2013 N/A Radiated Emissions, 30MHz to 1GHz FCC 47CFR 15.209 ANSI C63.10:2013 N/A Note: N/A - Not Applicable STC Test Report Date : 2015-12-18 Page 5 of 15 No. : HM170061 The Hong Kong Standards and Testing Centre Limited 10 Dai Wang Street, Taipo Industrial Estate, Tai Po, N.T., Hong Kong Tel: +852 2666 1888 Fax: +852 2664 4353 Email: [email protected] Website: www.stc-group.org This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Limited. For Conditions of Issuance of this test report, please refer to “Conditions of Issuance of Test Reports” section or Website. 3.0 Test Results 3.1 Emission 3.1.1 Radiated Emissions (30 – 1000MHz) Test Requirement:…
