IK4T1000Mirror Type TFT LCD monitor with bluetooth function

OEM REPLACEMENT STYLE BLUETOOTH FUNCTION UNIVERSAL CLIP-ON STYLE Please read this manual carefully before operation. General Introduction This rear view mirror monitor is designed for car rear view purpose. which can work with a reversing camera (NTSC or PAL) to show the images behind your car, with good compatibility with multimedia parking sensor system beside the camera. With dual video input, it can be connected to a car DVD player, too. When reversing gear is engaged the rear view system automatically starts to work and when the monitor is powered off, the mirror functions just like a normal rear view mirror with anti-glare function. Both OEM Replacement Style & Clip-on Style are available for selection, with Bluetooth function optional, Bluetooth Function Connection: Turn on the mirror monitor, activate the bluetooth function of your mobile phone, then search the pairing device and find Car Kit. Select Car Kit, and enter pairing code 1234 before pairing. After 2-3 seconds, pairing and connection is done, when you can find CONNECTED in the center of the screen as well a bluetooth mark on the left upper corner. Caller ID Display, answering & ending: After connection, when the connected mobile phone has an incoming call, the signal goes automatically to the mirror monitor, and caller’s number is displayed on the screen, with the mobile phone ring coming out from the speaker of mirror. Press AV1/AV2 button once to answer the phone, and again to end the conversation. Disconnection & Reconnection: Both the mirror monitor and mobile phone must be ON and connected. Turn the bluetooth of mobile phone off for disconnection, and to reconnect it, just repeat the operations according to Connection instruction above. When the mobile phone and mirror monitor are 10 meters far away from each other (or less than 10m when there is an obstacle between them), the Bluetooth will be automatically disconnected, and when you bring them nearer and restart the mirror monitor, they can get reconnected. Turn off the mirror monitor, the Bluetooth gets disconnected, and you can simply turn on the mirror monitor to get reconnection. Volume Adjustment: The mirror monitor comes out of factory with a moderate volume, but users can still adjust it by pressing button to add or to decrease the volume. 4.3" Car Rear View Mirror Monitor4.3" Car Rear View Mirror Monitor Hyundai Sonata, Elantra, etc. Remarks: The special brackets apply but not limited to the car models mentioned above. Please contact us or consult with professional technicians on whether your car model can be fitted. FCC WARNING This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE 1: Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Block Diagram CPU BIT1612 BT Processor BC352 XTAL 24.576MHz BT: Ant. 2402-2480MHz XTAL 16MHz LCD Speaker Video Input DC 12V XTAL 11.0592MHz

Agents letter Shenzhen Auto-vox Technology Co., Ltd FCC ID: IK4T1000 Product Name: Mirror type TFT-LCD monitor with bluetooth Model No. : AX-T1000BT Date (04/24/2012) BABT TCB Forsyth House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Dear Sir or Madam, We, Shenzhen Auto-vox Technology Co., Ltd and Address of 5 th Floor, Block D, Shunxing Industrial Area, Hebei Village, Bantian, Buji Town, Longgang District, Shenzhen, China, hereby authorize SEM.Test Compliance Service Co., Ltd. And address of 3/F, Jinbao Commerce Building, Xin'an Fanshen Road, Bao'an District, Shenzhen, P.R.C. Jandy so (Telephone: 86-755-33663308), to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. This authorization expires on (01/01/2013).

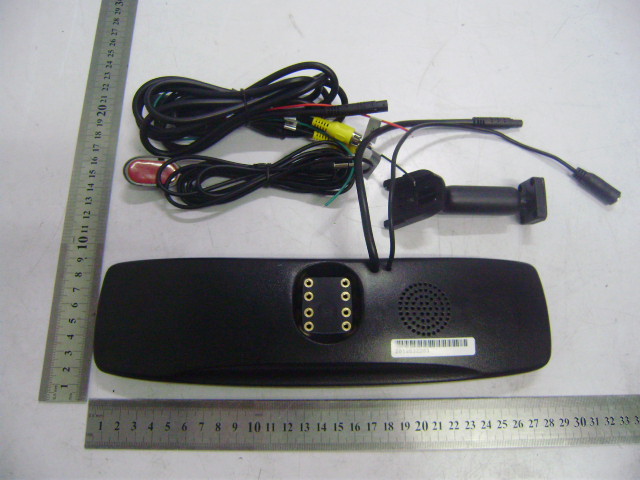

Shenzhen Auto-vox Technology Co., Ltd Model: AX-T1000BT REPORT NO.: STR12038373I FCC PART 15.247 EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2

Shenzhen Auto-vox Technology Co., Ltd Model: AX-T1000BT REPORT NO.: STR12038373I FCC PART 15.247 EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: IK4T1000 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

Shenzhen Auto-vox Technology Co., Ltd Model: AX-T1000BT REPORT NO.: STR12038373I FCC PART 15.247 EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View Solder Board-Component View 1 Shenzhen Auto-vox Technology Co., Ltd Model: AX-T1000BT REPORT NO.: STR12038373I FCC PART 15.247 Solder Board-Component View 2

Model: AX‐T1000BT Operational Description: The product is a Mirror type TFT-LCD monitor with bluetooth, the use of Csr Bluetooth Chip BC352, Bluetooth 2.1+EDR standard, Supports Bluetooth AV Play and Handsfree profiles ， This product and other Bluetooth devices connected through the pair, implementation, and wireless voice communications between Bluetooth devices, and Bluetooth paired ,the Bluetooth devices need to support HSP HFP profiles can use 。 BIT1612 (U4) is the core of the product components,It contains the Bluetooth , LCD, linear regulators,switch-mode power supply and battery charger ， Product of the system clock 16MHz provided, Internal Frequency multiplier to the 2.4GHz ISM band, operating frequency of 2.402-2.480GHz,The modulation is GFSK for 1M data rate, 1/4-DQPSK for 2M data rate, and 8DPSK for 3M data rate. Fast frequency hopping (1600 hops/s) is used over a total of 79 channels between 2.402 GHz up to 2.480 GHz. The channel bandwidth is 1 MHz. This product is used PCB antenna, to distance within the range of 10 meters, RF output power for maximum 1dBm.

RF Exposure Requirements Product Description: Mirror type TFT-LCD monitor with bluetooth Model No.: AX-T1000BT FCC ID: IK4T1000 Acorrding to the KDB-447498, the following RF exposure evaluation shall to demonstrate RF exposure compliance. Tx frequency range: 2402~2480MHz Device category: Mobile device Maximum Output Power: 1.196 mW (0.778dBm) Limit: 60/f(GHz) mW = 24.19 mW Source-based time-averaged conducted output power is 1.196 mW =< 60/f So the transmitter complies with the RF exposure requirements and the SAR is not required.

1 2 3 4 5 6 78 ABCD 8 7 6 5 4 3 2 1 D CBA Title BC3MM External 7X7 Module Revision 0.07 Date 3-Jun-2005 VSS_PIO A1 VDD_PIO A2 PIO[11] A3 REB A4 D[1] A5 D[9] A6 D[3] A7 D[12] A8 D[6] A9 D[15] A10 A[16] A11 VSS_PADS A12 VDD_MEM A13 TXEN PIO[1] B1 PIO[3] B2 PIO[10] B3 CSB B4 D[8] B5 D[2] B6 D[10] B7 D[4] B8 D[13] B9 D[7] B10 TEST_EN B11 RESET B12 SPI_MISO B13 TXEN PIO[0] C1 PIO[2] C2 PIO[9] C3 A[0] C4 D[0] C5 VSS_CORE C6 VDD_CORE C7 D[11] C8 D[5] C9 D[14] C10 SPI_CSB C11 NC C12 SPI_CLK C13 VDD_RADIO D1 AUX_DAC D2 PIO[8] D3 VDD_PADS D11 SPI_MOSI D12 NC D13 RF_IN E1 VSS_RADIO E2 VSS_RADIO E3 VSS_CORE E11 RESETB E12 VDD_CORE E13 TX_B F1 VSS_RADIO F2 VSS F3 PIO[5] F11 PIO[4] F12 PIO[6] F13 TX_A G1 VSS_RADIO G2 VSS_RADIO G3 PIO[7] G11 NC G12 PCM_OUT G13 VSS_RADIO H1 VDD_RADIO H2 VSS_ANA H3 PCM_SYNC H11 NC H12 PCM_CLK H13 VSS_LO J1 VDD_LO J2 MIC_LEFT_P J3 PCM_IN J11 UART_TX J12 VSS_PADS J13 VSS_ANA K1 VDD_ANA K2 MIC_LEFT_N K3 UART_RX K11 UART_CTS K12 USB_DN K13 SPKR_LEFT_N L1 SPKR_RIGHT_N L2 MIC_RIGHT_P L3 AIO[1] L4 A[3] L5 VSS_ANA L6 A[6] L7 VDD_CORE L8 WEB L9 A[10] L10 A[13] L11 UART_RTS L12 USB_DP L13 SPKR_LEFT_P M1 SPKR_RIGHT_P M2 MIC_RIGHT_N M3 AIO[2] M4 A[2] M5 A[4] M6 A[5] M7 A[17] M8 VSS_CORE M9 A[9] M10 A[12] M11 A[15] M12 VDD_USB M13 XTAL_IN N1 XTAL_OUT N2 AIO[0] N3 AIO[3] N4 A[1] N5 VDD_ANA N6 VREG_IN N7 A[7] N8 A[18] N9 A[8] N10 A[11] N11 A[14] N12 VDD_MEM N13 U1BC352239A External 7X7 R51M R410K R647K R747K Y1 Toyocom TN-25888 16M C910P C83P3 C3 100n C4 15P R1047K R847K P1TE C6 10n C5 100n R1447K R1247K R1647K R1147K R947K R1547K R1347K R1747K R26 2.2R C174.7uF L1 2.2nH C22P L2 15nH C14 15P C15 15P REB G1 D[1] H2 D[9] G2 D[3] H3 D[12] F4 D[6] H5 DQ15/A-1 G6 A[16] E6 CSB F1 D[8] F2 D[2] E3 D[10] F3 D[4] H4 D[13] G5 D[7] E5 A[0] E1 D[0] E2 D[11] G3 D[5] E4 D[14] F5 A[3] A1 A[6] C2 WEB A4 A[10] C5 A[13] A6 A[2] C1 A[4] B1 A[5] D2 A[17] B2 A[9] A5 A[12] B6 A[15] D6 A[1] D1 A[7] A2 A[18] C3 A[8] B5 A[11] D5 A[14] C6 NC B3 NC D4 NC C4 NC D3 VCC G4 BYTEB F6 RESETB B4 VSS H6 VSS H1 RY/BYB A3 U8 MBM29SL800TE/BE C16 47n C7 4.7uF VMEM VMEM Unbalanced 1 GND 5 Balanced 4 Balanced 6 GND 7 DC 2 GND 8 NC 3 T1 DBF81F101 TP391.8/3.3V TP13.3V TP4 PIO0 TP5 PIO1 TP7 SPI_CLK TP8 SPI-MISO TP9 UART_RX TP10 UART_TX TP11PIO5 TP12PIO7 TP13PIO6 TP14PIO8 TP15RESET TP16GNDTP17GND TP19 SPI-CSB TP20 SPIO_MOSI TP21 UART_CTS TP22 UART_RTS TP24PIO3 TP25AIO0 TP26PIO4 TP27PIO9 TP29 SPKR_LEFT_N TP30 SPKR_RIGHT_P TP31 MIC_LEFT_P TP32 SPKR_RIGHT_N TP33 SPKR_LEFT_P TP34 MIC_LEFT_N TP35 PIO10 TP36 PIO11 TP37 MIC_RIGHT_N TP38 MIC_RIGHT_P C18 10n C19 4.7uF TP41RF-IN TP42 VDD-PA TP39 1.8V TP1 3.3V TP4 PIO0 TP5 PIO1 TP7 SPI_CLK TP8 SPI-MISO TP9 UART_RX TP10 UART_TX TP11 PIO5 TP12 PIO7 TP13 PIO6 TP14 PIO8TP15 RESET TP17 GNDTP47 GNDTP19 SPI-CSB TP20 SPIO_MOSI TP21 UART_CTS TP22 UART_RTS TP24 PIO3 TP25 AIO0 TP26 PIO4 TP27 PIO9 TP29 SPKR_LEFT_N TP30 SPKR_RIGHT_P TP31 MIC_LEFT_P TP32 SPKR_RIGHT_N TP33 SPKR_LEFT_P TP34 MIC_LEFT_N TP35 PIO10 TP36 PIO11 TP37 MIC_RIGHT_N TP38 MIC_RIGHT_P TP41 RF-INTP42 VDD-PA TP18 RF/OUT TP16 GND TP40 GND TP40 GND TP47GND TP18RF/OUT BC3MM External 7X7 Module ENQ : [email protected] 1 1 2 2 3 3 4 4 DD CC BB AA Title NumberRevisionSize A4 Date:2012-4-9Sheet of File:E:\x\..\Sheet1.SchDrawn By: EP1_SCL EP1_SDA WP1 SDA SCL 12 R40 0R NC 1 NC 2 NC 3 VSS 4 SDA 5 SCL 6 WP 7 VCC 8 U6 24C32 12 R45 100R C56 10u/1206 12 R44 100R 1 2 R41 10k 1 2 R42 4K7 1 2 R43 4K7 D+3.3V D+3.3V EEPROM1/2 circuit WP_EEP WP_EEP SCL SDA SCL SDA P0C5601 P0C5602 P0R4001 P0R4002 P0R4101 P0R4102 P0R4201 P0R4202 P0R4301 P0R4302 P0R4401 P0R4402 P0R4501 P0R4502 P0U601 P0U602 P0U603 P0U604 P0U605 P0U606 P0U607 P0U608 P0C5602 P0R4102 P0R4202 P0R4302 P0U608 P0C5601 P0U601 P0U602 P0U603 P0U604 P0R4201 P0R4502 P0U606 N0EP10SCL P0R4301 P0R4402 P0U605 N0EP10SDA P0R4501 N0SCL N0SCL P0SCL P0R4401 N0SDA N0SDA P0SDA P0R4001 P0R4101 P0U607 N0WP1 P0R4002 N0WP0EEP P0WP0EEP P0SCL P0SDA P0WP0EEP P0C5602 P0R4102 P0R4202 P0R4302 P0U608 P0C5601 P0U601 P0U602 P0U603 P0U604 N0EP10SCL P0R4201 P0R4502 P0U606 N0EP10SDA P0R4301 P0R4402 P0U605 N0SCL P0R4501 P0SCL N0SDA P0R4401 P0SDA N0WP1 P0R4001 P0R4101 P0U607 N0WP0EEP P0R4002 P0WP0EEP 1 1 2 2 3 3 4 4 5 5 6 6 7 7 8 8 DD CC BB AA Title NumberRevisionSize A2 Date:2012-4-9Sheet of File:E:\x\..\Sheet2.SchDrawn By: CIN CVBSIN VREFP RTSO1 OCLKO RTSO2 BOUT2 BOUT0 BOUT1 BOUT3 BOUT4 BOUT5 BOUT6 BOUT7 VCMC VREFN VCMY OP2 VBG SCL SRST PWM1 VBG OP3 VCMY SDA OP4 CVBSIN OP4 XOUT AVDD+3.3V AGND VCM OP5 OP3 IBEXT VREFP VREFN IBEXT AGND PWM2 VCMC OP2 RTSO3 VCMY VCM OP5 CIN VCMC C36 2u2F C54 27P C30 104 C71 104 12 R18 0R C45 10u/1206 12 R21 0R 1 2 R39 10K C33 2u2F C28 104 C39 104 12 R300R C43 10u/1210 BIT1612LQFP-128 IBEXT 1 VREFP 2 VCM 3 VREFN 4 AGND 5 VBG 6 VCMC 7 CIN 8 AVDD 9 AGND 10 ROUT0 11 ROUT1 12 ROUT2 14 ROUT3 15 ROUT4 16 ROUT5 17 ROUT6 19 ROUT7 20 VDD18 21 GOUT0 22 VDD33 24 GOUT2 25 GOUT3 26 GOUT4 27 VSS18 28 GOUT5 29 GOUT7 31 GND33 32 VSS18 33 TOUT0 57 TOUT1 58 TOUT2 60 TOUT4 62 VDD18 63 TOUT5 66 TOUT6 67 GND33 68 TOUT7 69 RTS3 70 RTS2 71 RTS1 72 VDD33 73 PWM1 74 VDD33 13 GOUT1 23 VDD33 59 PLL_VDD 64 PLL_VSS 65 PWM2 75 VSS18 98 AVDD 128 AGND 127 AVDD 123 YIN 124 CVBSIN 125 VCMY 126 AGND 122 GND33 18 GOUT6 30 TOUT3 61 PLL_VSS 97 BOUT0 34 BOUT1 35 BOUT2 36 BOUT3 37 BOUT4 38 BOUT5 39 BOUT6 40 BOUT7 41 VDD33 42 OCLK 43 SRGB_D0 44 SRGB_D1 45 SRGB_D2 46 SRGB_D3 47 SRGB_D4 48 SRGB_D5 49 SRGB_D6 50 SRGB_D7 51 SRGB_D8 52 GND33 53 SRGB_CK 54 SRGB_CS 55 SRGB_DIO 56 RIN0 76 RIN1 77 RIN2 78 RIN3 79 VSS18 80 RIN4 81 RIN5 82 RIN6 83 RIN7 84 GIN0 85 GIN1 86 GIN2 87 GIN3 88 VDD18 89 GIN4 90 GIN5 91 GIN6 92 GIN7 93 BIN0 114 BIN1 115 BIN2 116 BIN3 117 BIN4 118 BIN5 119 BIN6 120 BIN7 121 HSYNC 94 VSYNC 95 TEST 99 ICLK1 100 SRST 101 INF5 102 INF4 103 INF3 104 INF2 105 SDA 106 SCL 107 OSCI 109 OSCO 110 PLL_VDD 96 VDD18 108 VDD33 111 ICLK2 112 IR 113 U4 BIT1612 12 R31 0R C44 10u/1206 C35 2u2F 12 R32 0R C40 104 C34 2u2F C46 10u/1206 12 L7 0R C29 104 C48 103 C37 104 1 2 Y2 24.576MHz 12 L6 0R/0805 C55 27P 12 R22 0R 12 L8 0R/0805 1 2 R28 10k C7…

Text truncated - open the document above for the full version.

Shenzhen Auto-vox Technology Co., Ltd Model: AX-T1000BT REPORT NO.: STR12038373I FCC PART 15.247 EXHIBIT 4 - TEST SETUP PHOTOGRAPHS Radiation Emission Test Setup ( Below 30MHz) Radiation Emission Test Setup (30MHz to 1GHz) Test mode: Transmitting Shenzhen Auto-vox Technology Co., Ltd Model: AX-T1000BT REPORT NO.: STR12038373I FCC PART 15.247 Test mode: Opeating with AV signal input Radiation Emission Test Setup (Above 1GHz)
