IMPORTANT: Please read all instructions thoroughly before operating your vehicle. Instruction Manual for Models HCAC0491 and HCAC0492 R/C MicroSizers Service Center We're eager to help you get the most enjoyment from your R/C MicroSizers. If you have any problems with assembly or operation, please do not return your model to the store. Check our website first. Many easy solutions are available there 24 hours a day, 7 days a week. www.microsizers.com Or, call the R/C MicroSizers Service Center at 1-866-HOBBICO (1-866-462-2426), Monday through Friday, 9:00 am - 4:00 pm Central Time. We've backed your model by a 90-day satisfaction guarantee, so you can be confident of its quality. Happy driving! · Adult supervision is recommended. · Do not allow children under age 3 to play with the R/C MicroSizers PowerBrute or radio transmitter. The model contains small parts which could accidentally be swallowed and cause suffocation. · Keep hair, loose clothing, face and fingers away from the tires and wheels while the model is running. · The transmitter's antenna could also cause injury if played with violently or looped around the neck. · Never operate your R/C MicroSizers PowerBrute on streets or in any areas where full-size vehicles are. · Do not pick up your R/C MicroSizers PowerBrute when it is in motion. · R/C MicroSizers PowerBrutes were designed for indoor use only. Outdoor use may lead to failure due to dirt and dust. · Do not run your R/C MicroSizers PowerBrute on rugs or carpeting. The fibers may become tangled in the model and cause damage or failure. · Never charge, run or store your R/C MicroSizers PowerBrute in a location subject to high temperatures, low temperatures or high humidity. Do not store in direct sunlight. · To avoid electronic malfunction, do not allow the truck to become wet. Short circuits will produce a very strong electrical current. Should your R/C MicroSizers PowerBrute become wet, stop using it immediately. · Never attempt to disassemble or solder the model. Do not put it into fire. · Do not drop your R/C MicroSizers PowerBrute from high places. Box Contents General Safety Precautions R/C MicroSizers are recommended for ages 8 and older. To ensure the safety and fun of young modelers, please follow these operating instructions and general safety rules: ™ by PowerBrute DRAFT VERSION How to assemble your R/C MicroSizers PowerBrute How to install the batteries STEP 2 : Mount the body. STEP 3 : Install the tool attachment. Place the numbered stickers at the locations shown in the illustration.
Pull to remove the front grille. Press in and push up at the front to remove the hood. Reverse these steps to reattach the hood and grille.  Fit the rear of the tool attachment against the chassis tab located directly below the body’s front windshield. Snap the tool attachment down to fit securely onto the chassis. Make sure that the tool snaps into place firmly. If it does not operate properly, try installing it again.Reverse these steps to remove the tool.  IMPORTANT This raised knob on the chassis must be in the slot on the tool attachment’s moving arm. Open the cover on the right side of the transmitter. Position the model parallel to the transmitter with the headlights pointing up. Use the illustrations above to align the model with the pins on the transmitter and snap it into place.

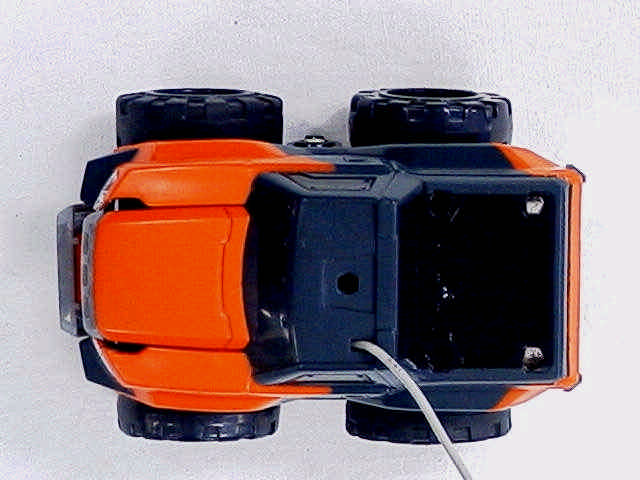

Thread the antenna through the hole in the top of the body.  ➀ Fit the slot in the rear of the body over the tab at the back of the chassis.➁ Then snap the front in place.  For maximum control (8 to 10 ft. [2.4-3.0m] range), extend the antenna wire straight up.
Remove the battery cover screw with a Phillips screwdriver.  Install your batteries with the correct polarity. This transmitter requires 2 "AA" alkaline batteries. Never use other types of batteries.  Replace the battery cover and tighten the screw. How to charge the vehicle
Set the transmitter switch to ON. ON/OFF S WITCH T RANSMITTER CHARGER DOOR  The metal contacts on the model and the charger must make contact. While charging, keep pressing the chassis against the transmitter and make sure the CHG light is on.  The LED (CHG) on the front of the transmitter will light for 45 seconds. When it goes out, the battery has completed charging.  If the model is attached beforethe transmitter is switched on, it will notcharge. STEP 1 : Apply the stickers. CHARGE LED CHARGER COVER As a reference point, start by inserting this pin in the middle of this slot. How to drive After running How to operate the tool attachment A NTENNA
Gently pull up the antenna by hand.Neverattempt to extend the antenna by turning or pushing the dial on the back of the transmitter.  Turn on the transmitter switch. Throttle(left toggle control) - Move the truck forward by pushing up, or reverse by pushing down. SteeringWheel (right toggle control) - Steer the front tires left or right by pushing the right toggle control. By operating the toggle controls on both the right and left simultaneously, the truck can move forward-right, forward-left, reverse-right, or reverse-left.  To run two R/C MicroSizers cars or PowerBrutes together, each must be on a different frequency.

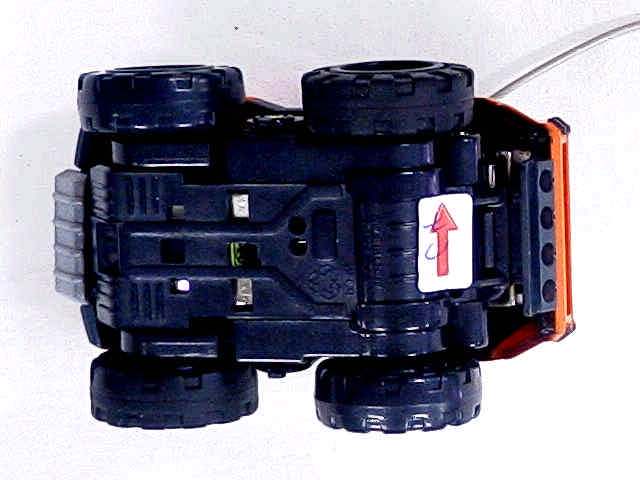

Turn the winder on the back of the transmitter to store the antenna. Do not force the antenna back inside the transmitter by hand.  Switch the transmitter off. Always turn the switch off when not in use to extend your battery life.  If the truck does not go straight when pushing the left toggle control up, move the trim lever on the bottom of the chassis to the left or right to make adjustments. ON/OFF SWITCH ANTENNAWINDER STRAIGHTLINE TRIMC ONTROL THROTTLE CONTROL STEERING CONTROL
Press the transmitter’s Action Activator button to move the tool up and down.  When installing a motor, make sure that the motor contacts are in the proper position as shown Model Battery Care Transmitter Battery Care A rechargeable battery has been built in to the main body of the model. Using the batter…

Text truncated - open the document above for the full version.

Transmission Block Diagram Functional Description: 1.) The transmission IC will encoded the Forward, Backward, Right, Left, and 2 Motor key, and send out the encoded signal. 2.) All signals are encoded with the oscillation frequency together by the built-in oscillator circuit. 3.) The modulation signal is amplified and then send out with the carrier frequency. Receiver Block Diagram Functional Description: 1.) Signal received; the IC will amplify the signal and then demodulated it. 2.) Demodulated signal will send to circuit, and fill out the unusable signal. 3.) The motion of Forward, backward, left, right, and 2 motor will be controlled by the analyzed signal.

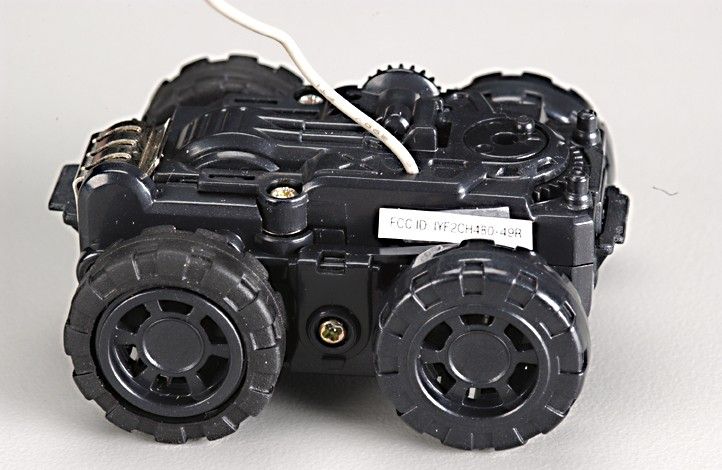

APPLICANT: HOBBICO INC. FCC ID: IYF2CH480-49R REPORT #: T:\H\HOBBICO\1281UT2\Extra\1281UT2 TestReport.doc TABLE OF CONTENTS LIST TABLE OF CONTENTS LIST APPLICANT: HOBBICO INC. FCC ID: IYF2CH480-49R TEST REPORT CONTAINING: PAGE 1-3....TEST EQUIPMENT LIST PAGE 4......TEST PROCEDURES PAGE 5......RADIATION INTERFERENCE TEST DATA EXHIBITS CONTAINING: EXHIBIT 1............BLOCK DIAGRAM EXHIBIT 2............SCHEMATIC EXHIBIT 3A-D.........INSTRUCTION MANUAL EXHIBIT 4............SAMPLE OF FCC ID LABEL EXHIBIT 5............LOCATION OF FCC ID LABEL EXHIBIT 6A-B.........EXTERNAL PHOTOGRAPHS EXHIBIT 7............INTERNAL PHOTOGRAPHS EXHIBIT 8............CIRCUIT DESCRIPTION EXHIBIT 9............TEST SET UP PHOTO APPLICANT: HOBBICO INC. FCC ID: IYF2CH480-49R REPORT #: T:\H\HOBBICO\1281UT2\Extra\1281UT2 TestReport.doc Page 1 of 5 EMC Equipment List DEVICE MFGR MODEL SERNO CAL/CHAR DATE DUE DATE or STATUS X 3-Meter OATS TEI N/A N/A Listed 12/22/99 12/22/02 3/10-Meter OATS TEI N/A N/A Listed 3/26/01 3/26/04 Receiver, Beige Tower Spectrum Analyzer (Tan) HP 8566B Opt 462 3138A07786 3144A20661 CAL 8/31/01 8/31/03 RF Preselector (Tan) HP 85685A 3221A01400 CAL 8/31/01 8/31/03 Quasi-Peak Adapter (Tan) HP 85650A 3303A01690 CAL 8/31/01 8/31/03 X Receiver, Blue Tower X Spectrum Analyzer (Blue) HP 8568B 2928A04729 2848A18049 CHAR 10/22/01 10/22/03 X RF Preselector (Blue) HP 85685A 2926A00983 CHAR 10/22/01 10/22/03 X Quasi-Peak Adapter (Blue) HP 85650A 2811A01279 CHAR 10/22/01 10/22/03 X Biconnical Antenna Electro-Metrics BIA-25 1171 CAL 4/26/01 4/26/03 Biconnical Antenna Eaton 94455-1 1096 CAL 10/1/01 10/1/03 Biconnical Antenna Eaton 94455-1 1057 CHAR 3/15/00 3/15/02 BiconiLog Antenna EMCO 3143 9409-1043 X Log-Periodic Antenna Electro-Metrics LPA-25 1122 CAL 10/2/01 10/2/03 Log-Periodic Antenna Electro-Metrics EM-6950 632 CHAR 10/15/01 10/15/03 Log-Periodic Antenna Electro-Metrics LPA-30 409 CHAR 10/16/01 10/16/03 Dipole Antenna Kit Electro-Metrics TDA-30/1-4 152 CAL 3/21/01 3/21/04 Dipole Antenna Kit Electro-Metrics TDA-30/1-4 153 CHAR 11/24/00 11/24/03 Double-Ridged Horn Antenna Electro-Metrics RGA-180 2319 CAL 12/19/01 12/19/03 Horn Antenna Electro-Metrics EM-6961 6246 CAL 3/21/01 3/21/03 Horn Antenna ATM 19-443-6R None No Cal Required APPLICANT: HOBBICO INC. FCC ID: IYF2CH480-49R REPORT #: T:\H\HOBBICO\1281UT2\Extra\1281UT2 TestReport.doc Page 2 of 5 DEVICE MFGR MODEL SERNO CAL/CHAR DATE DUE DATE or STATUS Passive Loop Antenna EMC Test Systems EMCO 6512 9706-1211 CHAR 7/10/01 7/10/03 Line Impedance Stabilization . . . Electro-Metrics ANS-25/2 2604 CAL 10/9/01 10/9/03 Line Impedance Stabilization . . . Electro-Metrics EM-7820 2682 CAL 3/16/01 3/16/03 Termaline Wattmeter Bird Electronic Corporation 611 16405 CAL 5/25/99 5/25/01 Termaline Wattmeter Bird Electronic Corporation 6104 1926 CAL 12/12/01 12/12/03 Oscilloscope Tektronix 2230 300572 CHAR 2/1/01 2/1/03 Temperature Chamber Tenney Engineering TTRC 11717-7 CHAR 1/22/02 1/22/04 AC Voltmeter HP 400FL 2213A14499 CAL 10/9/01 10/9/03 AC Voltmeter HP 400FL 2213A14261 CHAR 10/15/01 10/15/03 AC Voltmeter HP 400FL 2213A14728 CHAR 10/15/01 10/15/03 X Digital Multimeter Fluke 77 35053830 CHAR 1/8/02 1/8/04 Digital Multimeter Fluke 77 43850817 CHAR 1/8/02 1/8/04 Digital Multimeter HP E2377A 2927J05849 CHAR 1/8/02 1/8/04 Multimeter Fluke FLUKE-77-3 79510405 CAL 9/26/01 9/26/03 Peak Power Meter HP 8900C 2131A00545 CHAR 1/26/01 1/26/03 Digital Thermometer Fluke 2166A 42032 CAL 1/16/02 1/16/04 Thermometer Traulsen SK-128 CHAR 1/22/02 1/22/04 X Temp/Humidity gauge EXTech 44577F E000901 CHAR 1/22/02 1/22/04 Frequency Counter HP 5352B 2632A00165 CAL 11/28/01 11/28/03 Power Sensor Agilent Technologies 84811A 2551A02705 CAL 1/26/01 1/26/03 Service Monitor IFR FM/AM 500A 5182 CAL 11/22/00 11/22/02 Comm. Serv. Monitor IFR FM/AM 1200S 6593 CAL 5/12/02 5/12/04 Signal Generator HP 8640B 2308A21464 CAL 11/15/01 11/15/03 Modulation Analyzer HP 8901A 3435A06868 CAL 9/5/01 9/5/03 APPLICANT: HOBBICO INC. FCC ID: IYF2CH480-49R REPORT #: T:\H\HOBBICO\1281UT2\Extra\1281UT2 TestReport.doc Page 3 of 5 DEVICE MFGR MODEL SERNO CAL/CHAR DATE DUE DATE or STATUS Near Field Probe HP HP11940A 2650A02748 CHAR 2/1/01 2/1/03 BandReject Filter Lorch Microwave 5BR4-2400/ 60-N Z1 CHAR 3/2/01 3/2/03 BandReject Filter Lorch Microwave 6BR6-2442/ 300-N Z1 CHAR 3/2/01 3/2/03 BandReject Filter Lorch Microwave 5BR4-10525/ 900-S Z1 CHAR 3/2/01 3/2/03 High Pas Filter Microlab HA-10N CHAR 10/4/01 10/4/03 Audio Oscillator HP 653A 832-00260 CHAR 3/1/01 3/1/03 Frequency Counter HP 5382A 1620A03535 CHAR 3/2/01 3/2/03 Frequency Counter HP 5385A 3242A07460 CHAR 12/11/01 12/11/03 Preamplifier HP 8449B-H02 3008A00372 CHAR 3/4/01 3/4/03 Amplifier HP 11975A 2738A01969 CHAR 3/1/01 3/1/03 Egg Timer Unk CHAR 8/31/01 8/31/03 Measuring Tape, 20M Kraftixx 0631-20 CHAR 2/1/02 2/1/04 Measuring Tape, 7.5M Kraftixx 7.5M PROFI 2/1/02 2/1/04 Coaxial Cable #51 Insulated Wire Inc. NPS 2251-2880 Timco #51 CHAR 1/23/02 1/23/04 Coaxial Cable #64 Semflex Inc. 60637 Timco #64 CHAR 1/24/02 1/24/04 Coaxial Cable #65 General Cable Co. E9917 RG233/U Timco #65 CHAR 1/23/02 1/23/04 Coaxial Cable #106 Unknown Unknown Timco #106 CHAR 1/23/02 1/23/04 APPLICANT: HOBBICO INC. FCC ID: IYF2CH480-49R REPORT #: T:\H\HOBBICO\1281UT2\Extra\1281UT2 TestReport.doc Page 4 of 5 TEST PROCEDURE GENERAL: This report shall NOT be reproduced except in full without the written approval of TIMCO ENGINEERING, INC. RADIATION INTERFERENCE: The test procedure used was ANSI STANDARD C63.4-1992 using a HEWLETT PACKARD spectrum analyzer with a prese- lector. The bandwidth of the spectrum analyzer was 100 kHZ with an appropriate sweep speed. The analyzer was calibrated in dB above a microvolt at the output of the antenna. The resolution bandwidth was 100KHZ and the video bandwidth was 300KHZ. The ambient temperature of the UUT was 65ºF with a humidity of 40%. FORMULA OF CONVERSION FACTORS: The Field Strength at 3m was estab- lished by adding the meter reading of the spectrum analy…
