IYF2CH700-4949 MHz R/C TRANSMITTER

PDF created with FinePrint pdfFactory Pro trial version http://www.pdffactory.com

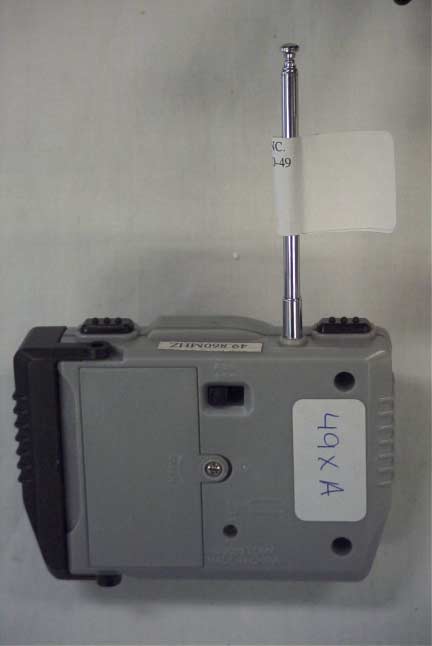

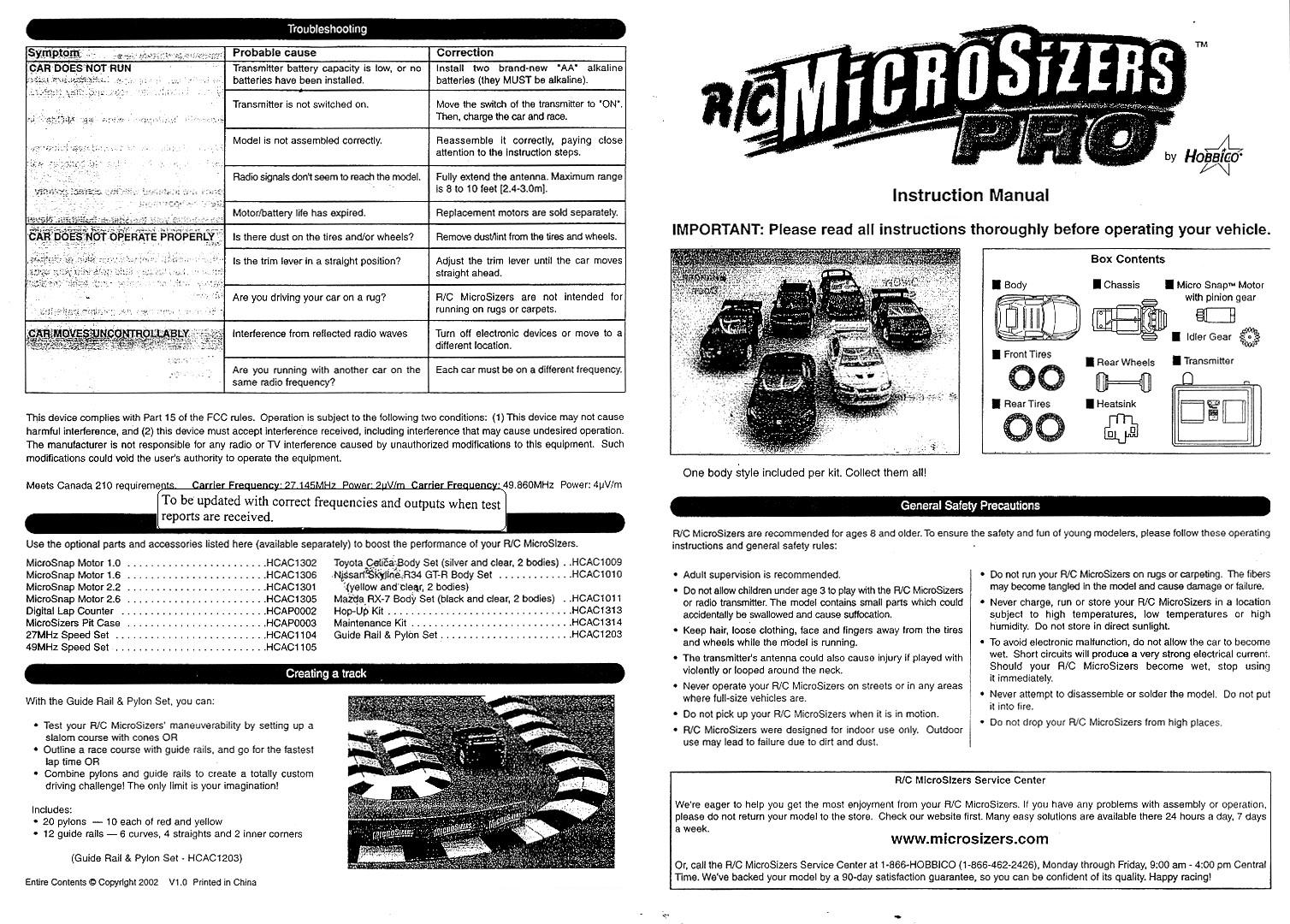

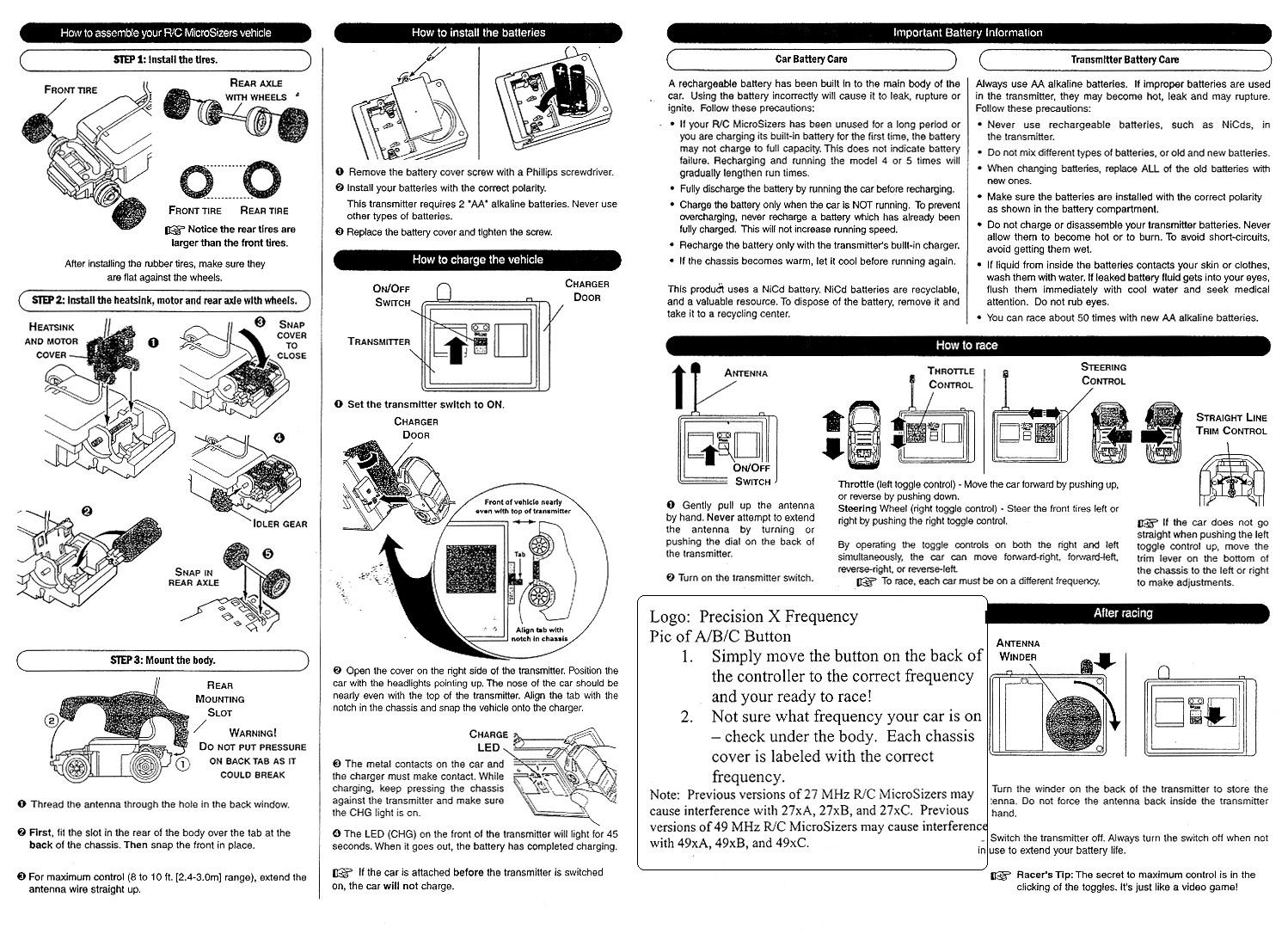

TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: HOBBICO INC. FCC ID: IYF2CH700-49 REPORT #: H\HOBBICO\1198UT3\1198UT3TestReport.doc COVER SHEET Test Report Product Name: 49 MHz R/C TRANSMITTER FCC ID: IYF2CH700-49 Applicant: HOBBICO INC. 2904 RESEARCH ROAD CHAMPAIGN IL 61821 Date Receipt: 8/21/2003 Date Tested: 9/3/2003 TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: HOBBICO INC. FCC ID: IYF2CH700-49 REPORT #: H\HOBBICO\1198UT3\1198UT3TestReport.doc Page 2 of 7 TABLE OF CONTENTS LIST APPLICANT: HOBBICO INC. FCC ID: IYF2CH700-49 TEST REPORT CONTAINING: PAGE 1.............TEST EQUIPMENT LIST PAGE 2.............TEST PROCEDURE PAGE 3.............RADIATION INTERFERENCE TEST DATA PAGE 4.............OCCUPIED BANDWIDTH PAGE 5-7...........OCCUPIED BANDWIDTH PLOTS EXHIBITS CONTAINING: EXHIBIT 1..........BLOCK DIAGRAM EXHIBIT 2..........SCHEMATIC EXHIBIT 3..........INSTRUCTION MANUAL EXHIBIT 4..........SAMPLE OF FCC ID LABEL & LOCATION EXHIBIT 5..........EXTERNAL PHOTOS EXHIBIT 6..........INTERNAL PHOTOS EXHIBIT 7..........CIRCUIT DESCRIPTION EXHIBIT 8..........TEST SET UP PHOTOS TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: HOBBICO INC. FCC ID: IYF2CH700-49 REPORT #: H\HOBBICO\1198UT3\1198UT3TestReport.doc Page 2 of 7 Equipment List Device Manufacturer Model Serial Number Cal/Char Date Due Date 3-Meter OATS TEI N/A N/A Listed 1/13/03 1/13/06 Biconnical Antenna Eaton 94455-1 1057 CAL 3/18/03 3/18/05 Biconnical Antenna Eaton 94455-1 1096 CAL 10/1/01 10/1/03 Biconnical Antenna Electro- Metrics BIA-25 1171 CAL 4/26/01 4/26/03 Blue Tower Quasi-Peak Adapter HP 85650A 2811A01279 CAL 4/15/03 4/15/05 Blue Tower RF Preselector HP 85685A 2926A00983 CAL 4/15/03 4/15/05 Blue Tower Spectrum Analyzer HP 8568B 2928A04729 2848A18049 CAL 4/15/03 4/15/05 LISN Electro- Metrics ANS-25/2 2604 CAL 10/9/01 10/9/03 LISN Electro- Metrics EM-7820 2682 CAL 3/12/03 3/12/05 Log-Periodic Antenna Eaton 96005 1243 CAL 5/8/03 5/8/05 Log-Periodic Antenna Electro- Metrics EM-6950 632 CHAR 10/15/01 10/15/03 Log-Periodic Antenna Electro- Metrics LPA-25 1122 CAL 10/2/01 10/2/03 Log-Periodic Antenna Electro- Metrics LPA-30 409 CAL 3/4/03 3/4/05 Silver Tower Preamplifier HP 8449B 3008A01075 CHAR 1/28/02 1/28/04 Silver Tower Quasi-Peak Adapter HP 85650A 3303A01844 CAL 10/14/02 10/14/04 Silver Tower RF Preselector HP 85685A 2620A00294 CAL 10/14/02 10/14/04 Silver Tower Spectrum Analyzer HP 8566B Opt 462 3552A22064 3638A08608 CAL 10/14/02 10/14/04 Tan Tower Preamplifier HP 8449B-H02 3008A00372 CHAR 3/4/01 3/4/03 Tan Tower Quasi-Peak Adapter HP 85650A 3303A01690 CAL 8/31/01 8/31/03 Tan Tower RF Preselector HP 85685A 3221A01400 CAL 8/31/01 8/31/03 Tan Tower Spectrum Analyzer HP 8566B Opt 462 3138A07786 3144A20661 CAL 8/31/01 8/31/03 3/10-Meter OATS TEI N/A N/A Listed 3/26/01 3/26/04 TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: HOBBICO INC. FCC ID: IYF2CH700-49 REPORT #: H\HOBBICO\1198UT3\1198UT3TestReport.doc Page 2 of 7 TEST PROCEDURE GENERAL: This report shall NOT be reproduced except in full without the written approval of TIMCO ENGINEERING, INC. RADIATION INTERFERENCE: The test procedure used was ANSI STANDARD C63.4-1992 using a HEWLETT PACKARD spectrum analyzer with a preselector. The bandwidth of the spectrum analyzer was 100 kHz with an appropriate sweep speed. The analyzer was calibrated in dB above a microvolt at the output of the antenna. The resolution bandwidth was 100 kHz and the video bandwidth was 300 kHz. The ambient temperature of the UUT was 80ºC with a humidity of 76%. FORMULA OF CONVERSION FACTORS: The Field Strength at 3m was established by adding the meter reading of the spectrum analyzer (which is set to read in units of dBuV) to the antenna correction factor supplied by the antenna manufacturer. The antenna correction factors are stated in terms of dB. The gain of the Preselector was accounted for in the Spectrum Analyzer Meter Reading. Example: Freq (MHz) METER READING + ACF = FS 33 20 dBuV + 10.36 dB = 30.36 dBuV/m @ 3m ANSI STANDARD C63.4-1992 10.1.7 MEASUREMENT PROCEDURES: The unit under test was placed on a table 80 cm high and with dimensions of 1m by 1.5m. The table used for radiated measurements is capable of continuous rotation. When an emission was found, the table was rotated to produce the maximum signal strength. At this point, the antenna was raised and lowered from 1m to 4m. The antenna was placed in both the horizontal and vertical planes. TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: HOBBICO INC. FCC ID: IYF2CH700-49 REPORT #: H\HOBBICO\1198UT3\1198UT3TestReport.doc Page 7 of 7 APPLICANT: HOBBICO INC. FCC ID: IYF2CH700-49 NAME OF TEST: RADIATION INTERFERENCE RULES PART NO.: 15.235 REQUIREMENTS: CARRIER FREQUENCY WILL NOT EXCEEDS 80 dBuV/m AT 3M. OUT-OF-BAND EMISSIONS SHALL NOT EXCEED: 30 - 88 MHz 40.0 dBuV/M MEASURED AT 3 METERS 88 - 216 MHz 43.5 dBuV/M 216 - 960 MHz 46.0 dBuV/M ABOVE 960 MHz 54.0 dBuV/M TEST DATA: Emission Frequency MHz Meter Reading dBuV ANT. POLARITY Coax Loss dB Correction Factor dB Field Strength dBuV/m Margin dB 49.86 43.6 H 0.79 11.63 56.02 23.98 49.86 60.0 V 0.79 11.63 72.42 7.58 99.96 19.6 H 0.80 10.50 30.90 12.60 99.96 22.7 V 0.80 10.50 34.00 9.50 149.67 7.4 H 0.90 15.78 24.08 19.42 149.67 10.4 V 0.90 15.78 27.08 16.42 199.86 7.9 H 1.20 16.76 25.86 17.64 199.86 10.8 V 1.20 16.76 28.76 14.74 249.36 8.3 H 1.40 12.54 22.24 23.76 249.36 12.2 V 1.40 12.54 26.14 19.86 299.22 15.9 H 1.40 14.67 31.97 14.03 299.22 21.5 V 1.40 14.67 37.57 8.43 …
