IYG702XNetlink Wireless Telephone

Draft 3PN 72-1301-00 NetLink 7000 Series Wireless Telephone and Accessories SpectraLink Corporation 2 NetLink 7020 Basic Wireless Telephone < * 2 ABC 1 4 GHI 7 PQRS 3 DEF 0 FCN LINE 6 MNO 9 WXYZ # > 5 JKL 8 TUV Volume Up START FCN Microphone LINE Keypad END Headset Jack Softkeys Nav keys Left/Up Right/Down Volume Down NetLink 7000 Serues Wireless Telephone and Accessories User Guide 3 NetLink 7020 Enhanced Wireless Telephone < * 2 ABC 1 4 GHI 7 PQRS 3 DEF 0 FCN LINE 6 MNO 9 WXYZ # > 5 JKL 8 TUV Volume Up Volume Down START FCN Microphone LINE Keypad END Headset Jack Softkeys NAV Keys Push-to-talk SpectraLink Corporation 4 Trademark Information SpectraLink The SpectraLink logo LinkPlus Link NetLink Are trademarks and registered trademarks of SpectraLink Corporation. All other trademarks used herein are the property of their respective owners. Copyright © 2006 SpectraLink Corporation. All rights reserved Information in this document is subject to change without notice and does not represent a commitment on the part of SpectraLink Corporation. The software described in this document is furnished under a license and/or copyright and may only be used with the terms of SpectraLink’s software license agreement as found in this manual or at http://www.spectralink.com/consumer/resources/software_updates.jsp. The software may be used only in accordance with the terms of the agreement. No part of this manual, or the software described herein, may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying and recording, for any purpose except for the sole intent to operate the product or without the express written permission of SpectraLink Corporation. For regulatory information, please see NetLink Wireless Telephone Regulatory Guide (72-1303-00). Registered Model Numbers This document covers registered handset model: 702X/703X Registered charger models: PCS1850 Registered Battery Pack models: PBP0850, PBP1300, PBP1850 SpectraLink Corporation 5755 Central Avenue Boulder, CO 80301 303 440 5330 800 676 5465 www.spectralink.com Please email questions or comments about this document to [email protected]. NetLink 7000 Serues Wireless Telephone and Accessories User Guide 5 Introduction Your NetLink 7020/7030 Wireless Telephone is a state-of- the-art communication device that utilizes radio wave tech- nology to send and receive voice transmissions. It is designed to operate like a cell phone. However, the handset utilizes the private telephone system installed in your facility and will not operate outside the area covered by this system. About This Guide This guide is meant to provide general information about your handset. Contact your phone system administrator for additional information on how your handset functions within your telephone system. This guide includes informa- tion about: • The Handset •Getting Started • Advanced Features • Handset Accessories •Handset Administration SpectraLink Corporation 6 Table of Contents The Handset ............................................................... 8 Modes of Operation ..............................................................10 Menu Navigation ...................................................................11 Handset Displays ...................................................................12 Status Bar Indicators .............................................................17 Softkey Labels ........................................................................19 Feature Menu .........................................................................22 One Touch Dialing or Speed-dial .......................................22 Phonebook .............................................................................23 Predial ......................................................................................23 Profiles .....................................................................................23 Redial .......................................................................................24 Speakerphone .........................................................................25 Battery Packs ..........................................................................25 About Push-to-talk ................................................................26 Getting Started ........................................................ 32 Charging Your Handset ........................................................33 Basic Handset Operation Summary ..................................33 Redial .......................................................................................38 Phonebook .............................................................................38 Speed-dial ................................................................................41 Indications of Low Battery ..................................................43 Removing and Inserting Battery Packs ..............................44 PTT Operation Summary .....................................................44 Advanced Features ................................................... 47 Text Messaging (OAI) Navigation ......................................49 Advanced Feature Activation ..............................................49 NetLink 7000 Series Wireless Telephone and Accessories User Guide 7 The Standby Menu ................................................................49 Lock Keys ...............................................................................52 User Profiles ...........................................................................53 Phone Settings ........................................................................68 Menu Grid ..............................................................................80 Advanced Telephony Features ............................................82 Handset Accessories ................................................ 84 About Chargers .........................…

Text truncated - open the document above for the full version.

72-1303-00-A-Draft-1.doc 1 NetLink Wireless Telephone System Regulatory Guide PN 72-1303-00 Draft1 72-1303-00-A-Draft-1.doc 2 Trademark Information SpectraLink The SpectraLink logo LinkPlus Net,Link Are trademarks and registered trademarks of SpectraLink Corporation. All other trademarks used herein are the property of their respective owners. Copyright © 2006 SpectraLink Corporation. All rights reserved Information in this document is subject to change without notice and does not represent a commitment on the part of SpectraLink Corporation. The software described in this document is furnished under a license and/or copyright and may only be used with the terms of SpectraLink’s software license agreement as found in this manual or at http://www.spectralink.com/consumer/resources/software_updates.jsp. The software may be used only in accordance with the terms of the agreement. No part of this manual, or the software described herein, may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying and recording, for any purpose except for the sole intent to operate the product or without the express written permission of SpectraLink Corporation. SpectraLink Corporation 5755 Central Avenue Boulder, CO 80301 Within the United States, dial 303 440 5330 or toll free 800 676 5465 Outside the U.S., dial +1 303 440 5330 www.spectralink.com Please email questions or comments about this document to [email protected] 72-1303-00-A-Draft-1.doc 3 Introduction The NetLink 7000 Series Wireless Telephone and the accompanying components are state-of-the-art communication devices that utilizes radio wave technology to send and receive voice transmissions. The handsets are designed to operate like a cell phone. However, the handset utilizes the private telephone system installed in your facility and will not operate outside the area covered by this system. About This Guide This guide is meant to provide regulatory information about NetLink components. Additional documents are available for information about the NetLink components. Registered Model Numbers This document covers registered handset model: 702X/703X Registered system controller models: SVP100, TGA104, TGU104, TGA116, TGU116 Registered charger models: PCS1850, PCD1850, PCQ1850 Registered Battery Pack models: PBP0850, PBP1300, PBP1850 72-1303-00-A-Draft-1.doc 4 Table of Contents Introduction......................................................... 3 About This Guide.....................................................3 Registered Model Numbers ....................................3 European Union Directives Conformance Statement ........................................................................... 5 NetLink Telephony Gateway.................................. 6 FCC Information ......................................................7 Industry Canada (IC) Notice...................................8 SVP Server........................................................... 9 The Gnu General Public License (GPL)...............9 GNU Lesser General Public License (LGPL)....18 NetLink 7000 Series Wireless Telephones .......... 27 FCC Information ....................................................27 Industry Canada (IC) Notice.................................27 International Certifications....................................28 Specific Absorption Rate (SAR) Information ....29 Chargers............................................................ 31 72-1303-00-A-Draft-1.doc 5 European Union Directives Conformance Statement Hereby, SpectraLink Corporation declares that the products in this manual are in compliance with: • EMC Directive 2004/108/EC • LVD Directive 73/23/EEC; 93/68/EEC • R&TTE Directive 1999/5/EEC • Restriction of Hazardous Substances (RoHS) 2002/95/EC • Waste Electrical and Electronic Equipment (WEEE) 2002/96/EC Please visit http://www.spectralink.com/consumer/resources/complia nce.jsp to view the Declaration of Conformity as allowed by the European Commission Interpretation of Directive 1999/5/EC. (See) http://europa.eu.int/comm/enterprise/rtte/tcam5.htm#tca m5. 72-1303-00-A-Draft-1.doc 6 NetLink Telephony Gateway Note concerning the NetLink Telephony Gateway: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. WARNING: Changes or modifications to this equipment not approved by SpectraLink Corporation may cause this equipment to not comply with part 15 of the FCC rules and void the user’s authority to operate this equipment. Note concerning the power adapter The power adapter must have the capacity to connect to the country AC power mains with the proper AC power plug. The power adapter shall have an output voltage of 24V DC +/-5% with a current rating of at least 1.0 Amp and rated at least 33 watts. The DC plug shall adhere to the following dimensions 5.5 x 2.1 x 11mm. The plug length shall be 11mm +/- 1.0mm. The barrel outer diameter shall be 5.5mm +/- 0.1mm. The inner barrel diameter shall be 2.1mm +/-0.1mm and shall be positive in voltage. TUV Rheinland of North America is a Nationally Recognized Testing Laboratory (NRTL) in the United States and is accredited by the Standards Council of Canada to test and certify products to Canadian National Standards. Clients can demonstrate compliance for both U.S. and Canadian markets through a single mark (cTUVus) on their product(s) which denotes co…

Text truncated - open the document above for the full version.

702X External Photos

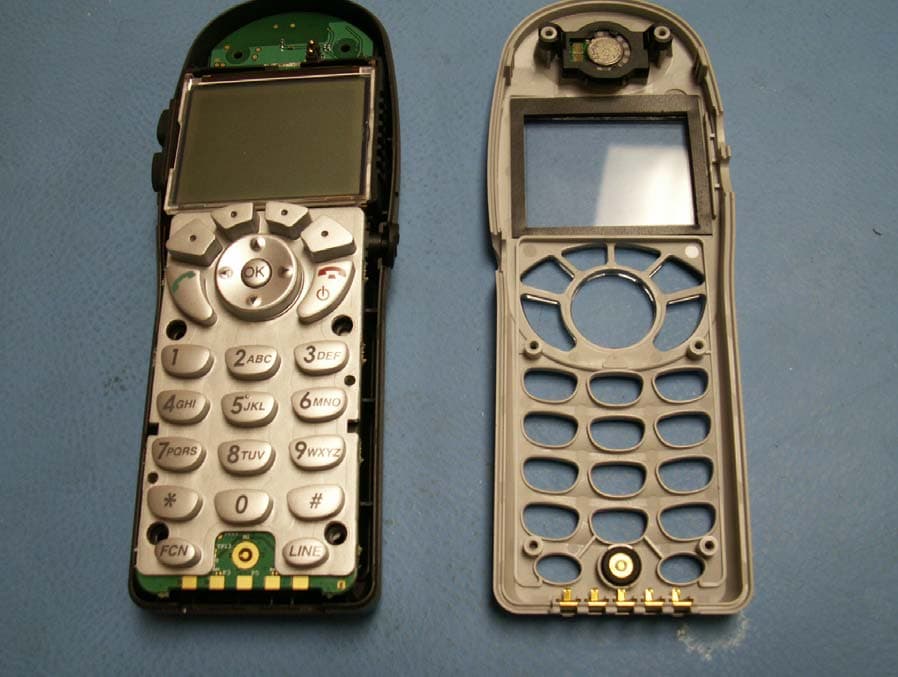

702X Internal Photos

EMCC DR. RAŠEK ™ Industry Canada Declaration of RF Exposure Compliance COMPANY NUMBER: 2128B PRODUCT NAME: NetLink Wireless Telephone MODEL NUMBER: 702X MANUFACTURER: SpectraLink Corporation Device complies with Exemption from Routine Evaluation Yes √ No requirements of RSS-102 clause 2.5 ATTESTATION: I attest that the information provided in the RF Technical Brief Cover Sheet is correct; that an RF Technical Brief was prepared and the information it contains is correct; that the device evaluation was performed or supervised by me; that applicable measurement methods and evaluation methodologies have been followed and the device meets the SAR and/or RF exposure limits of RSS-102. Signature: _____________________________________________ Date: 7/5/2006 NAME: Eric Hong (Please print or type) TITLE: SAR TEST ENGINEER (Please print or type) TESTING LABORATORY: BACL (Please print or type) Note: This form must be completed and provided with the submission. EMCC DR. RAŠEK ™ Industry Canada RF Exposure Technical Brief Cover Sheet COMPANY NUMBER: 2128B PRODUCT NAME: NetLink Wireless Telephone MODEL NUMBER: 702X MANUFACTURER: SpectraLink Corporation TYPE OF EVALUATION: (a) SAR Head (b) SAR Body (c) RF Evaluation Note: The worst-case scenario, i.e. highest measured value obtained, shall be reported. (a) SAR Evaluation: Device used in the Vicinity of the Human Head • Multiple transmitters: Yes No • Evaluated against exposure limits: General Public Use Controlled Use • Duty cycle used in evaluation: 100 % • Standard used for evaluation: FCC 2.1093 & IEEE 1528:2003 • Maximum SAR Value: 802.11b 0.207 mw/g, Measured Computed Calculated • Maximum SAR Value: 802.11g 0.120 mw/g, Measured Computed Calculated • Maximum SAR Value: 802.11a 0.372 mw/g, Measured Computed Calculated (b) SAR Evaluation: Body-worn Device • Multiple transmitters: Yes No • Evaluated against exposure limits: General Public Use Controlled Use • Duty cycle used in evaluation: 100 % • Standard used for evaluation: FCC 2.1093 & IEEE 1528:2003 • Maximum SAR Value: 802.11b 0.164 mw/g, Measured Computed Calculated • Maximum SAR Value: 802.11g 0.078 mw/g, Measured Computed Calculated • Maximum SAR Value: 802.11a 0.385 mw/g, Measured Computed Calculated (c) RF Evaluation: • Evaluated against exposure limits: General Public Use Controlled Use • Duty cycle used in evaluation: _____ % • Standard used for evaluation: • Evaluation distance: _____ Metres • RF Value: _____ V/m A/m W/m 2 Measured Computed Calculated Note (1) All fields must be completed with the requested information or the following codes: N/A for Not Applicable, N/P for Not Performed, N/V for Not Available Note (2) Check appropriate box where applicable.

Note: This test report is specially limited to the above client company and this particular sample only. It may not be duplicated without prior written consent of Bay Area Compliance Laboratory Corporation. This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST or any agency of the U.S. Government. SAR EVALUATION REPORT FCC 2.1093 & IEEE 1528:2003 For SpectraLink Corporation 5755 Central Ave. Boulder, Colorado 80301 MODEL: 702X This Report Concerns: Original Report Product Name: 802.11a/b/g 2.4/5GHz Phone Test Engineer: Eric Hong / Daniel Deng Report No.: R0603233S Report Date: 2006-05-20 Reviewed By: Hans Mellberg Prepared By: Bay Area Compliance Laboratory Corporation (BACL) 1274 Anvilwood Ave. Sunnyvale, CA 94089 Tel: (408) 732-9162 Fax: (408) 732 9164 SpectraLink Corporation MODEL: 702X Report #R0603233S-a.doc SAR Evaluation Report Page 2 of 197 DECLARATION OF COMPLIANCE SAR EVALUATION Rule Part(s): FCC §2.1093 & IEEE 1528:2003 Test Procedure(s): FCC OET Bulletin 65 Supplement C & IEEE 1528 Device Type: 802.11a/b/g Phone Model: 702X Modulation: DSSS (802.11a/b/g) TX Frequency Range: 2412– 2462MHz 5150 – 5250MHZ 5250-5350MHZ 5725-5825MHz Max. Conducted Power Tested: 0.087W Antenna Type(s): Internal Antenna Body-Worn Accessories: Headset 0.164 mW/g (Body-Worn, 802.11b mode); 0.078 mW/g (Body-Worn, 802.11g Mode); 0.385mW/g(Body-Worn, 802.11a Mode);0.207 mW/g (Head, 802.11b mode); 0.120 mW/g (Head, 802.11g mode) ; 0.372 mW/g (Head, 802.11a mode) BACL Corp. declares under its sole responsibility that this wireless portable device has been determined to be in compliance for localized specific absorption rate (SAR) for uncontrolled exposure and general population exposure limits specified in FCC OET Bulletin 65 Supplement C and has been tested in accordance with the measurement procedures specified in ANSI IEEE C95.3:2002 & IEEE 1528. All measurements reported herein were performed under my supervision and believed to be accurate to the best of my knowledge. I further attest for the completeness of these measurements and vouch for the qualifications any and all personnel performing such measurements. The results and statements contained in this report pertain only to the device(s) evaluated. /signature/ Eric Hong Bay Area Compliance Laboratory Corp. SpectraLink Corporation MODEL: 702X Report #R0603233S-a.doc SAR Evaluation Report Page 3 of 197 TABLE OF CONTENTS REFERENCE, STANDARDS, AND GUILDELINES .............................................................................................. 4 SAR LIMITS................................................................................................................................................................ 5 EUT DESCRIPTION.................................................................................................................................................... 6 DESCRIPTION OF TEST SYSTEM.......................................................................................................................... 7 MEASUREMENT SYSTEM DIAGRAM............................................................................................................................. 9 SYSTEM COMPONENTS.............................................................................................................................................. 10 TESTING EQUIPMENT ........................................................................................................................................... 18 EQUIPMENTS LIST & CALIBRATION INFO.................................................................................................................. 18 SAR MEASUREMENT SYSTEM VERIFICATION.............................................................................................. 19 SYSTEM ACCURACY VERIFICATION.......................................................................................................................... 19 EUT TEST STRATEGY AND METHODOLOGY................................................................................................. 21 SAR EVALUATION PROCEDURE................................................................................................................................21 CONCLUSION ........................................................................................................................................................... 22 SAR BODY & HEAD WORST-CASE TEST DATA........................................................................................................ 22 APPENDIX A – MEASUREMENT UNCERTAINTY............................................................................................28 APPENDIX B – PROBE CALIBRATION CERTIFICATES ................................................................................ 30 APPENDIX C – DIPOLE CALIBRATION CERTIFICATES............................................................................... 52 APPENDIX D - TEST SYSTEM VERIFICATIONS SCANS ................................................................................ 72 LIQUID MEASUREMENT RESULT................................................................................................................................72 APPENDIX E - EUT SCANS..................................................................................................................................... 77 APPENDIX F – CONDUCTED OUTPUT POWER MEASUREMENT............................................................. 186 PROVISION APPLICABLE.......................................................................................................................................... 186 TEST PROCEDURE.................................................................................................................................................... 186 TEST EQUIPMENT...........................................................................................................…

Text truncated - open the document above for the full version.

SpectraLink Corporation MODEL: 702X Report #R0603233S-a.doc SAR Evaluation Report Page 41 of 197 SpectraLink Corporation MODEL: 702X Report #R0603233S-a.doc SAR Evaluation Report Page 42 of 197 SpectraLink Corporation MODEL: 702X Report #R0603233S-a.doc SAR Evaluation Report Page 43 of 197 SpectraLink Corporation MODEL: 702X Report #R0603233S-a.doc SAR Evaluation Report Page 44 of 197 SpectraLink Corporation MODEL: 702X Report #R0603233S-a.doc SAR Evaluation Report Page 45 of 197

SpectraLink Corporation MODEL: 702X Report #R0603233S-a.doc SAR Evaluation Report Page 46 of 197 SpectraLink Corporation MODEL: 702X Report #R0603233S-a.doc SAR Evaluation Report Page 47 of 197 SpectraLink Corporation MODEL: 702X Report #R0603233S-a.doc SAR Evaluation Report Page 48 of 197 SpectraLink Corporation MODEL: 702X Report #R0603233S-a.doc SAR Evaluation Report Page 49 of 197

SpectraLink Corporation MODEL: 702X Report #R0603233S-a.doc SAR Evaluation Report Page 50 of 197 Conversion Factor Assessment for EX3DV4 SN: 3576 for 5MHz TSL: Body Frequency ConvF Uncertainty 5180 3.62 5260 3.65 5500 3.74 5800 3.85 ConvF Uncertainty vs Frequency Chat 3.62 3.65 3.74 3.85 3.6 3.65 3.7 3.75 3.8 3.85 3.9 500052005400560058006000 Frequency ConvF Uncertainty SpectraLink Corporation MODEL: 702X Report #R0603233S-a.doc SAR Evaluation Report Page 51 of 197 Conversion Factor Assessment for EX3DV4 SN: 3576 for 5MHz TSL: Head Frequency ConvF Uncertainty 5180 4.24 5260 4.19 5500 4.06 5800 3.89 ConvF Uncertainty vs Frequency Chat 4.2413 4.196 4.06 3.89 3.85 3.9 3.95 4 4.05 4.1 4.15 4.2 4.25 4.3 500052005400560058006000 Frequency ConvF Uncertainty SpectraLink Corporation MODEL: 702X Report #R0603233S-a.doc SAR Evaluation Report Page 52 of 197 APPENDIX C – DIPOLE CALIBRATION CERTIFICATES SpectraLink Corporation MODEL: 702X Report #R0603233S-a.doc SAR Evaluation Report Page 53 of 197 SpectraLink Corporation MODEL: 702X Report #R0603233S-a.doc SAR Evaluation Report Page 54 of 197 SpectraLink Corporation MODEL: 702X Report #R0603233S-a.doc SAR Evaluation Report Page 55 of 197 SpectraLink Corporation MODEL: 702X Report #R0603233S-a.doc SAR Evaluation Report Page 56 of 197 SpectraLink Corporation MODEL: 702X Report #R0603233S-a.doc SAR Evaluation Report Page 57 of 197 SpectraLink Corporation MODEL: 702X Report #R0603233S-a.doc SAR Evaluation Report Page 58 of 197 SpectraLink Corporation MODEL: 702X Report #R0603233S-a.doc SAR Evaluation Report Page 59 of 197 SpectraLink Corporation MODEL: 702X Report #R0603233S-a.doc SAR Evaluation Report Page 60 of 197 SpectraLink Corporation MODEL: 702X Report #R0603233S-a.doc SAR Evaluation Report Page 61 of 197 SpectraLink Corporation MODEL: 702X Report #R0603233S-a.doc SAR Evaluation Report Page 62 of 197 SpectraLink Corporation MODEL: 702X Report #R0603233S-a.doc SAR Evaluation Report Page 63 of 197 SpectraLink Corporation MODEL: 702X Report #R0603233S-a.doc SAR Evaluation Report Page 64 of 197

SpectraLink Corporation MODEL: 702X Report #R0603233S-a.doc SAR Evaluation Report Page 65 of 197 SpectraLink Corporation MODEL: 702X Report #R0603233S-a.doc SAR Evaluation Report Page 66 of 197 SpectraLink Corporation MODEL: 702X Report #R0603233S-a.doc SAR Evaluation Report Page 67 of 197 SpectraLink Corporation MODEL: 702X Report #R0603233S-a.doc SAR Evaluation Report Page 68 of 197 SpectraLink Corporation MODEL: 702X Report #R0603233S-a.doc SAR Evaluation Report Page 69 of 197 SpectraLink Corporation MODEL: 702X Report #R0603233S-a.doc SAR Evaluation Report Page 70 of 197

SpectraLink Corporation MODEL: 702X Report #R0603233S-a.doc SAR Evaluation Report Page 71 of 197 SpectraLink Corporation MODEL: 702X Report #R0603233S-a.doc SAR Evaluation Report Page 72 of 197 APPENDIX D - TEST SYSTEM VERIFICATIONS SCANS Liquid Measurement Result 2006-04-04 & 2006-04-05 Stimulant Freq [MHz] Parameters Liquid Temp [ºC] Target Value Measured Value Deviation [%] Limits [%] ε 22 52.7 53 0.57 ±5 σ 22 1.95 2.01 3.08 ±5 Body 2450 1g SAR 22 56.84 55.1 -3.06 ±10 ε 21 39.2 39.1 -0.26 ±5 σ 21 1.80 1.83 1.67 ±5 Head 2450 1g SAR 21 52.4 49 -6.49 ±10 ε r = relative permittivity, σ = conductivity and ρ=1000kg/m 3 2006-04-05 Stimulant Freq [MHz] Parameters Liquid Temp [ºC] Target Value Measured Value Deviation Limits [%] ε r 22.0 48.2 48.2 0.00 ±5 σ 22.0 6.00 6.05 0.83 ±5 Body 5800 1g SAR 22.0 74.1 75.5 1.89 ±10 ε r 22.0 35.3 36.27 2.75 ±5 σ 22.0 5.27 5.26 -0.19 ±5 Head 5800 1g SAR 22.0 78.0 76.9 -1.41 ±10 ε r = relative permittivity, σ = conductivity and ρ=1000kg/m 3 SpectraLink Corporation MODEL: 702X Report #R0603233S-a.doc SAR Evaluation Report Page 73 of 197 Test Laboratory: Bay Area Compliance Lab Corp.(BACL) System Validation for Body DUT: Dipole 2450 MHz; Type: D2450; Serial: D2450 - SN:123 Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2450 MHz; σ = 2.01 mho/m; ε r = 53; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: • Probe: ET3DV6 - SN1604; ConvF(4.24, 4.24, 4.24); Calibrated: 3/18/2005 • Sensor-Surface: 4mm (Mechanical Surface Detection) • Electronics: DAE3 Sn456; Calibrated: 10/18/2005 • Phantom: SAM with CRP; Type: Twin SAM; Serial: TP-1032 • Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 161 d=10mm, Pin=1W/Area Scan (51x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 86.4 mW/g d=10mm, Pin=1W/Zoom Scan (7x7x7) /Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 185.1 V/m; Power Drift = -0.109 dB Peak SAR (extrapolated) = 144.8 W/kg SAR(1 g) = 55.1 mW/g; SAR(10 g) = 22.2 mW/g Maximum value of SAR (measured) = 63.0 mW/g 0 dB = 63.0mW/g SpectraLink Corporation MODEL: 702X Report #R0603233S-a.doc SAR Evaluation Report Page 74 of 197 Test Laboratory: Bay Area Compliance Lab Corp.(BACL) System Validation for Head DUT: Dipole 2450 MHz; Type: D2450V2; Serial: D2450V2 - SN:xxx Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2450 MHz; σ = 1.83 mho/m; ε r = 39.1; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: • Probe: ET3DV6 - SN1604; ConvF(4.58, 4.58, 4.58); Calibrated: 3/18/2005 • Sensor-Surface: 4mm (Mechanical Surface Detection) • Electronics: DAE3 Sn456; Calibrated: 10/18/2005 • Phantom: SAM with CRP; Type: SAM; Serial: TP-1032 • Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 161 d=10mm, Pin=1W /Area Scan (81x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 55.7 mW/g d=10mm, Pin=1W /Zoom Scan (9x9x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 185.2 V/m; Power Drift = 0.000 dB Peak SAR (extrapolated) = 105.8 W/kg SAR(1 g) = 49 mW/g; SAR(10 g) = 22.5 mW/g Maximum value of SAR (measured) = 55.4 mW/g 0 dB = 55.4mW/g SpectraLink Corporation MODEL: 702X Report #R0603233S-a.doc SAR Evaluation Report Page 75 of 197 Body System Validation DUT: Dipole 5800MHZ; Type: EX3DV4; SN:3576 Communication System: CW; Frequency: 5800MHz;Duty Cycle: 1:1 Medium parameters used: f = 5800 MHz; σ = 6.05 mho/m; ε r = 48.2; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: • Probe: ES3DV2 - SN3019; ConvF(3.85, 3.85, 3.85); Calibrated: 4/20/2006 • Sensor-Surface: 1 mm (Mechanical Surface Detection) • Electronics: DAE3 Sn456; Calibrated: 6/1/2004 • Phantom: SAM with CRP; Type: Twin SAM; Serial: TP-1032 • Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 161 d=15mm, Pin=1W 2/Area Scan (41x41x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 358.3 mW/g d=15mm, Pin=1W 2/Zoom Scan (11x11x11)/Cube 0: Measurement grid: dx=3mm, dy=3mm, dz=2.5mm Reference Value = 33.0 V/m; Power Drift = -0.08 dB Peak SAR (extrapolated) = 352.2 W/kg SAR(1 g) = 75.5 mW/g; SAR(10 g) =21.23 mW/g Maximum value of SAR (measured) = 324.7 mW/g 0 dB = 324.7 mW/g SpectraLink Corporation MODEL: 702X Report #R0603233S-a.doc SAR Evaluation Report Page 76 of 197 Head System Validation DUT: Dipole 5800MHZ; Type: EX3DV4; SN:3576 Communication System: CW; Frequency: 5800 MHz;Duty Cycle: 1:1 Medium parameters used: f = 5800 MHz; σ = 5.26 mho/m; ε r = 47.4; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: • Probe: EX3DV4-SN3576; ConvF(3.89, 3.89, 3.89); Calibrated: 10/9/2003 • Sensor-Surface: 1 mm (Mechanical Surface Detection) • Electronics: DAE3 Sn456; Calibrated: 6/1/2004 • Phantom: SAM with CRP; Type: Twin SAM; Serial: TP-1032 • Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 161 d=15mm, Pin=1W 2/Area Scan (41x41x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 358.3 mW/g d=15mm, Pin=1W 2/Zoom Scan (11x11x11)/Cube 0: Measurement grid: dx=3mm, dy=3mm, dz=2.5mm Reference Value = 314.0 V/m; Power Drift = -0.08 dB Peak SAR (extrapolated) = 341.2 W/kg SAR(1 g) = 76.9 mW/g; SAR(10 g) = 20.8 mW/g Maximum value of SAR (measured) = 338.9 mW/g 0 dB = 338.9mW/g SpectraLink Corporation MODEL: 702X Report #R0603233S-a.doc SAR Evaluation Report Page 77 of 197 APPENDIX E - EUT SCANS Test Laboratory: Bay Area Compliance Lab Corp.(BACL) Body 850mAH-1 DUT: 702X; Type: Sample; Serial: 02-2 Communication System: Spectralink 802.11b; Frequency: 2437 MHz;Duty Cycle: 1:1 Medium parameter…

Text truncated - open the document above for the full version.
