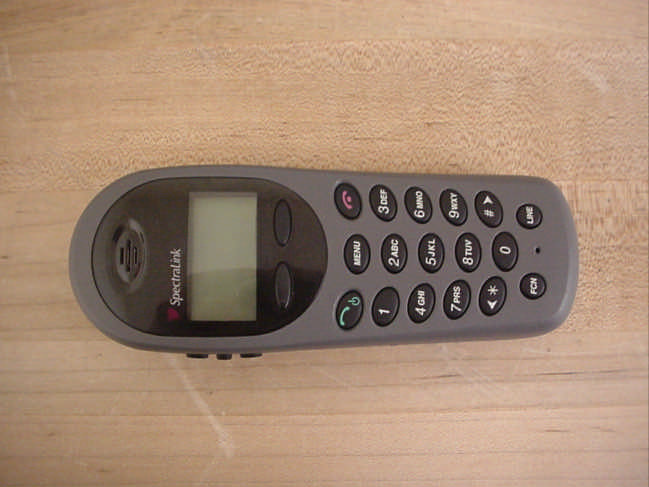

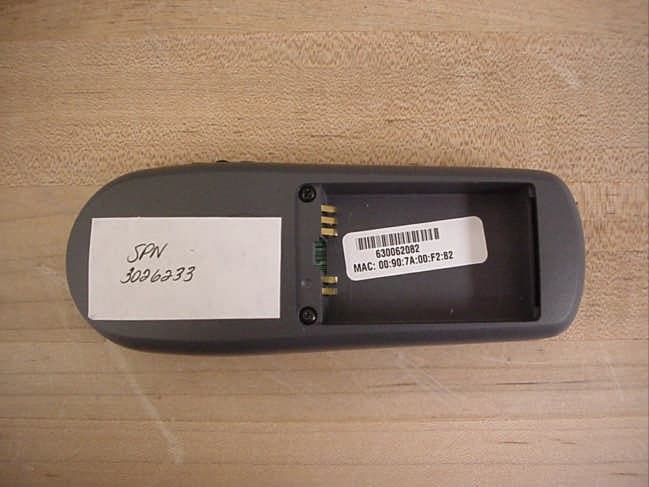

IYGSNP2400802.11 Wireless Telephone Handset

© 2004 SpectraLink CorporationP/N 72-1001-00 Re v. F Model # SNP2400SpectraLink Corporation5755 Central AvenueBoulder, CO 80301303.440.5330 or 800.676.5465www.spectralink.com NNeettLLiinnkk ee334400 WWiirreelleessss TTeelleepphhoonnee INSTRUCTIONS FOR USE Turn onPress and hold Power On/Start Call. Two chirps will sound. When the key is released, the in-service tone sounds. Turn offPress and hold Power Off/End Call. One chirp will sound. If in a call, hang up first, then turn off. Make a call orPress Power On/Start Call. go off hook Select linePress LINEand the number key corresponding to the required line. Dial numberPress number keys. Hang upPress Power Off/End Call. Be sure to do this at the end of each call. Answer callPress Power On/Start Call. Change volumeWhile in a call, press the Upor Downbutton. Silence whilePress the Power Off/End Callkey to silence the ring. ringing Headset answerPress any key (other than Power On/Start Call, Power Off/End Call, or a softkey) to answer a call when a headset is plugged in. *View ShortcutPress MENUwhile off hook to scroll through the Shortcut Menu. Press Upor Down Menu to highlight option, then press Selectto activate the feature. Press any shortcut key at any time while in the Shortcut Menu to activate feature. No shortcut indicates that the feature can only be accessed using a softkey. Press corresponding softkey to activate. To cancel out of Shortcut Menu and return to Main display press MENU. *View softkeyPress FCNwhile off hook to scroll through the softkey functions. Press FCNagain to functions scroll to the next set of options. Repeat as required. Press corresponding softkey to activate feature or press any shortcut key at any time to activate the corresponding feature. User optionsPress FCNwhile on hook to change settings. (* shows current, follow display instructions to set): Ring Type—select: Normal (for an audible ring) Vibrate (vibrates until answered) Vib/Norm (vibrates for 6 seconds, then rings) Current IP address: may not be edited. Extension number: may not be present for some protocols. Additional options may be present. BacklightComes on when any key is pressed. Turns off after ten seconds if no key is pressed. Status/Tone Indicators No serviceAn alarm sounds and a descriptive message displays when the Wireless Telephone message cannot receive or place calls. You may be outside of the covered area. Walk back into the covered area. The in-service tone indicates service is re-established. The battery icon displays and a beep sounds to indicate the Battery Pack charge is low. You have two minutes to change the Battery Pack before losing power. The voicemail icon indicates that you have a new voicemail message. *In certain system environments, the softkeys and the MENU key are unavailable. In such environments, press the FCN key while off hook to scroll through system features. Press the shortcut key to activate the feature. NOTE: •It is recommended that standard acceptance procedures be followed prior to operating this equipment in proximity of life-support systems. •To minimize risk of interference, pacemaker users should not carry the Wireless Telephone next to the pacemaker. •Earpiece may retain magnetic objects. •Operation of the Wireless Telephone may produce an audible noise noticeable to hearing aid users. It is recommended that a hearing aid compatible headset be used by hearing aid users. •This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. BEDIENUNGSANLEITUNG EinschaltenHalten Sie die Taste Power On/Start Callgedrückt. Sie hören zwei Signaltöne. Wenn Sie die Taste loslassen, erklingt der Betriebston. AusschaltenHalten Sie die Taste Power Off/End Callgedrückt. Sie hören einen Signalton. Wenn Sie ein Gespräch führen, beenden Sie dies, bevor Sie das Telefon ausschalten. Telefonieren oderDrücken Sie die Taste Power On/Start Call Hörer abheben LeitungDrücken Sie LINE, und wählen Sie die der gewünschten Leitung entsprechende Zifferntaste. auswählen Nummer wählenDrücken Sie die entsprechenden Zifferntasten. Hörer auflegenDrücken Sie die Taste Power Off/End Call. Achten Sie darauf, diese Taste am Ende jedes Gesprächs zu drücken. AnrufDrücken Sie die Taste Power On/Start Call. entgegennehmen LautstärkeDrücken Sie während eines Gesprächs die Tasten Upoder Down. ändern RuftonDrücken Sie die Taste Power Off/End Call, um den Rufton zu unterdrücken. unterdrücken AnrufannahmeDrücken Sie eine beliebige Taste (außer der Tasten Power On/Start Call, Power Off/End Calloder den mit Headset Softkey-Funktionstasten), um einen Anruf entgegenzunehmen, während ein Headset angeschlossen ist. *Shortcut-MenüHeben Sie den Hörer ab, und drücken Sie MENU, um durch das Shortcut-Menü zu blättern. anzeigen Drücken Sie Upoder Down, um eine Option zu markieren, und dann die Select-Taste, um die Funktion zu aktivieren. Wenn Sie sich im Shortcut-Menü befinden, können Sie jederzeit eine beliebige Shortcut-Taste drücken, um die Funktion zu aktivieren. Wird kein Shortcut angezeigt, bedeutet dies, dass die Funktion nur über eine Softkey-Taste aufgerufen werden kann. Drücken Sie die entsprechende Softkey-Taste, um die Funktion zu aktivieren. Um das Shortcut-Menü zu verlassen und zum Haupt-Display zurückzukehren, drücken Sie MENU. *Funktionen derHeben Sie den Hörer ab, und drücken Sie FCN, um durch die Funktionen der Softkey-Tasten zu blättern. Softkey-Tasten Drücken Sie erneut FCN, um zur nächsten Optionsgruppe zu wechseln. Wiederholen Sie den Vorgang anzeigen nach Bedarf. Drücken Sie die entsprechende Softkey-Taste, um die Funktion zu aktivieren. Sie können auch jederzeit eine beliebige Shortcut-Taste drücken, um die entsprechende Funktion zu aktivieren. Benutzer-Legen Sie den Hörer auf, und drücken Sie FCN, um Einstellungen zu ändern. optione…

Text truncated - open the document above for the full version.

Spectralink Corporation . 5755 Central Avenue . Boulder, CO 80301 Office 303.440.5330 Fax 303.443.1746 www.spectralink.com Letter of Confidentiality May 15, 2003 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with Section 0.549 pertaining to confidential material. SpectraLink, Corporation would like the following documents regarding this submission for FCC ID: IYGSNP2400 to be kept confidential. 1. Block Diagram 2. Schematics 3. Operating description The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, Mark Angliss Quality & Process Engineering SpectraLink Corporation

Page 1 of 2 Page 2 of 2

Catalog No.: PTE100 SpectraLink, Inc. 5755 Central Av., Boulder, CO 80301 Label,SNP, FCC,PTE100 Text size: 3 pt 4 pt Font: Times New Roman TOL: .XXX +/- .010 THK: .005 overall with adhesive MTL: White & Text Black P/N: 84-0474-00 REV 01Page 1 of 1 1.3” .75” Assembled in Mexico MAC: 00:90:7A:00:D6:B6 See User Guide for Product Information SpectraLink Model # SNP2400 FCC ID: IYGSNP2400 CAN: XXXXXXXX examplePTe100lbl.qxd 4/16/03 10:52 AM Page 1

Page 1 of 6 Page 2 of 6 Page 3 of 6 Page 4 of 6 Page 5 of 6 Page 6 of 6

Date/Time: 03/03/03 10:49:04 Test Laboratory: Compliance Certification Services File Name: D2450V2 SN 706_12.9mW.da4 DUT: Dipole Type & Serial Number: D2450V2 SN 706 Program: System Validation - Probe: ET3DV6 SN 1577; Air temp. 24.5 deg C, liquid temp. 22.5 deg C Communication System: CW - 2450 MHz; Frequency: 2450 MHz; Duty Cycle: 1:1 Medium: Head 2450 MHz ( σ = 1.8768 mho/m, ε = 39.15, ρ = 1000 kg/m3) Phantom section: FlatSection DASY4 Configuration: - Probe: ET3DV6 - SN1577; ConvF(5.1, 5.1, 5.1); Calibrated: 2/7/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn427; Calibrated: 2/4/2003 - Phantom: SAM 2 - TP:1050 - Software: DASY4, V4.0 Build 51 Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm Reference Value = 93.4 V/m Peak SAR = 27.4 mW/g SAR(1 g) = 12.9 mW/g; SAR(10 g) = 5.76 mW/g Power Drift = 0.05 dB Area Scan (9x9x1): Measurement grid: dx=10mm, dy=10mm SAR in dB -22.6 -20.4 -18.1 -15.8 -13.6 -11.3 -9.05 -6.79 -4.53 -2.26 0 Date/Time: 03/04/03 10:10:10 Test Laboratory: Compliance Certification Services File Name: D2450V2 SN 706_12.7mW.da4 DUT: Dipole Type & Serial Number: D2450V2 SN 706 Program: System Validation - Probe: ET3DV6 SN 1577; Air temp. 24.5 deg C, liquid temp. 22.5 deg C Communication System: CW - 2450 MHz; Frequency: 2450 MHz; Duty Cycle: 1:1 Medium: Head 2450 MHz ( σ = 1.8836 mho/m, ε = 39.1, ρ = 1000 kg/m3) Phantom section: FlatSection DASY4 Configuration: - Probe: ET3DV6 - SN1577; ConvF(5.1, 5.1, 5.1); Calibrated: 2/7/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn427; Calibrated: 2/4/2003 - Phantom: SAM 2 - TP:1050 - Software: DASY4, V4.0 Build 51 Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm Reference Value = 91.8 V/m Peak SAR = 27.3 mW/g SAR(1 g) = 12.7 mW/g; SAR(10 g) = 5.62 mW/g Power Drift = -0.006 dB Area Scan (9x9x1): Measurement grid: dx=10mm, dy=10mm SAR in dB -23.2 -20.9 -18.6 -16.3 -13.9 -11.6 -9.29 -6.97 -4.65 -2.32 0

Date/Time: 03/03/03 12:06:50 Test Laboratory: Compliance Certification Services File Name: 1L-CH_0.0495mW.da4 EUT Setup Configuration 1 (Left Head) SAR in dB -18.2 -16.2 -14.2 -12.2 -10.1 -8.1 -6.07 -4.05 -2.02 0 Date/Time: 03/03/03 12:06:50 Test Laboratory: Compliance Certification Services File Name: 1L-CH_0.0495mW.da4 DUT: Spectralink Type & Serial Number: SNP2400 Program: Left Head - Touched; Low channel; Air temp. 24.5 deg C, liquid temp. 22.5 deg C Communication System: DSSS; Frequency: 2412 MHz; Duty Cycle: 1:6.17 Medium: Head 2450 MHz ( σ = 1.8768 mho/m, ε = 39.15, ρ = 1000 kg/m3) Phantom section: LeftSection DASY4 Configuration: - Probe: ET3DV6 - SN1577; ConvF(5.1, 5.1, 5.1); Calibrated: 2/7/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn427; Calibrated: 2/4/2003 - Phantom: SAM 2 - TP:1050 - Software: DASY4, V4.0 Build 51 Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm Reference Value = 5.25 V/m Peak SAR = 0.0994 mW/g SAR(1 g) = 0.0495 mW/g; SAR(10 g) = 0.0244 mW/g Power Drift = 0.1 dB Area Scan (14x9x1): Measurement grid: dx=10mm, dy=10mm SAR in dB -18.2 -16.2 -14.2 -12.2 -10.1 -8.1 -6.07 -4.05 -2.02 0 Date/Time: 03/03/03 12:41:02 Test Laboratory: Compliance Certification Services File Name: 2M-CH_0.0256mW.da4 DUT: Spectralink Type & Serial Number: SNP2400 Program: Left Head - Touched; Middle channel; Air temp. 24.5 deg C, liquid temp. 22.5 deg C Communication System: DSSS; Frequency: 2437 MHz; Duty Cycle: 1:6.17 Medium: Head 2450 MHz ( σ = 1.8768 mho/m, ε = 39.15, ρ = 1000 kg/m3) Phantom section: LeftSection DASY4 Configuration: - Probe: ET3DV6 - SN1577; ConvF(5.1, 5.1, 5.1); Calibrated: 2/7/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn427; Calibrated: 2/4/2003 - Phantom: SAM 2 - TP:1050 - Software: DASY4, V4.0 Build 51 Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm Reference Value = 3.98 V/m Peak SAR = 0.0513 mW/g SAR(1 g) = 0.0256 mW/g; SAR(10 g) = 0.0125 mW/g Power Drift = -0.12 dB Area Scan (14x9x1): Measurement grid: dx=10mm, dy=10mm SAR in dB -20.8 -18.7 -16.6 -14.5 -12.5 -10.4 -8.3 -6.23 -4.15 -2.08 0 Date/Time: 03/03/03 13:11:26 Test Laboratory: Compliance Certification Services File Name: 3H-CH_0.0219mW.da4 DUT: Spectralink Type & Serial Number: SNP2400 Program: Left Head - Touched; High channel; Air temp. 24.5 deg C, liquid temp. 22.6deg C Communication System: DSSS; Frequency: 2462 MHz; Duty Cycle: 1:6.17 Medium: Head 2450 MHz ( σ = 1.8768 mho/m, ε = 39.15, ρ = 1000 kg/m3) Phantom section: LeftSection DASY4 Configuration: - Probe: ET3DV6 - SN1577; ConvF(5.1, 5.1, 5.1); Calibrated: 2/7/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn427; Calibrated: 2/4/2003 - Phantom: SAM 2 - TP:1050 - Software: DASY4, V4.0 Build 51 Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm Reference Value = 3.64 V/m Peak SAR = 0.0457 mW/g SAR(1 g) = 0.0219 mW/g; SAR(10 g) = 0.0107 mW/g Power Drift = -0.12 dB Area Scan (14x9x1): Measurement grid: dx=10mm, dy=10mm SAR in dB -19.1 -17 -14.9 -12.7 -10.6 -8.49 -6.37 -4.25 -2.12 0 Date/Time: 03/03/03 13:42:44 Test Laboratory: Compliance Certification Services File Name: 1L-CH_0.0447mW.da4 DUT: Spectralink Type & Serial Number: SNP2400 Program: Left Head - Tilted; Low channel; Air temp. 24.6 deg C, liquid temp. 22.5 deg C Communication System: DSSS; Frequency: 2412 MHz; Duty Cycle: 1:6.17 Medium: Head 2450 MHz ( σ = 1.8768 mho/m, ε = 39.15, ρ = 1000 kg/m3) Phantom section: LeftSection DASY4 Configuration: - Probe: ET3DV6 - SN1577; ConvF(5.1, 5.1, 5.1); Calibrated: 2/7/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn427; Calibrated: 2/4/2003 - Phantom: SAM 2 - TP:1050 - Software: DASY4, V4.0 Build 51 Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm Reference Value = 5.27 V/m Peak SAR = 0.0932 mW/g SAR(1 g) = 0.0447 mW/g; SAR(10 g) = 0.022 mW/g Power Drift = -0.13 dB Area Scan (14x9x1): Measurement grid: dx=10mm, dy=10mm SAR in dB -22.3 -20.1 -17.9 -15.6 -13.4 -11.2 -8.93 -6.7 -4.47 -2.23 0 Date/Time: 03/03/03 14:14:34 Test Laboratory: Compliance Certification Services File Name: 2M-CH_0.0248mW.da4 DUT: Spectralink Type & Serial Number: SNP2400 Program: Left Head - Tilted; Middle channel; Air temp. 24.5 deg C, liquid temp. 22.5 deg C Communication System: DSSS; Frequency: 2437 MHz; Duty Cycle: 1:6.17 Medium: Head 2450 MHz ( σ = 1.8768 mho/m, ε = 39.15, ρ = 1000 kg/m3) Phantom section: LeftSection DASY4 Configuration: - Probe: ET3DV6 - SN1577; ConvF(5.1, 5.1, 5.1); Calibrated: 2/7/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn427; Calibrated: 2/4/2003 - Phantom: SAM 2 - TP:1050 - Software: DASY4, V4.0 Build 51 Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm Reference Value = 3.9 V/m Peak SAR = 0.0532 mW/g SAR(1 g) = 0.0248 mW/g; SAR(10 g) = 0.012 mW/g Power Drift = -0.1 dB Area Scan (14x9x1): Measurement grid: dx=10mm, dy=10mm SAR in dB -22.3 -20.1 -17.9 -15.6 -13.4 -11.2 -8.93 -6.7 -4.46 -2.23 0 Date/Time: 03/03/03 14:47:08 Test Laboratory: Compliance Certification Services File Name: 3H-CH_0.0218mW.da4 DUT: Spectralink Type & Serial Number: SNP2400 Program: Left Head - Tilted; High channel; Air temp. 24.5 deg C, liquid temp. 22.5 deg C Communication System: DSSS; Frequency: 2462 MHz; Duty Cycle: 1:6.17 Medium: Head 2450 MHz ( σ = 1.8768 mho/m, ε = 39.15, ρ = 1000 kg/m3) Phantom section: LeftSection DASY4 Configuration: - Probe: ET3DV6 - SN1577; ConvF(5.1, 5.1, 5.1); Calibrated: 2/7/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn427; Calibrated: 2/4/2003 - Phantom: SAM 2 - TP:1050 - Software: DASY4, V4.0 Build 51 Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm Reference Value = 3.48 V/m Peak SAR = 0.0478 mW/g SAR(1 g) = 0.0218 mW/g; SAR(10 g) = 0.0105 mW/g Power Drift = -0.05 dB Area Scan (14x9x1): Measurement grid: dx=10mm, dy=10mm SAR in dB -21.9 -19.7 -17.6 -15.4 -…

Text truncated - open the document above for the full version.

Spectrum plots to demonstrate the duty cycle that was used during the tests 1740 / 1740 + 9000 = 16.2% (T on) (T off)

in accordance with the requirements of FCC Report and Order: ET Docket 93-62, and OET Bulletin 65 Supplement C for 2.4 GHz Direct Sequence Spread Spectrum Cordless Phone MODEL: SNP2400 FCC ID: IYGSNP2400 March 4, 2003 REPORT NO: 03U1863-1A Prepared for Spectralink Corporation 5755 Central Ave Boulder, CO 80301, USA Prepared by COMPLIANCE CERTIFICATION SERVICES 561F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL: (408) 463-0885 REPORT NO: 03U1863-1A DATE: March 4, 2003 FCC ID: IYGSNP2400 COMPLIANCE CERTIFICATION SERVICES Page: 2 of 25 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. CERTIFICATE OF COMPLIANCE (SAR EVALUATION) DATES OF TEST: March 3 - 4, 2003 REPORT NO: 03U1863-1A APPLICANT: Spectralink Corporation 5755 Central Ave Boulder, CO 80301, USA MODEL: SNP2400 FCC ID: IYGSNP2400 DEVICE CATEGORY: PORTABLE DEVICES EXPOSURE CATEGORY: GENERAL POPULATION/UNCONTROLLED EXPOSURE Test Sample is a: Production unit Modulation type: Direct Sequence Spread Spectrum (DSSS) Operating Mode: Maximum continuous output Tx Frequency: 2401 ~ 2482 MHz Max. O/P Power: 19.20 dBm (Conducted) Max. SAR (1g): 0.0495 W/Kg (at 2412 MHz, Left head - touched position) 0.0309W/Kg (at 2412 MHz, Body worn) Application Type: Certification FCC Rule Part(s): 15.247 This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC OET 65 Supplement C (released on 6/29/2001 see Test Report). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Steve Cheng EMC Engineering Manager REPORT NO: 03U1863-1A DATE: March 4, 2003 FCC ID: IYGSNP2400 COMPLIANCE CERTIFICATION SERVICES Page: 3 of 25 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. TABLE OF CONTENTS 1. EUT DESCRIPTION....................................................................................................4 2. REQUIREMENTS FOR COMPLIANCE TESTING DEFINED BY THE FCC......................5 3. DOSIMETRIC ASSESSMENT SETUP..........................................................................5 3.1. MEASUREMENT SYSTEM DIAGRAM.......................................................................................................6 3.2. SYSTEM COMPONENTS...........................................................................................................................7 4. EVALUATION PROCEDURE.......................................................................................9 5. MEASUREMENT UNCERTAINTY..............................................................................12 6. EXPOSURE LIMIT....................................................................................................13 7. EUT ARRANGEMENT...............................................................................................14 8. MEASUREMENT RESULTS......................................................................................15 8.1. SYSTEM VALIDATION..............................................................................................................................15 8.2. TEST LIQUID CONFIRMATION................................................................................................................16 8.3. EUT TUNE-UP PROCEDURE...................................................................................................................17 8.4. EUT SETUP PHOTOS..............................................................................................................................18 8.5. SAR MEASUREMENT RESULTS.............................................................................................................21 9. EUT PHOTOS...........................................................................................................22 10. EQUIPMENTS LIST & CALIBRATION INFORMATION...............................................23 11. REFERENCES.........................................................................................................24 12. ATTACHMENTS......................................................................................................25 REPORT NO: 03U1863-1A DATE: March 4, 2003 FCC ID: IYGSNP2400 COMPLIANCE CERTIFICATION SERVICES Page: 4 of 25 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 1. EUT DESCRIPTION APPLICANT: Spectralink Corporation 5755 Central Ave Boulder, CO 80301, USA MODEL: SNP2400 FCC ID: IYGSNP2400 DEVICE CATEGORY: PORTABLE DEVICES EXPOSURE CATEGORY: GENERAL POPULATION/UNCONTROLLED EXPOSURE Test Sample is a: Production unit Modulation type: Direct Sequence Spread Spectrum (DSSS) Operating Mode: Maximum continuous output Tx Frequency: 2401 ~ 2482 MHz Max. O/P Power: 19.20 dBm (Conducted) Max. SAR (1g): 0.0495 W/Kg (at 2412 MHz, Left head - touched position) 0.0309W/Kg (at 2412 MHz, Body worn) Application Type: Certification FCC Rule Part(s): 15.247 Antenna type: PCB Trace Battery option: Only one model with EUT 1 Specific Absorption Rate (SAR) is a measure of the rate of energy absorption due to exposure to an RF transmitting source (wi…

Text truncated - open the document above for the full version.

3922 Valley Avenue Suite “B”, Pleasanton California 94566, USA •• Phone: (+1) 925 462 0304 •• Facsimile (+1) 925 462 0306 www.micomlabs.com Thursday, February 26, 2004 Manufacturer SpectraLink, Variant SNP2400 Wireless Telephone Test Report Reference TUVR03a/Rev A (SNP2400) Scaling of RF Power Measurement to SAR Power measurement SAR Scaling Left HeadBody Worn Ch.Freq. (MHz) Max Power RF Report Max Power SAR Report Scaling Factor SAR (W/kg) Scaled SAR (W/Kg) Max SAR of measured or scaled (W/Kg) SAR (W/kg) Scaled SAR (W/Kg) Max SAR of measured or scaled (W/Kg) 1241220.0919.201.2270.0490.0610.0610.03090.03790.0379 6243719.2019.011.0450.0260.0270.0270.01390.01450.0145 11246218.0618.62Not required 0.0220.0220.0220.0990.0990.099

Date: 02/12/2004 From: Mark Angliss To: Tim Dwyer RE: FCC RNP/SNP Power Amplifier Concerns Tim, Transmit Duty Cycle for RNP2400 & SNP2400 This device is used in a voice system where the audio is digitized and broken into packets for transmission in a TDD/TDMA system. The worst case duty cycle will occur for the lowest data rate of 1Mb/sec. The worst case duty cycle will also occur for the shortest audio packet length which is 20msec. After a data packet is received the unit will first send out a short acknowledgement. The acknowledgement packet length is only dependant on the data rage and for 1Mb/sec will be 304usec. This will be followed by the transmit data packet. The length of the transmit data packet is dependant on the audio coding rate, the audio packet length and the data rage. The worst case audio coding rate will be the 64kb/sec. This gives you a transmit packet length of 2080usec. This is then followed by a probe request pack that is 720usec in length. The response to the probe request is ten acknowledged with another 304usec transmit packet. Mark R. Angliss Manager; Quality & Process Engineering SpectraLink Corporation 5755 Central Ave. Boulder, CO 80301 (303) 583-5285 [email protected]

Test of Spectralink SNP2400 Telephone Device To FCC 47 CFR Part 15.247/IC RSS-210 Test Report Serial No.: TUVR03a/REVA TEST REPORT FROM Test of SpectraLink SNP2400 Telephone Device To FCC 47 CFR Part 15.247/IC RSS-210 Test Report Serial No.: TUVR03a/REVA This report supersedes none Remarks: Equipment complied with the specification[X] Equipment did not comply with the specification[ ] This Test Report is issued Under the Authority of: Gordon Hurst President & CEO Copy No: pdf Issue date: 17 th February '03 Equipment Details: Manufacturer:SpectraLink Corporation Type designation: refer to section 2 of test report Serial No’s:refer to section 4 of test report This test report may be reproduced in full only 2106 Title: To: Serial #: Issue Date: Page: Test of SpectraLink SNP2400 Telephone FCC 47 CFR Part 15.247/IC RSS-210 TUVR03a/REVA 17th February '03 2 of 69 This page has been left intentionally blank Title: To: Serial #: Issue Date: Page: Test of SpectraLink SNP2400 Telephone FCC 47 CFR Part 15.247/IC RSS-210 TUVR03a/REVA 17th February '03 3 of 69 CONTENTS 1EXECUTIVE SUMMARY.............................................................................................................................. 5 2TECHNICAL DETAILS................................................................................................................................. 7 3TEST SUMMARY........................................................................................................................................... 8 3.1 L IST OF M EASUREMENTS ............................................................................................................................. 8 3.2 O PERATIONAL M ODE OF EUT ..................................................................................................................... 9 4MEASUREMENTS, EXAMINATIONS AND DERIVED RESULTS...................................................... 10 4.1 G ENERAL OBSERVATIONS .......................................................................................................................... 10 4.2 T EST R ESULTS ........................................................................................................................................... 11 4.2.1 Transmitter characteristics ..............................................................................................................11 5PHOTOGRAPHS........................................................................................................................................... 27 5.1 AC WIRELINE CONDUCTED EMISSION TEST SETUP .................................................................... 27 5.2 RESTRICTED BANDS RADIATION (30MH Z – 1GH Z )........................................................................ 28 6GRAPHICAL RESULTS.............................................................................................................................. 29 7TEST EQUIPMENT...................................................................................................................................... 68 8SUMMARY OF TEST RESULTS................................................................................................................ 69 Title: To: Serial #: Issue Date: Page: Test of SpectraLink SNP2400 Telephone FCC 47 CFR Part 15.247/IC RSS-210 TUVR03a/REVA 17th February '03 4 of 69 This page has been left intentionally blank Title: To: Serial #: Issue Date: Page: Test of SpectraLink SNP2400 Telephone FCC 47 CFR Part 15.247/IC RSS-210 TUVR03a/REVA 17th February '03 5 of 69 1 Executive Summary The purpose of this test program was to demonstrate compliance of the SpectraLink Wireless Telephone against the current USA and Canadian specifications for short-range device certification requirements. The SpectraLink Wireless Telephone demonstrated compliance against the US standard FCC 47 CFR Part 15.247 Subpart C (Intentional Radiator) and Canada’s IC/RSS-210 Low Power License-Exempt Radio Communication Devices (all frequency bands). NetLink Wireless Telephone is designed and manufactured by SpectraLink Corporation, and used for NetLink Wireless Telephone System (WTS) also designed and manufactured by SpectraLink Corporation. The WTS is a fully featured, 802.11-b (DSSS) based wireless telephone system, providing both voice and data communications over a single integrated wireless network at in the 2.4GHz frequency band. NetLink WTS has two components, Wireless Telephones and Telephony Gateways. NetLink Wireless Telephones operate as clients on the WLAN, alongside other mobile 802.11 devices. Wireless LAN fixed radios, called access points (APs), receive IP voice packets from Wireless Telephones and forward them to the NetLink Telephony Gateway over the Ethernet LAN. The NetLink WTS simplifies LAN management and improves the cost-effectiveness of the network. With the NetLink Wireless Telephone, employees will have a phone whenever they need one, wherever they are in the facility. Wireless Telephones work just like a desktop telephone, with all the features and capabilities that employees desire, including: Display capabilities, Multiple line appearances, Host switch features, Message waiting indication, Messaging. The following diagram identifies the NetLink system architecture and its position in a typical voice/data network . Wireless POS Access Point Switched NetLink Gatewa y(s) PBX or Key System Access Point NetLink Wireless Tele phones Title: To: Serial #: Issue Date: Page: Test of SpectraLink SNP2400 Telephone FCC 47 CFR Part 15.247/IC RSS-210 TUVR03a/REVA 17th February '03 6 of 69 Test Configuration The test configuration was a standalone telephone unit. The unit was pre-programmed to be able to set the following configurations: Normal Transmit and Receive Modes: • Mode I: Channel 1 (2,412MHz) Display “Norm, Tx Chan 1”: Low Channel • Mode II: Channel 6 (2,437MHz) Display “Norm, Tx Chan 6”: Mid Channel • Mode III: Channel 11 (2,462MHz) Display “Norm,…
