J5XTP3TXRXAuto-on two -way signaling

Grace Industries, Inc. 305 Bend Hill Road, Fredonia, PA 16124 Ph. 724-962-9231 Fax 724-962-3611 Front View with Accountability Key In Place Safety Certifications Certified to meet the requirements of: NFPA 1982, Standard on Personal Alert Safety Systems (PASS), 1998 edition. Intntrinsically Safe per ANSI/UL-913 for Use in Class I, Div. 1, Groups A, B, C, and D Hazardous Locations. Certified to CAN/CSA Std.C22.2 No. 157-92 Intrinsically Safe, Sécurité Intrinséque. AVERTISEMENT: La Substitution De Composants Peut Compromettre La Sécurité Intrinséque. AVERTISEMENT: Afin De Prévenir L , Inflammation D’ Atmosphéres Dangereuses, NE Changer Les Batteries Que Dans Des Emplacements Désignés Non Dangereux. CAUTION: Changes or modifications not expressly ap- proved by the party responsible for compliance could void the user’s authority to operate this equipment. Warranty Information Grace Industries, Inc. warrants the T PASS 3 Evacuate to be free from defects in workmanship and materials for a period of one year from the date of purchase. This warranty is valid only when the returned T PASS 3 is accompanied by a sales slip or other proof of purchase that states the date and location of purchase. Grace Industries, Inc. will not repair or replace any merchandise under warranty which has been damaged because of accident, mis- use or abuse of the T PASS 3 while in possession or control of the consumer. This warranty is void if any attempt to repair or replace parts was made or attempted by other than qualified Grace Industries, Inc. personnel. This warranty is void if any of the sealed compartments are opened or tampered with. Send all returned merchandise, prepaid and accom- panied by proof of purchase to: Grace Industries, Inc., Repair Division, 305 Bend Hill Road, Fredonia, PA 16124. Grace Industries, Inc. shall not be liable for any direct, incidental or other consequential loss or damage arising out of the failure of the device to operate. The sole and exclusive remedy under all guar- antees or warranties, expressed or implied is strictly limited to repair or replacement as herein provided. ALL IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO, WARRANTIES OF FITNESS AND MERCHANTABILITY, ARE HEREBY LIMITED IN DURATION TO A PERIOD ENDING ONE (1) YEAR FROM THE DATE OF PURCHASE. The war- ranty and liability set forth in the prior paragraphs are in lieu of all other warranties, expressed or im- plied, in law or in fact, including implied warranties of merchantability and fitness for a particular pur- pose. Some states do not allow limitations on how long an implied warranty lasts, so the above limita- tions may not apply to you. This warranty gives you specific legal rights and you may also have other rights which may vary from state to state. The information contained in this booklet is be- lieved to be accurate and reliable. Grace Industries, Inc. provides this information as a guide only. T PASS 3 Evacuate system technical assis- tance is available by contacting Grace Industries, Inc. at 724-962-9231. The TP3 is designed to be automatically activated into the “Sensing Mode” (motion sensing mode) or turned “ON” when removed from the PASS storage po- sition, whether it is a transportation or a fixed storage position. When removed from the storage position, the tether will tighten and the Accountability Storage Key will automatically pop off putting the TP3 into the Sens- ing Mode. At this point, the unit can be “reset” (from the alarm to the sensing mode) but cannot be turned “OFF” until the Accountability Storage Key is replaced and both side buttons pressed simultaneously. The Accountability Storage Key has an adjustable tether for ease of use. The tether can be adjusted from approx. 3' to 6½’ in length. This allows for easy utiliza- tion whether you are anchoring the tether to a transpor- tation position (such as to a seat in a vehicle) or a fixed storage position (such as in the fire station). Account- ability Storage Keys are available with various length tethers to facilitate various operational needs. The 1998 edition of the 1982 NFPA standard on PASS requires all stand alone PASS to automatically activate into the Sensing Mode (motion sensing mode) when removed from a transportation or a fixed storage posi- tion. The intention is to provide a higher level of safety to the Fire Fighter by insuring the PASS is automati- cally turned ON. Grace Industries, Inc. recommends that TP3 be utilized in a manner consistent with the spirit of the 1998 edition of 1982 NFPA Standard on PASS. 1. To "Reset", press both side buttons simultaneously when accountability key is off unit. 2. To turn "Off", replace accountability key and press both side buttons simultaneously. Front view with key in place TO TURN UNIT "ON" REMOVE FROM STORAGE POSITION ( KEY POPS OFF ) . TO TURN UNIT "OFF" REPLACE KEY AND DEPRESS BOTH SIDE BUTTONS SIMULTANEOUSLY. ACCOUNTABILITY KEY Identification window Tether attached to a fixed position An added benefit of the new Grace system is the Ac- countability Storage Key. The clear Identification Win- dow located on the front of the key provides the oppor- tunity for specific identity of the PASS user through the ability to personalize keys with pictures, names, num- bers, dept. ID, bar-codes etc. The clear access window easily snaps into place to protect the enclosed informa- tion and provide instant access for quick ID should the need arise. Information in the Identification Window can easily be changed by partially popping the ID window out with a small, flat blade screwdriver through the ac- cess slot located on the back side of the key. Accountability Storage Key Identification Window Pull Away Tether for “Auto-On” Activation from Storage Positions Plastic window pops out. Remove information and replace with information as desired. Snap window back in place. Snap hook attached to Transportation or Fixed Storage Position. Pull turnout gear away, the Tether tightens and pulls the Accountab…

Text truncated - open the document above for the full version.

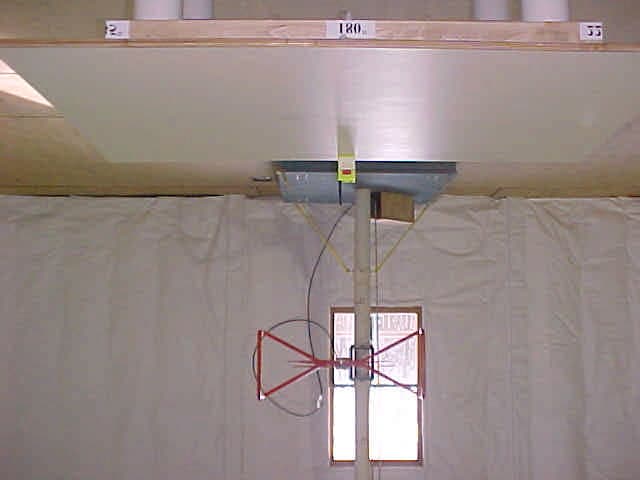

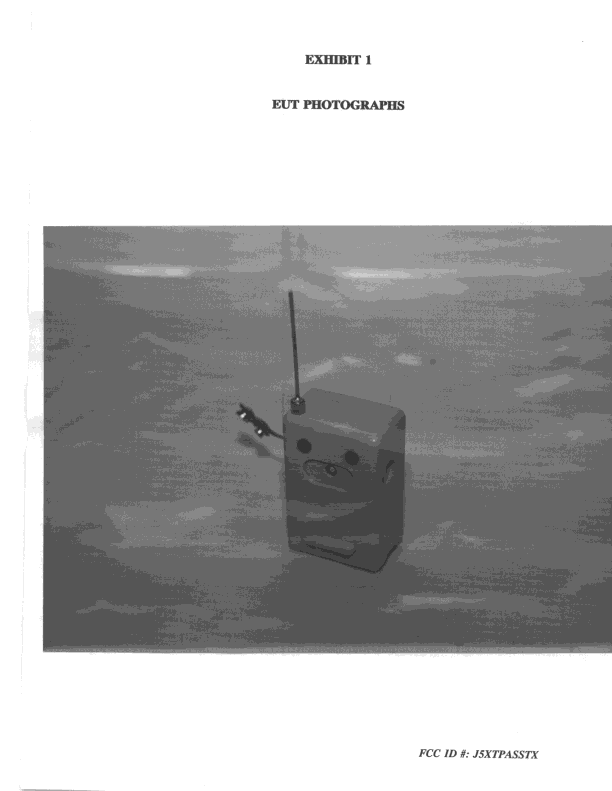

Client: Grace Industries, Inc. FCCID: J5XTP3TXRX Model: TPASS-3 Date: January 24, 2003 RADIATED TEST – Front view Client: Grace Industries, Inc. FCCID: J5XTP3TXRX Model: TPASS-3 Date: January 24, 2003 RADIATED TEST – Back view Client: Grace Industries, Inc. FCCID: J5XTP3TXRX Model: TPASS-3 Date: January 24, 2003 PHOTOGRAPH OF EUT - Front view Client: Grace Industries, Inc. FCCID: J5XTP3TXRX Model: TPASS-3 Date: January 24, 2003 PHOTOGRAPH OF EUT - Back view with 9VDC battery Client: Grace Industries, Inc. FCCID: J5XTP3TXRX Model: TPASS-3 Date: January 24, 2003 PHOTOGRAPH OF EUT – Antenna whole view

FCC ID: J5XTP3TXRX GRACE INDUSTRIES, INC., FREDONIA, PA 16124 THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: ( 1 ) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND ( 2 ) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. MADE IN USA REPLACE BATTERY WITH  DURACELL MN1604, 9 VOLT  ALKALINE BATTERY. WARNING: TO REDUCE THE RISK  OF IGNITION OF A FLAMMABLE  ATMOSPHERE, BATTERIES MUST  ONLY BE CHANGED IN AN AREA KNOWN TO BE NONFLAMMABLE INTRINSICALLY SAFE PER  ANSI/UL 913. FOR USE IN CLASS  I, DIV. 1, GROUPS A, B, C AND D  HAZARDOUS LOCATIONS CERTIFIED TO CAN/CSA STD.  C22.2 NO. 157-92 US C Intrinsic  Safety Label FCC Label Inside Back Cover View FCC ID: J5XTP3TXRX GRACE INDUSTRIES, INC., FREDONIA, PA 16124 THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: ( 1 ) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND ( 2 ) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. MADE IN USA FCC ID: J5XTP3TXRX GRACE INDUSTRIES, INC., FREDONIA, PA 16124 THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: ( 1 ) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND ( 2 ) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. MADE IN USA .75 1.25 200% OF PRINT SIZE 100% Print Size T PASS 3 Back Label Material.  1. .100 White Mylar Permanent Adhesive.  2. .001 Clear Mylar Overlay

Client: Grace Industries, Inc. FCCID: J5XTP3TXRX Model: TPASS-3 Date: January 24, 2003 PHOTOGRAPH OF EUT – Main board soldering side view Client: Grace Industries, Inc. FCCID: J5XTP3TXRX Model: TPASS-3 Date: January 24, 2003 PHOTOGRAPH OF EUT – Main board component side view Client: Grace Industries, Inc. FCCID: J5XTP3TXRX Model: TPASS-3 Date: January 24, 2003 PHOTOGRAPH OF EUT – Main board component side view

Grace Industries, Inc. 305 Bend Hill Road, Fredonia, PA 16124 Ph. 724-962-9231 Fax 724-962-3611 Front View with Accountability Key In Place Safety Certifications Certified to meet the requirements of: NFPA 1982, Standard on Personal Alert Safety Systems (PASS), 1998 edition. Intntrinsically Safe per ANSI/UL-913 for Use in Class I, Div. 1, Groups A, B, C, and D Hazardous Locations. Certified to CAN/CSA Std.C22.2 No. 157-92 Intrinsically Safe, Sécurité Intrinséque. AVERTISEMENT: La Substitution De Composants Peut Compromettre La Sécurité Intrinséque. AVERTISEMENT: Afin De Prévenir L , Inflammation D’ Atmosphéres Dangereuses, NE Changer Les Batteries Que Dans Des Emplacements Désignés Non Dangereux. Warranty Information Grace Industries, Inc. warrants the T PASS 3 Evacuate to be free from defects in workmanship and materials for a period of one year from the date of purchase. This warranty is valid only when the returned T PASS 3 is accompanied by a sales slip or other proof of purchase that states the date and location of purchase. Grace Industries, Inc. will not repair or replace any merchandise under warranty which has been damaged because of accident, mis- use or abuse of the T PASS 3 while in possession or control of the consumer. This warranty is void if any attempt to repair or replace parts was made or attempted by other than qualified Grace Industries, Inc. personnel. This warranty is void if any of the sealed compartments are opened or tampered with. Send all returned merchandise, prepaid and accom- panied by proof of purchase to: Grace Industries, Inc., Repair Division, 305 Bend Hill Road, Fredonia, PA 16124. Grace Industries, Inc. shall not be liable for any direct, incidental or other consequential loss or damage arising out of the failure of the device to operate. The sole and exclusive remedy under all guar- antees or warranties, expressed or implied is strictly limited to repair or replacement as herein provided. ALL IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO, WARRANTIES OF FITNESS AND MERCHANTABILITY, ARE HEREBY LIMITED IN DURATION TO A PERIOD ENDING ONE (1) YEAR FROM THE DATE OF PURCHASE. The war- ranty and liability set forth in the prior paragraphs are in lieu of all other warranties, expressed or im- plied, in law or in fact, including implied warranties of merchantability and fitness for a particular pur- pose. Some states do not allow limitations on how long an implied warranty lasts, so the above limita- tions may not apply to you. This warranty gives you specific legal rights and you may also have other rights which may vary from state to state. The information contained in this booklet is be- lieved to be accurate and reliable. Grace Industries, Inc. provides this information as a guide only. T PASS 3 Evacuate system technical assis- tance is available by contacting Grace Industries, Inc. at 724-962-9231. The TP3 is designed to be automatically activated into the “Sensing Mode” (motion sensing mode) or turned “ON” when removed from the PASS storage po- sition, whether it is a transportation or a fixed storage position. When removed from the storage position, the tether will tighten and the Accountability Storage Key will automatically pop off putting the TP3 into the Sens- ing Mode. At this point, the unit can be “reset” (from the alarm to the sensing mode) but cannot be turned “OFF” until the Accountability Storage Key is replaced and both side buttons pressed simultaneously. The Accountability Storage Key has an adjustable tether for ease of use. The tether can be adjusted from approx. 3' to 6½’ in length. This allows for easy utiliza- tion whether you are anchoring the tether to a transpor- tation position (such as to a seat in a vehicle) or a fixed storage position (such as in the fire station). Account- ability Storage Keys are available with various length tethers to facilitate various operational needs. The 1998 edition of the 1982 NFPA standard on PASS requires all stand alone PASS to automatically activate into the Sensing Mode (motion sensing mode) when removed from a transportation or a fixed storage posi- tion. The intention is to provide a higher level of safety to the Fire Fighter by insuring the PASS is automati- cally turned ON. Grace Industries, Inc. recommends that TP3 be utilized in a manner consistent with the spirit of the 1998 edition of 1982 NFPA Standard on PASS. 1. To "Reset", press both side buttons simultaneously when accountability key is off unit. 2. To turn "Off", replace accountability key and press both side buttons simultaneously. Front view with key in place TO TURN UNIT "ON" REMOVE FROM STORAGE POSITION ( KEY POPS OFF ) . TO TURN UNIT "OFF" REPLACE KEY AND DEPRESS BOTH SIDE BUTTONS SIMULTANEOUSLY. ACCOUNTABILITY KEY Identification window Tether attached to a fixed position An added benefit of the new Grace system is the Ac- countability Storage Key. The clear Identification Win- dow located on the front of the key provides the oppor- tunity for specific identity of the PASS user through the ability to personalize keys with pictures, names, num- bers, dept. ID, bar-codes etc. The clear access window easily snaps into place to protect the enclosed informa- tion and provide instant access for quick ID should the need arise. Information in the Identification Window can easily be changed by partially popping the ID window out with a small, flat blade screwdriver through the ac- cess slot located on the back side of the key. Accountability Storage Key Identification Window Pull Away Tether for “Auto-On” Activation from Storage Positions Plastic window pops out. Remove information and replace with information as desired. Snap window back in place. Snap hook attached to Transportation or Fixed Storage Position. Pull turnout gear away, the Tether tightens and pulls the Accountability Key off the PASS. This will automatically activate the PASS into the Sensing Mode. PASS attached to turnout gear Snap Hook Bottom compliance label MADE …

Text truncated - open the document above for the full version.

Manufacturer: Testing Facility: Grace Industries, Inc. F-Squared Laboratories P.O. Box 167 10880 Moxley Road Transfer, PA 16154 Damascus, MD 20872 The PASS, model TPASS-3, has been tested and found to comply with the requirements of the Federal Communications Commission outlined in the Federal Register CFR 47, Part 15 subpart C. The product was received on August 16, 2002 and the testing was completed on January 22, 2003 This report shall not be duplicated except in full without the written approval of F-Squared Laboratories. EMC006 Rev. 0 Page 1 of 15 Certification Test Report For PASS Unit F-Squared Laboratories 9890 Main Street Damascus, MD 20872 (301) 253-4500 Fax (301) 253-5179 Client: Grace Industries, Inc. Report #: 02150-02-05E FCCID: J5XTP3TXRX Date: February 14, 2003 Model: TPASS-3 EMC006 Rev. 0 Page 2 of 15 Table of Contents Exhibit Title Page Cover Page Table of Contents I Engineering Statement 3 II Measurement Instrument List 5 III EUT Information 6 IV EUT Configuration 8 V 20 dB Bandwidth Measurement 9 VI Radiated Emissions Data 12 VII Modifications 15 Client: Grace Industries, Inc. Report #: 02150-02-05E FCCID: J5XTP3TXRX Date: February 14, 2003 Model: TPASS-3 EMC006 Rev. 0 Page 3 of 15 Exhibit I Engineering Statement This report has been prepared on behalf of Grace Industries, Inc. to provide documentation for the testing described herein. This equipment has been tested and found to comply with Part 15 subpart C of the FCC Rules, using ANSI C63.4 1992 standards. The test results found in this report relate only to the items tested. EQUIPMENT UNDER TEST: PASS Unit Trade Name: Grace Industries, Inc. FCC ID: J5XTP3TXRX Model #: TPASS-3 Power Supply: 9VDC Battery APPLICABLE RULES: CFR 47 Part 15 EQUIPMENT CATEGORY: PASS Unit MEASUREMENT LOCATION: F-Squared Laboratories in Damascus, MD. Site description and attenuation data are on file with the FCC’s Sampling and Measurement Branch at the FCC Laboratory in Columbia, MD. MEASUREMENT PROCEDURE: All measurements were performed according tot he 1992 version of ANSI C63.4. A list of the measurement equipment can be found in Exhibit II. A2LA STATEMENT: This laboratory is accredited by the American Association for Laboratory Accreditation (A2LA) and the results shown in this test report have been determined in accordance with the laboratory’s terms of accreditation unless stated otherwise in the report. A2LA CERTIFICATE NUMBER: 793.01 Client: Grace Industries, Inc. Report #: 02150-02-05E FCCID: J5XTP3TXRX Date: February 14, 2003 Model: TPASS-3 EMC006 Rev. 0 Page 4 of 15 UNCERTAINTY BUDGET: • Radiated Emission Combined Uncertainty (+ or -) 2.24 dB Expanded Uncertainty (+ or -) 4.48 dB • Conducted Emission Combined Uncertainty (+ or -) 1.13 dB Expanded Uncertainty (+ or -) 2.26 dB ENGINEERING STATEMENT: I hereby state that: The measurements shown in this application were made in accordance with the procedures indicated and the energy emitted by this equipment was found to be within the limits. I assume full responsibility for the accuracy and completeness of these measurements. I further state that: On the basis of the measurements made, the equipment tested is capable of operation in accordance with the requirements of Part 15 of the FCC Rules under normal use and maintenance. Client: Grace Industries, Inc. Report #: 02150-02-05E FCCID: J5XTP3TXRX Date: February 14, 2003 Model: TPASS-3 EMC006 Rev. 0 Page 5 of 15 Exhibit II List of Measurement Instrumentation Equipment Type Manufacturer Model # Serial # Calibration Due Date Receiver System Rohde & Schwarz ESMI DE23119 2/19/2003 Combination Antenna Sunol BJ1 A101101 12/5/2003 Horn Antenna ARA DRG-188/A 1105 2/5/2003 Antenna Mast Compliance Design, Inc. M100 NA NA Amplifier HP 83006A 3104A00500 9/3/2003 Turntable F-Squared Laboratories Site 1 NA NA Spectrum Analyzer HP 8391A 3149A07546 2/19/2003 Client: Grace Industries, Inc. Report #: 02150-02-05E FCCID: J5XTP3TXRX Date: February 14, 2003 Model: TPASS-3 EMC006 Rev. 0 Page 6 of 15 Exhibit III Equipment Under Test Information and Data TEST ITEM CONDITION: The equipment to be tested was received in good condition. TESTING ALGORITHM: The EUT powered on up and pressed both side buttons to make the EUT continuous to transmit during the test. The fundamental emissions, harmonic emissions and any spurious emissions within 20dB of the limit are recorded in the data tables. RADIATED EMISSION TESTING: The EUT was tested at a distance of 3 meters. The emissions were maximized by rotating the table and raising/lowering the antenna mounted on a 4 meter mast. Both horizontal and vertical field components were measured. The output of the antenna was connected through a pre-amplifier, to the input of the receiver and emissions were measured in the range 30MHz to 1GHz. The values up to 1GHz with a resolution bandwidth of 120KHz are quasi-peak reading made at 3 meters. The measurements above 1GHz with a resolution bandwidth of 1MHz are peak reading at a distance of 3 meters. Emission limits from 15.249 were used for harmonic and fundamental emissions, 15.205 for spurious emissions. All data for radiated emissions is found in Exhibit VI. CALCULATION OF DATA: RADIATED EMISSIONS – The antenna factors (included cable losses) of the biconical antennas used, and the pre- amplifier gain, are input into the memory of the receiver. The receiver then corrects the reading for amplitude automatically. The field strength reading can then be taken directly from the receiver and compared to the FCC limits in dBuV/m. The following equation is used to convert to uV/m: E uV/m = antilog( E dBuV/m /20 ) Client: Grace Industries, Inc. Report #: 02150-02-05E FCCID: J5XTP3TXRX Date: February 14, 2003 Model: TPASS-3 EMC006 Rev. 0 Page 7 of 15 SAMPLE OF FIELD STRENGTH CALCULATION: Ea=Va + AF + Ae + (-AG) Where Ea = Field Strength(dBuV/m) Va = 20 x log10 (measure RF voltage, uV) Ae = Cable Loss Factor, dB AG = Amplifier Gain, dB AF = Antenna Factor dB(m-1) i.e. if the reading is 5…

Text truncated - open the document above for the full version.

Client: Grace Industries, Inc. FCCID: J5XTP3TXRX Model: TPASS-3 Date: January 24, 2003 Page 1 of 2 EUT test on X position EUT test on Y position Client: Grace Industries, Inc. FCCID: J5XTP3TXRX Model: TPASS-3 Date: January 24, 2003 Page 2 of 2 EUT test on Z position
